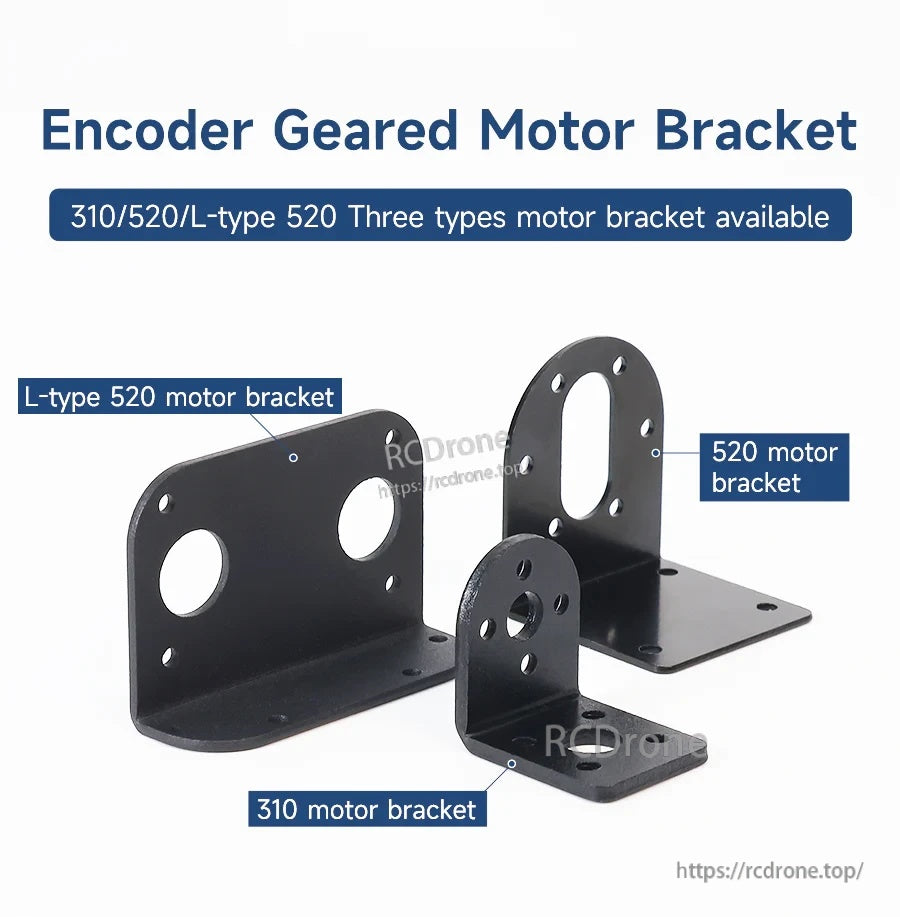

  • Yahboom 310/520/L-type 520 encoder geared motor brackets kit, three aluminum alloy mounts
  • Installation schematic showing 520, 310, and L-type 520 encoder geared motor mounts on robot car chassis
  • Feature overview for Yahboom 520/310 motor brackets showing material, design, and multi-scenario use

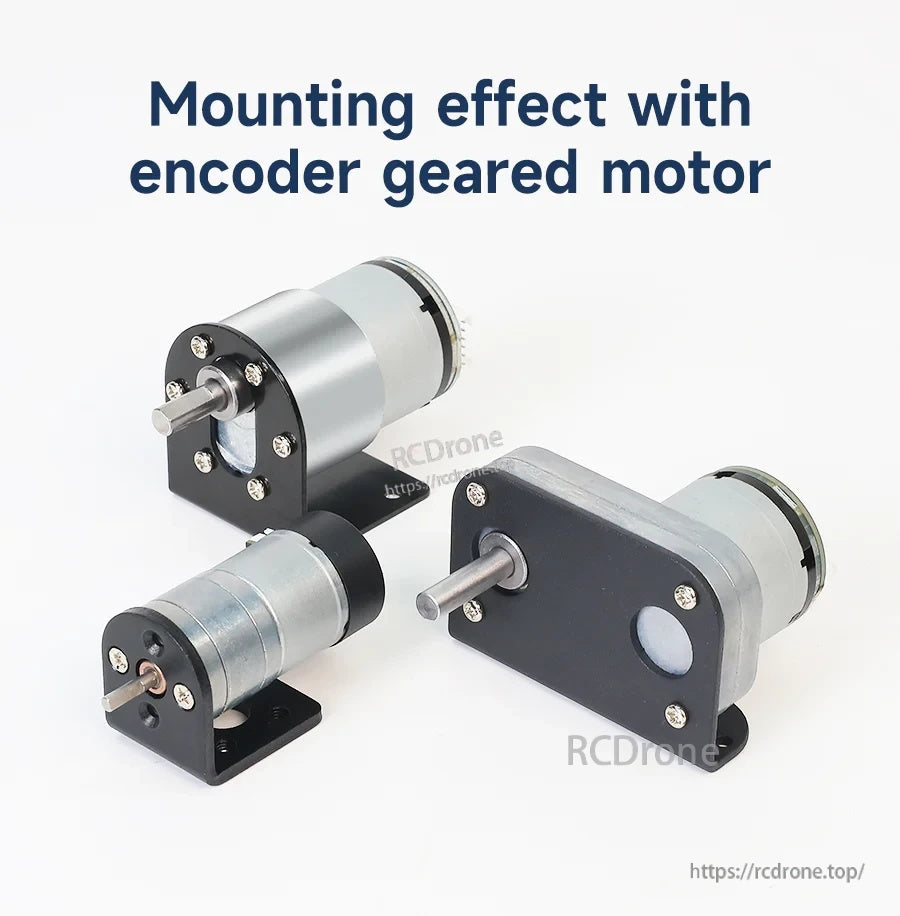

  • Encoder geared motors shown installed on the mounting brackets, angled view of three motor setups
  • L-type 520 motor bracket with included mounting screws, black aluminum plate with two round cutouts
  • 520 motor bracket with hardware set, black L bracket with oval slot plus screws and M3 nuts
  • 310 motor bracket with screws, compact L mount with center hole and blue thread-lock bolts
  • Close-up of 310 motor bracket, black aluminum L mount with multiple mounting holes
  • Close-up of 520 motor bracket, black L mount with tall plate and elongated oval slot
  • Close-up of L-type 520 motor bracket plate, black mount with two large circular openings
1 11

Yahboom 310/520/L-Type 520 Encoder Geared Motor Brackets Kit, Aluminum Alloy Mounts for Robot Car Chassis

Yahboom 310/520/L-Type 520 Encoder Geared Motor Brackets Kit, Aluminum Alloy Mounts for Robot Car Chassis

Yahboom

$6.08 USD
$6.08 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
Option
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

Yahboom Geared Encoder Motor Brackets are motor brackets designed for mounting encoder geared motors to robot car chassis and DIY robotics structures. Three bracket types are available for 310 motors, 520 motors, and L-type 520 motors. The brackets use high-strength aluminum alloy with precision processing to help improve mounting stability and durability.

Key Features

  • Multi-model adaptation: bracket types for 310, 520, and L-type 520 encoder geared motors.
  • Aluminum alloy construction: lightweight and durable; intended for corrosion and wear resistance.
  • Precision processing: designed for a close fit to reduce vibration and noise.
  • Fast installation: screws (and nuts where applicable) are included for mounting.

Specifications

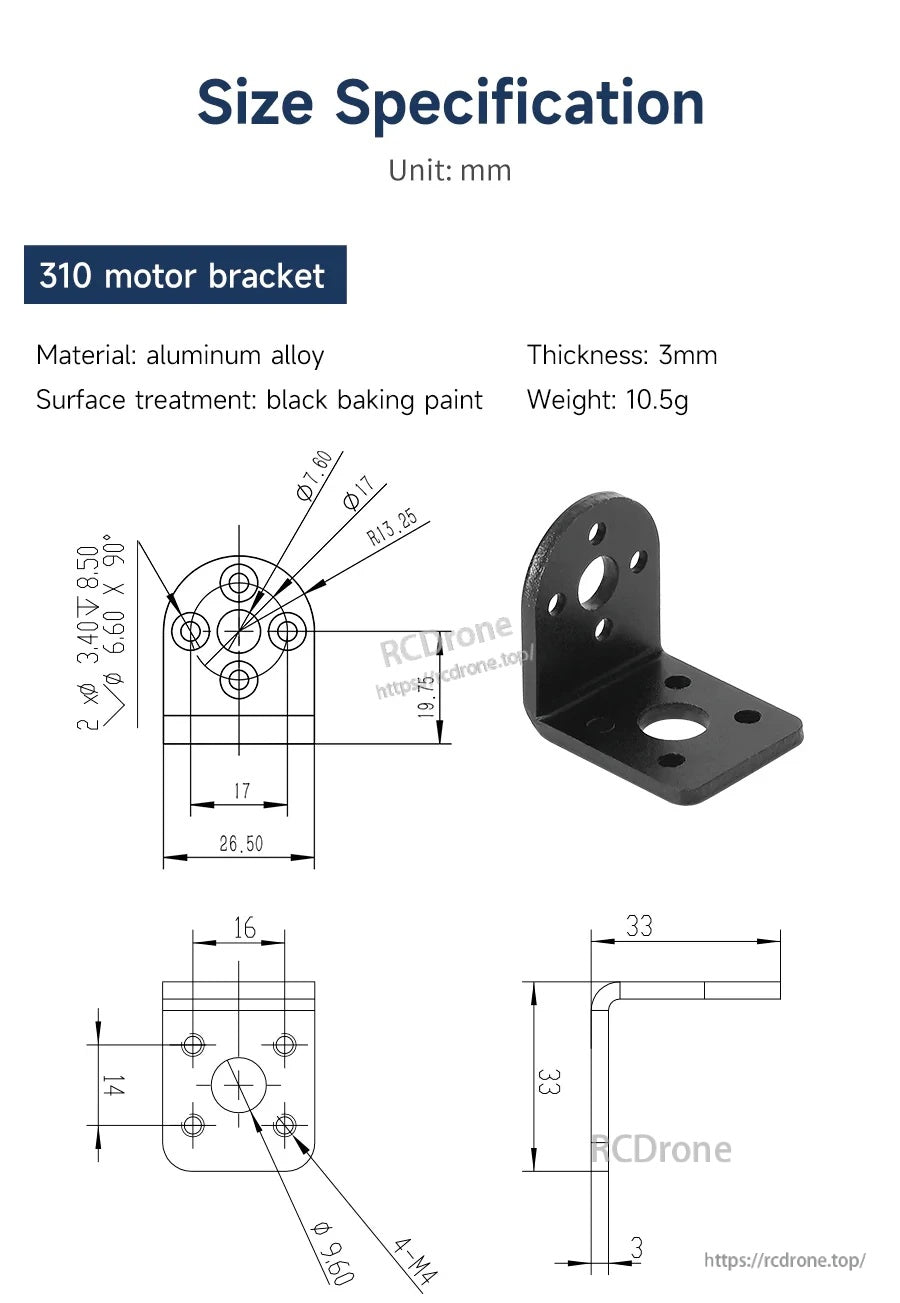

310 Motor Bracket (Unit: mm)

Material Aluminum alloy
Surface treatment Black baking paint
Thickness 3 mm
Weight 10.5 g
Key drawing dimensions 33, 26.50, 19.75, 17, 16, 14; Ø11, Ø9.50, Ø7.60; R13.25; 4-M4

What's Included

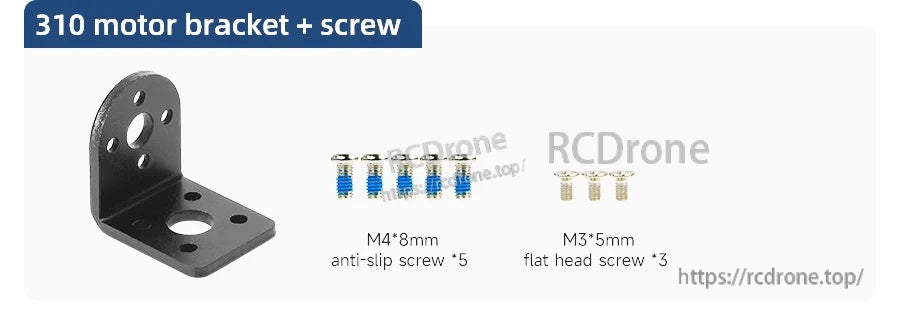

  • 310 motor bracket + screw: M4*8mm anti-slip screw *5; M3*5mm flat head screw *3

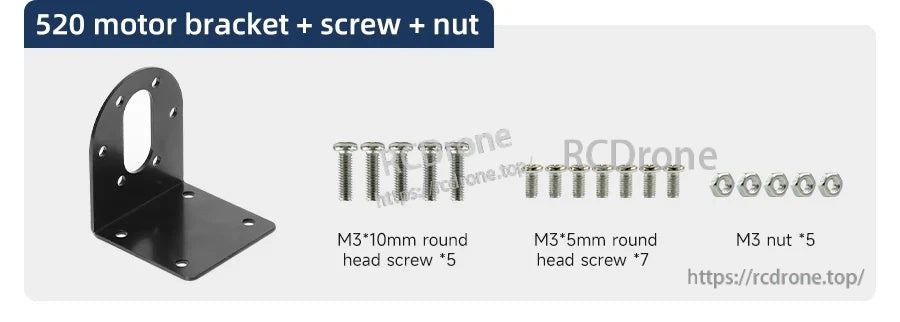

  • 520 motor bracket + screw + nut: M3*10mm round head screw *5; M3*5mm round head screw *7; M3 nut *5

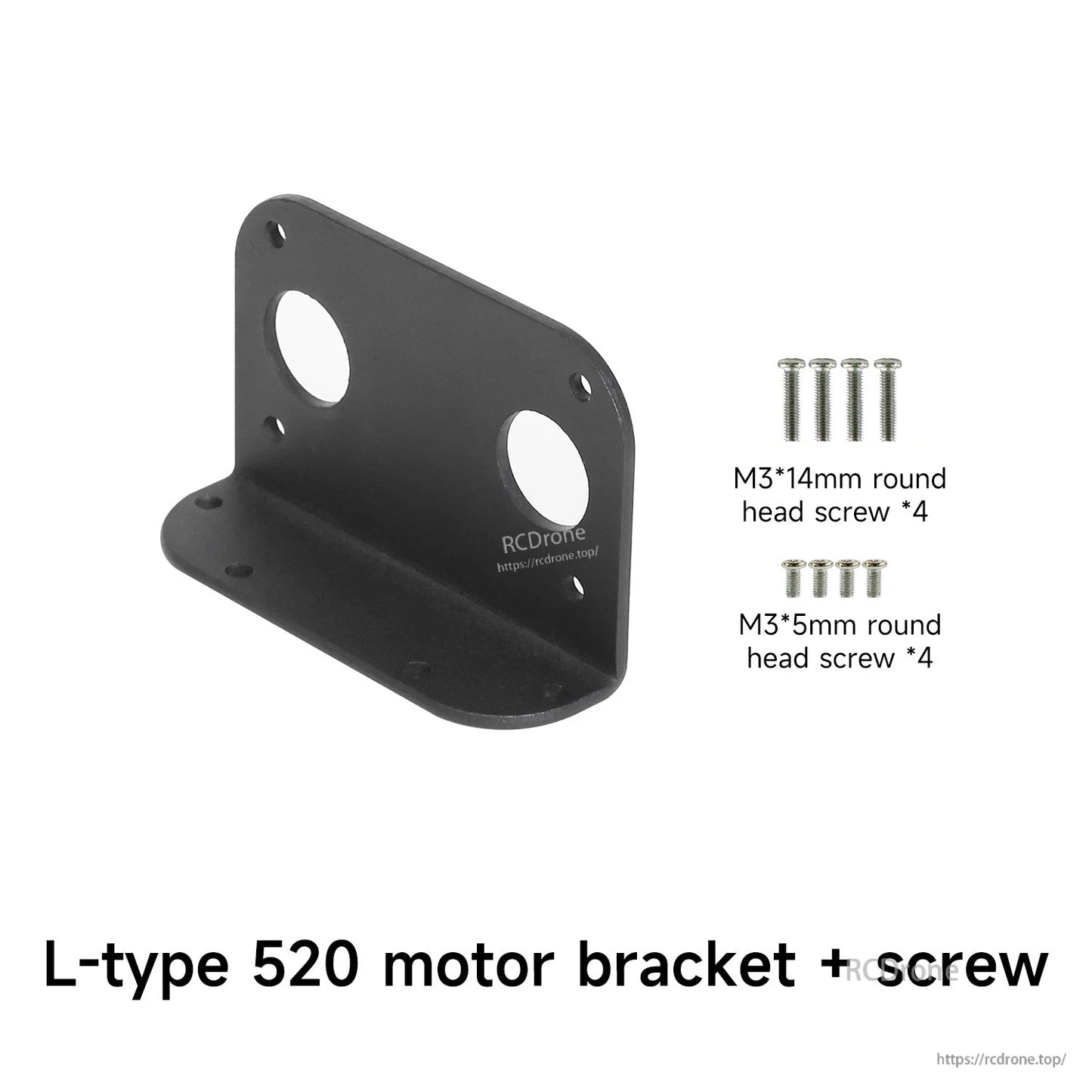

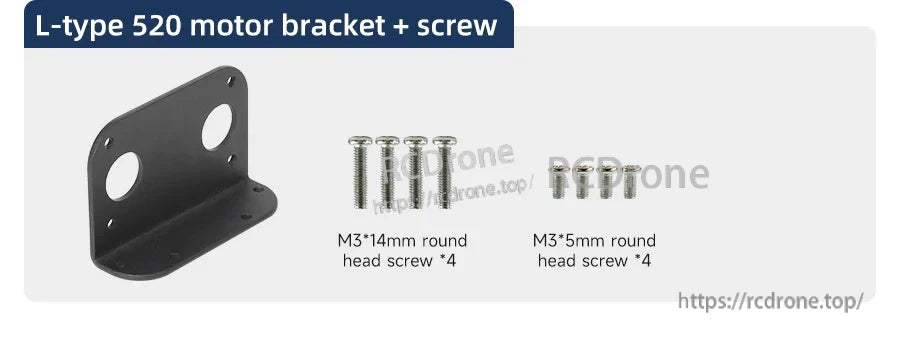

  • L-type 520 motor bracket + screw: M3*14mm round head screw *4; M3*5mm round head screw *4

Applications

  • DIY smart robot cars and educational robotics projects
  • Mounting 310/520/L-type 520 encoder geared motors to chassis plates using the included screws

For pre-sales compatibility questions about your motor model or chassis mounting, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

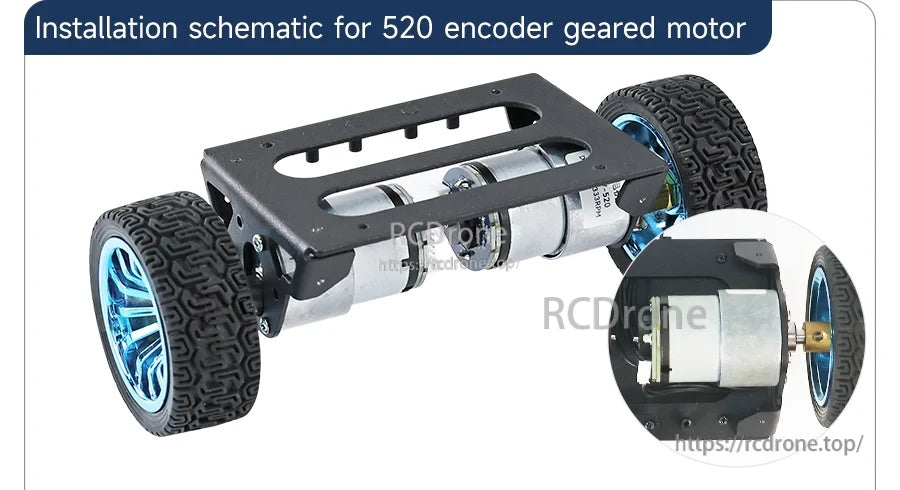

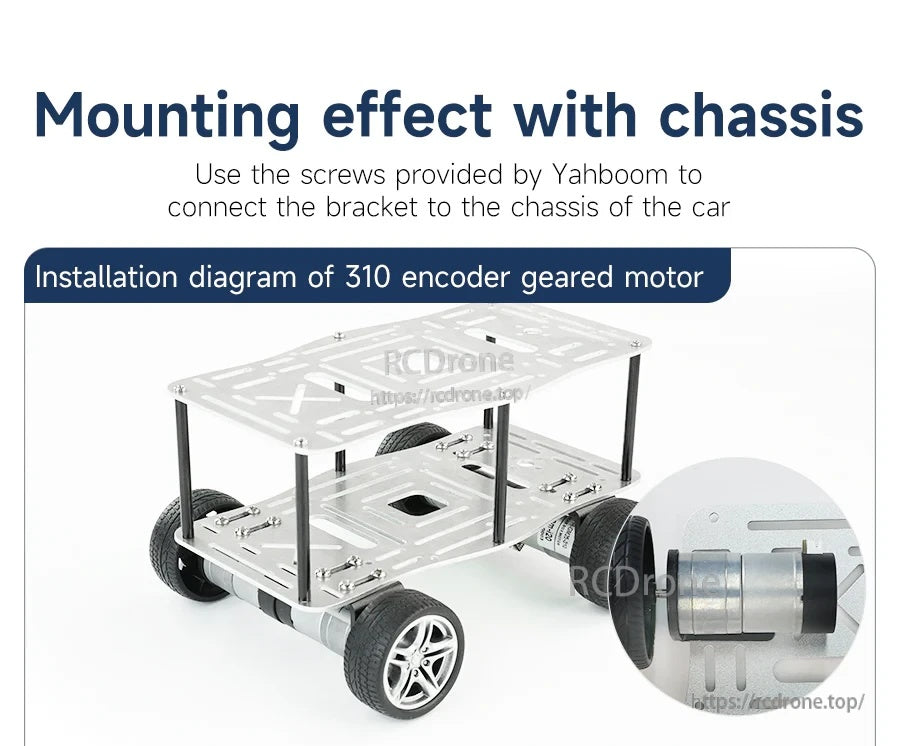

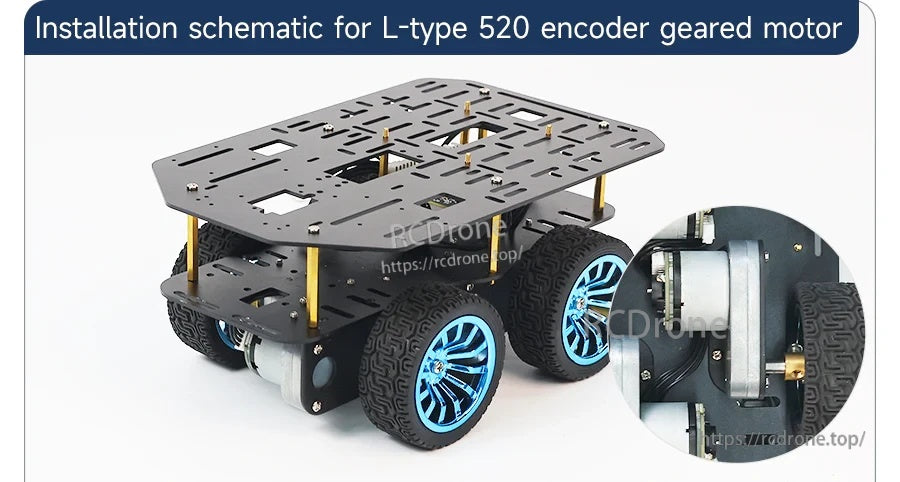

Yahboom encoder geared motor brackets kit with 310, 520 and L-type 520 mounting plates (black)Shipping list header for Yahboom motor bracket kit (included parts overview)310 encoder motor bracket package: bracket with M4×8 anti-slip screws and M3×5 flat head screws520 encoder motor bracket package with M3 round head screws and matching M3 nuts (hardware included)L-type 520 motor bracket package with M3×14 and M3×5 round head screws (fasteners included)Encoder geared motors mounted on matching brackets, illustrating fit and orientation of each bracket styleBanner link for 310 encoder geared motor purchase (accessory recommendation)Banner link for 520 encoder geared motor purchase (accessory recommendation)Banner link for L-type 520 encoder geared motor purchase (accessory recommendation)Robot car chassis mounting example for 310 encoder motor bracket using included screwsBanner link for MINI car chassis kit purchase (compatible chassis option)520 encoder motor installation schematic on two-wheel robot chassis with close-up of side mountingBanner link for self-balancing chassis kit purchase (compatible chassis option)L-type 520 encoder motor installation schematic on four-wheel chassis with close-up of bracket position310 motor bracket size specification drawing in mm with thickness, weight, and hole layout520 motor bracket dimension drawing in mm with mounting hole pattern and 1.5 mm thickness noteL-type 520 motor bracket dimension drawing in mm, listing carbon steel material and 2 mm thicknessActual product photos: three bracket types and installed encoder geared motors for robot car chassis builds
