DSpower DS-H015 Digital Low-Profile Servo, 16 kgf·cm at 7.4 V, for 1/10 On-Road Cars

DSpower

$37.00 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Version DS-H015

Anzahl

Vollständige Details anzeigen

Overview

The DSpower DS-H015 is a digital low-profile HV servo for 1/10 on-road cars and 1/10 buggy applications where installation space and response matter. At 7.4 V, it is rated for ≤0.12 sec/60° no-load speed and 16 kgf·cm maximum torque. It uses metal gears, an iron-core motor, and a 500–2500 µs pulse-width range for 180° ±10° operating travel.

Features

Digital, low-profile, high-speed, high-torque HV servo design.
Metal gear set and iron-core motor.
Ultra-efficient and heat-resistant labels.

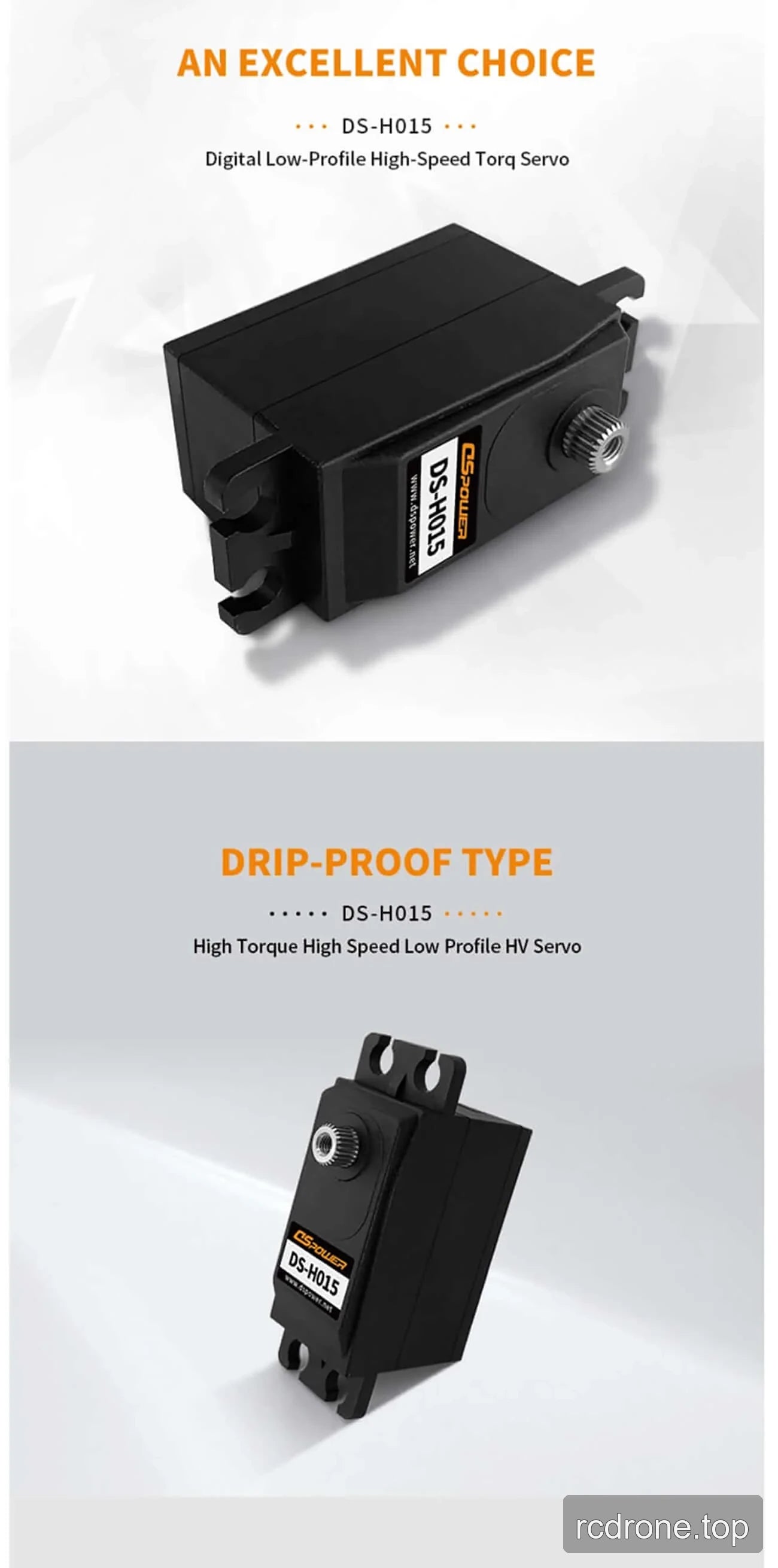

Waterproofing and drip-proof type labels; no protection rating is stated.
H25T industry-standard output spline.

Specifications

Parameter	Specification
Operating voltage	6.0–7.4 V DC
No-load speed	≤0.16 sec/60° at 6.0 V; ≤0.12 sec/60° at 7.4 V
Maximum torque	13 kgf·cm at 6.0 V; 16 kgf·cm at 7.4 V
Stall current	≤3.6 A at 6.0 V; ≤4.2 A at 7.4 V
No-load current consumption	≤90 mA at 6.0 V; ≤100 mA at 7.4 V
Pulse-width range	500–2500 µs
Operating travel angle	180° ±10° at 500–2500 µs
Mechanical limit angle	360°
Weight	42.5 ± 0.5 g
Case material	Plastic
Gear set material	Metal gears
Motor type	Iron-core motor

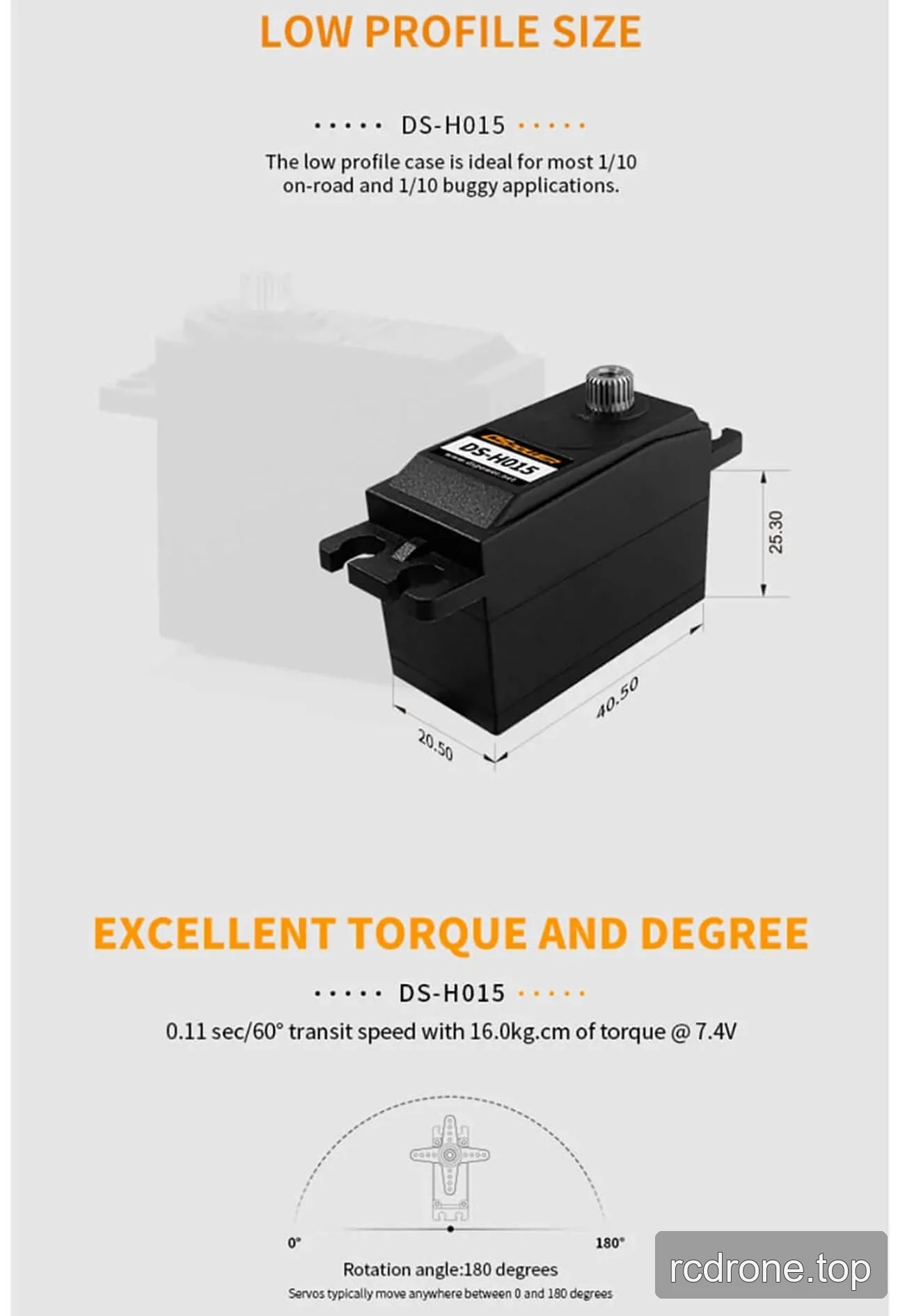

Dimensions as labeled	40.50 × 20.50 × 25.30
Output spline	H25T industry-standard output spline

Downloads

DS H015 1 DSpower Servo Motor DRAW — Draw (PDF)

h015 waixing DSpower DS Servo Motor — 3D Model (STP)

Applications

1/10 on-road cars: the low-profile case is intended for installations where space is limited and fast response is desired.
1/10 buggy applications: the low-profile form factor, metal gears, and up to 16 kgf·cm torque at 7.4 V support steering installations.
Robotics: suitable for motion-control roles in humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots.

What's Included

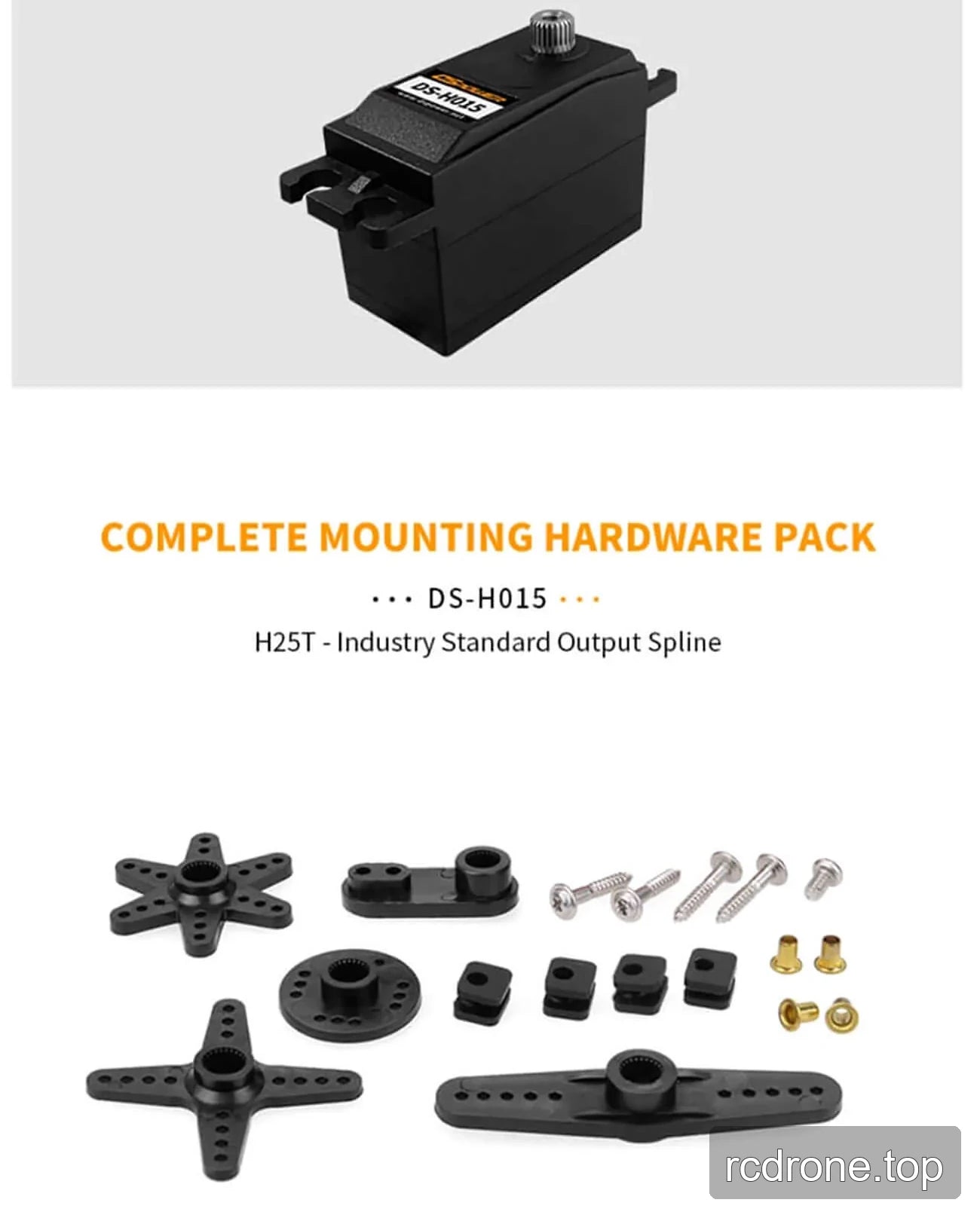

DS-H015 servo mounting hardware pack with multiple servo output arms, mounting screws, rubber mounting grommets, and brass eyelets.

Visual Details

Application Examples

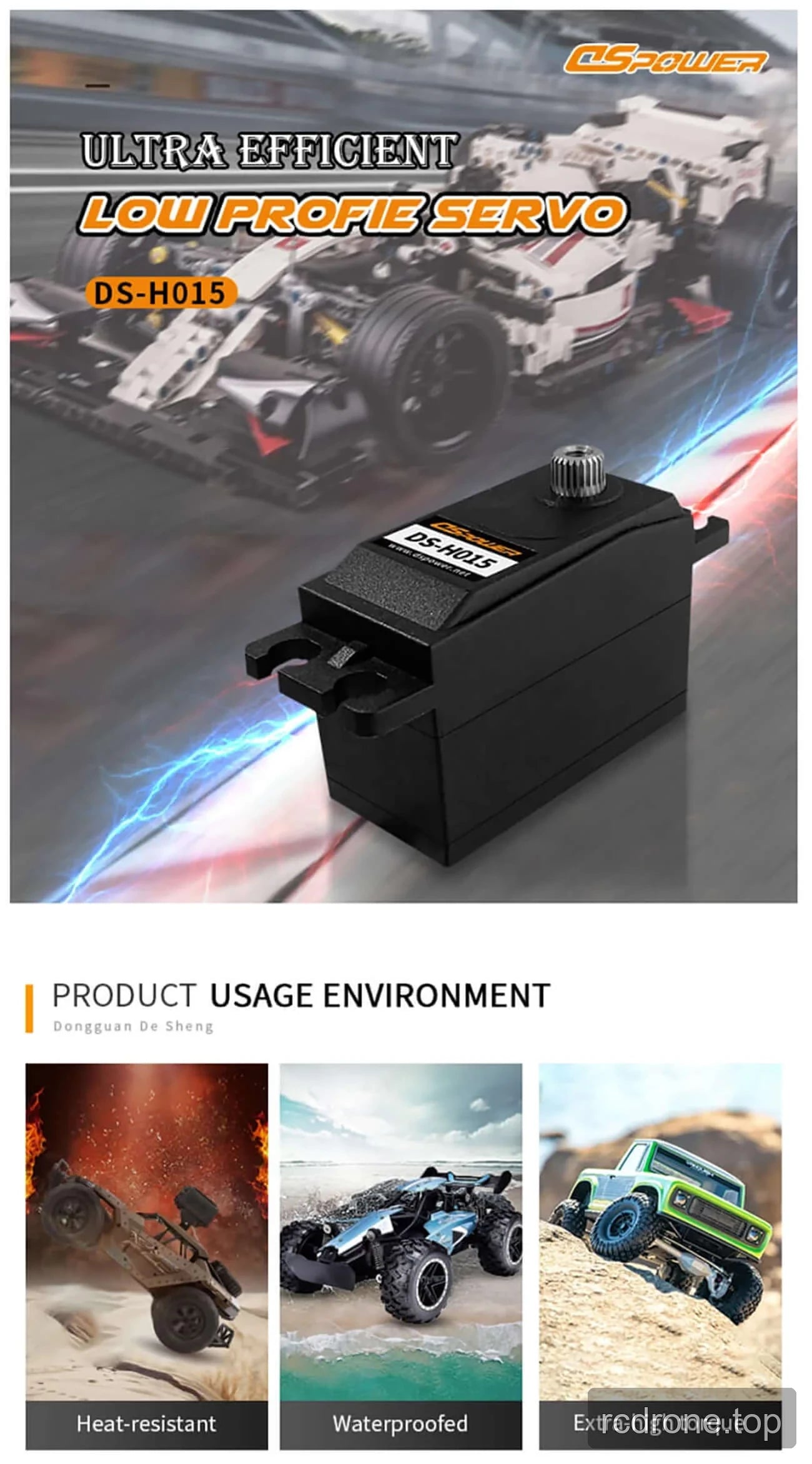

The DS-H015 is labeled as a water-proofing servo. The DS-H015 is described as ideal for 1/10 on-road cars where space is limited and speed is desired.
