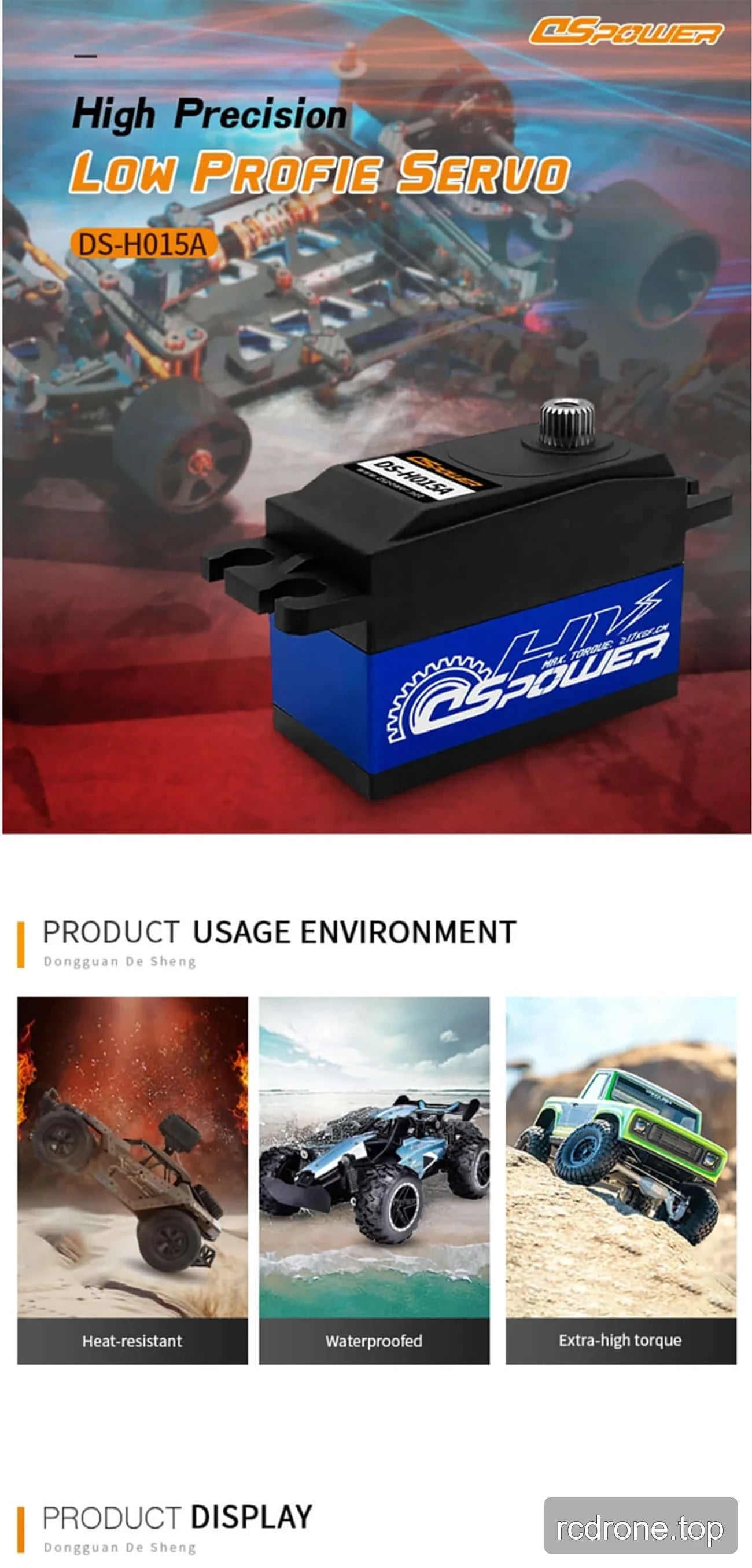

Overview
The DSpower DS-H015A is a low-profile HV servo motor for space-conscious control installations, including 1/10 on-road cars. It operates from 6.0–7.4 V DC and provides rated torque of 13 kgf·cm at 6.0 V or 16 kgf·cm at 7.4 V. Metal gears, a plastic-and-aluminium-alloy case, and a 180° ±10° operating travel support controlled rotary movement within its specified pulse range.
Features

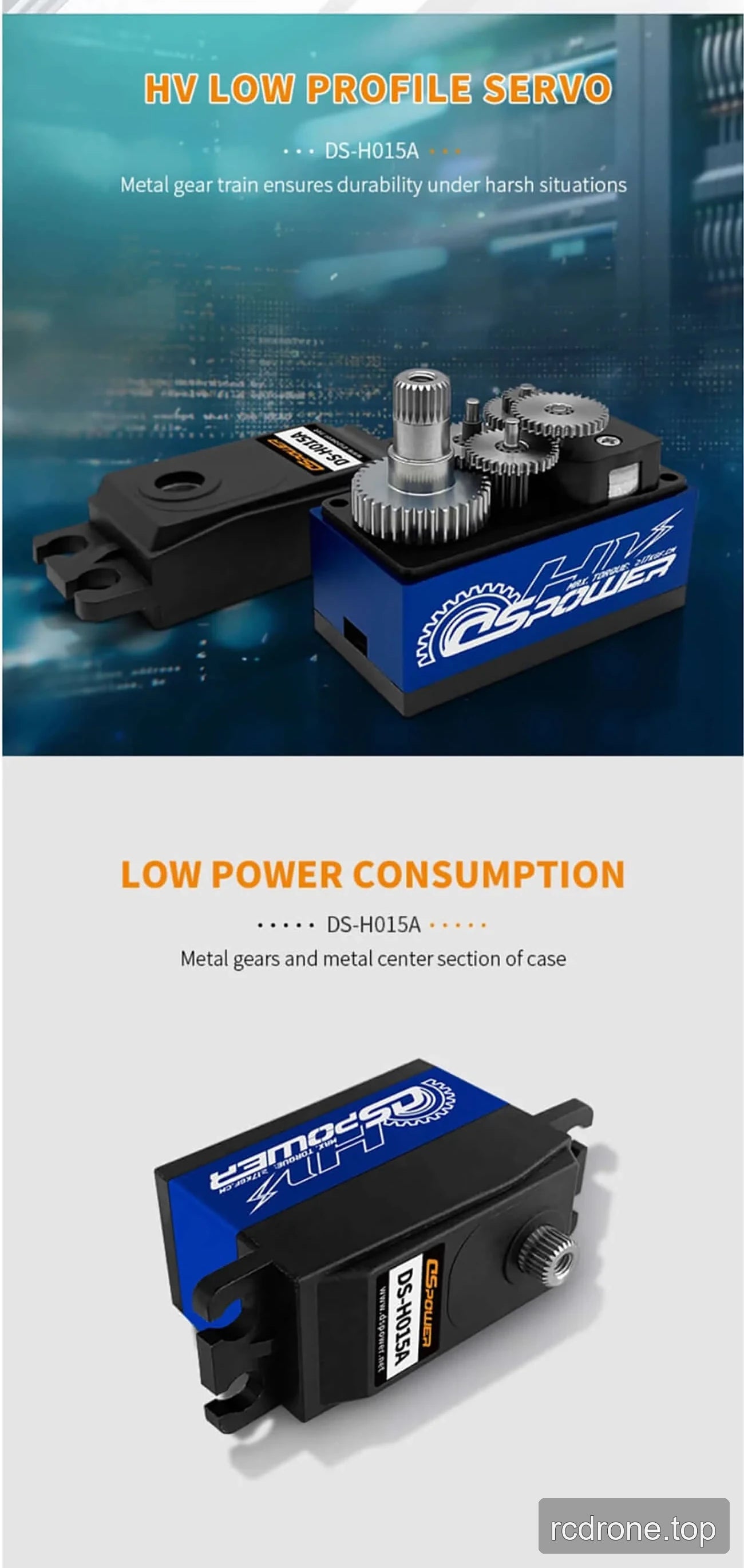

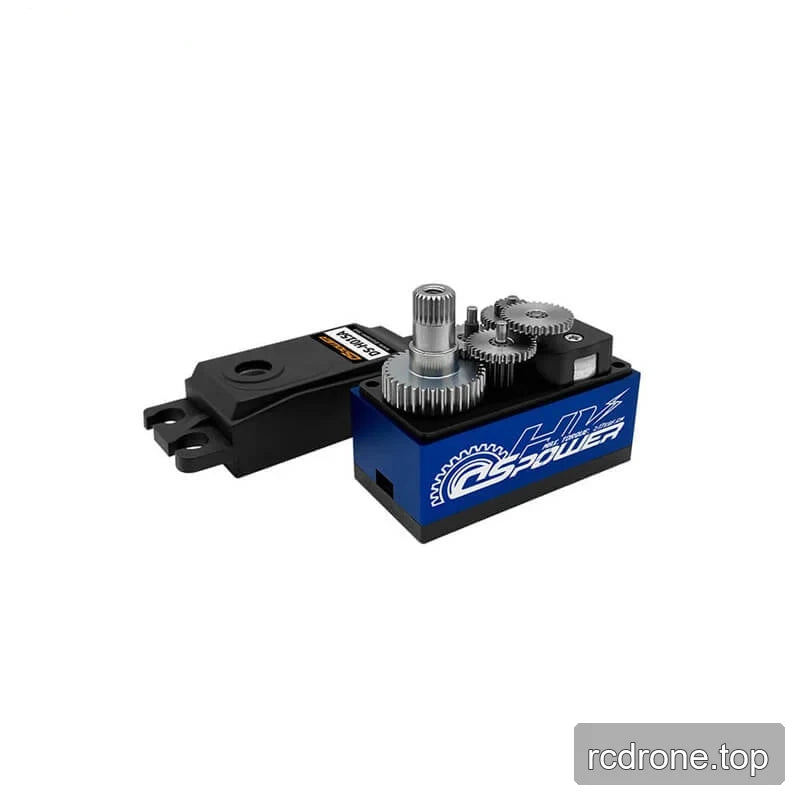

- Low-profile servo design with metal gears and a metal centre section of the case.
- Plastic casing with aluminium alloy construction.
- H25T industry-standard output spline.

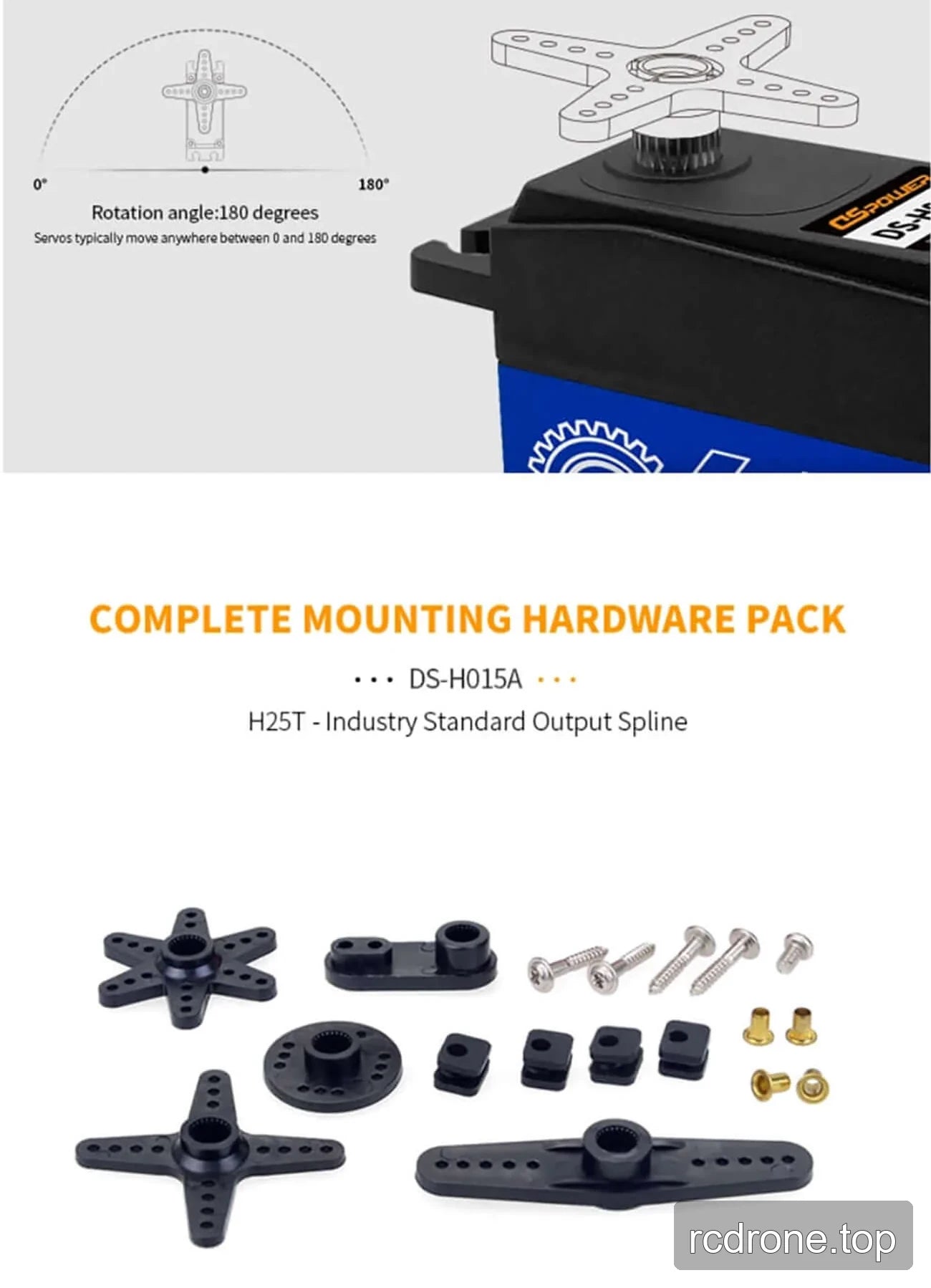

- 180° ±10° operating travel at a 500–2500 µs pulse width; 360° mechanical limit angle.
- Iron core motor.
Specifications
| Parameter | Value |
|---|---|
| Model | DS-H015A |
| Operating voltage | 6.0–7.4 V DC |
| No-load speed | ≤0.16 sec./60° at 6.0 V |
| No-load speed | ≤0.12 sec./60° at 7.4 V |
| Rated torque | 13 kgf·cm at 6.0 V |
| Rated torque | 16 kgf·cm at 7.4 V |
| Stall current | ≤3.6 A at 6.0 V |
| Stall current | ≤4.2 A at 7.4 V |
| Consumption current, no load | ≤90 mA at 6.0 V |
| Consumption current, no load | ≤100 mA at 7.4 V |
| Pulse width range | 500–2500 µs |
| Operating travel angle | 180° ±10° (500–2500 µs) |
| Mechanical limit angle | 360° |
| Weight | 42.5 ± 0.5 g |
| Case material | Plastic casing + aluminium alloy |
| Gear set material | Metal gears |
| Motor type | Iron core motor |
| Output spline | H25T industry-standard output spline |

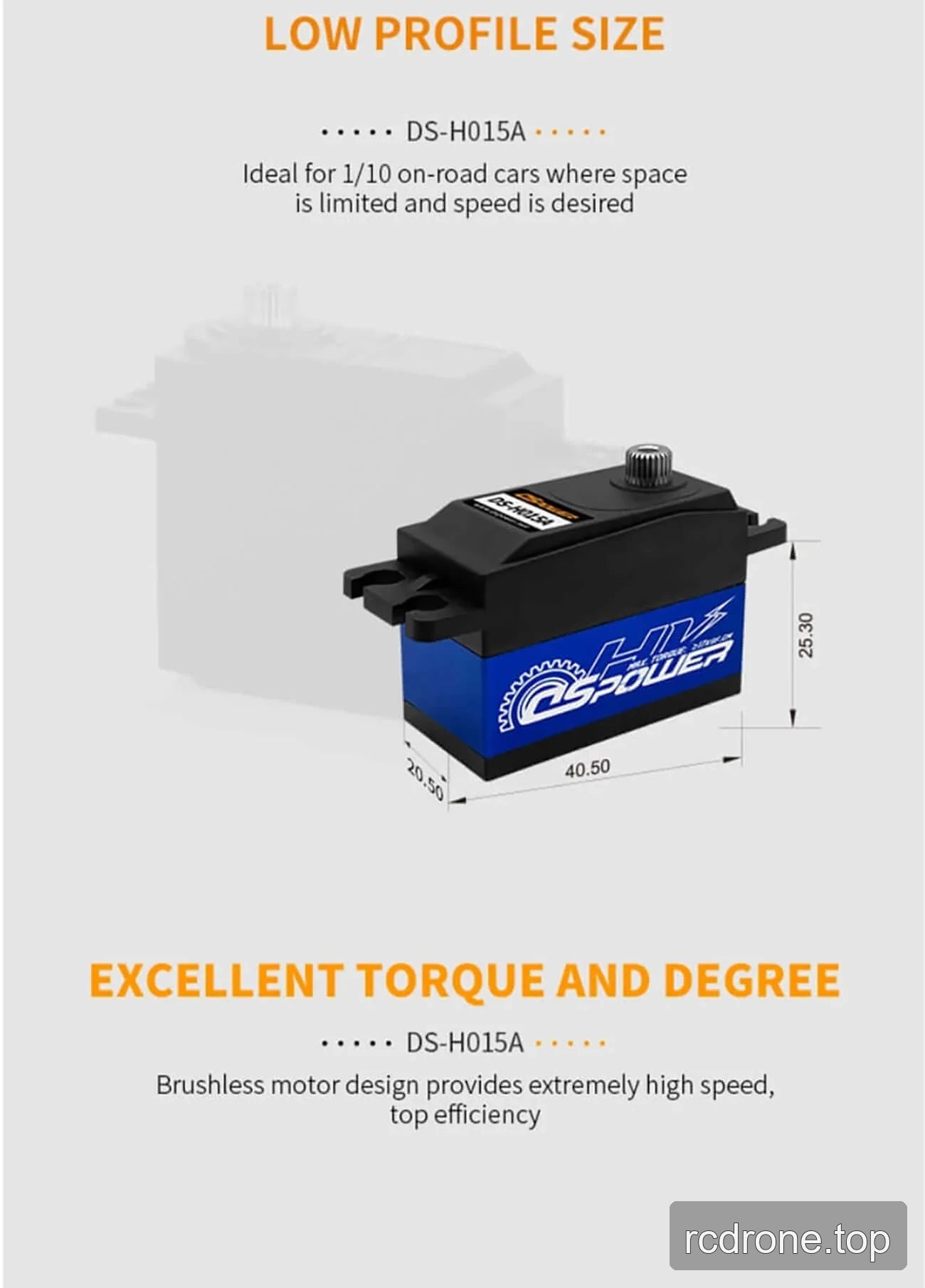

| Illustrated dimensions | 40.50, 20.50, 25.30 (unit not stated) |
DS H015A 1 DSpower Servo Motor DRAW — Draw (PDF)
Applications

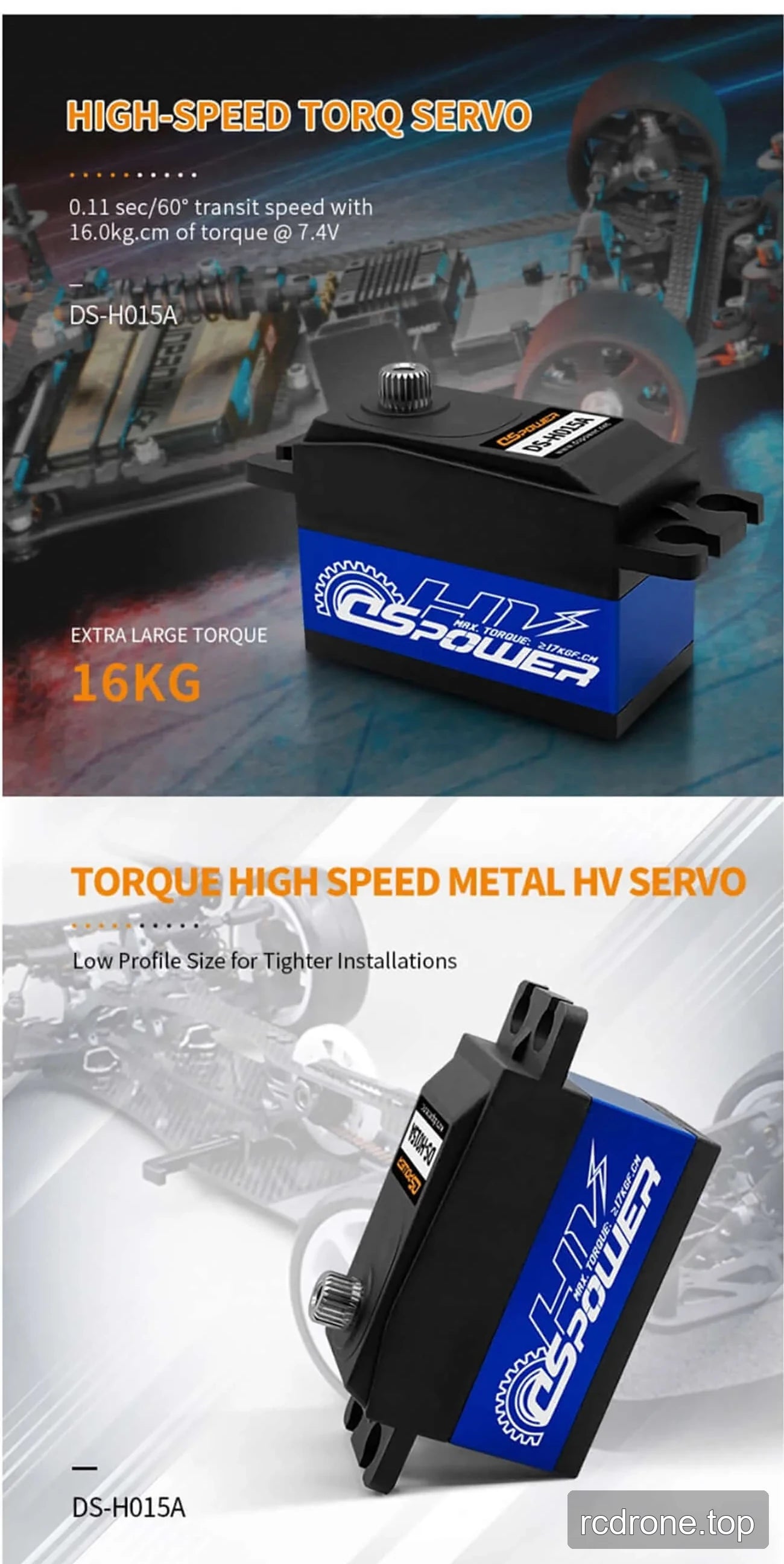

Use the DS-H015A for 1/10 on-road cars where a low-profile servo can help fit space-limited installations while providing the specified 7.4 V speed and torque figures. The existing application scope also includes humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots for rotary control tasks within the stated electrical and travel limits.
