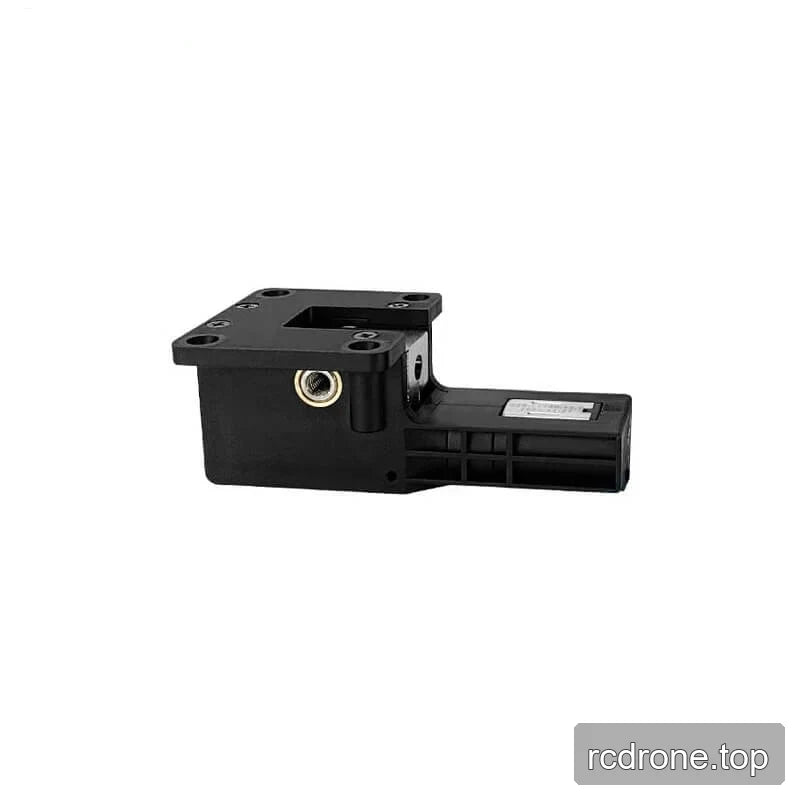

DSpower DS-H016A Servoless Electric Retractable Landing Gear, 5 kgf·cm, for Airplanes

DSpower

$37.00 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Version DS-H016A

Anzahl

Vollständige Details anzeigen

Overview

The DSpower DS-H016A is a servoless electric retractable landing gear shaft version for airplanes. It combines a stated 5 kgf·cm torque rating with 5.0 V operation, 90° maximum travel, and a 93 g weight. The landing-gear electric base uses precise metal gears, a high-torque motor, and a double shock-absorption design intended to protect the gears during retract operation.

Features

Servoless electric retractable landing gear with an electric base.
Precise metal gears and a high-torque motor.
Double shock-absorption design for gear protection.
Built-in over-current and jamming protection with auto-cutoff.

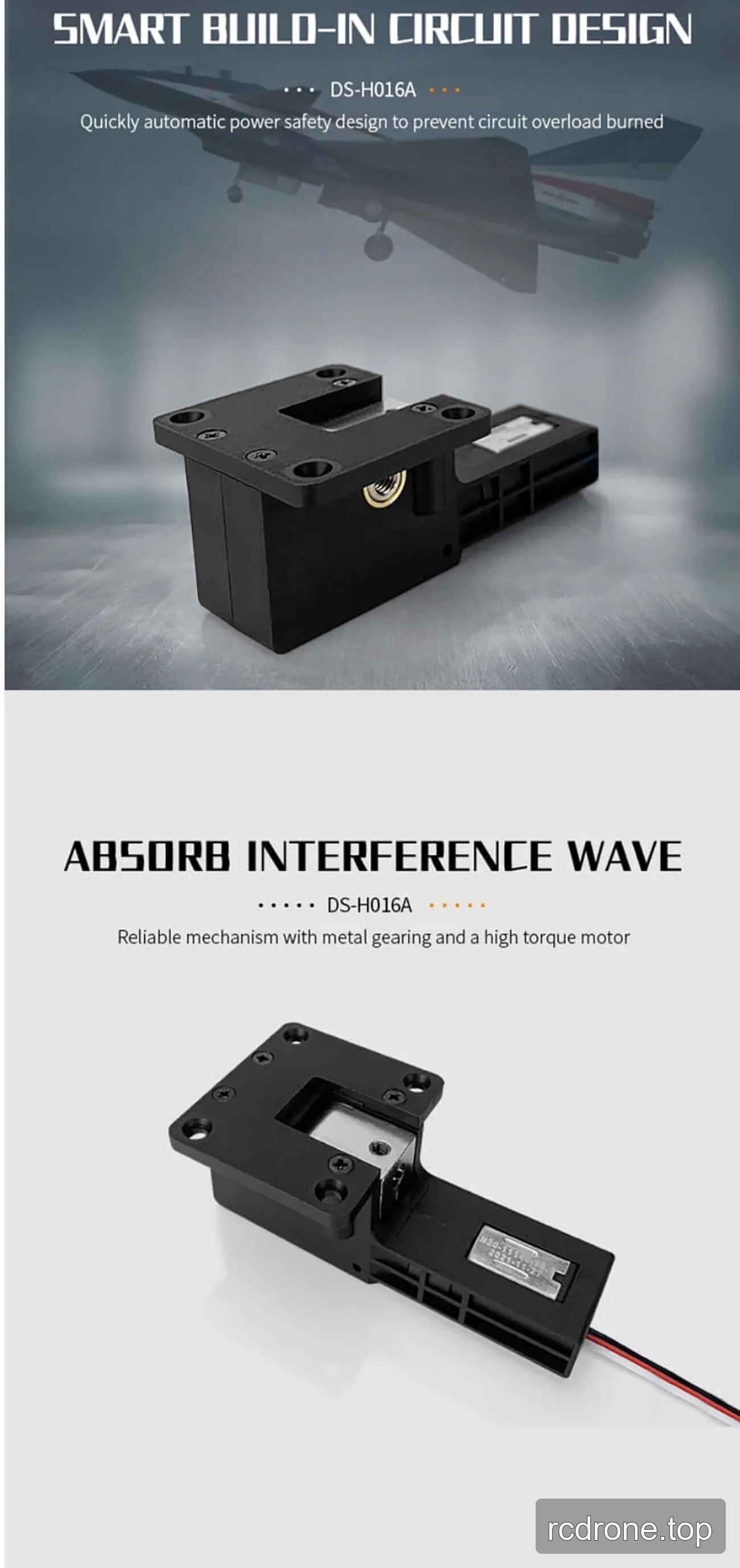

Smart built-in circuit design with an automatic power-safety design intended to prevent circuit overload burning.
Stated interference-wave absorption; described as stable, smooth, and safe.

Specifications

Parameter	Value
Operating voltage range	5.0 V
No-load current	≤200 mA
Count plate size	32.5 mm × 35.1 mm
Height	25.6 mm
Torque	5 kgf·cm
Support flight weight	5 kg
For vehicle type	Airplanes
Weight	93 g
Wire length	210 ±10 mm
Maximum travel	90°
Material	Composite material

ds h016a 1 DSpower Servo Motor DRAW — Draw (PDF)

Applications

For airplane projects requiring an electrically retractable landing-gear mechanism. The stated 90° maximum travel, 5 kgf·cm torque, plate dimensions, and wire length provide selection and installation-planning details for the airframe.
