Overview

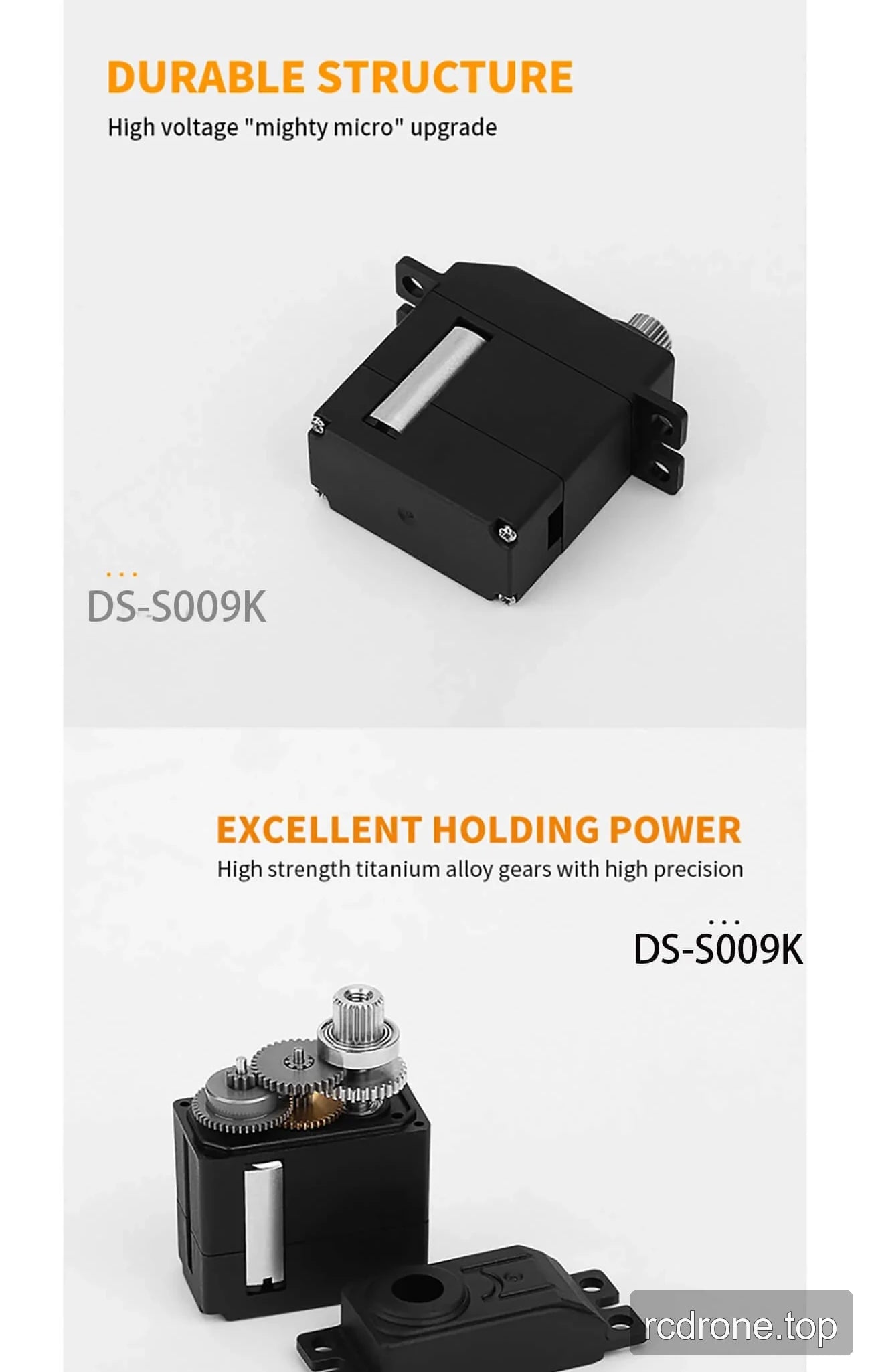

The DSpower DS-S009K is a coreless digital servo motor for controlled motion in robotics, smart-lock mechanisms, RC helicopters, fighting robots, and other sub-micro servo applications. It operates from 6–8.4 V DC and combines 360° operating travel with a TTL/UART single-wire half-duplex communication interface. Its 19 g weight, 25T/D5 output shaft, and specified ≤1° backlash help buyers assess fit for compact motion-control designs.

Features

Coreless digital servo design with TTL/UART single-wire half-duplex communication.
360° operating travel and CCW rotating direction.
25T/D5 output shaft.
Specified backlash of ≤1° and L&R angle deviation of ≤7°.

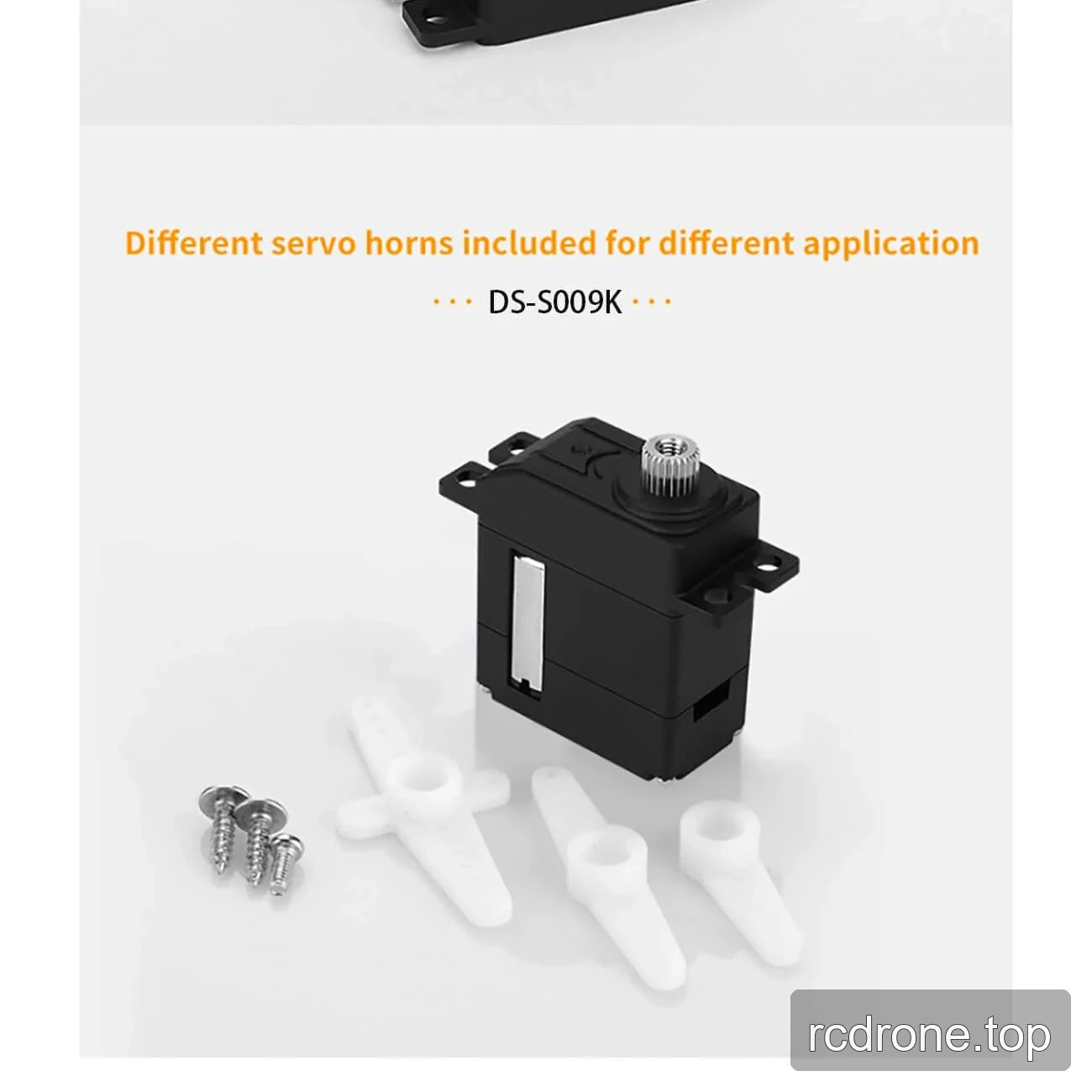

Different servo horns for different applications are included.

Specifications

Parameter	Value
Operating Voltage	6–8.4 V DC
Static Current	≤30 mA
Stall Current	≤2.0 A
Stall Torque	≥6.0 kgf·cm
Rotating Direction	CCW
No-load Speed	≤0.13 sec/60°
Pulse Width Range	0–4096
Operating Travel Angle	360°
L&R Angle Deviation	≤7°
Weight	19 g
Communication Interface	TTL/UART (single-wire half-duplex)
Output Shaft	25T / D5
Backlash	≤1°

Applications

Humanoid robots, robotic arms, exoskeletons, and quadruped robots for compact controlled-motion assemblies.
AGV vehicles and ARU robots where the TTL/UART interface and 360° operating travel suit integrated motion-control designs.
Smart-lock mechanisms, RC helicopters, fighting robots, and other sub-micro servo applications.
