DSpower DS-W002A CANopen Metal Servo, 28 V, 65 kgf·cm, for UAV Control Surfaces

DSpower

$2,287.00 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Version DS-W002A

Anzahl

Vollständige Details anzeigen

Overview

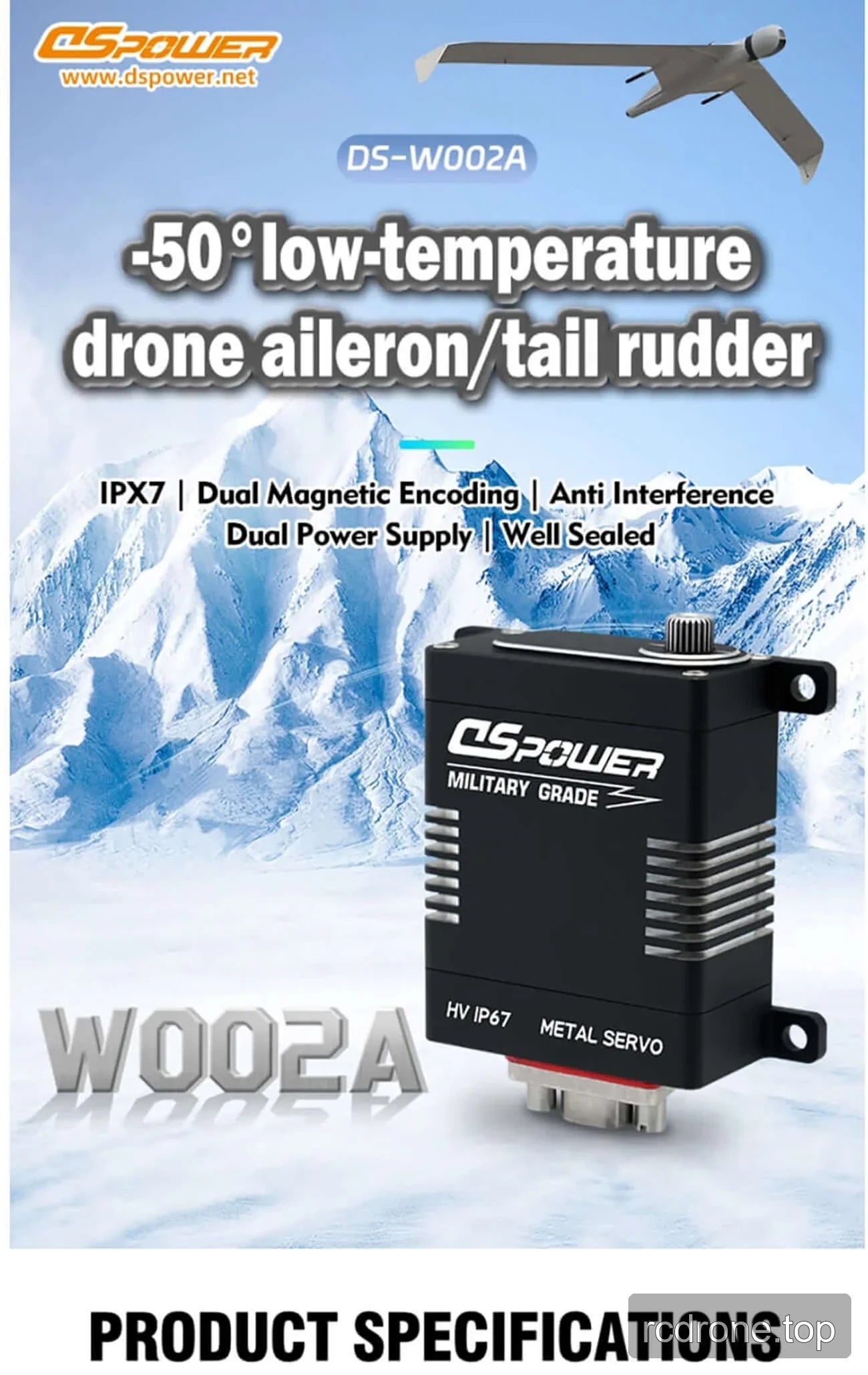

The DSpower DS-W002A is a CANopen metal-gear servo for UAV control surfaces, including aileron and tail-rudder actuation. It operates from 23–33.0 V (28.0 V rated) and lists ≥65 kgf·cm locking torque, a 360° operating angle, and a J30J 9-core aviation plug. Listed design features include dual magnetic encoding, dual-power architecture, shielding, and operation from -50 °C to 80 °C.

Features

Metal gear / metal gear set.
Dual magnetic encoding.
Dual-power supply with an isolation function and dual redundancy.
Marked IPX7; the housing is also marked “HV IP67” and “METAL SERVO.”
Sealed construction and resistance to high- and low-temperature cycling.
J30J 9-core aviation plug with an anti-interference external shielding wire.
Shielding and filtering technology stated to reduce external electromagnetic interference.
Listed fast response, communication stability, and protection for locking, temperature, voltage, and current conditions.
Listed debugging tools and 3D outline drawings for design integration.
The feature information states that the protocol can be adapted according to needs; the listed communication mode for this product is CANopen.

Specifications

Parameter	Value
Working voltage	23–33.0 V
Rated voltage	28.0 V
Rated torque	≥14 kgf·cm
Static current	≤65 mA
No-load current	≤350 mA
No-load speed	≤0.15 sec/60° (90 RPM)
Blockage current	≤5.0 A

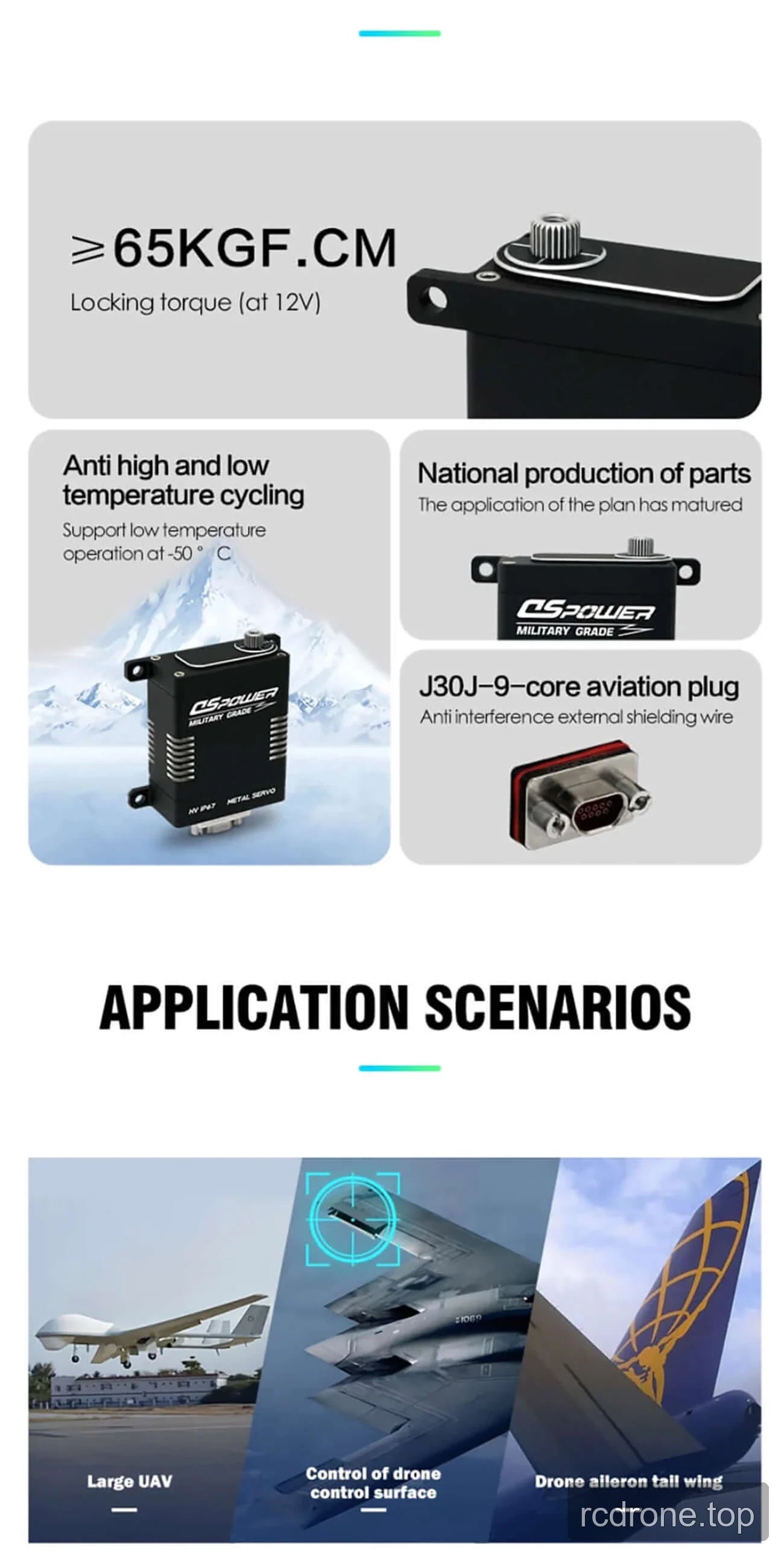

Locking torque	≥65 kgf·cm
Operating angle	360°
Mechanical virtual position	≤1°
Repetitive positioning accuracy	≤1.5°
Software control accuracy	≤0.3°

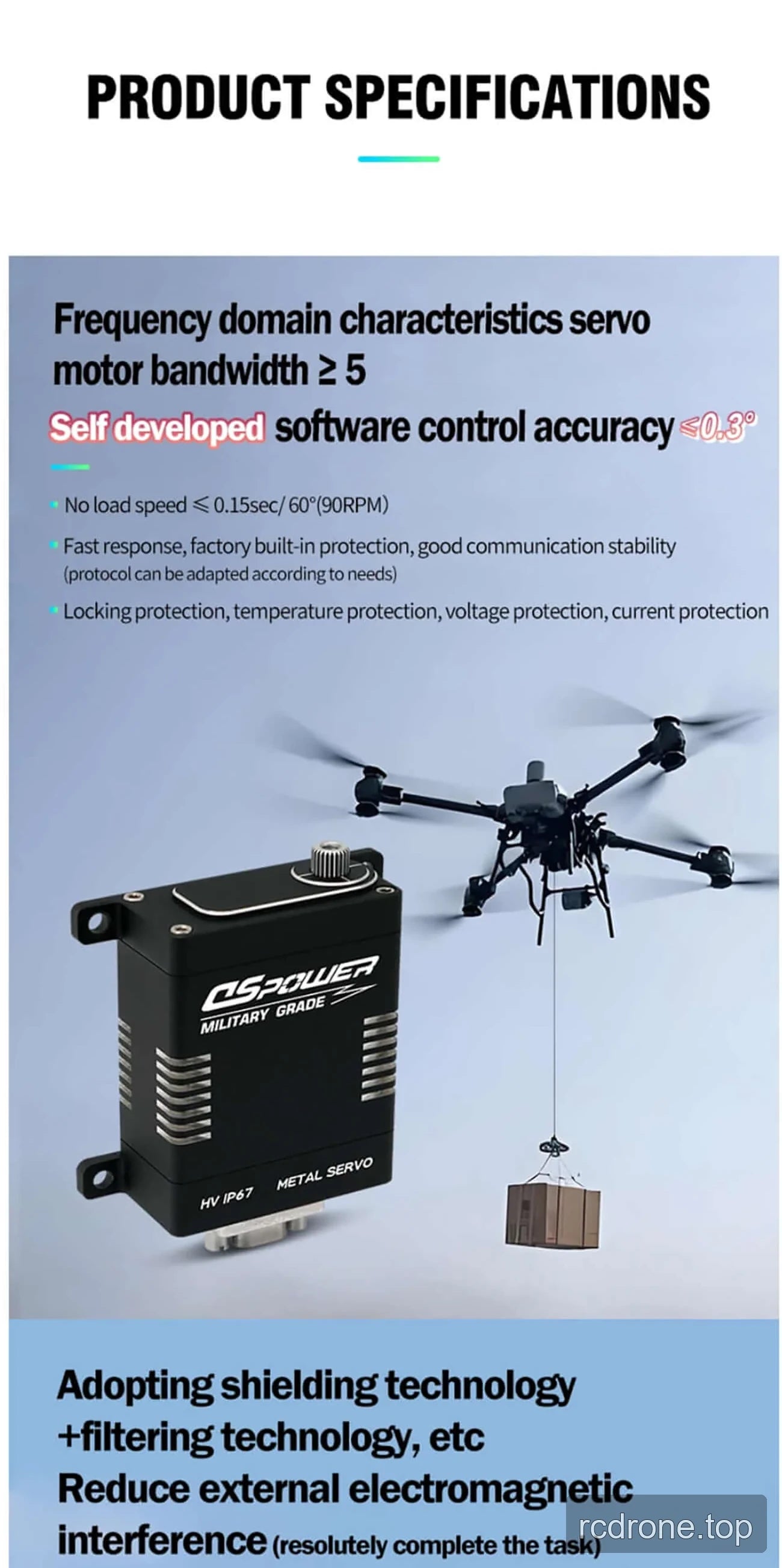

Frequency-domain servo motor bandwidth	≥5
Communication mode	CANopen
Gear material	Metal gear / metal gear set

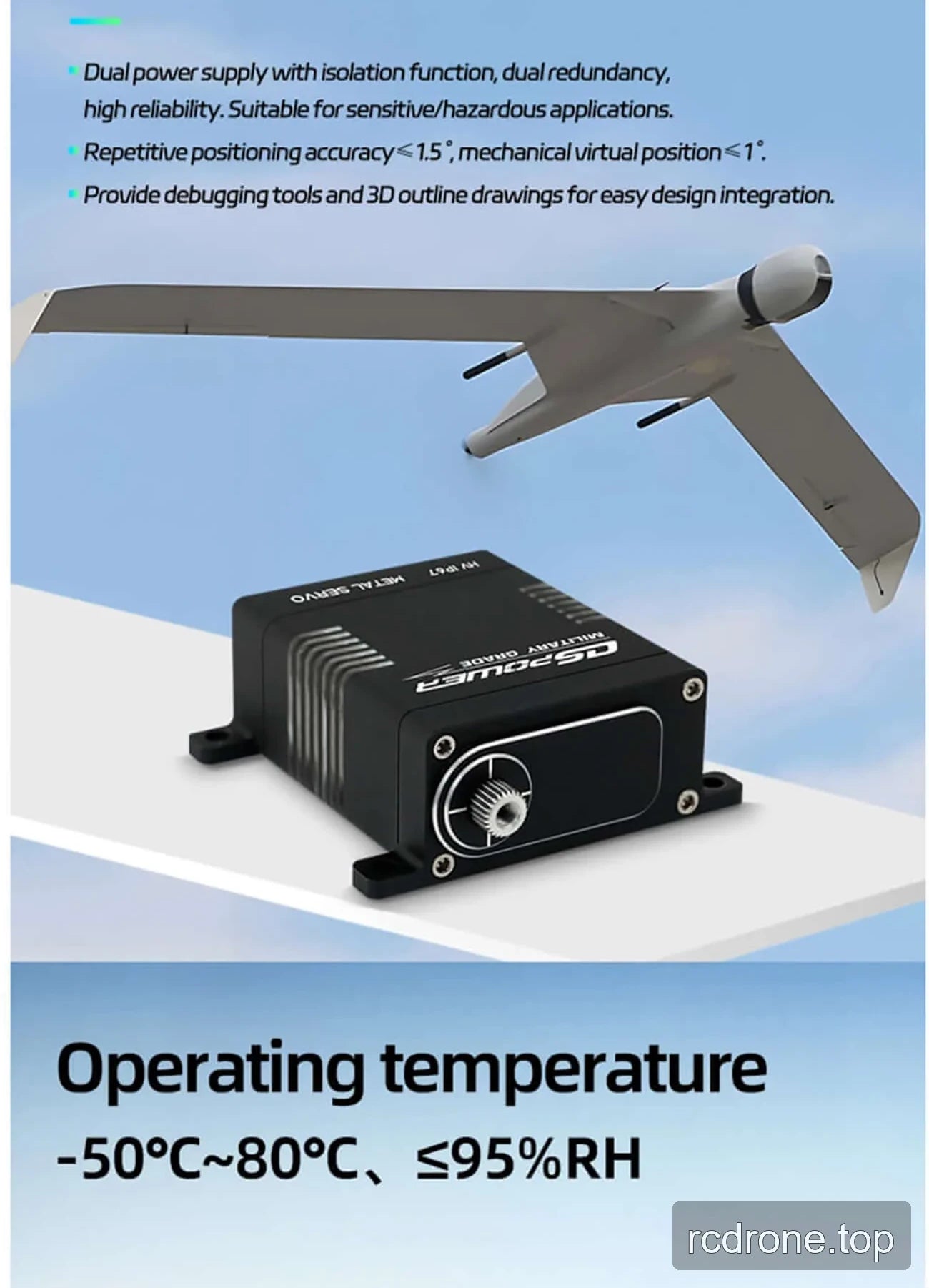

Operating temperature	-50 °C to 80 °C
Operating humidity	≤95% RH
Weight	100 ± 2.0 g

Applications

Specified for large UAV flight-control installations requiring servo actuation of ailerons, tail wings, and tail rudders. The stated operating-temperature range, CANopen communication mode, and J30J 9-core aviation plug help buyers assess suitability for low-temperature UAV control-surface integration. The listed application information also identifies sensitive or hazardous applications.
