Overview

The DSpower DS-W005A is a PWM metal-gear servo for robotics and automation projects requiring 45 kgf·cm rated torque at 14.8 V. It operates from 11.1–14.8 V DC, provides a 180° operating angle, and specifies ≥180 kgf·cm locking torque. Listed application scenarios include humanoid and quadruped robots, robotic arms, exoskeletons, AGV vehicles, ARU robots, underwater robots, UAV applications, mechanical claws, and industrial automation.

Features

PWM communication method.
Metal gear construction.
Iron-core motor described for stability and long life.

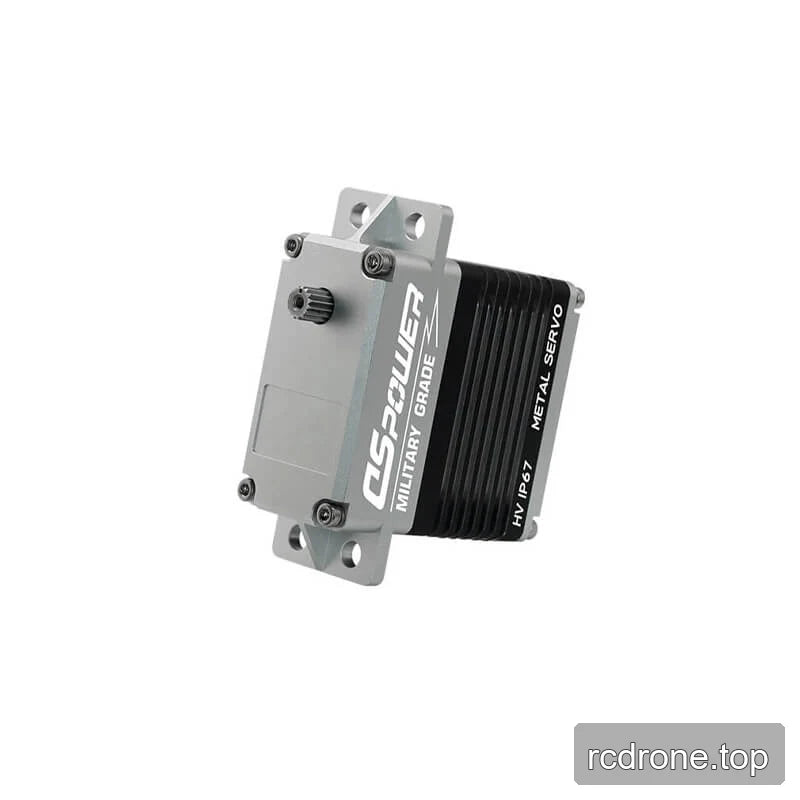

Square housing described as easy to install and secure.
Pressure-resistant shell and high-reliability feature claims.
Housing marked “MILITARY GRADE.”
Rated load life: ≥150 h.
Low-temperature statements: −20 °C environment; “Maximum −40 °C.”
Customisation is described for different scenarios.

Specifications

Parameter	Value
Working voltage	11.1–14.8 V DC
Rated voltage	14.8 V
Rated torque	45 kgf·cm
Quiescent current	≤25 mA
No-load current	≤380 mA
No-load speed	≤0.21 s/60°
Locked-rotor current	≤6.0 A
Locking torque	≥180 kgf·cm
Operating angle	180°
Mechanical virtual position	≤1°
Communication method	PWM
Gear material	Metal gear
Weight	340 g

Applications

Humanoid robots, quadruped robots, and exoskeletons: PWM servo actuation for articulated robotic mechanisms.
Robotic arms and mechanical claws: the stated torque and 180° operating angle support powered joint or gripper mechanisms.
AGV vehicles, ARU robots, and industrial automation: for PWM-controlled automation mechanisms.
Underwater robots and UAV applications: listed application scenarios for the DS-W005A.
