Overview

The DSpower DS-W012A is a PWM servo motor for mini high-speed drones, FPV control-surface tails, and stated robotic-motion applications. At its rated 7.4 V, it provides 3 kgf·cm rated torque; stall torque is 8 kgf·cm. Its specified 90° operating angle, steel gear, and 14 ± 1 g weight help buyers assess it for compact motion-control installations.

Features

PWM communication interface
Steel gear
Stated product feature claims: extra-large torque, anti-burn and anti-shake performance, long life, prevention of tooth sweeping, lower noise, and ultra-high precision

Specifications

Parameter	Value
Operating Voltage	5.0–8.4 V DC
Rated Voltage	7.4 V
Rated Torque	3 kgf·cm
Static Current	≤10 mA
No-load Current	≤200 mA
No-load Speed	≤0.10 s/60°
Stall Current	1.5 A
Stall Torque	8 kgf·cm
Operating Angle	90° (1000→2000 μs)
Backlash	≤1°
Communication Interface	PWM
Gear Material	Steel gear
Weight	14 ± 1 g
Temperature Range	-30°C to +70°C

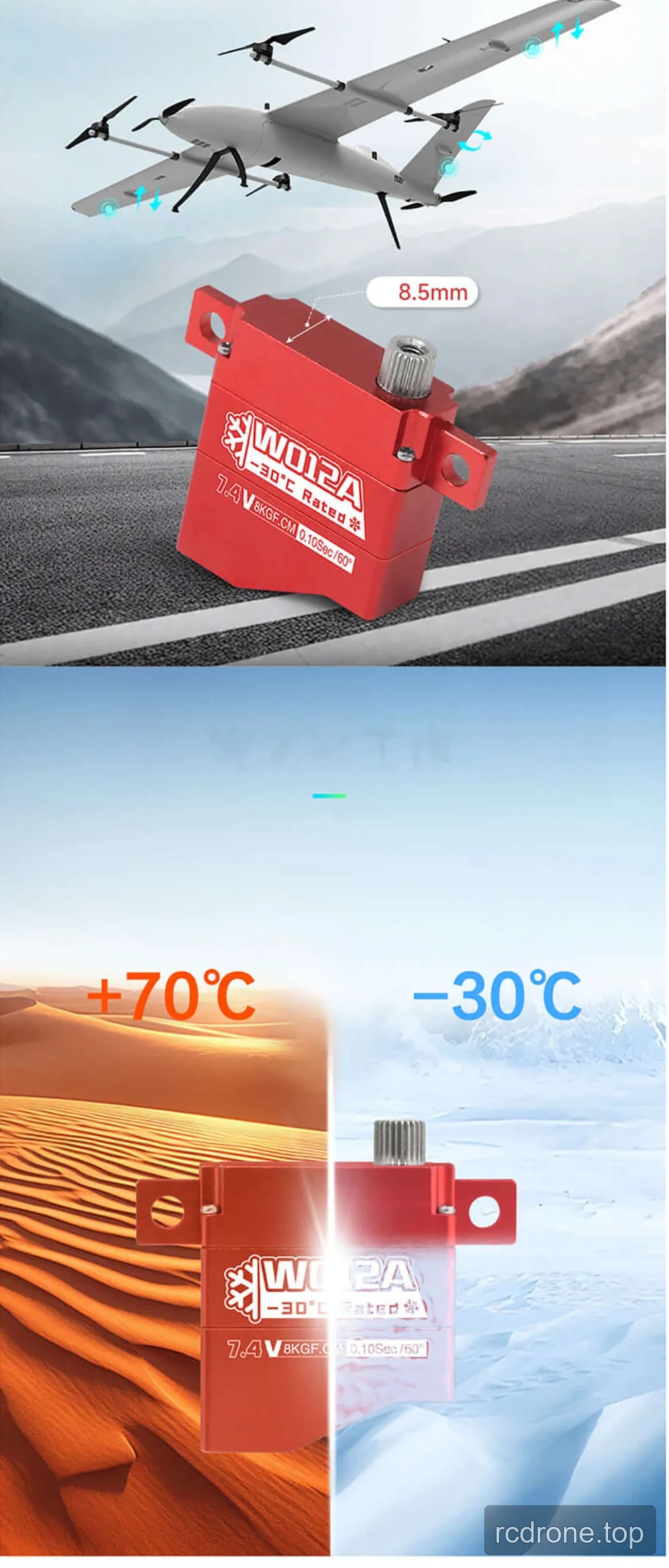

Dimension Callout	8.5 mm (feature not identified)

Dspower W012A DS Servo Motor DRAW — Draw (PDF)

Applications

The DS-W012A is specified for mini high-speed drones and FPV control-surface tails, where PWM control and the specified 90° operating angle can be used for commanded surface movement. Stated robotic-motion application scenarios include:
