Hangkai HKV-TR-A-2 Load Cell Transmitter & Signal Amplifier

Hangkai Microelectronic

$34.95 USD

Verkauf Ausverkauft

Steuern inklusive. Versand Wird an der Kasse berechnet.

Configuration Current / voltage switching version Voltage output — 0 / ±5V source notation Tension / compression — 4–12–20mA Torque — 4–12–20mA

Menge

Vollständige Details anzeigen

The Hangkai Microelectronic HKV-TR-A-2 is an adjustable load cell transmitter and millivolt signal amplifier for weighing, pressure, tension/compression and torque measurement systems. It conditions a compatible external sensor signal for current or voltage output. This unit is a signal-conditioning accessory; it does not itself sense force and does not include a load cell.

Selectable Output Configurations

Current / voltage switching version: source option identifies current output and switching capability. The parameter sheet lists 4–20mA and voltage modes; confirm jumper settings and delivered configuration before wiring.
Voltage output, 0 / ±5V source notation: the saved option identifies the 5V version. Its notation does not establish whether a particular delivered setting is unipolar or bipolar; confirm the required output mapping.
Tension / compression, 4–12–20mA: the source specifies a center-current mapping; confirm zero-load position, polarity and calibration against the connected sensor.
Torque, 4–12–20mA: source torque-oriented current mapping; connect a suitable external torque transducer.

The source sheet also lists a 0±10V capability, but one voltage option has a missing range number in the saved sales label. That ambiguous option is not offered here. Do not infer a selectable 10V version from a family specification alone. A separately labeled switching option linked to a company certificate is excluded.

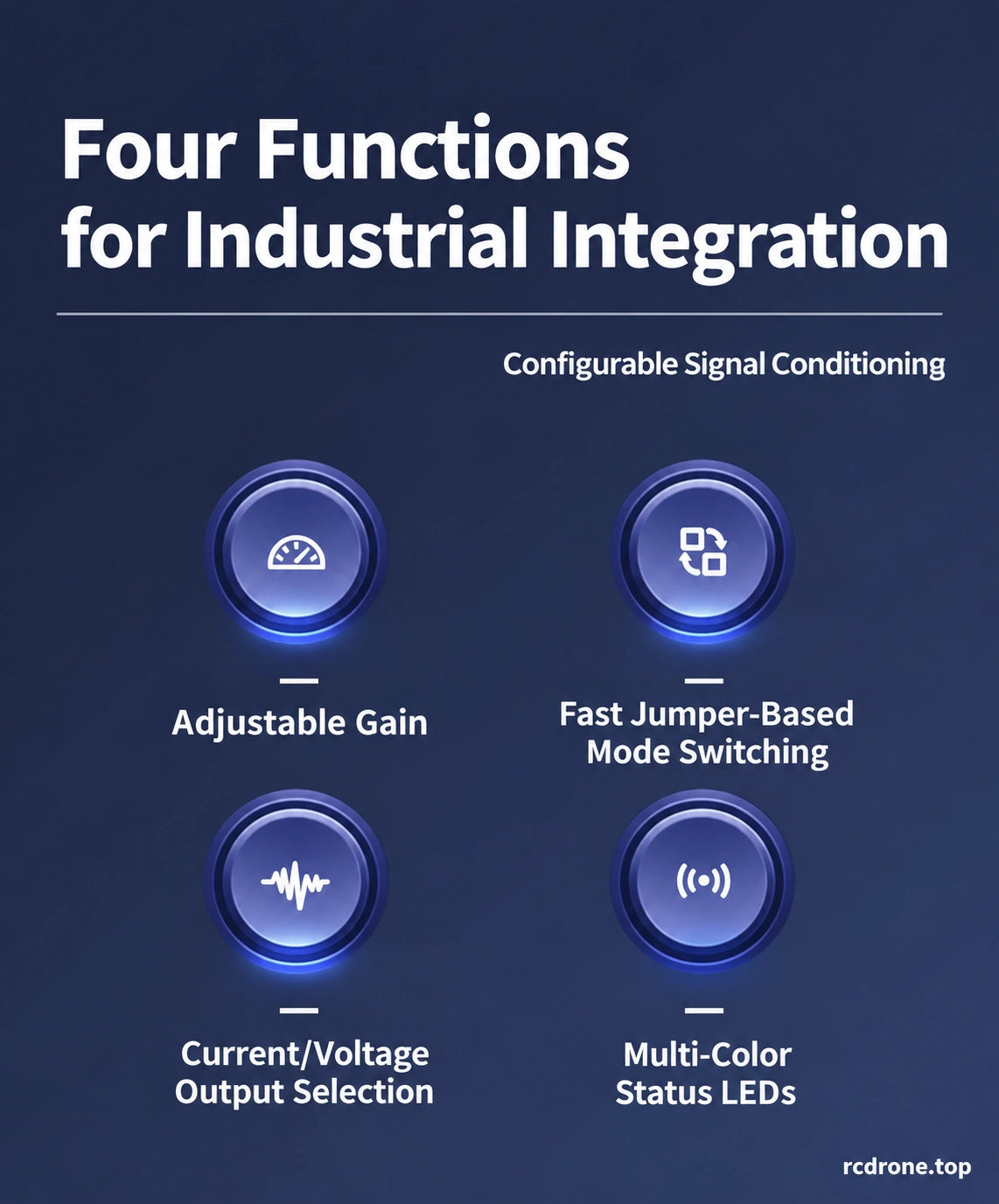

Industrial Signal Conditioning

Adjustable gain and zero controls.
Jumper-based output-mode switching described by the supplier.

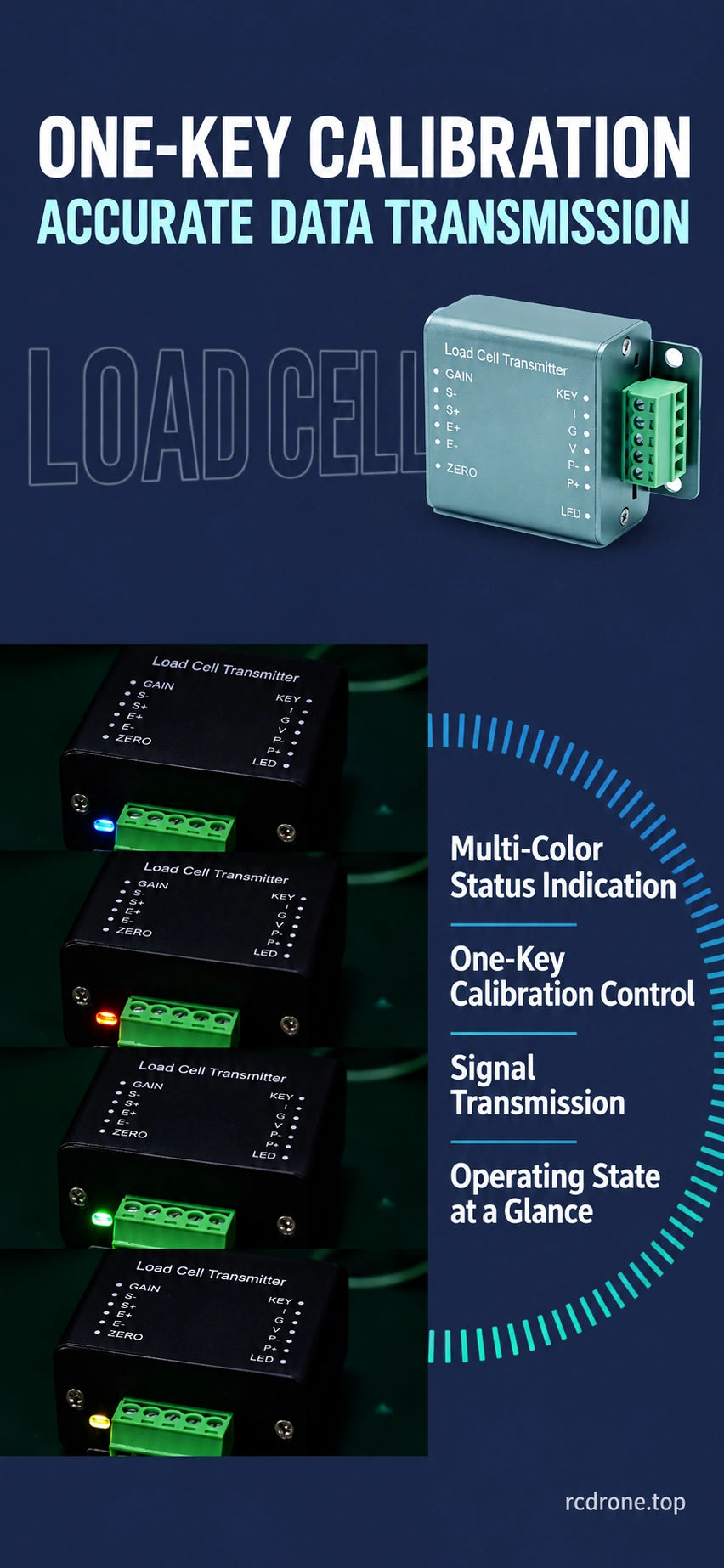

One-key calibration/control and parameter locking described in the source visuals.
Multi-color LED status indication.

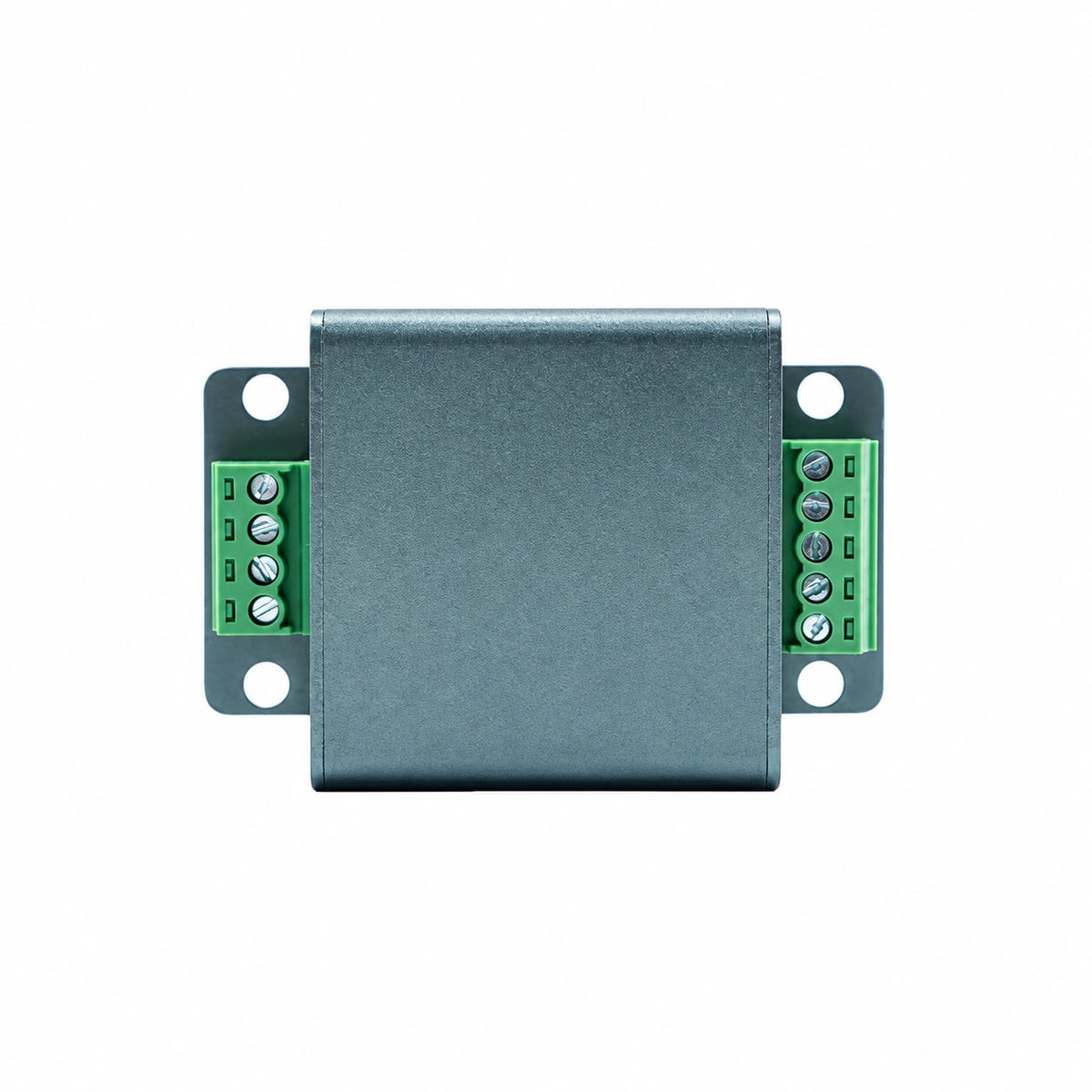

Compact metal enclosure with mounting flanges and screw terminals.

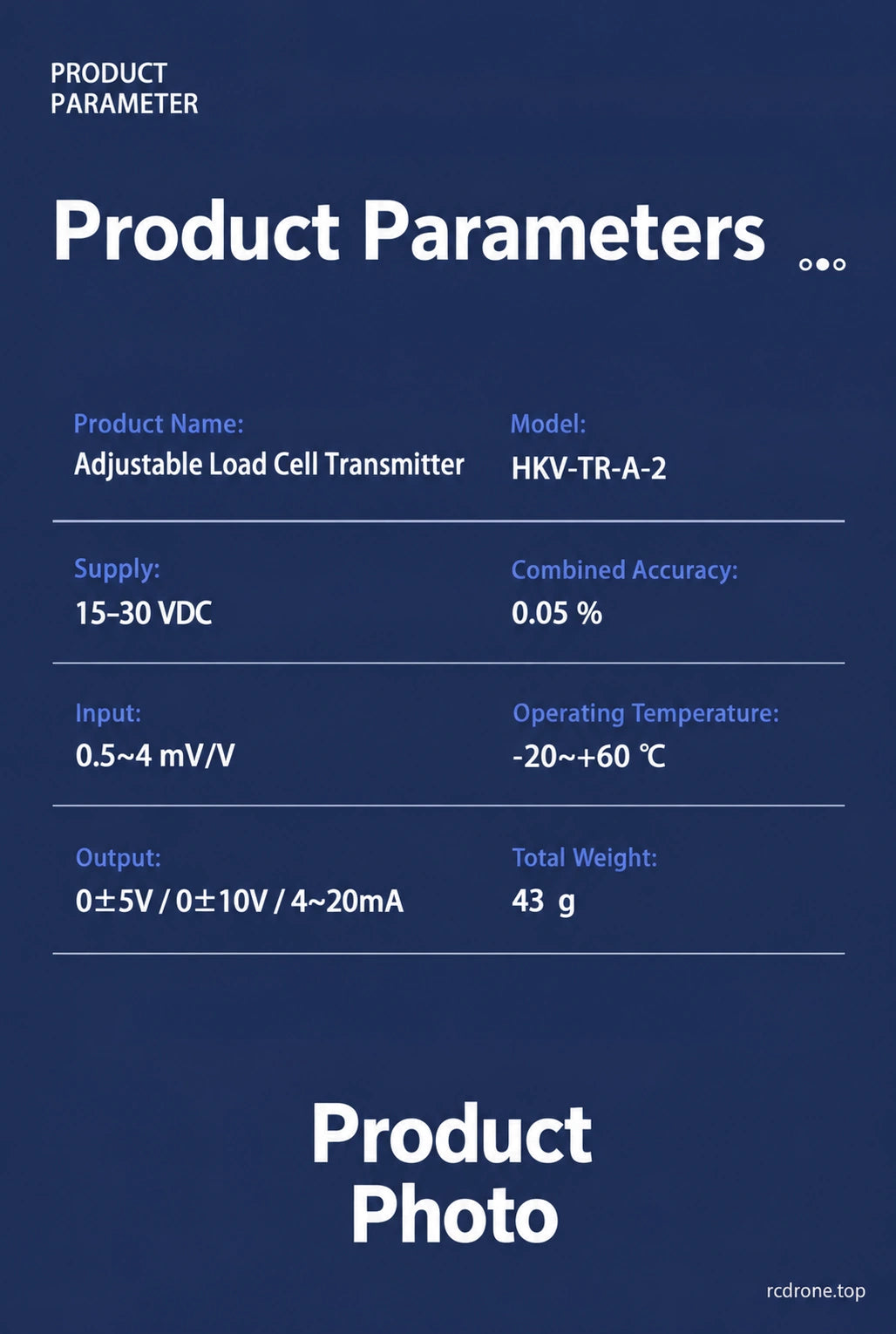

Supplier Specifications

Model	HKV-TR-A-2

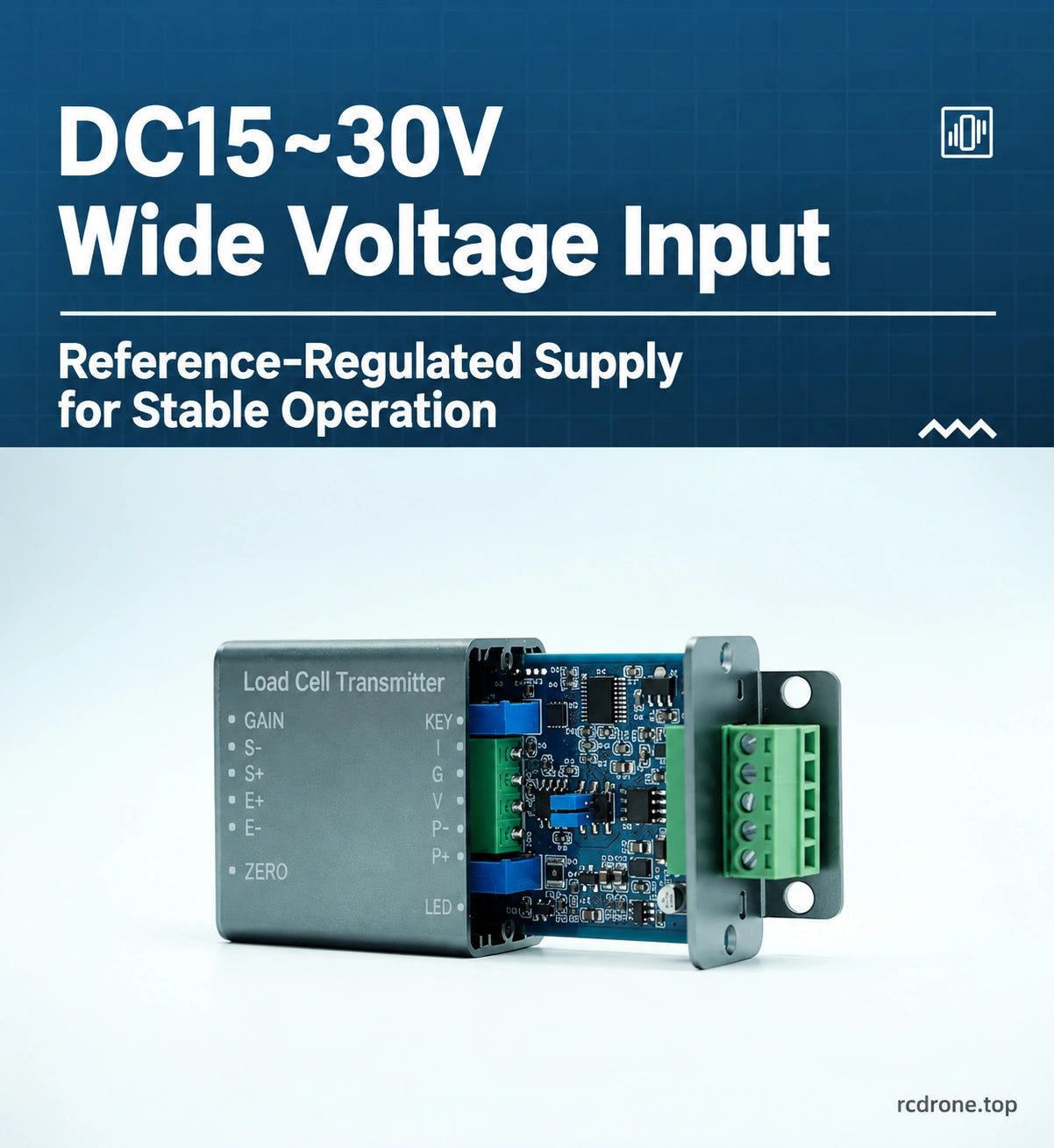

Supply voltage	15–30VDC
Input signal	0.5–4mV/V
Output capabilities, family reference	0±5V / 0±10V / 4–20mA, as written in the supplier sheet
Combined accuracy	0.05%, source does not specify its reference basis
Operating temperature	−20 to +60°C
Total weight	43g

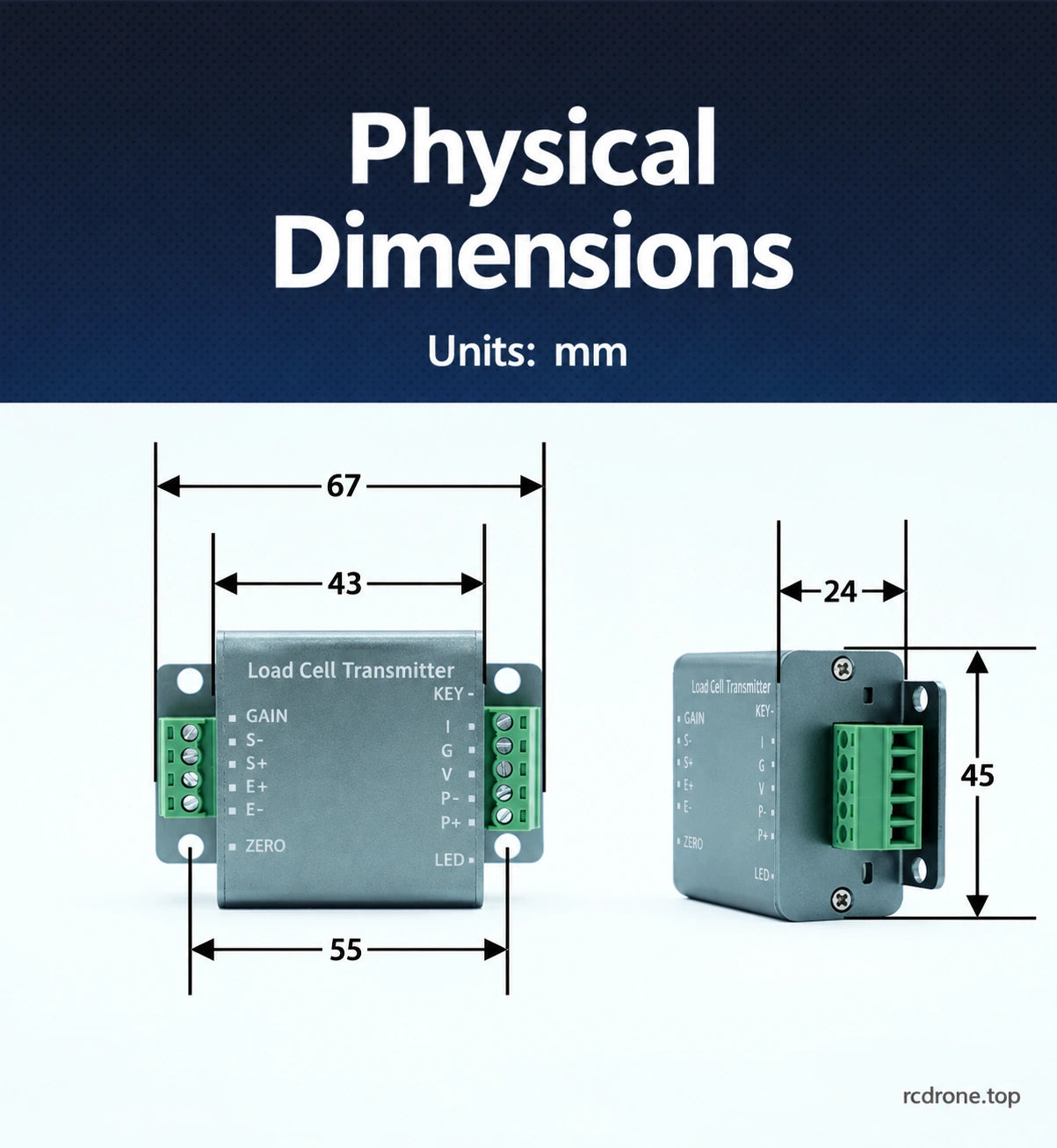

Overall dimension callouts	67 × 45 × 24mm
Body width / mounting-hole center span	43 / 55mm

The unit belongs with Sensors & Measurement integration accessories. Output ranges are configuration-dependent. The source's 0± notation is retained rather than silently treating bipolar and unipolar outputs as interchangeable. No input resistance, excitation voltage, conversion rate, isolation rating, waterproof rating or communication protocol is established by the saved materials.

Terminals and Installation

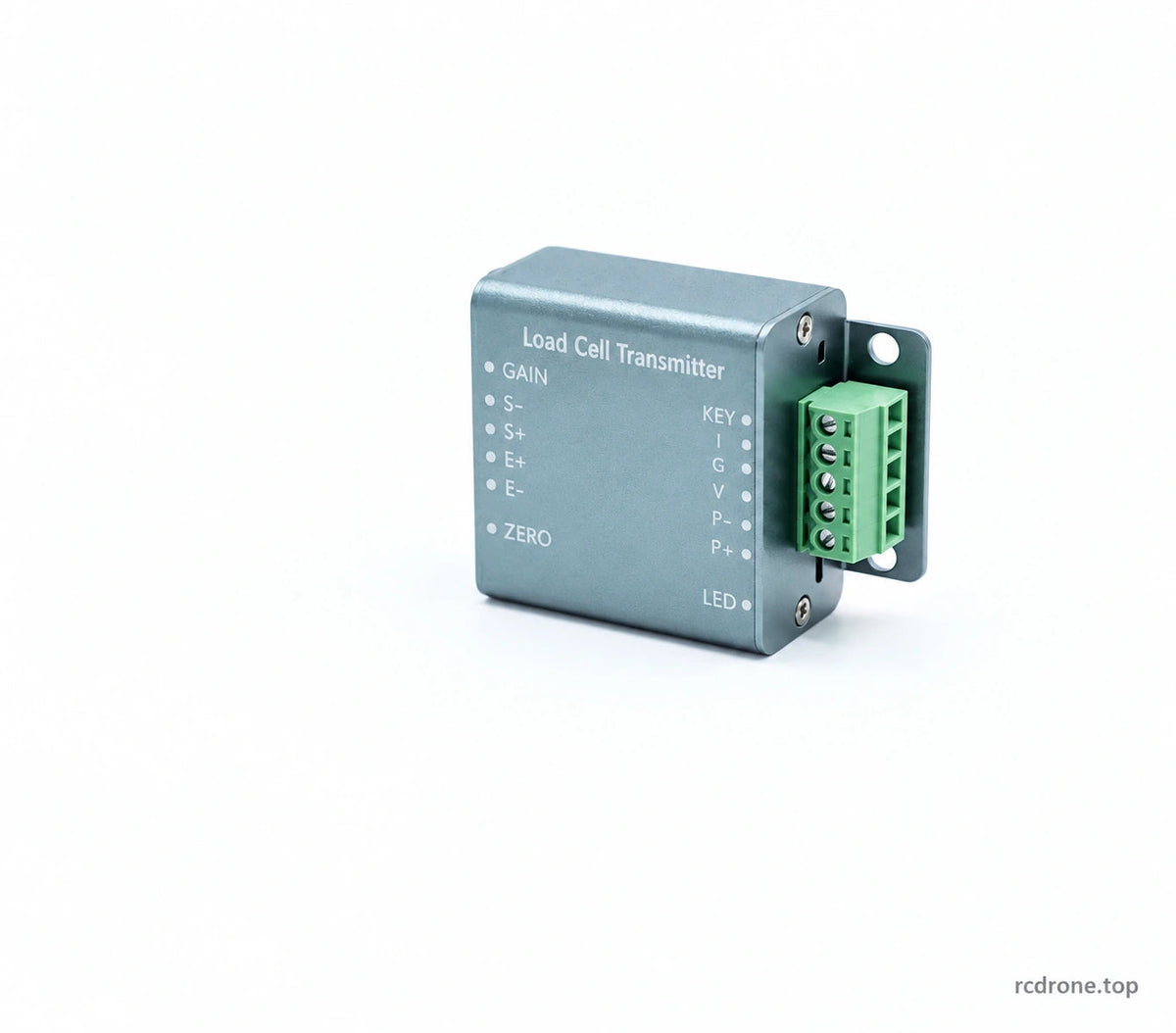

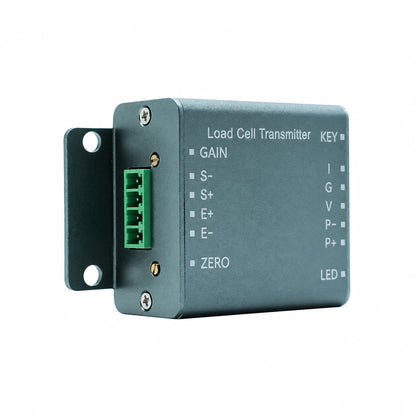

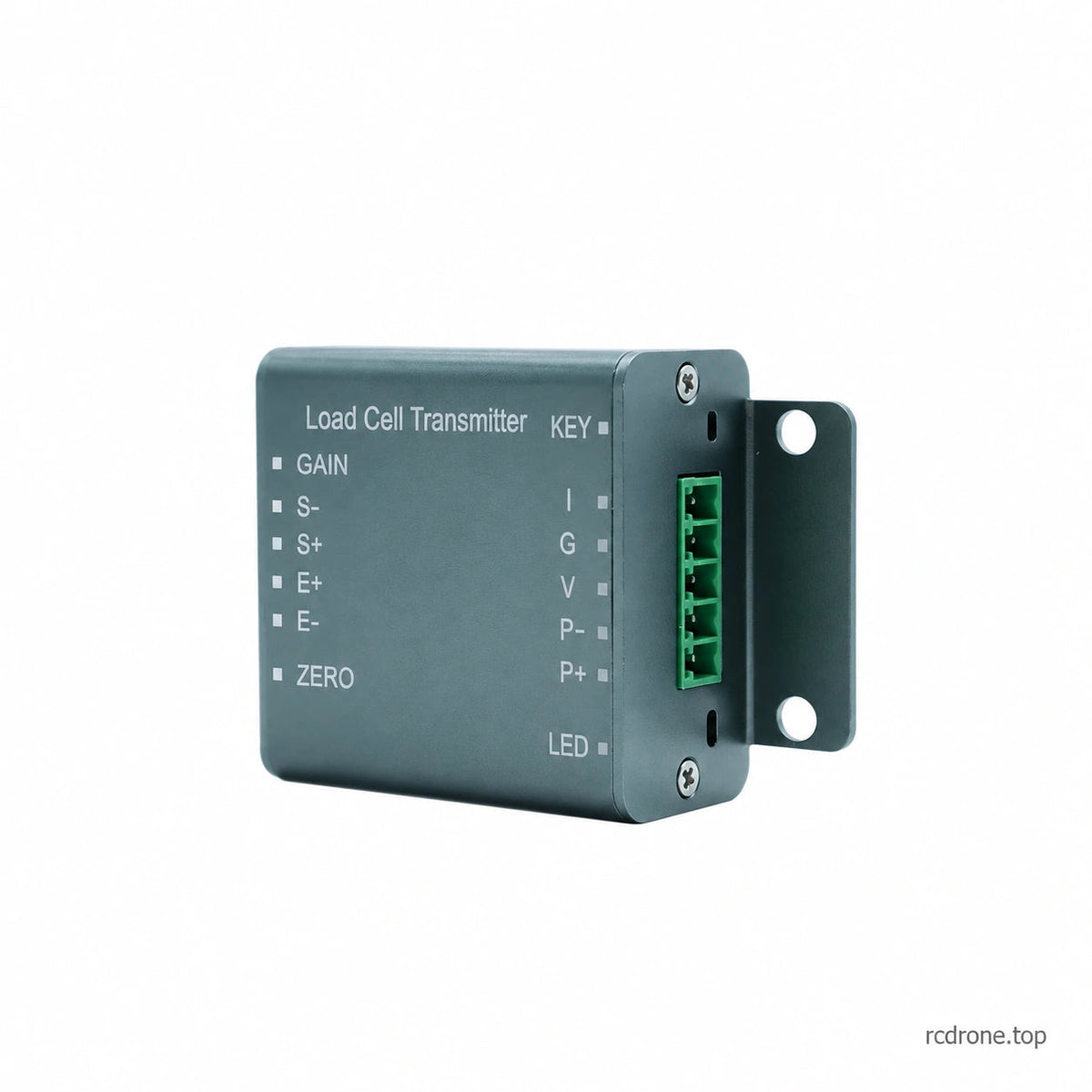

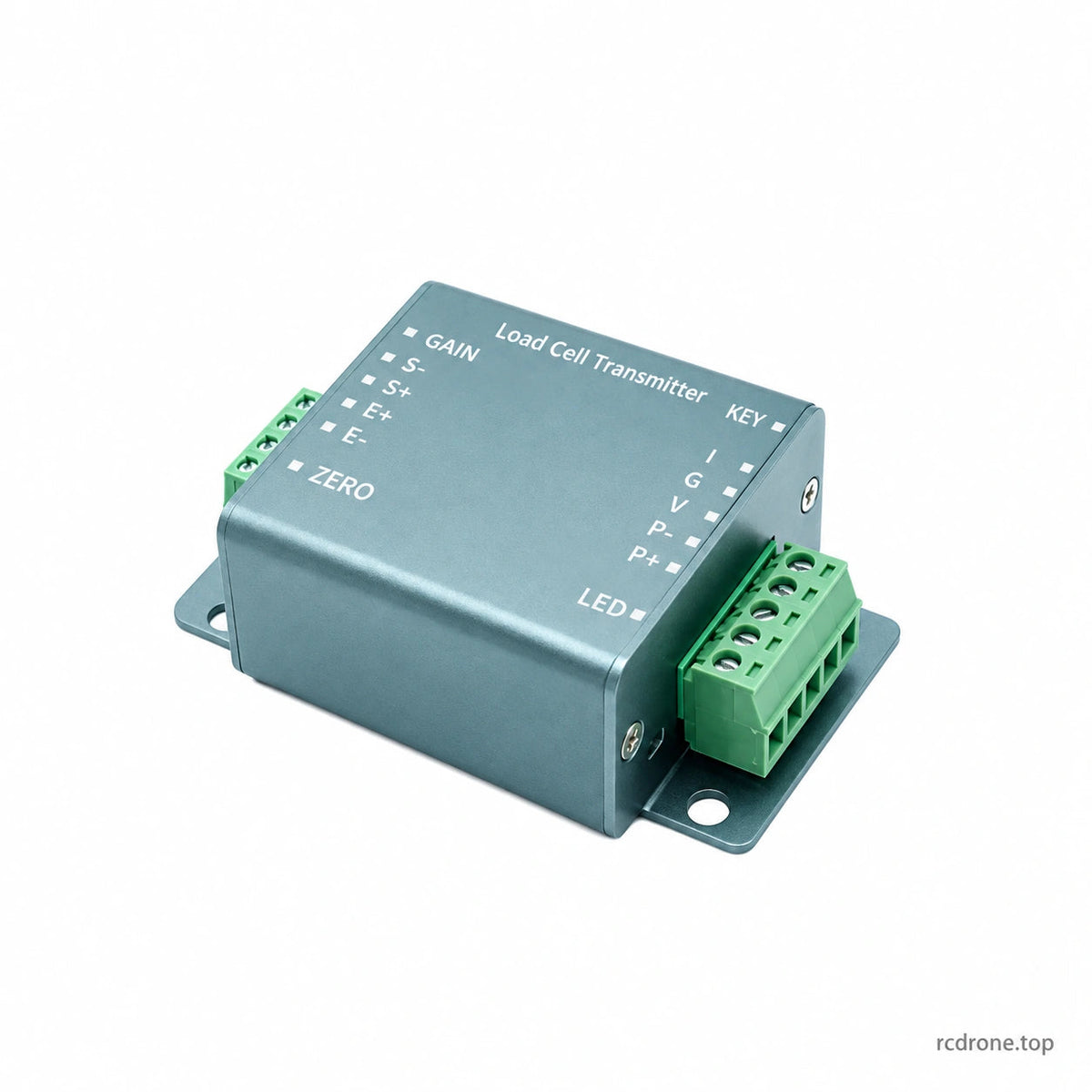

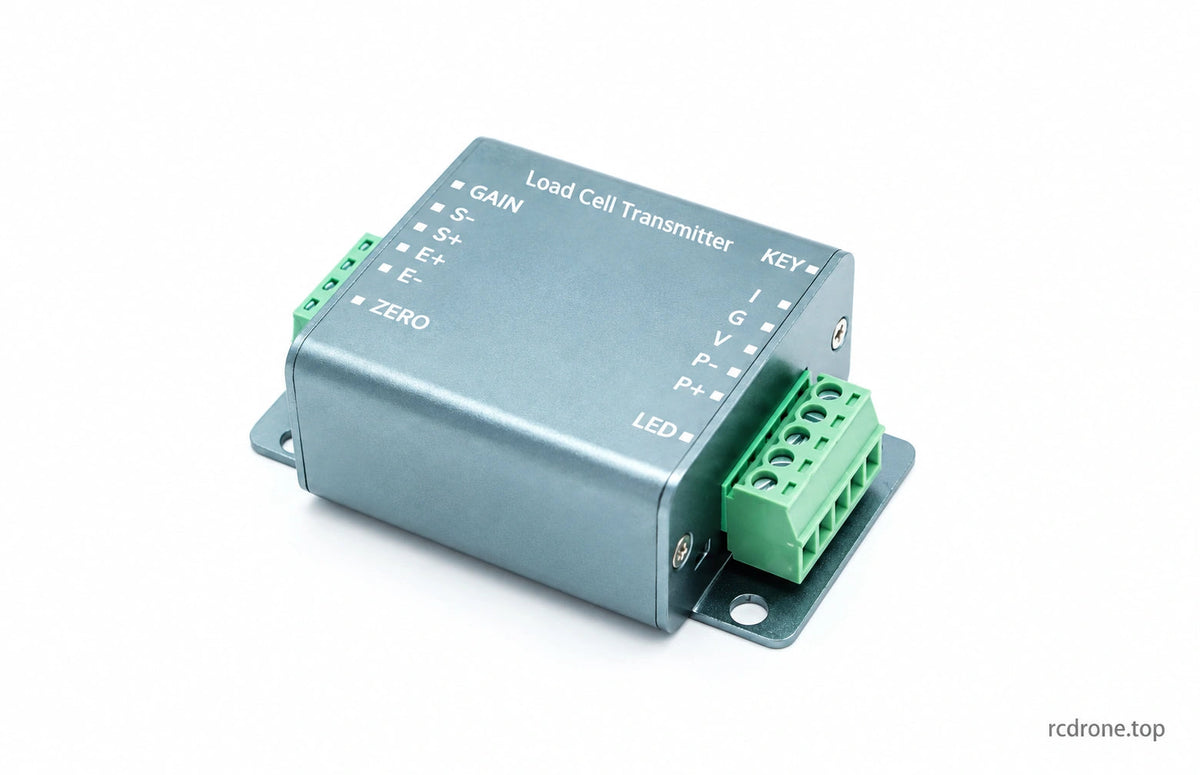

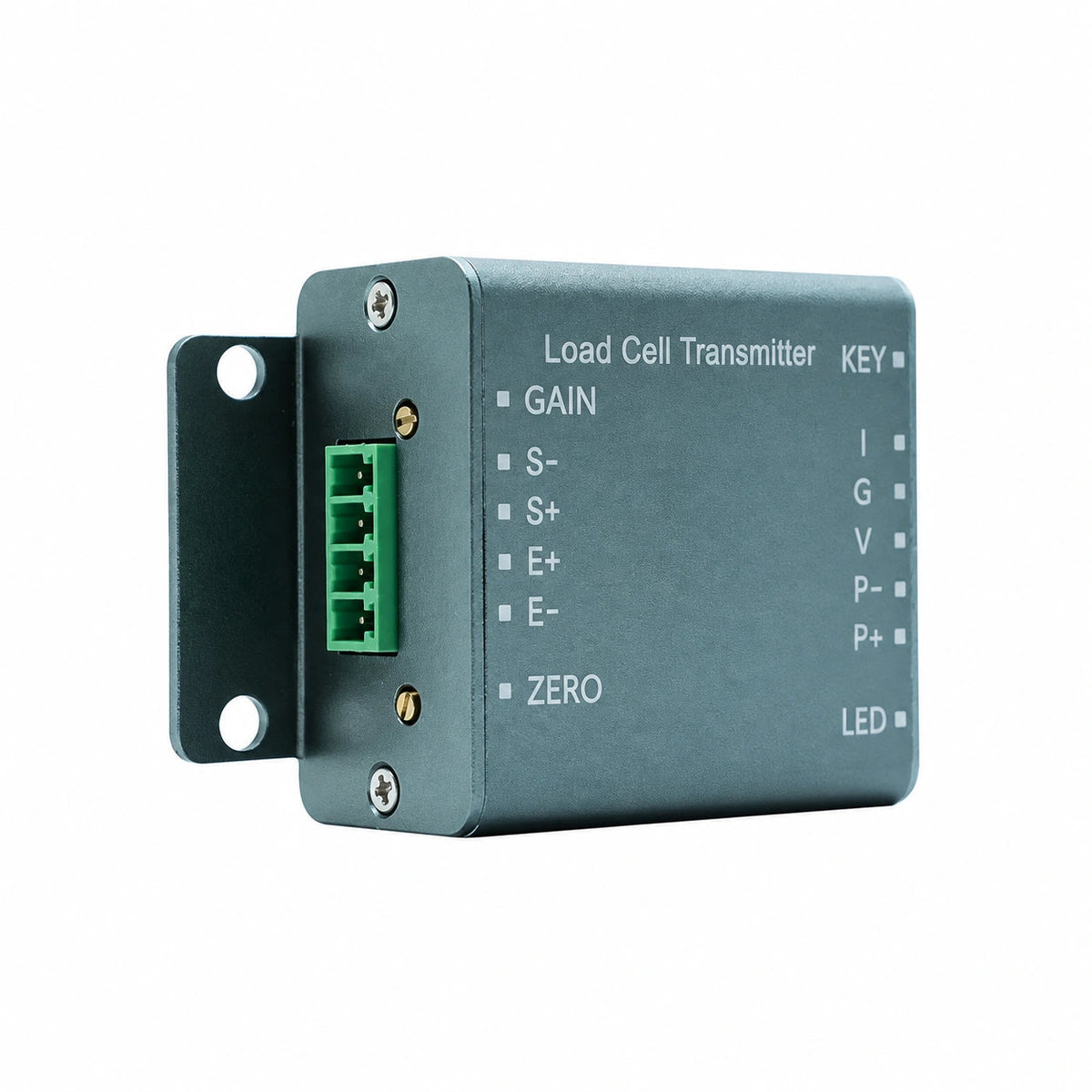

Photographs show GAIN and ZERO controls, input-side S−/S+/E+/E− markings, and output/power-side I/G/V/P−/P+ markings, with KEY and LED indications. These labels are visual references, not a substitute for the delivered wiring diagram. Confirm sensor excitation, signal polarity, supply connections, output load and jumper positions before applying power. Calibration requires a suitable reference load or torque source. The illustrations show LED colors but do not establish a color-to-mode legend.

Package Contents

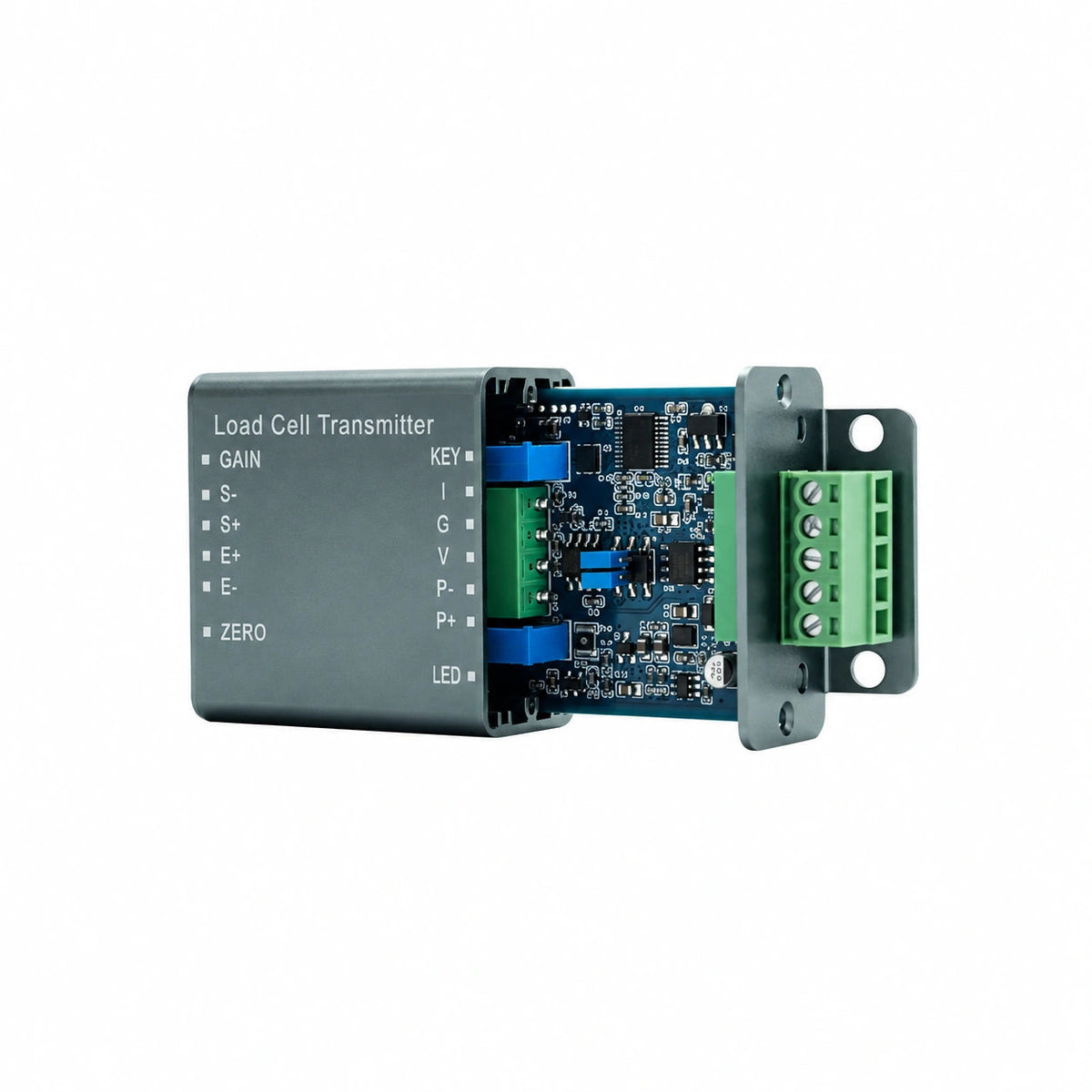

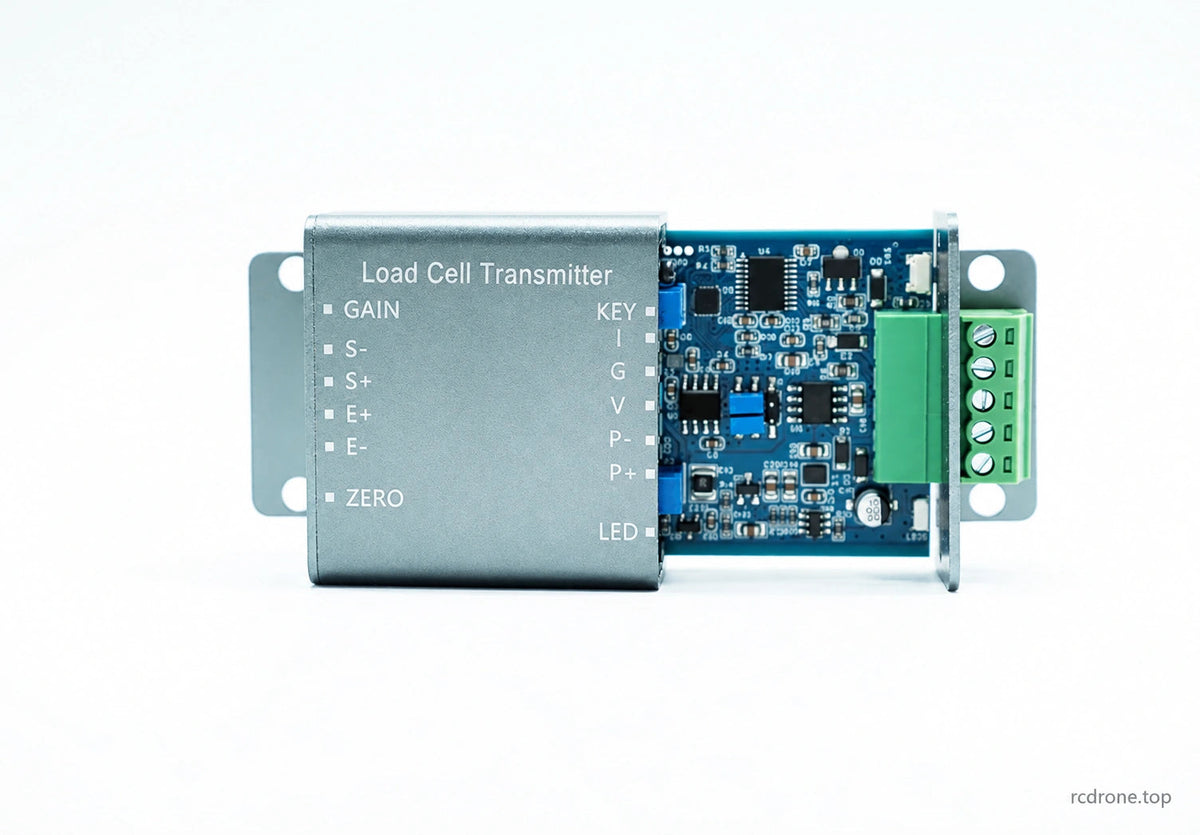

One HKV-TR-A-2 signal transmitter in the selected configuration. Sensor, test load, controller, power supply and external wiring are not included. Open-enclosure photographs illustrate the internal electronics; they do not indicate that multiple transmitters are supplied.
