HappyModel EX1002 20000KV 1S bürstenloser FPV -Motor - 1,5 mm Welle für Mobula7 / Moblite7 HD / Hdzero Whoop -Drohnen

HappyModel EX1002 20000KV 1S bürstenloser FPV -Motor - 1,5 mm Welle für Mobula7 / Moblite7 HD / Hdzero Whoop -Drohnen

HappyModel

Normaler Preis $14.56 USD
Normaler Preis Verkaufspreis $14.56 USD
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Farbe
Vollständige Details anzeigen

Überblick

Der Happymodel EX1002 20000KV Bürstenloser FPV-Motor ist ein hocheffizienter Mikromotor für 1S Whoop-Drohnen, bietet hervorragendes Drehmoment und Gasannahme für digitale Builds wie die Mobula7 HD, Moblite7 HDZero, Und Moblite7 Avatar.

Mit einem 10mm Stator, 1,5 mm Schaft, Und leichte 2,45 g KonstruktionDer EX1002 bietet ein hervorragendes Leistungsgewicht, ideal für den Transport von HD-FPV-Systemen bei gleichzeitiger Agilität und Kontrolle. Der Motor verfügt über einen 9N12P-Konfiguration, JST1.25-Anschluss, und reibungsloser Betrieb mit minimaler Vibration, wodurch es sich perfekt für Hochleistungs-Mikrokonstruktionen eignet.


Hauptmerkmale

  • Bürstenloser Micro 1002-Motor optimiert für HD-Whoop-Drohnen

  • Echte 20000KV-Ausgabe – gebaut für 1S LiPo-Setups

  • 1,5 mm Schaftdurchmesser für verstärkte T-Mount-Stützenkompatibilität

  • 9N12P-Statorkonfiguration mit Präzisionswicklungen

  • Statorgröße: 10 mm × 2 mm für effizienten Schub und Balance

  • Kompatibel mit:

    • Mobula7 1S / Mobula7 HD 1S

    • Moblite7 HDZero / Moblite7 Avatar

  • JST1.25-Anschluss, 40 mm Kabel (ohne Stecker)

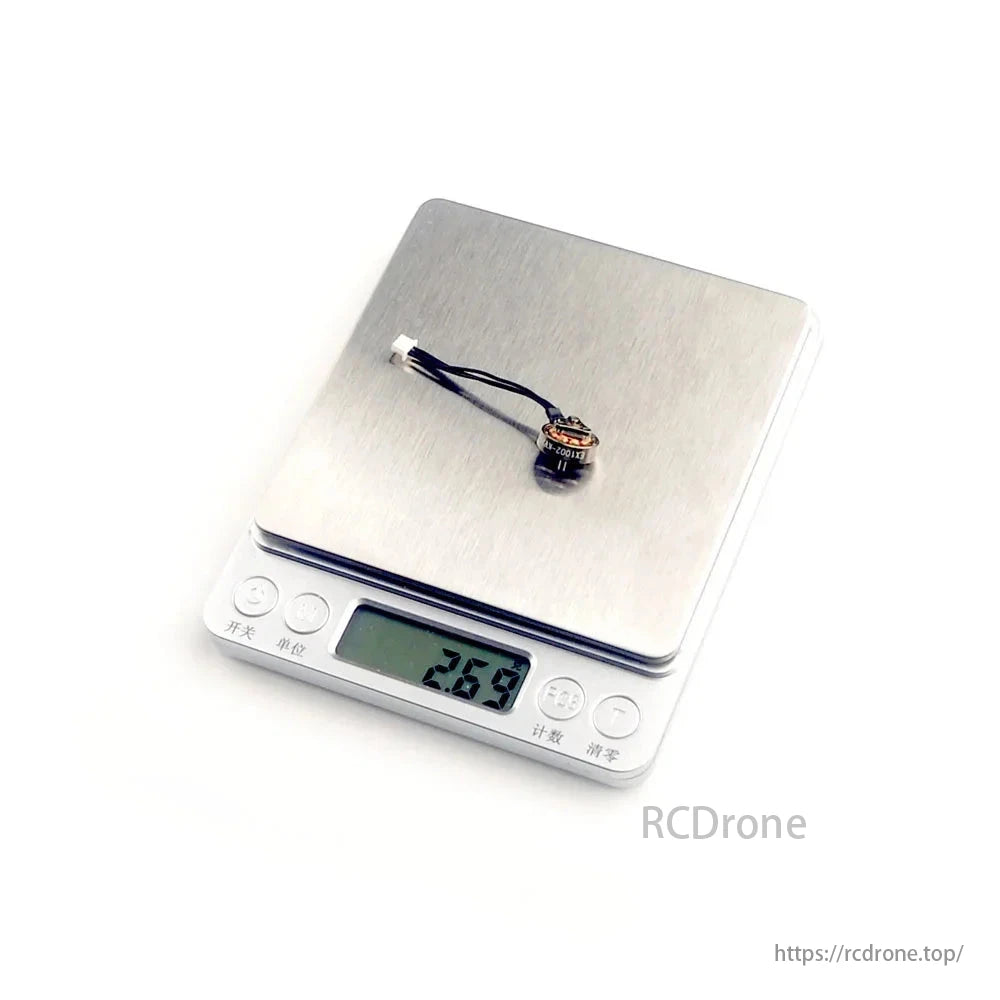

  • Leicht: nur 2,45 g inklusive Draht


⚙️ Technische Daten

Parameter Wert
Modell EX1002
KV-Bewertung 20000 kV
Konfiguration 9N12P
Statorgröße 10 mm x 2 mm
Motorabmessungen Φ13,5 mm × 12,5 mm
Wellendurchmesser 1,5 mm
Steckertyp JST1,25 mm
Kabellänge 40 mm (ohne Anschluss)
Gewicht 2,45 g
Eingangsspannung Nur 1S LiPo

📦 Paket beinhaltet

  • 1 × Happymodel EX1002 20000KV Bürstenloser Motor

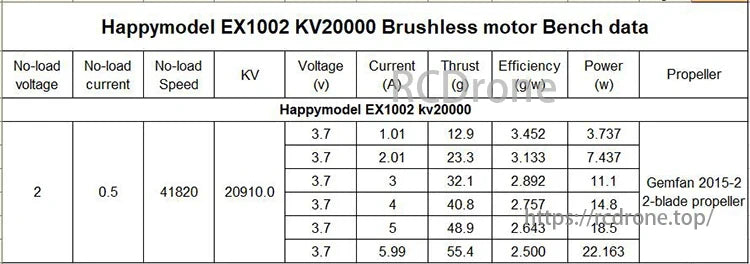

Happymodel EX1002 20000KV 1S Brushless FPV Motor, Happymodel EX1002 motor bench data with Gemfan 2015-2 propeller shows varying performance metrics based on input parameters.

Die Motordaten des Happymodel EX1002 KV20000 umfassen Leerlaufwerte, Spannung, Stromstärke, Schub, Wirkungsgrad und Leistung mit Gemfan 2015-2-Propeller. Die Leistungsdaten variieren je nach Eingabeparametern.

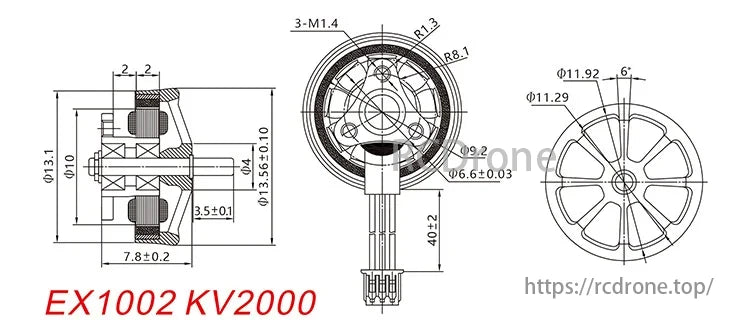

Happymodel EX1002 20000KV 1S Brushless FPV Motor, EX1002 KV2000 motor dimensions and specifications in technical drawing.

Abmessungen und Spezifikationen des Motors EX1002 KV2000 in der technischen Zeichnung.

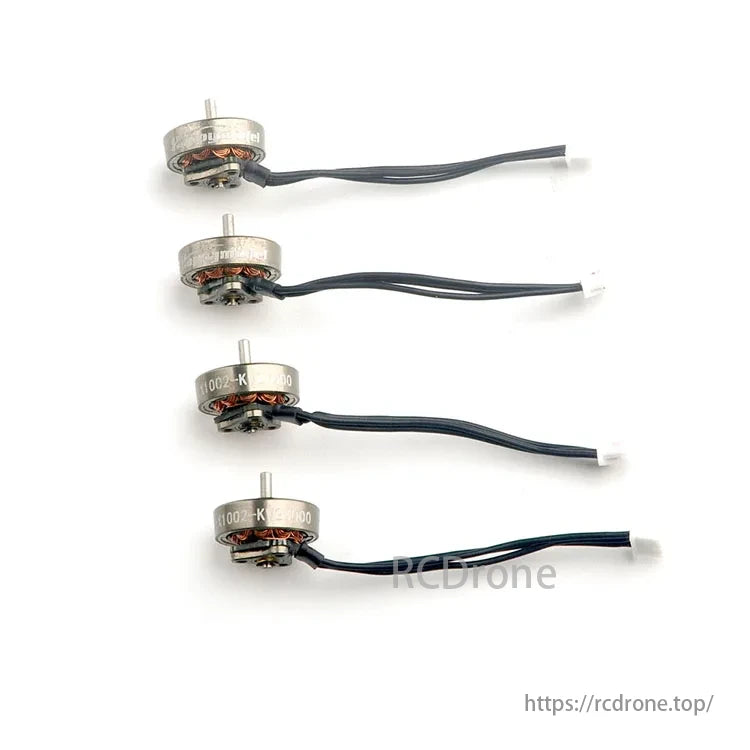

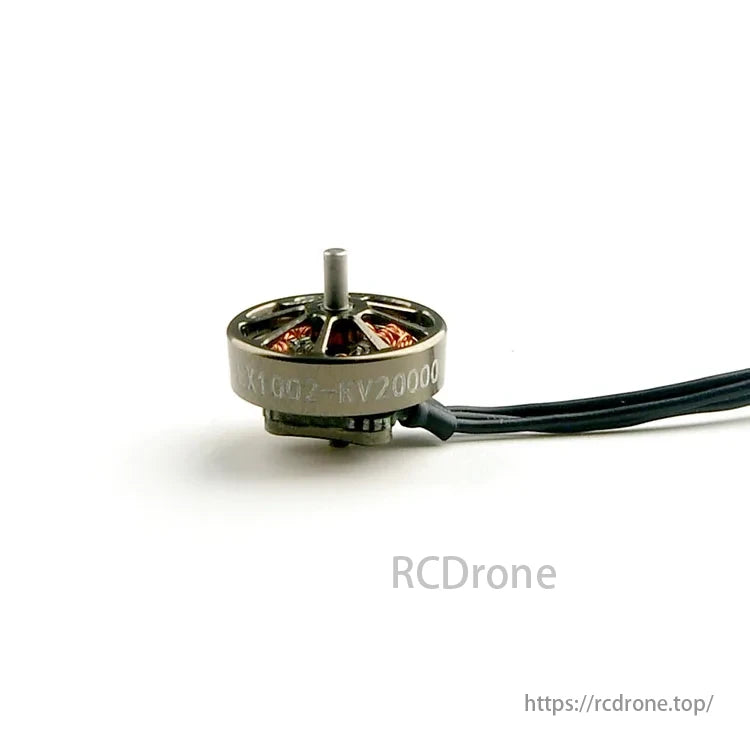

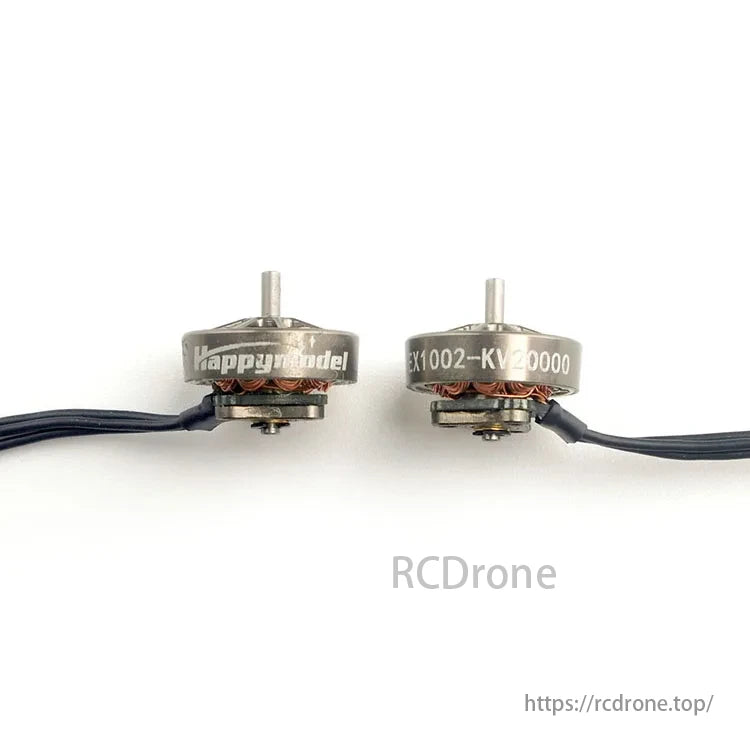

Happymodel EX1002 20000KV 1S Brushless FPV Motor, The Happymodel EX1002 20000KV Brushless FPV Motor delivers excellent torque and throttle response for 1S whoop drones.Happymodel EX1002 20000KV 1S Brushless FPV Motor, The Happymodel EX1002 brushless motor features 20,000KV output, optimized for HD whoop drones and compatible with Mobula7 and Moblite7 series.Happymodel EX1002 20000KV 1S Brushless FPV Motor, The Happymodel EX1002 motor is a high-efficiency micro motor for 1S whoop drones, offering excellent torque and throttle response.Happymodel EX1002 20000KV 1S Brushless FPV Motor, The Happymodel EX1002 is a high-efficiency micro motor for 1S whoop drones with excellent torque and throttle response.Happymodel EX1002 20000KV 1S Brushless FPV Motor, The EX1002 has a strong power-to-weight ratio with 10mm stator, 1.5mm shaft, and lightweight construction suitable for HD FPV systems.Happymodel EX1002 20000KV 1S Brushless FPV Motor, The motor features a 9N12P configuration, JST1.25 connector, and smooth operation, suitable for high-performance micro builds.
