Overview

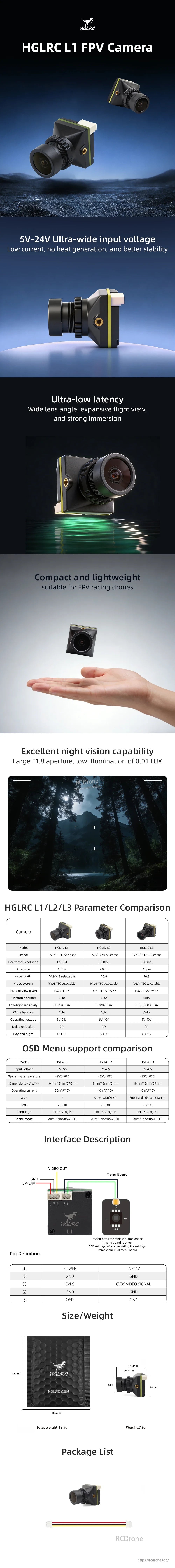

HGLRC L-Series is an FPV camera lineup for FPV drones, offering selectable models (L1, L2, L3) with ultra-low latency, compact size, and low-light performance for day/night color flying. All versions output analog CVBS video and support PAL/NTSC selection and OSD settings.
Key Features
- Selectable models: L1 / L2 / L3
- Ultra-low latency, wide lens angle for immersive flight view
- Low-light performance: L1/L2 up to F1.8 / 0.01Lux; L3 up to F1.0 / 0.000001Lux
- PAL/NTSC selectable (CVBS analog video output)
- OSD settings supported via external menu board (used for configuration)
- Ultra-wide input voltage (model dependent)

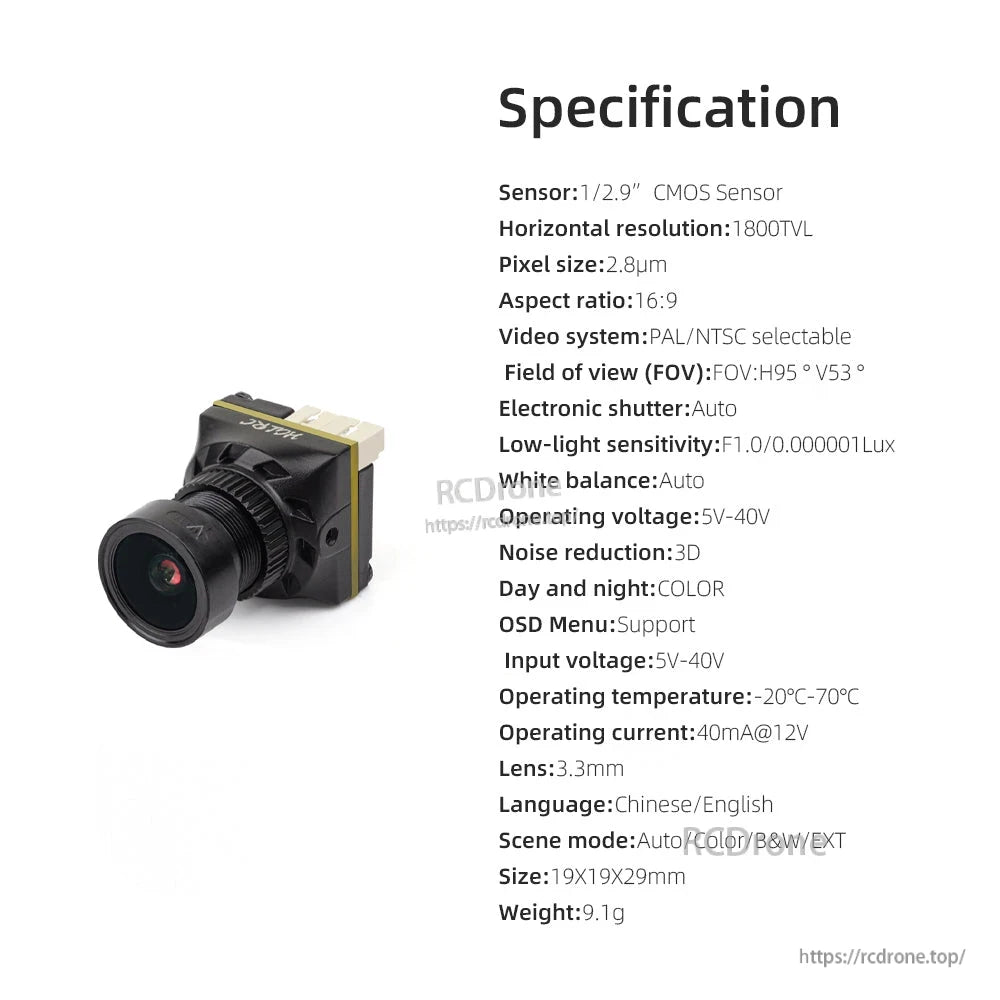

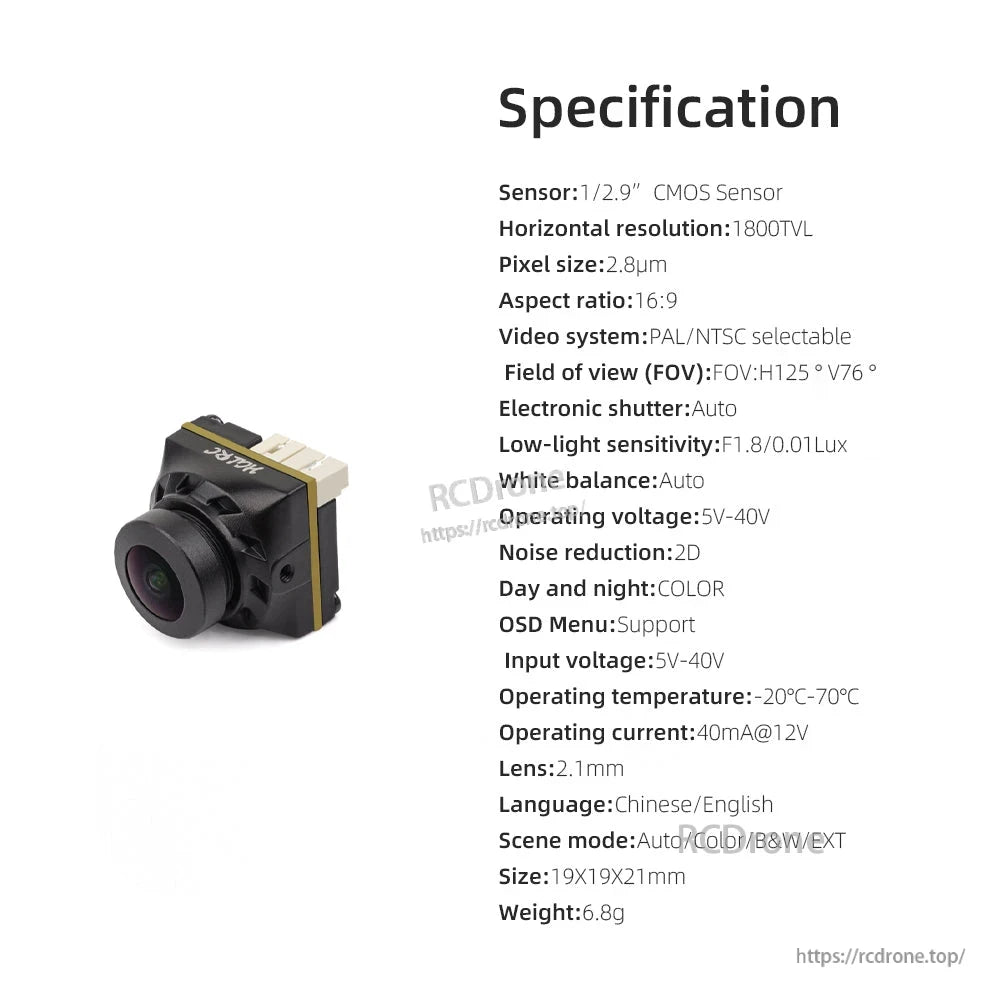

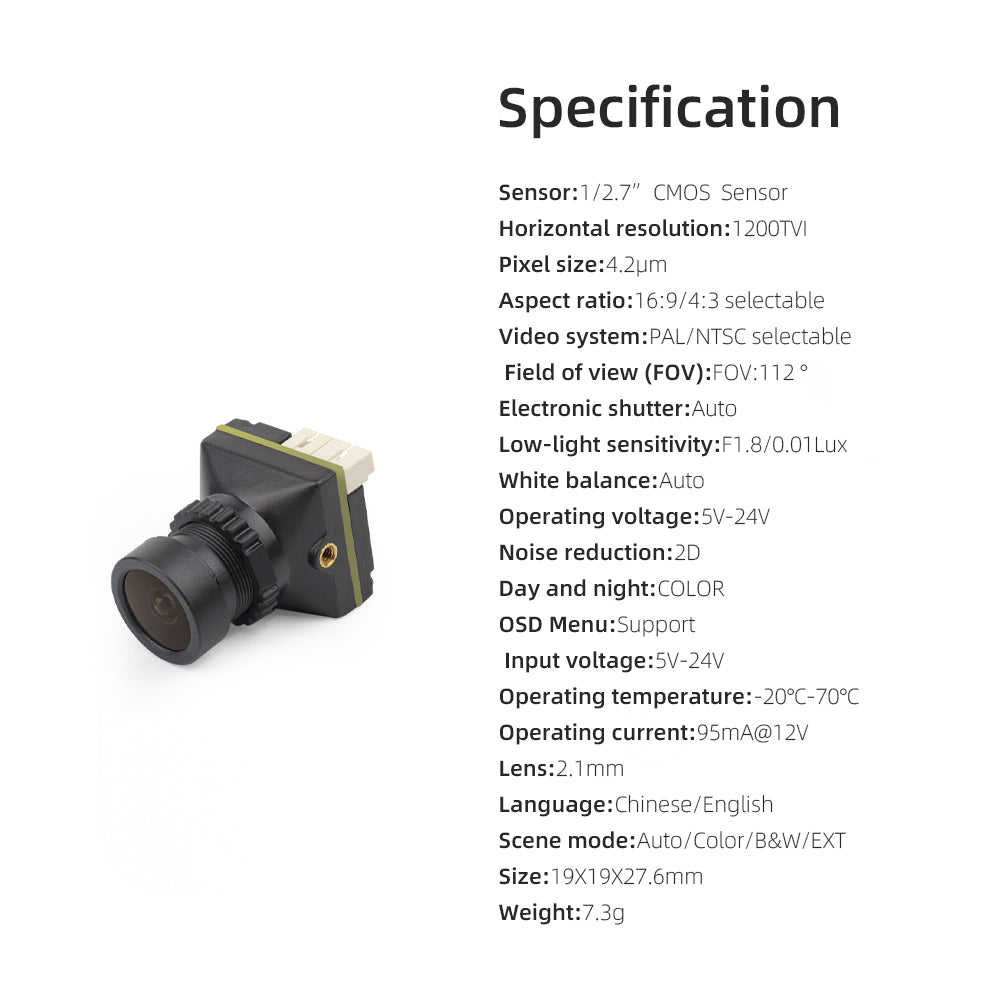

Specifications

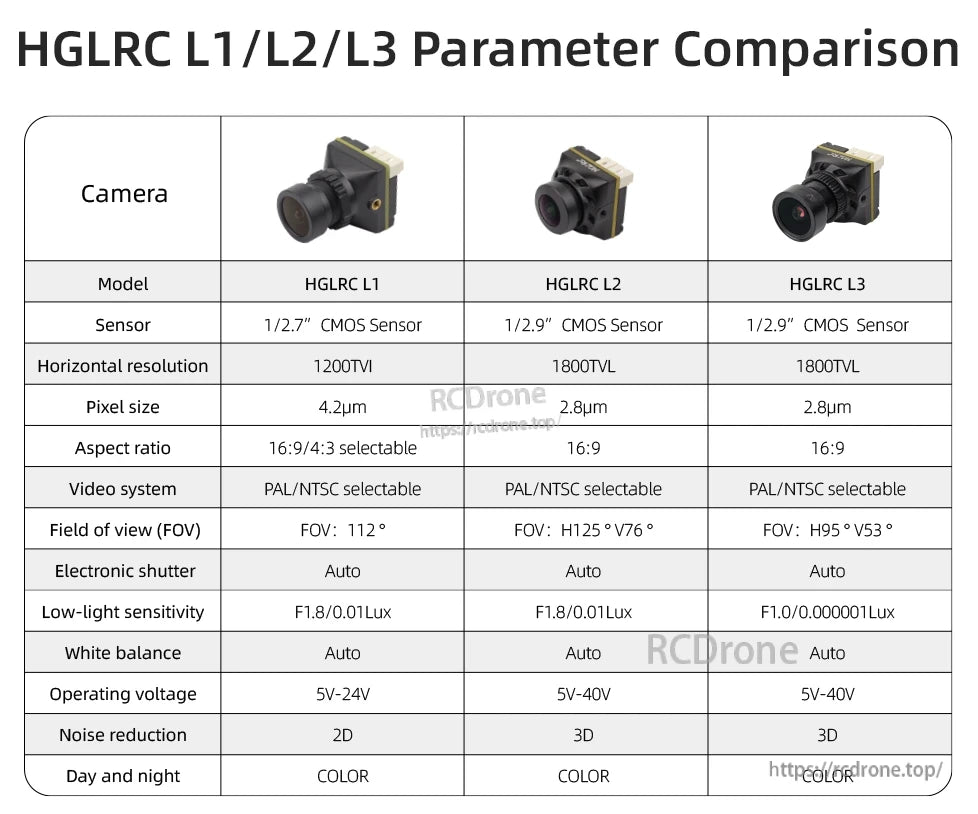

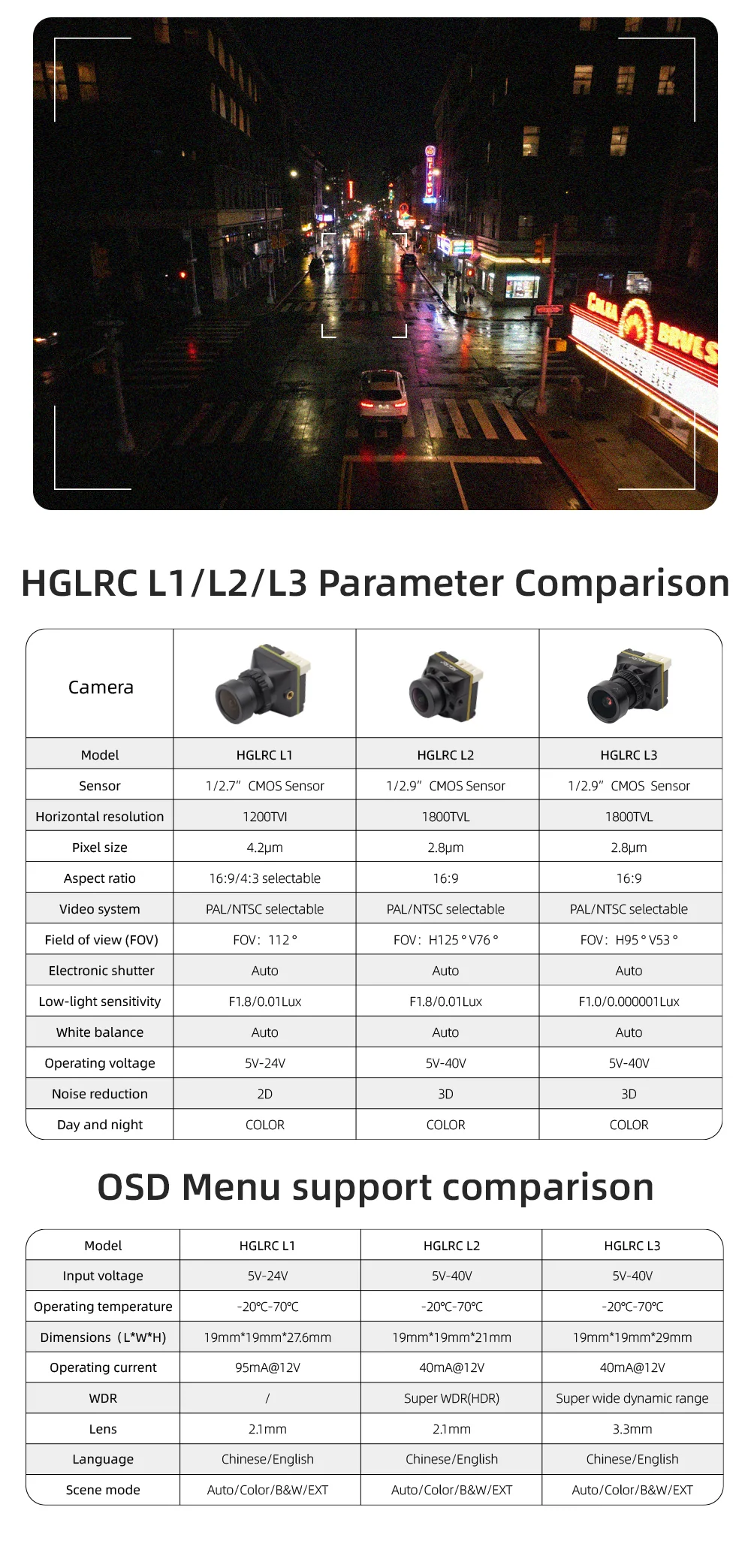

Parameter Comparison
| Parameter | HGLRC L1 | HGLRC L2 | HGLRC L3 |
|---|---|---|---|
| Sensor | 1/2.7" CMOS Sensor | 1/2.9" CMOS Sensor | 1/2.9" CMOS Sensor |
| Horizontal resolution | 1200TVL | 1800TVL | 1800TVL |
| Pixel size | 4.2um | 2.8um | 2.8um |
| Aspect ratio | 16:9/4:3 selectable | 16:9 | 16:9 |
| Video system | PAL/NTSC selectable | PAL/NTSC selectable | PAL/NTSC selectable |
| Field of view (FOV) | 112° | H125° V76° | H95° V53° |
| Electronic shutter | Auto | Auto | Auto |
| Low-light sensitivity | F1.8/0.01Lux | F1.8/0.01Lux | F1.0/0.000001Lux |
| White balance | Auto | Auto | Auto |
| Operating voltage | 5V-24V | 5V-40V | 5V-40V |
| Noise reduction | 2D | 3D | 3D |
| Day and night | COLOR | COLOR | COLOR |

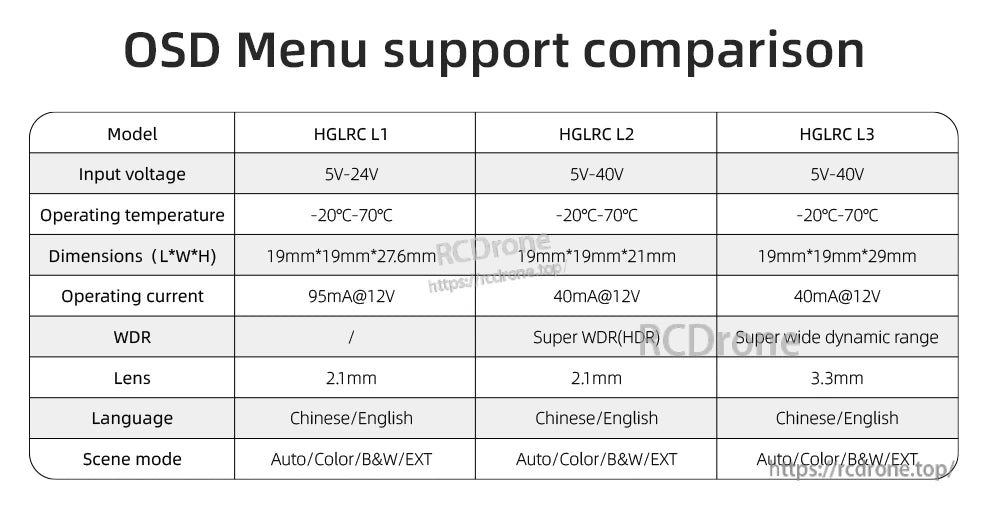

OSD Menu Support Comparison
| Parameter | HGLRC L1 | HGLRC L2 | HGLRC L3 |
|---|---|---|---|
| Input voltage | 5V-24V | 5V-40V | 5V-40V |
| Operating temperature | -20°C-70°C | -20°C-70°C | -20°C-70°C |
| Dimensions (L*W*H) | 19mm*19mm*27.6mm | 19mm*19mm*21mm | 19mm*19mm*29mm |
| Operating current | 95mA@12V | 40mA@12V | 40mA@12V |
| WDR | / | Super WDR(HDR) | Super wide dynamic range |
| Lens | 2.1mm | 2.1mm | 3.3mm |
| Language | Chinese/English | Chinese/English | Chinese/English |
| Scene mode | Auto/Color/B&W/EXT | Auto/Color/B&W/EXT | Auto/Color/B&W/EXT |

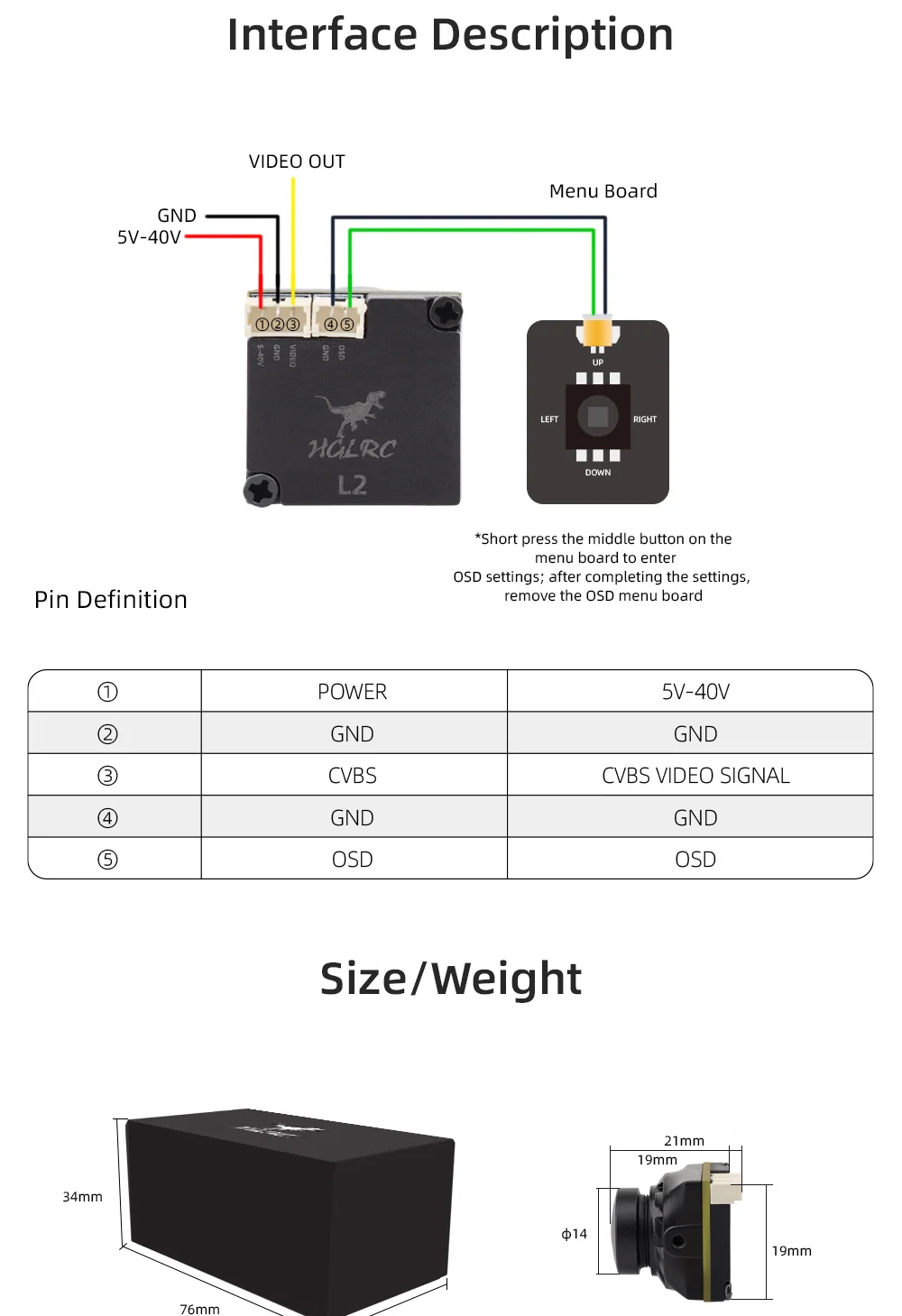

Interface / Pin Definition (Camera Header)
| Pin | Signal | Description |
|---|---|---|
| 1 | POWER | 5V-40V |
| 2 | GND | GND |
| 3 | CVBS | CVBS VIDEO SIGNAL |
| 4 | GND | GND |
| 5 | OSD | OSD |
OSD note: short press the middle button on the menu board to enter OSD settings; after completing the settings, remove the OSD menu board.
Size / Weight (shown)
- Lens diameter: φ14
- Shown dimensions: 19mm (height) x 19mm (width) x 21mm
- Weight: 6.8g
- Total weight: 37.2g
- Box size (shown): 76mm x 34mm
For selection help between L1 vs L2 vs L3 and installation support, contact support@rcdrone.top or visit https://rcdrone.top/.

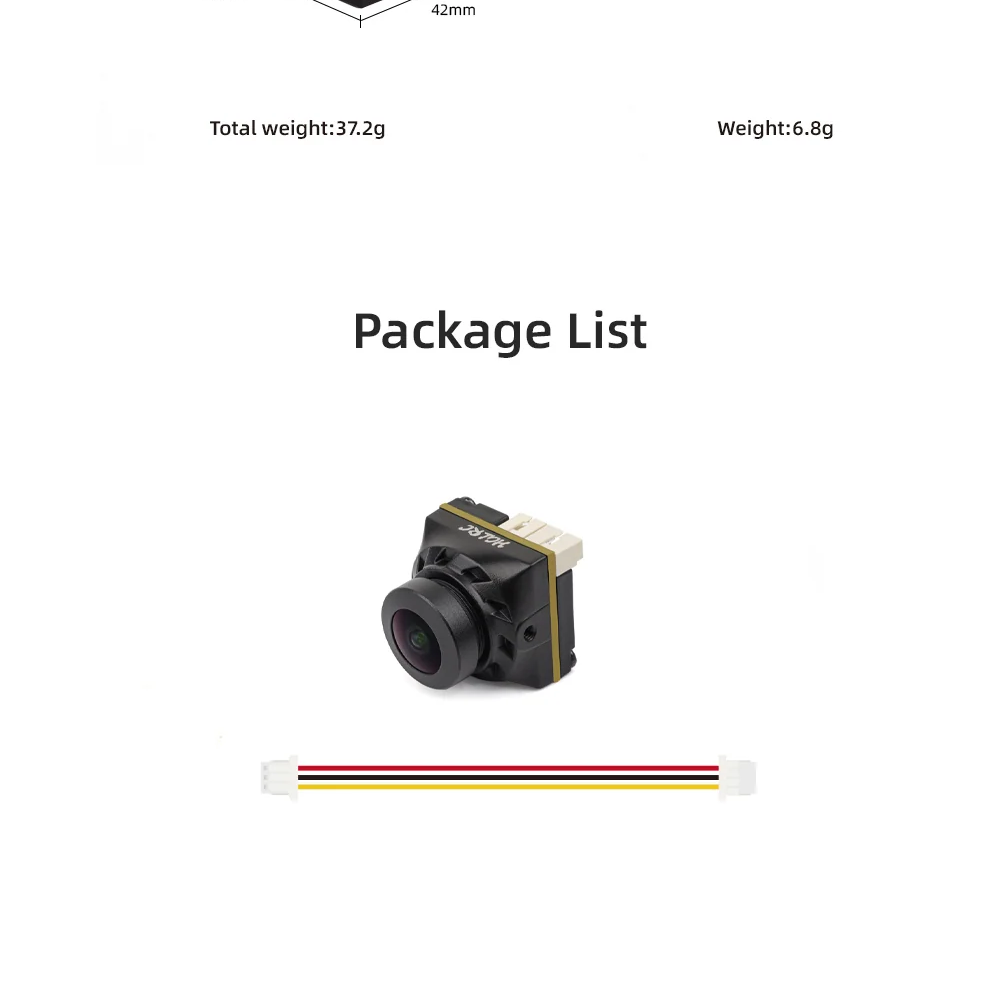

What’s Included
- 1x HGLRC FPV camera (selected variant: L1 / L2 / L3)
- 1x cable
Applications
- FPV racing drones and compact FPV builds using analog CVBS video systems
Details

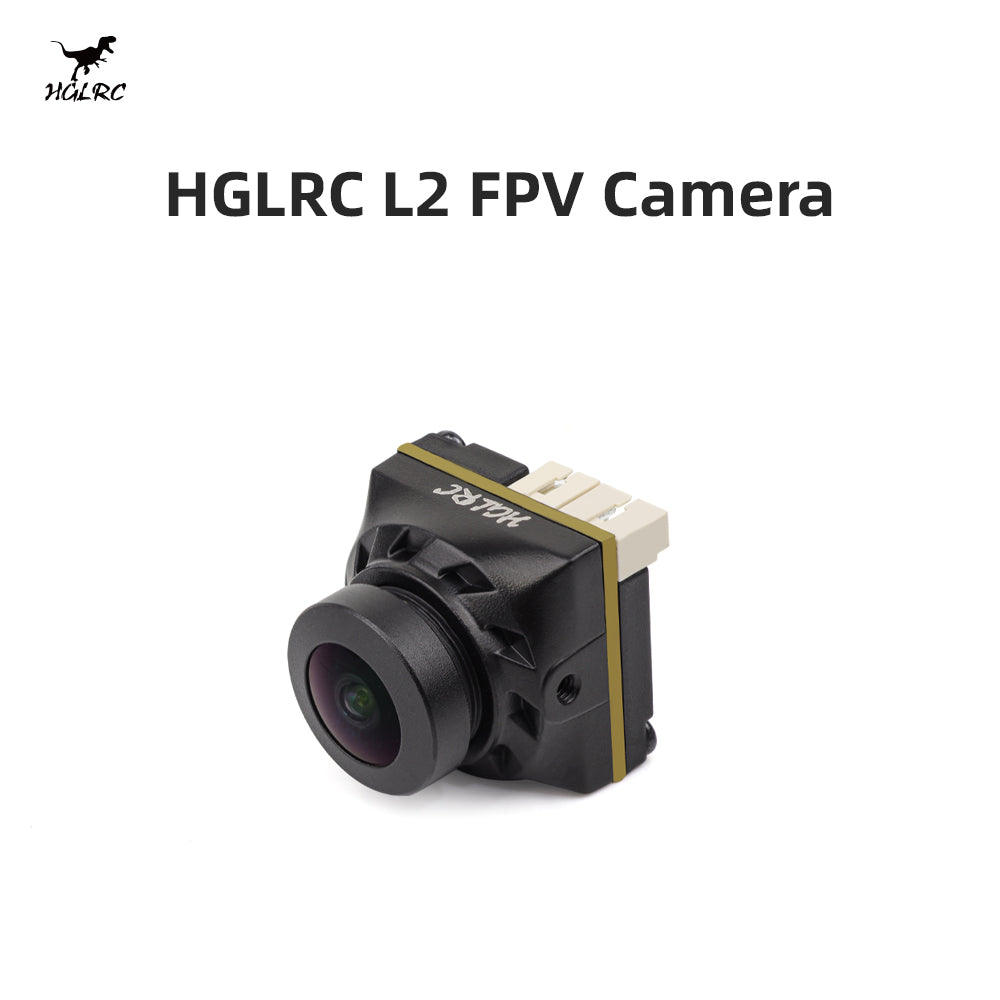

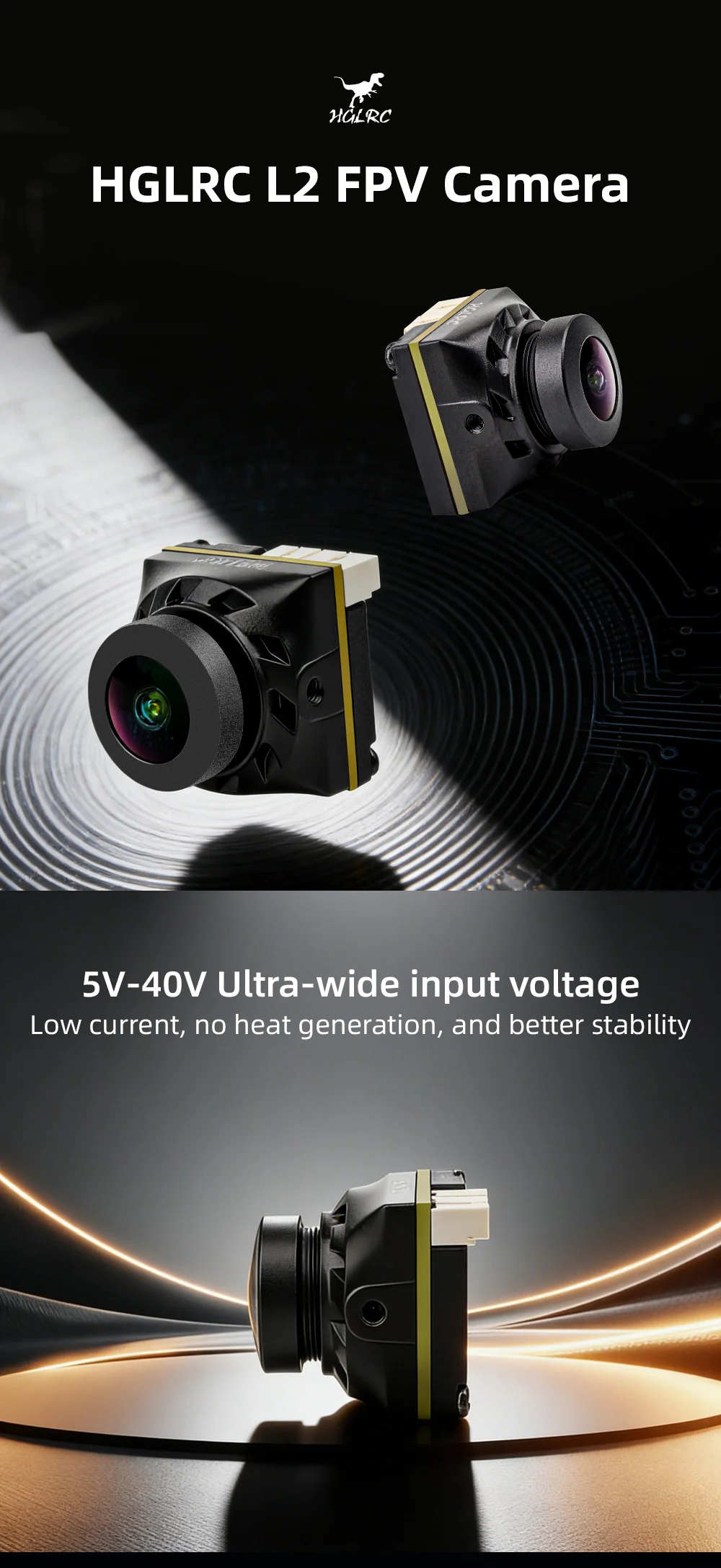

The L2 variant pairs a compact body with a wide 5–40V input range for stable power on many builds.
Ultra-low latency and a wide flight view help keep control crisp, while the lightweight form fits tight racing frames.
Compare L1, L2, and L3 key specs side by side to pick the best match for your voltage range, lens, and low-light needs.
Wiring is straightforward: connect power and CVBS video, then use the external menu board to access OSD settings when needed.
In the box: the selected camera plus the matching cable harness for quick installation.
