Overview

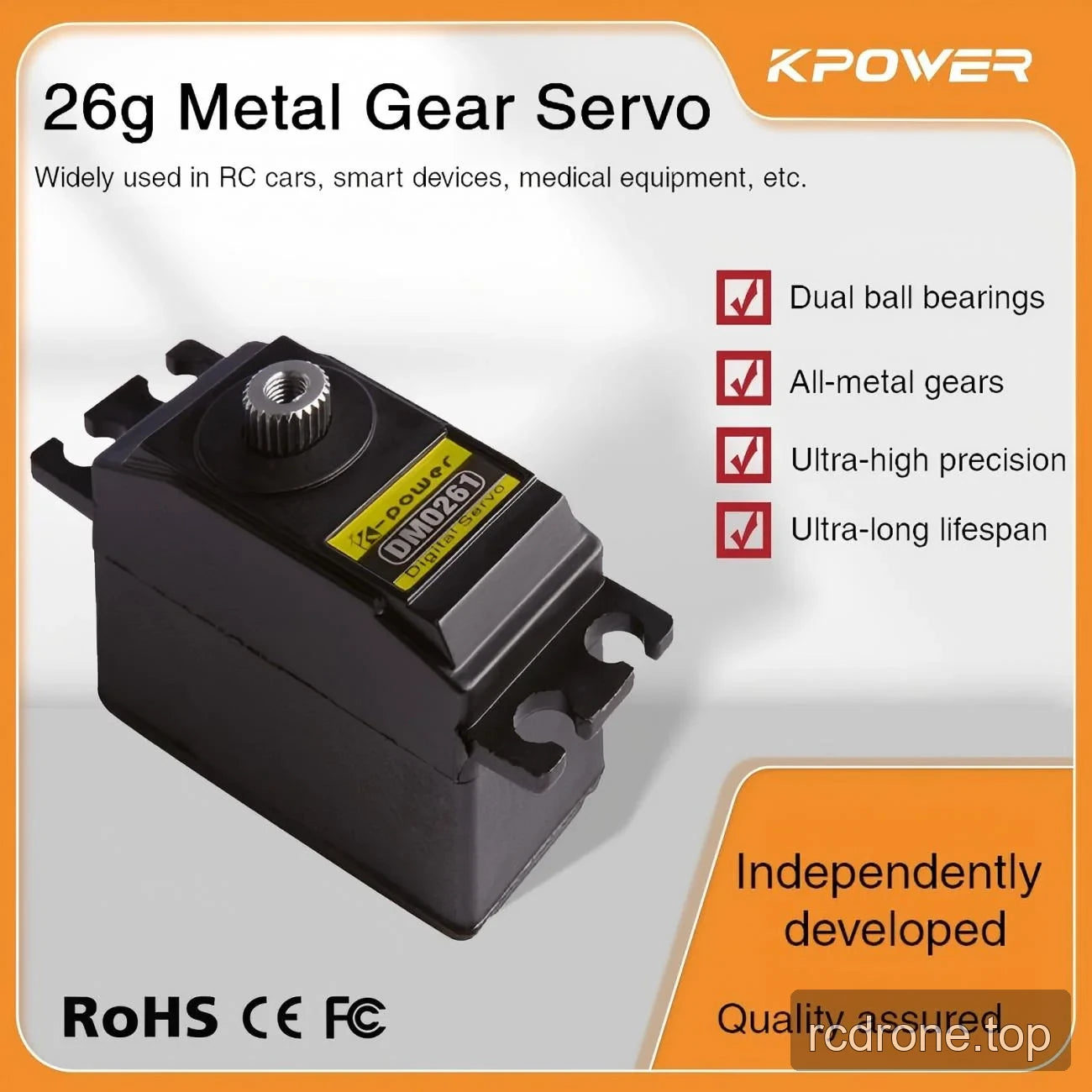

The Kpower DM0261 is a digital micro servo for RC cars, smart devices and medical-equipment mechanisms. All-metal gears, dual ball bearings and a 25T output spline define its mechanical configuration. Specified performance is 2.3 kg·cm stall torque at 4.8 V and 2.9 kg·cm at 6.0 V, with corresponding no-load speeds of 0.07 and 0.06 seconds per 60° for evaluating actuator requirements.

Features

Digital micro servo with a core motor.
All-metal gears and dual ball bearings (2BB).
25T output spline.
2 μs dead band.

Specifications

Parameter	Value
Brand	Kpower
Model / version	DM0261
Product designation	Metal Gear Core Motor Digital Micro Servo
Gear material	Metal; all-metal gears
Bearing type	2BB; dual ball bearings
Dimensions	35.5 × 15 × 29 mm
Stall torque at 4.8 V	2.3 kg·cm
Stall torque at 6.0 V	2.9 kg·cm
No-load speed at 4.8 V	0.07 s/60°
No-load speed at 6.0 V	0.06 s/60°
Dead band	2 μs
Spline	25T

Applications

RC car mechanisms: Actuate steering or other moving linkages using a compact digital servo with metal gears and a 25T output spline.
Smart-device mechanisms: Move compact linkages or adjustable elements where the 35.5 × 15 × 29 mm dimensions and voltage-specific torque and speed suit the design.
Medical-equipment mechanisms: Provide motion for small adjustable mechanisms using the digital servo configuration and dual-ball-bearing construction.
