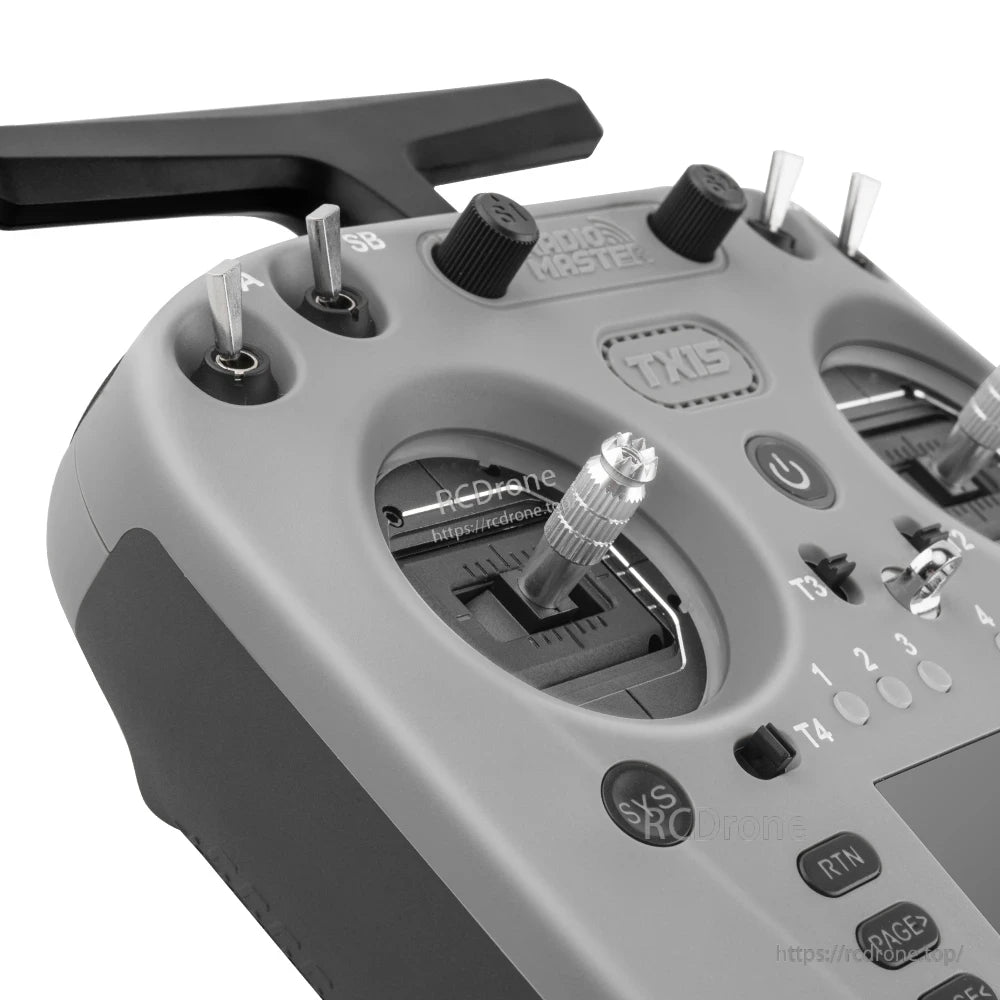

RadioMaster Replacement HALL V5.0 Hall Effect Gimbal for TX15/TX15 MAX RC Radio Transmitters

Overview

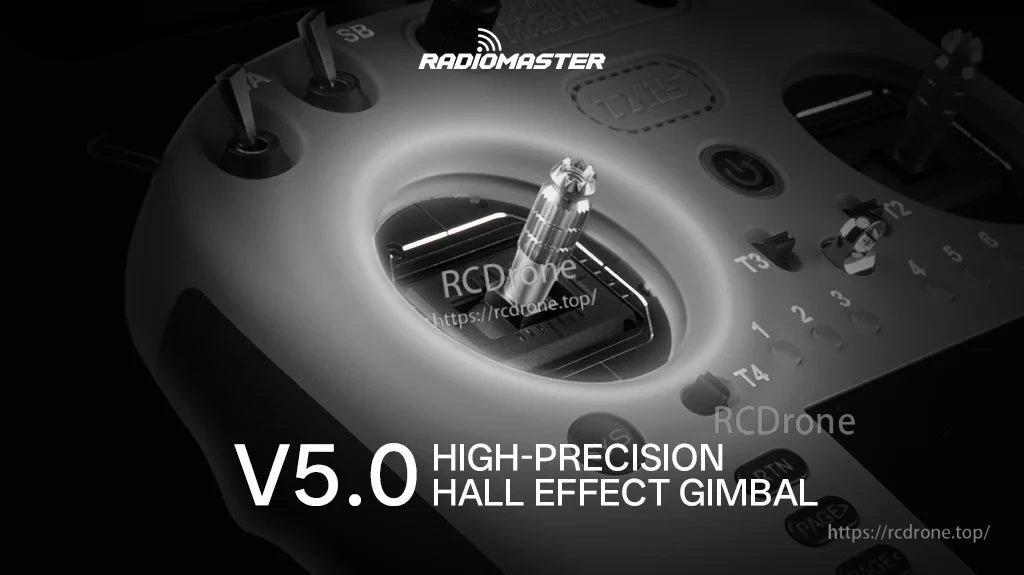

This replacement gimbal is compatible with RadioMaster TX15 Radio and TX15 MAX Radio. It is a V5.0 high-precision Hall effect gimbal and supports adjustable stick travel without disassembly (min 38° to max 54°).

Key Features

• V5.0 high-precision Hall effect gimbal
• Adjustable without disassembly
• Stick travel adjustment range: min 38° / max 54°
• Adjustable horizontal (left-right) and vertical (up-down) axis tension
• Gimbal mode setting: self-centering enable/disable

Specifications

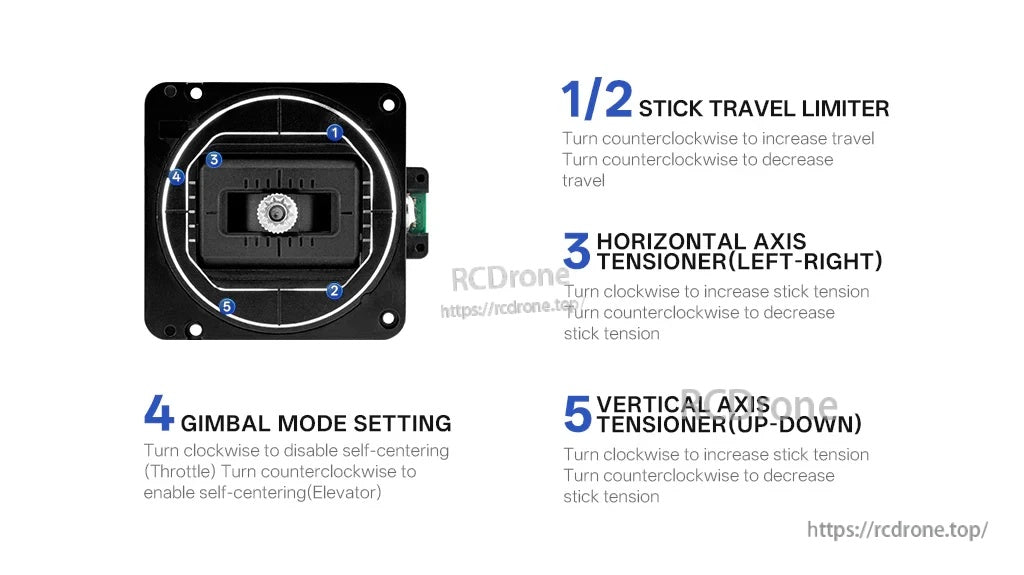

Gimbal Adjustment

• 1/2 Stick travel limiter: Turn counterclockwise to increase travel. Turn counterclockwise to decrease travel.
• 3 Horizontal axis tensioner (left-right): Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
• 4 Gimbal mode setting: Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
• 5 Vertical axis tensioner (up-down): Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.

What’s Included

• 1 * Replacement HALL V5 Gimbal

For installation or compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

Upgrade your TX15 or TX15 MAX with the V5.0 high‑precision Hall effect gimbal for smooth, accurate stick control.

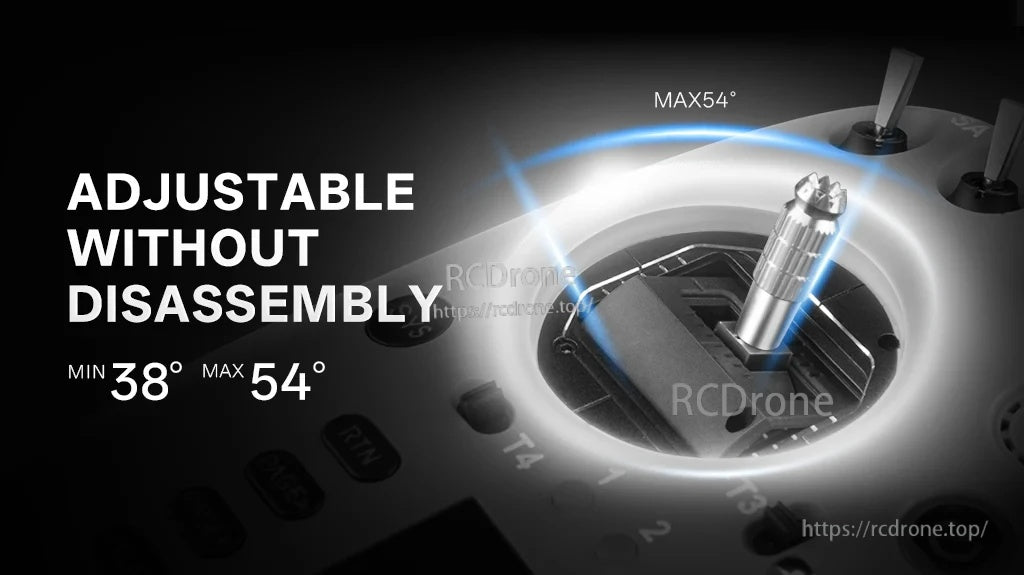

Dial in stick travel from 38° to 54° without taking the radio apart—ideal for matching your flying style.

Fine-tune tension on both axes, set throttle self-centering, and use the travel limiter for precise stick feel.
