Overview
The RadioMaster Pocket Crush (M2) is a compact RC radio controller designed for portable setups and colorful custom builds. It comes in seven color options: Slate Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, and Lemon Twist Yellow. The Pocket Crush is preinstalled with EdgeTX firmware and uses an ELRS 2.4GHz internal RF option.
Key Features
- Optional colors: Slate Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
- Available with built-in ExpressLRS Backpack
- Preinstalled with EdgeTX firmware

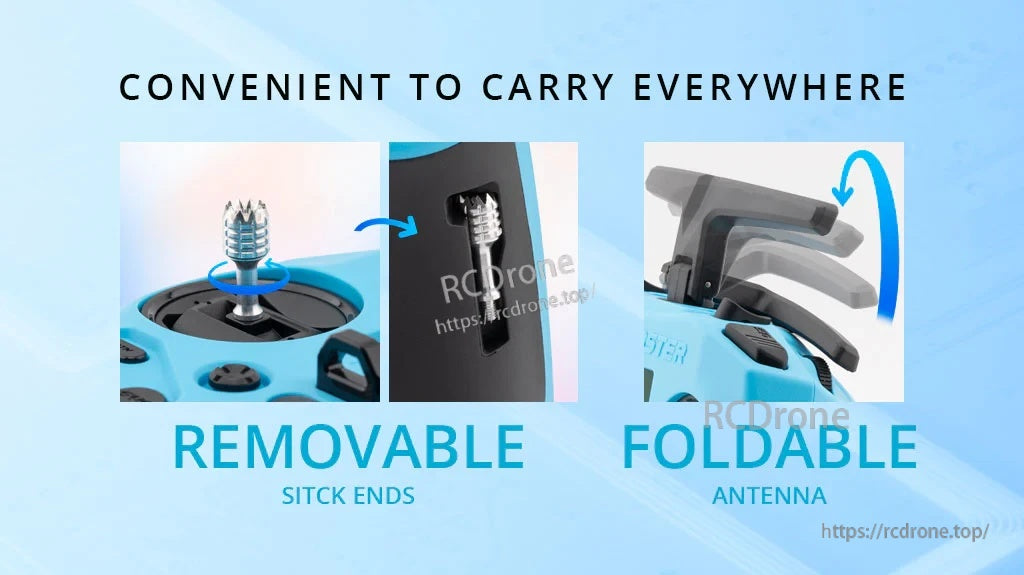

- Portable design with removable stick ends and foldable antenna

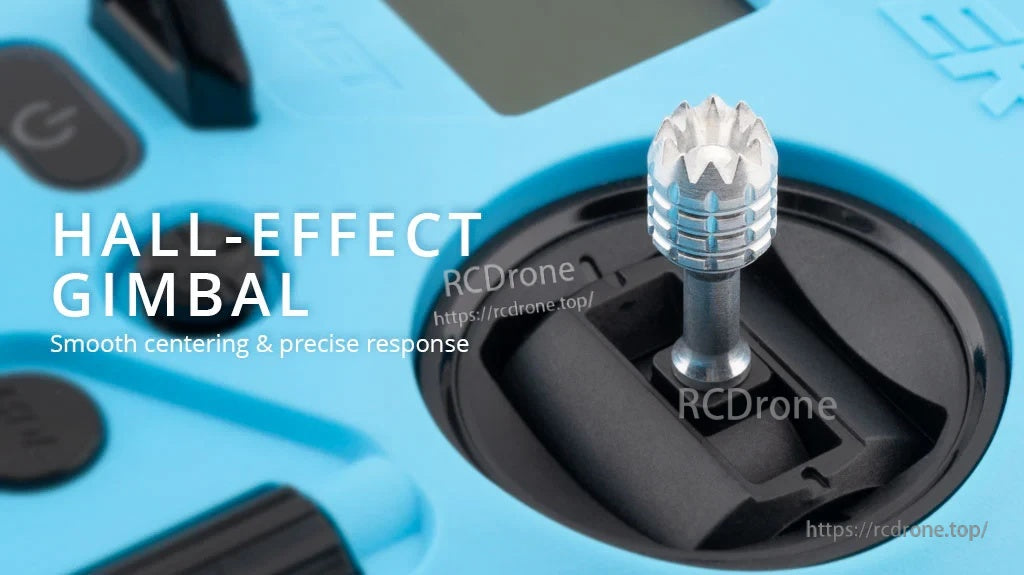

- X5 Hall-effect gimbals (AG01 NANO compatible); hall-effect gimbal for smooth centering and precise response
- Built-in LED lights to visualize switch inputs
- Backlit LCD screen
- Trim buttons for channel trimming

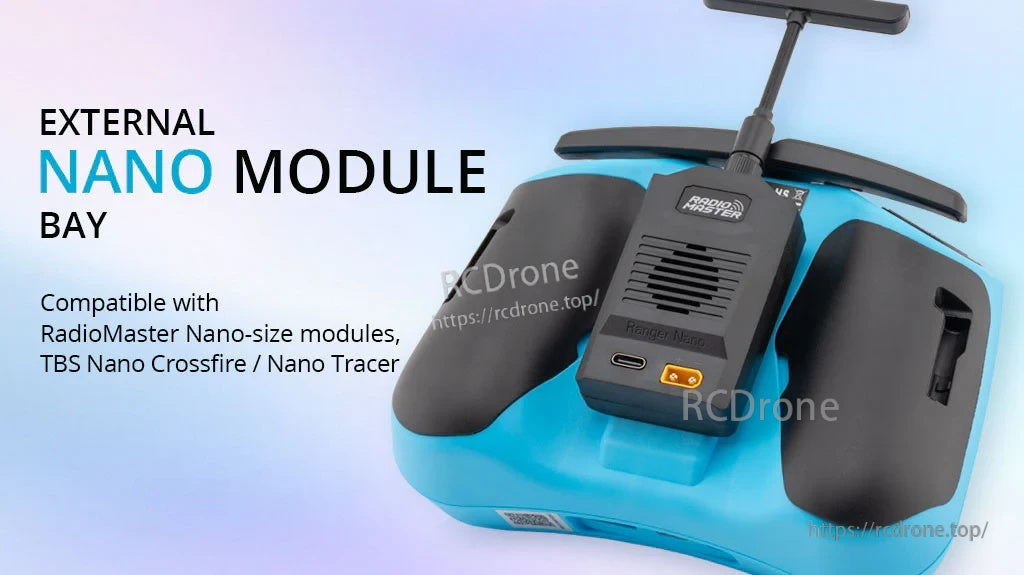

- External Nano module bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire / Nano Tracer

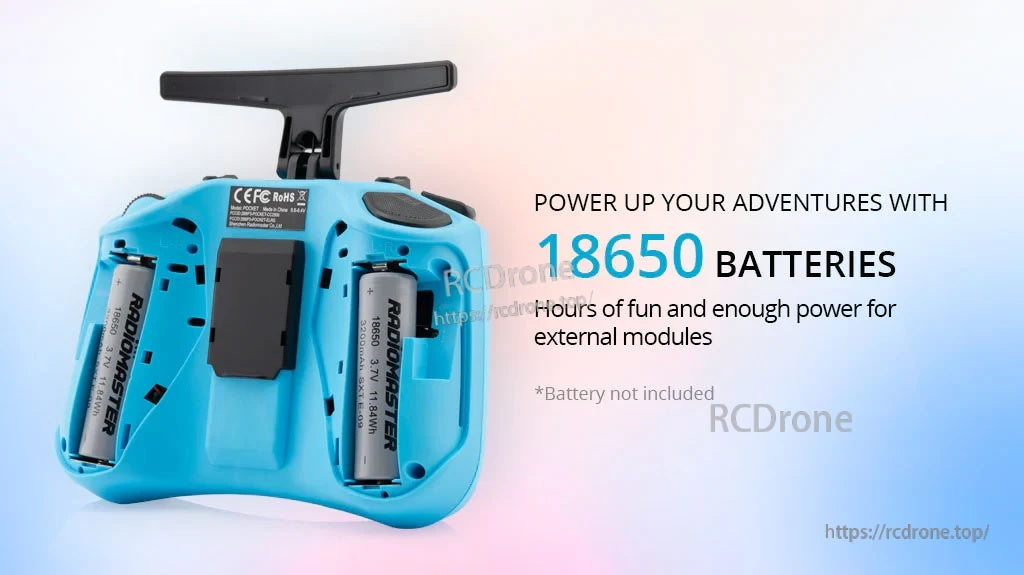

- Powered by 2pcs 18650 batteries (battery not included)
Specifications
| Item | Pocket Crush Radio Controller |

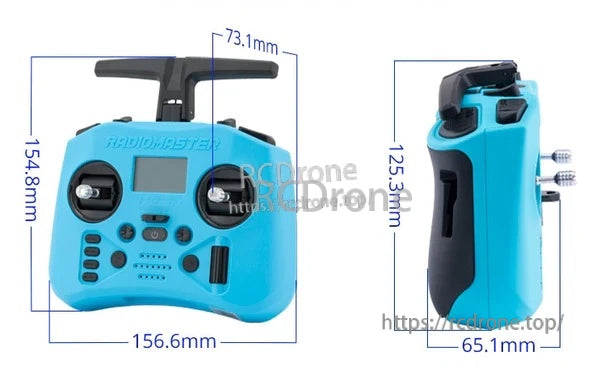

| Physical dimensions | 156.6*65.1*125.3mm (Folded size) / 156.6*73.1*154.8mm (Unfold size) |
| Weight | 288 grams |
| Operating frequency | 2.400GHz-2.480GHz |
| Internal RF options | ELRS 2.4GHz |
| Supported protocols | Module dependent |
| RF power | ELRS: 250mW Max (24dBm) |
| Operational voltage | 6.6 - 8.4v DC |
| Control distance | > 2km @ 20dBm |
| Operating system | EdgeTX |
| Control channels | Maximum 16 (Receiver dependent) |
| Display | 128*64 Monochrome LCD |
| Battery | 2pcs 18650 batteries (Not included) |
| Charging | Built in USB-C QC3 Charging |
| Upgradable firmware | Via USB or the included SD card |
| Gimbal | X5 Hall-effect, quad ball-bearing, nano gimbals (AG01 Nano compatible) |
| Module bay | Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer) |

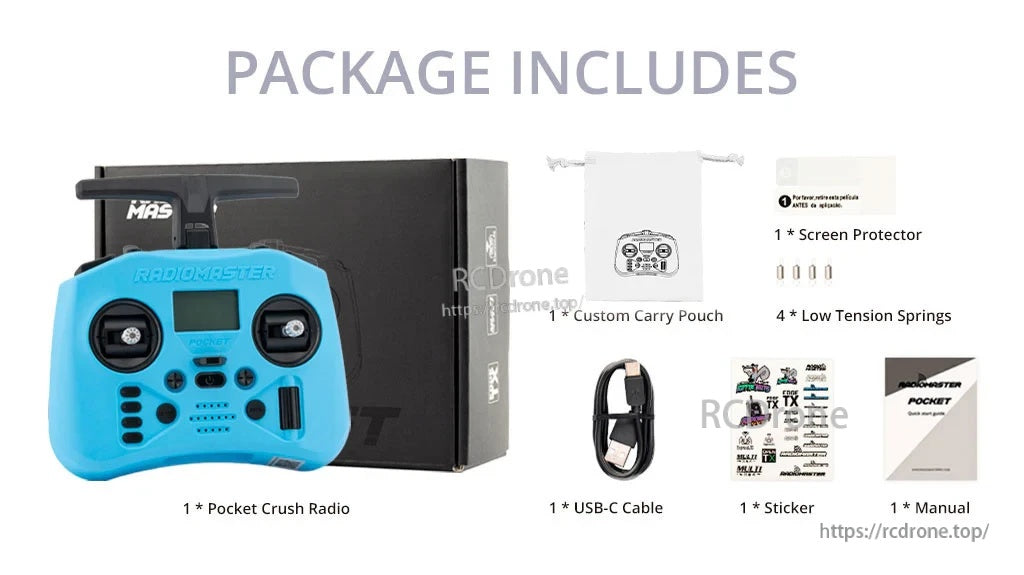

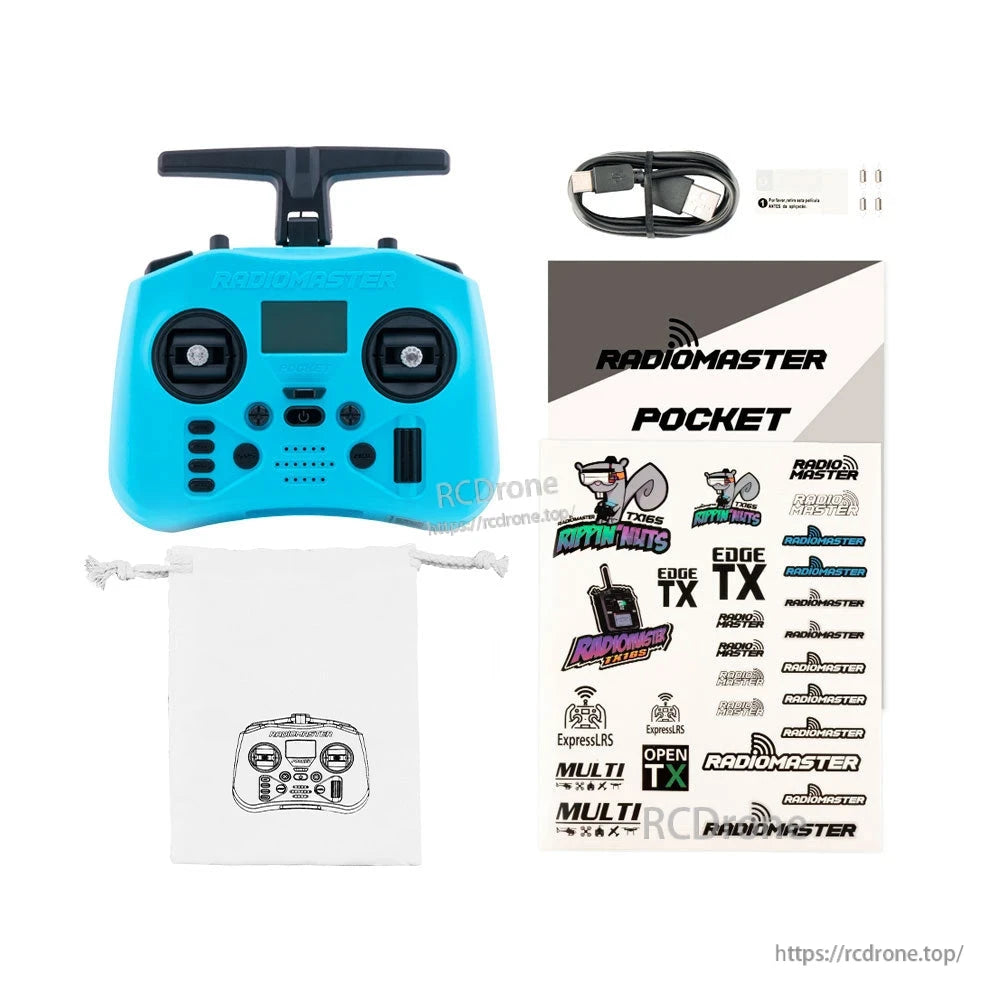

What’s Included
- 1 * Pocket Crush Radio
- 1 * Custom Carry Pouch
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 * Sticker
- 4 * Low Tension Springs
- 1 * Manual
Manuals
Notes
Pocket Crush is installed with ExpressLRS as standard. For background information: ExpressLRS. Pocket Crush is also compatible with mLRS: mLRS and mLRS Web Flasher.
For product selection help or setup support, contact support@rcdrone.top or visit https://rcdrone.top/.
