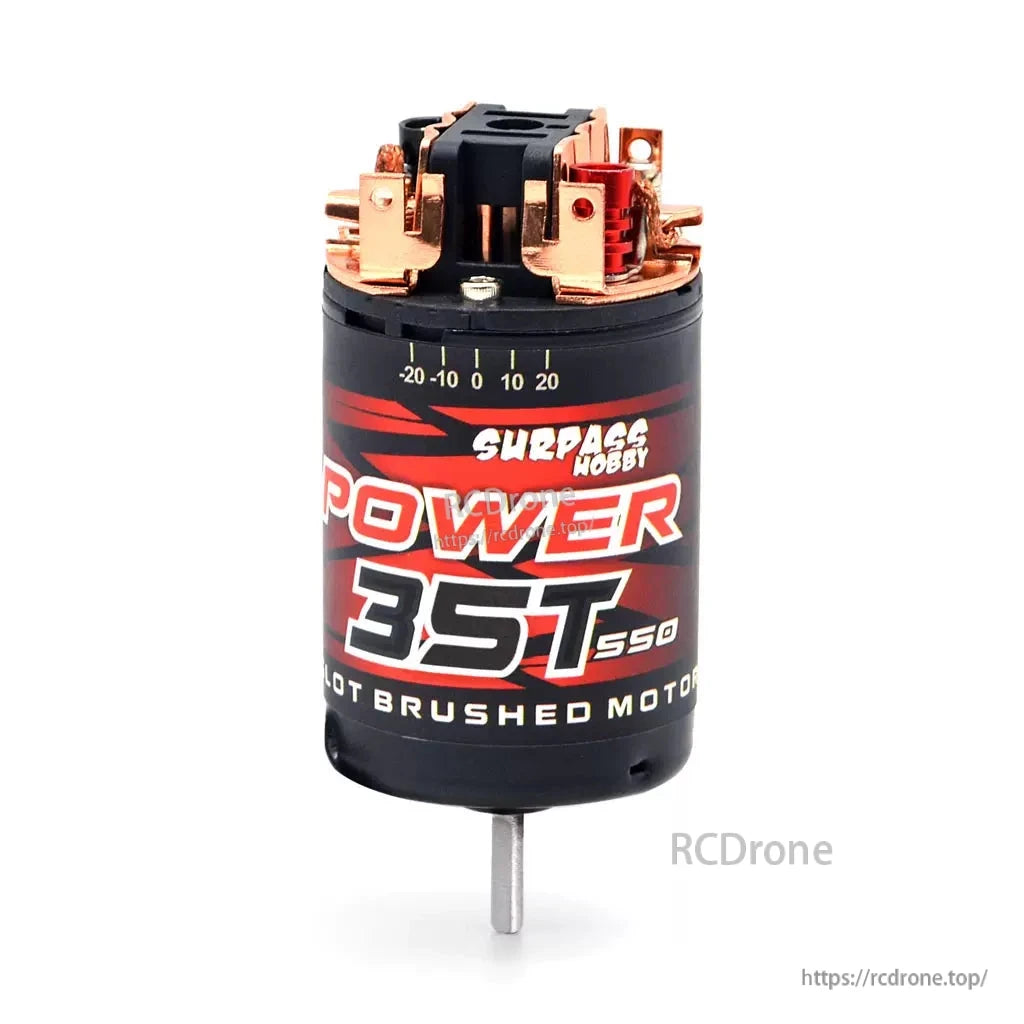

  • Surpass Hobby POWER 35T 550 brushed motor label view with dual terminals and output shaft
1 6

Surpass Hobby 550 3-Slot Brushed Motor 12T-35T for 1/10 RC Car Off-Road Crawler (CCW)

Surpass Hobby 550 3-Slot Brushed Motor 12T-35T for 1/10 RC Car Off-Road Crawler (CCW)

Surpass Hobby

$25.00 USD
$25.00 USD
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Options
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Vollständige Details anzeigen

Overview

The Surpass Hobby 550 (3-slot) brushed motor is a 550-size RC car motor option for 1/10 scale off-road and crawler vehicles. Multiple turn options are available to match different speed/torque setups (12T, 14T, 20T, 25T, 30T, 35T).

Key Features

  • 550 size, 3-slot brushed motor design
  • Detachable design for easier cleaning and maintenance
  • 2-pole magnet construction
  • Includes 2 silicone cables
  • Rotation direction: CCW

Specifications

Motor size 550
Motor type Brushed (3-slot)
Diameter 35.9 mm
Overall length 66.0 mm
Body length 48.6 mm
Shaft diameter 3.175 mm
Mounting 4 × M3
Rotation (motor) CCW
Weight 211 g
Package box size 110 mm × 42 mm × 68 mm

Electrical Specs by Turn Option

Model Voltage (LiPo) No-load current No-load RPM Plugging current Torsion
550-12T 8.4V <2.4A 26000±12% RPM 18.9-82.4A ≥2301.4g.cm
550-14T 8.4V <2.2A 23000±12% RPM 13.7-76.4A ≥2670.0g.cm
550-20T 8.4V-12.6V <1.7A 16000±12% RPM 10.9-62.1A ≥2537.6g.cm
550-25T 8.4V-12.6V <1.3A 13000±12% RPM 10.3-51.9A ≥2190.4g.cm
550-30T 8.4V-16.8V <1.1A 11000±12% RPM 9.7-37.6A ≥2100.2g.cm
550-35T 8.4V-16.8V <0.85A 9500±12% RPM 6.9-29.5A ≥2000.1g.cm

What's Included

  • Surpass Hobby 550 3-slot brushed motor (turn option as selected: 12T / 14T / 20T / 25T / 30T / 35T)
  • 2 silicone cables
  • Quantity option: 1PCS or 4PCS (as selected)

For selection help or installation questions, contact support at https://rcdrone.top/ or email [email protected].

Applications

  • 1/10 RC car off-road vehicles and crawler builds
  • Compatible application examples: HSP, HPI, Wltoys, Kyosho, TRAXXAS 1/10 RC Car

Details

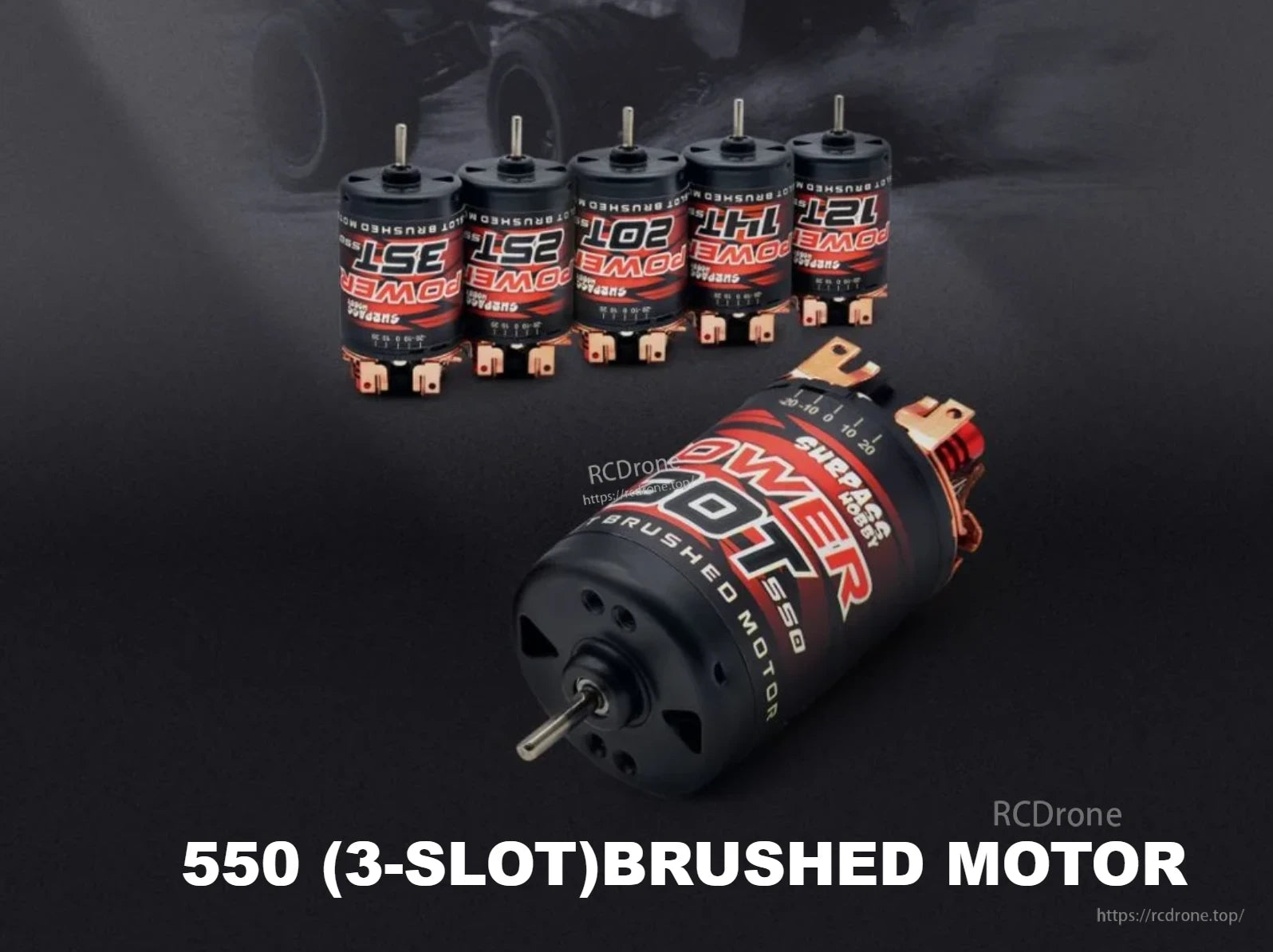

Surpass Hobby 550 3-slot brushed motor lineup with multiple turn options for 1/10 RC cars

Choose from multiple turn options to dial in the right balance of speed and torque for your 1/10 off-road or crawler build.

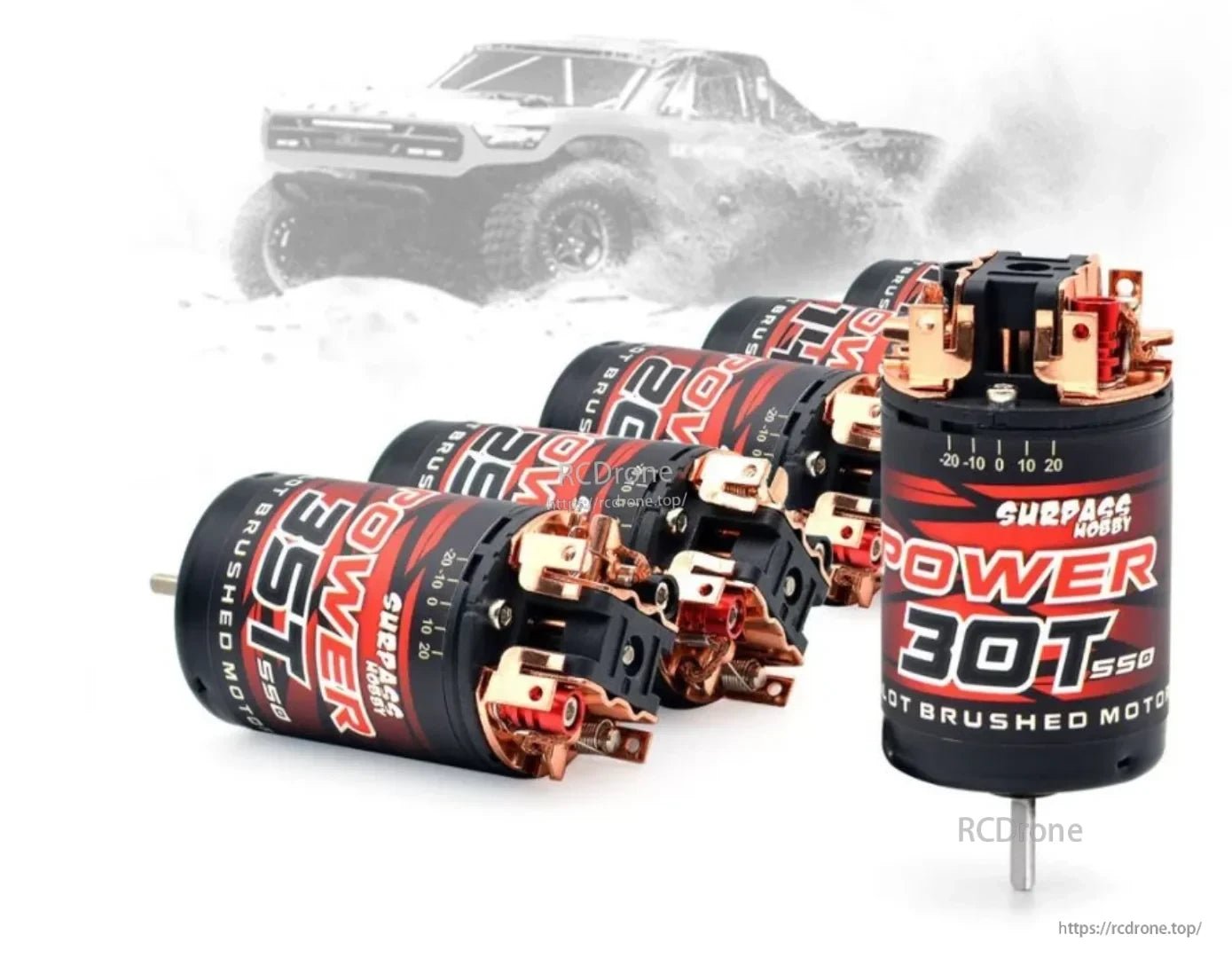

Surpass Hobby 550 3-slot brushed motor (30T) with solder tabs, side profile on white background

A 550-size can helps deliver stronger low-end pull than many 540 motors, making it a solid upgrade for heavier rigs.

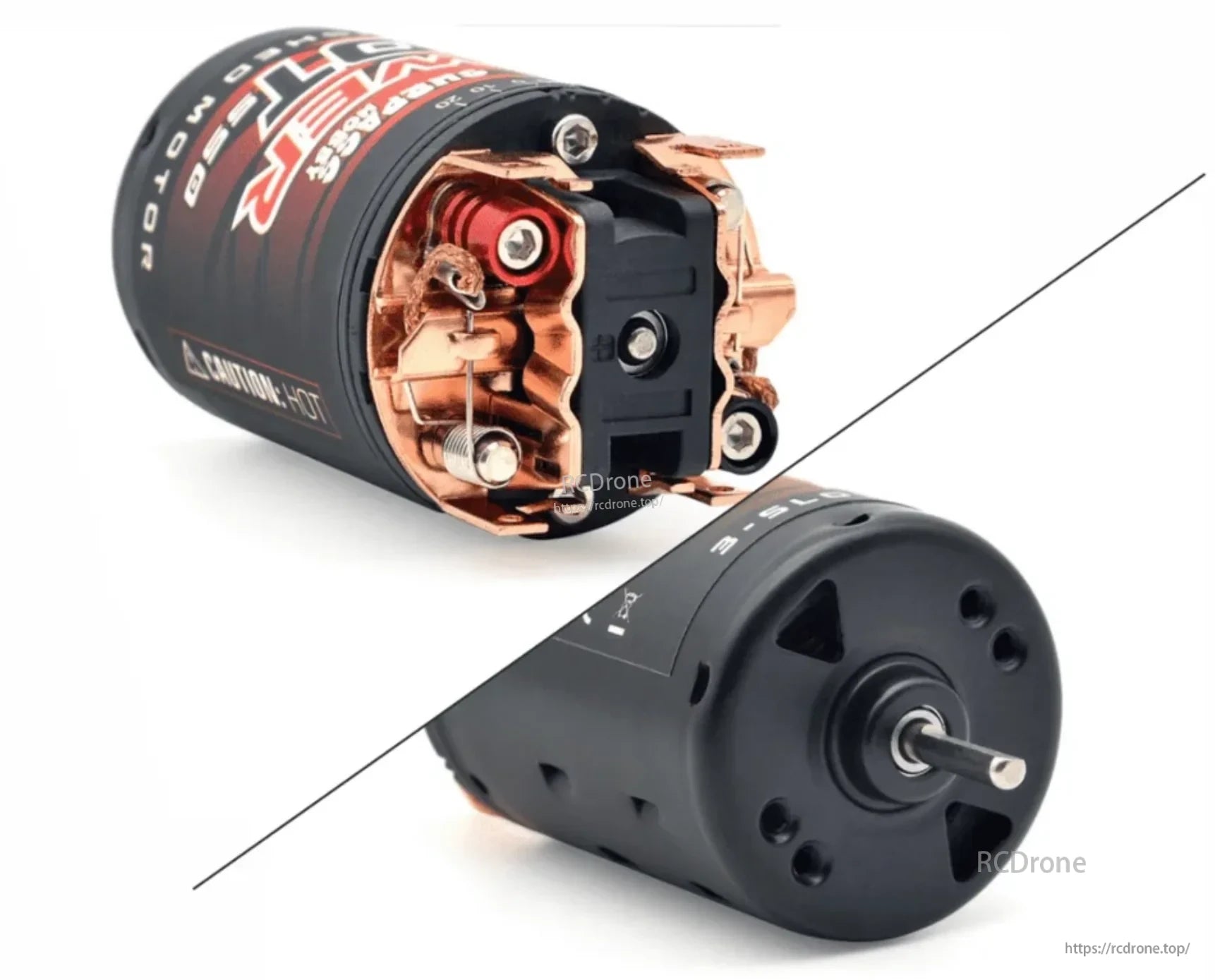

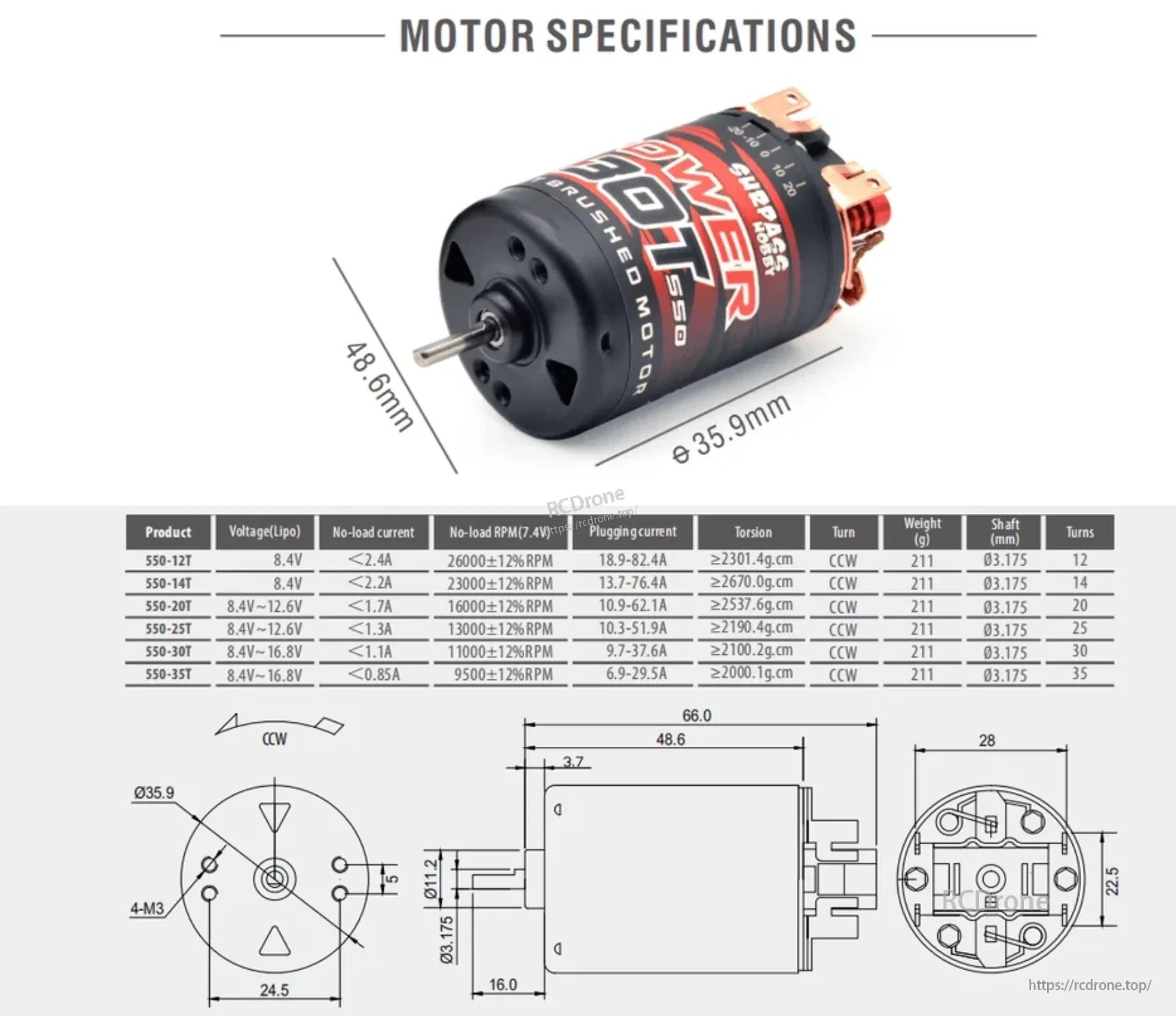

Close-up of Surpass Hobby 550 brushed motor showing endbell terminals and 3.175 mm output shaftSurpass Hobby 550 brushed motor specifications graphic with 35.9 mm diameter, 66 mm length and mounting diagram

Dimensions and mounting details are laid out for easier fitment planning in common 1/10 RC motor plates.

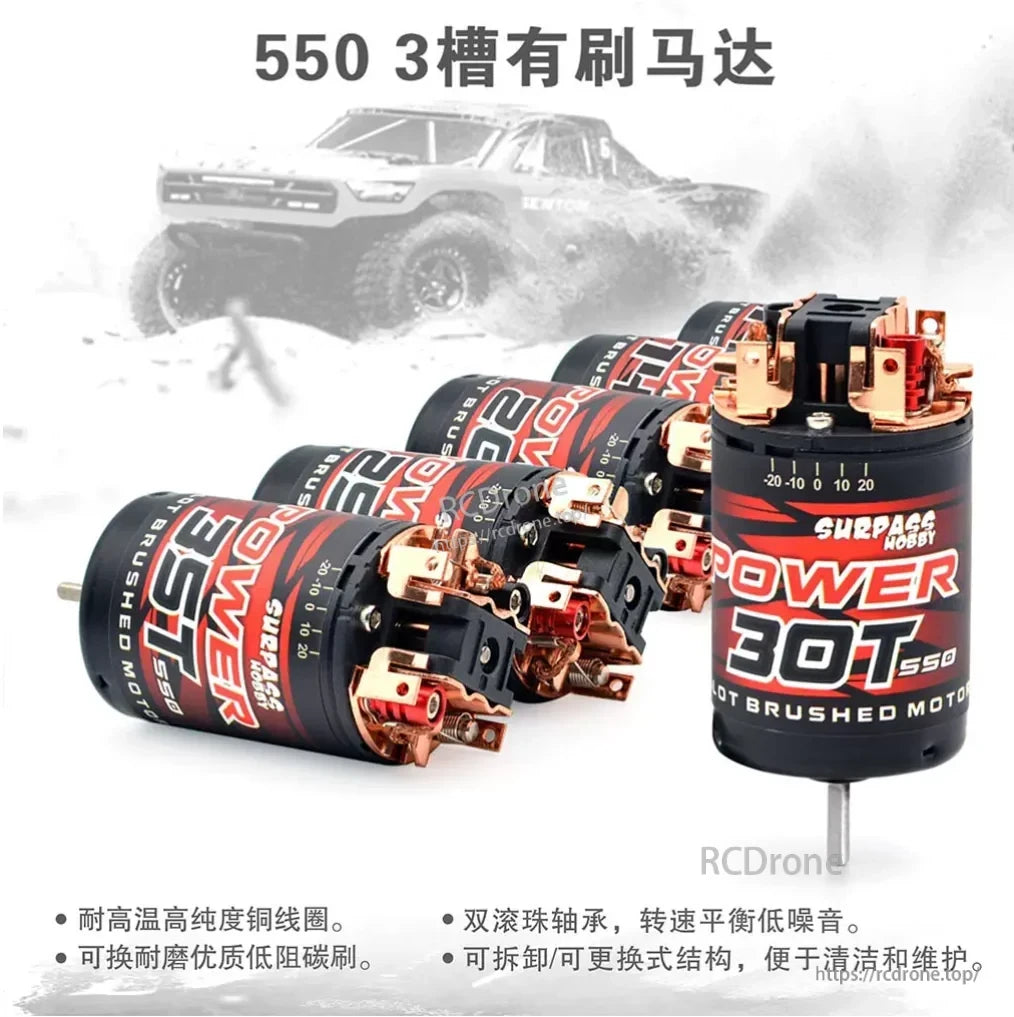

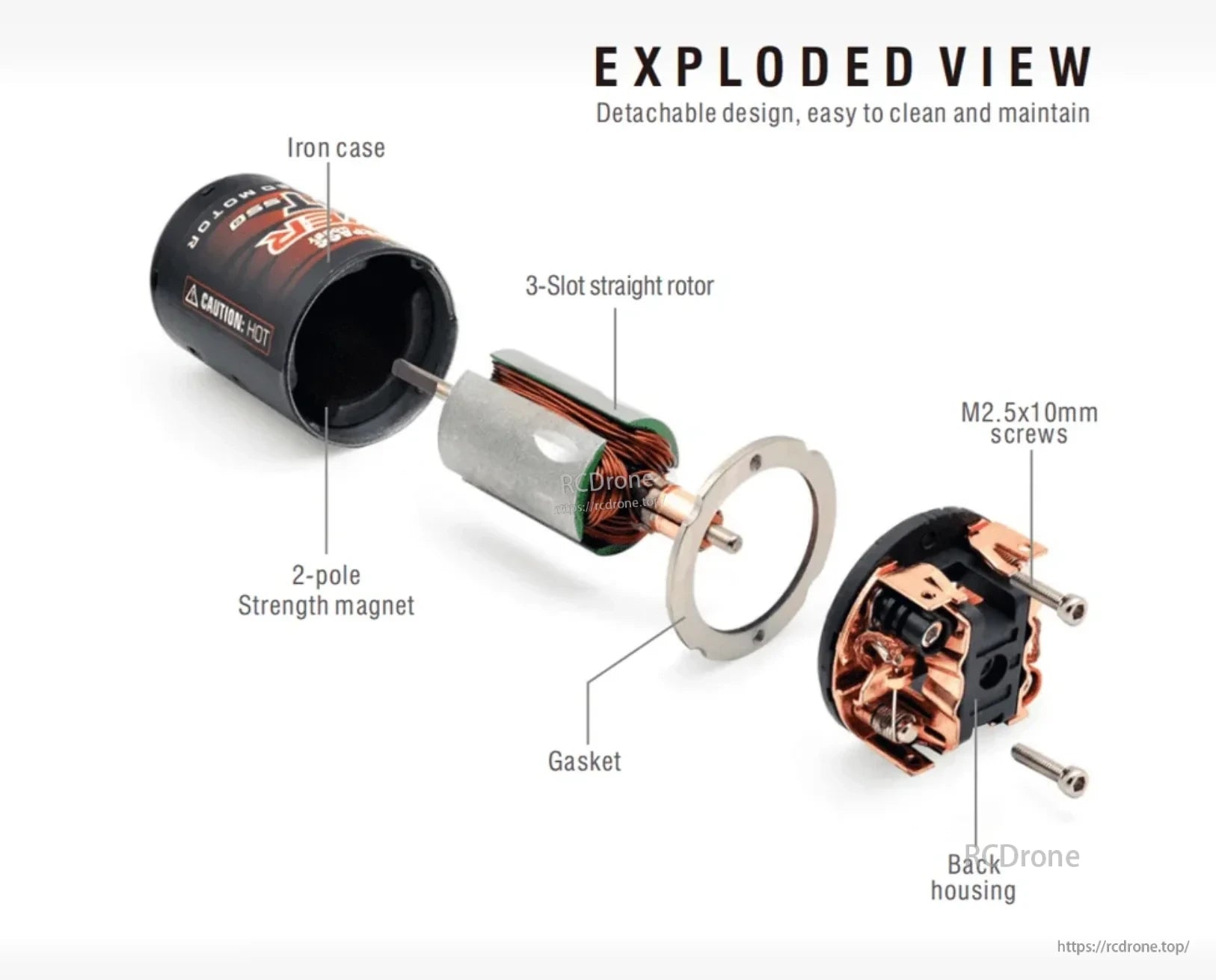

Surpass Hobby 550 3-slot brushed motor product graphic (30T example) with feature callouts in ChineseExploded view of the 550 3-slot brushed motor showing detachable can, 2-pole magnet, rotor, gasket and screws

Detachable construction simplifies cleaning and maintenance after dusty runs and muddy trail sessions.

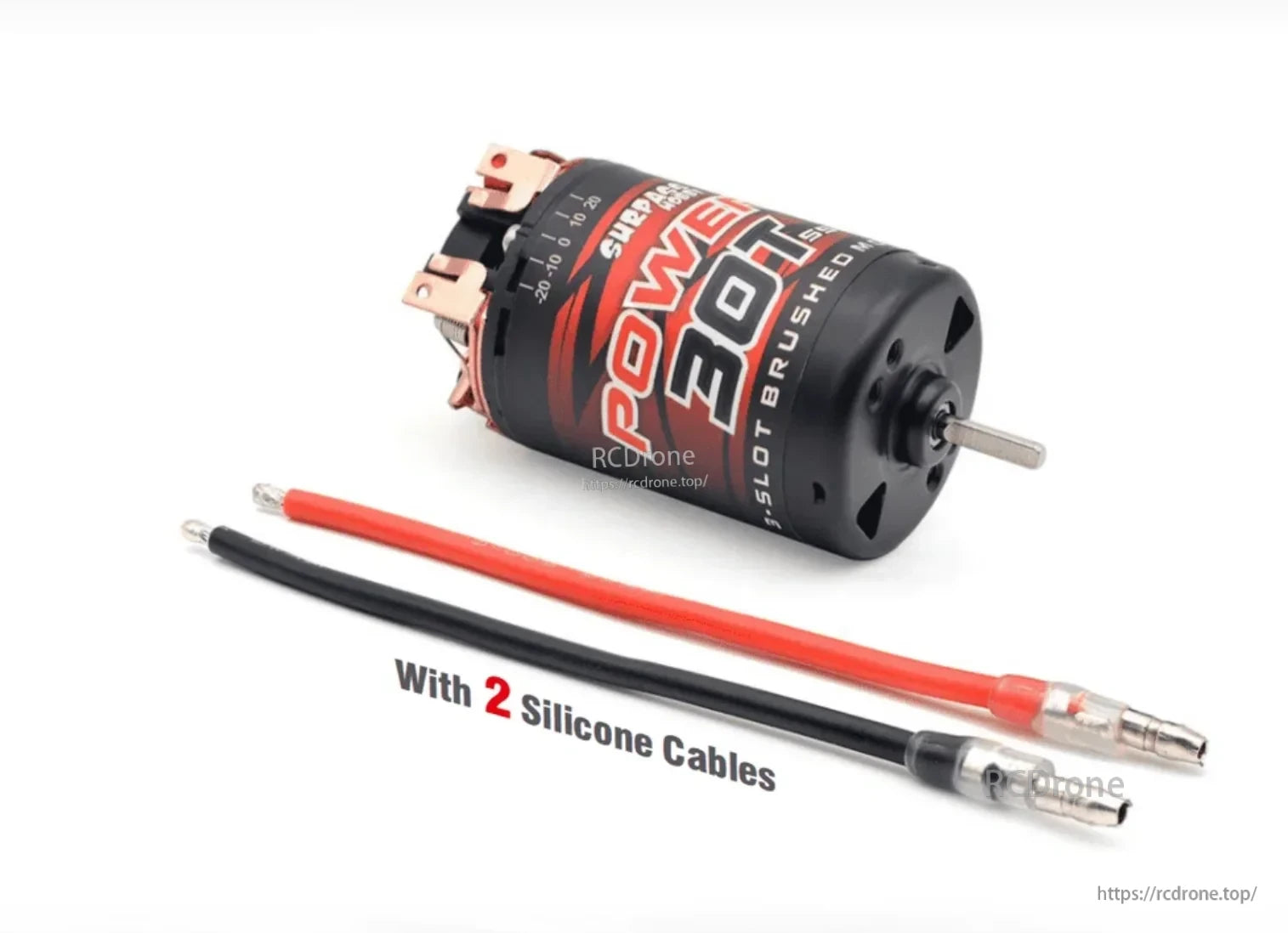

Surpass Hobby 550 brushed motor with included red and black silicone cables in the box

Two silicone leads are included for quick wiring to your ESC.

Surpass Hobby retail box for brushless/brushed power system with 110 × 42 × 68 mm package dimensions
