Overview

The Tattu TA9000 Plus is a dual-channel smart battery charger for 12S–24S Tattu Smart Batteries used in UAV power systems. It supports LiPo, LiHV, and LiUHV smart batteries, with up to 120 A charge current and up to 9000 W charge power under the specified input and cable conditions. Smart-battery communication enables automatic battery-information reading and intelligent charging control.

Features

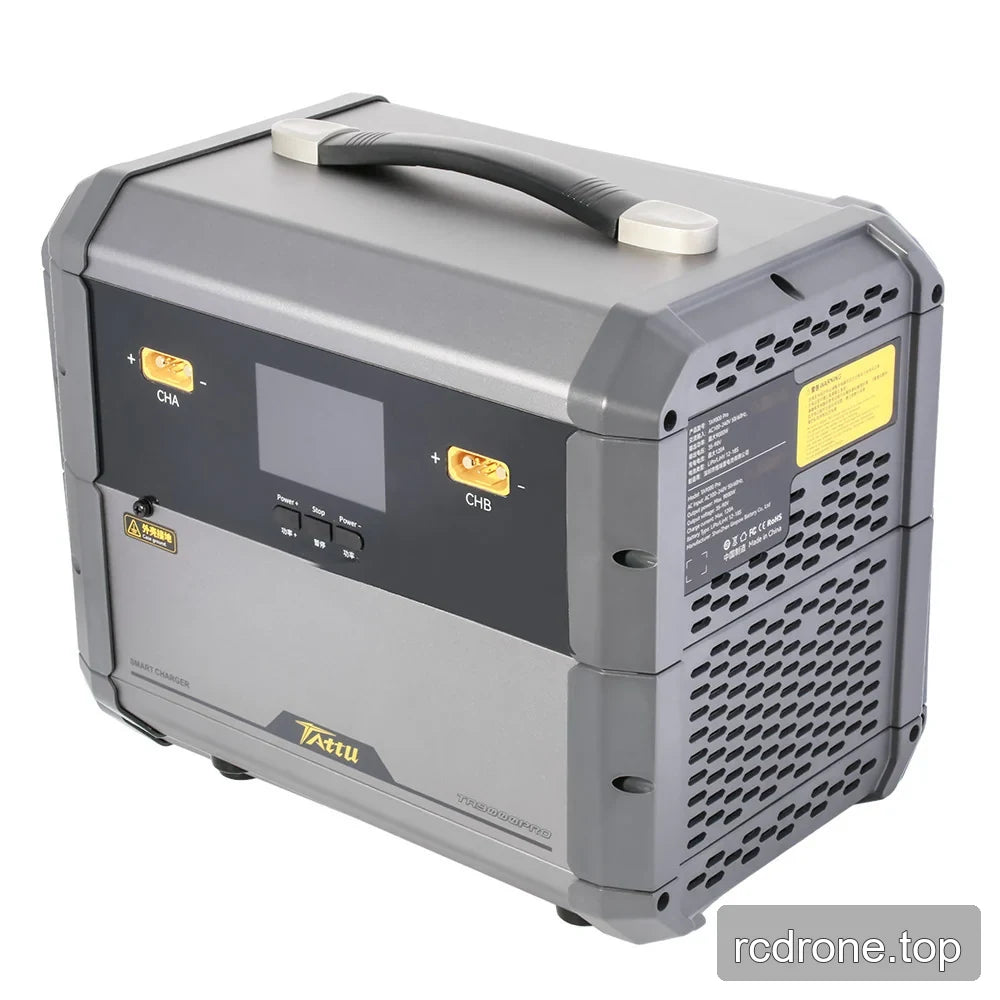

Dual-channel charging: Two front connections, labeled CHA and CHB, use AS150U-F output plugs.
Smart battery detection: When a Tattu Smart Battery communicates successfully with the charger, the Tattu logo at the top center of the screen changes from black to yellow. The charger then reads battery information and enters intelligent charging automatically.
Charging modes: Standard Charging and Fast Charging. Press Power + for 5 seconds to skip the lower charging current at the end of charging. Fast charging is stated as 9 minutes; no test conditions are supplied.
Intelligent charge control: Charging current adjusts according to the battery’s real-time status, and charging stops automatically when the battery is full.
Storage Mode: A storage mode is provided for 12S–24S packs during downtime.
Display and controls: A 2.4-inch IPS display provides real-time voltage, current, and battery-health information. The interface supports multiple languages, with Power +, Stop, and Power − front-panel buttons.
Cooling and portability: High-capacity active cooling and optimized heat dissipation support high-power charging. The charger has a built-in carry handle.
Protection functions: Overheating, current-limit, wire-break, reverse-polarity, over-voltage, abnormal-voltage alert, short-circuit, and cell-count-mismatch alert functions are stated.
LiHV terminal-voltage adjustment: 4.25–4.50 V.

Specifications

Model	TA9000PLUS
Input	AC 100–240 V, 50/60 Hz; three-phase power is not supported.
Supported battery type	12S–24S Tattu Smart Batteries; LiPo, LiHV, and LiUHV. Soft-pack batteries are not supported.
Channels	2
Maximum charge current	AC 110 V: max. 60 A; AC 220 V: max. 120 A.
Maximum charge power	Up to 9000 W, depending on input and power cable.
Output plug	AS150U-F
Functions	Charge and Fast Charge
Dimensions	398 × 225 × 308 mm
Weight	14 kg

Charge Power by Input and Power Cable

Power cable	AC 110 V	AC 220 V
16 A power cable	Max. 1200 W	Max. 3000 W
50 A power cable	Max. 3600 W	Max. 9000 W

Applications

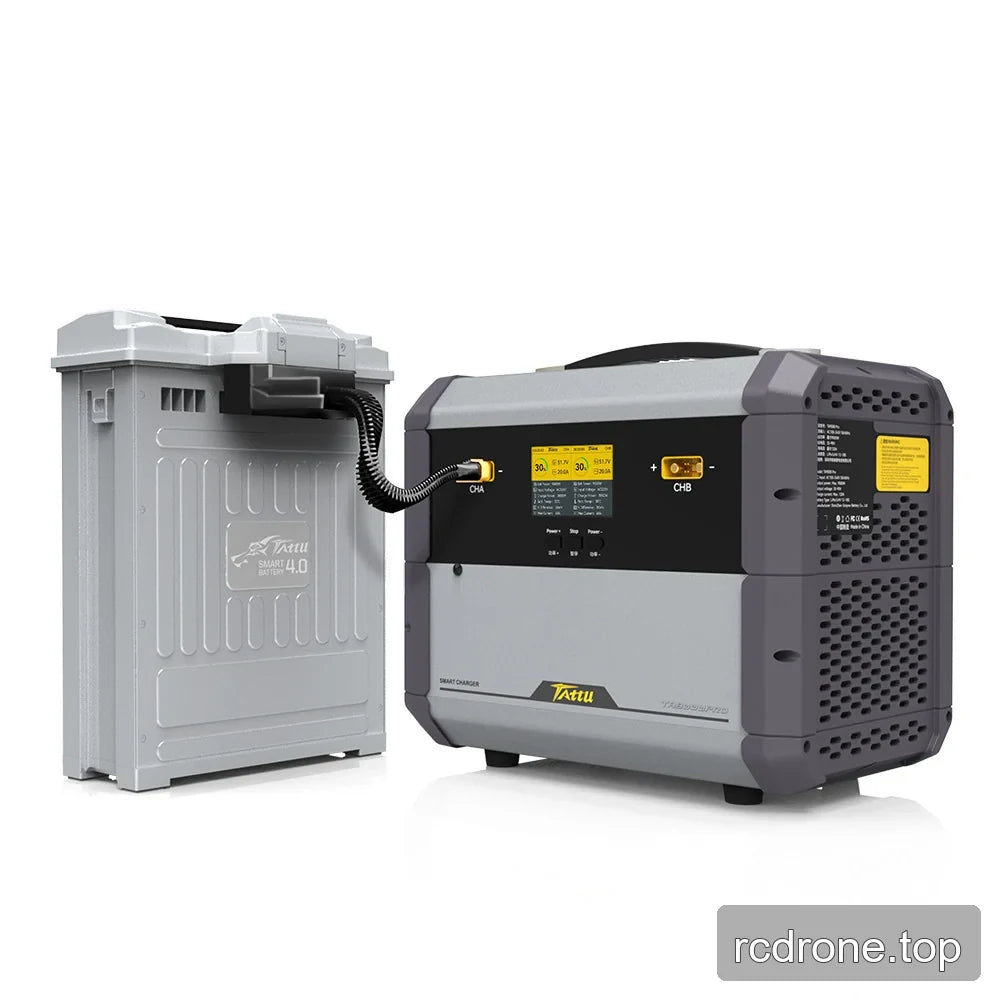

Use the TA9000 Plus to charge compatible 12S–24S Tattu Smart Batteries for UAV power systems, including agricultural and plant-protection UAV operations. Its two channels can support charging two identical battery packs: the pack with the higher state of charge (SOC) charges first at maximum rate, and the second pack begins charging after the first pack is fully charged.
