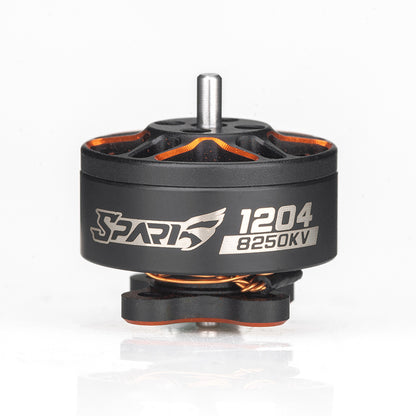

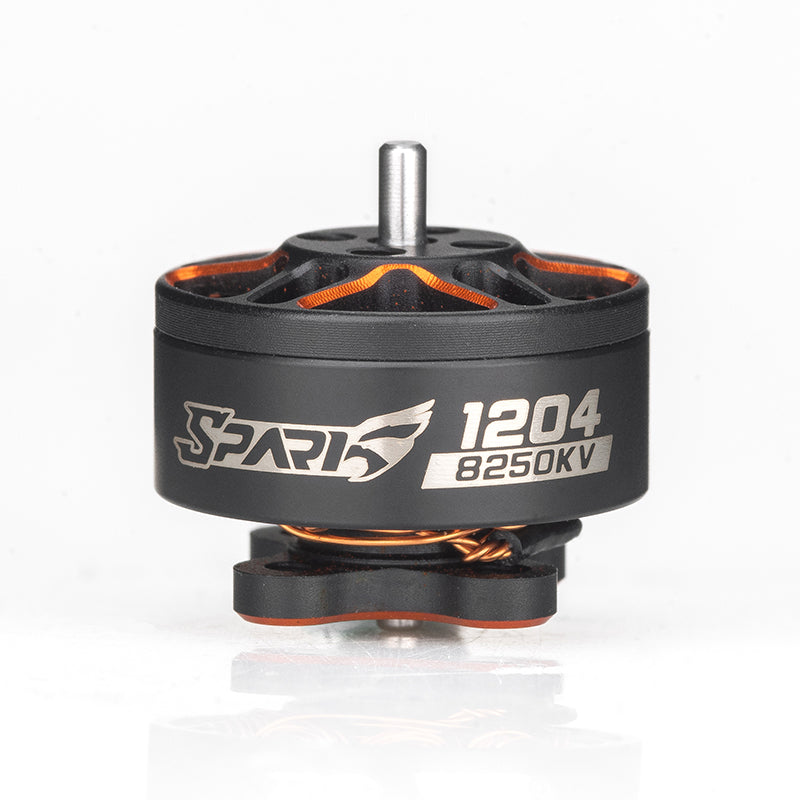

• VCI SPARK 1204 brushless motor 8250KV, side profile with SPARK logo and shaft

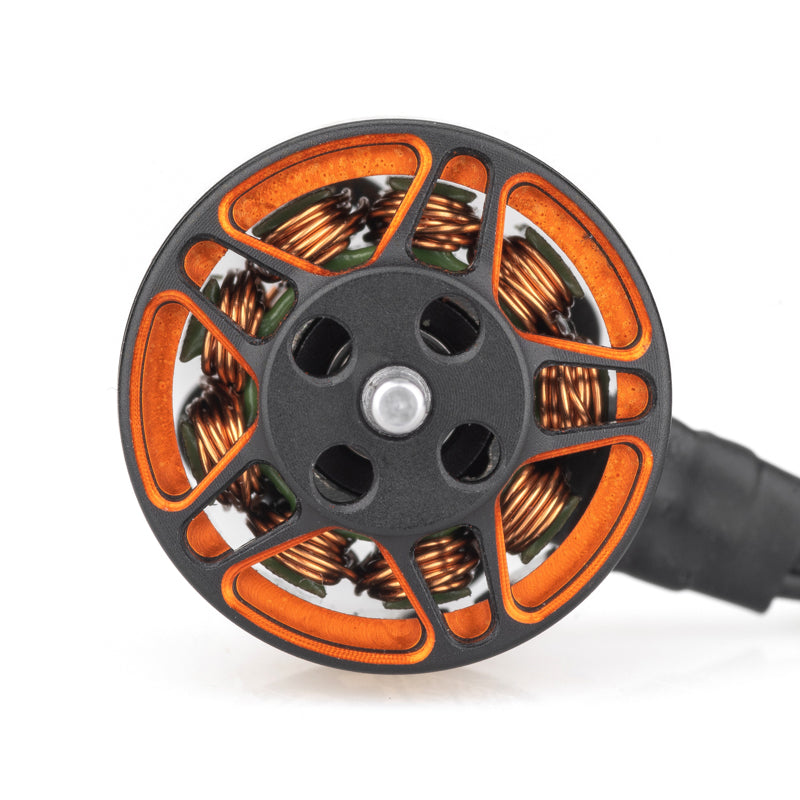

  • Top view of motor bell with orange spokes and visible copper windings

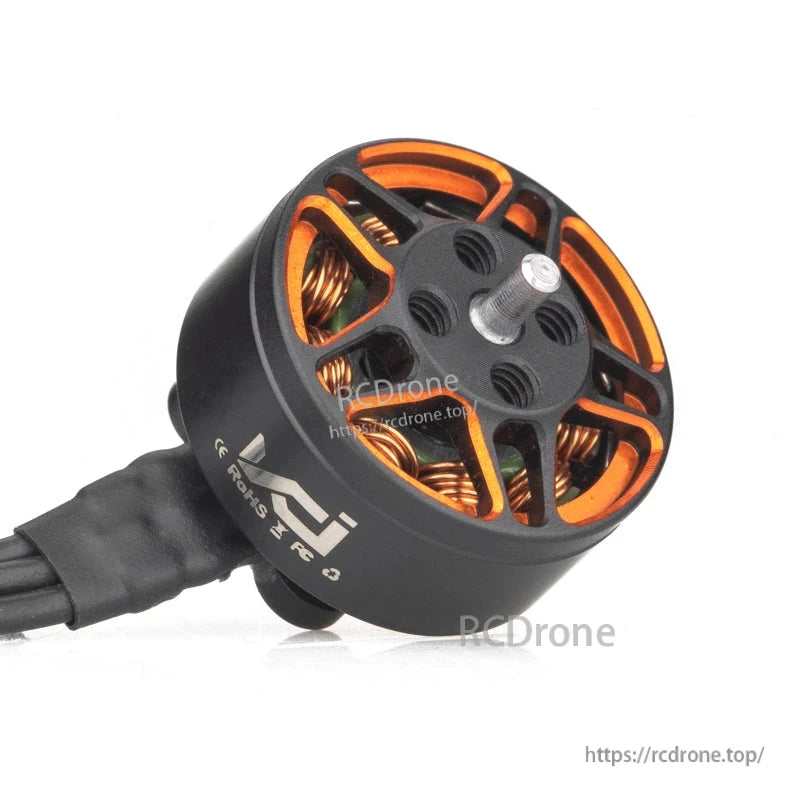

  • Angled view of VCI SPARK 1204 motor showing shaft, mounting holes, and wire lead

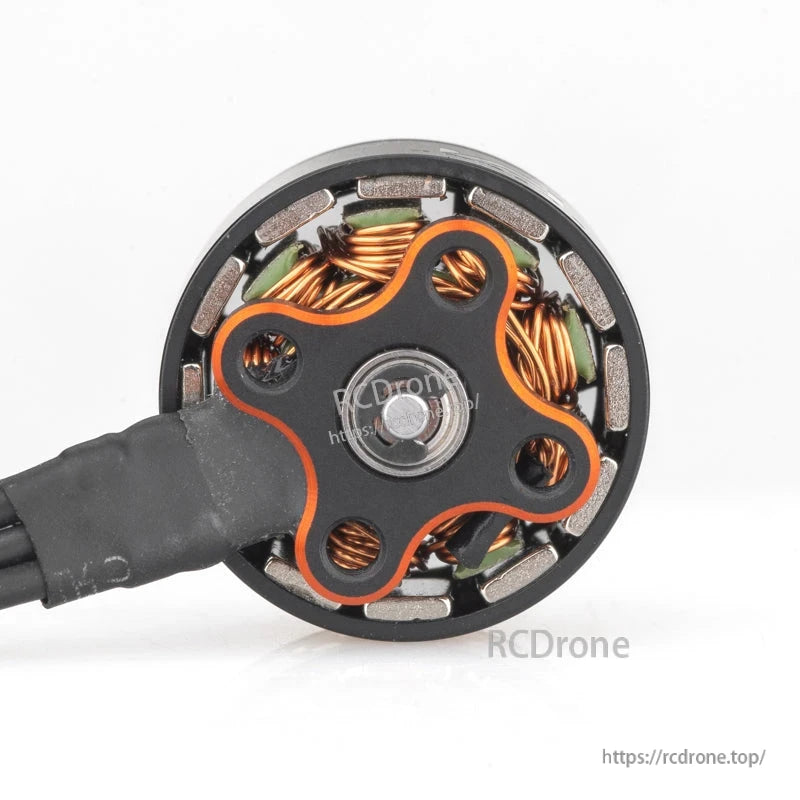

  • Bottom view of motor base with four-arm mount pattern and exposed stator windings

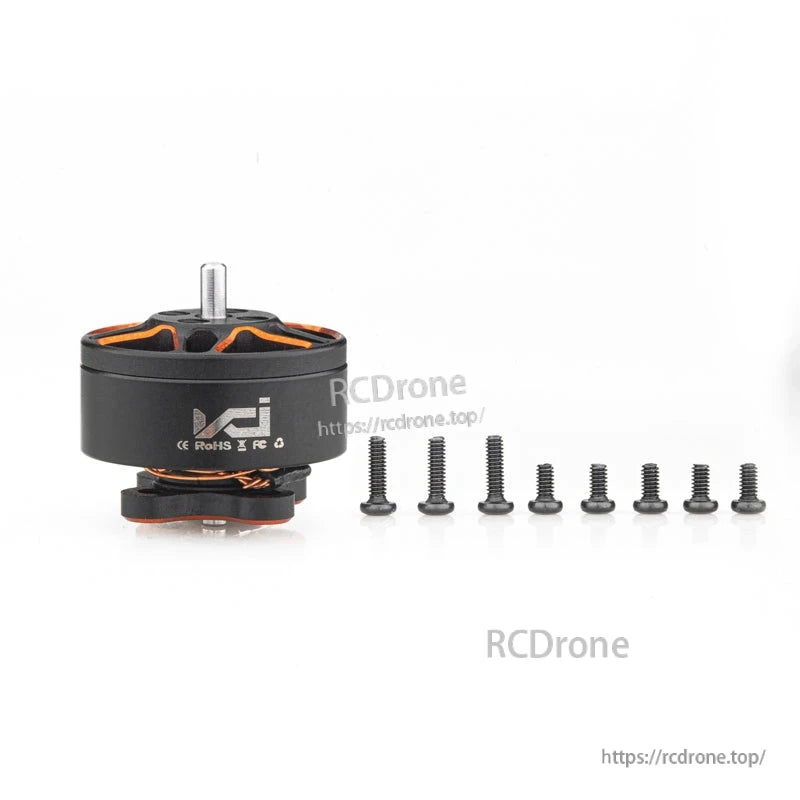

  • Package contents: brushless motor with included mounting screws set
1 5

VCI SPARK 1204 Brushless Motor (2pcs) 4500KV/5600KV/8250KV for FPV Micro Quad Drones

VCI SPARK 1204 Brushless Motor (2pcs) 4500KV/5600KV/8250KV for FPV Micro Quad Drones

VCI

$37.85 USD
$37.85 USD
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Vollständige Details anzeigen

Overview

VCI SPARK 1204 is a brushless motor set (2pcs) offered in 4500KV, 5600KV, or 8250KV options for compact FPV multirotor builds where low weight and responsive throttle are required.

Key Features

  • Available KV options: 4500KV / 5600KV / 8250KV
  • 1204 stator size: Ø12*L4mm
  • 4 x M2 mounting holes
  • Ø1.5mm shaft diameter, 3mm shaft length
  • N52SH arc magnets, 9S12P configuration

Specifications

Parameter SPARK 1204-4500KV SPARK 1204-5600KV SPARK 1204-8250KV
KV 4500KV 5600KV 8250KV
Configuration 9S12P 9S12P 9S12P
Magnets N52SH arc N52SH arc N52SH arc
Stator Size Ø12*L4mm Ø12*L4mm Ø12*L4mm
Motor Dimensions Ø15.3*L14.3mm Ø15.3*L14.3mm Ø15.3*L14.3mm
Shaft Diameter Ø1.5mm Ø1.5mm Ø1.5mm
Shaft Length 3mm 3mm 3mm
Internal Resistance 500mΩ 300mΩ 175mΩ
Rated Voltage 4S (16V) 3-4S (12-16V) 3S (12V)
Peak Current 7.32A 8.45A 11.72A
Idle Current (10V) 0.3A 0.5A 1.0A
Max Instantaneous Power 117.12W 135.2W 140.64W
Silicone Wire 28AWG 80mm 28AWG 80mm 28AWG 80mm
Weight (Incl. Cable) 5.8g 5.8g 5.7g
Mounting 4-M2 holes 4-M2 holes 4-M2 holes

Test Data Highlights (Static Test)

  • SPARK 1204-4500KV @ 16V with GF 3018-2: max thrust 227g at 6.36A, 101.76W (100% throttle); temperature 58C.
  • SPARK 1204-5600KV @ 16V with GF 2512-3: max thrust 263g at 8.00A, 128.00W (100% throttle); temperature 59C.
  • SPARK 1204-8250KV @ 12V with GF 2512-3: max thrust 246g at 11.72A, 140.64W (100% throttle); temperature 71C.

Test notes: data is for reference only; motor temperature is the spindle temperature after throttle is tested from 0 to 100 (static test).

What's Included

  • VCI SPARK 1204 motor x 2 (KV option selectable)

Applications

  • Compact FPV multirotors and lightweight drone builds
  • DIY robotics or small propulsion projects requiring a 1204-class brushless motor

For selection help (KV choice, prop/load matching) or after-sales support, contact https://rcdrone.top/ or email [email protected].

Details

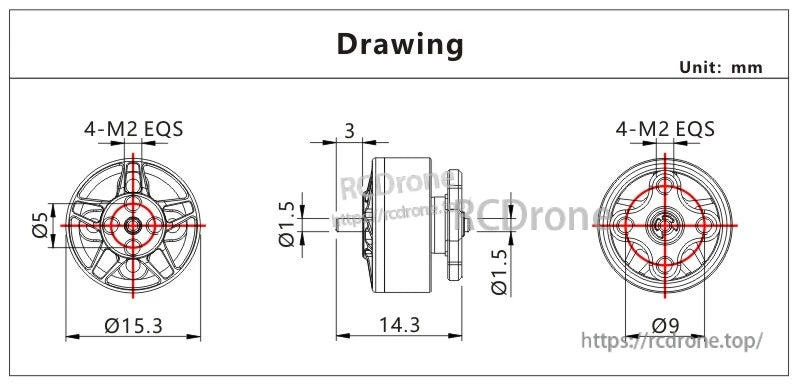

VCI SPARK 1204 brushless motor dimension drawing with 15.3mm OD, 14.3mm length, and 4×M2 mount pattern

Compact 1204 motor dimensions and the 4×M2 mounting pattern for small FPV frames and lightweight builds.

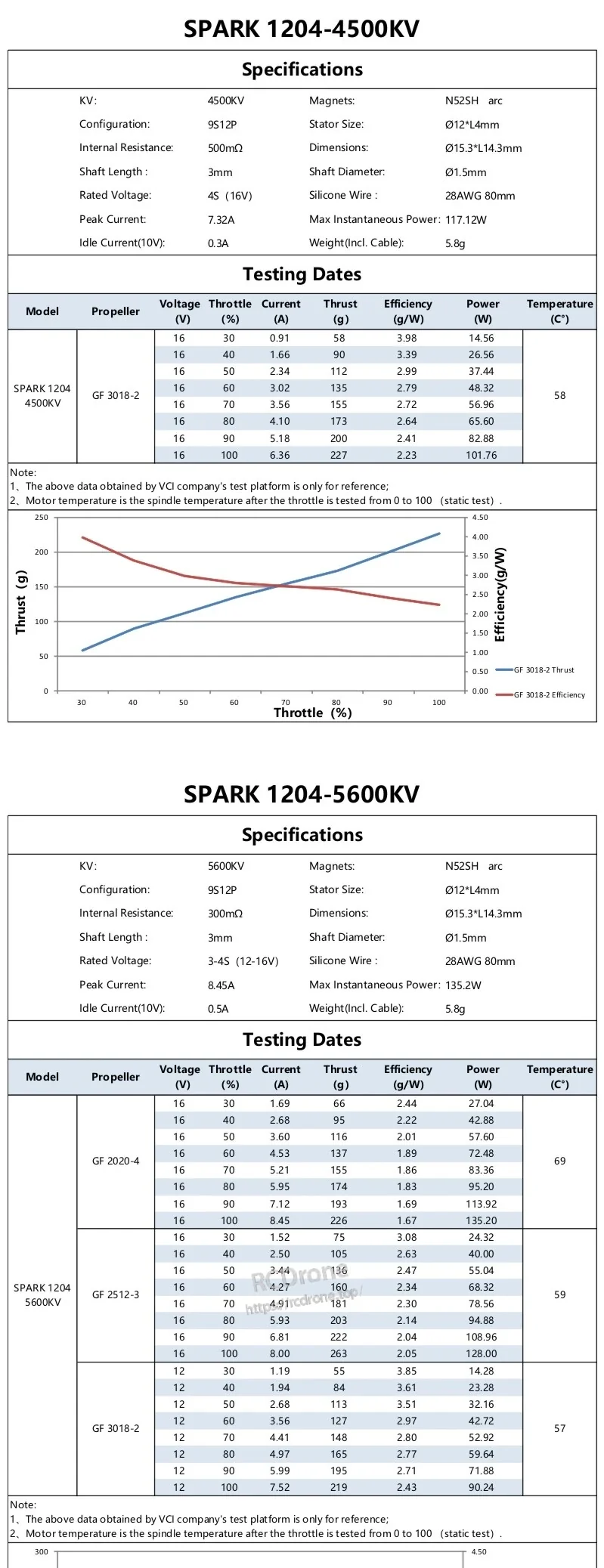

SPARK 1204 4500KV and 5600KV specifications and static thrust test tables with throttle curves

Reference test data and key specs for the 4500KV and 5600KV options to help match propellers and voltage.

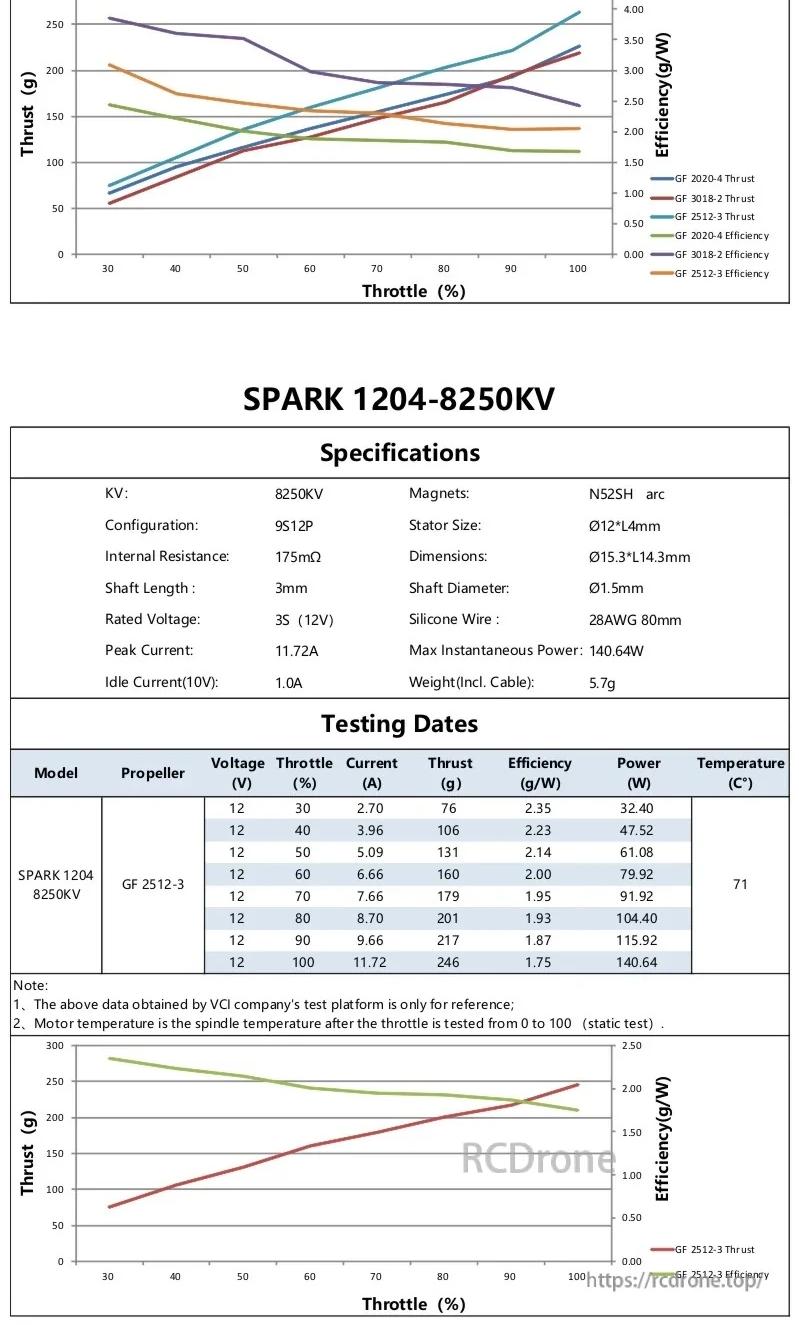

SPARK 1204 8250KV specifications with thrust/current/efficiency charts and static test table

High-KV 8250KV performance charts and static test results for responsive, lightweight multirotor setups.
