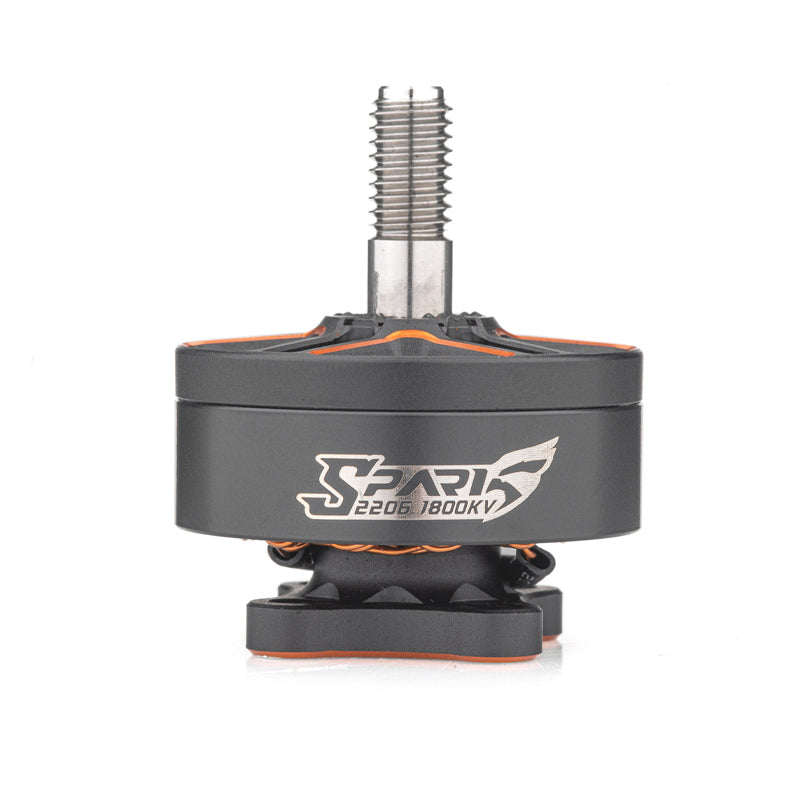

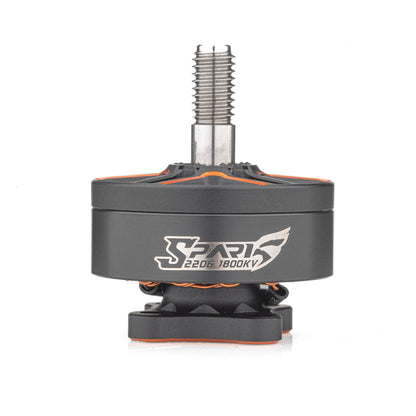

• VCI SPARK 2206 brushless motor side profile with long threaded shaft, black housing with orange accents

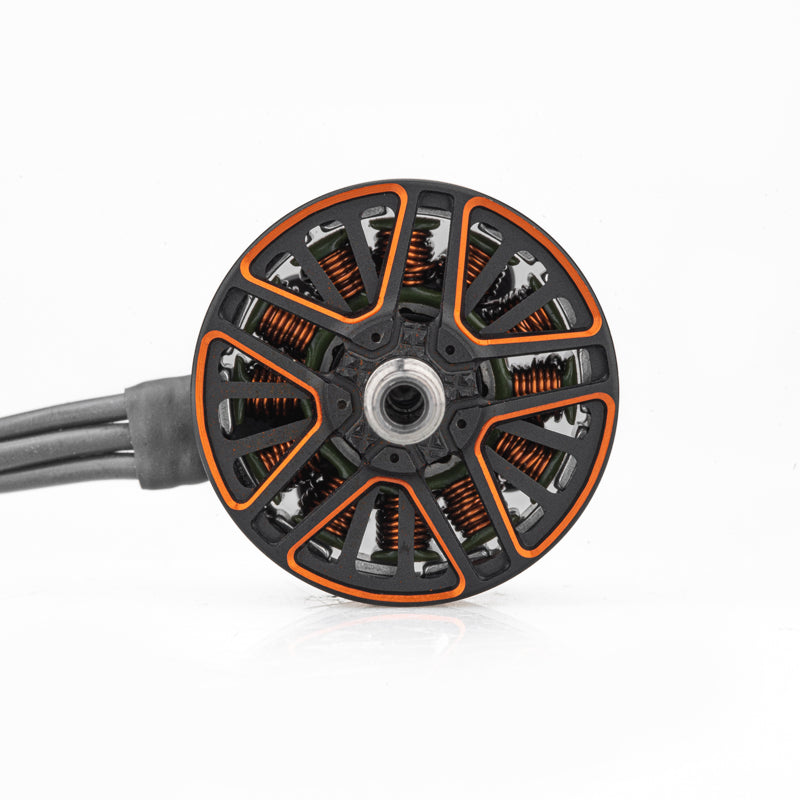

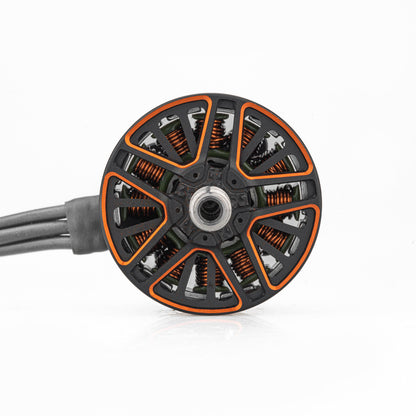

  • Top view of motor bell showing orange cutouts, copper windings, and center mounting hole with attached wires

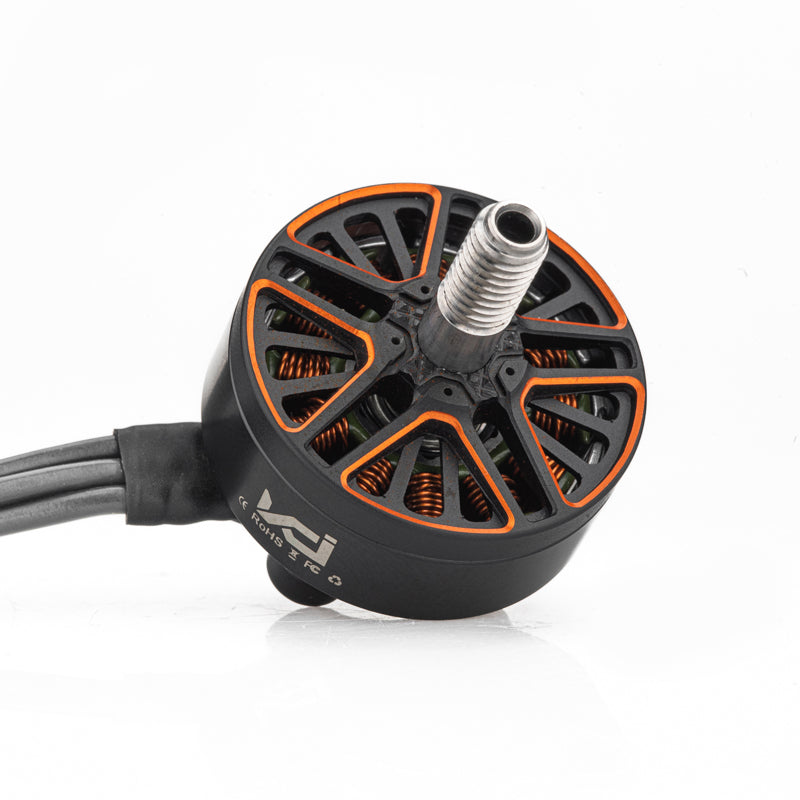

  • Angled top view of brushless motor with threaded shaft and orange vented bell, wires exiting from side

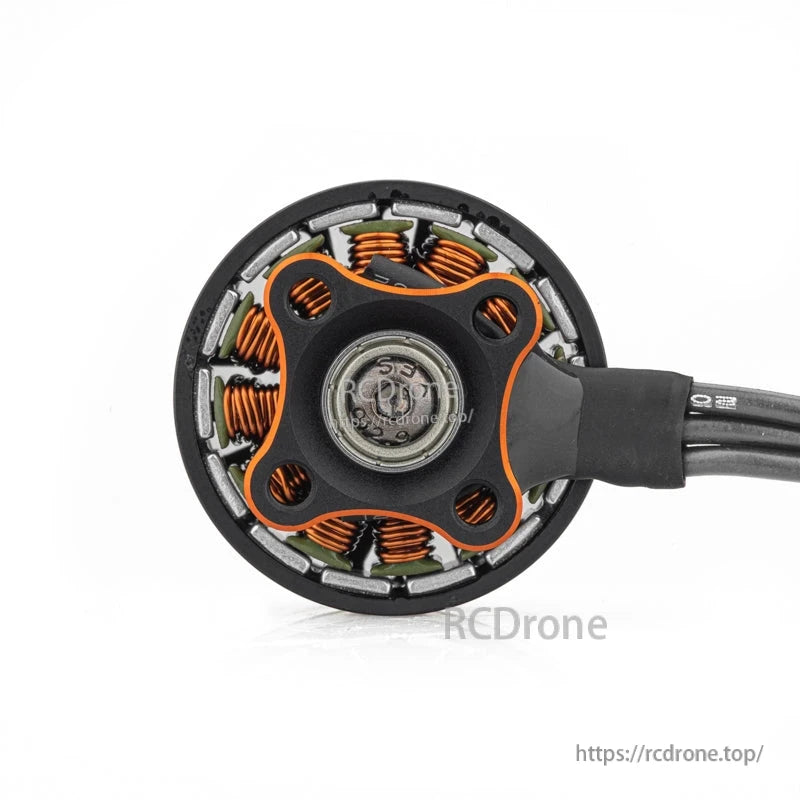

  • Bottom view of motor base showing mounting pattern, bearing hub, and copper windings around the stator

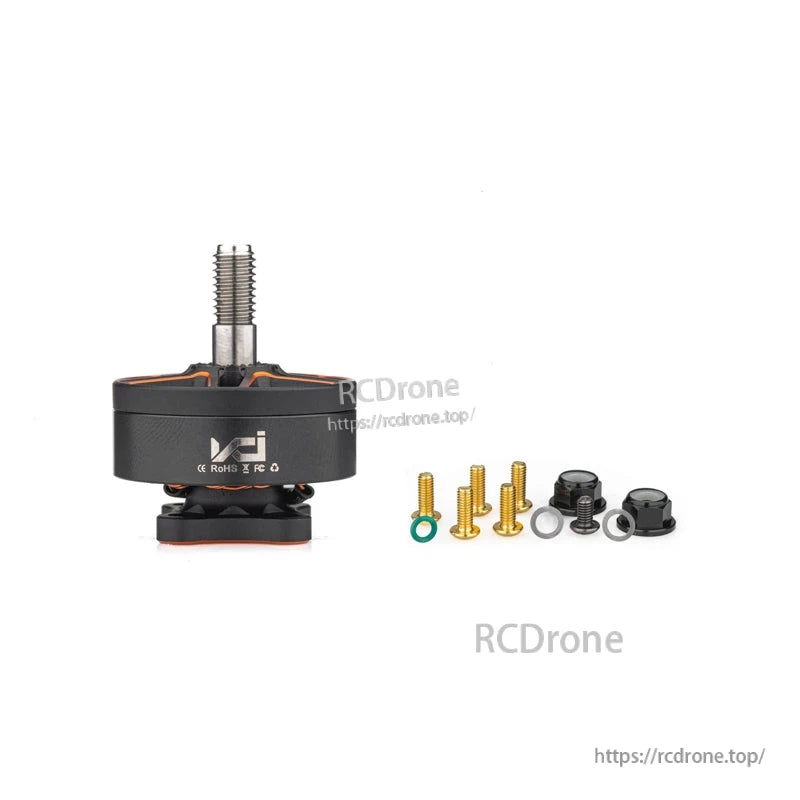

  • VCI SPARK 2206 1800KV/2500KV brushless motor with included screws, washers, and prop adapter hardware kit
1 5

VCI SPARK 2206 1800KV/2500KV Brushless Motor, M5 Shaft, 4-M3 Mount for FPV Multirotor Drone

VCI SPARK 2206 1800KV/2500KV Brushless Motor, M5 Shaft, 4-M3 Mount for FPV Multirotor Drone

VCI

$35.60 USD
$35.60 USD
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Vollständige Details anzeigen

Overview

VCI SPARK 2206 MOTOR is a brushless motor offered in 1800KV or 2500KV options for FPV multirotor drone builds. It uses a 2206 stator (Ø22×L6 mm), an M5 shaft, and a compact Ø27×L32.2 mm motor body for common FPV frame and prop setups.

Key Features

  • 12S14P configuration with N52SH arc magnets
  • M5 shaft with 13.1 mm shaft length
  • 4×M3 mounting pattern (Ø16 mm)
  • 20AWG silicone wire, 150 mm length

Specifications

Series / Model SPARK 2206
KV options 1800KV / 2500KV
Configuration 12S14P
Magnets N52SH arc
Stator size Ø22*L6mm
Motor dimensions Ø27*L32.2mm
Shaft diameter M5
Shaft length 13.1mm
Mounting 4-M3 EQS (Ø16)
Silicone wire 20AWG 150mm

1800KV (SPARK 2206-1800KV)

Rated voltage 6S (24V)
Internal resistance 80mΩ
Peak current 35.6A
Idle current (10V) 0.5A
Max instantaneous power 854.4W
Weight (incl. cable) 28.9g

2500KV (SPARK 2206-2500KV)

Rated voltage 4S (16V)
Internal resistance 50mΩ
Peak current 43.09A
Idle current (10V) 0.5A
Max instantaneous power 689.44W
Weight (incl. cable) 30.0g

For product selection help or build compatibility questions, contact support at [email protected].

Performance Reference (Static Test Data)

  • SPARK 2206-1800KV (24V): up to 1596 g thrust at 35.60 A / 854.40 W (GF 51499-3), up to 29583 RPM (GF 51433-3).
  • SPARK 2206-2500KV (16V): up to 1304 g thrust at 43.09 A / 689.44 W (GF 51499-3), up to 27404 RPM (GF 51433-3).

Applications

  • FPV quadcopters and other multirotor drone builds requiring a 2206 brushless motor

Details

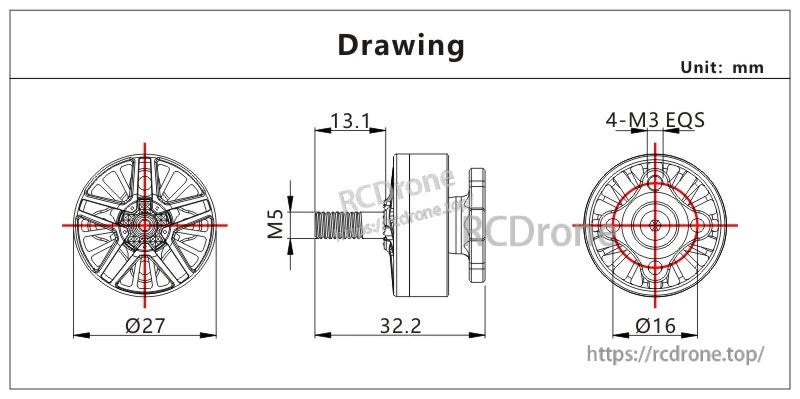

VCI SPARK 2206 1800KV/2500KV brushless motor dimension drawing with Ø27×32.2 mm body and 16 mm mount

Compact 2206 motor layout for FPV builds, including Ø27×32.2 mm body size, M5 shaft, and 16 mm 4×M3 mounting pattern.

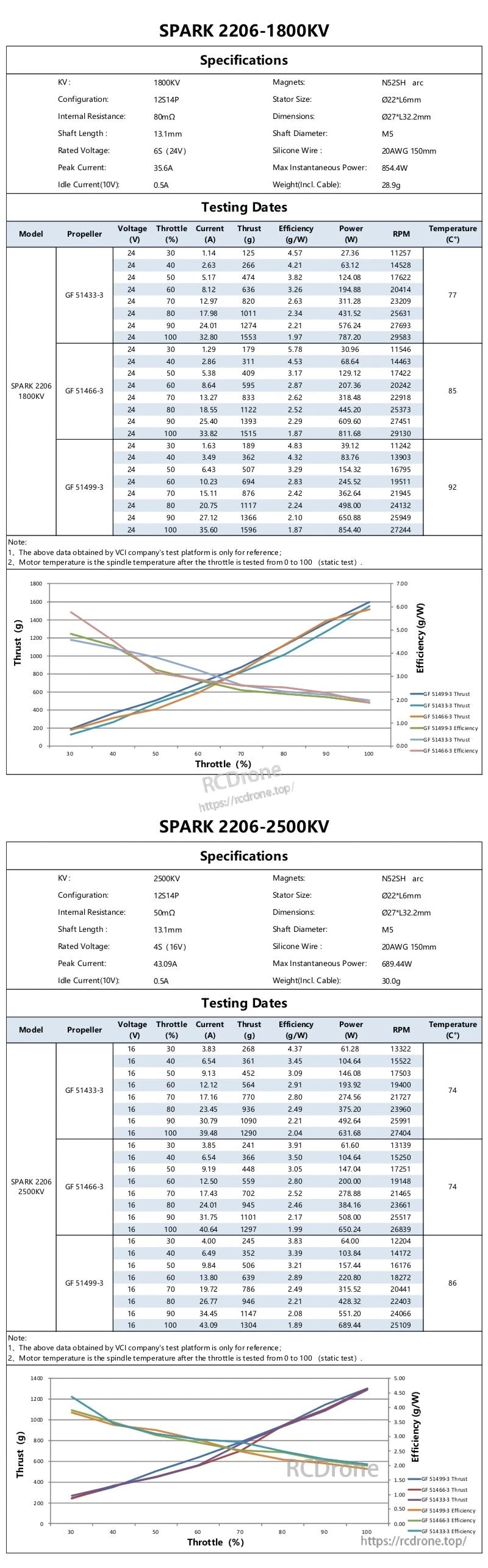

Static thrust test tables and performance graphs for SPARK 2206 1800KV (24V) and 2500KV (16V) motors

Reference test data compares thrust, current draw, and efficiency for the 1800KV and 2500KV options to help match your prop and battery setup.
