Yahboom Autopilot Track Map 3.2m x 2.8m UV Printed Waterproof Canvas for Robot Car Training
Yahboom Autopilot Track Map 3.2m x 2.8m UV Printed Waterproof Canvas for Robot Car Training
Yahboom
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview
The Yahboom Autopilot track map is a large UV-printed waterproof canvas road-training mat designed for robot car autopilot scenarios, model training, and professional competitions. It uses UV printing technology for bright colors and crease recovery after folding, helping create a repeatable traffic-scene environment for recognition and navigation tasks.
Key Features
- Traffic-scene layout elements such as parking lot, sidewalk, curves, and T-junctions.

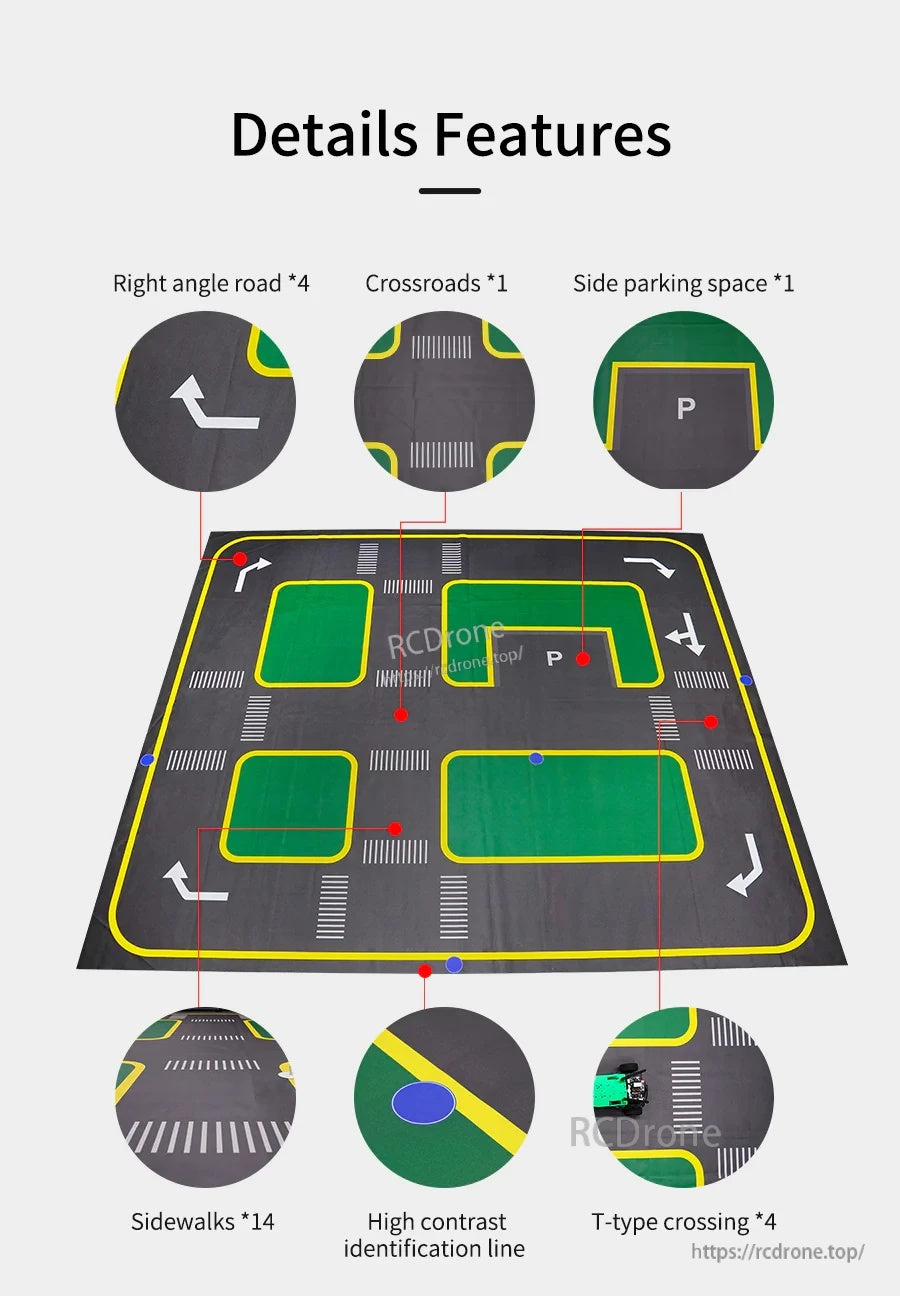

- Detail features called out on the map: Right angle road *4; Crossroads *1; Side parking space *1; Sidewalks *14; T-type crossing *4; High contrast identification line.
- UV printing process on high-quality waterproof canvas (bright color; easy to recover after folding).

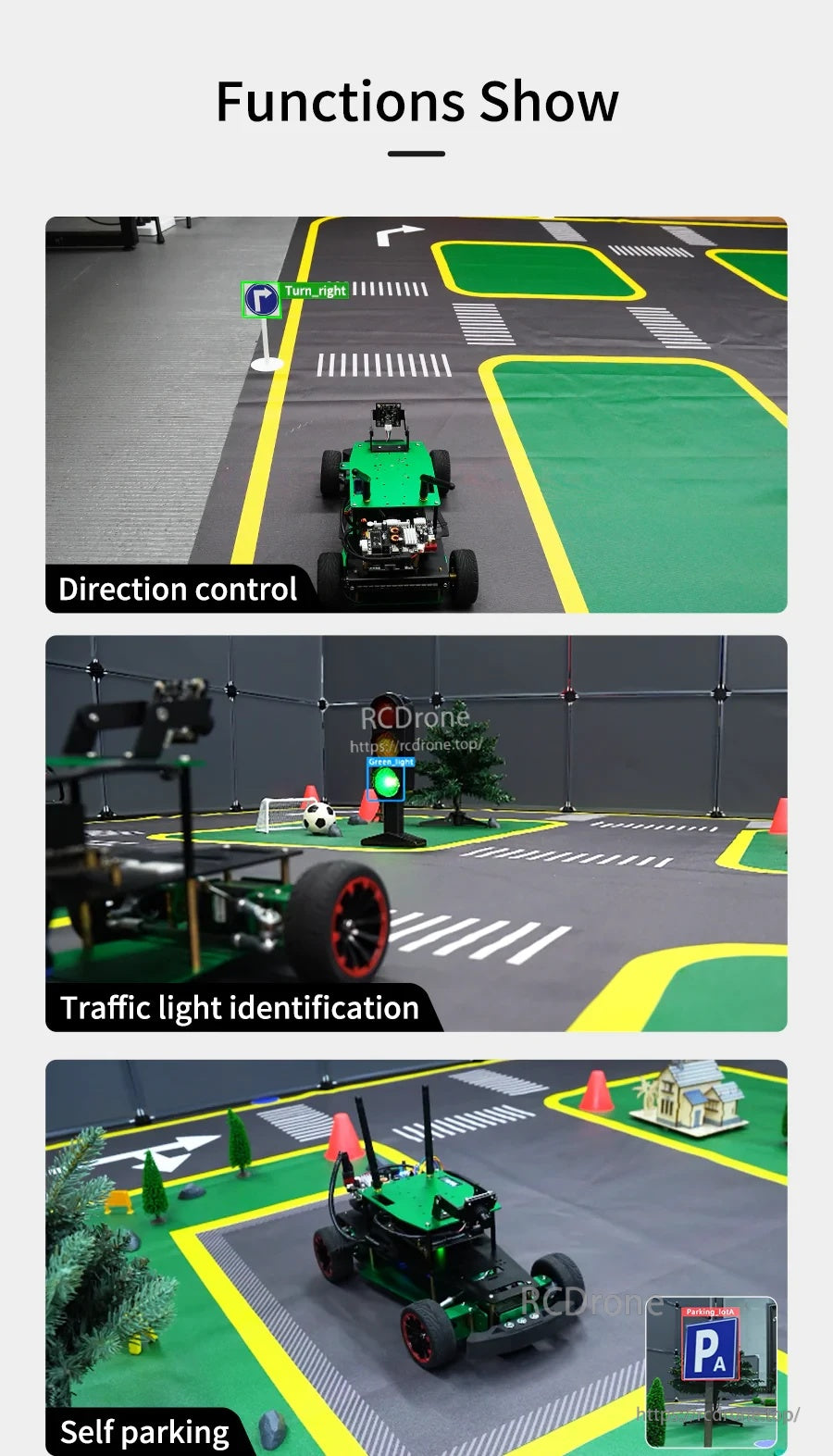

- Suitable scenarios shown: direction control, traffic light identification, self parking, sidewalk identification, go straight, traffic sign recognition, and support model training.

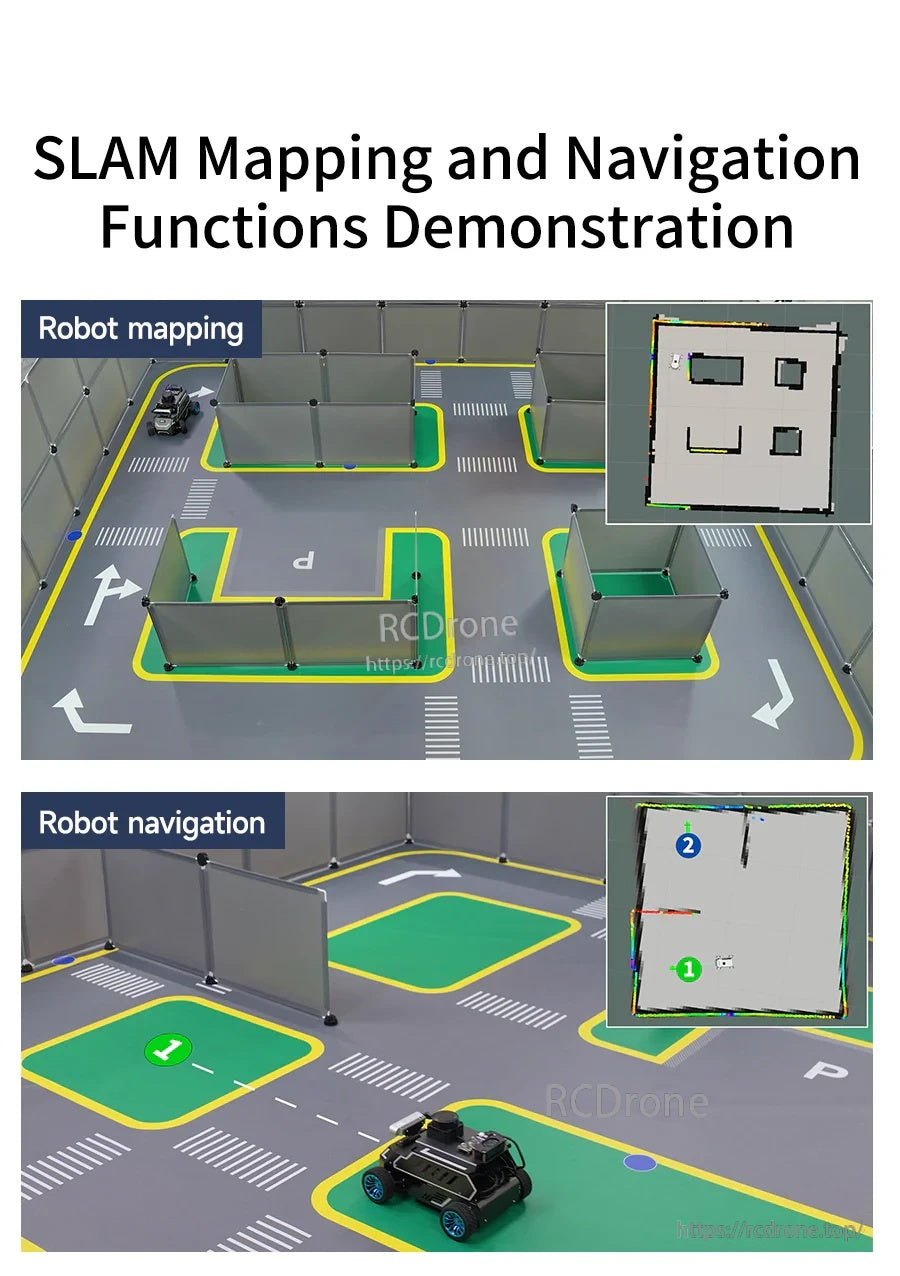

- SLAM mapping and navigation demonstrations shown: robot mapping and robot navigation.
Specifications
Track Map
| Size | 3.2m * 2.8m |
| Material | High-quality canvas |
| Process | UV printing |
| Weight | 2580 g |
| Lane width | 40 cm |
| Applicable vehicle model | Car with turning radius <= 80 cm |
Note on a conflicting graphic: one comparison graphic states the product “weighs 258g”; this value is inconsistent with the above specification table (2580 g).
Traffic Signs (Included)
| Quantity | 5 (traffic signs have been pasted on both sides when leaving the factory) |
| Height | 18 cm |
| Sign area | 7 cm * 7 cm |
| Material | Iron (sprayed with white paint) |
| Single weight | 107 g |
| Sign type | Straight *2, turn right, whistle, forbidden, pay attention to pedestrians, speed limit, parking lot *2, school section |
Traffic Light (Included)
| Size | 24 cm * 10 cm (lamp body 6 cm wide, base 10 cm wide) |
| Light color | Red, green, yellow |
| Power supply | AA batteries *2 (shipping list already includes) |
| Weight | 121 g |
| Control | Manual switch control |

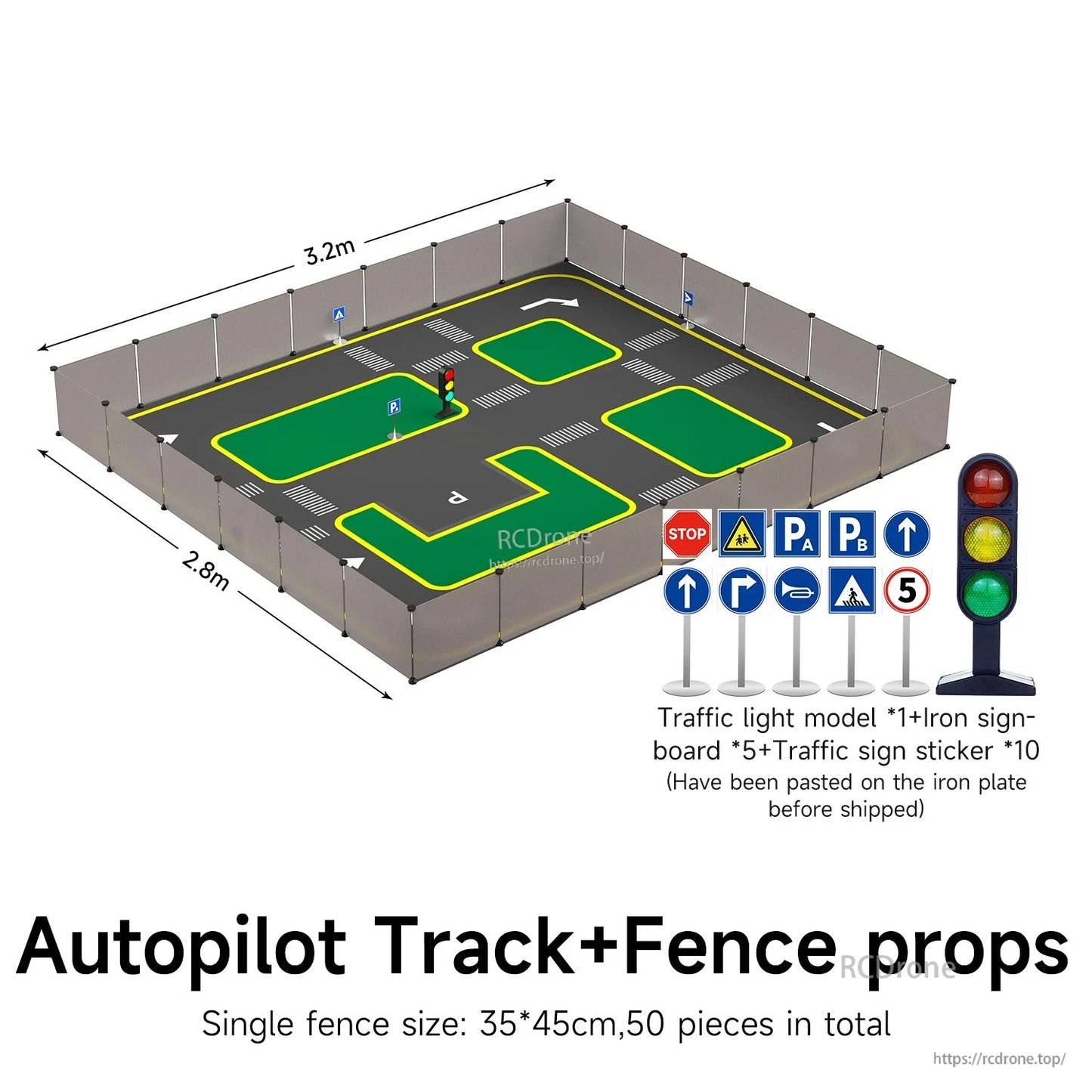

Fences
- Quantity provided: 50 fences
- Each fence size: 35 * 45 cm

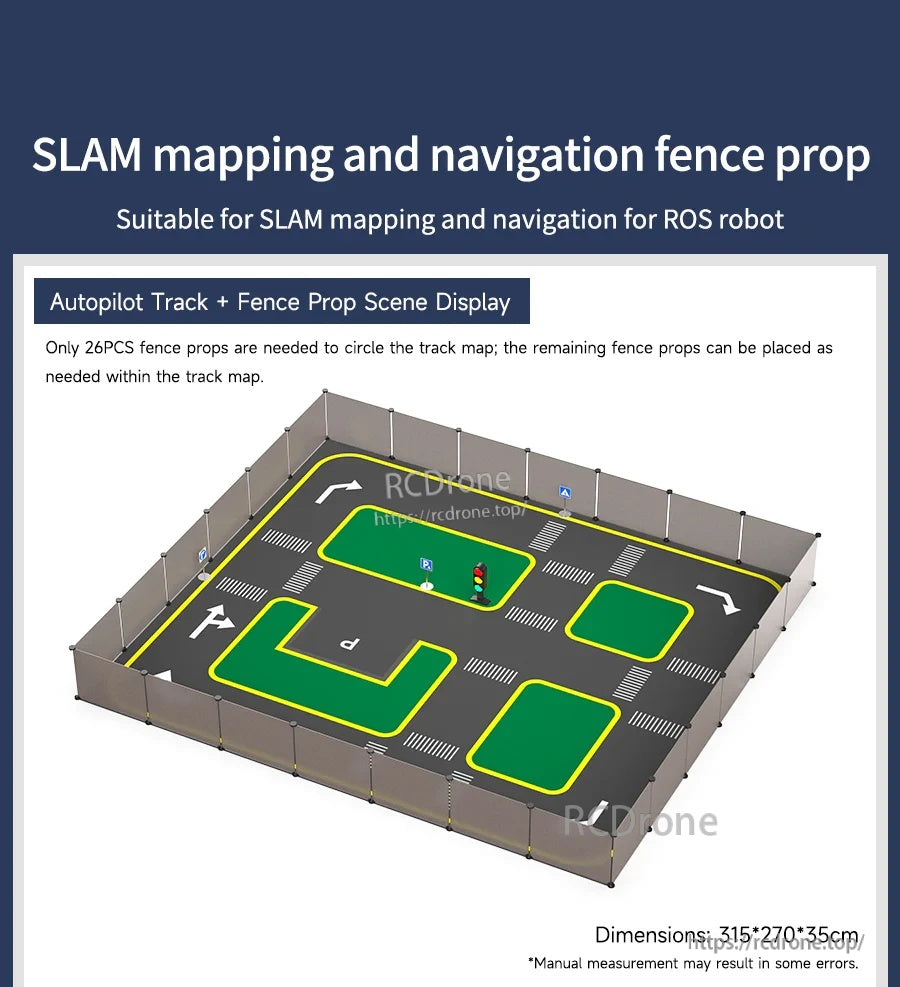

- Fence prop scene display note: only 26PCS fence props are needed to circle the track map; the remaining fence props can be placed as needed within the track map.
- Fence prop scene display dimensions: 315 * 270 * 35 cm (manual measurement may result in some errors)
What’s Included
- Autopilot track map (UV printing canvas), 3.2m * 2.8m
- Traffic signs: 5 (double-sided)
- Traffic light: 1
- Fences: 50
Applications
- Professional robot car competitions
- Teaching training and robot laboratory model training
- Programmable smart car autopilot training (traffic sign and traffic light recognition; road navigation)
- SLAM mapping and navigation scenario setup (as demonstrated)
For pre-sales questions about setup or training scenarios, contact support@rcdrone.top or visit https://rcdrone.top/.

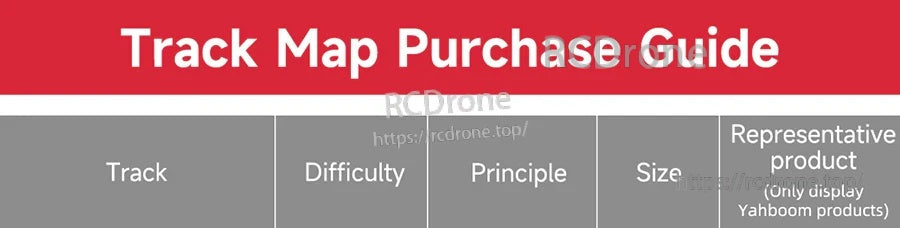

Track Map Purchase Guide (Yahboom)

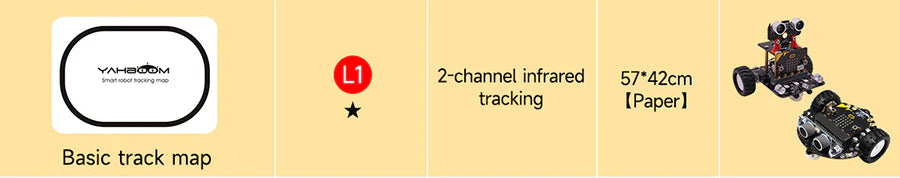

| Basic track map | L1 | 2-channel infrared tracking | 57 * 42 cm (Paper) |

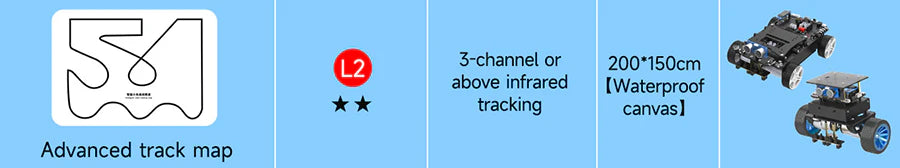

| Advanced track map | L2 | 3-channel or above infrared tracking | 200 * 150 cm (Waterproof canvas) |

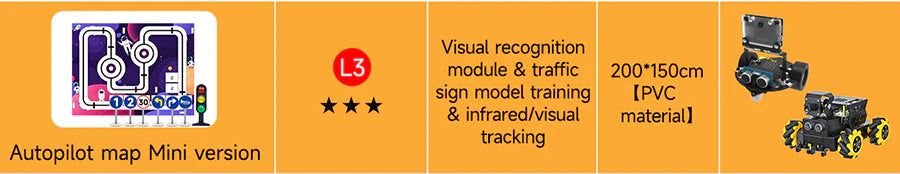

| Autopilot map Mini version | L3 | Visual recognition module & traffic sign model training & infrared/visual tracking | 200 * 150 cm (PVC material) |

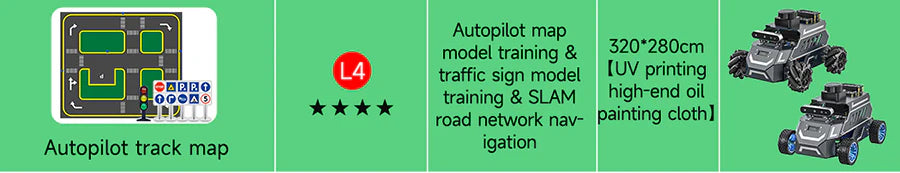

| Autopilot track map | L4 | Autopilot map model training & traffic sign model training & SLAM road network navigation | 320 * 280 cm (UV printing high-end oil painting cloth) |

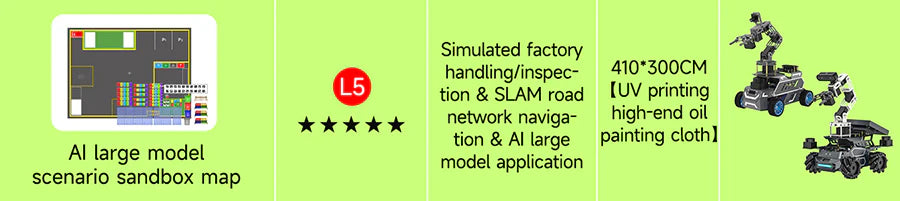

| AI large model scenario sandbox map | L5 | Simulated factory handling/inspection & SLAM road network navigation & AI large model application | 410 * 300 CM (UV printing high-end oil painting cloth) |
Details
Choose the full-size 3.2 m × 2.8 m autopilot track map for repeatable road-scene training and SLAM practice.

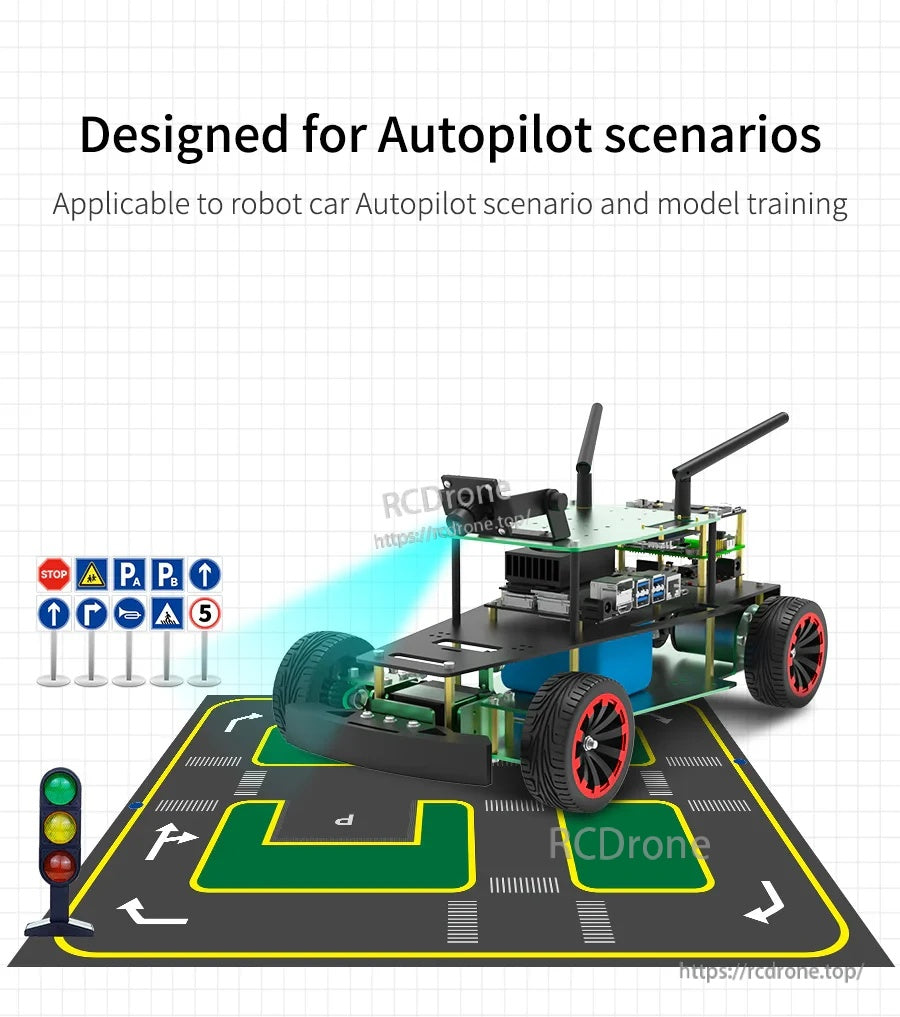

Build an autopilot practice environment with lane markings plus included traffic signs and a traffic light prop.
Road elements include right-angle turns, crossroads, a parking bay, sidewalks, T-junctions, and high-contrast lines.
UV printing on waterproof canvas keeps colors bright and helps the mat recover from creases after folding.
Use the printed lanes to train direction control, traffic-light response, and self-parking behaviors.

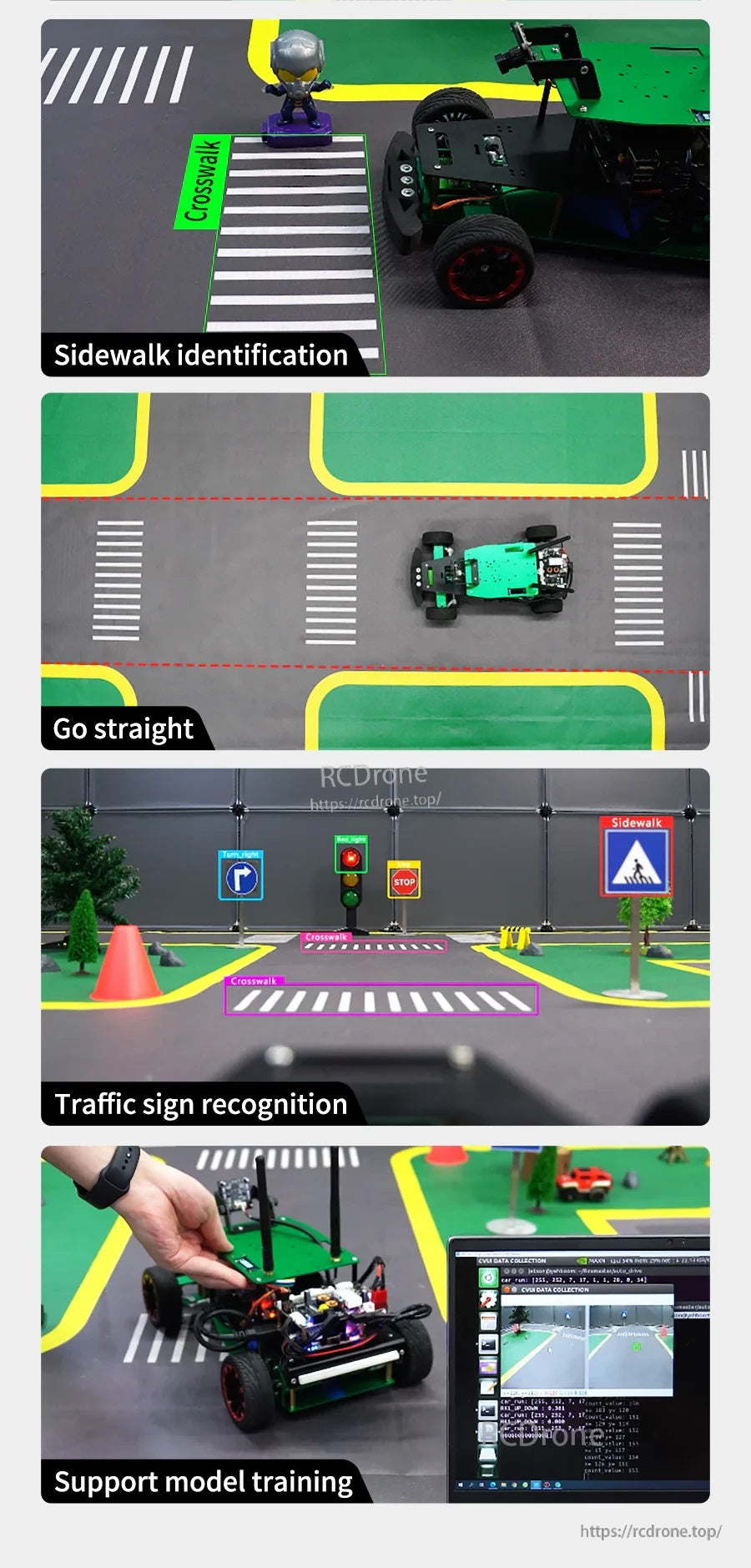

The layout supports sidewalk detection, go-straight tasks, traffic-sign recognition, and dataset/model training workflows.
Practice SLAM mapping and navigation with fenced boundaries and clear road geometry for repeatable routes.
Included components cover the mat, double-sided traffic signs, a battery-powered traffic light, and setup dimensions.
Fence props can surround the map to create a contained course for mapping and navigation experiments.
Clip connections make it quick to assemble individual fence panels into a stable perimeter.

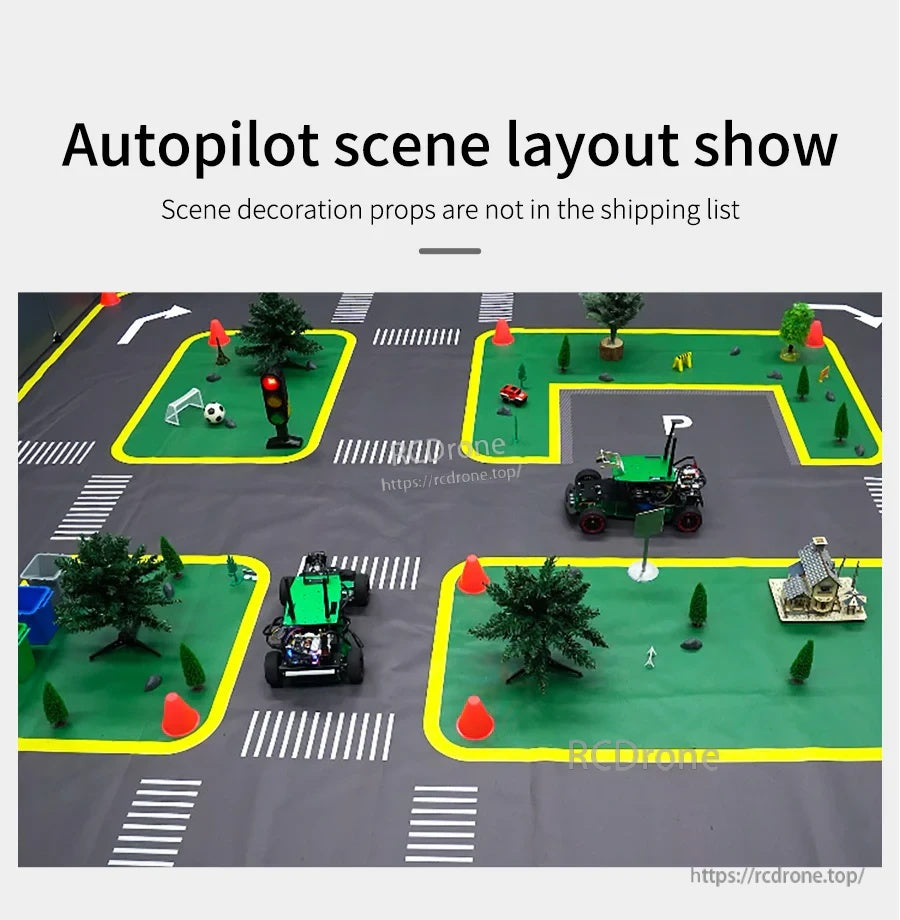

Decorative scene props can be added to expand training scenarios; only the listed accessories are included.

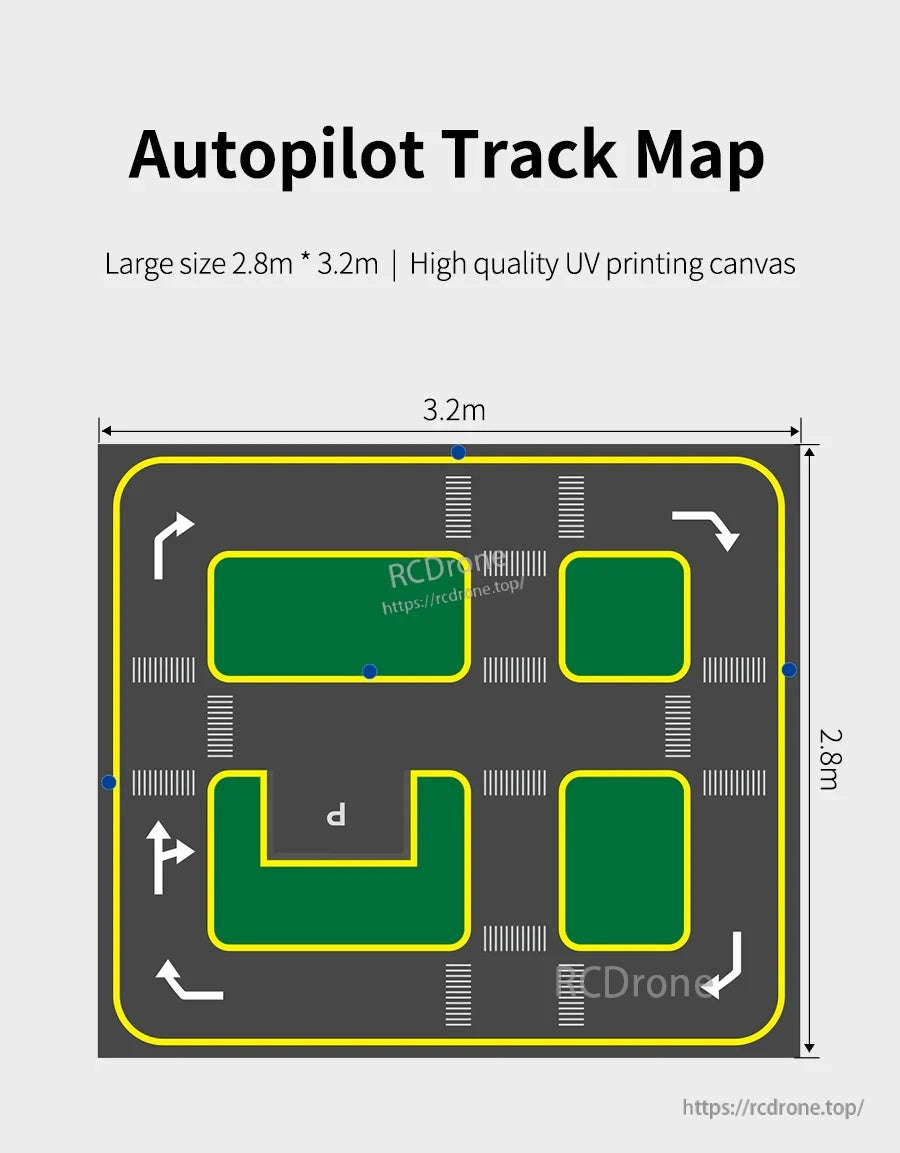

The 2.8m x 3.2m autopilot track map provides a clear road layout with intersections, lane markings, and directional arrows for robot car training.

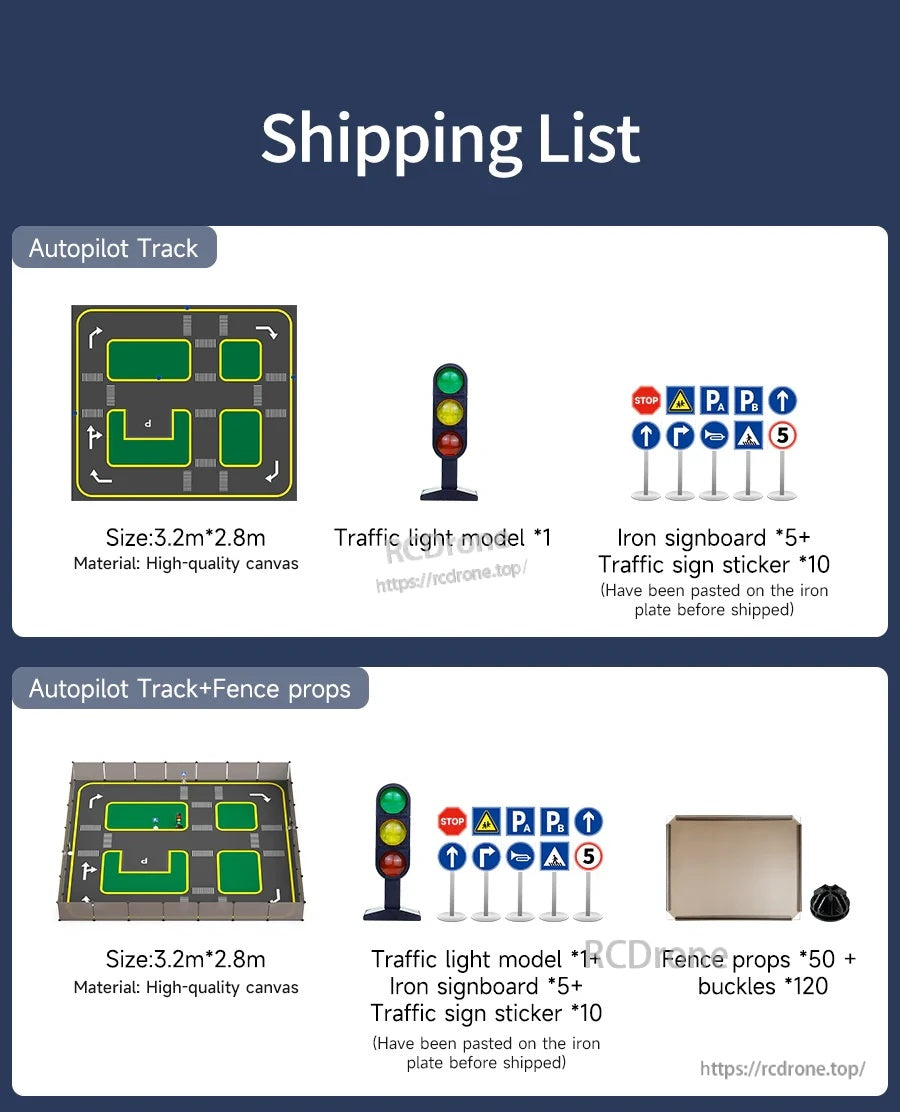

The shipping list includes the 3.2m x 2.8m autopilot track canvas and optional fence props with traffic light models and road signboards.
