Beitian BT-132STK Full-Frequency RTK GNSS Antenna, Magnetic Mount, TNC-K, 3.3-12V for Surveying
Beitian BT-132STK Full-Frequency RTK GNSS Antenna, Magnetic Mount, TNC-K, 3.3-12V for Surveying
Beitian
در دسترس بودن پیکاپ بارگیری نشد
Overview

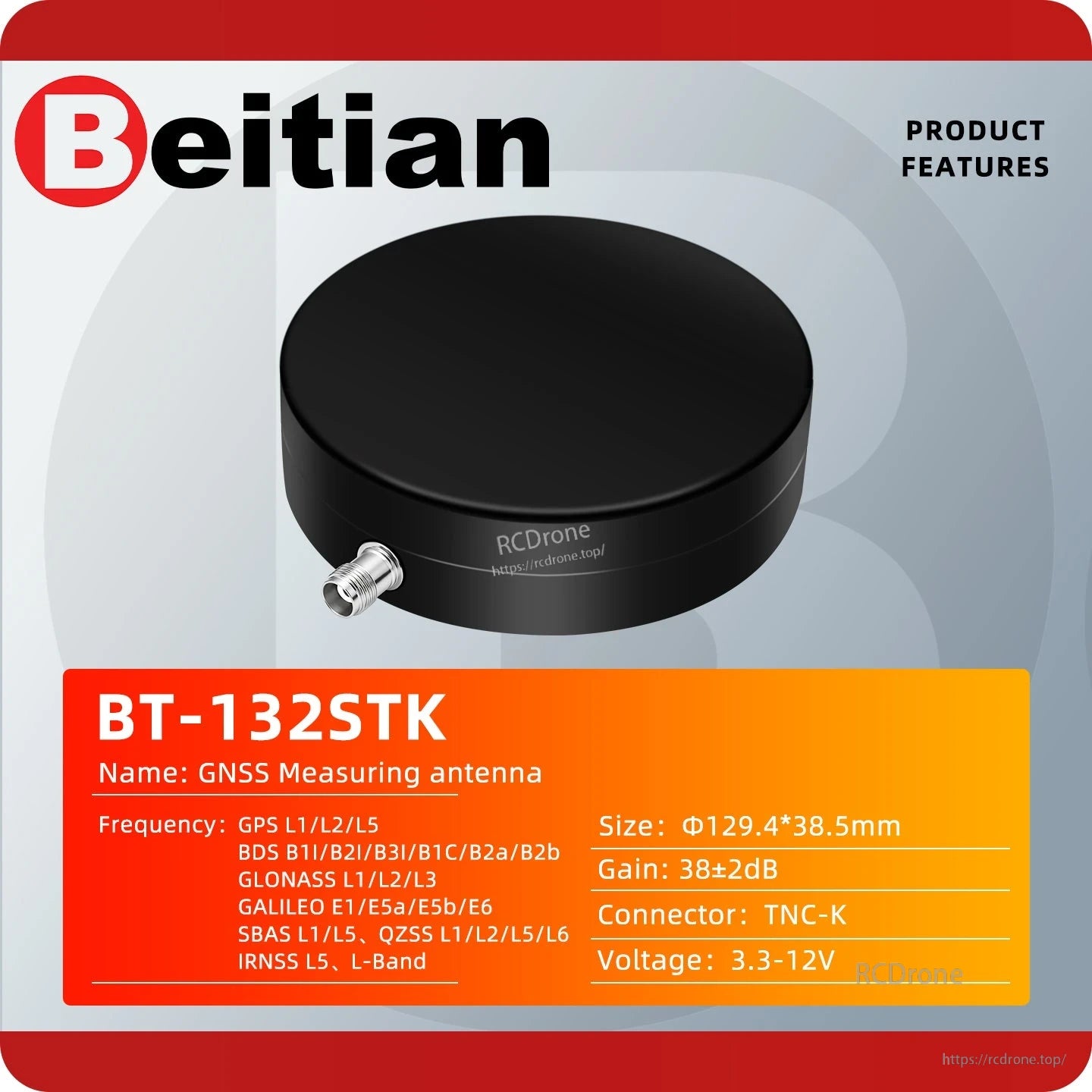

The Beitian BT-132STK is a full-frequency, four-system GNSS antenna designed for high-precision positioning and measurement applications. This GNSS antenna uses a built-in magnetic (suction cup magnetic) base for quick mounting on vehicles and equipment, and it is equipped with a TNC-K connector interface.
Key Features
- Four-system, multi-band reception: GPS, BDS, GLONASS, GALILEO, plus SBAS, QZSS, IRNSS, and L-Band support
- Right-hand circular polarization (RHCP)
- 360° horizontal coverage angle
- Low-noise amplifier (LNA) gain: 38±2 dB
- Wide operating voltage range: 3.3-12 V

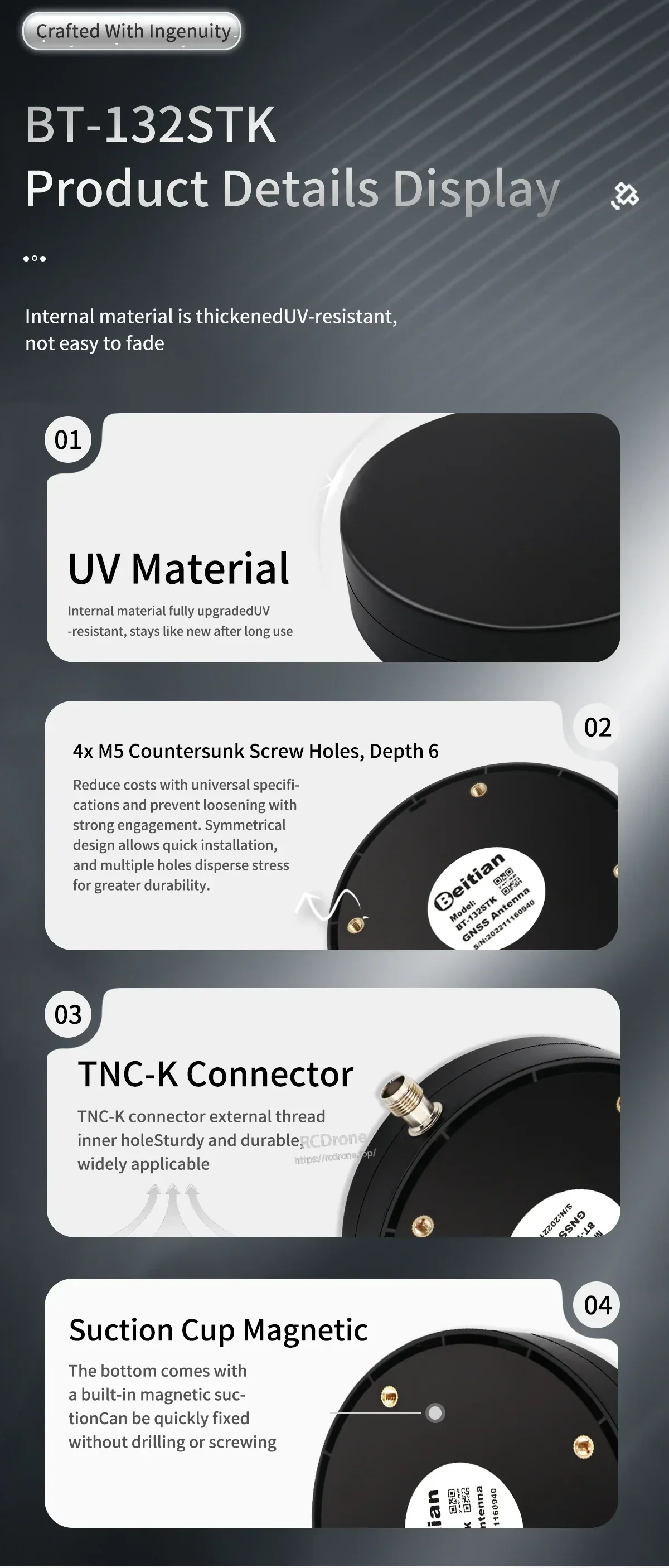

- Built-in magnetic base (installation method: sucker magnetic)
- Mechanical mounting points: 4 x M5 countersunk screw holes (depth 6)
- UV-resistant material noted for long-term outdoor use
- Connector type: TNC-K (connector appearance can be customized per customer needs)

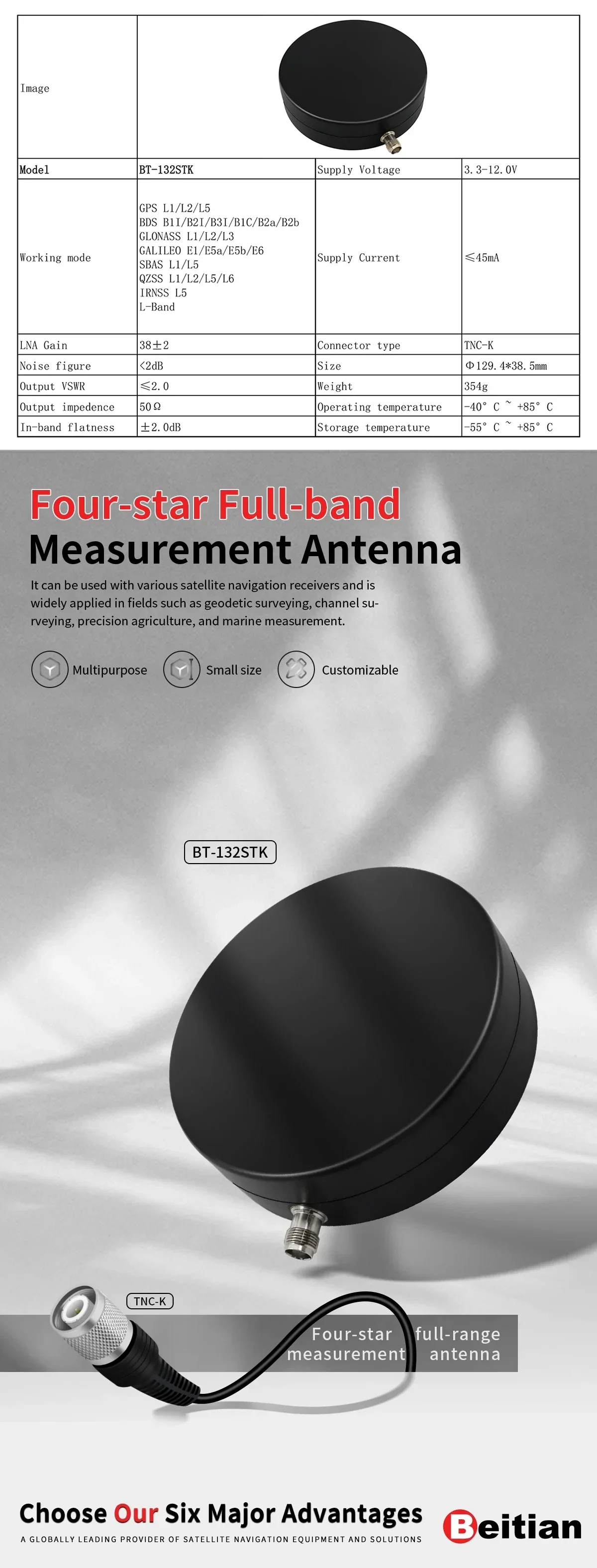

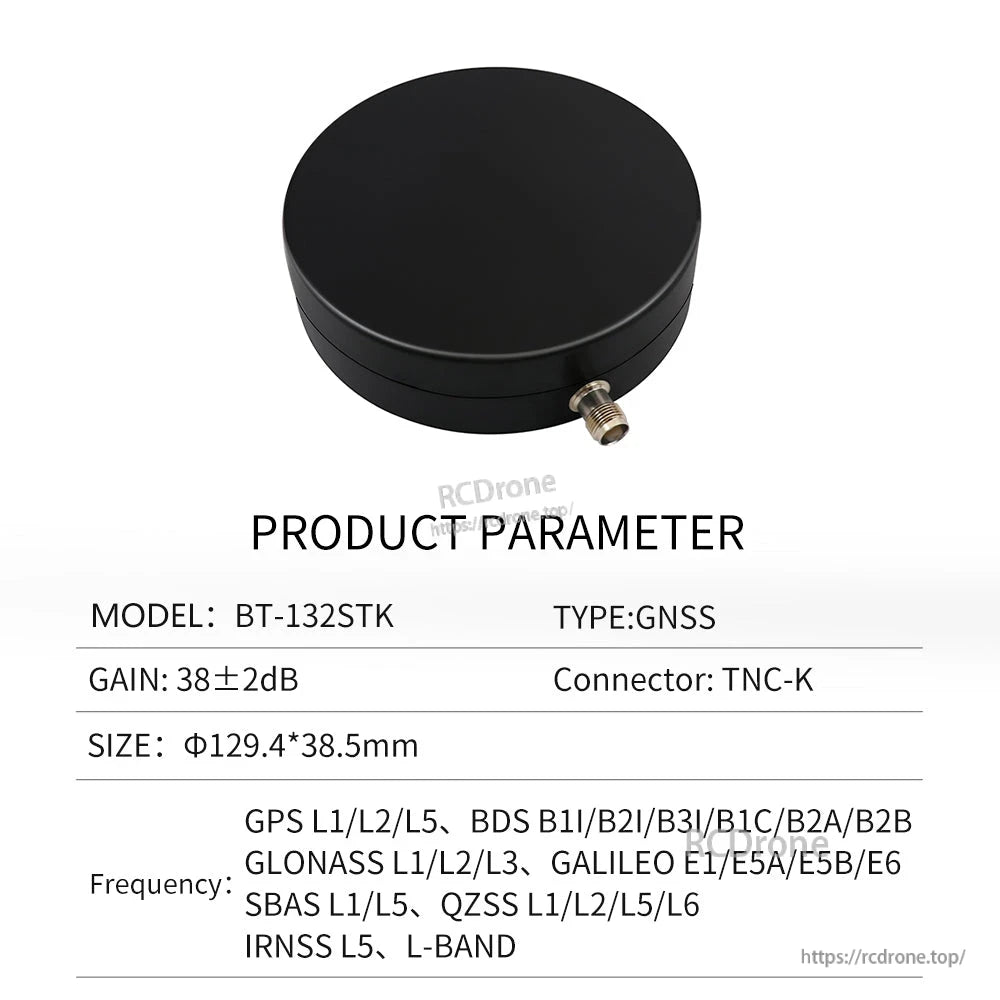

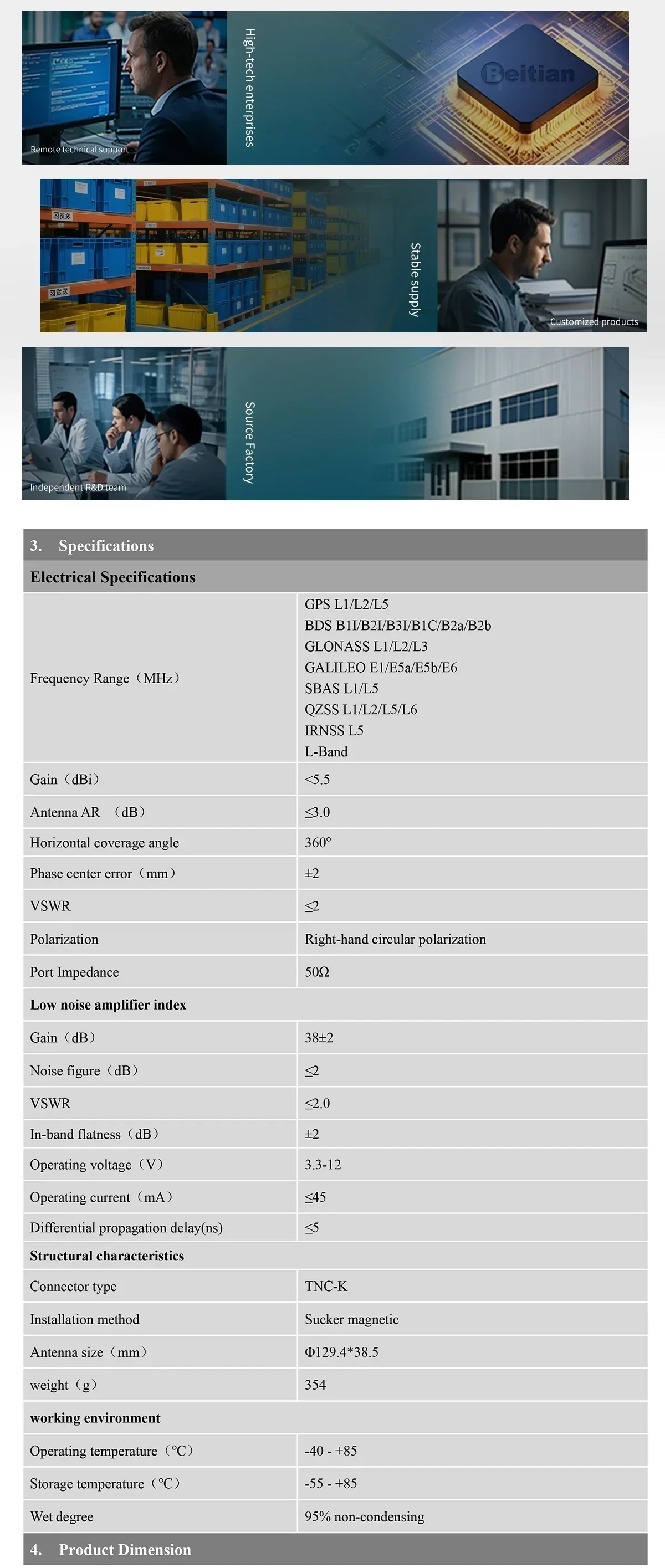

Specifications
| Model | BT-132STK |
| Supported signals / bands | GPS L1/L2/L5; BDS B1I/B2I/B3I/B1C/B2a/B2b; GLONASS L1/L2/L3; GALILEO E1/E5a/E5b/E6; SBAS L1/L5; QZSS L1/L2/L5/L6; IRNSS L5; L-Band |
| Antenna gain (dBi) | <5.5 |
| Antenna AR (dB) | ≤3.0 |
| Horizontal coverage angle | 360° |
| Phase center error (mm) | ±2 |
| VSWR | ≤2 |
| Polarization | Right-hand circular polarization |
| Port impedance | 50 Ω |
| LNA gain (dB) | 38±2 |
| Noise figure (dB) | ≤2 (also listed as <2 dB) |
| Output VSWR | ≤2.0 |
| In-band flatness (dB) | ±2 (also listed as ±2.0 dB) |
| Operating voltage (V) | 3.3-12 (also listed as 3.3-12.0 V) |
| Operating current (mA) | ≤45 (also listed as ≤45 mA) |
| Differential propagation delay (ns) | ≤5 |
| Connector type | TNC-K |
| Installation method | Sucker magnetic |

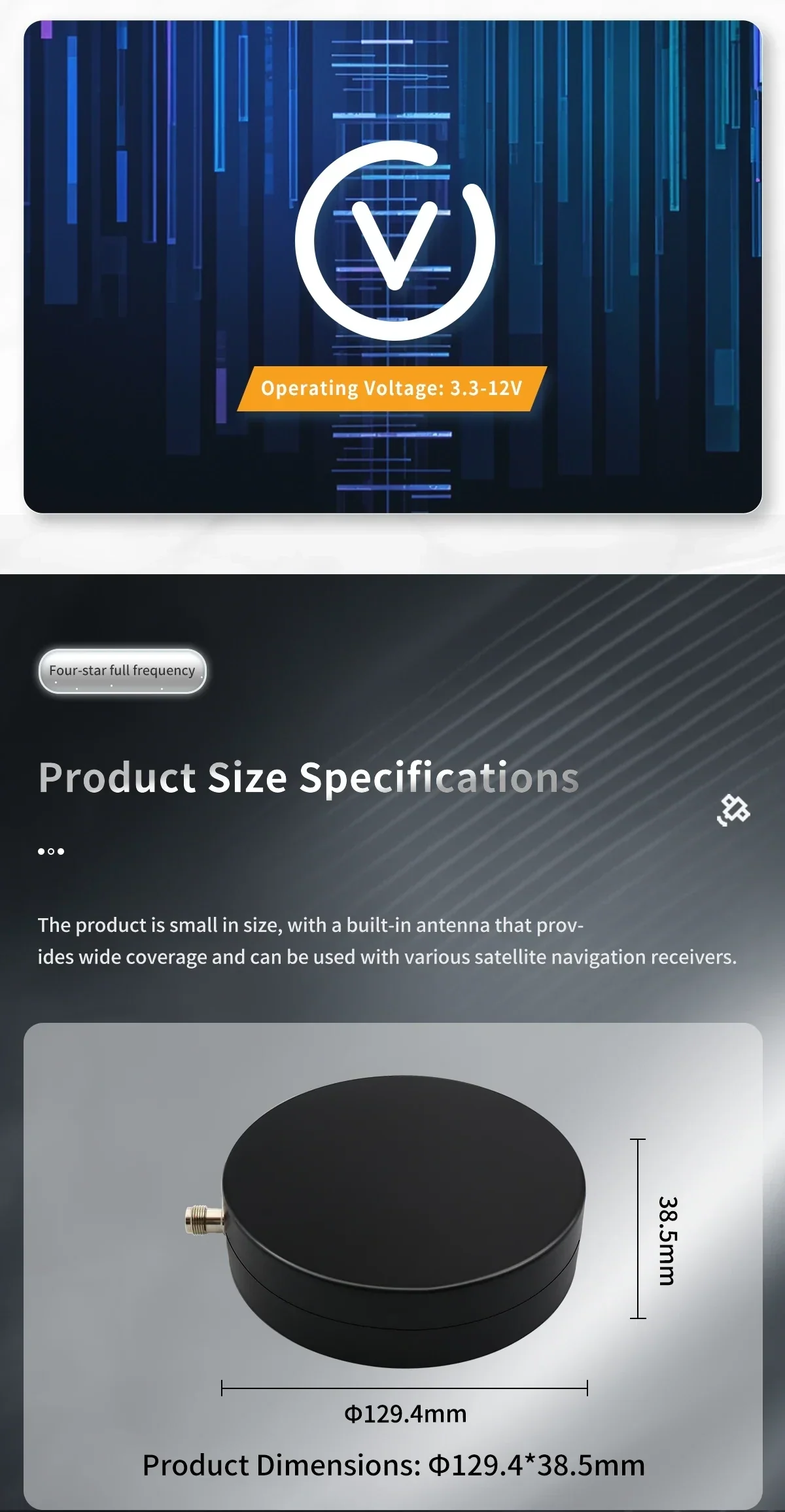

| Antenna size (mm) | Dia.129.4 x 38.5 |
| Weight | 354 g |
| Operating temperature | -40 to +85 C |
| Storage temperature | -55 to +85 C |
| Humidity | 95% non-condensing |
| Mechanical drawing callouts | Dia.129.4 ±0.3; 38.5 ±0.3; 4-M5; Dia.104; 26.9°; 73.54; 10 |

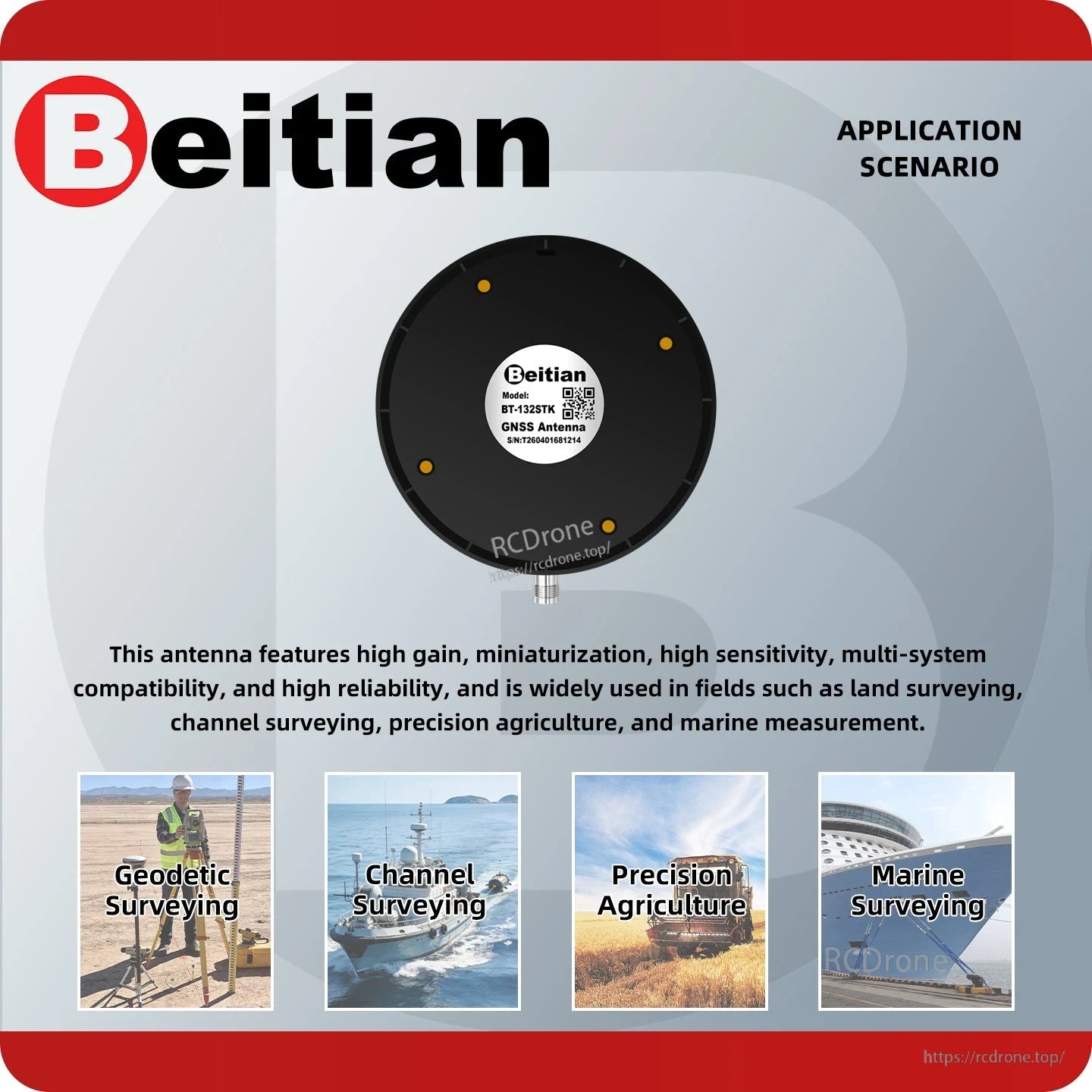

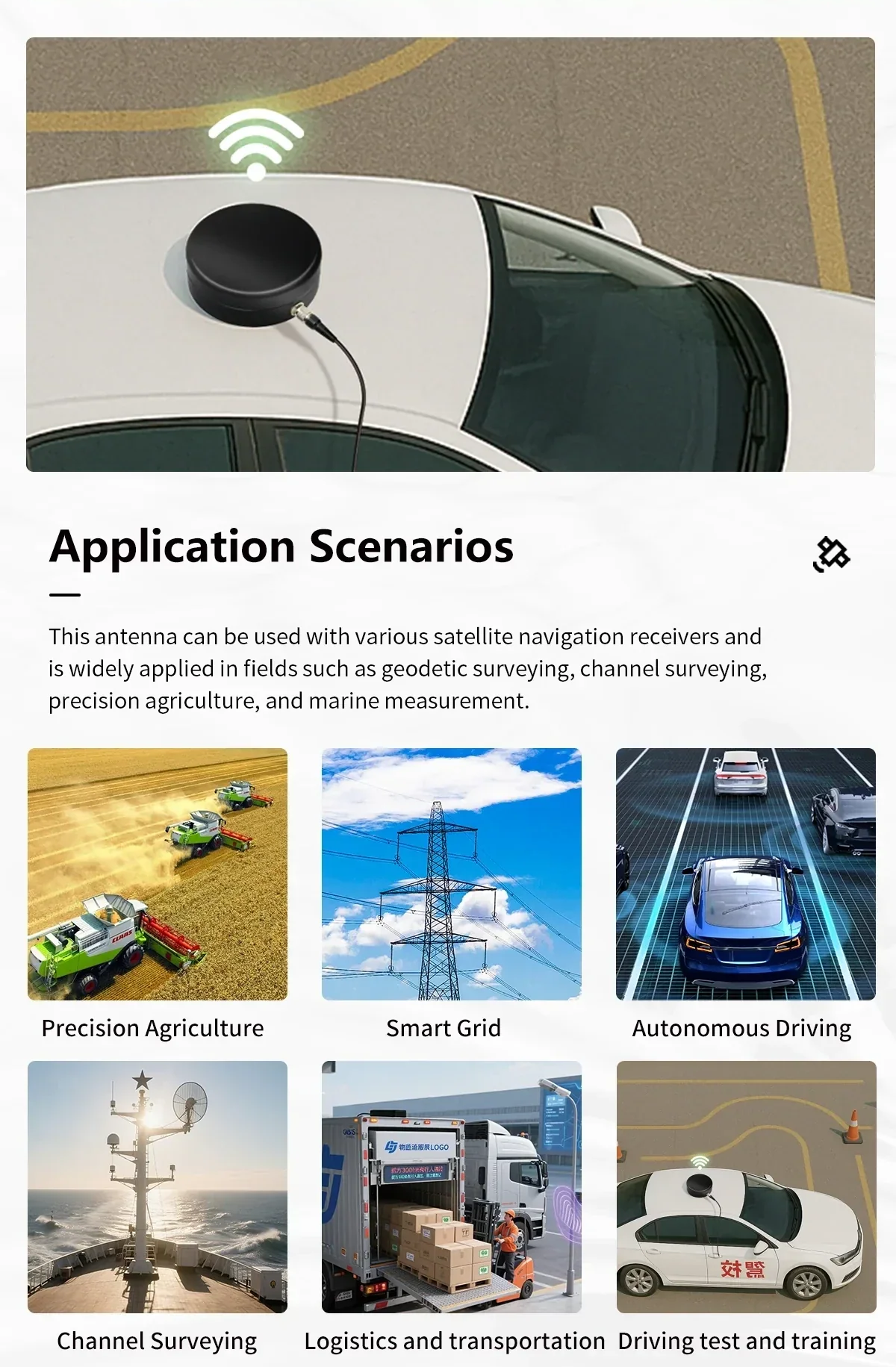

Applications
- Geodetic surveying
- Channel surveying
- Precision agriculture
- Marine measurement
- Vehicle-mounted positioning and monitoring
- Smart grid
- Autonomous driving, driving test and training
- Logistics and transportation
What's Included

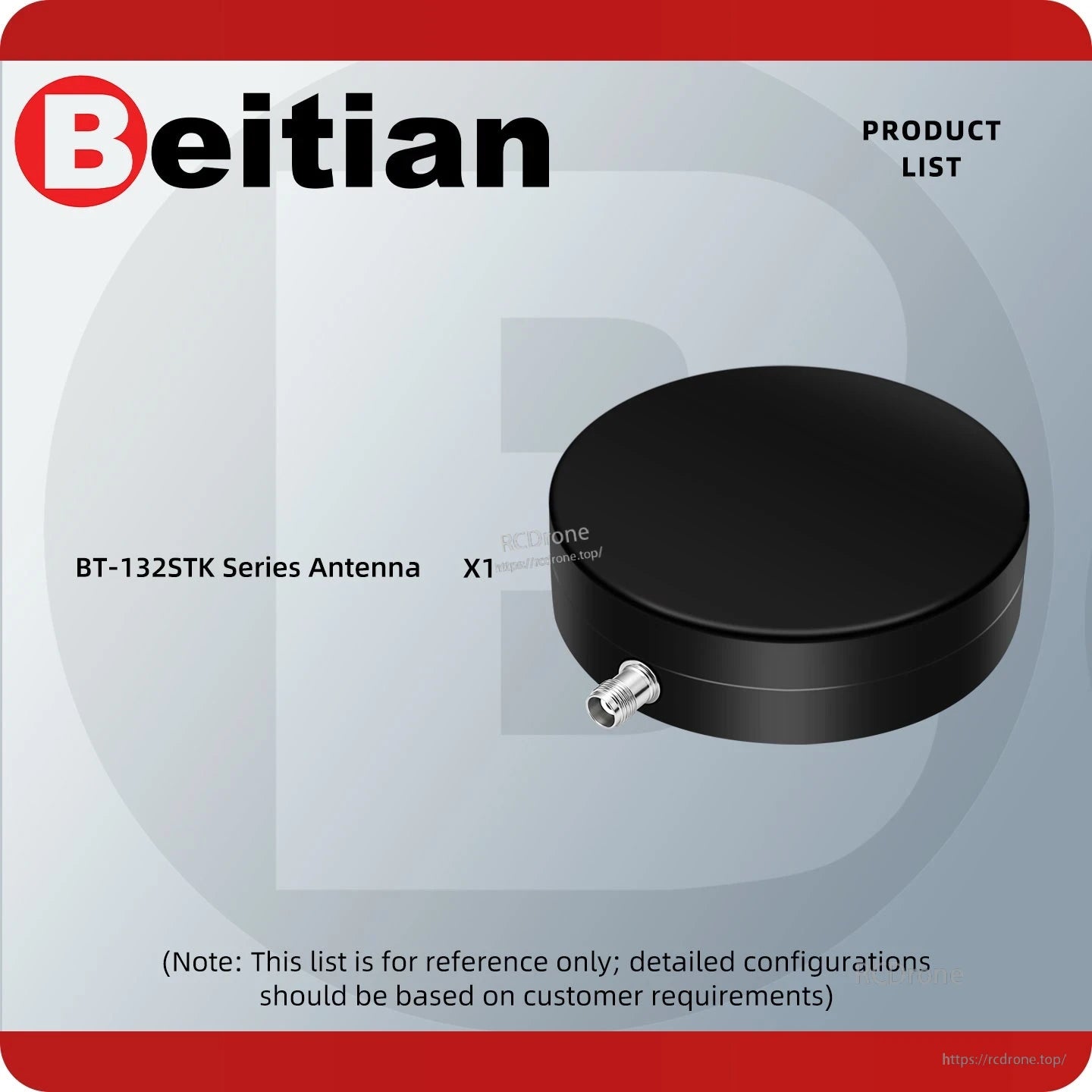

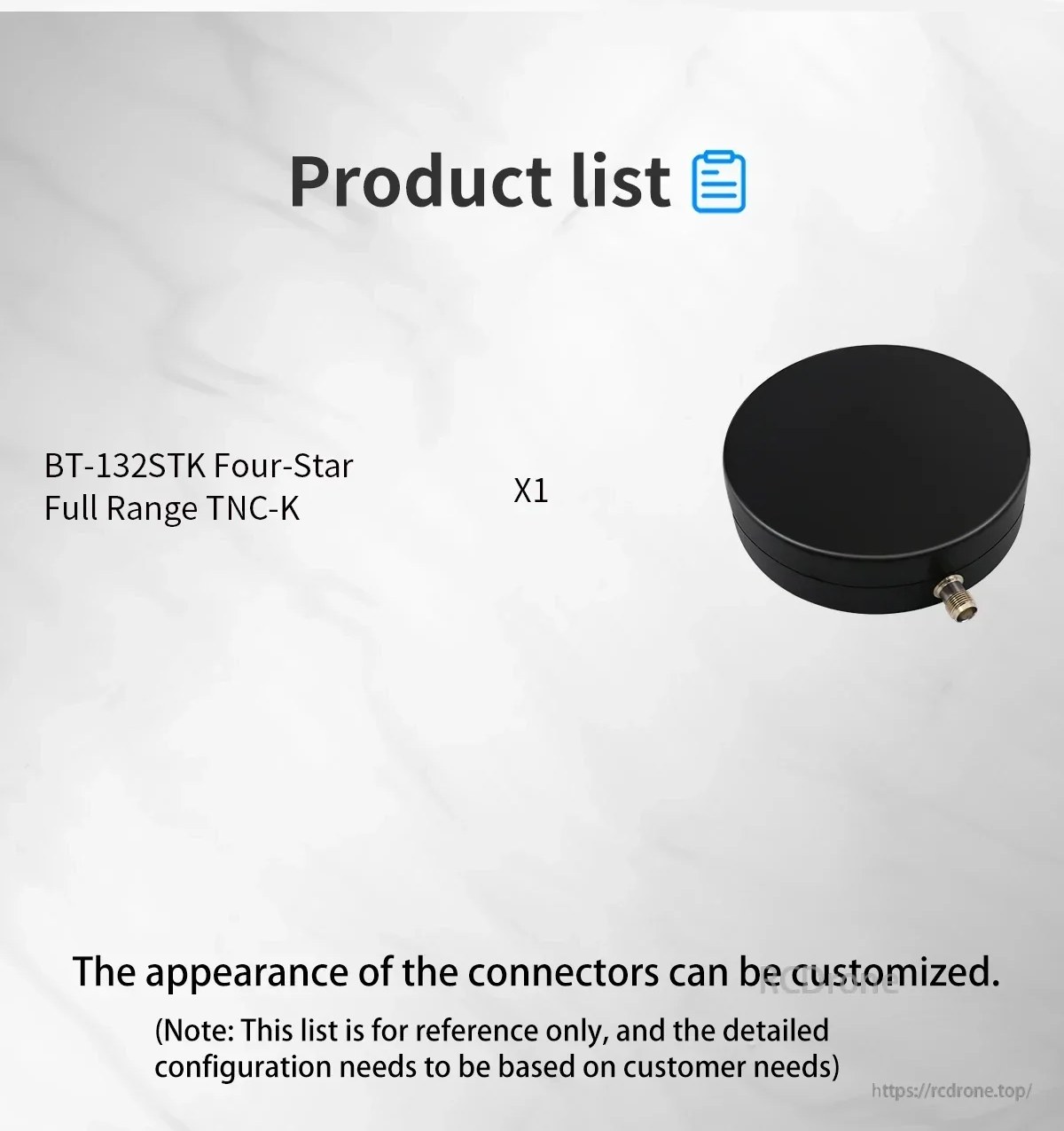

- BT-132STK Four-Star Full Range TNC-K GNSS Antenna x 1
For product selection and technical support, contact [email protected] or visit https://rcdrone.top/.
Details

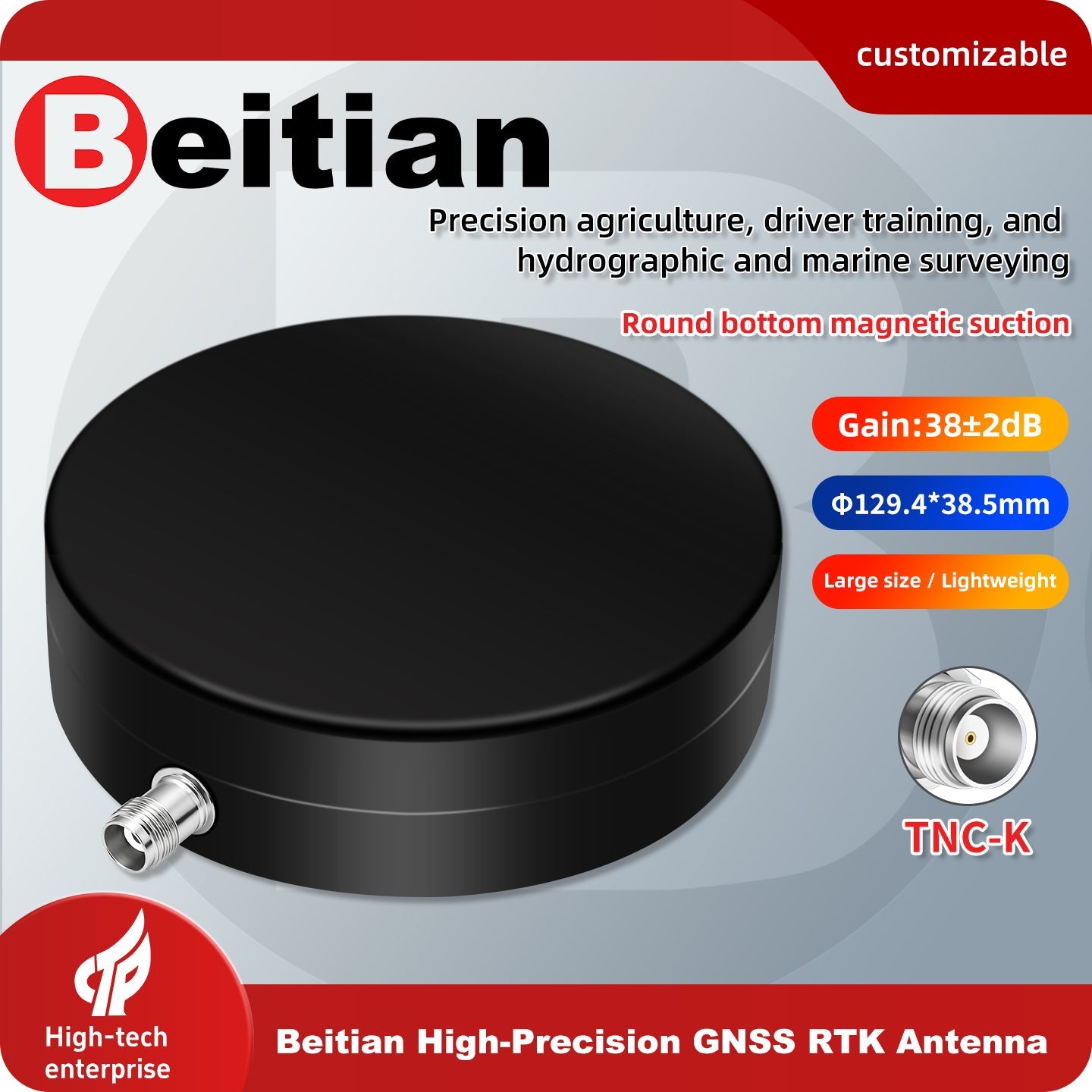

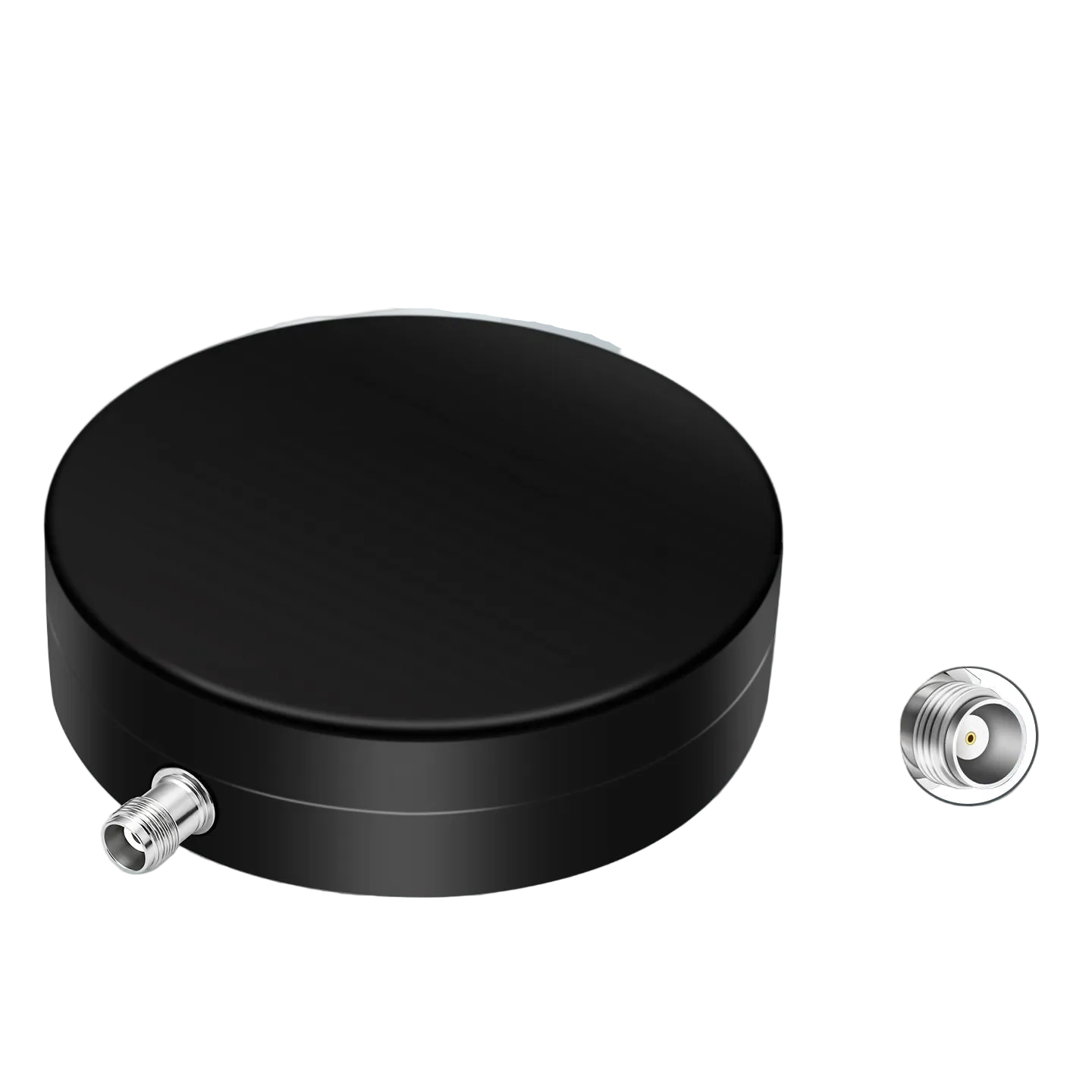

A compact, vehicle-ready full-frequency GNSS antenna designed for high-precision RTK positioning and measurement.
Full-frequency, multi-constellation reception helps reduce signal dropouts and improves positioning stability in complex environments.
Multi-constellation GNSS coverage supports more reliable satellite tracking for surveying, agriculture, and mobile applications.
Low-profile housing makes installation easier on vehicles, equipment, and other platforms where height matters.

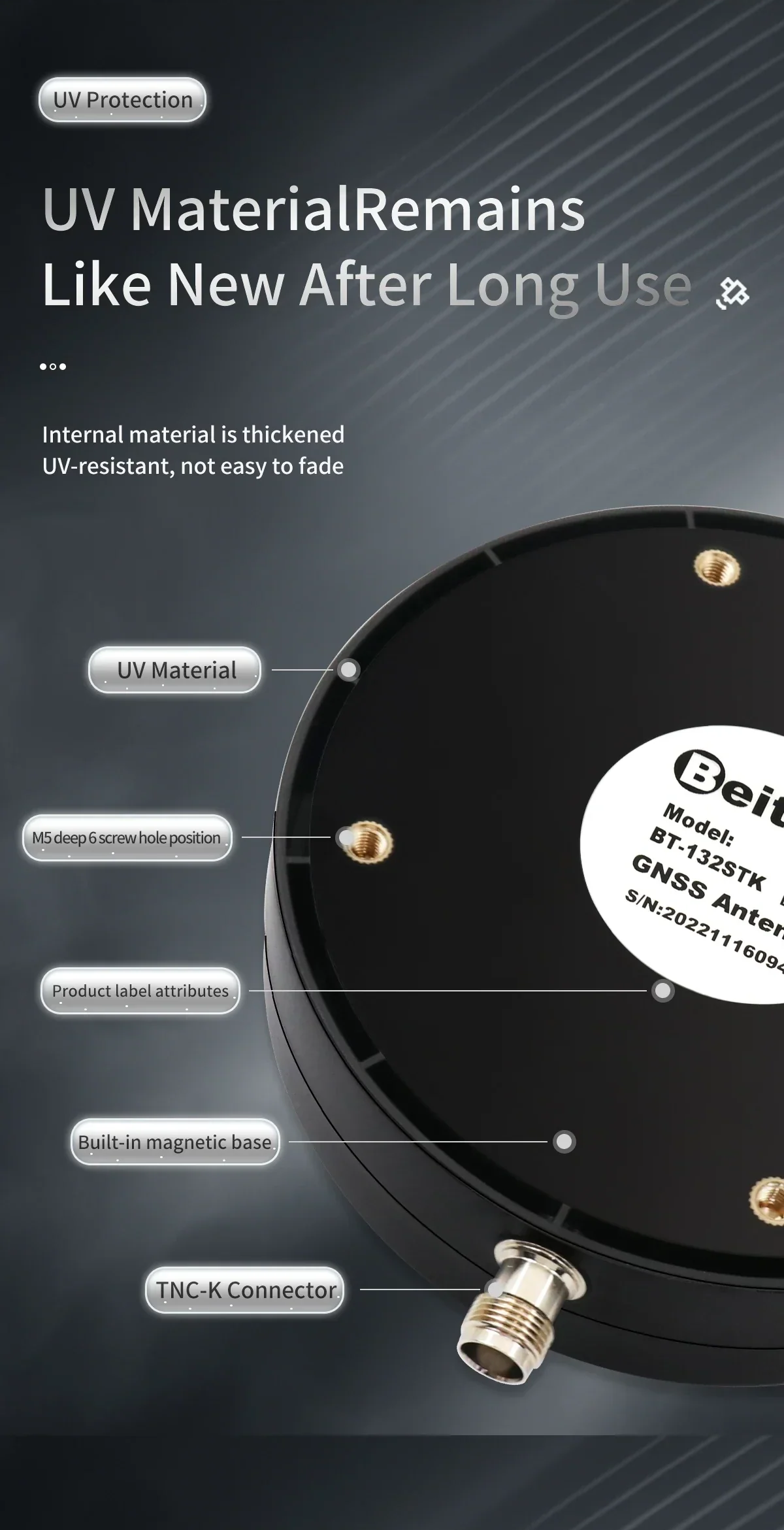

UV-resistant materials and a built-in magnetic base support long-term outdoor use and quick temporary mounting.
Ideal for vehicle-mounted positioning, geodetic and channel surveying, precision agriculture, smart grid, and logistics.
