DSpower DS-S009B 7.4V PWM Micro Servo, 5.0 kgf·cm Torque for RC Helicopters

DSpower

$35.00 USD

فروش فروخته شده

Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.

Version DS-S009B

تعداد

مشاهده جزئیات کامل

Overview

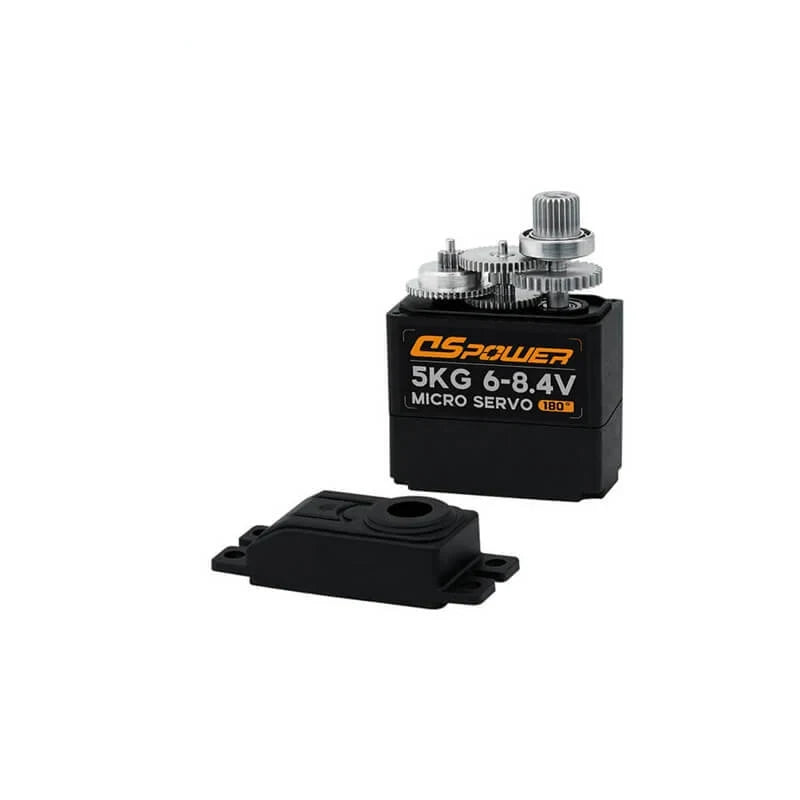

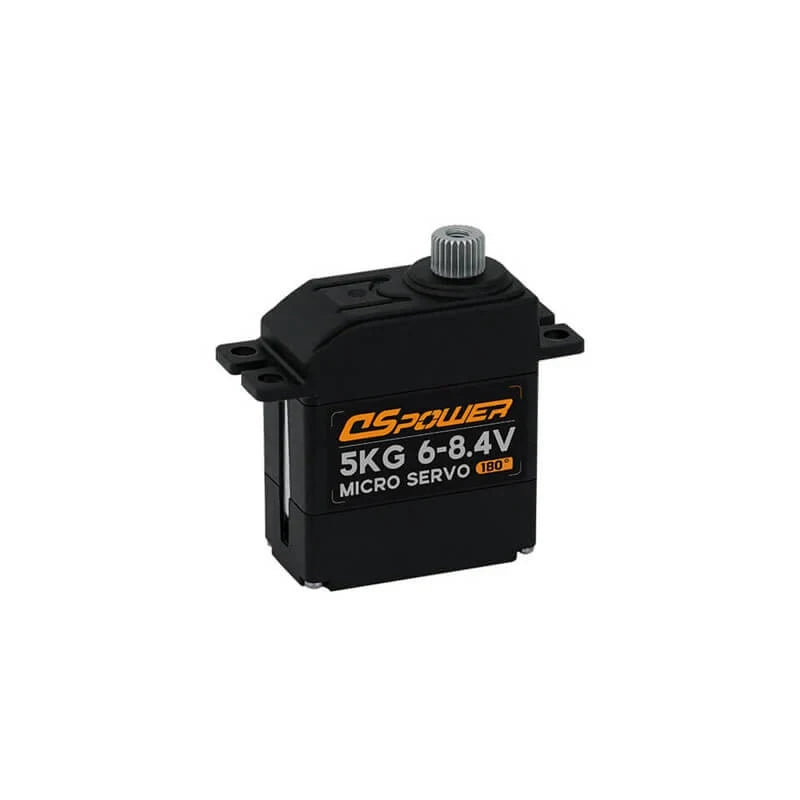

The DSpower DS-S009B is a high-voltage micro servo with PWM communication for compact motion-control applications. It operates from 6–8.4 V DC and is specified for at least 5.0 kgf·cm stall torque at 7.4 V, with a 180° ±10° operating travel angle. Digital circuitry, a Ø4.85 × 40T output shaft, and included servo horns support installation into applicable servo-driven mechanisms.

Features

Micro-servo format with digital circuitry.
PWM communication interface.
High-voltage operation across a 6–8.4 V DC range.
Ø4.85 × 40T output shaft specification.
Package display includes three white servo horns and four mounting screws.

Specifications

Parameter	Value
Operating Voltage	6–8.4 V DC
Static Current	≤30 mA
Stall Current	≤1.5 A at 7.4 V
Stall Torque	≥5.0 kgf·cm at 7.4 V
Rotating Direction	CCW (500–2500 µs)
No-load Speed	≤0.16 sec/60° at 7.4 V
Pulse Width Range	500–2500 µs
Operating Travel Angle	180° ±10°
L&R Angle Deviation	≤7°
Weight	15.9 ±0.5 g
Communication Interface	PWM
Output Shaft Specification	Ø4.85 × 40T
Backlash	≤1°

Applications

Listed application scenarios include humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, ARU robots, smart locks, fighting robots, RC helicopters, and other sub-micro-servo applications. The 6–8.4 V DC operating range, PWM interface, and 500–2500 µs pulse-width range help buyers assess integration with an applicable servo-control system.
