EYOU PP05 24 V CAN Brushless Torque Motor with 6:1 Reduction for Robot Joints

EYOU

$211.00 USD

فروش فروخته شده

Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.

Version PP05-Motor

تعداد

مشاهده جزئیات کامل

Overview

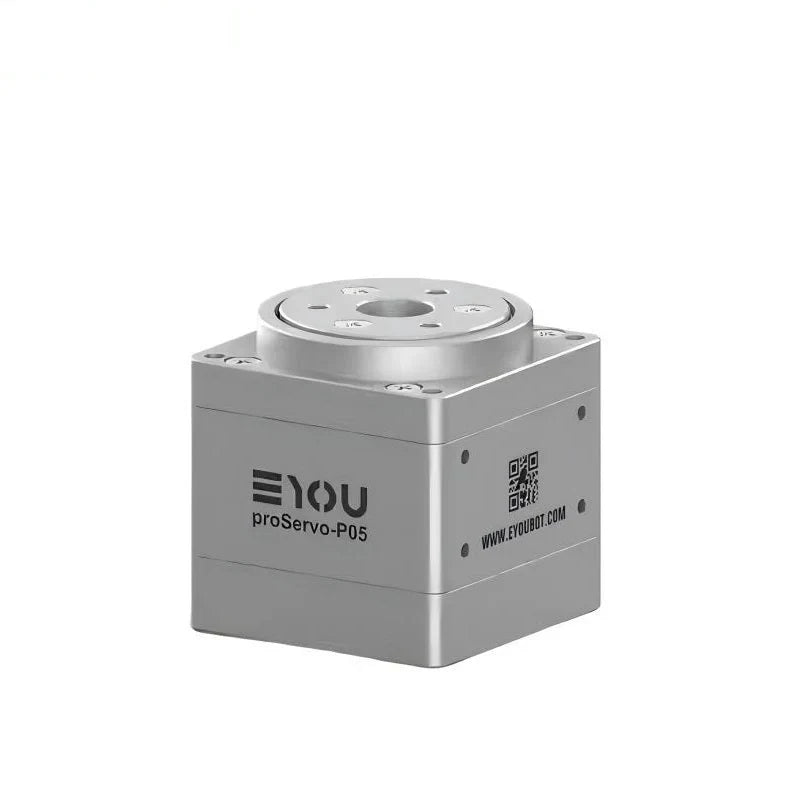

The EYOU PP05 is a 24 V brushless torque motor with a 6:1 reduction ratio, absolute encoder, and CAN communication protocol. Its compact 32 mm diameter, 33.4 mm length, and 86 g weight support integration into robotic joint systems. The listed 50 rpm rated speed, 0.2 N·m rated torque, and 0.48 N·m peak torque help buyers assess it for humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots.

Features

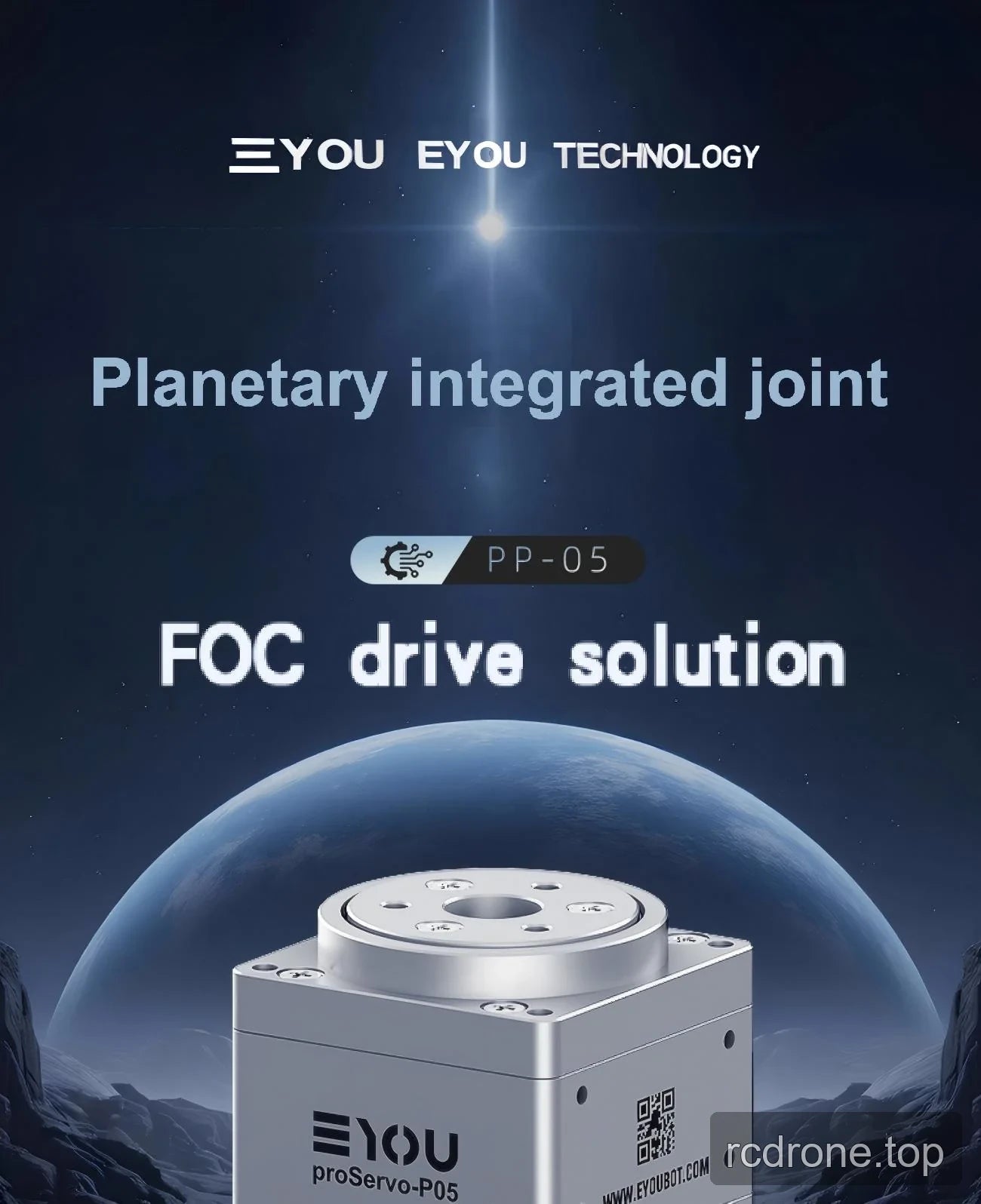

Brushless torque motor design with a planetary integrated-joint presentation and FOC drive solution.
Absolute encoder; the product presentation also identifies dual-encoder precision data feedback.
CAN communication protocol; the product presentation identifies CAN 2.0 bus communication.

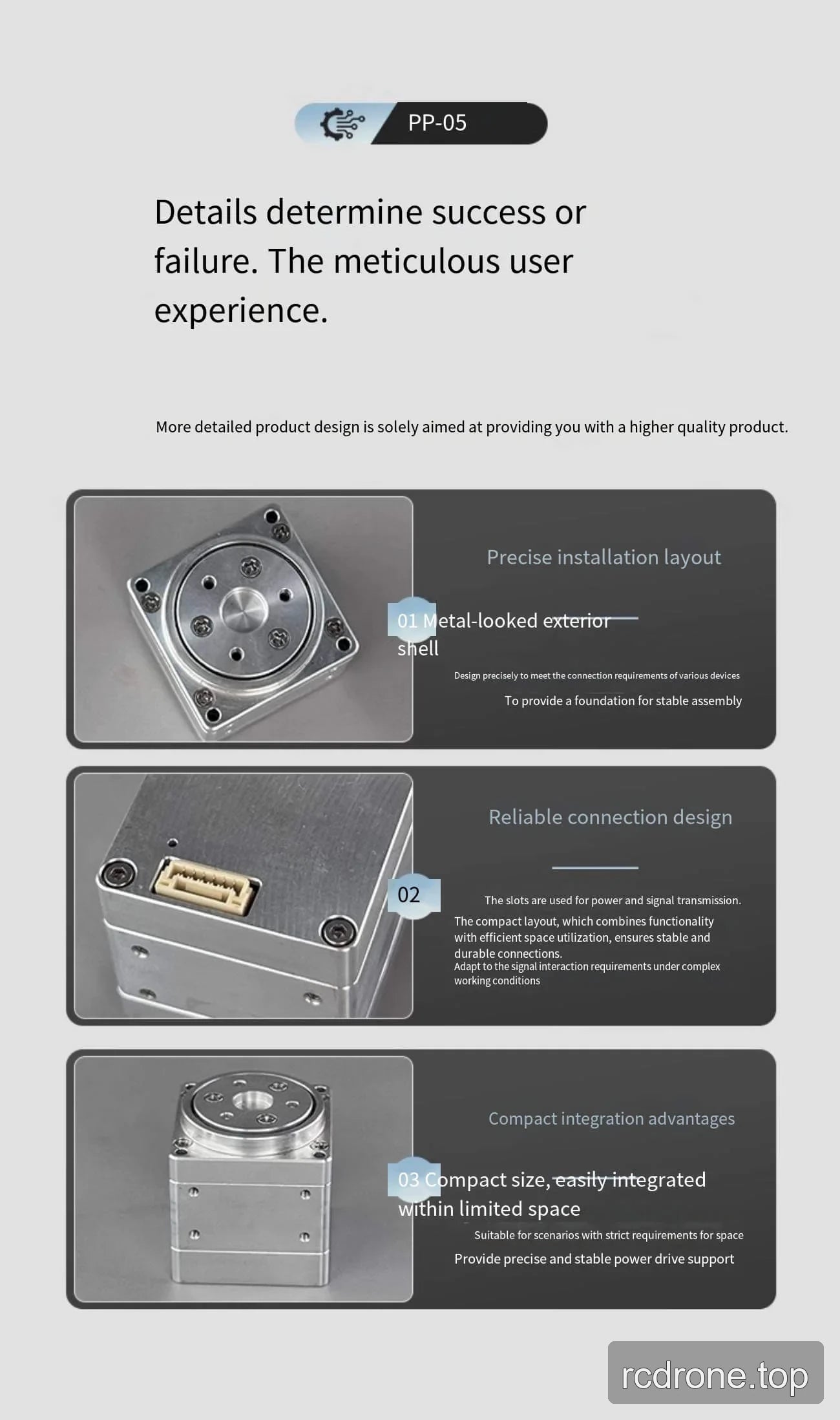

Power and signal transmission slots and an installation layout are identified in the product presentation.
Protection grade: IP54.

Specifications

Parameter	Value
Model	PP05
Motor Type	Brushless Torque Motor
Encoder Type	Absolute Encoder
Diameter	32 mm
Length	33.4 mm
Weight	86 g
Reduction Ratio	6:1
Backlash	12 arcmin
Noise	<60 dB
Temperature Range	-20 to 80 °C
Operating Voltage	24 V
Maximum Power	35 W
Rated Speed	50 rpm
Rated Torque	0.2 N·m
Peak Torque	0.48 N·m
Protection Grade	IP54
Communication Protocol	CAN
