Overview

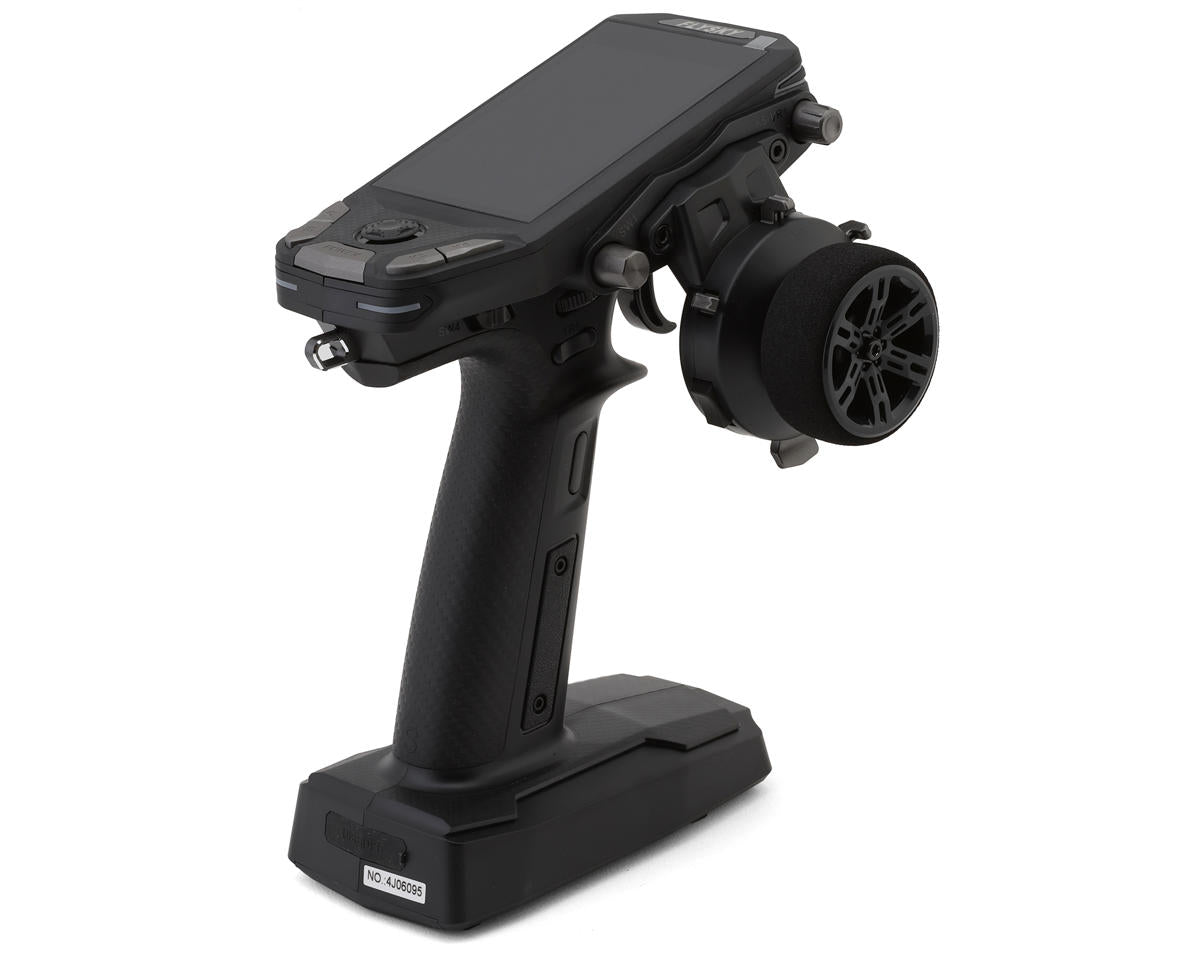

The Flysky FS-G11P (G11P) is an ANT 11-channel 2.4GHz surface transmitter designed for RC surface vehicles. It combines a high-brightness 3.5-inch IPS color display with built-in omni-directional dual antennas, extensive physical controls, and EdgeTX-based programming for flexible setup across multiple models. This bundle includes the R11P receiver.
Key Features
- High-visibility IPS screen: 3.5-inch 320 x 480 full-dot matrix color IPS high-brightness non-touch display; peak brightness 2000 nits.
- Stable 2.4GHz link: Built-in omni-directional dual antennas; adaptive frequency hopping and spread spectrum to reduce co-frequency interference.
- Pairing modes for response preference: Two pairing modes (Routine / Fast).
-

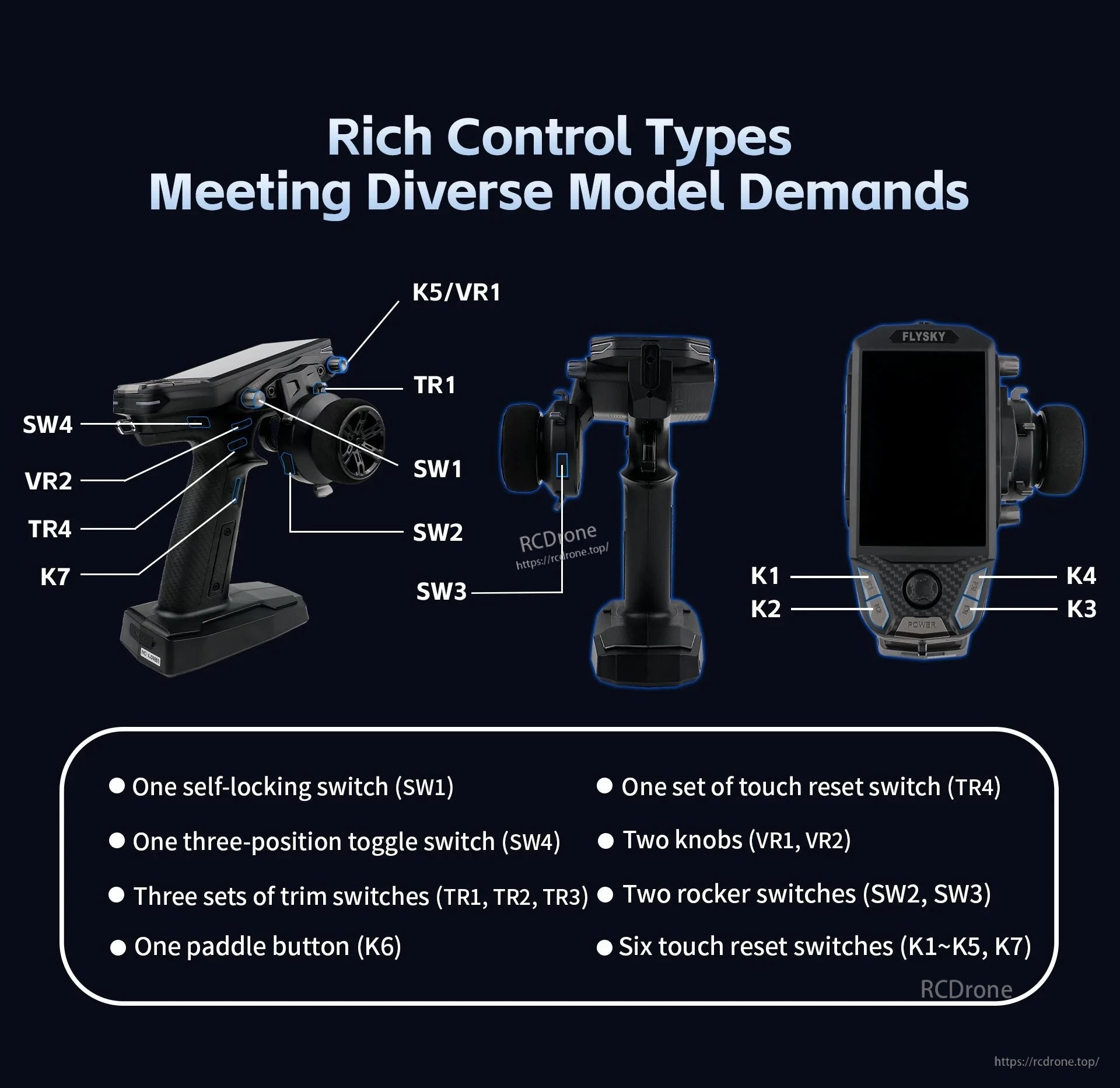

Rich physical controls:
- One self-locking switch (SW1)
- One three-position toggle switch (SW4)
- Two rocker switches (SW2, SW3)
- Three sets of trim switches (TR1, TR2, TR3)
- One set of touch reset switch (TR4)
- Two knobs (VR1, VR2)
- Six touch reset switches (K1~K5, K7)
- One paddle button (K6)
- Adjustable feel: Trigger adjustable return force and position; handwheel supports physically adjustable travel distance with infinite positioning; maximum stroke 32° / 20°.
- Multi-color light control for customizable lighting effects.

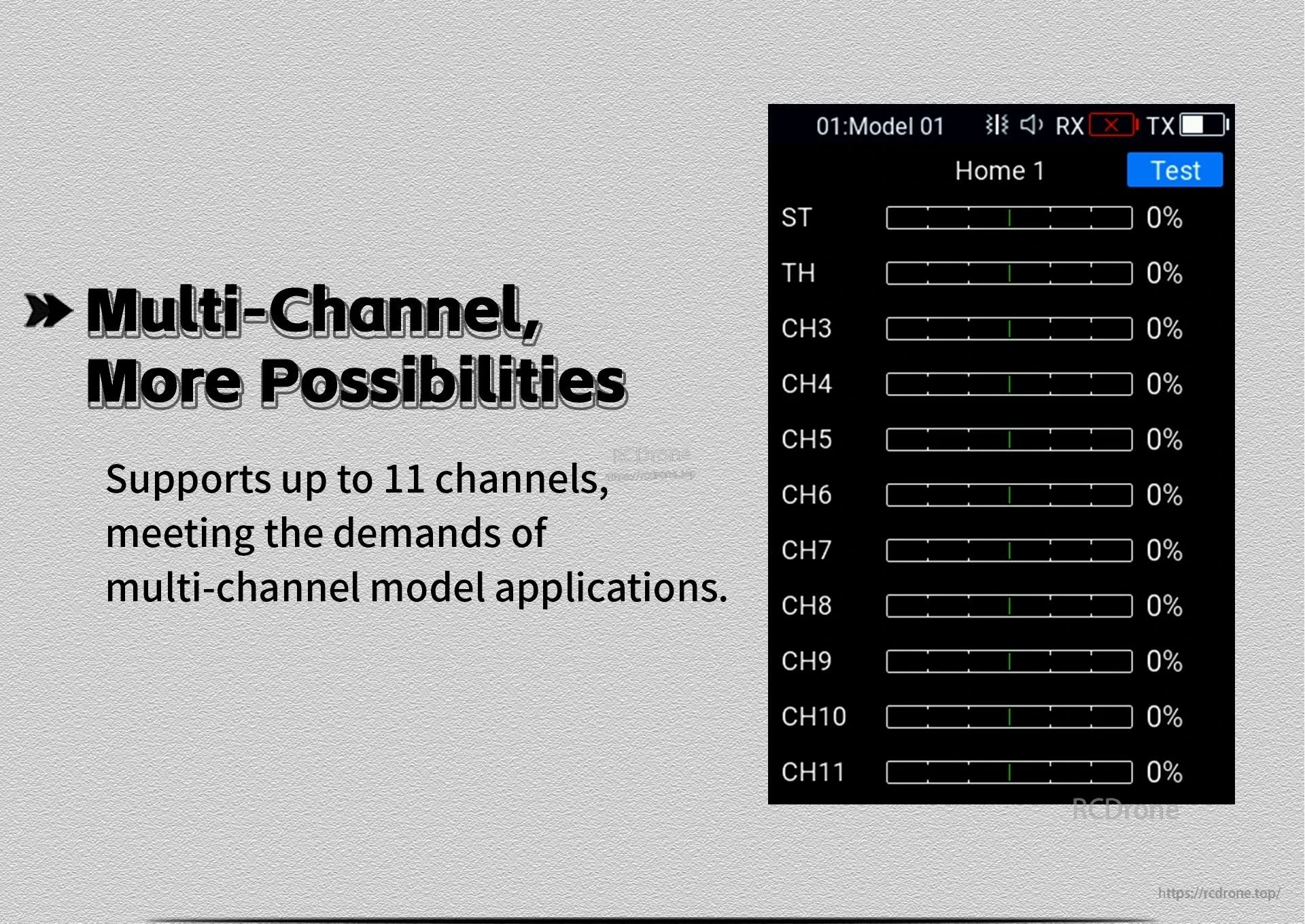

- EdgeTX programming: Up to 11 channels; model memory up to 40 sets; three throttle curve modes with five adjustable points.
- ANT ecosystem support: Compatible with multiple ANT multi-function receivers; supports multiple i-BUS devices for telemetry options including GPS, speed, altitude, and voltage monitoring (with compatible sensors/receivers).
- Reserved mounting holes: Supports handset holder mounting; compatible with FS-ZJ01 handset holder.
- Comfort-focused design: Rubberized grip with high elasticity; enlarged middle-finger grip area to improve hold stability; Kevlar-pattern exterior finish; standard metal handle with high-gloss edge design.
- USB-C (Type-C) multifunction port: Supports firmware upgrade, model data backup, 2S lithium battery charging, and USB emulator functions.
- Power options: Supports 18650 batteries and 2S lithium batteries; compatible with multiple plug types including 2S balance connectors and JST connectors.
- Low standby power: Powered by 2 x 2600mAh 18650 batteries, providing up to 14 hours standby time (default factory settings).
Specifications
| Application | Surface Vehicles |
|---|---|
| Band | 2.4GHz |
| Modulation | 2.4GHz ISM |
| Technology | ANT |
| Channels | 11 |
| Display | 3.5-inch 320 x 480 IPS color (non-touch), peak brightness 2000 nits |
| Input Voltage | 6-9V |
| Battery Compartment | 2.75 x 1.49 x 0.67 in (70 x 38 x 17 mm) |
| Range | >985 ft (300 m) |
| RF pairing modes | Routine / Fast |
| RF standard (bind set screen) | ANT 2 Way |
| Output (bind set screen) | PWM/I-BUS |
| Frequency (bind set screen) | Analog Servo |
Tech Note: Please double check battery dimensions in specifications to ensure proper battery fitment.
What’s Included
- (1) G11P ANT 11-Channel 2.4GHz Transmitter

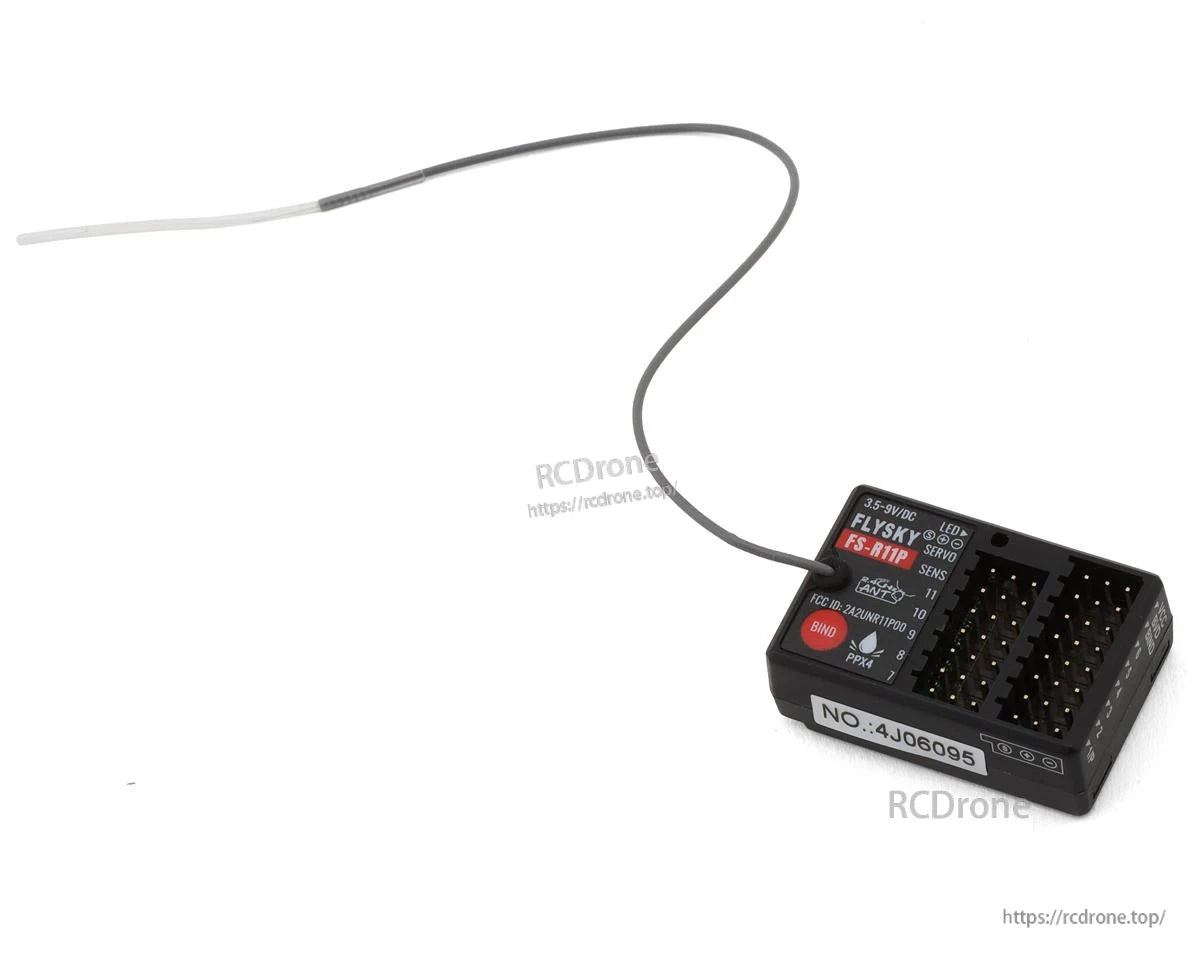

- (1) R11P Receiver

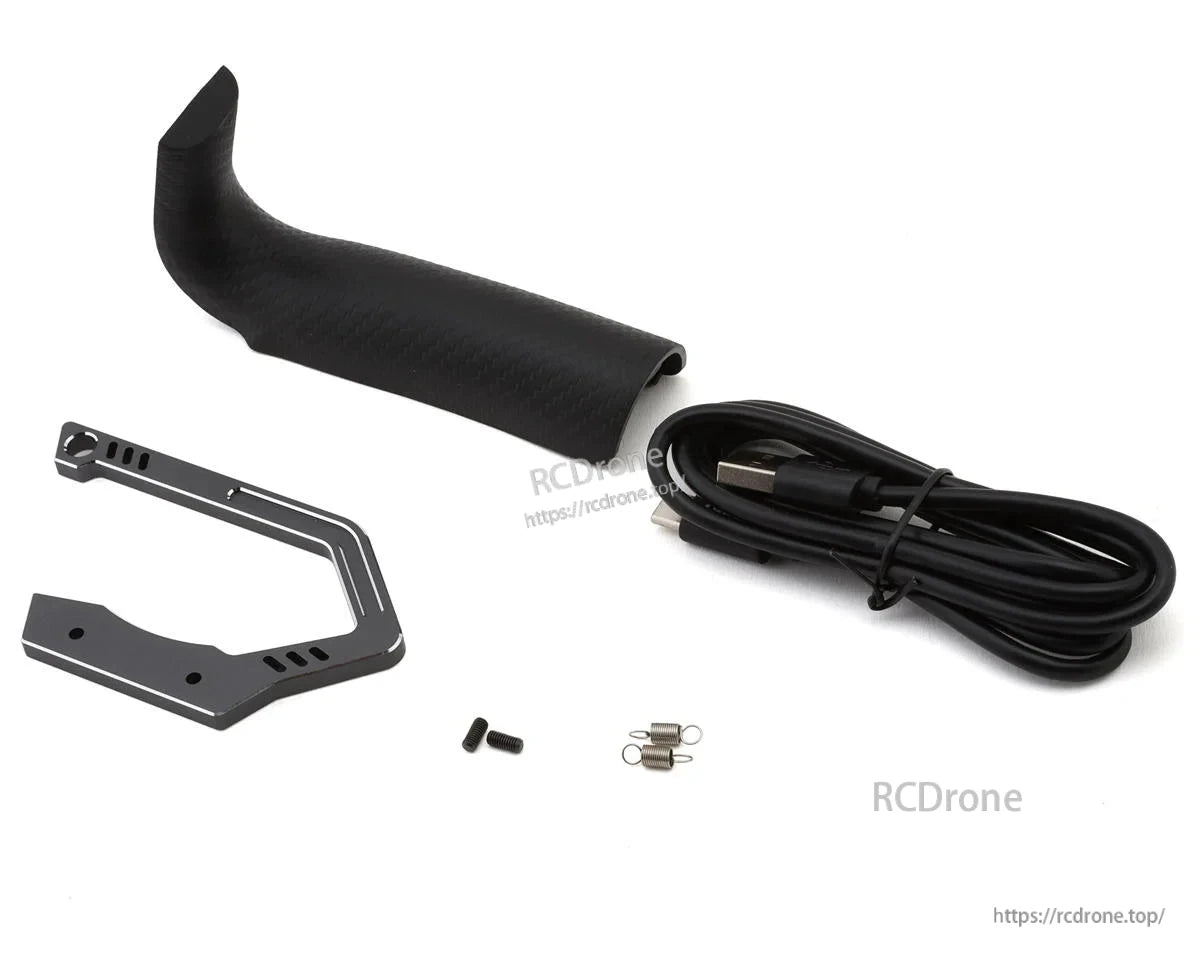

- (1) Transmitter Handle
- (1) USB-C charge cable
- (1) User Manual

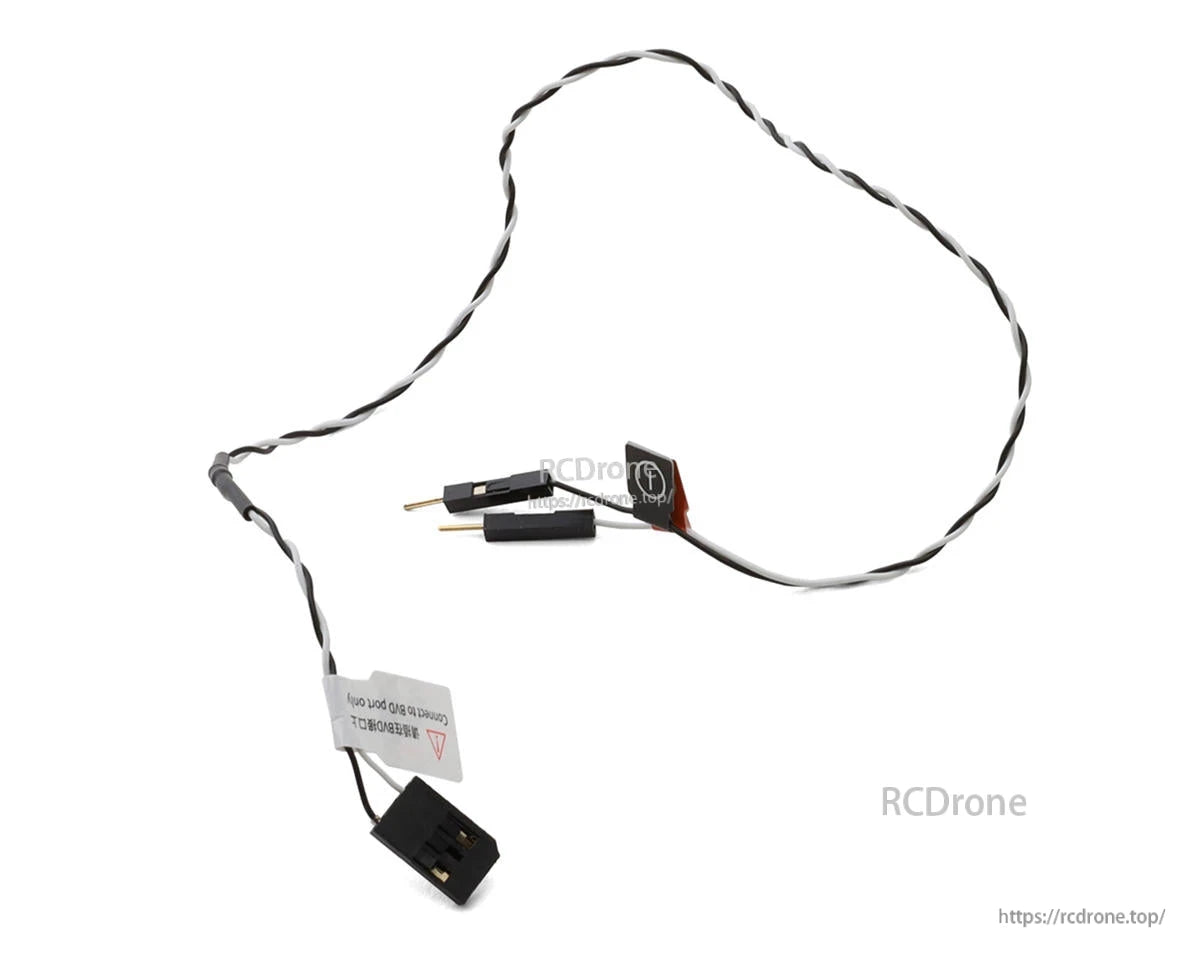

- Transmitter accessory parts
Applications
- Multi-channel control for RC surface vehicles requiring advanced mixing and auxiliary functions
- ANT receiver-based builds using i-BUS devices and telemetry-capable setups (with compatible receivers/sensors)
For product support and setup assistance, contact support@rcdrone.top or visit https://rcdrone.top/.
Details

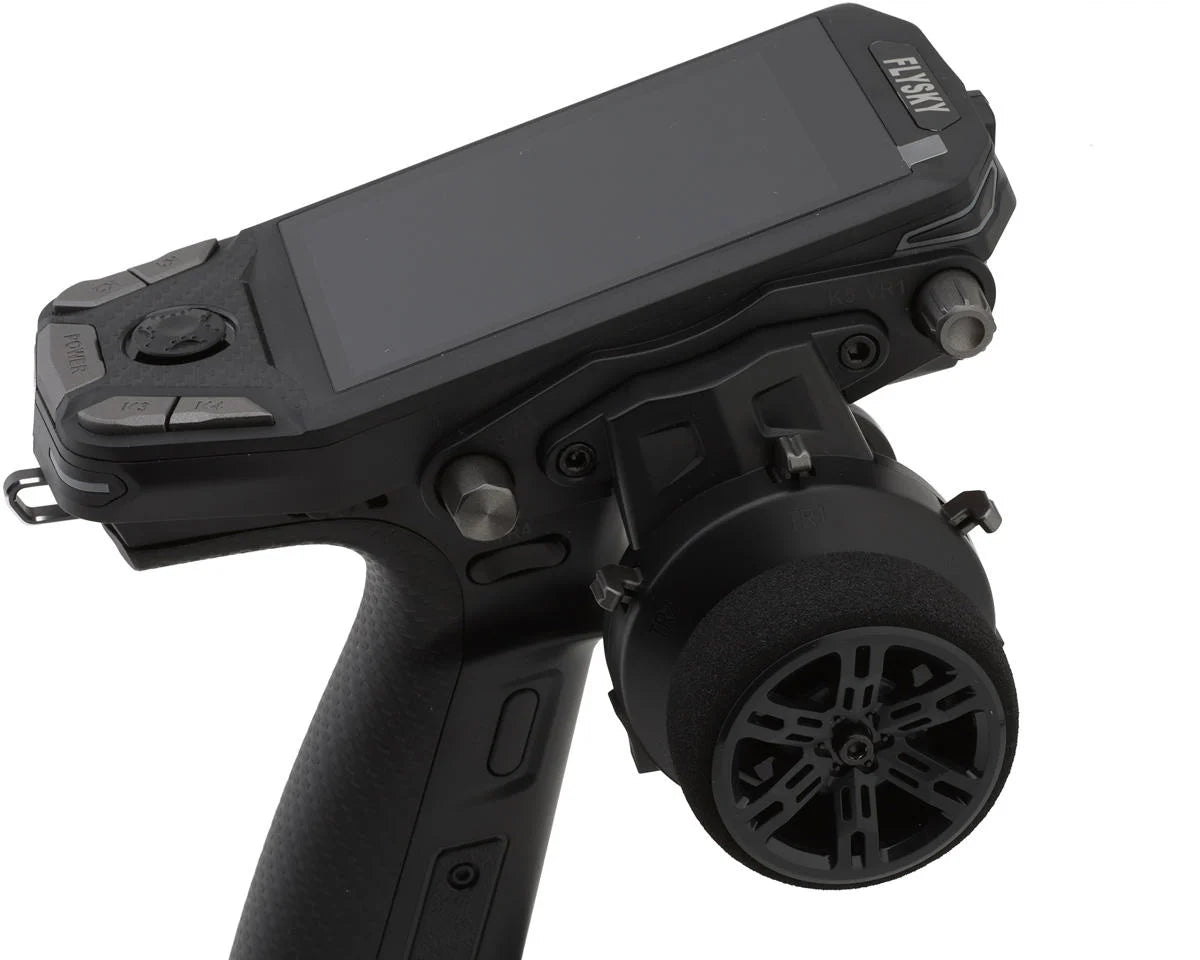

Flysky FS-G11P combines an 11-channel ANT 2.4GHz link with a large, high-brightness color display for RC surface control.

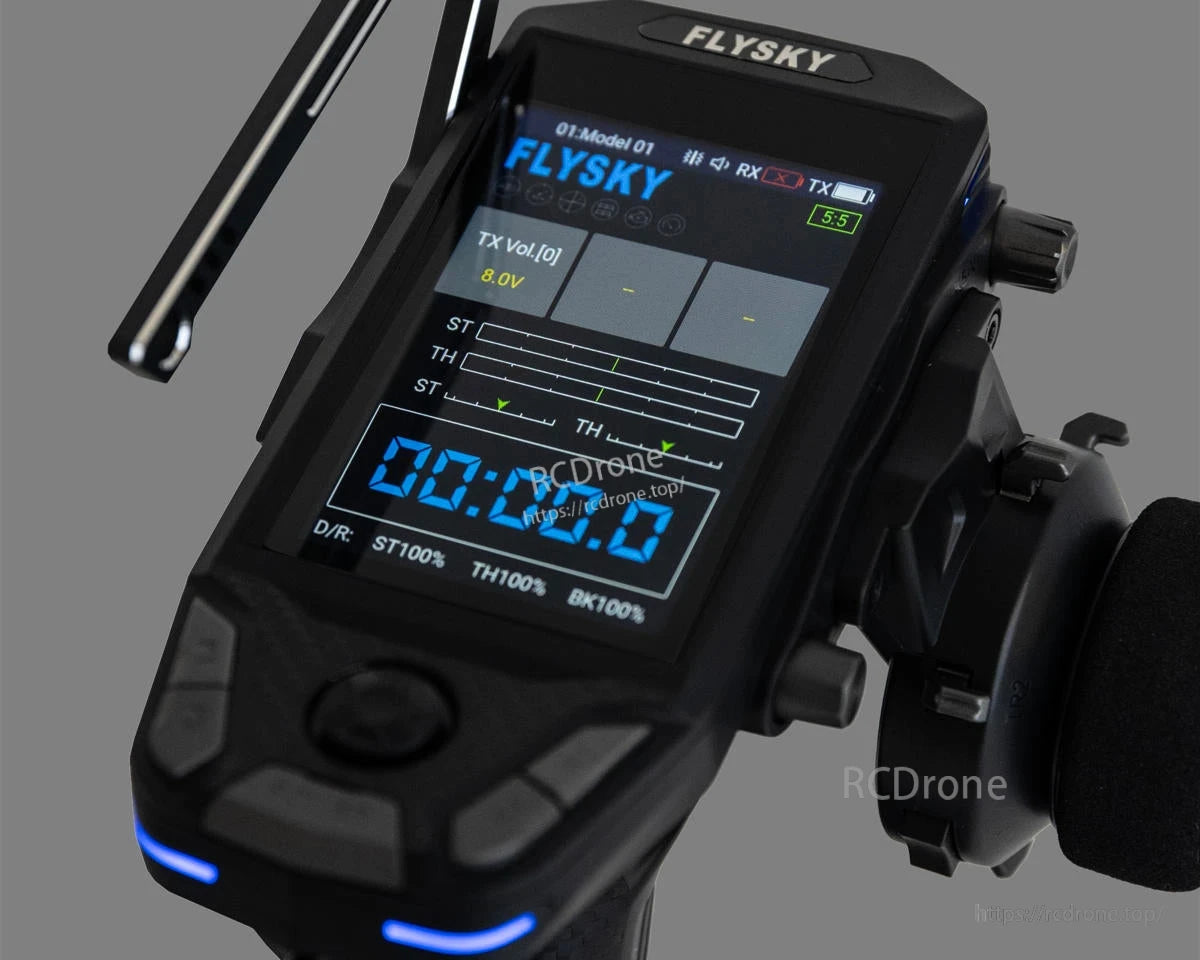

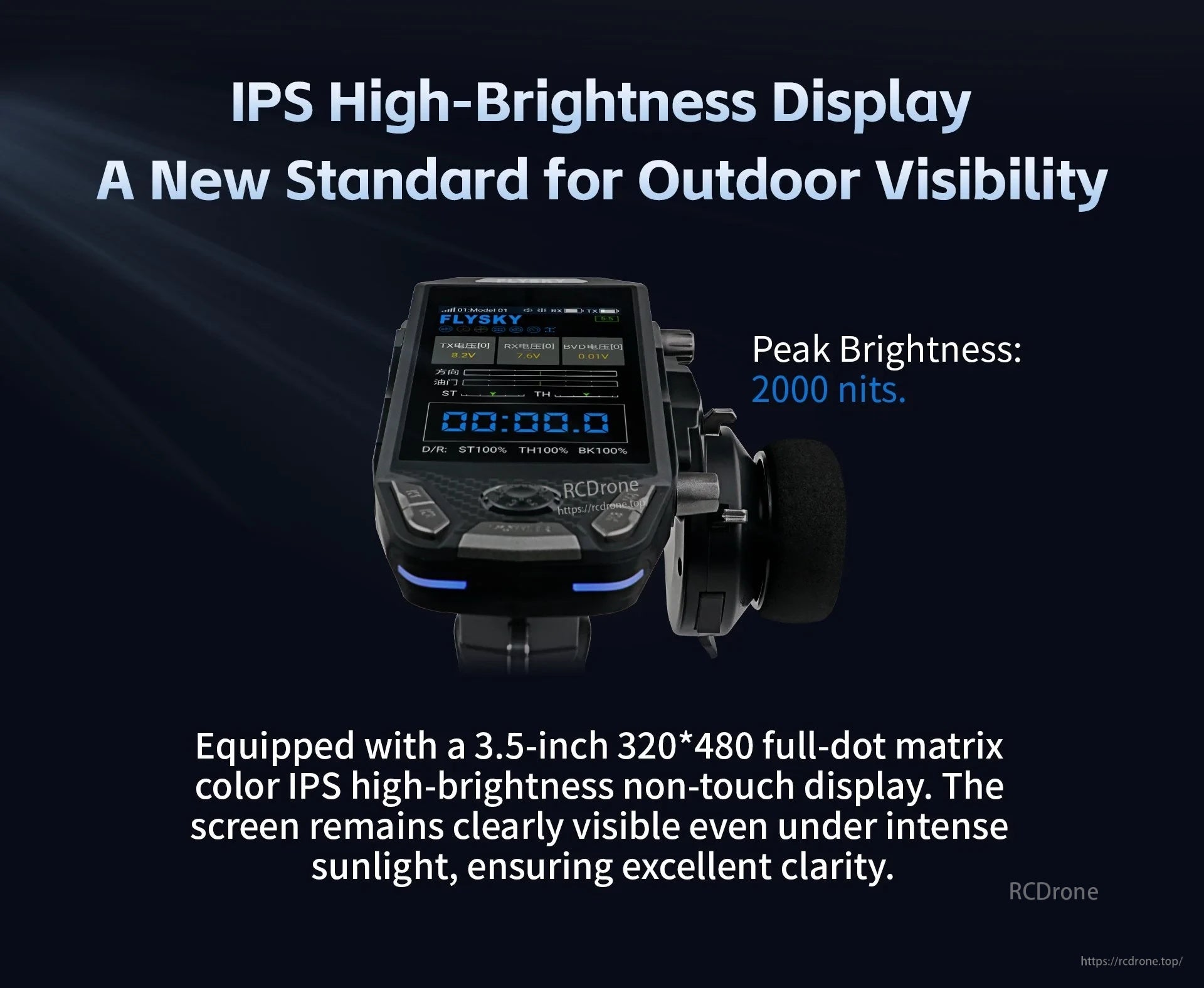

The 3.5-inch IPS display is built for outdoor readability, with clear color and high peak brightness.
Built-in dual antennas help maintain a stable 2.4GHz connection during runs.

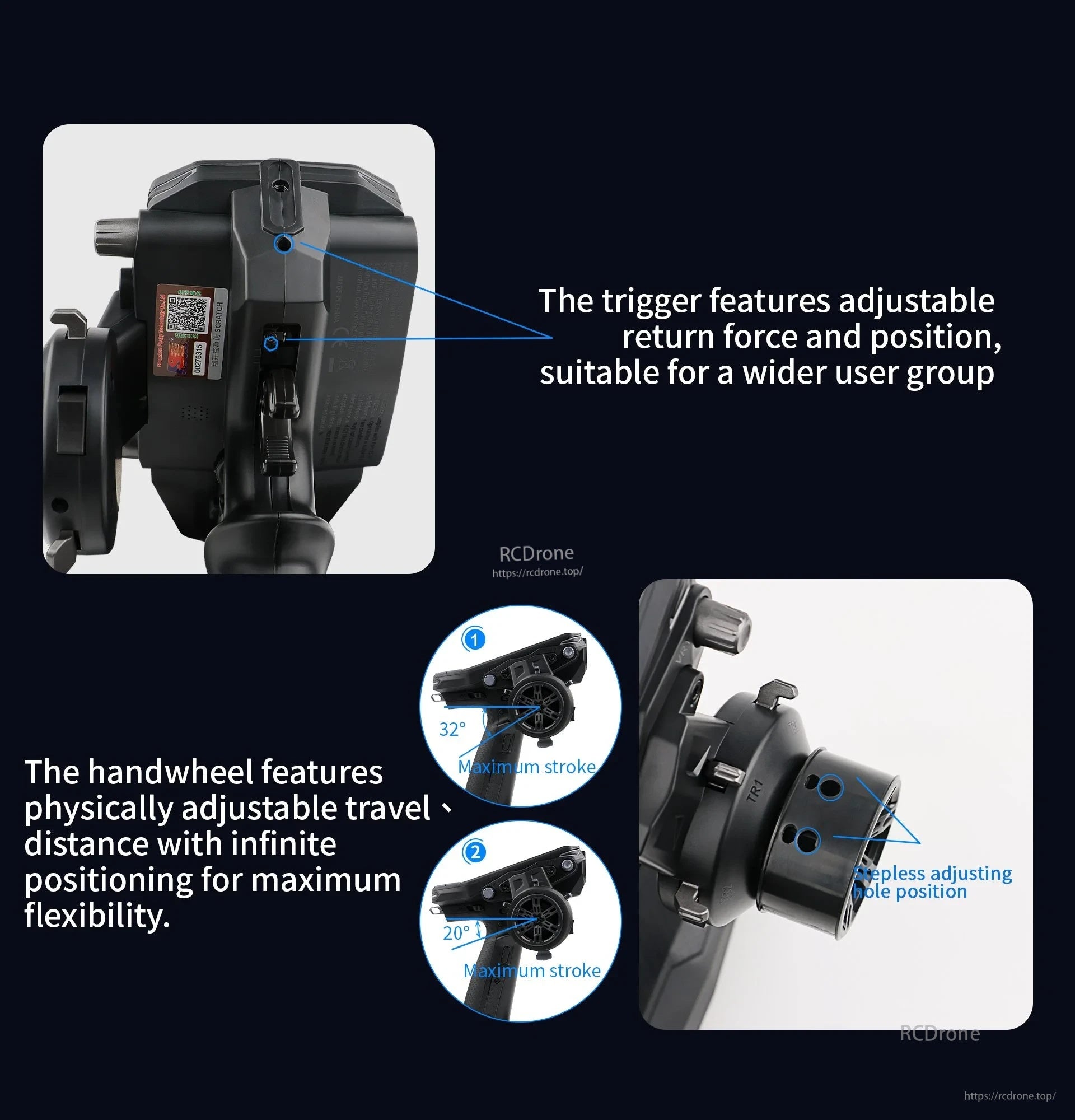

Dial in comfort with adjustable trigger feel and a handwheel travel range tuned to your driving style.
Reserved mounting holes make it easy to add a handset holder for your preferred setup.
USB-C supports firmware updates, model backups, charging, and USB emulator functions from one port.
Flexible power support covers 18650 cells or 2S lithium batteries with common connector options.
Choose Routine or Fast pairing modes to match your response preference and driving conditions.

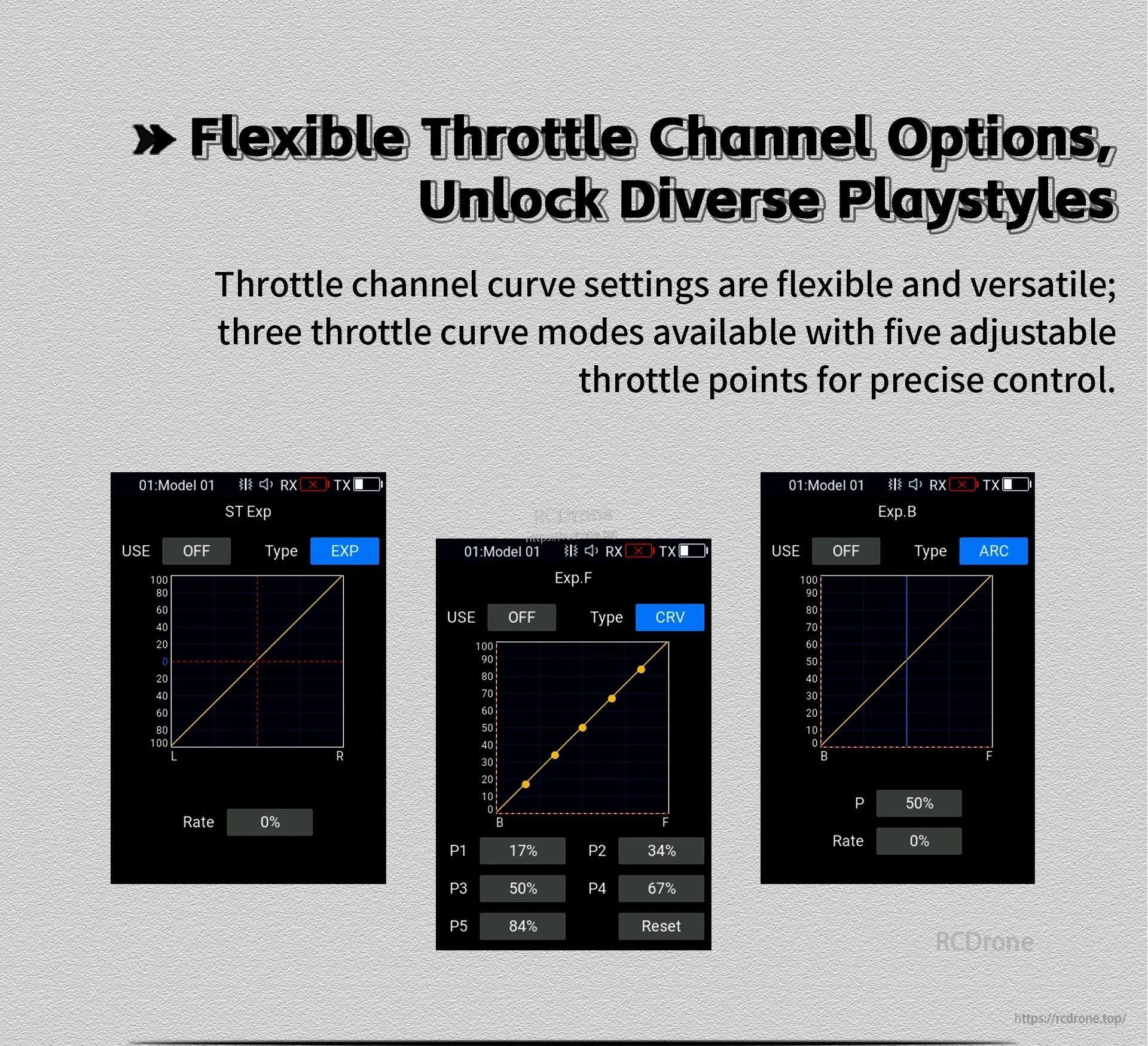

Throttle curve options provide fine control, with multiple curve modes and adjustable points for tuning.

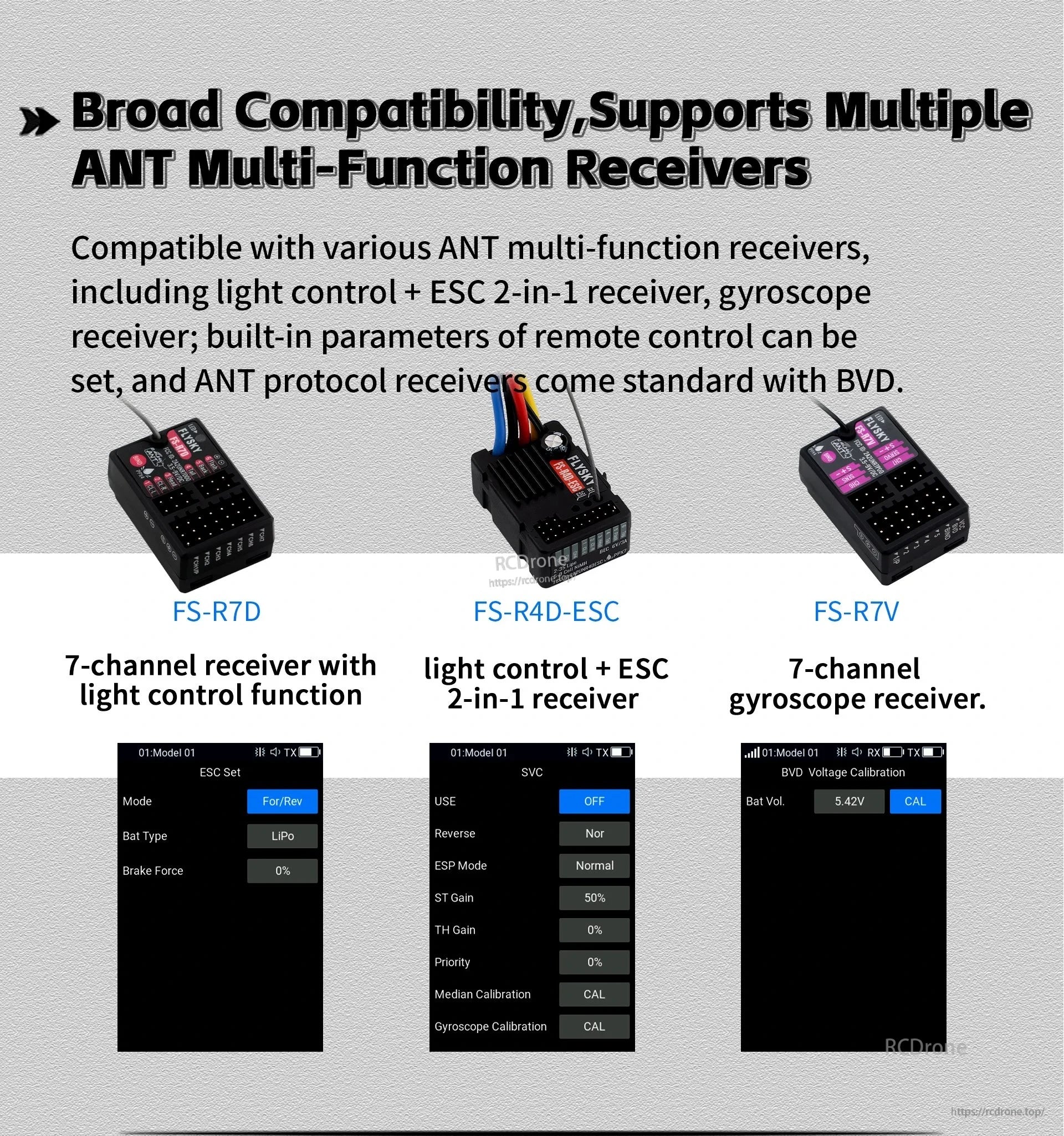

Flysky ANT multi-function receiver support includes options like the FS-R7D, FS-R4D-ESC (light control + ESC), and FS-R7V gyroscope receiver.
Flysky FS-G11P GPS settings provide real-time readouts like speed, distance, altitude, and latitude/longitude for supported setups.

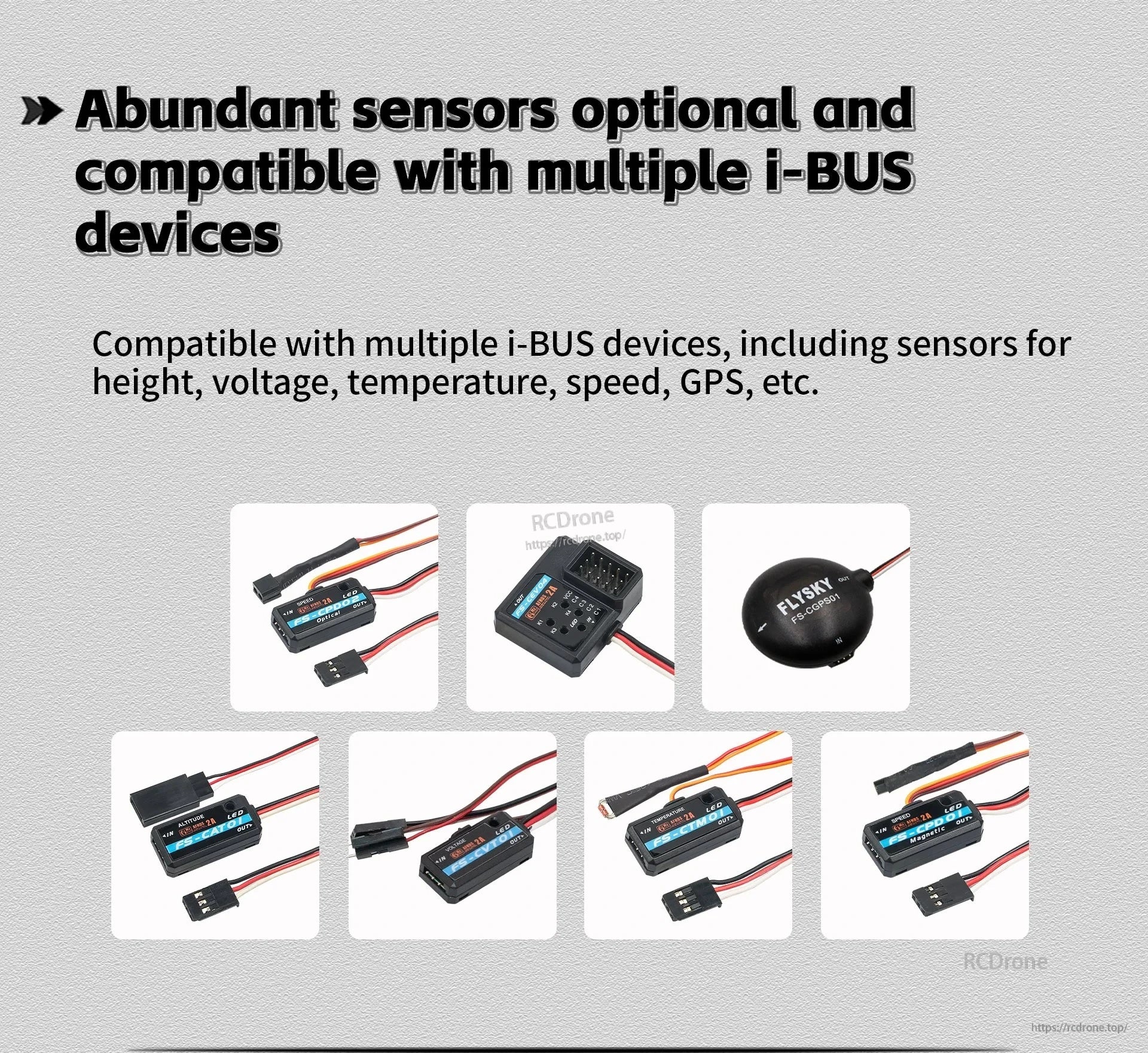

Optional i-BUS sensors let you expand compatible Flysky setups with telemetry options like voltage, temperature, speed, and GPS.

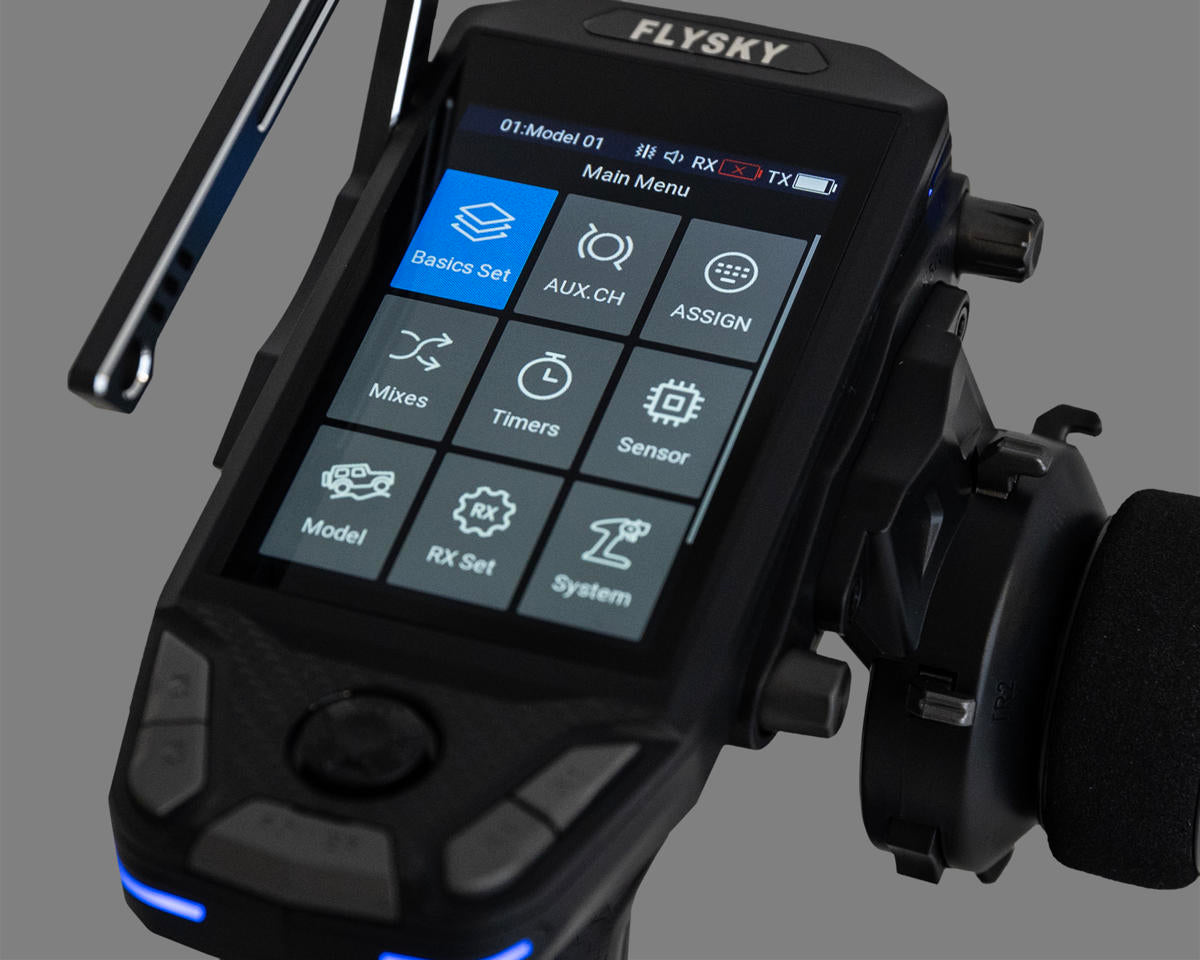

The Flysky pistol-grip surface transmitter pairs a color display with EdgeTX open-source support for flexible radio setup and tuning.
The Flysky FS-G11P surface radio package includes the transmitter, R11P receiver, USB cable, manuals, and setup accessories for a complete install.
