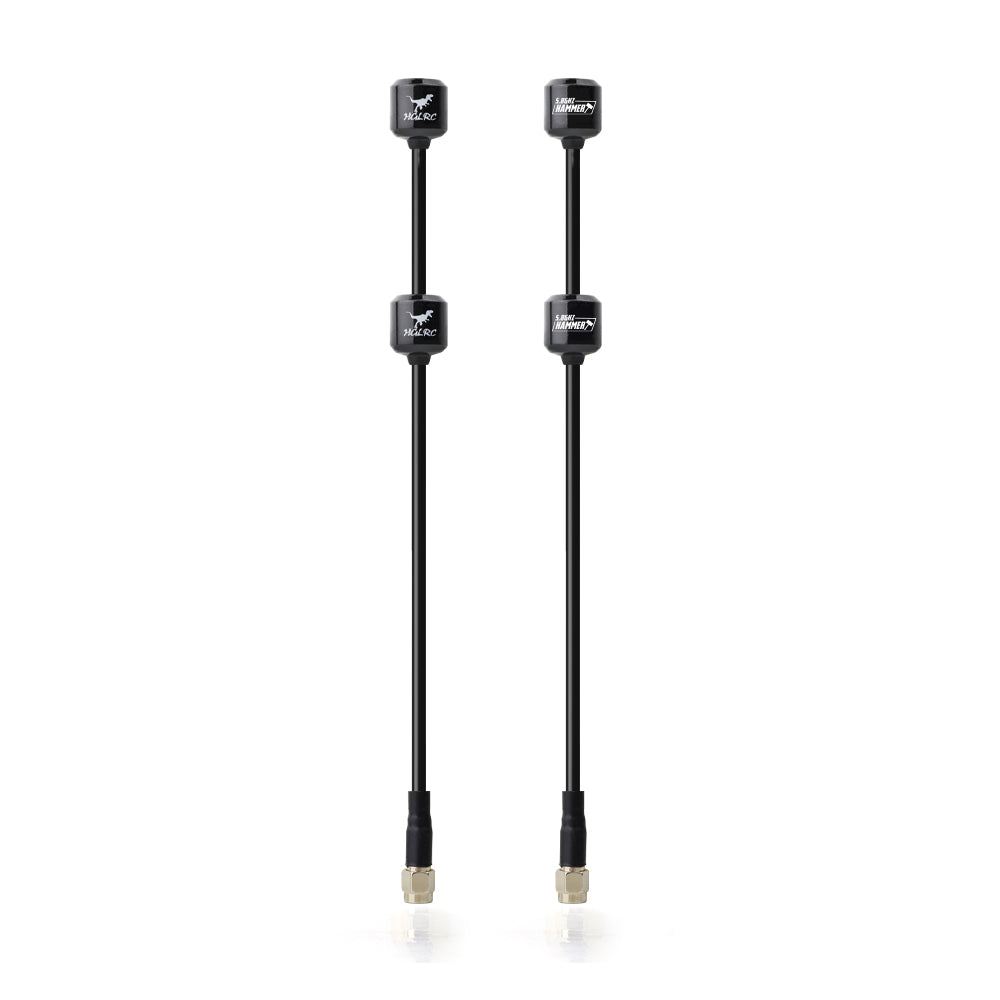

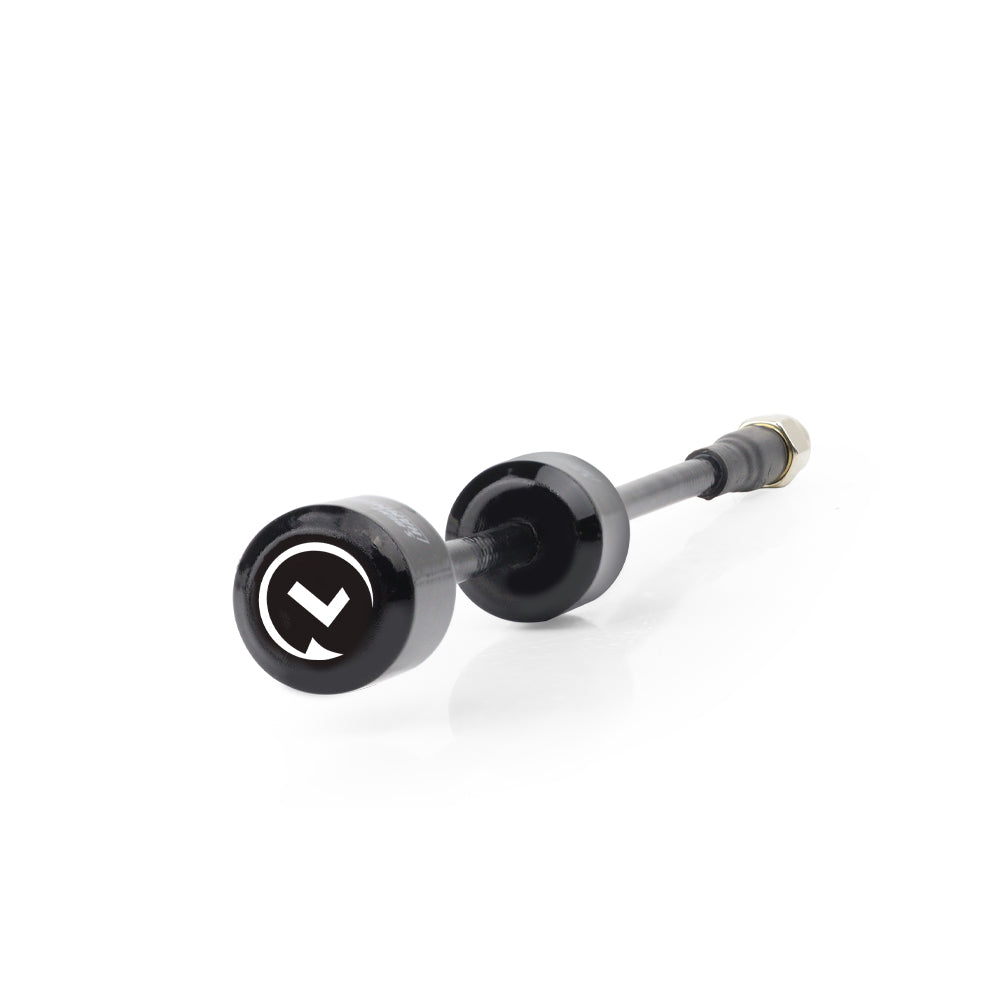

HGLRC 5.8G Hammer Dual Antenna - SMA Male 5.35-6GHz / 5.3-6GHz, 170mm, 13.8g
HGLRC 5.8G Hammer Dual Antenna - SMA Male 5.35-6GHz / 5.3-6GHz, 170mm, 13.8g
HGLRC
در دسترس بودن پیکاپ بارگیری نشد
Overview

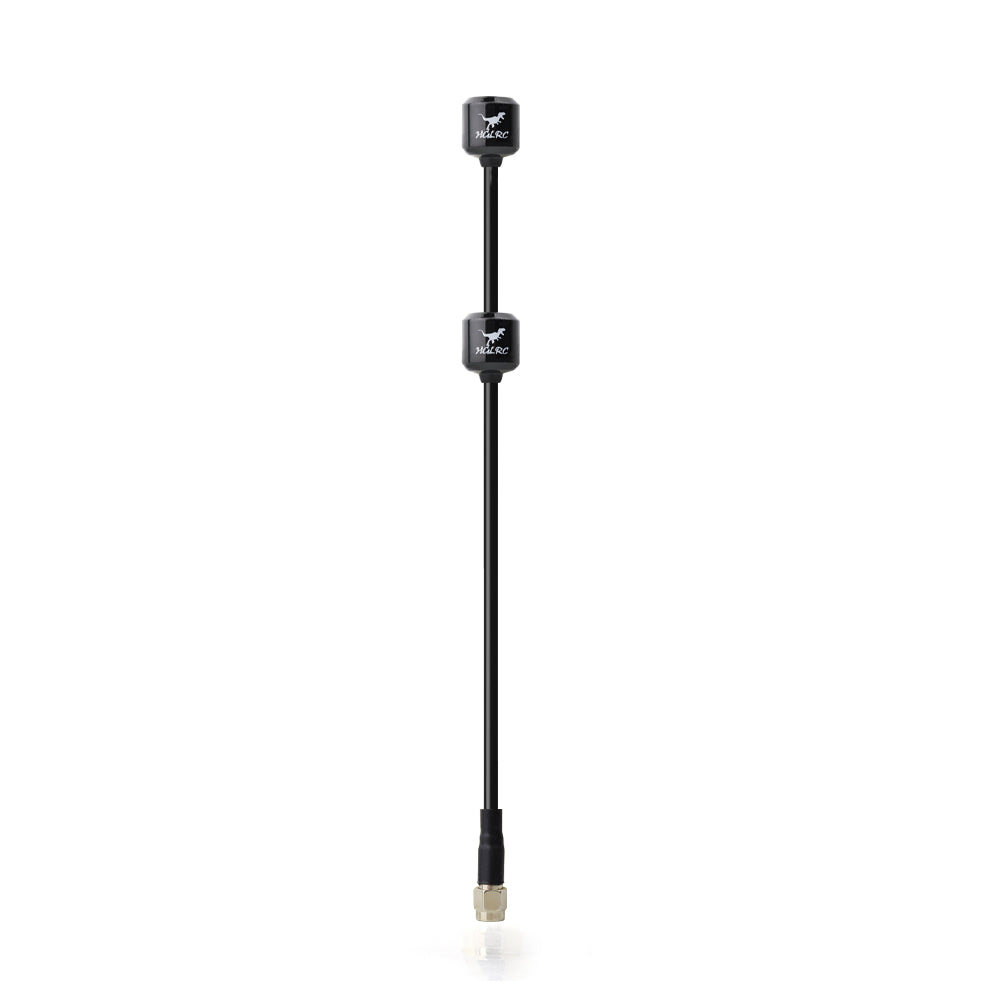

HGLRC 5.8G Hammer Dual Antenna is a 5.8GHz dual-antenna RF antenna designed with a dual RF architecture to improve link stability and signal coverage. It operates across the 5.8GHz band range stated in the specifications and is intended for stable signal output in complex RF environments.
Key Features
- Dual RF architecture: Dual-antenna design combined with dual-channel transmission; stated signal coverage increase of 30% compared with single-antenna systems.

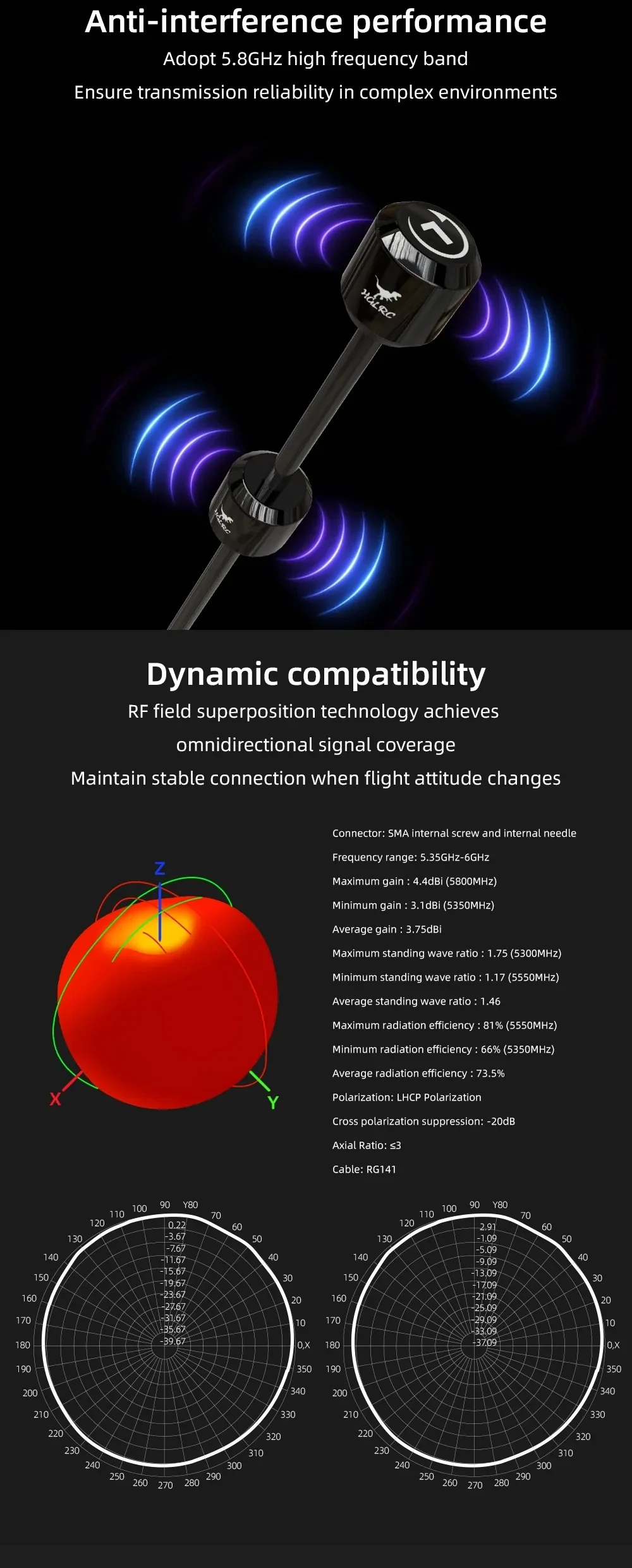

- Anti-interference performance: Uses the 5.8GHz high-frequency band to support reliable transmission in complex environments.
- Dynamic compatibility: RF field superposition technology for omnidirectional signal coverage and stable connection during flight attitude changes.
- Transmission efficiency optimization: Low VSWR design combined with OFDM (Orthogonal Frequency Division Multiplexing) technology to improve radiation efficiency and transmission distance.

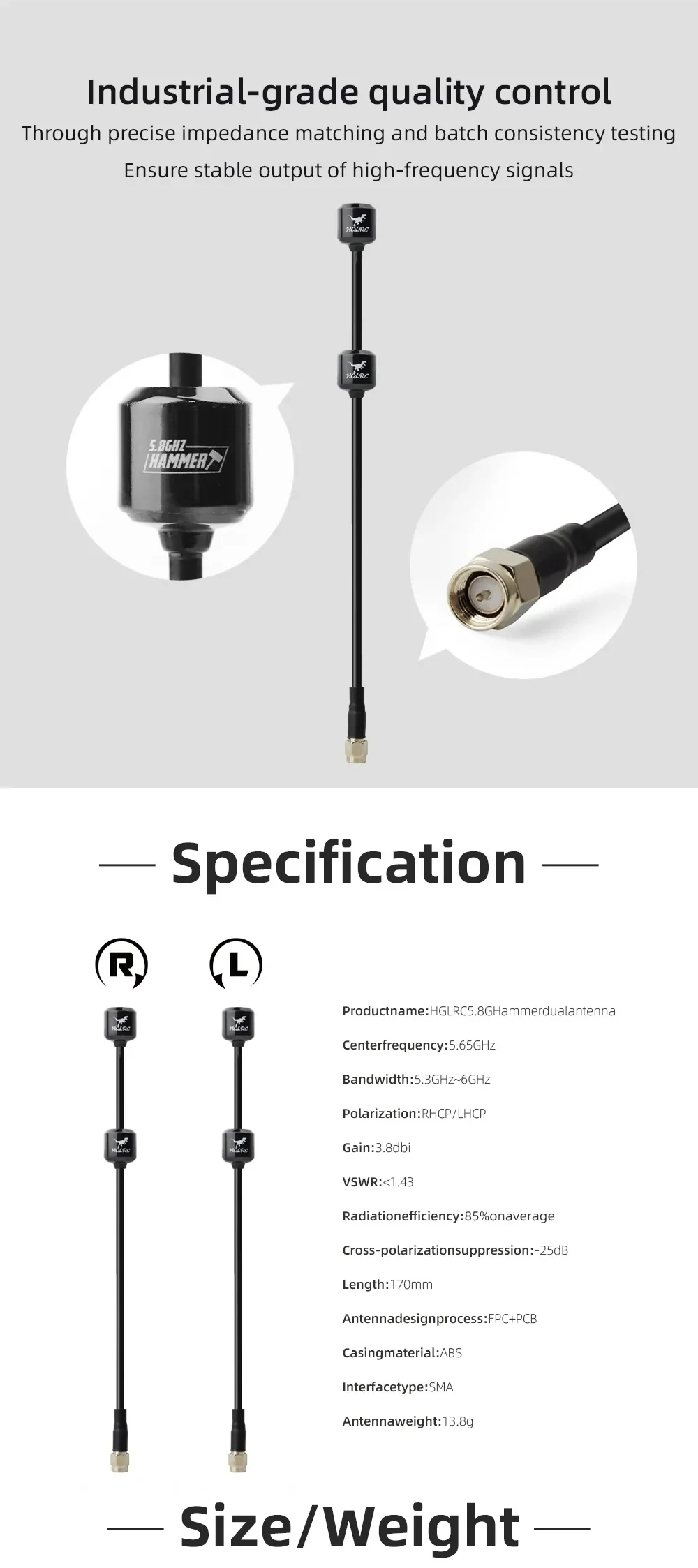

- Industrial-grade quality control: Precision impedance matching and batch consistency testing for stable high-frequency signal output.
Specifications

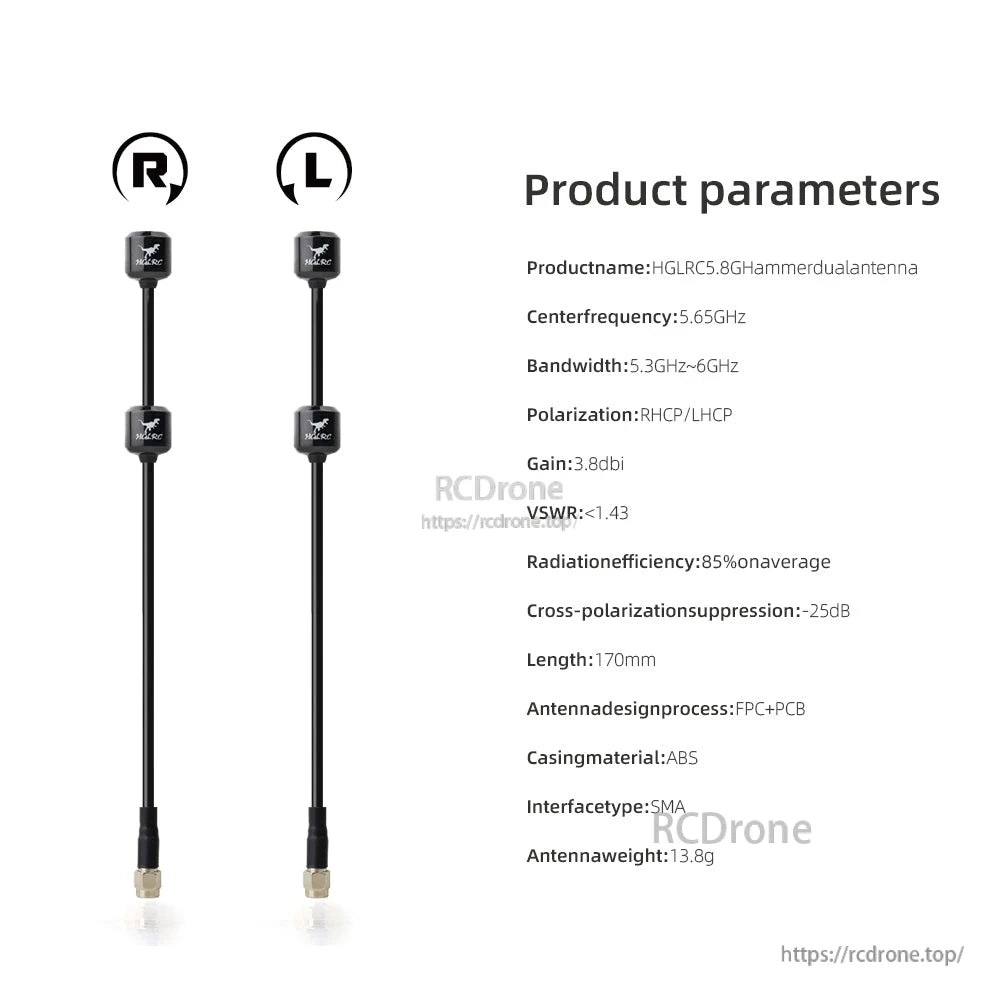

| Product name | HGLRC 5.8G Hammer Dual Antenna |

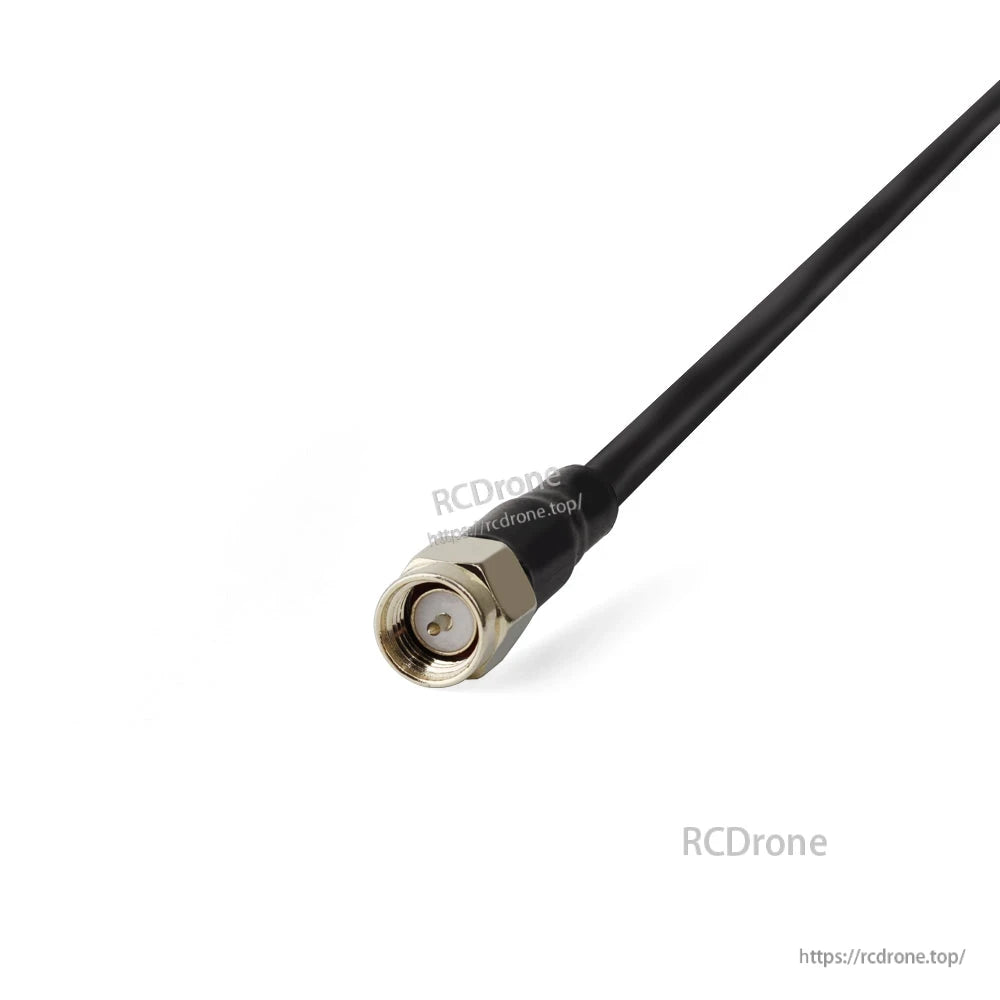

| Connector / interface type | SMA male (inner pin); SMA |
| Frequency range | 5.35GHz–6GHz |
| Bandwidth | 5.3GHz–6GHz |
| Center frequency | 5.65GHz |
| Polarization | RHCP; RHCP/LHCP; LHCP polarization |
| Cross-polarization suppression | -20dB; -25dB |
| Axial ratio | ≤3 |
| Max gain | 4.4dBi (5800MHz) |
| Min gain | 3.1dBi (5350MHz) |
| Avg gain | 3.75dBi |
| Gain | 3.8dbi |
| Max VSWR | 1.75 (5300MHz) |
| Min VSWR | 1.17 (5550MHz) |
| Avg VSWR | 1.46 |
| VSWR | <1.43 |
| Max radiation efficiency | 81% (5550MHz) |
| Min radiation efficiency | 66% (5350MHz) |
| Avg radiation efficiency | 73.5% |
| Radiation efficiency | 85% on average |
| Cable | RG141 |
| Antenna design process | FPC+PCB |
| Casing material | ABS |

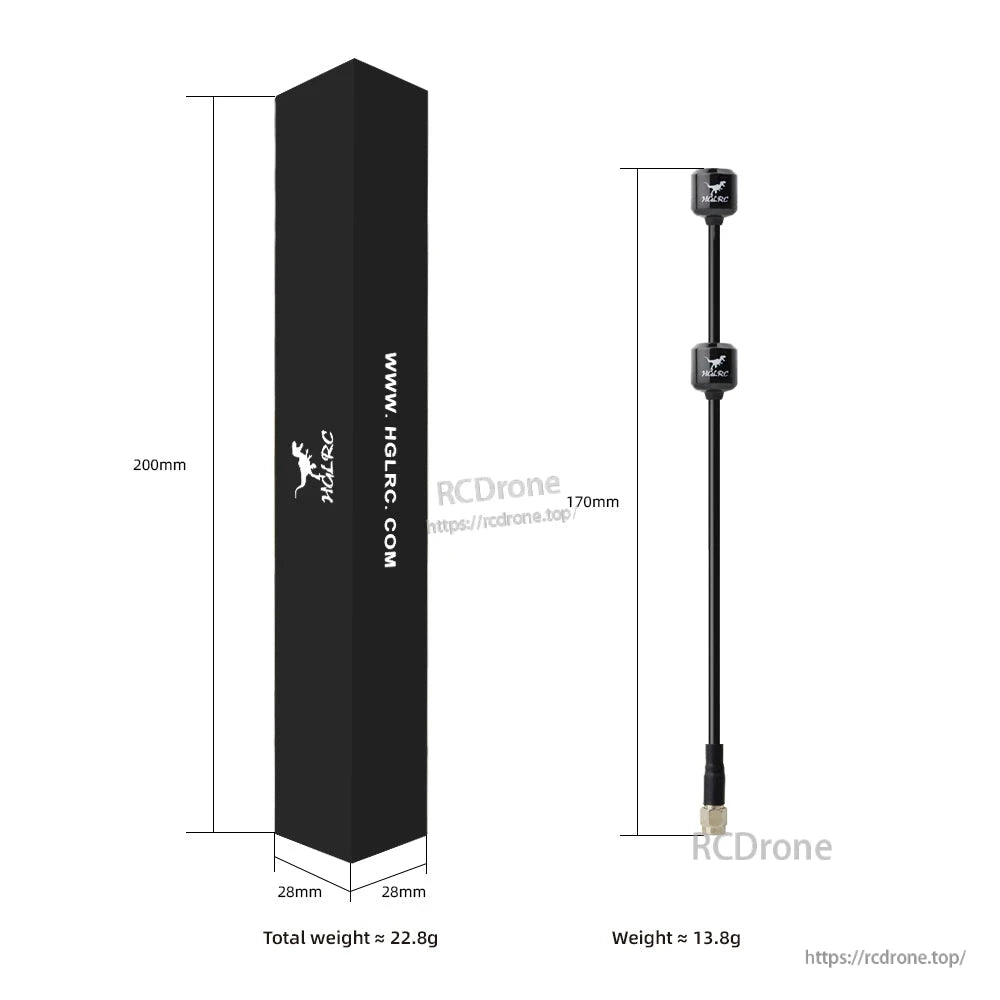

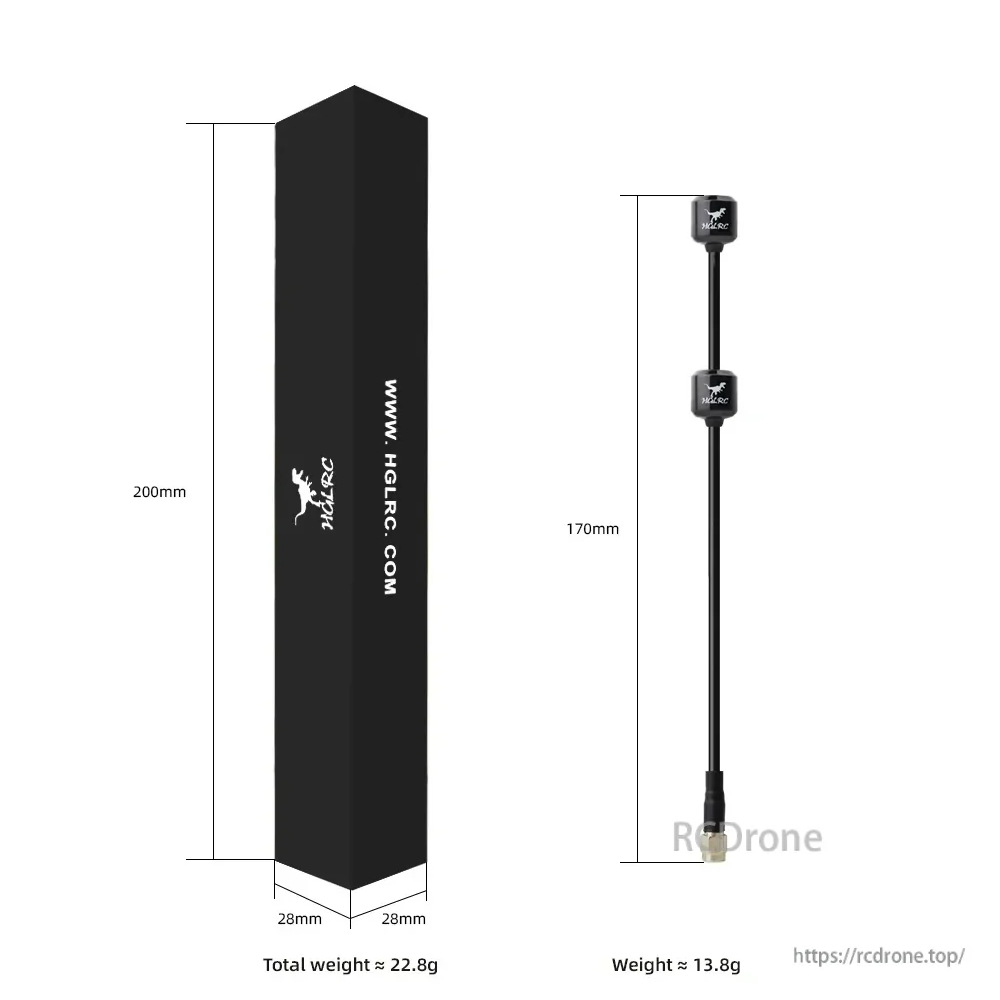

| Size | Total length 170mm (±5mm); length 170mm |
| Weight | 13.8g (±0.5g); antenna weight 13.8g; weight ≈ 13.8g |
| Package size / weight (reference) | 200mm height; 28mm × 28mm; total weight ≈ 22.8g |
What’s Included
- 1 × HGLRC 5.8G Hammer Dual Antenna
For product selection and after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.
Details
Dual RF architecture is designed to improve link stability and widen signal coverage for 5.8GHz video systems.
Built for complex RF environments, the 5.8GHz band design helps maintain a steadier connection during attitude changes.

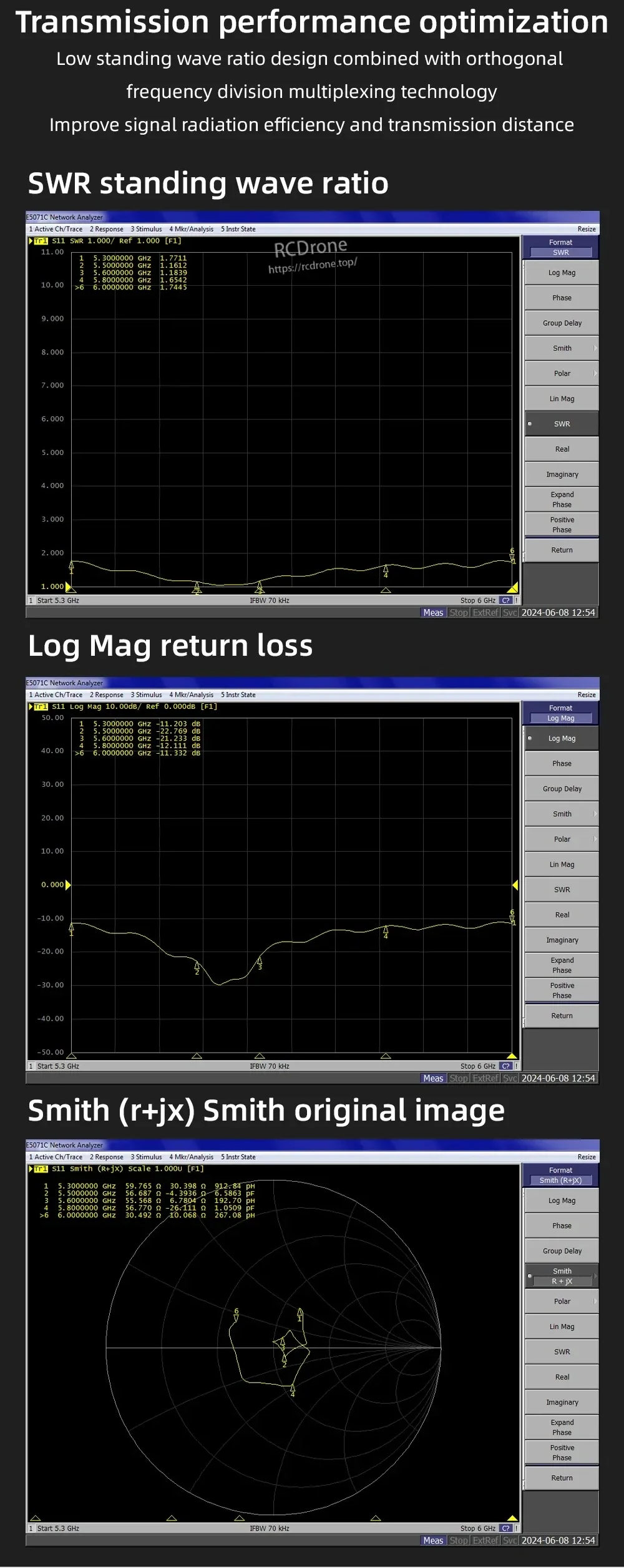

Measurement plots provide reference data for SWR, return loss, and impedance matching across the operating band.
