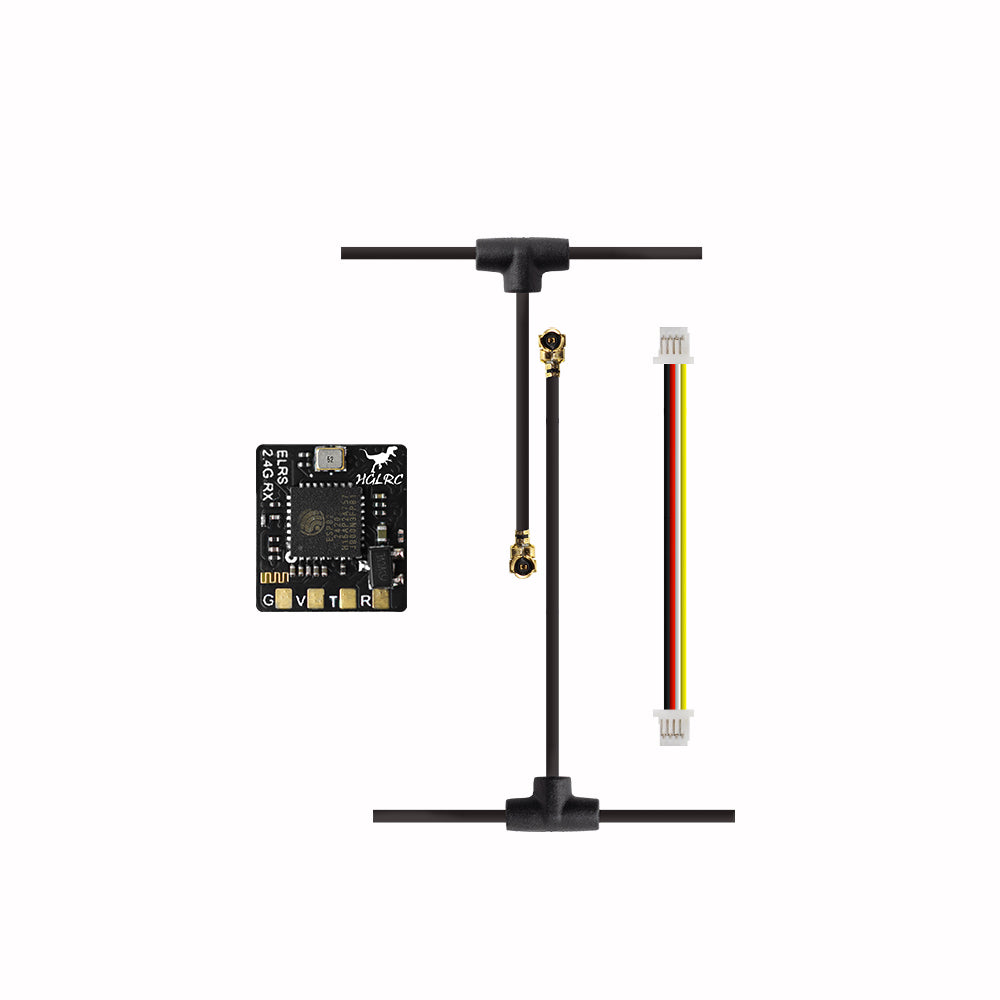

• HGLRC ELRS 2.4G Receiver kit with receiver PCB, T-style antenna and 4-pin wiring harness

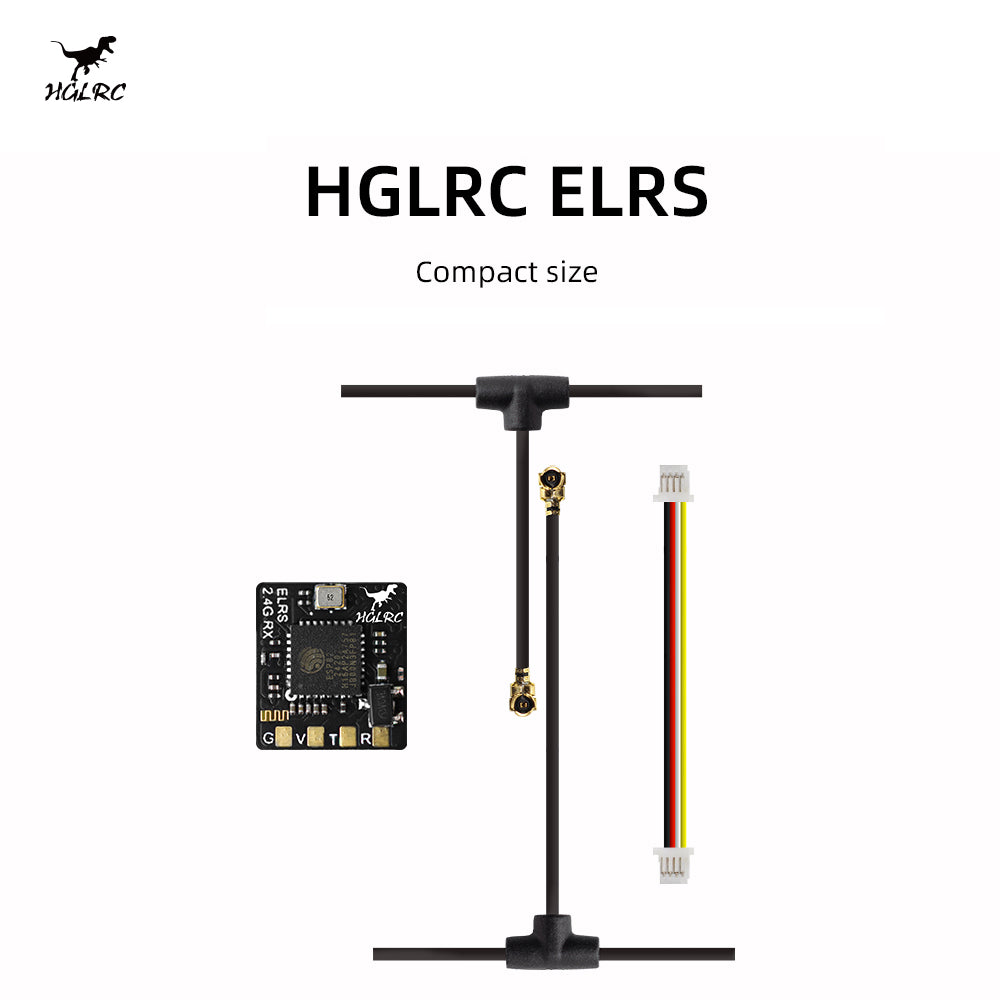

  • HGLRC ELRS receiver compact size graphic showing PCB, antenna and wiring lead on white background

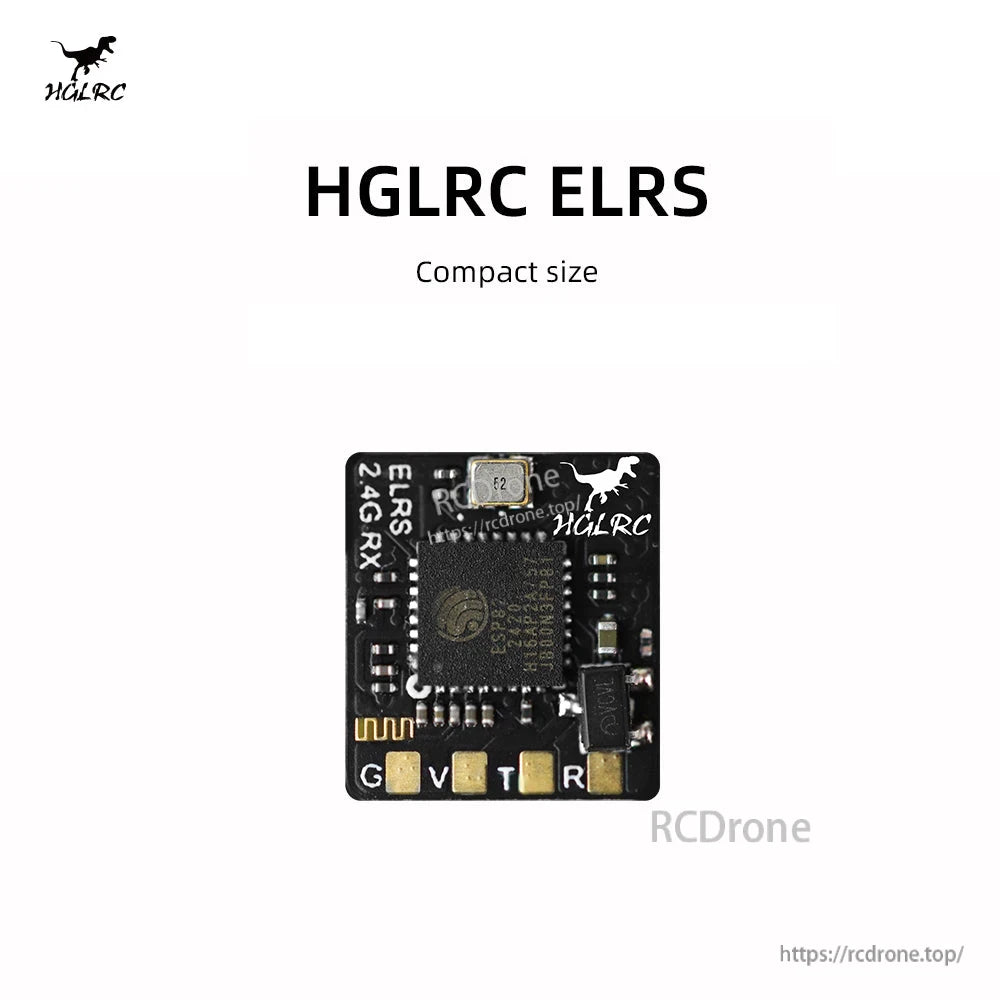

  • HGLRC ELRS 2.4G Receiver PCB top view showing ELRS 2.4G RX markings and G V T R solder pads

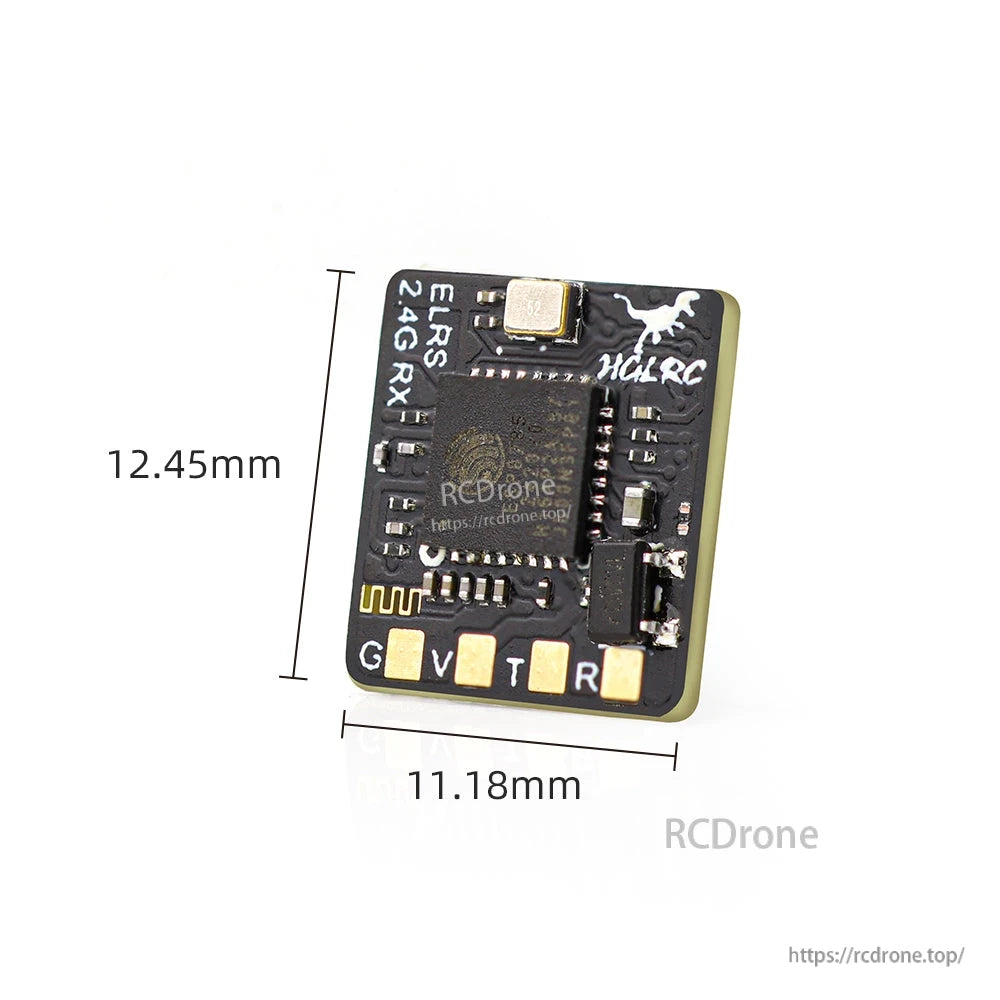

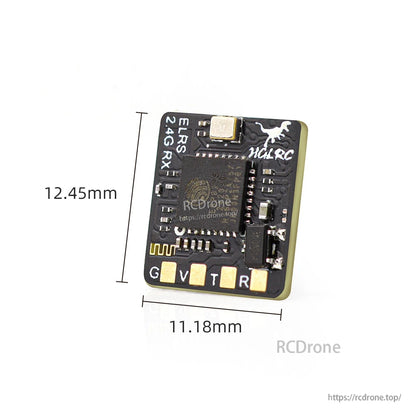

  • Receiver board dimensions shown: 12.45 mm x 11.18 mm compact PCB size diagram

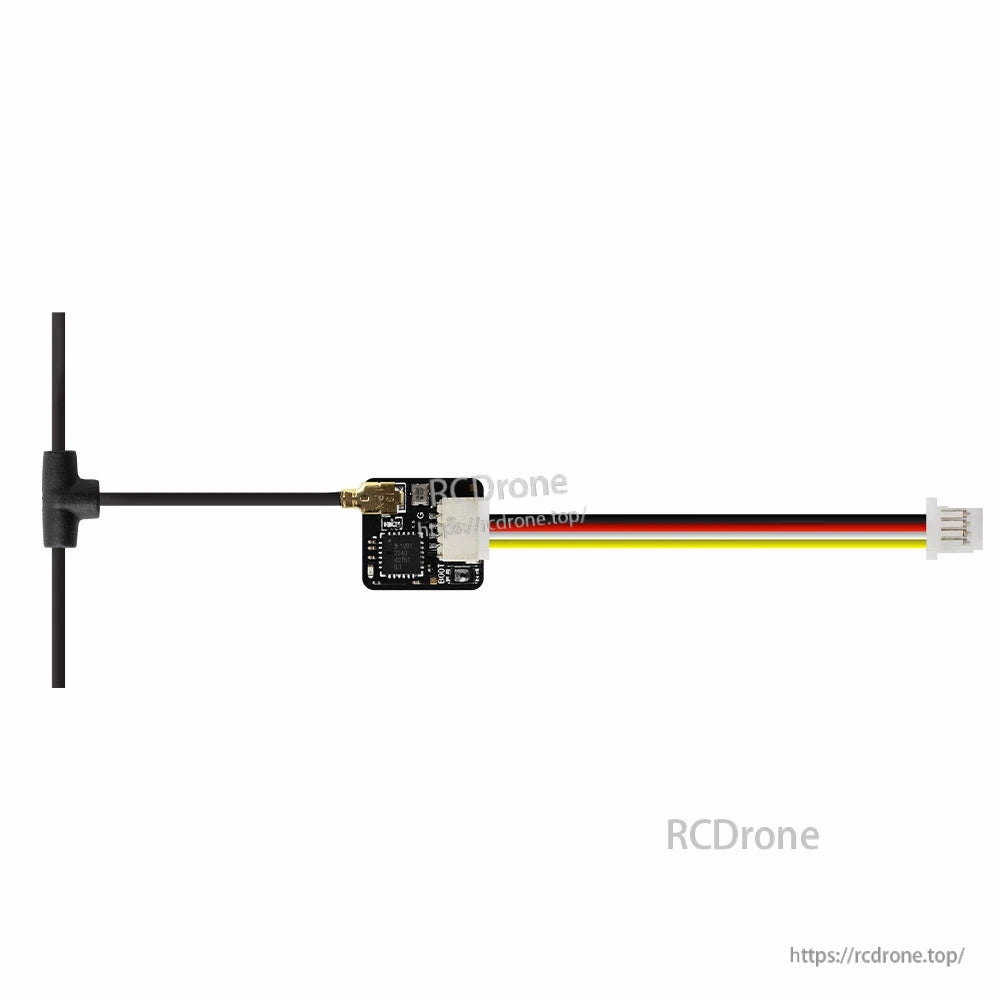

  • Side layout with antenna connected to receiver and 4-wire cable plugged into connector

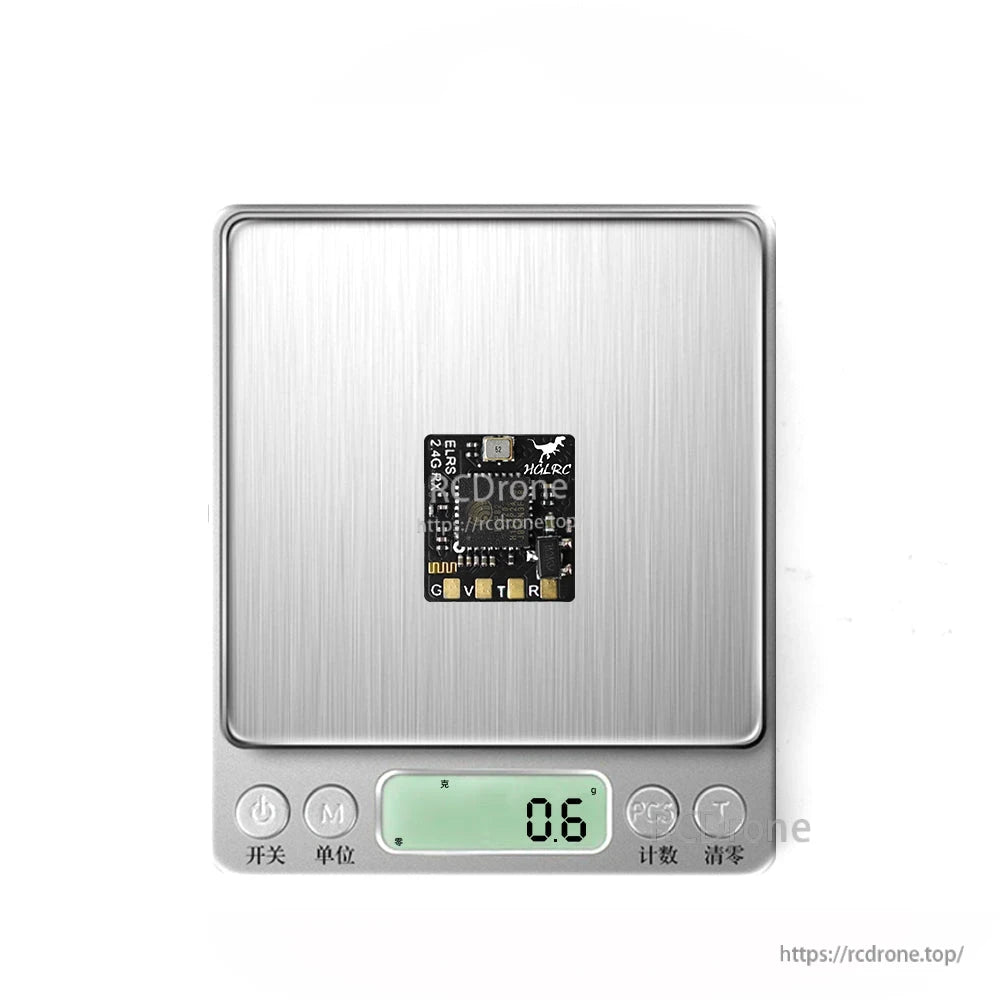

  • Receiver PCB on digital scale showing 0.6 weight reading

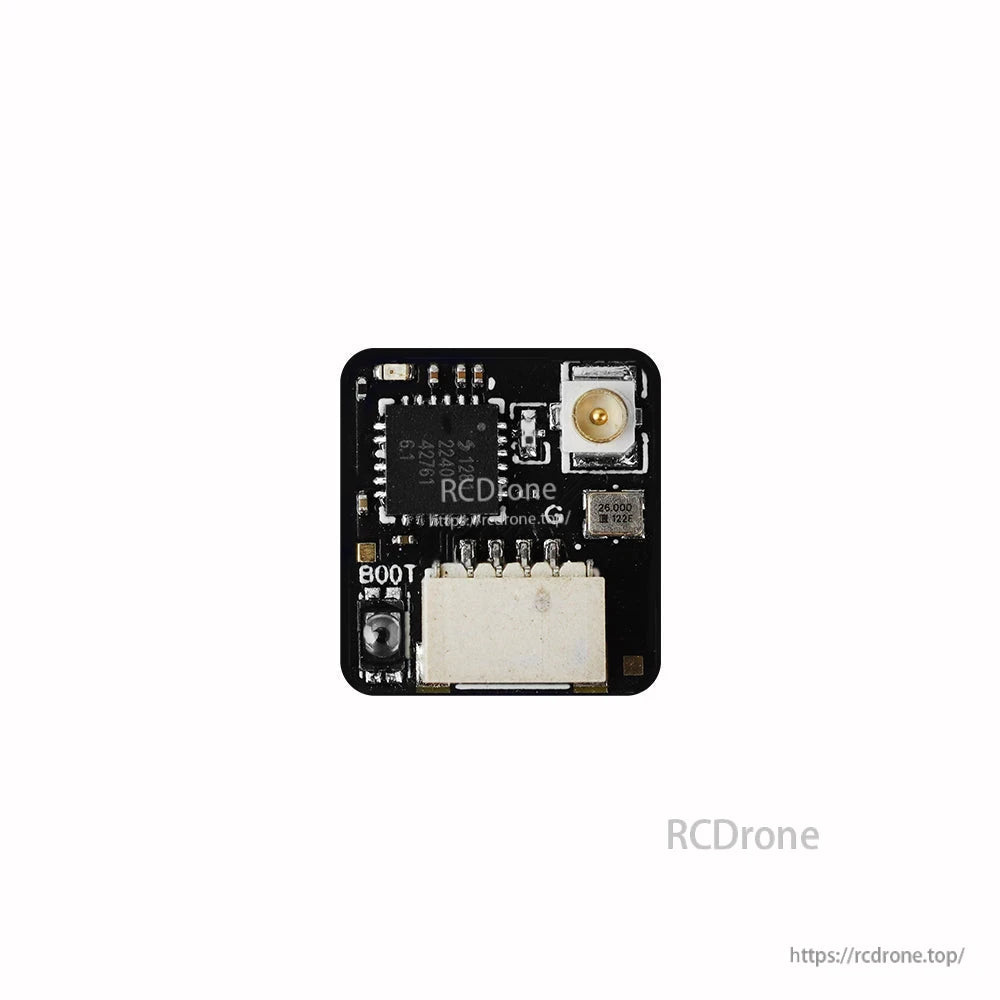

  • Back side of receiver showing u.FL antenna socket, BOOT pad and plug connector

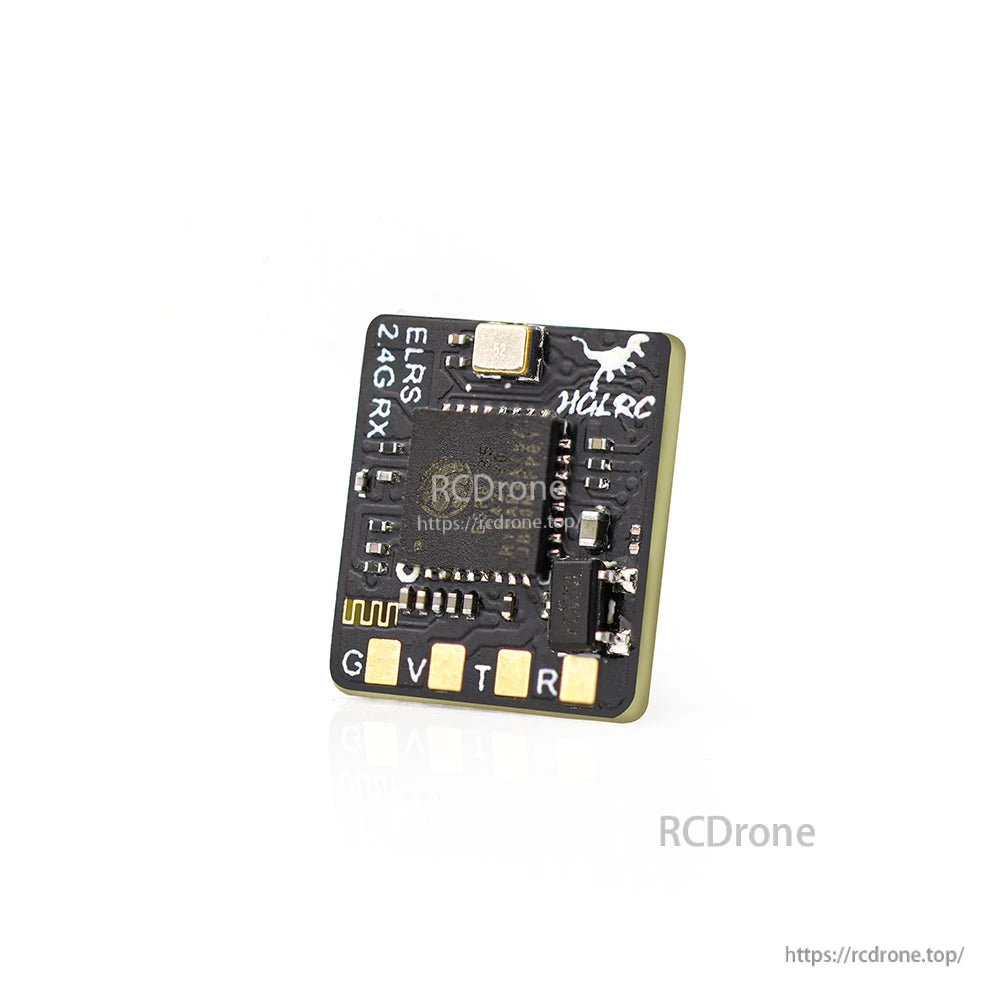

  • Angled top view of receiver PCB with ELRS 2.4G RX text and G V T R solder pads

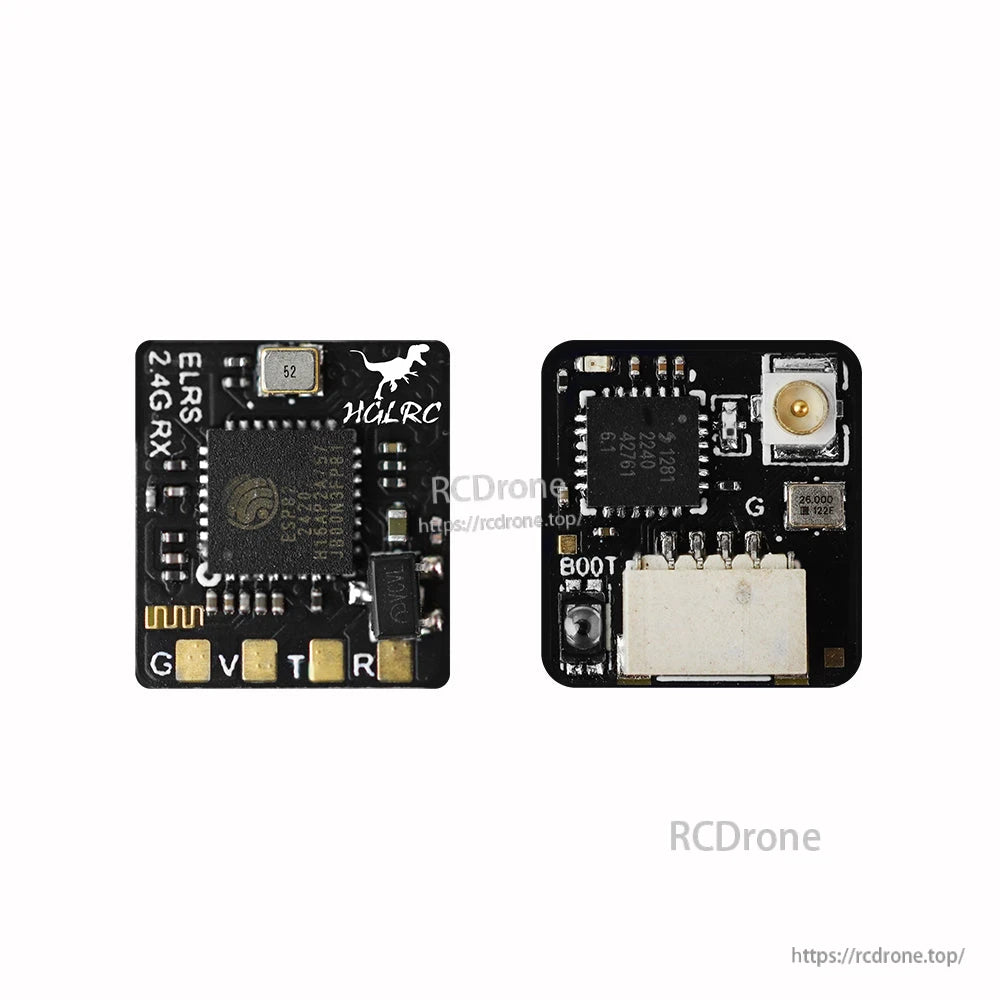

  • Front and back views of receiver side by side, showing solder pads and antenna connector location

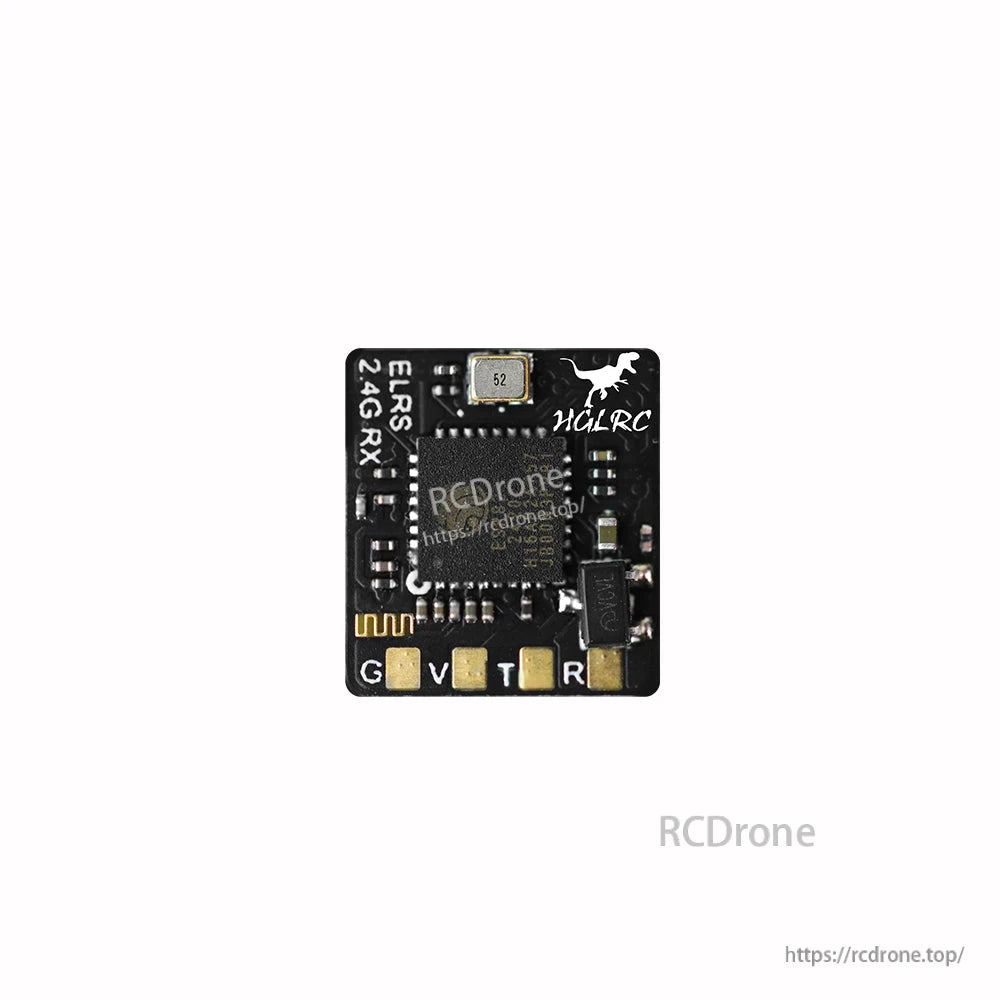

  • Straight-on top view of ELRS 2.4G RX board with HGLRC logo and G V T R pad labels
1 10

HGLRC ELRS 2.4G Receiver (ExpressLRS RX) – Compact Size, High Refresh Rate, Factory ELRS 3.0

HGLRC ELRS 2.4G Receiver (ExpressLRS RX) – Compact Size, High Refresh Rate, Factory ELRS 3.0

HGLRC

$23.19 USD
$23.19 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

The HGLRC ELRS 2.4G receiver is a compact ExpressLRS (ELRS) radio control receiver designed for low-latency, high refresh-rate links in RC and FPV setups. It supports both soldered installation and direct plug connection styles.

Key Features

  • ExpressLRS (ELRS) 2.4G receiver
  • Compact size
  • Solderable or direct pluggable installation options
  • High refresh rate
  • Factory ELRS 3.0
  • Wiring diagram and FAQ documentation provided

Specifications

Brand HGLRC
Product Type Receiver
System ExpressLRS (ELRS)
Band 2.4G
Firmware Factory ELRS 3.0
Mounting / Connection Solderable or direct pluggable

Manuals

Manual link: https://drive.google.com/drive/u/0/folders/1UDUv4kfxI9Dv5lGaQpabYgpDCObZ3WEW

For product selection or setup support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

QR code linking to rcdone.top for product support and documentationHGLRC ELRS 2.4G receiver info sheet with wiring reference, board layout, and included parts overview

Quick-reference layout and wiring details help speed up installation and setup for ELRS 2.4G builds.
