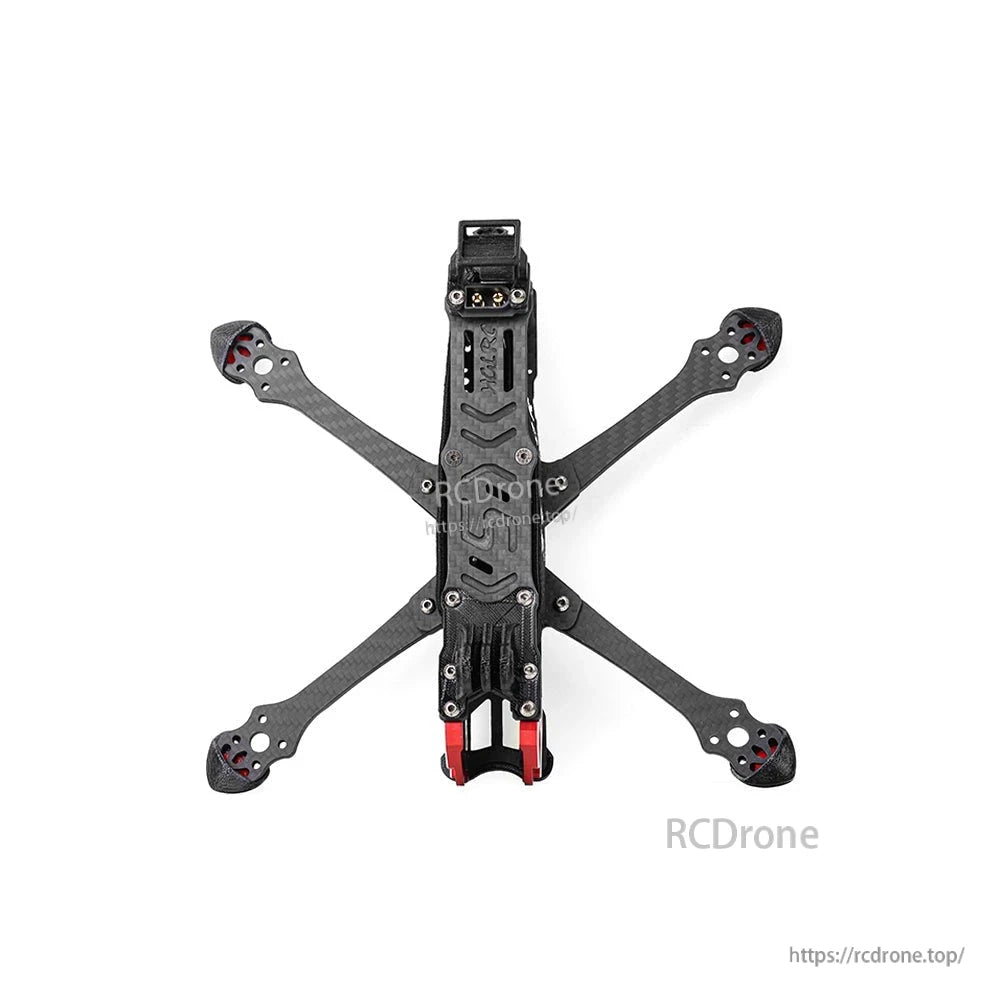

HGLRC Sector X5 FR 5-Inch Freestyle FPV Frame Kit 210mm Wheelbase 3K Carbon Fiber 120g

Overview

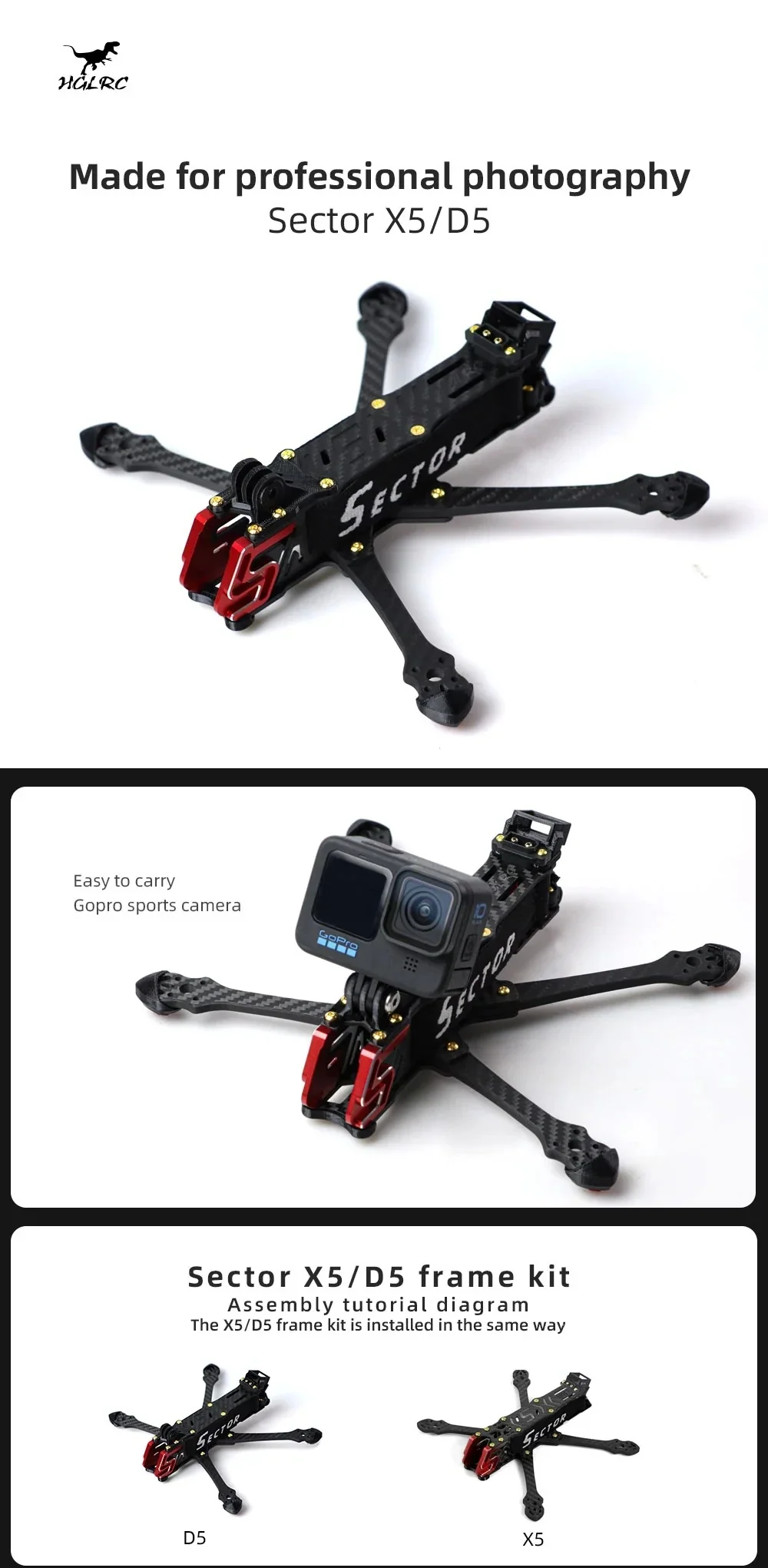

The HGLRC Sector X5 FR 5-inch Freestyle FPV Frame is a 3K carbon fiber frame kit designed for photography-oriented freestyle builds, with support parts for carrying an action camera and a modular layout for maintenance.

Key Features

• Replaceable arms for quick disassembly without taking apart the whole frame
• Fixed power outlet to help protect the power cable from propellers
• Dust-proof straps covering both sides to help keep the build cleaner
• CNC aluminum side plates combined with 3D printed parts

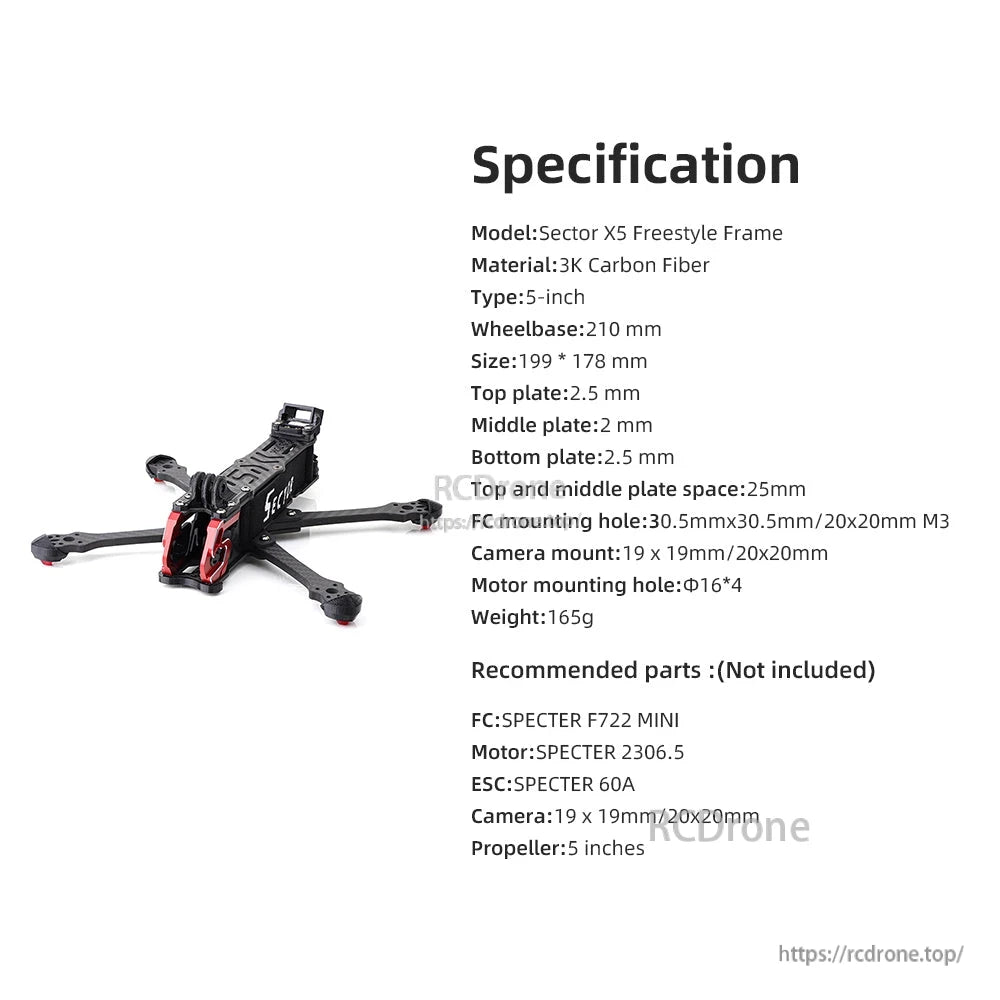

Specifications

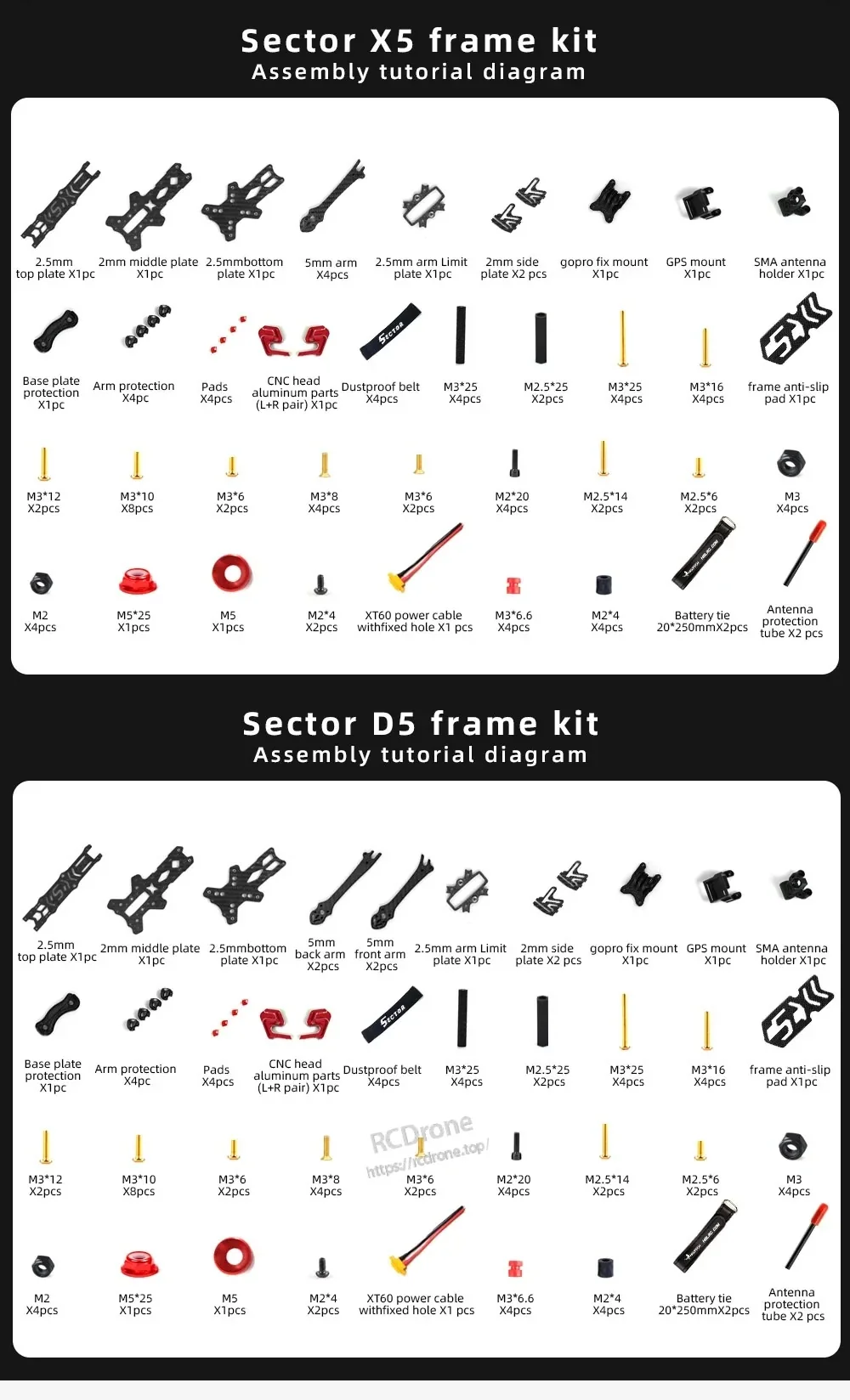

What’s Included

• 2.5 mm top plate x1
• 2 mm middle plate x1
• 2.5 mm bottom/base plate x1
• 5 mm arms x4
• 2.5 mm arm limit/fixing plate x1
• 2 mm camera side plates/panels x2

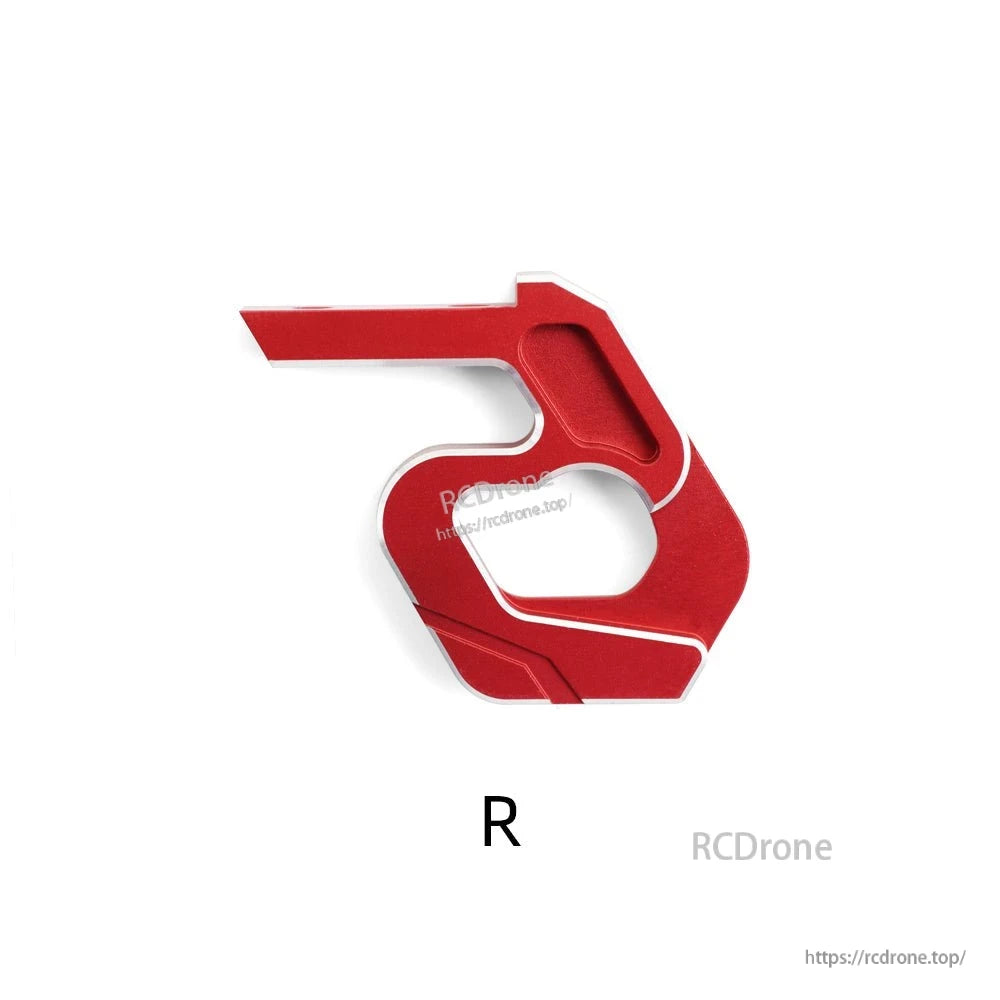

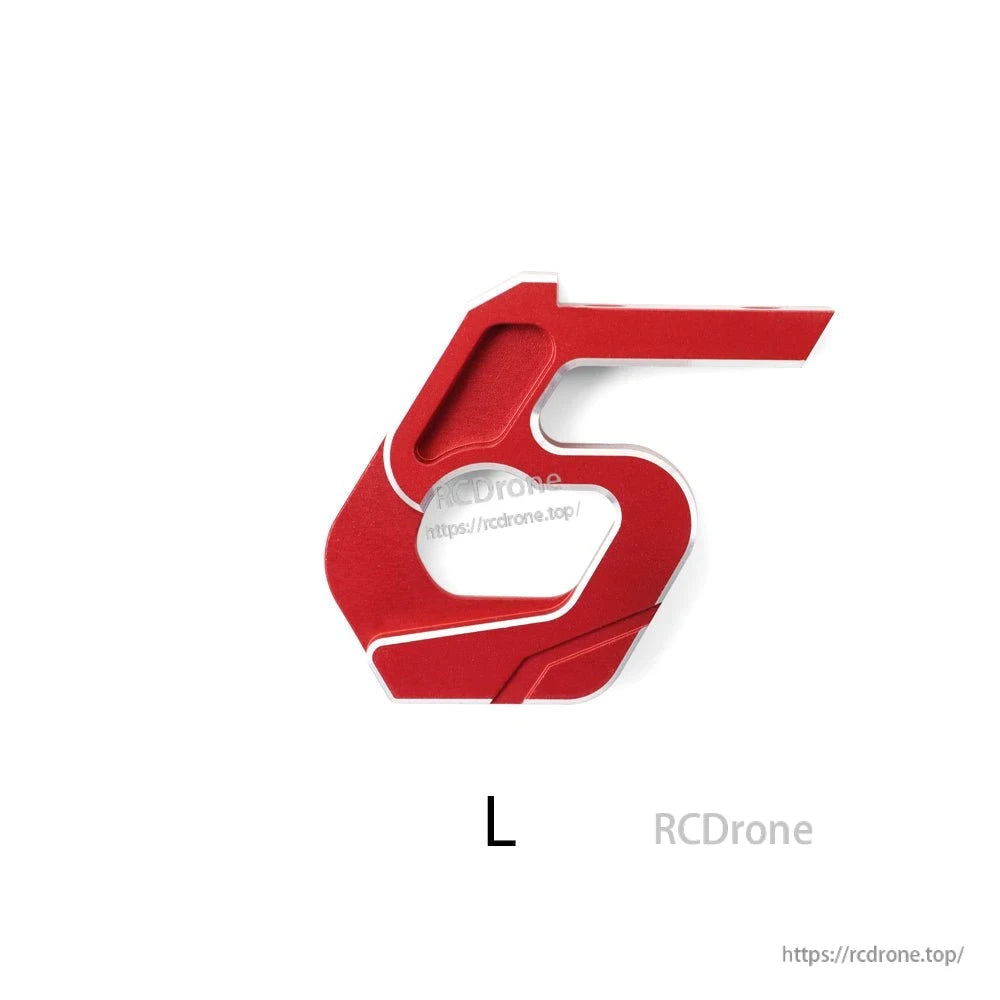

• CNC head aluminum parts (L+R pair) x1 set
• Action camera fix mount (TPU, black) x1
• GPS mount x1
• SMA antenna holder/mount x1
• Base plate protection cover/sleeve (TPU, black) x1
• Arm protection (TPU, black) x4
• Foot pads (TPU, red) x4
• Dustproof belt/strap x4
• Battery straps/ties 20 x 250 mm x2
• Frame anti-slip pad / battery anti-slip pad x1
• XT60 power cable with fixed hole x1
• Antenna protection tube x2
• Screw/accessory package, including:
• • M3*25 x4
  • M2.5*25 x2
  • M3*16 x4
  • M3*12 x2
  • M3*10 x8
  • M3*8 x4
  • M3*6 x2
  • M2*20 x4
  • M2.5*14 x2
  • M2.5*6 x2
  • M3 nut x4
  • M2 nut x4
  • M5*25 x1
  • M5 x1
  • M2*4 x2
  • M3*6.6 x4
  • M2*4 x4

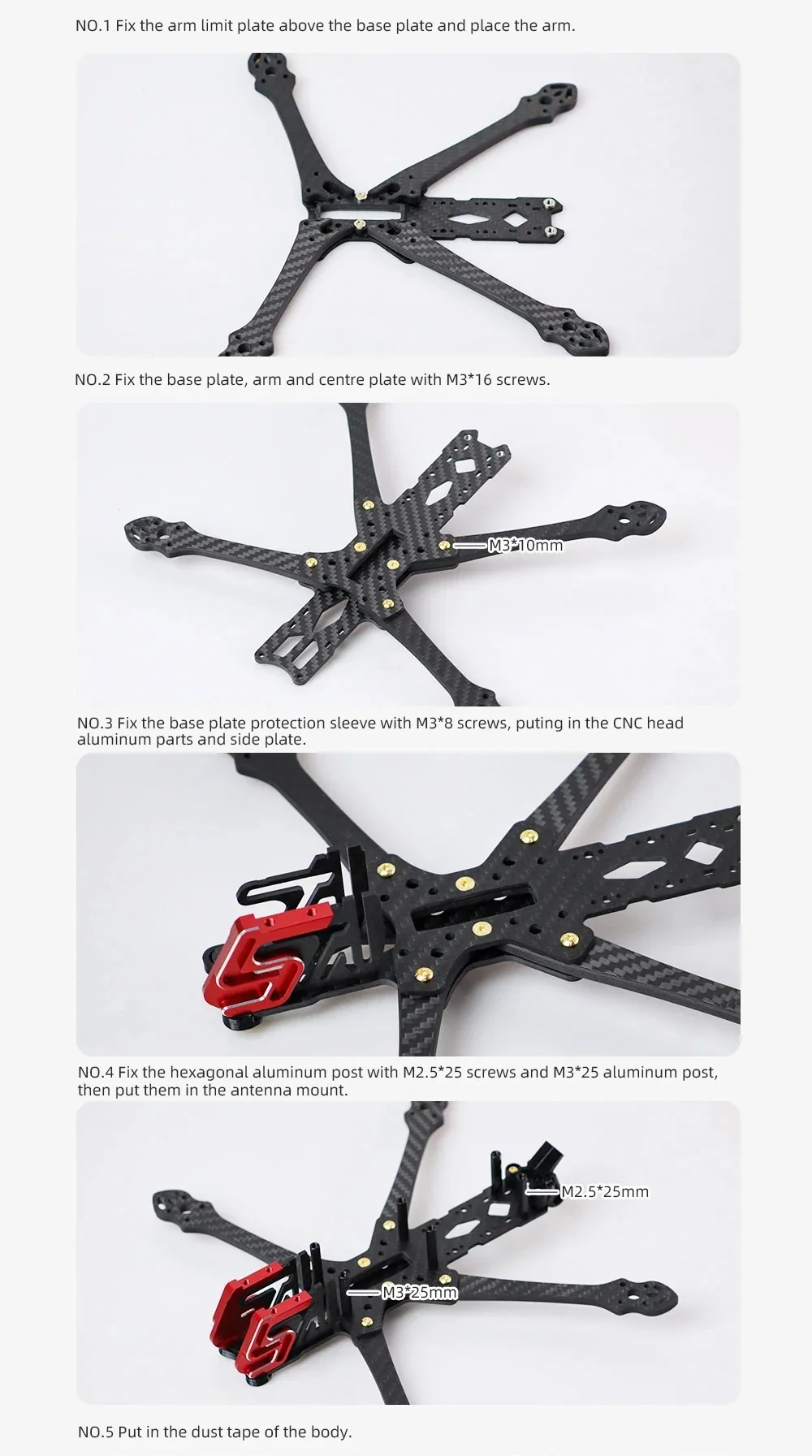

Assembly Notes (from the included tutorial diagram)

• No.1: Fix the arm limit plate above the base plate and place the arm.
• No.2: Fix the base plate, arm and centre plate with M3*16 screws.
• No.3: Fix the base plate protection sleeve with M3*8 screws, then install the CNC head aluminum parts and side plate.
• No.4: Fix the hexagonal aluminum post with M2.5*25 screws and M3*25 aluminum post, then install them in the antenna mount.
• No.5: Install the dust tape of the body.

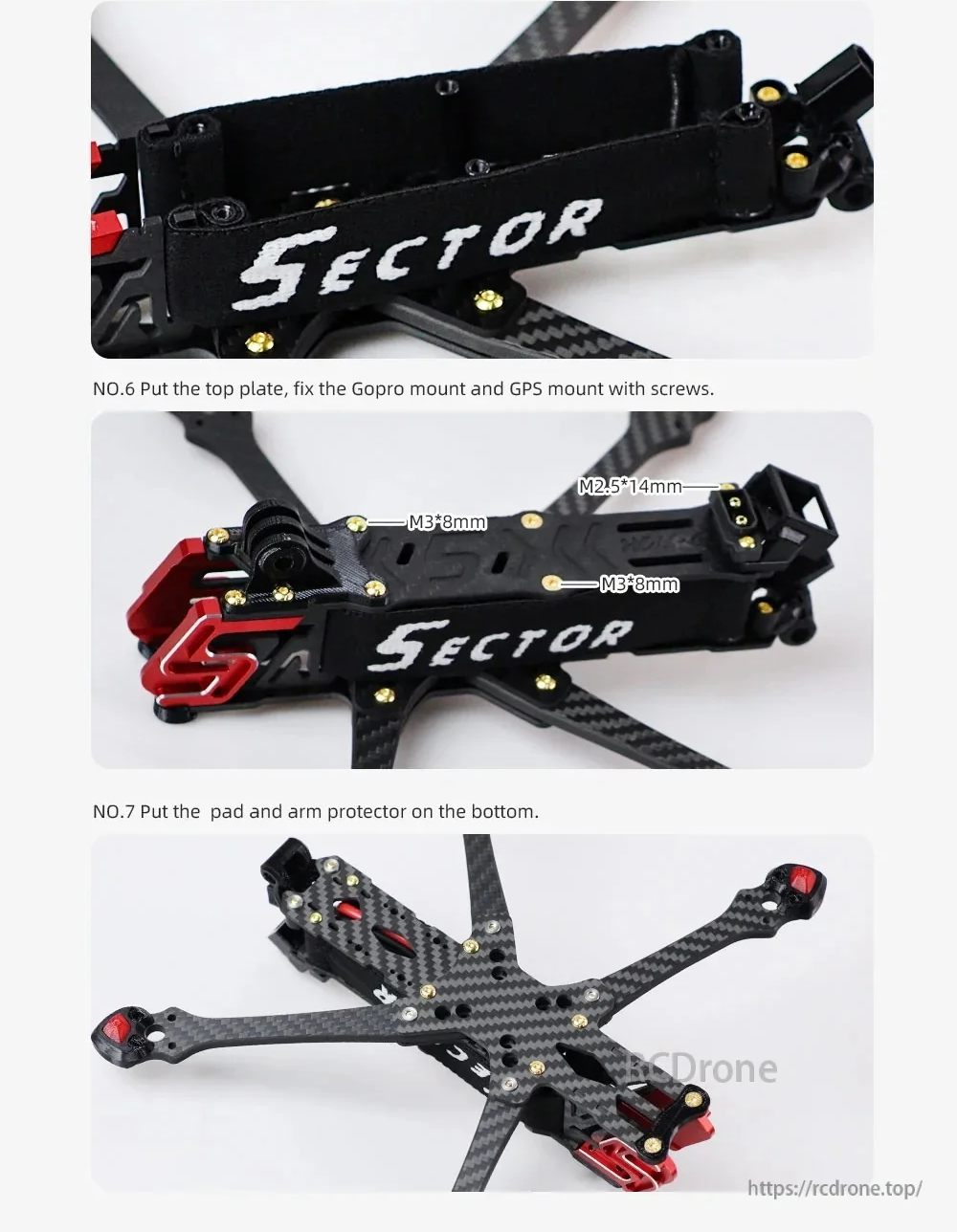

• No.6: Install the top plate; fix the action camera mount and GPS mount with screws.
• No.7: Install the pad and arm protector on the bottom.

Recommended Parts (Not Included)

• FC: ZEUS F722 MINI
• Motor: 22XX / 23XX
• ESC: Zeus45A
• Camera: 19 x 19 mm
• Propeller: 5 inches

For pre-sales and compatibility questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Details

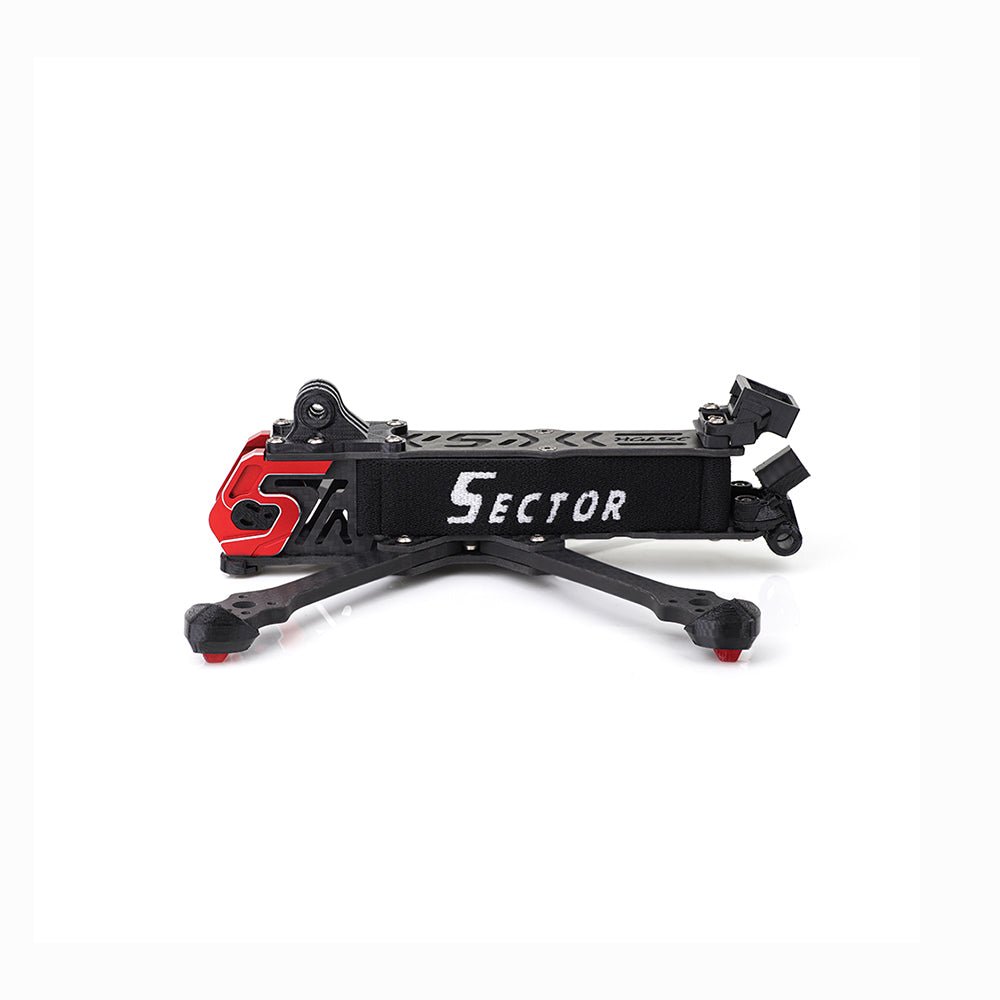

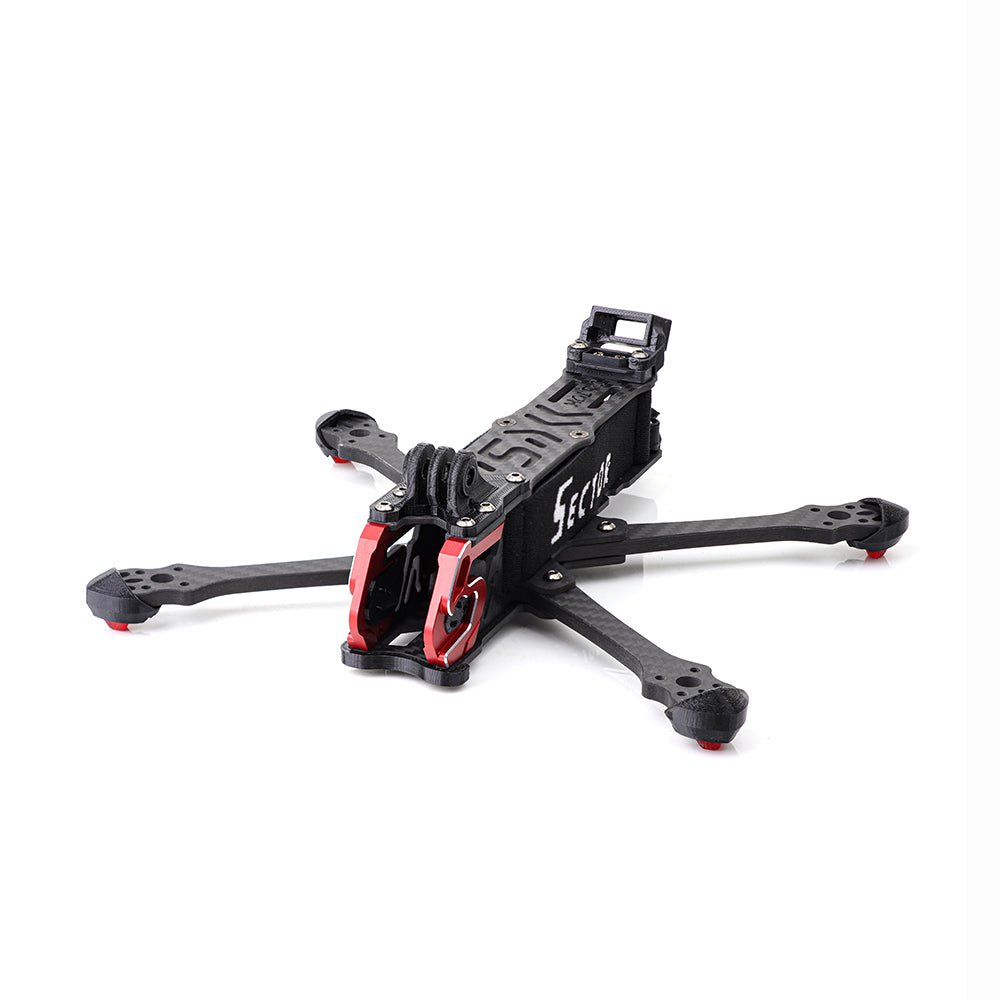

Built for action-camera freestyle, the Sector X5 layout keeps the build compact while protecting the front end with CNC aluminum parts.

Everything needed for the frame build comes in the kit, including replaceable arms, camera/GPS mounts, straps, XT60 lead, and a full screw set.

Maintenance-friendly assembly adds the top plate with mounts up front, then finishes with TPU foot pads and arm protection underneath.
