2pcs HRB 22.2V 6S1P 5000mAh 111Wh 100C LiPo Battery EC5 for RC Truck Helicopter EDF Jet
2pcs HRB 22.2V 6S1P 5000mAh 111Wh 100C LiPo Battery EC5 for RC Truck Helicopter EDF Jet
HRB
در دسترس بودن پیکاپ بارگیری نشد
Overview
This set includes 2pcs HRB 22.2V 6S LiPo battery packs (5000mAh) with EC5 female plug, designed for compatible RC trucks, helicopters, and EDF jet models where voltage, size, and connector match.
Key Features
- 6S1P LiPo configuration, 22.2V nominal, 5000mAh capacity
- 100C continuous discharge rate (as marked on the battery label)
- EC5 connector and 7-pin balance port
- 10AWG silicone wire
- Marked energy: 111Wh
Specifications
| Brand | HRB |
| Battery type | LiPo (Li-Poly) |
| Cell configuration | 6S1P |
| Nominal voltage | 22.2V |
| Capacity | 5000mAh |
| Energy | 111Wh |
| Continuous discharge rate | 100C |
| Charge rate (recommended) | 2.5A-5A (0.5C-1C) |
| Connector (main lead) | EC5 female plug |
| Balance connector | 7-pin balance port |
| Wire | 10AWG silicone wire |

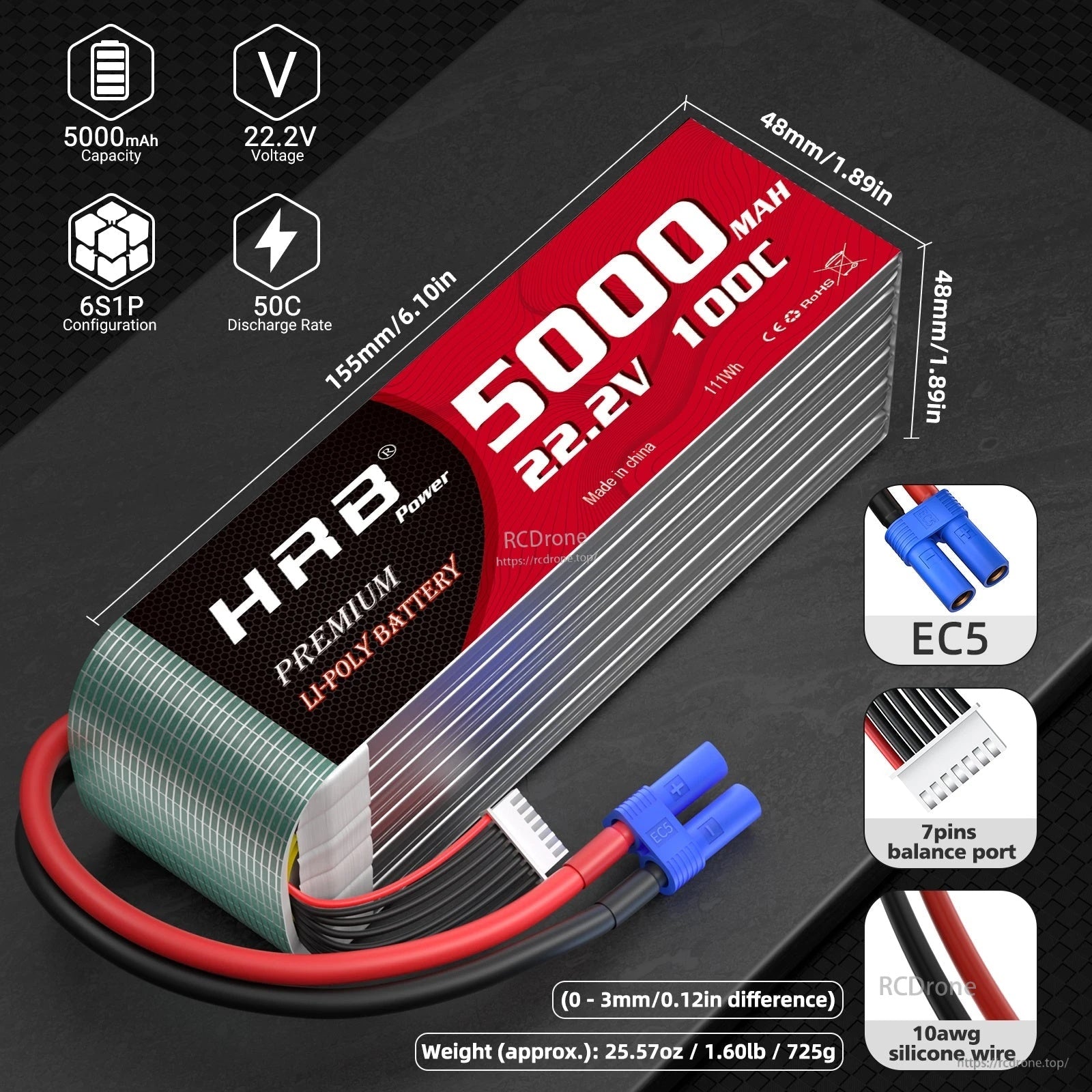

| Size (L x W x H) | 155 x 48 x 48 mm |
| Size (L x W x H) | 6.10 x 1.89 x 1.89 in |
| Weight (approx.) | 725 g (25.57 oz / 1.60 lb) |
| Dimension tolerance note | 0-3 mm (0.12 in) difference |

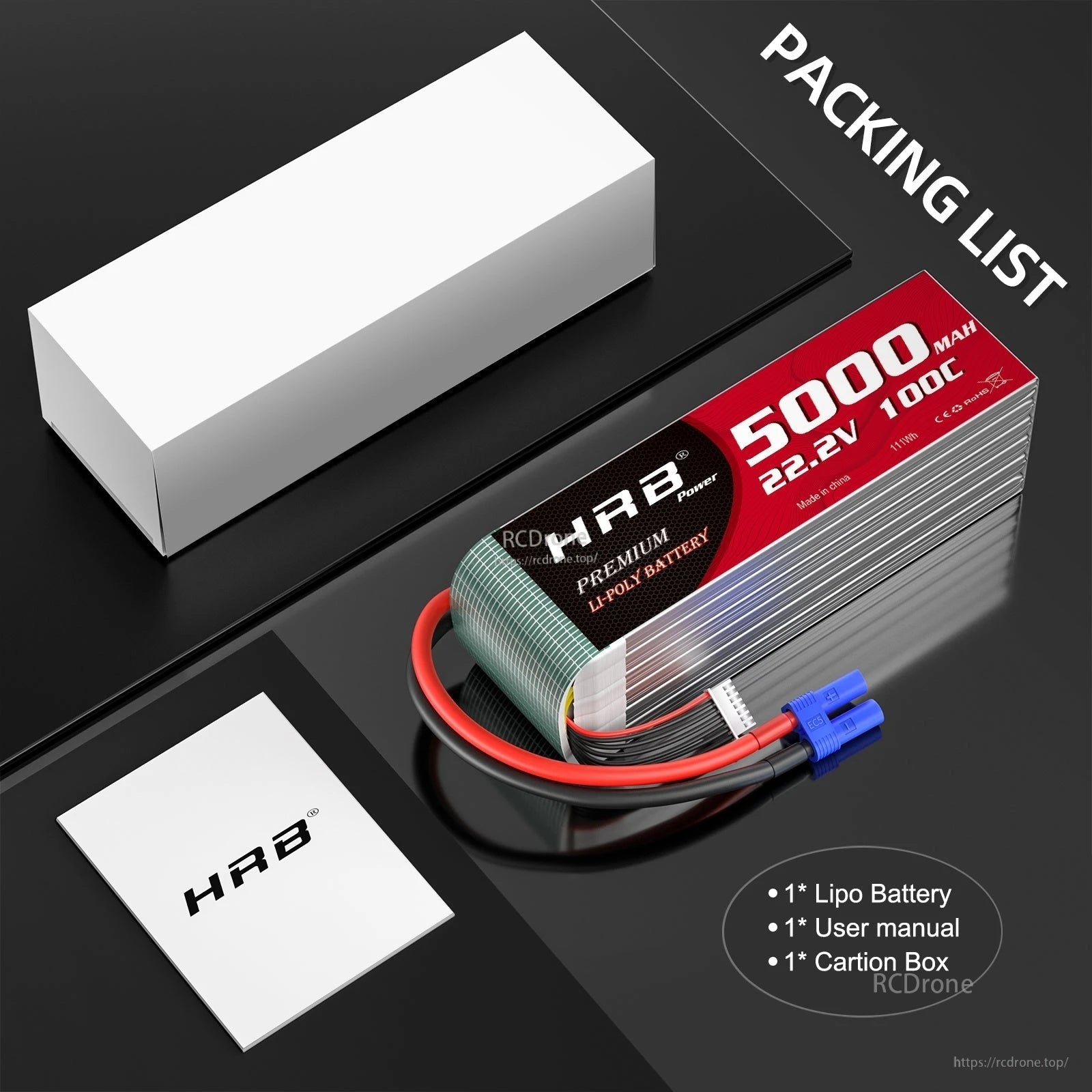

What's Included
- 2 x HRB 22.2V 6S 5000mAh LiPo Battery (EC5)
- User manual
- Carton box

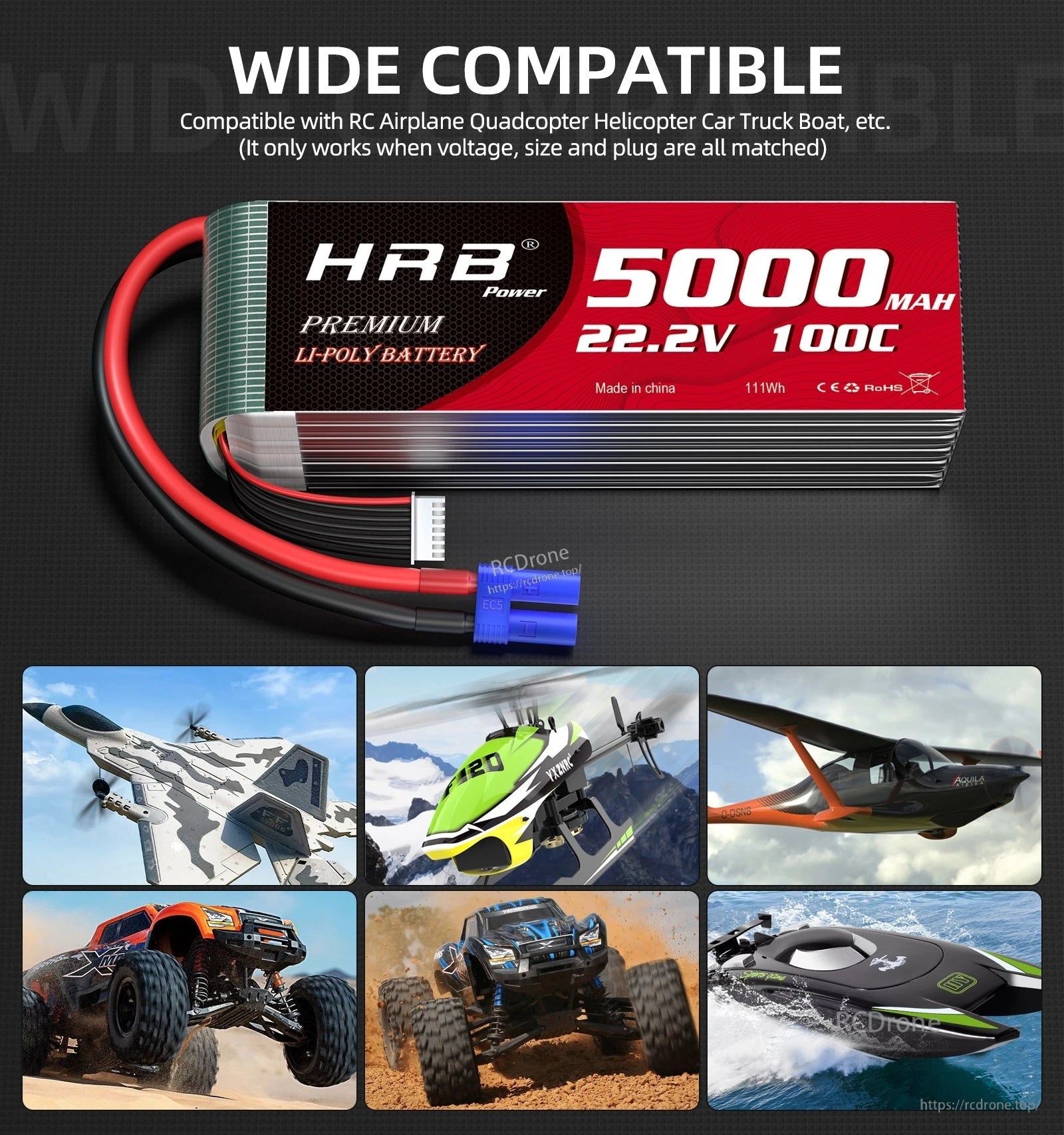

Applications
- RC truck / RC car (EC5 power system)
- RC helicopter
- RC airplane / EDF jet
- Other RC models (boat, quadcopter, etc.) where voltage, size, and plug are matched
Charging & Storage Notes
- Do not overcharge above 4.2V per cell.
- Do not over-discharge below 3.7V per cell.
- New batteries may reach best performance after 2-3 complete cycles of 1C charge & discharge.
- If the pack will not hold a full charge or loses charge quickly, use a balance charger and cycle several times first.
- Recommended long-term storage voltage: around 3.85V per cell; check the battery every 1-2 months.
- A LiPo safe bag is recommended for transport.
- Use a balance charger and do not leave the battery unattended while charging.
For setup or compatibility questions (dimensions, EC5 wiring, or charger settings), contact [email protected] or visit https://rcdrone.top/.
Details

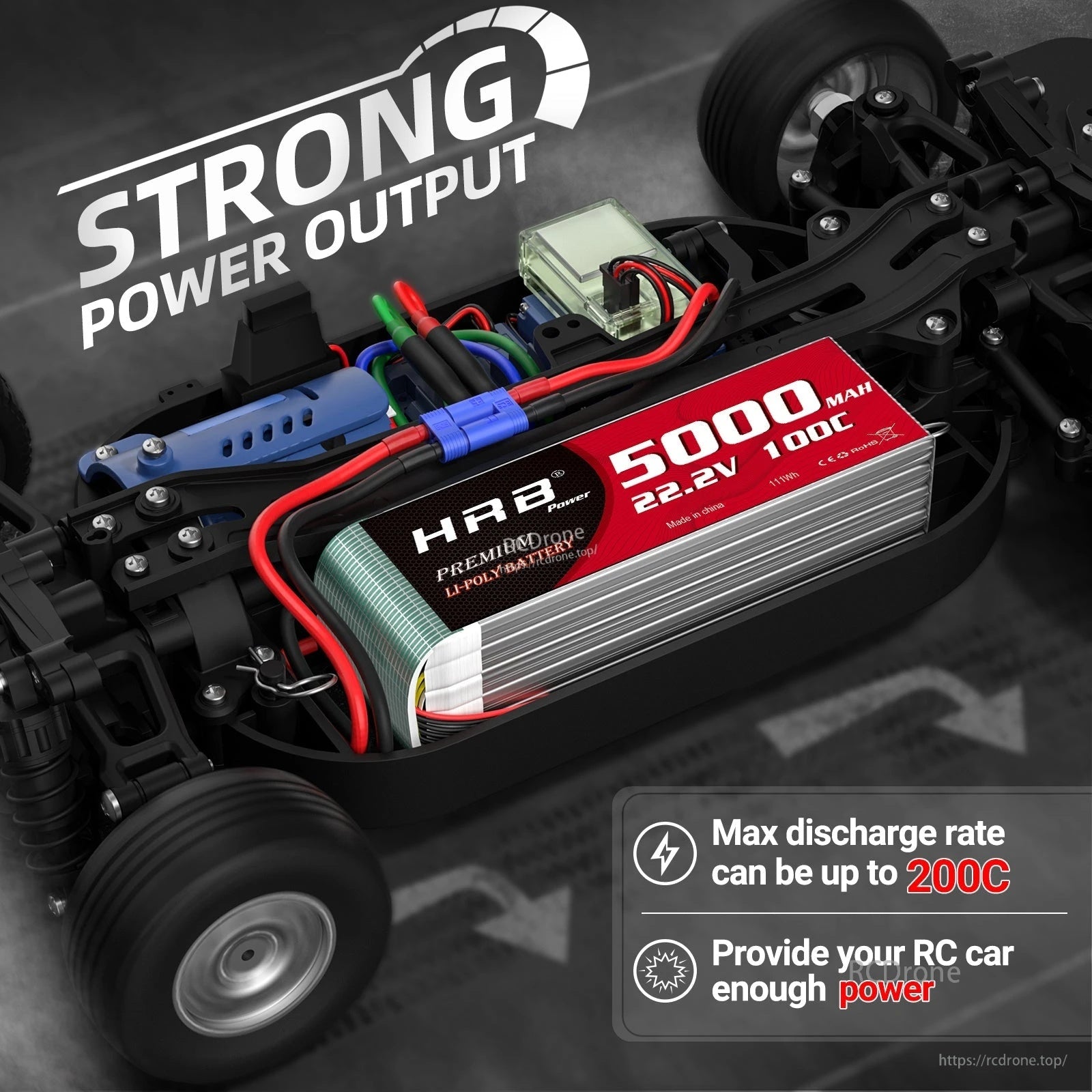

HRB 6S 22.2V 5000mAh LiPo packs use an EC5 main connector with a 7-pin balance port and 10AWG silicone wire for high-current RC setups.
Compatible with many RC cars/trucks, helicopters, airplanes/EDF jets, and boats when voltage, dimensions, and EC5 wiring match your power system.

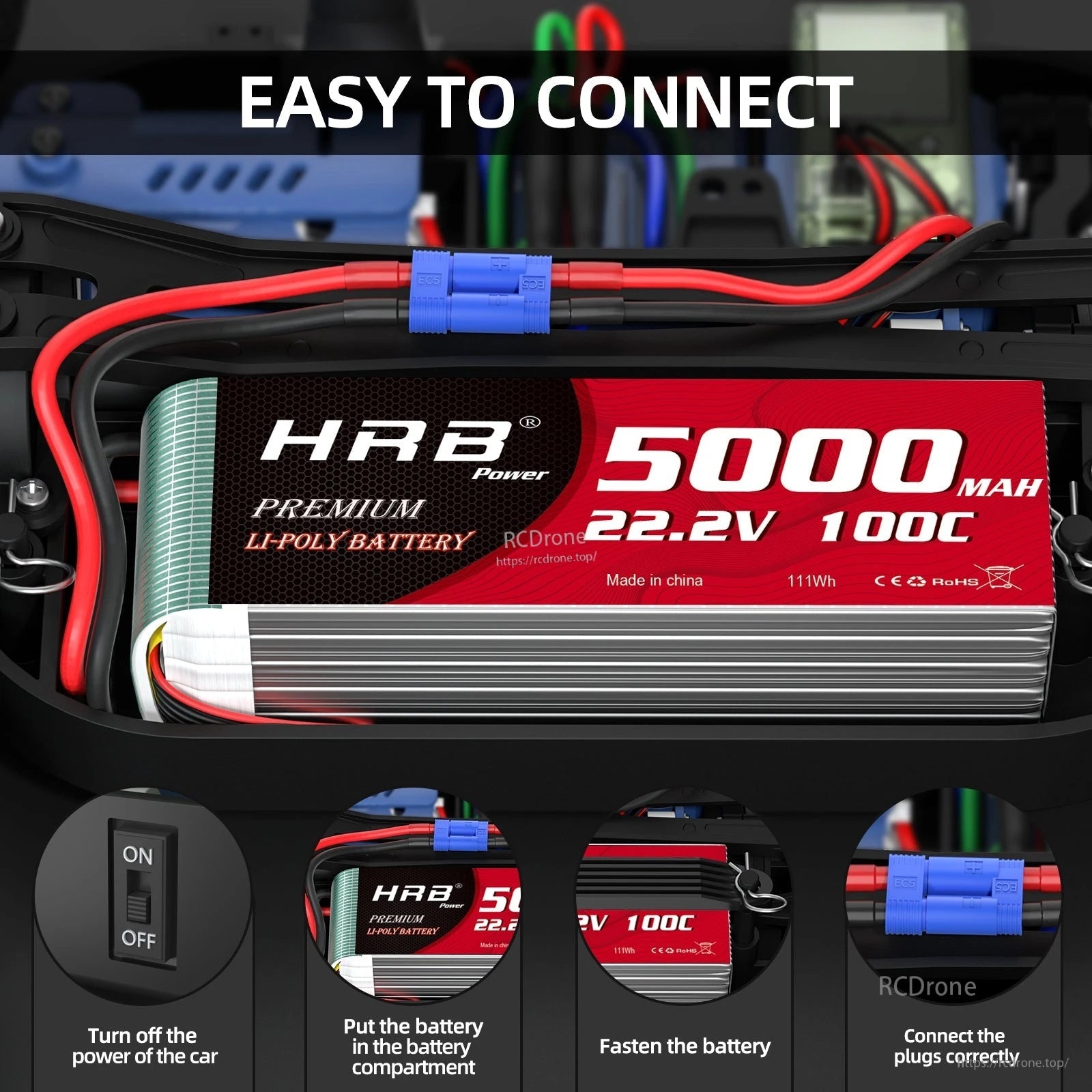

A straightforward EC5 connection helps make installation quick once the model is powered off and the battery is secured in the tray.
The set arrives boxed with a user manual for storage and charging guidance.
