HRB 6S 7500mAh 22.8V HV 100C LiPo Battery Pack, XT90/EC5/XT60 Options for RC UAV
HRB 6S 7500mAh 22.8V HV 100C LiPo Battery Pack, XT90/EC5/XT60 Options for RC UAV
HRB
قیمت عادی
$179.47 USD
قیمت عادی
قیمت فروش
$179.47 USD
قیمت واحد
مطابق
Taxes included.
حمل و نقل هنگام تسویه حساب محاسبه می شود.
در دسترس بودن پیکاپ بارگیری نشد
Overview

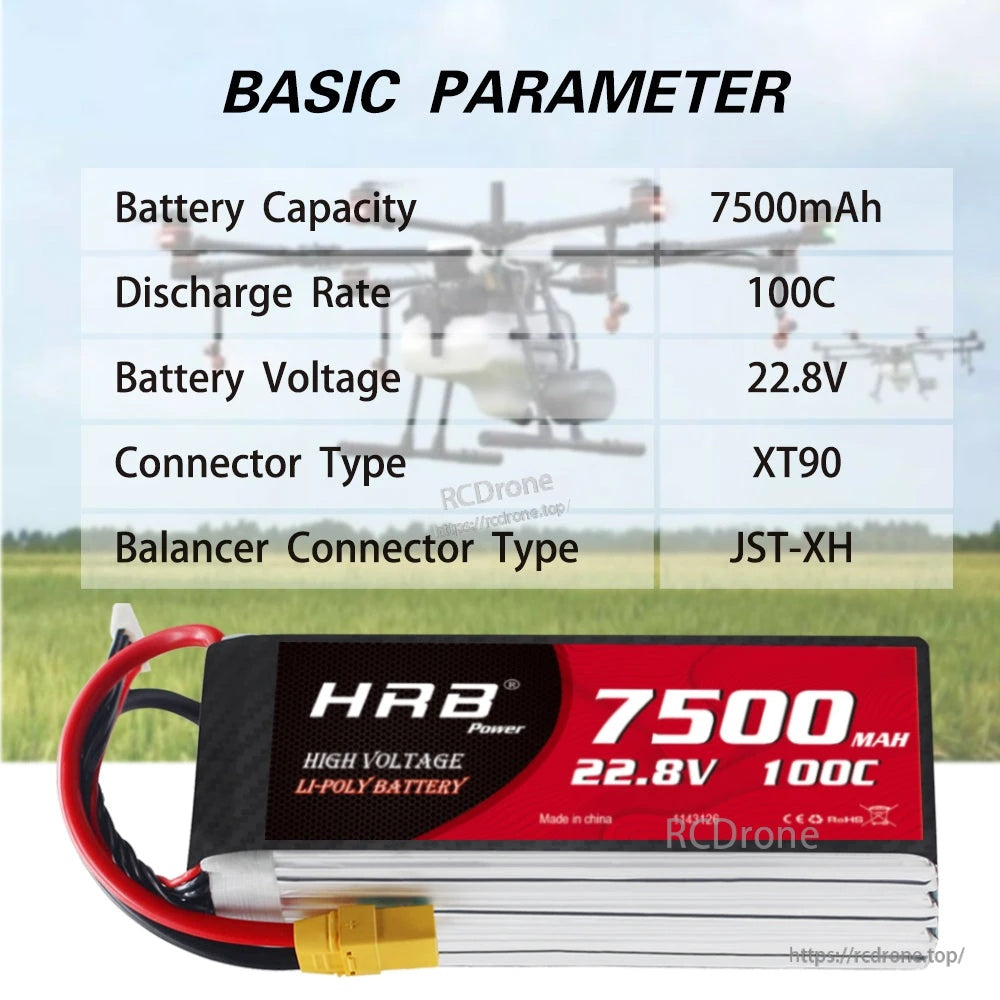

HRB 6S 7500mAh 22.8V HV LiPo battery pack designed for RC/UAV power systems that require a high discharge rate (100C). This pack uses a JST-XH balance connector and offers customizable discharge connector options to match common RC power leads.
Key Features
- High Voltage Li-Poly Battery (HV LiPo)
- Capacity: 7500mAh
- Battery voltage: 22.8V
- Continuous discharge rate: 100C
- Balancer connector type: JST-XH
- Discharge plug options: EC5 / XT90 / XT60 female plug (customizable)
Specifications
| Brand | HRB |
| Battery type | High Voltage Li-Poly Battery (HV LiPo) |
| Cells / Configuration | 6S |
| Capacity | 7500mAh |
| Voltage | 22.8V |
| Continuous discharge rate | 100C |
| Energy | 171Wh |
| Charging rate | 3.75A-7.5A (0.5-1C) |
| Discharge connector | XT90 (also available: EC5 / XT60 female plug) |
| Balance connector | JST-XH |
| Size (L x W x H) | 137 x 45 x 63mm |
| Weight | 805g |
| Country of origin | Made in China |
Applications
- RC multirotors/UAV platforms using 6S (22.8V) LiPo power systems
- Other RC models requiring a 6S HV LiPo pack with JST-XH balance lead and a compatible discharge connector
For help selecting the correct discharge connector option and confirming fitment (137 x 45 x 63mm), contact [email protected] or visit https://rcdrone.top/.
Details

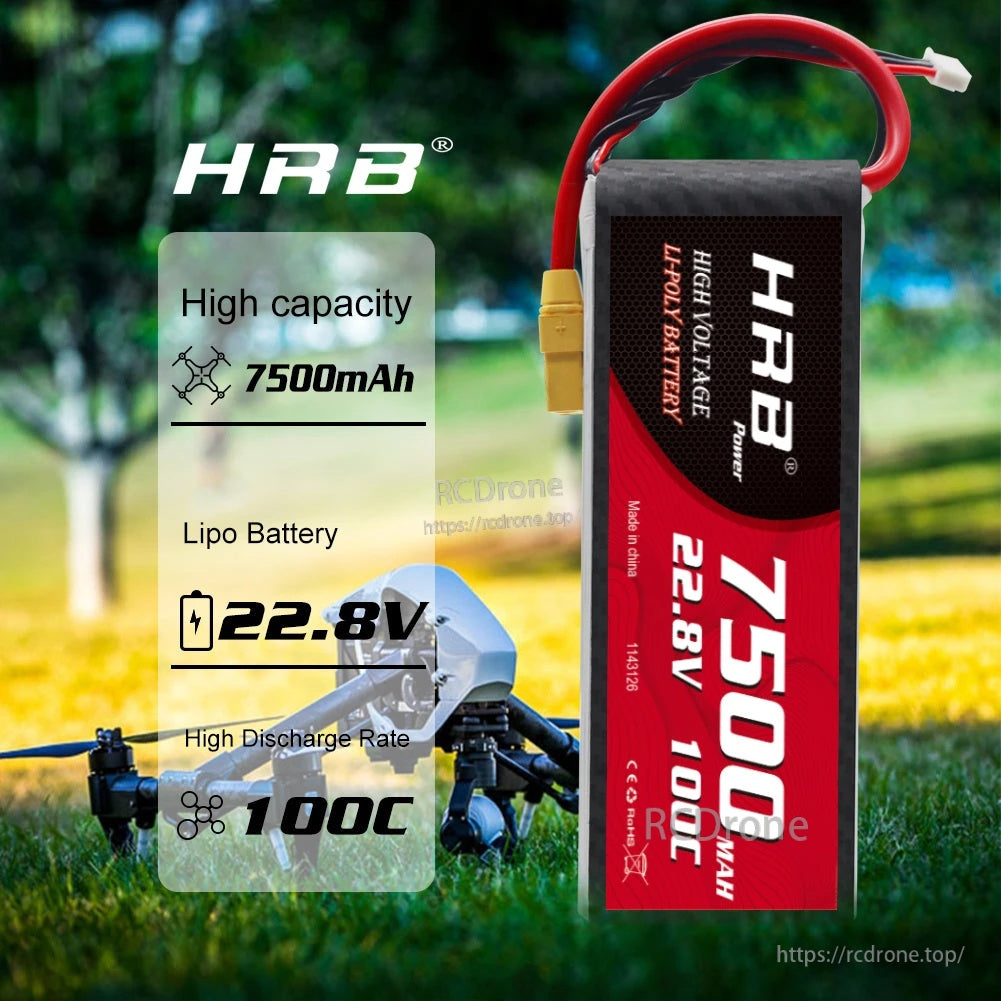

High-voltage 6S pack rated at 7500mAh and 22.8V with a 100C continuous discharge and JST‑XH balance connector.
Built for high-current RC power systems that need reliable 6S output in a compact battery format.

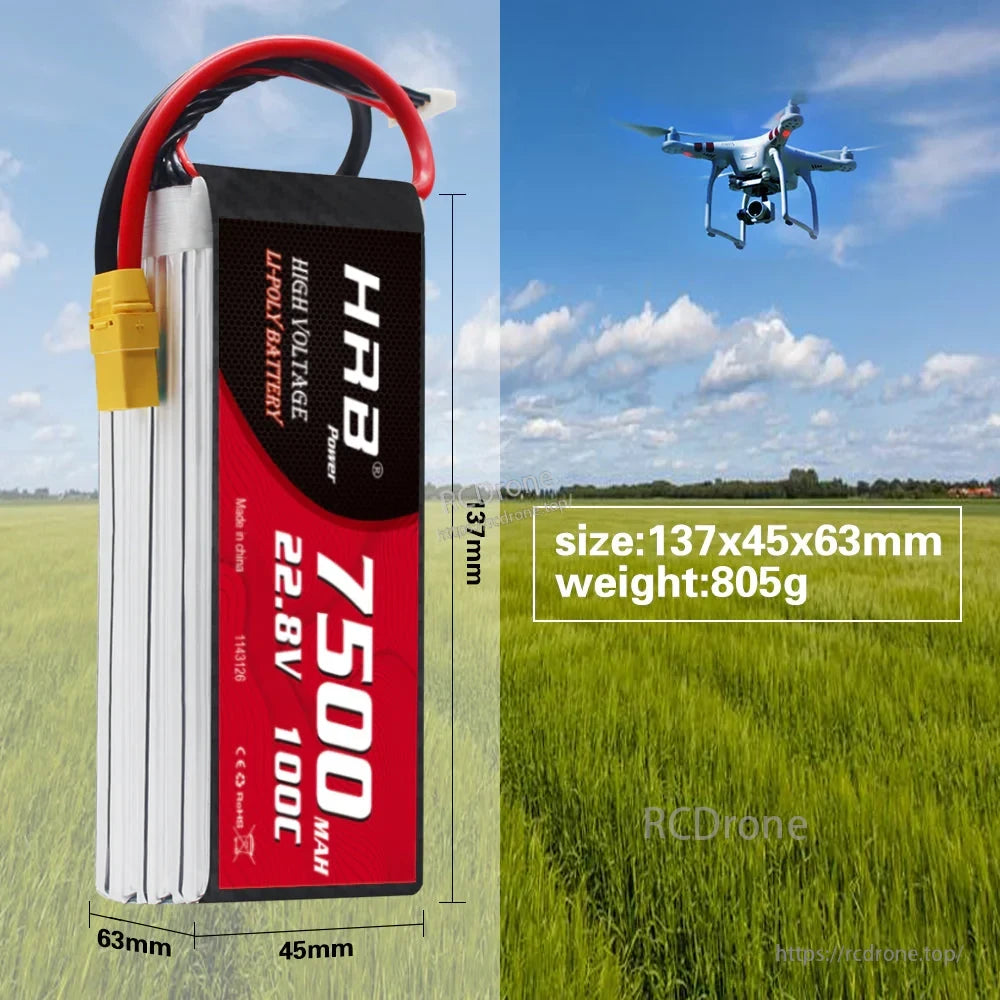

Check the 137 × 45 × 63mm footprint and 805g weight to confirm clearance on your UAV frame or RC mount.
