HRB Graphene 4S 14.8V 5000mAh 100C LiPo Battery XT90/EC5/XT60 Plug for RC Models
HRB Graphene 4S 14.8V 5000mAh 100C LiPo Battery XT90/EC5/XT60 Plug for RC Models
HRB
در دسترس بودن پیکاپ بارگیری نشد
Overview
The HRB Graphene 4S 14.8V 5000mAh 100C LiPo battery is designed for RC applications that require high discharge performance and stable output under load. HRB’s graphene compound is described as helping electrons flow with less resistance than traditional LiPo technologies, supporting cooler operation during demanding use.
Key Features
- High discharge rate for more power under load
- Internal impedance can reach as low as 1.2 mOhm (compared to 3 mOhm of a standard LiPoly)
- Greater thermal control to help packs stay cooler under extreme conditions
- Higher capacity during heavy discharge
- Maintains higher pack capacity even after hundreds of cycles

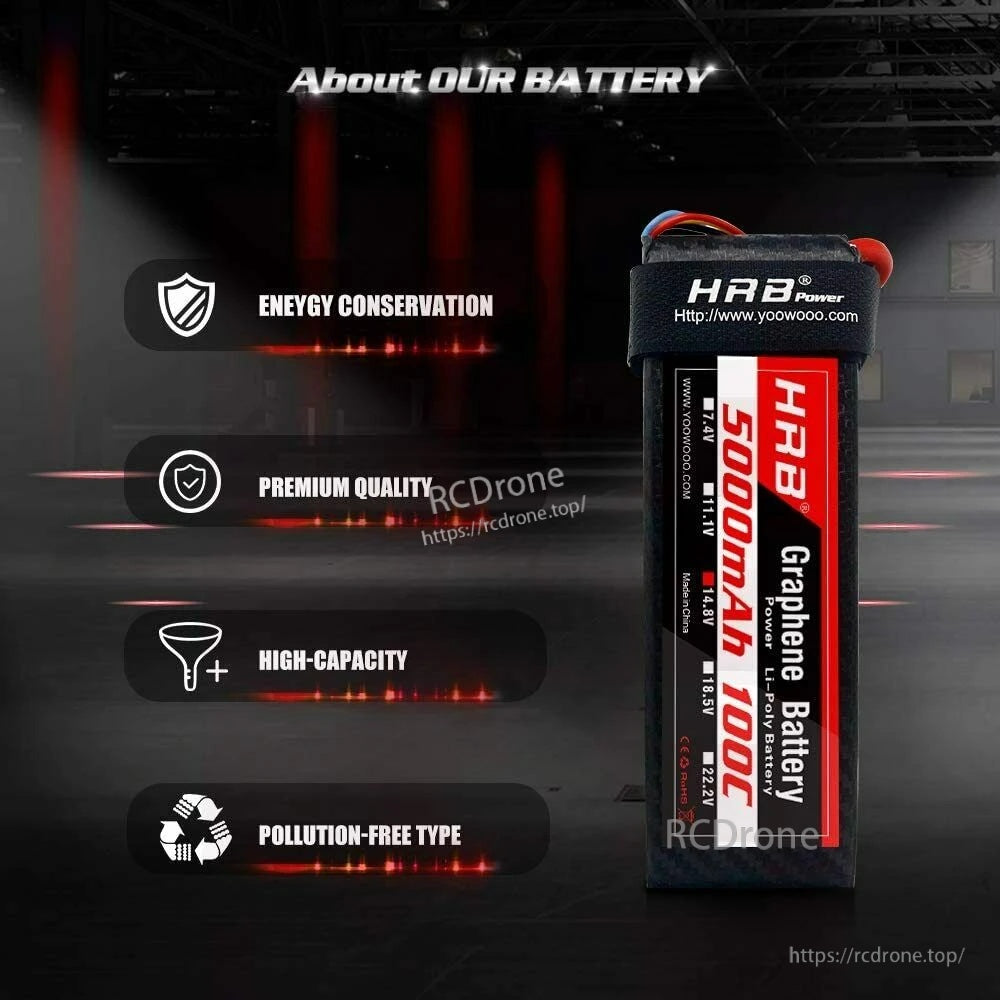

- Series feature labels shown: energy conservation, premium quality, high-capacity, pollution-free type
Specifications
| Item Name | 14.8V 5000mAh 100C 4S LiPo Battery |
| Battery Type | Graphene battery |
| Capacity | 5000mAh |
| Voltage | 14.8V |
| Cell Count | 4S |
| Dimensions | 155 x 48 x 32mm |
| Weight | 527g |
| Silicone Wire | 10awg |
| Connectors/Ports Shown | XT90 main connector; balance port |
| Plug Options (per product title) | XT90 / EC5 / XT60 |

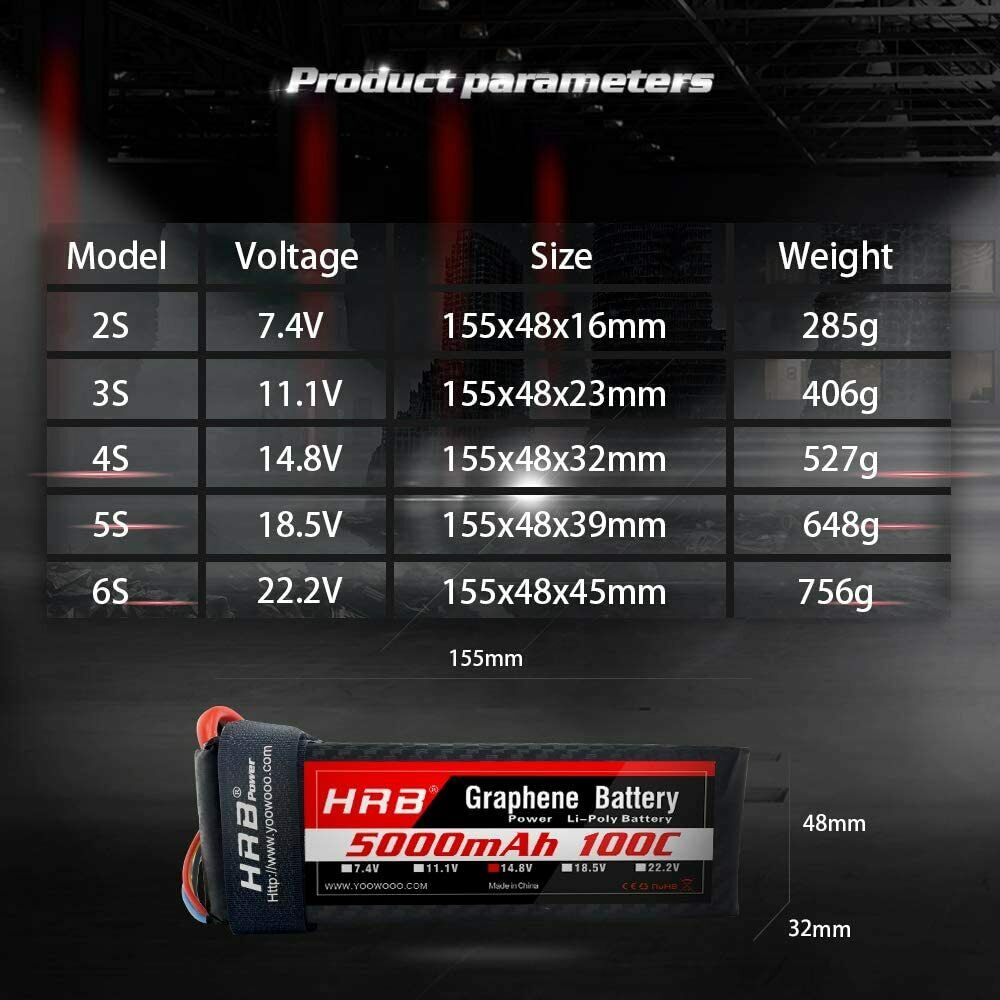

Reference Size/Weight Table Shown (Series Chart)
| 2S | 7.4V | 155 x 48 x 16mm | 285g |
| 3S | 11.1V | 155 x 48 x 23mm | 406g |
| 4S | 14.8V | 155 x 48 x 32mm | 527g |
| 5S | 18.5V | 155 x 48 x 39mm | 648g |
| 6S | 22.2V | 155 x 48 x 45mm | 756g |

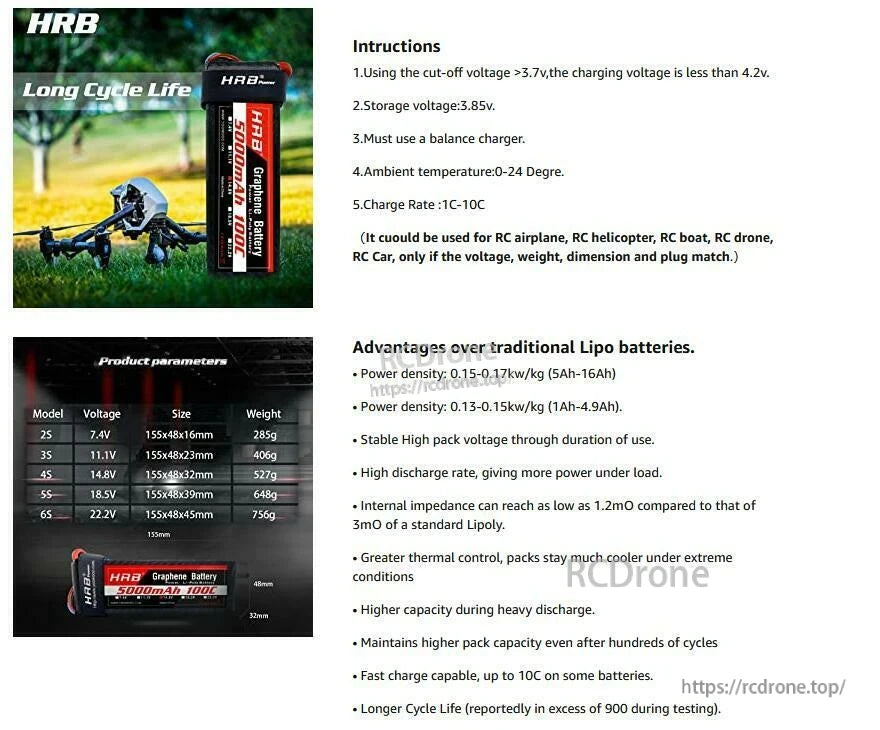

Charging & Use Notes (Text Shown)
- Using the cut-off voltage > 3.7V; the charging voltage is less than 4.2V.
- Storage voltage: 3.85V
- Must use a balance charger
- Ambient temperature: 0-24 Degree
- Charge rate: 1C-10C
Applications
- RC airplane
- RC helicopter
- RC boat
- RC drone
- RC car
Use only if the voltage, weight, dimension, and plug match the model’s requirements.
Support
For product selection help (XT90/EC5/XT60 plug choice), compatibility questions, or after-sales support, contact [email protected] or visit https://rcdrone.top/.
Details
Choose the right pack by cell count—4S measures 155 × 48 × 32mm and weighs about 527g.

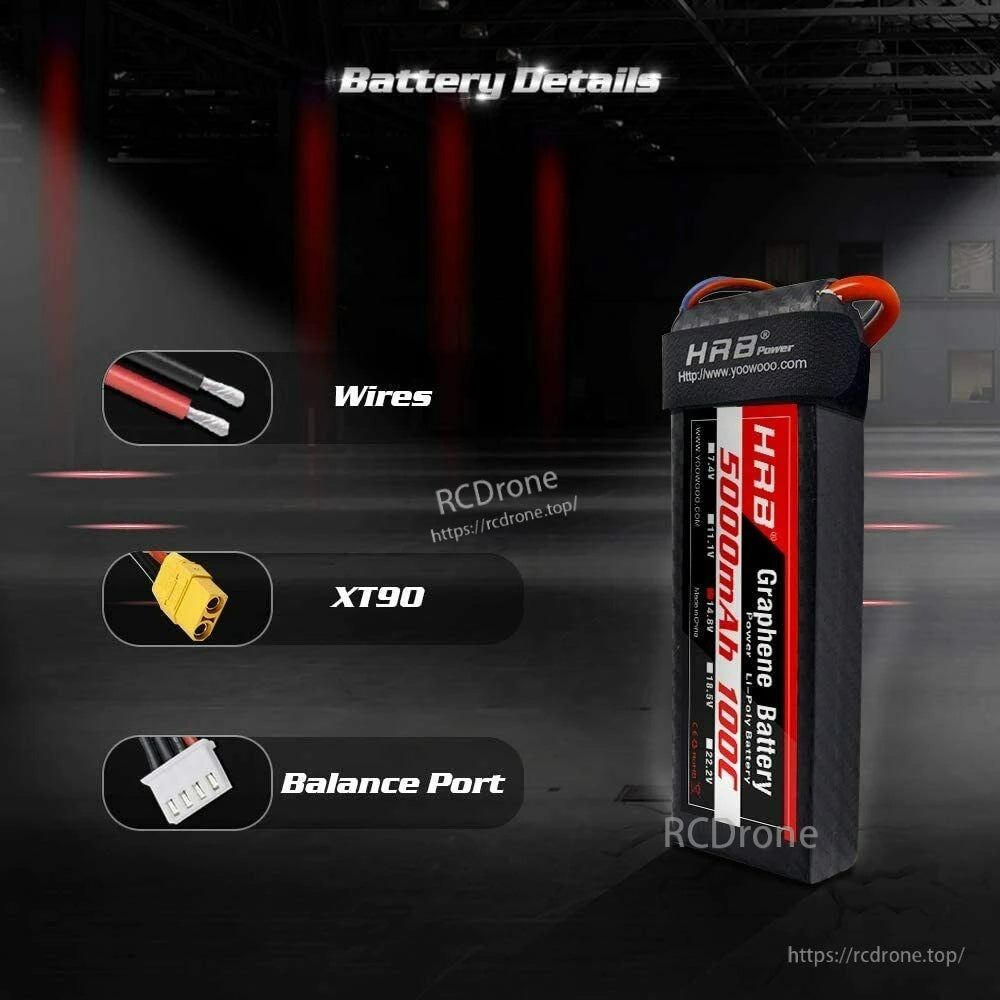

A high-current XT90 main lead and a separate balance port support reliable charging and strong power delivery in RC setups.
Follow the recommended cut-off, storage voltage, and balance-charging guidelines to help maximize performance and cycle life.
