MKS HBL960 x3 + HBL990 x1 Servo Motor Combo Pack | Swashplate & Tail Rotor Servos, 6.0V-8.4V

MKS Servos

$959.00 USD

فروش فروخته شده

Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.

Options HBL960*3+HBL990*1 HBL960 Swashplate Servo HBL990 Tail Rotor Servo

تعداد

مشاهده جزئیات کامل

Overview

The MKS HBL960*3 + HBL990*1 Servo Combo Pack is a Servo Motor set featuring MKS HBL960 servos for swashplate control and an MKS HBL990 servo for tail rotor control. This bundle includes the manufacturer-listed torque, speed, electrical, and mechanical specifications for each model.

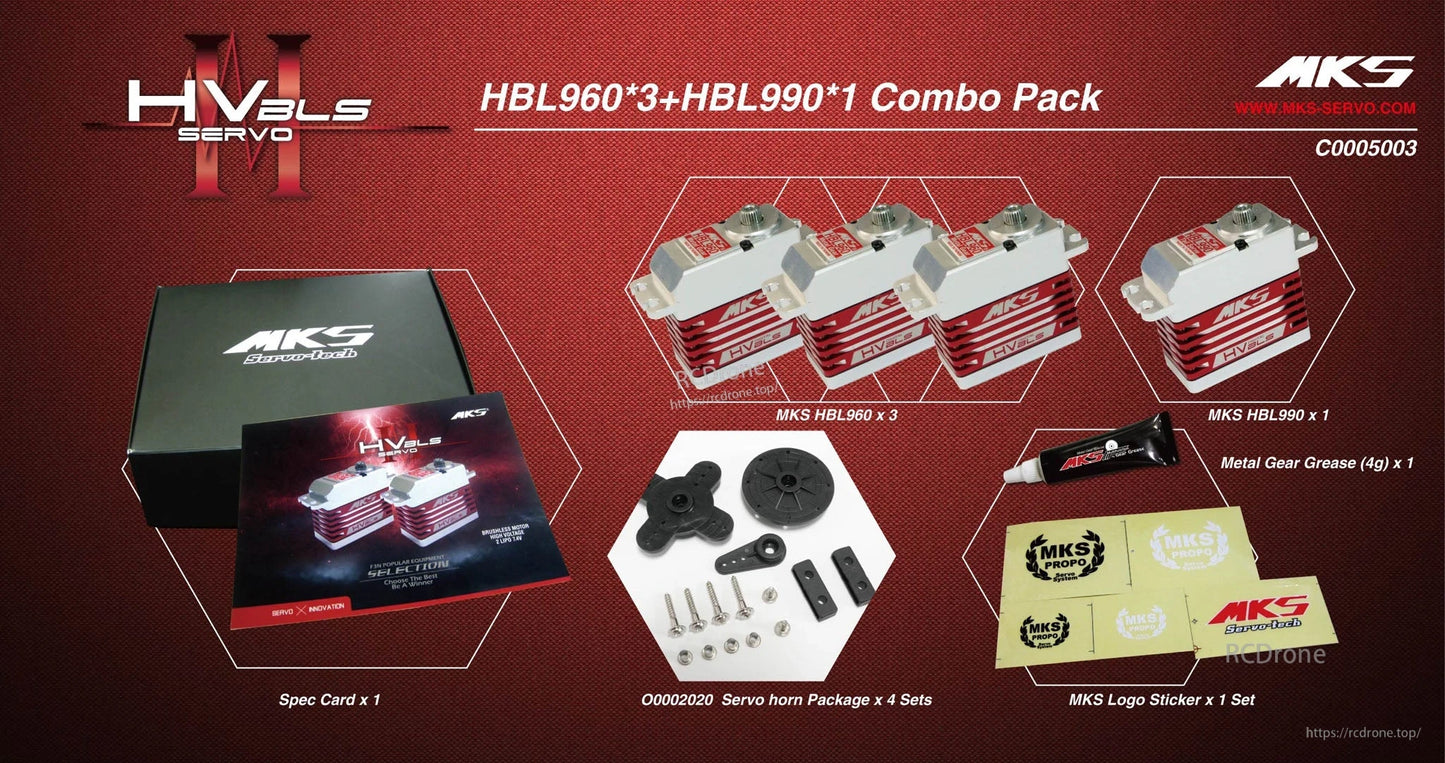

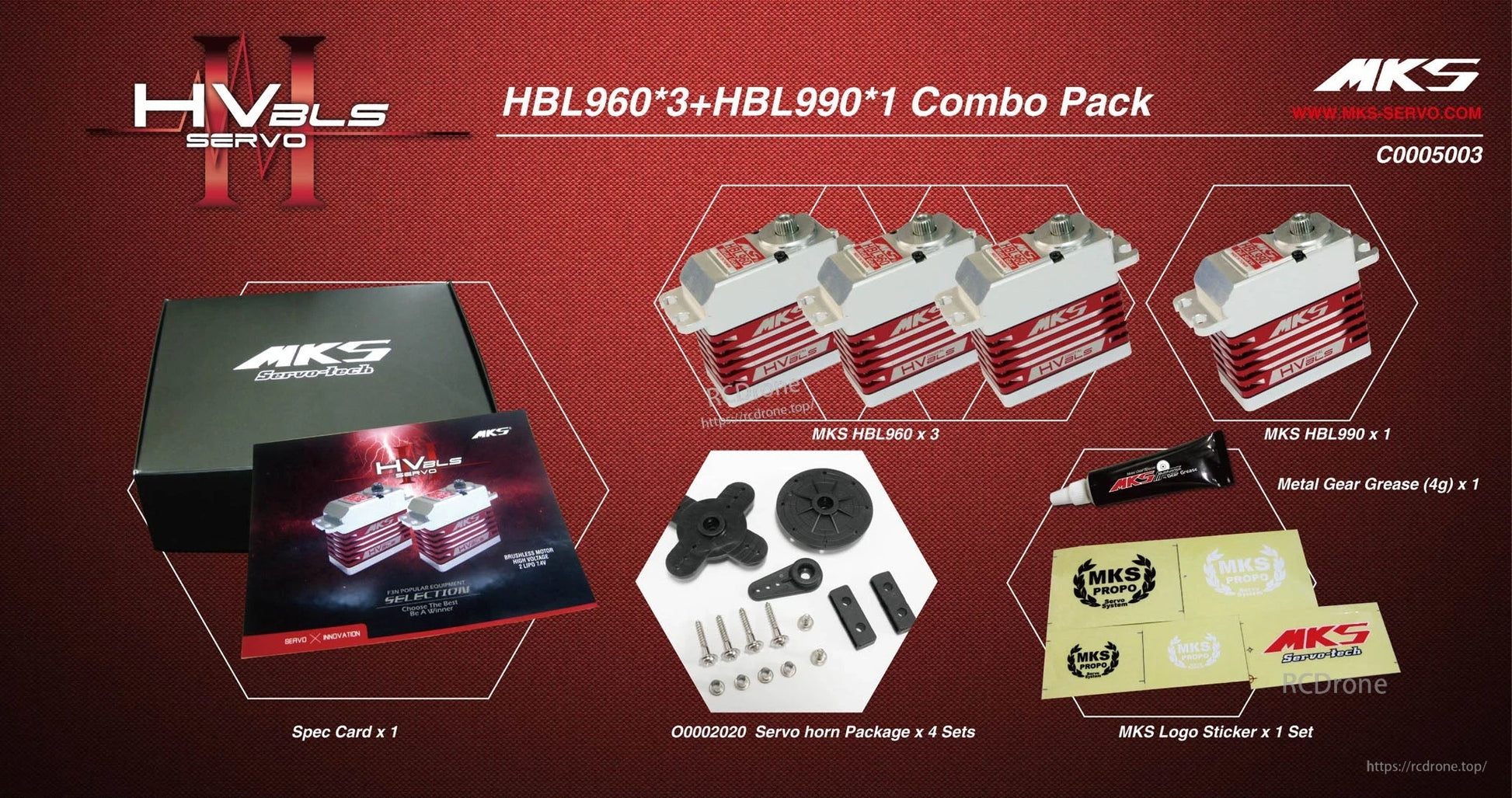

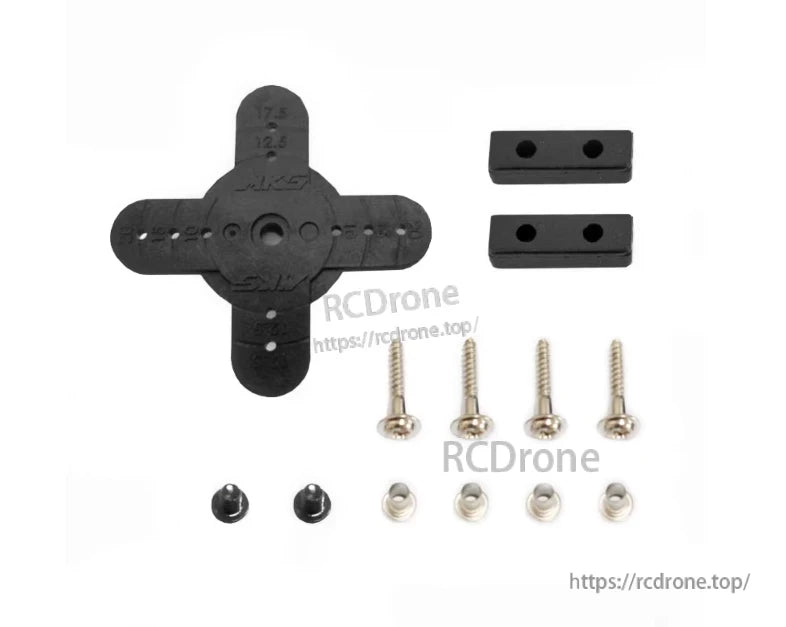

What’s Included

MKS HBL960 Swashplate Servo x 3
MKS HBL990 Tail Rotor Servo x 1

Key Features

Japanese-made brushless motor (HBL960 and HBL990)
Metal alloy gear (HBL960 and HBL990)
2* ball bearing (HBL960 and HBL990)
Wide working voltage range: 6.0V ~ 8.4V DC Volts (HBL960 and HBL990)

For product support and order assistance, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

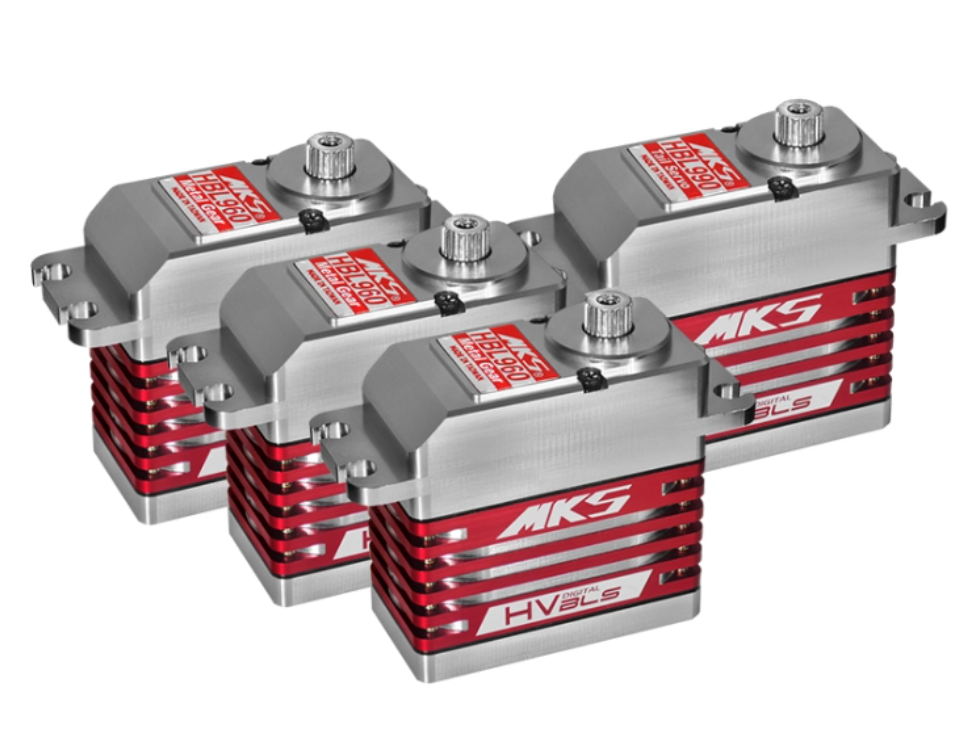

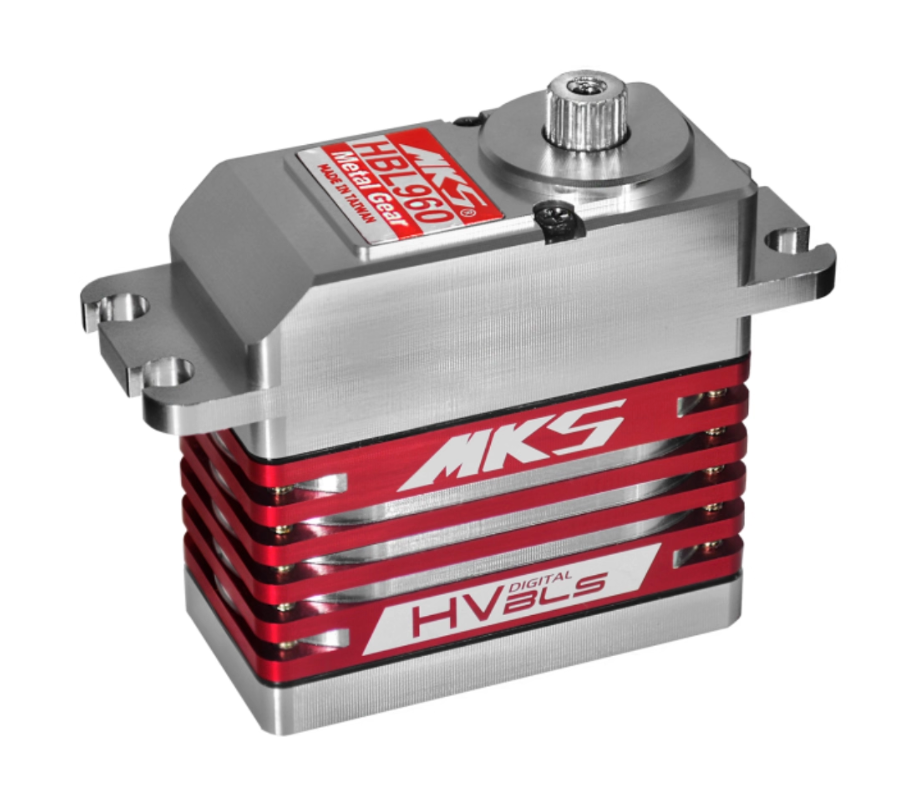

MKS HBL960 Swashplate Servo

Torque (6.0V)	13.6 kg-cm / 188.9 oz-in
Torque (7.4V)	17 kg-cm / 236 oz-in
Torque (8.2V)	18.6 kg-cm / 258.3 oz-in
Speed	0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Weight	70.15 g (2.47 oz)

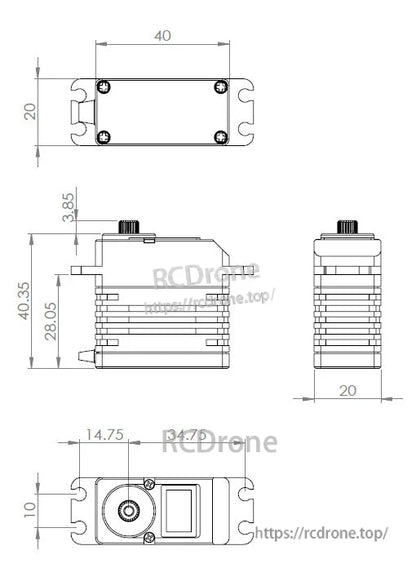

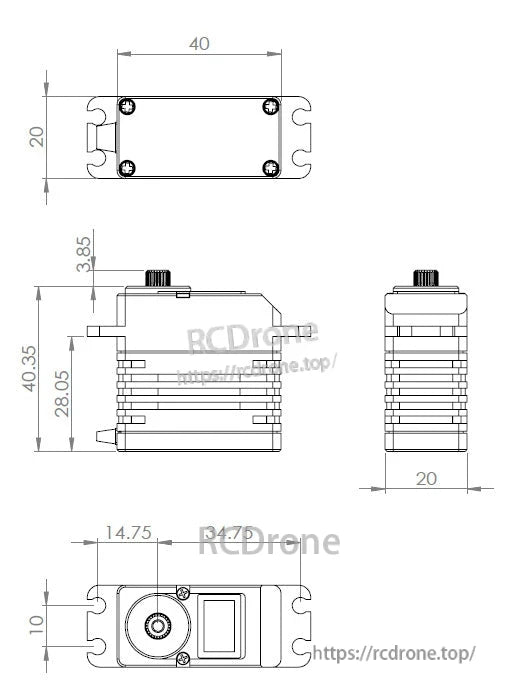

Dimension	40 x 20 x 40 mm
Stall Torque (kg-cm)	13.6 (6.0V) / 17 (7.4V) / 18.6 (8.2V)
Stall Torque (oz-in)	188.9 (6.0V) / 236 (7.4V) / 258.3 (8.2V)
No-load Speed	0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Stall Current	2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage	6.0V ~ 8.4V DC Volts
Working Frequency	1520us / 333Hz
Dead Band	0.0008ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Japanese-made Brushless Motor

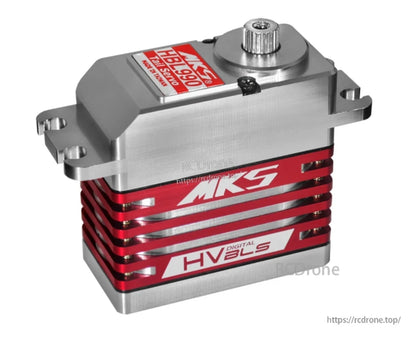

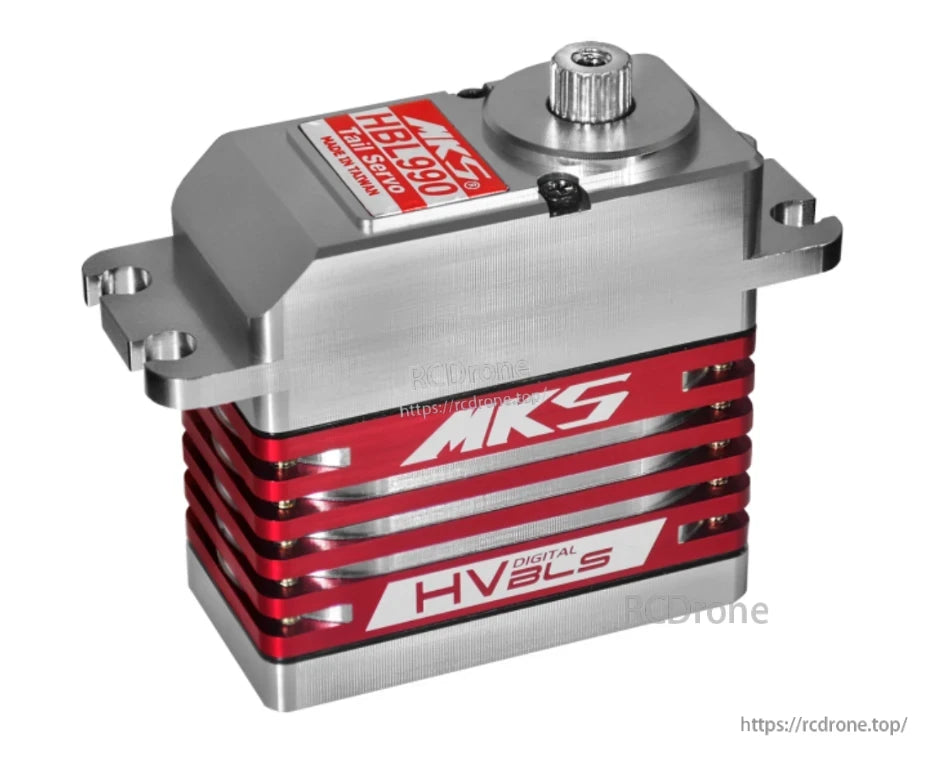

MKS HBL990 Tail Rotor Servo

Torque (6.0V)	4.7 kg-cm / 65.3 oz-in
Torque (7.4V)	5.8 kg-cm / 80.5 oz-in
Torque (8.2V)	6.3 kg-cm / 87.5 oz-in
Speed	0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Weight	70.55 g (2.49 oz)
Dimension	40 x 20 x 40 mm
Stall Torque (kg-cm)	4.7 (6.0V) / 5.8 (7.4V) / 6.3 (8.2V)
Stall Torque (oz-in)	65.3 (6.0V) / 80.5 (7.4V) / 87.5 (8.2V)
No-load Speed	0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Stall Current	2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage	6.0V ~ 8.4V DC Volts
Working Frequency	760us / 560Hz
Dead Band	0.0004ms (Default)
Bearing	2* Ball Bearing
Gear	Metal Alloy Gear
Motor	Japanese-made Brushless Motor

Applications

Swashplate servo (MKS HBL960)
Tail rotor servo (MKS HBL990)

Recommended Compatible Gyros (HBL990)

Spartan DS760, Spartan Quark, Futaba GY611, GY601, GY520, ALIGN GP700, GP750, Mikado V-Bar Tail, CSM SL720, Curtis Youngblood Mini-G, Solid G, Thunder Tiger TG-7000, BeastX Mircobeast
