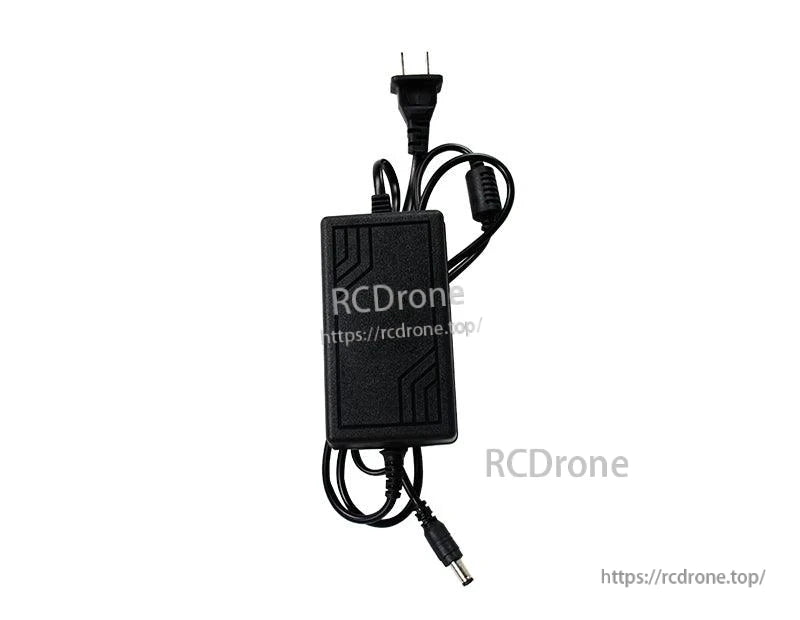

NVIDIA Jetson Nano 5V 4A DC Power Adapter (US Plug) for Jetson Nano 4GB A02/B01/SUB - J48 Jumper Caps Included
NVIDIA Jetson Nano 5V 4A DC Power Adapter (US Plug) for Jetson Nano 4GB A02/B01/SUB - J48 Jumper Caps Included
yahboom
در دسترس بودن پیکاپ بارگیری نشد
Overview
This DC power adapter is designed for NVIDIA Jetson Nano to provide a stable 5V 4A power supply when the micro USB input (2A) is not sufficient for powering additional peripherals such as a fan, 7-inch display, camera, and other USB devices. It supports Jetson Nano B01 (Official/SUB) and is intended for Jetson Nano 4GB boards (A02/B01/SUB).
Key Features
- Rated output: 5V 4A for Jetson Nano DC input use
- Input voltage: 100-240V
- DC output interface: 5.5 x 2.5 mm, compatible with 5.5 x 2.1 mm
- Protection functions: short-circuit protection, over-current protection, over-voltage protection, under-voltage protection, reverse connection protection
- Status indicator: blue light
- AC plug: US
- Compatibility notice: Jetson Nano 2GB not supported; Jetson Orin Nano not supported

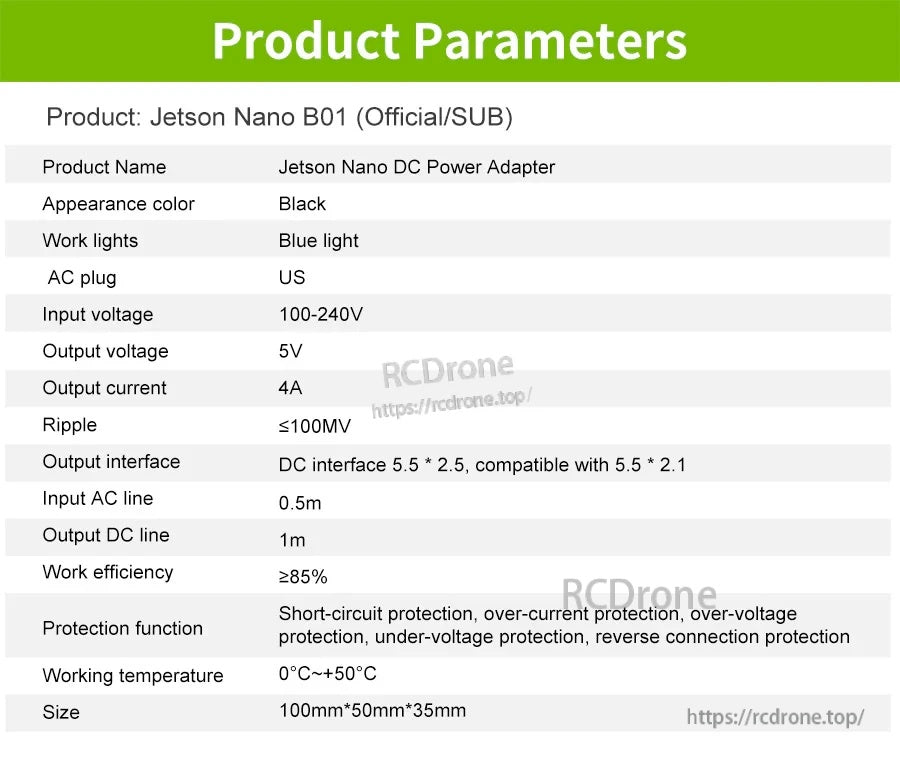

Specifications
| Product Name | Jetson Nano DC Power Adapter |
| Appearance color | Black |
| Work lights | Blue light |
| AC plug | US |
| Input voltage | 100-240V |
| Output voltage | 5V |
| Output current | 4A |
| Ripple | ≤100MV |
| Output interface | DC interface 5.5 x 2.5, compatible with 5.5 x 2.1 |
| Input AC line | 0.5m |
| Output DC line | 1m |
| Work efficiency | ≥85% |
| Working temperature | 0C~+50C |
| Size | 100mm x 50mm x 35mm |
| Protection function | Short-circuit protection, over-current protection, over-voltage protection, under-voltage protection, reverse connection protection |

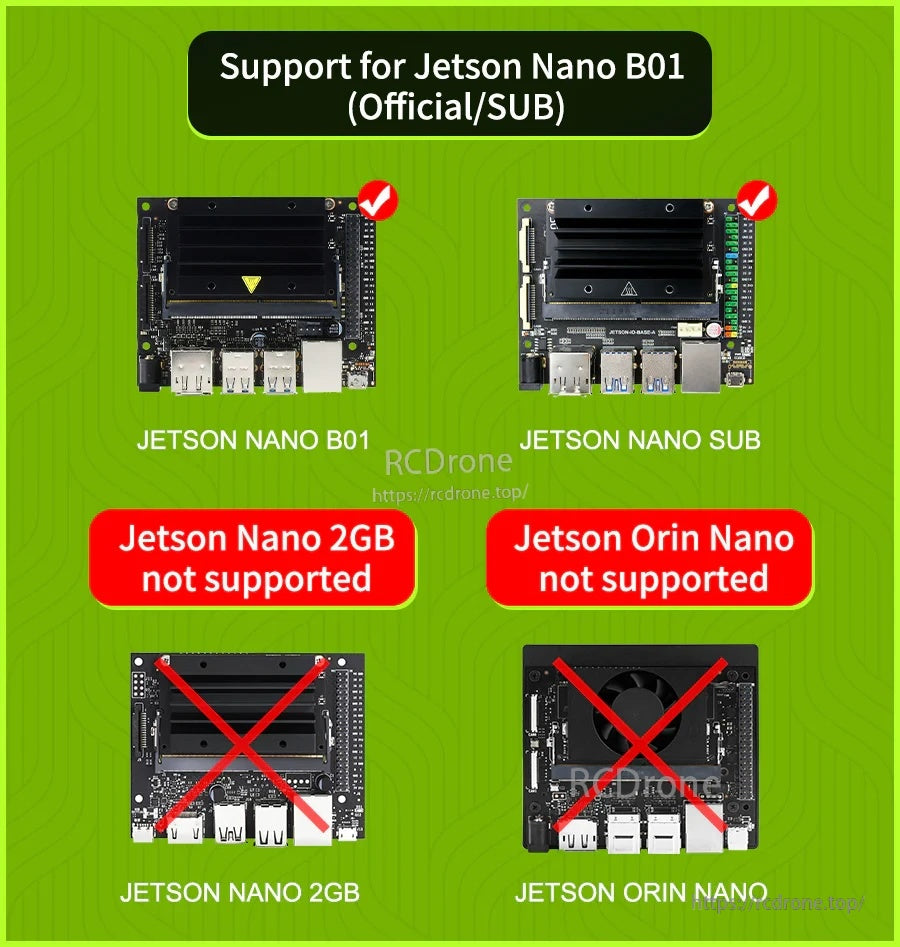

Compatibility
- Supported: Jetson Nano B01 (Official/SUB)
- Not supported: Jetson Nano 2GB
- Not supported: Jetson Orin Nano

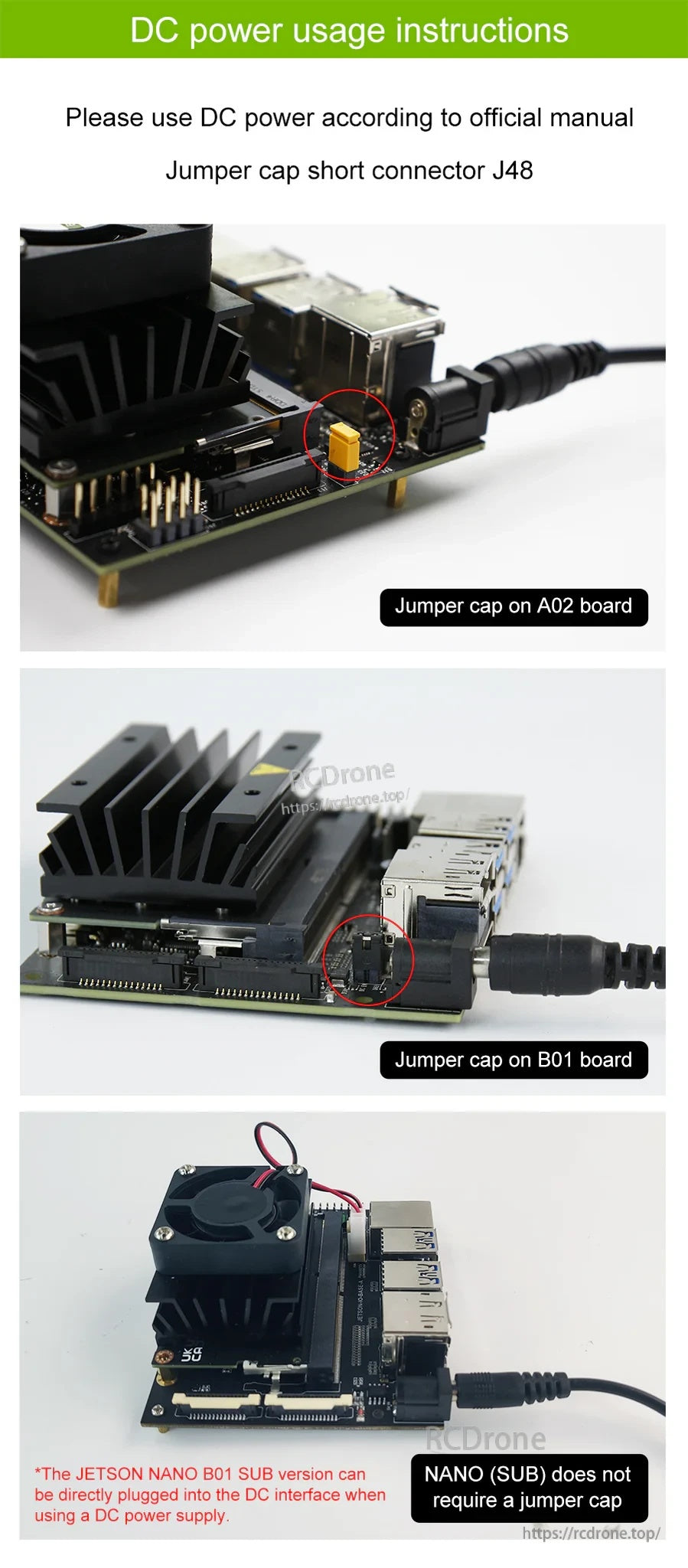

DC Power Usage Instructions
- When using a DC power supply, short connector J48 with a jumper cap according to the official Jetson Nano manual.
- Jetson Nano (SUB) does not require a jumper cap.

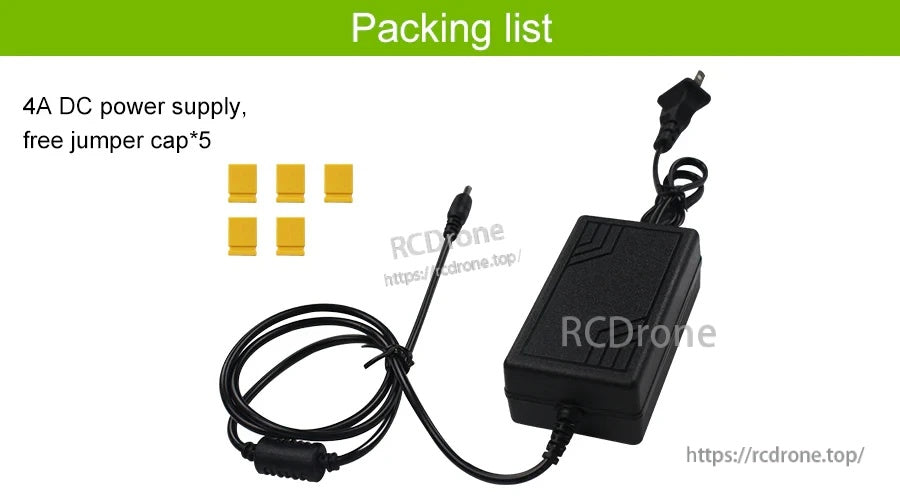

What's Included
- 5V 4A DC Power Adapter x 1
- Jumper cap x 5
For pre-sale compatibility questions or post-sale support, contact support@rcdrone.top or visit https://rcdrone.top/.
Details

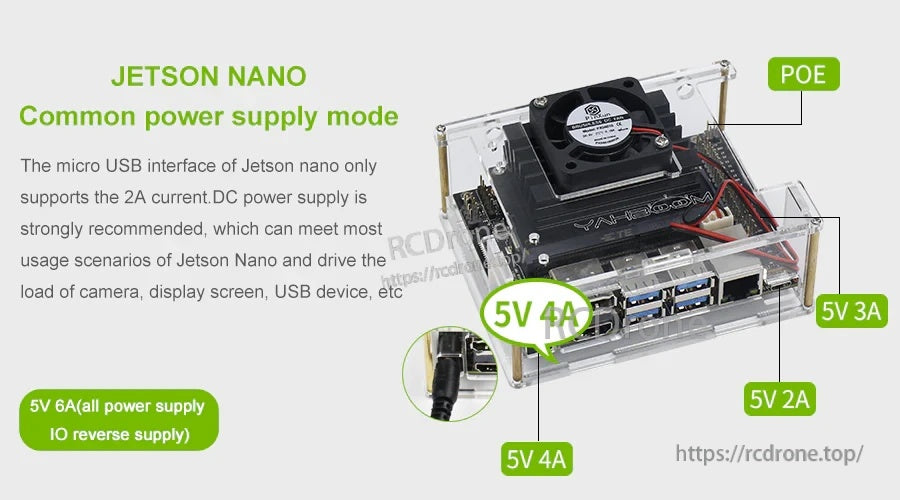

Use the 5V 4A DC input to deliver stable power when running extra peripherals beyond micro‑USB limits.
Designed for Jetson Nano 4GB boards (A02/B01/SUB) and not intended for Jetson Nano 2GB or Jetson Orin Nano.

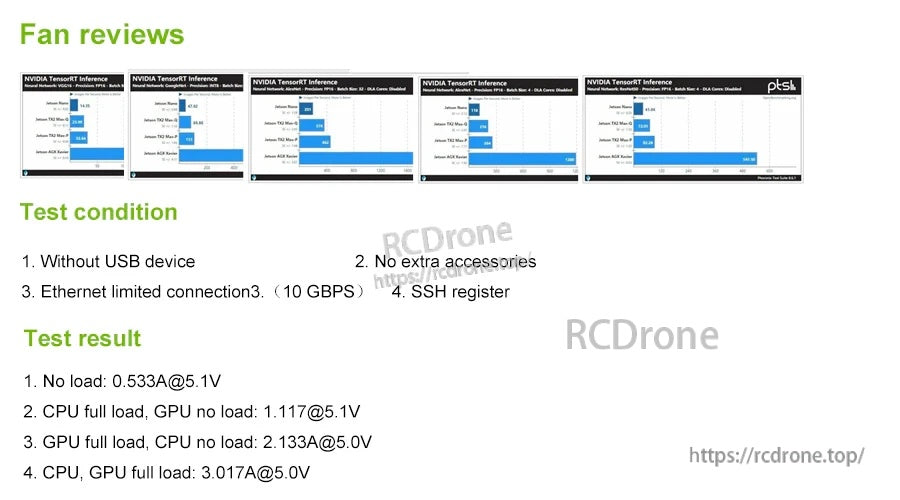

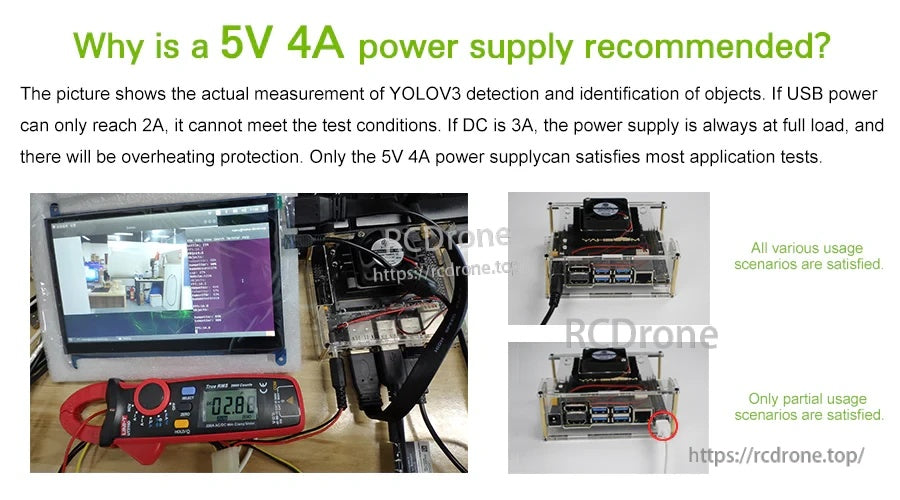

A dedicated 5V 4A supply helps support higher-load setups such as fans, cameras, and displays.
Higher-current DC power reduces power-limit issues during demanding applications and extended testing.
Follow the official guidance for DC input by setting the J48 jumper on A02/B01 boards; SUB boards don’t require a jumper.

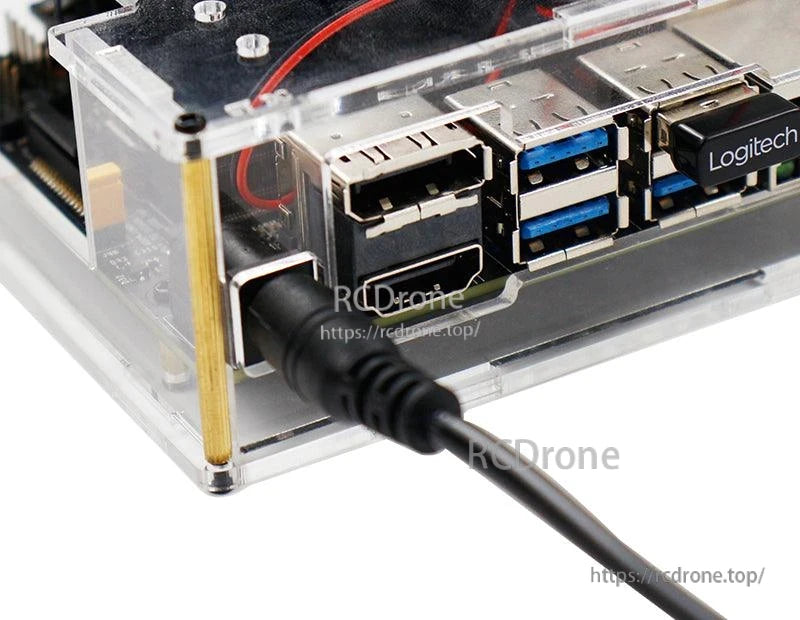

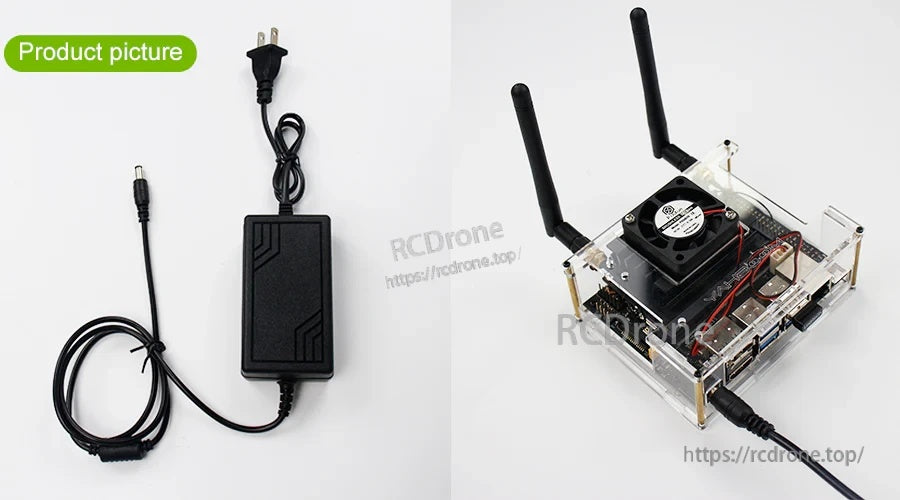

A 5.5 x 2.5 mm DC plug connects to the Jetson Nano barrel jack and is compatible with 5.5 x 2.1 mm ports.
