Ovonic 100C 3S1P 5200mAh 11.1V LiPo Battery (57.72Wh) Deans Plug for RC Car Power
Ovonic 100C 3S1P 5200mAh 11.1V LiPo Battery (57.72Wh) Deans Plug for RC Car Power
Ovonic
در دسترس بودن پیکاپ بارگیری نشد
Overview

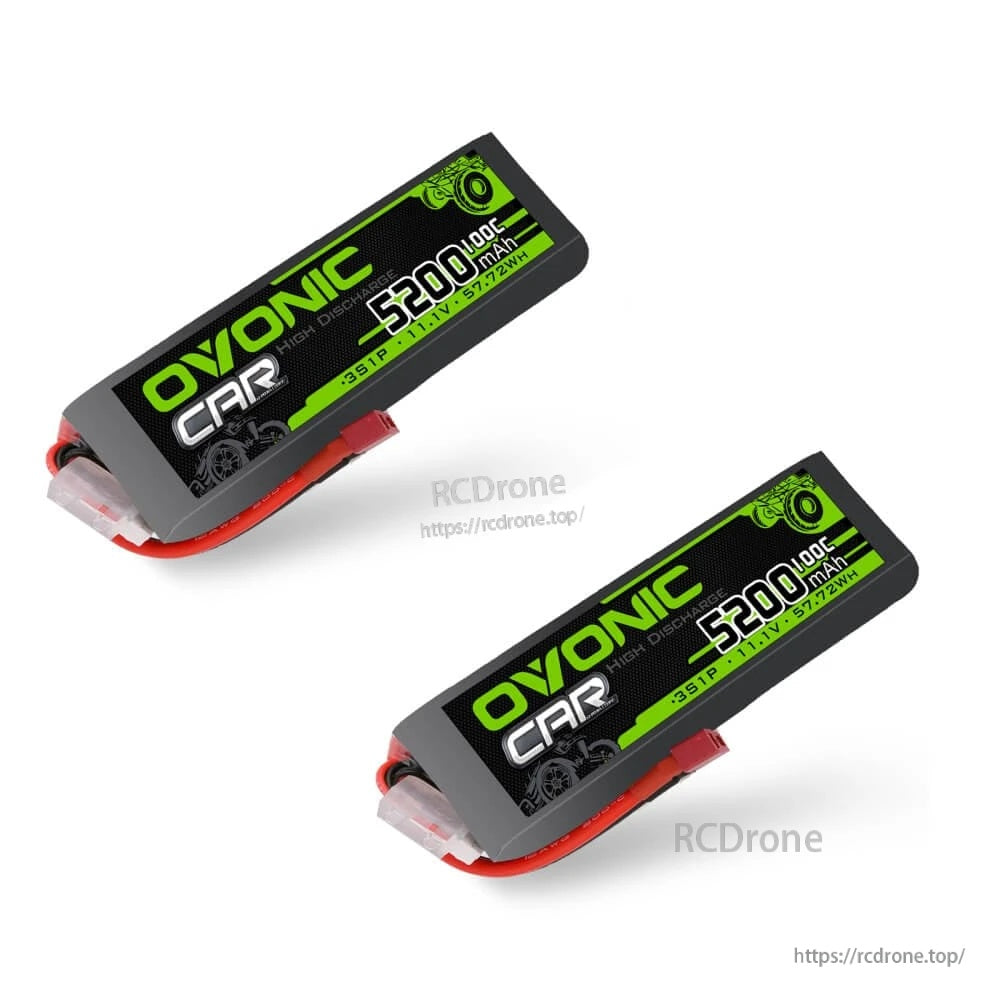

The Ovonic 100C 3S1P 5200mAh 11.1V LiPo battery is designed as a high-discharge power pack for RC car applications, using a Deans (T) discharge plug and a JST-XH balance/charge lead. The label also lists an energy rating of 57.72Wh.
Key Features
- High discharge rating: 100C (max burst discharge rate: 200C)
- 3S1P configuration (11.1V nominal)
- Connector setup: Deans (T) discharge plug + JST-XH balance/charge plug
- Manufacturer performance claims shown on product materials: +12% longer running time, -5% lighter weight, -4% lower resistance
- ISO International Quality Certification (as stated on product materials)
Specifications
| Brand | Ovonic |
| Chemistry | Li-Polymer |
| Configuration | 3S1P |
| Voltage | 11.1V |
| Capacity | 5200mAh |
| Energy | 57.72Wh |
| Discharge Rate | 100C |
| Max Burst Discharge Rate | 200C |
| Charge Plug | JST-XH |
| Discharge Plug | Deans Plug |
| Net Weight (dev.20g) | 354 g (for 1 unit) |
| Length (dev.5mm) | 134mm |
| Width (dev.2mm) | 44mm |
| Height (dev.2mm) | 29mm |
What's Included
- 1x Ovonic 100C 3S1P 5200mAh 11.1V LiPo Battery (Deans Plug)
- 1x User Manual
- Packing box (retail packaging)
Applications
- RC cars where a 3S (11.1V) LiPo with Deans (T) discharge connector is required
Product materials also mention “universal compatibility” and list: eachine E30/E30W, Syma X5/X5C/X5SC/X5SW, JJRC H5C/H5P/H10/H9D, Cheerson CX30W, etc. For fitment, only the correct voltage and plug type will work.
Important Notes (Use & Charging)
- Only if the voltage and the plug match, then it will fit.
- Stop charging immediately when the cell voltage reaches 4.2V (normal cell voltage is between 3.7V and 4.2V).
- Check whether the battery surface is OK and whether the voltage is normal before use.
- If a new battery will not hold a full charge or loses charge quickly, use a balance charger to charge and recycle several times first.
For help confirming connector/voltage match or choosing a suitable balance charger, contact support at https://rcdrone.top/ or email [email protected].
Details

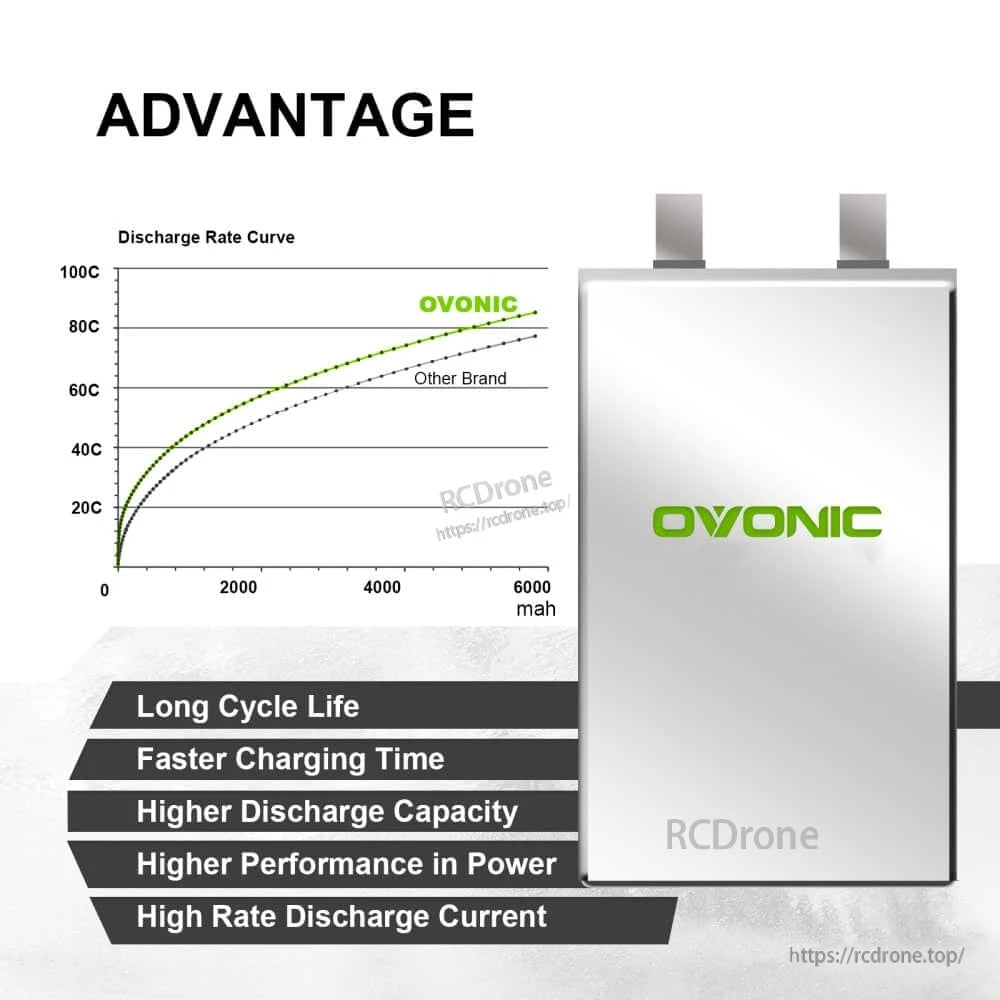

Ovonic highlights a 100C high-discharge design and lists performance claims on the packaging for quick comparison.
Fitment depends on matching voltage and connector type, even when the compatibility list includes your model.

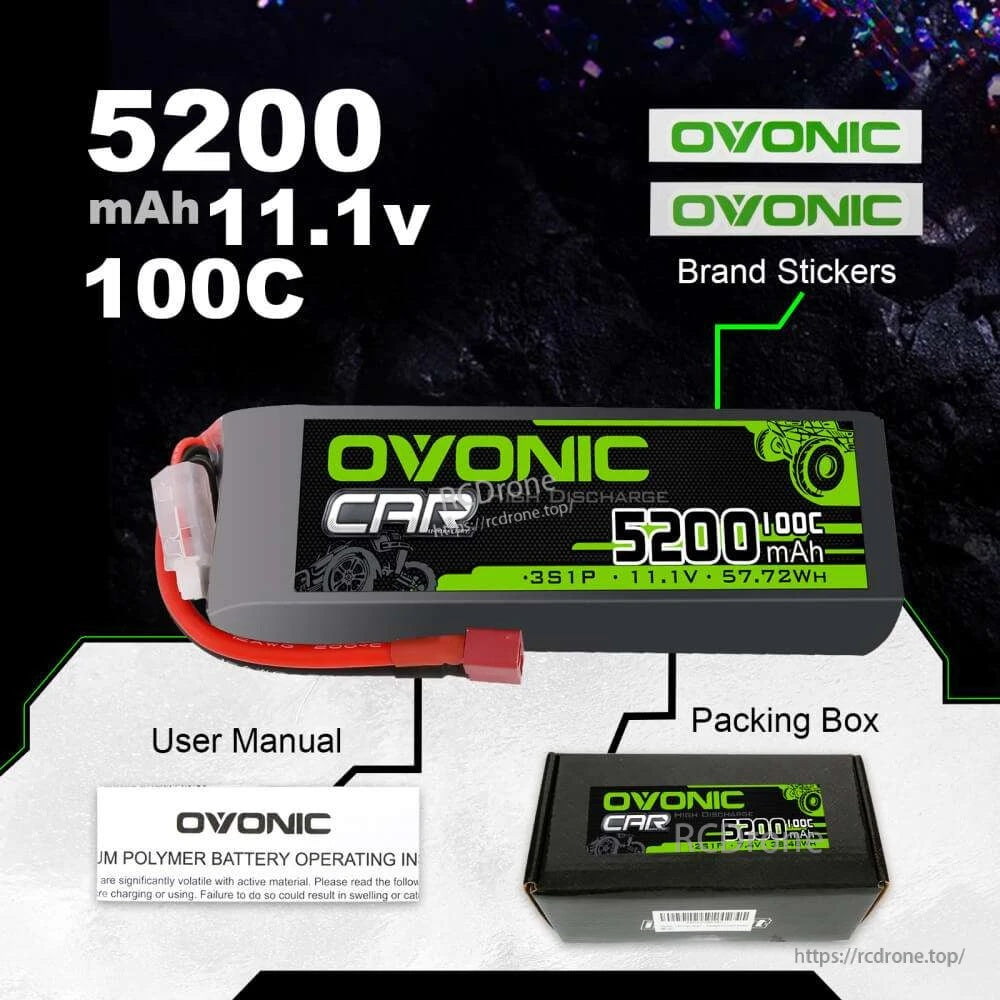

Retail package includes the Ovonic 5200mAh 3S LiPo battery, user manual, stickers, and the packing box.
