2× Ovonic 6S 5000mAh 22.2V 120C LiPo Battery Pack EC5, JST-XHR-7P for RC Car/Truck/Heli
2× Ovonic 6S 5000mAh 22.2V 120C LiPo Battery Pack EC5, JST-XHR-7P for RC Car/Truck/Heli
Ovonic
در دسترس بودن پیکاپ بارگیری نشد
Overview
This bundle includes 2 × Ovonic 6S LiPo battery packs designed for high-current RC power systems. Each pack is rated 5000mAh, 22.2V (6S1P), and 120C discharge, and uses an EC5 discharge plug plus a 7-pin balance connector labeled JST-XHR-7P. It is suitable for RC car/truck use and can also be used in compatible airplanes, helicopters, and boats where voltage, connector type, and physical size match.
Key Features
- High output: 120C discharge rate; max burst discharge rate listed as 240C.
- 6S1P configuration: 22.2V nominal (6S).
- Capacity: 5000mAh “real capacity” is highlighted in the product materials.
- Connectors: EC5 plug (discharge) + JST-XHR-7P (balance).
- Build details shown: solid copper wire.
- Lifecycle claims shown: “cycle life to 350+ times” / “up to 350 cycle times”.
- Additional claims shown: high energy density 128 Wh/L; micro internal resistance < 5 mΩ.
Specifications
| Brand | Ovonic |
| Battery type | Lithium polymer (LiPo) |
| Cell count / configuration | 6S1P |
| Nominal voltage | 22.2V |
| Capacity | 5000mAh |
| Energy (label) | 111Wh |
| Discharge rate | 120C |
| Max burst discharge rate | 240C |
| Discharge plug | EC5 |
| Balance/charge plug | JST-XHR-7P (as labeled) |

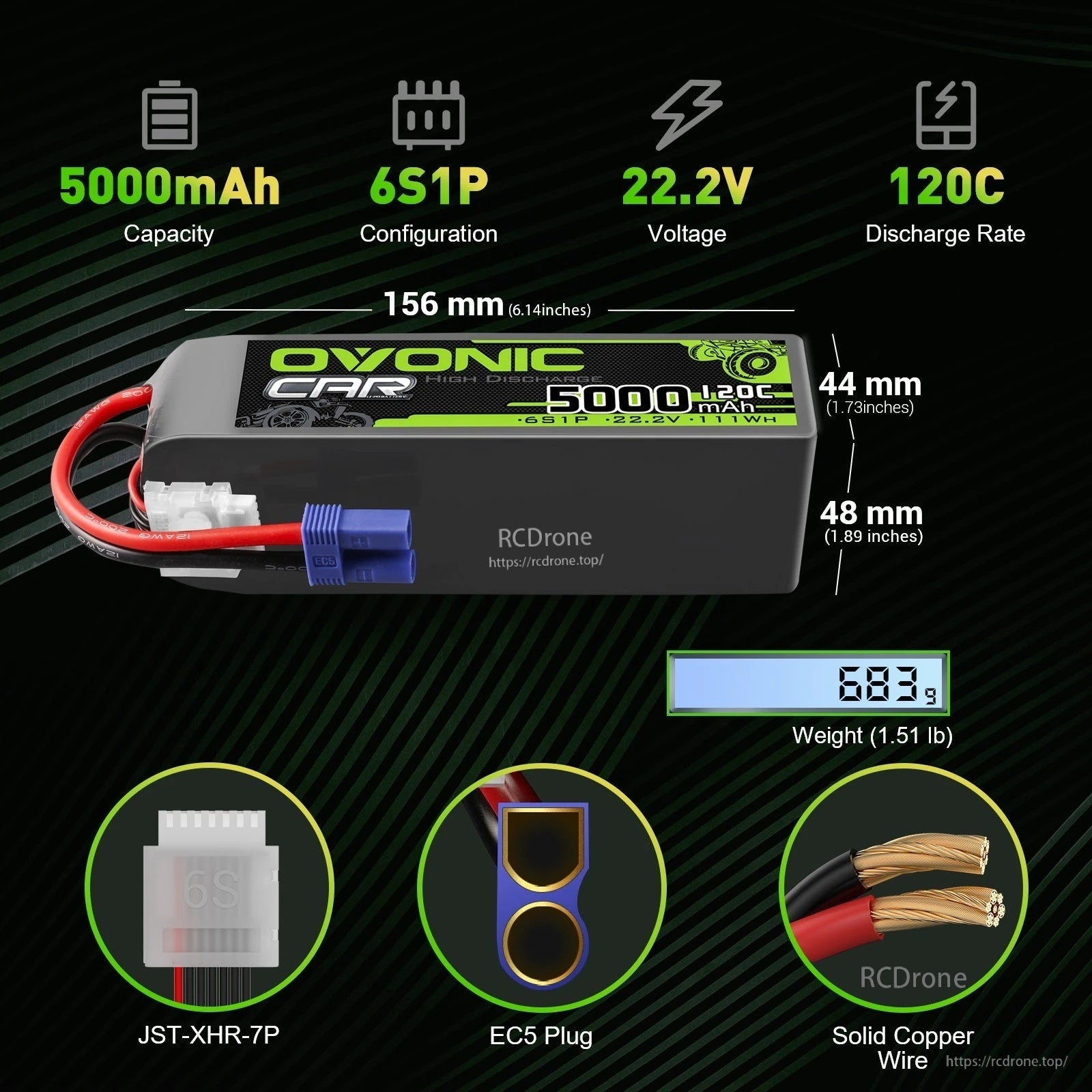

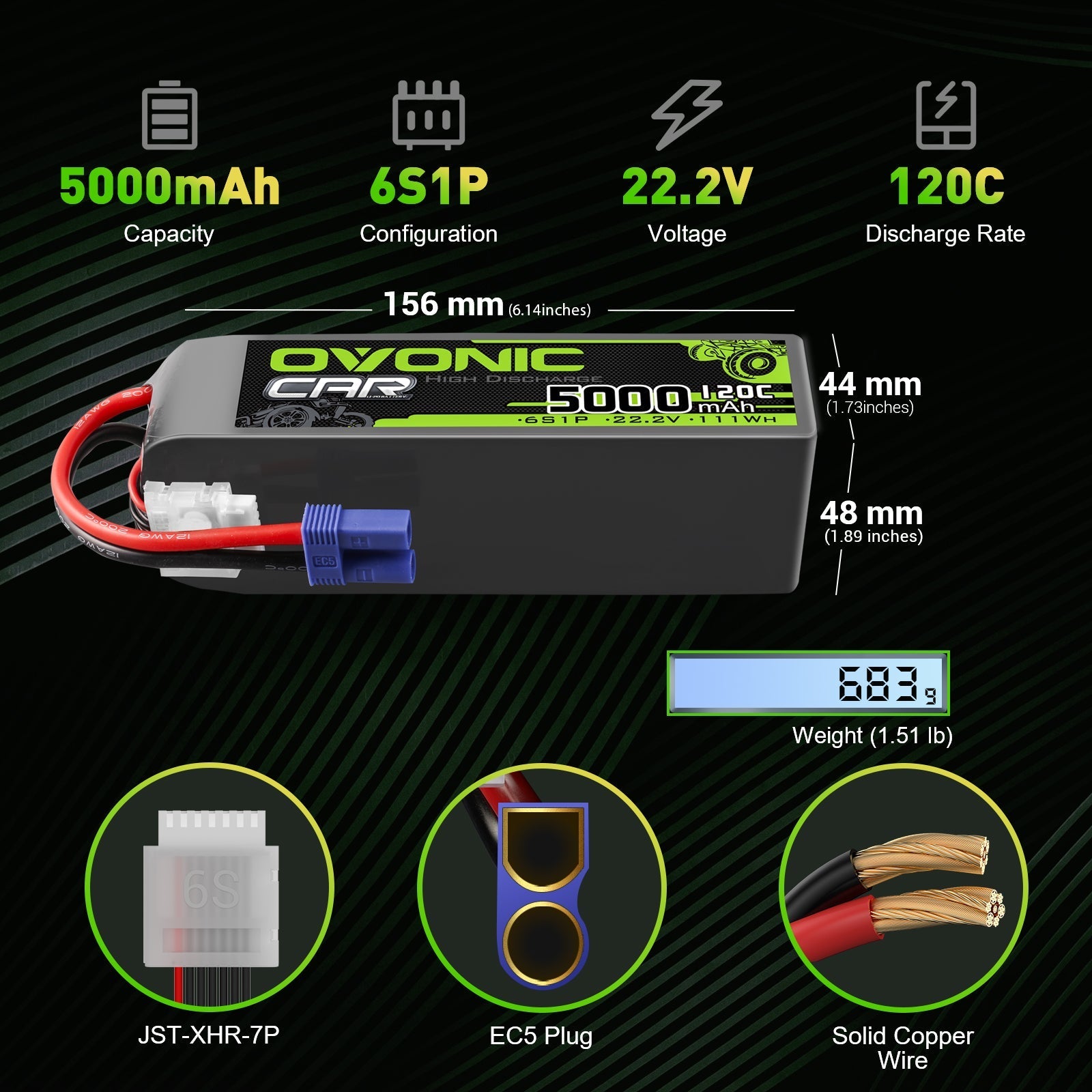

| Dimensions | 156 mm (L) × 44 mm (W) × 48 mm (H) (6.14" × 1.73" × 1.89" approx.) |
| Net weight | 683 g (1.51 lb) (dev. 20g) |
| High energy density (claim) | 128 Wh/L |
| Micro internal resistance (claim) | < 5 mΩ |
| Cycle life (claim) | 350+ times |

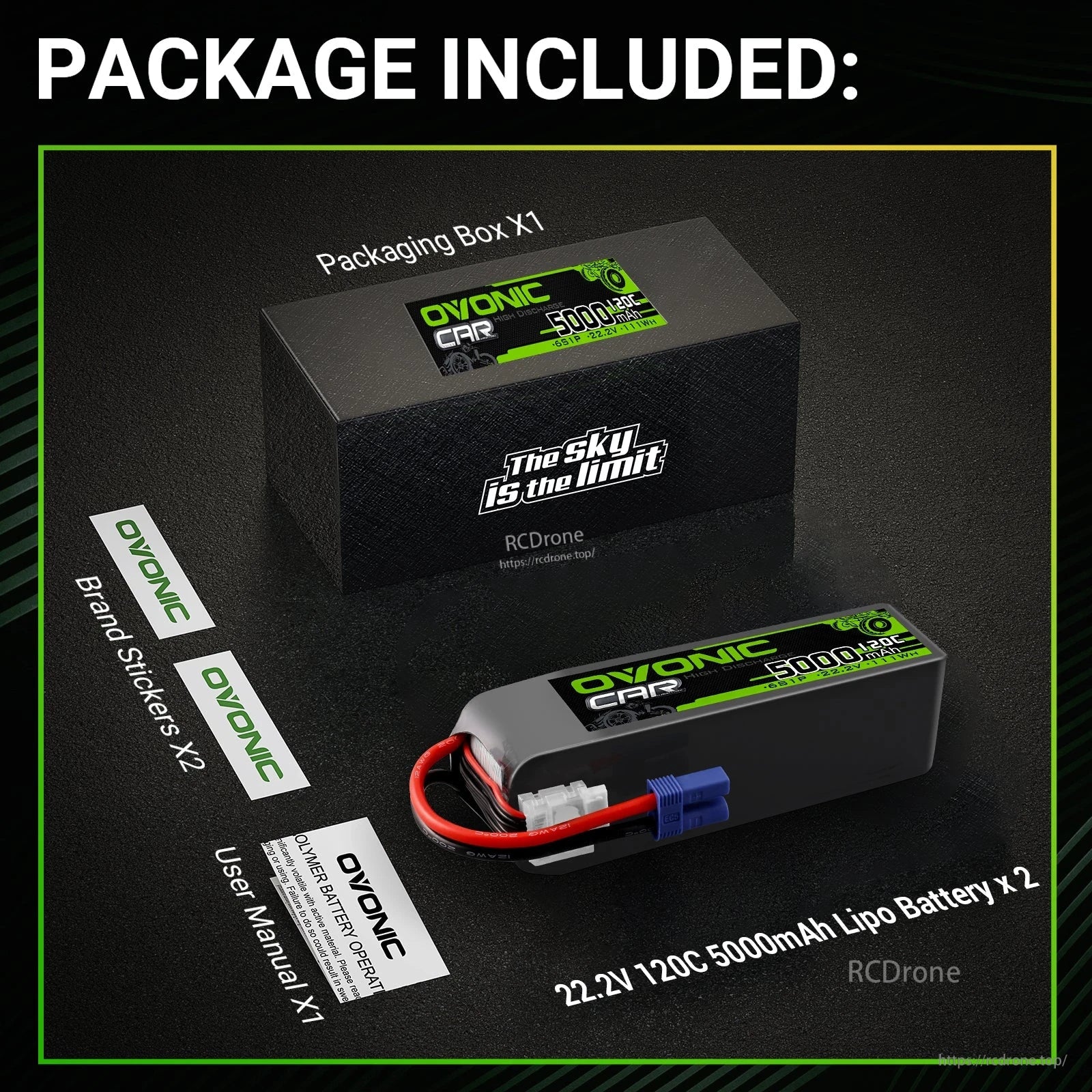

What's Included

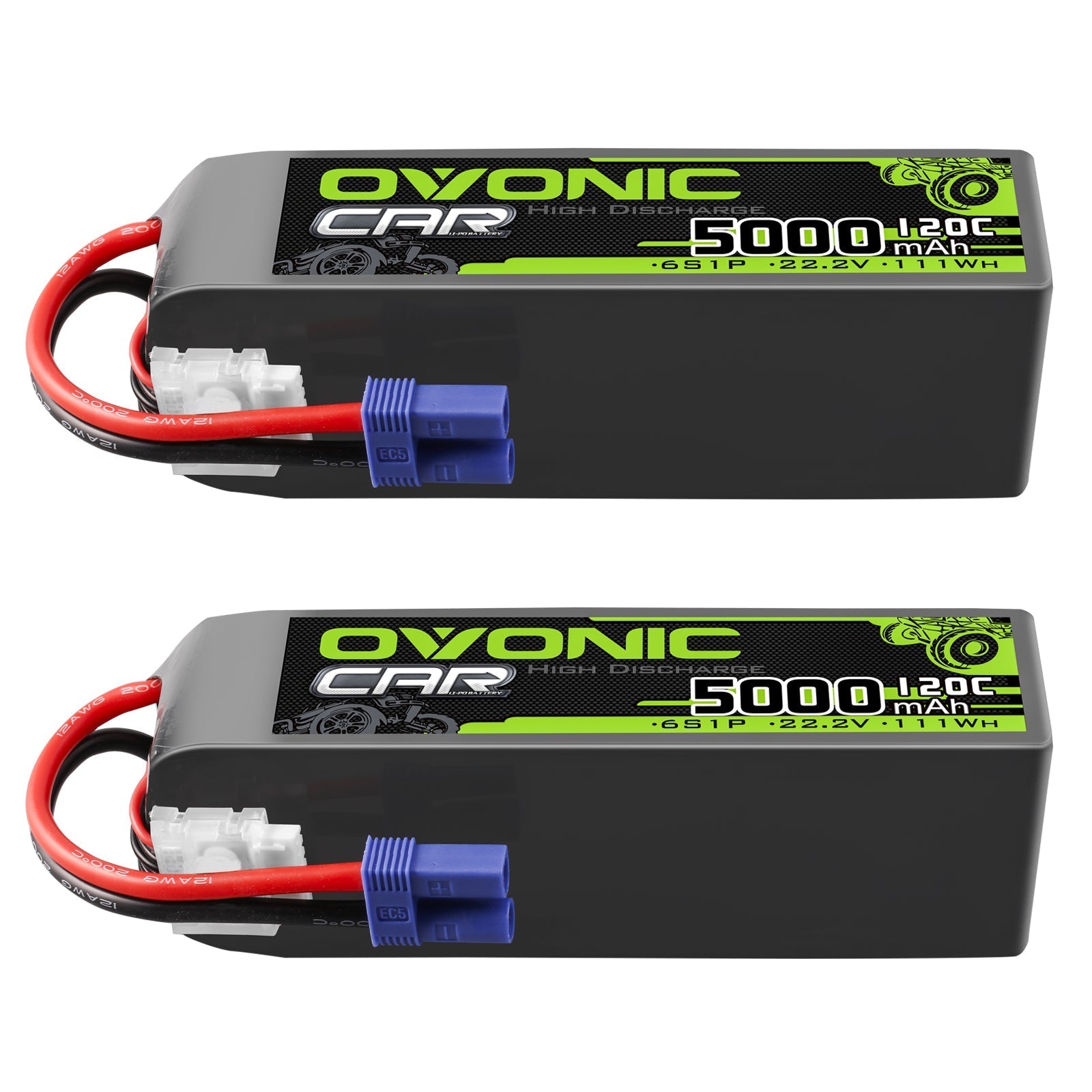

- 2 × Ovonic 5000mAh 6S 22.2V 120C LiPo Battery Pack (EC5)
- 2 × Brand stickers
- 1 × User manual
- 1 × Packaging box
Applications
- 1/8 and 1/10 scale RC cars/trucks (high-speed/racing setups where 6S and EC5 are supported)
- RC helicopters such as Align T-REX 700/800 series and Goblin 570 (when size/connector fit)
- EDF jets such as Freewing F-16C and Avanti S (when the power system supports 6S/EC5)
- Other RC models (airplane/boat) requiring a 6S 22.2V LiPo with EC5
Charging & Safety Notes
- Use a compatible RC LiPo balance charger and ensure the charger supports 6S packs.
- Confirm both voltage (6S/22.2V) and plug type (EC5 + 7-pin balance lead) before use.
- Stop charging at 4.2V per cell (normal range stated: 3.7V–4.2V per cell).
- Inspect the battery condition before each use and discontinue use if damaged.
- If a new battery does not hold a full charge, balance charge and cycle it several times.
For connector, fitment, or charger selection questions, contact support at https://rcdrone.top/ or email [email protected].
Video
Details
Get two 6S 5000mAh packs built for high-current RC setups, with EC5 discharge leads and a 7-pin JST-XHR balance connector.

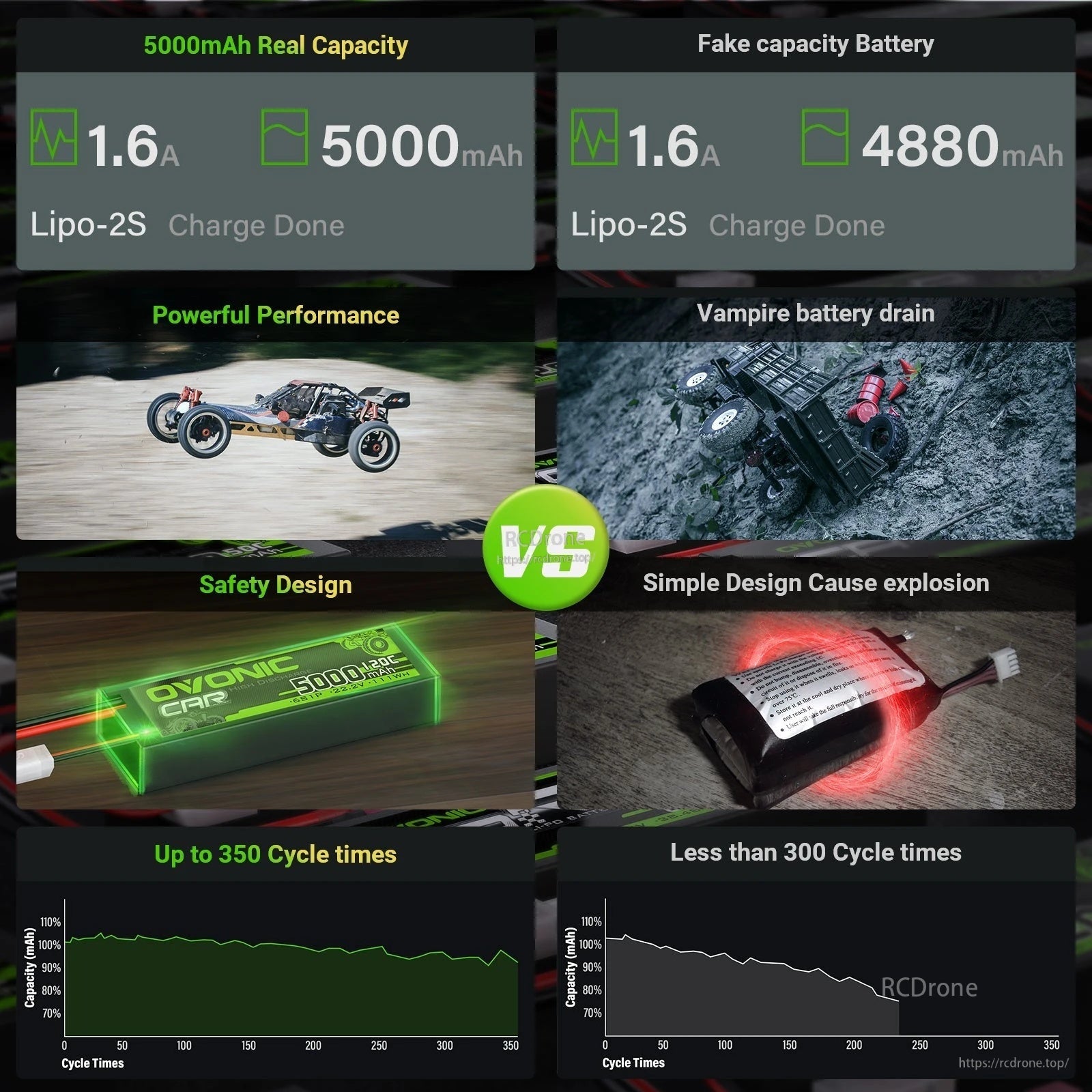

Ovonic highlights “real capacity” and a longer cycle-life target (up to 350 cycles) for consistent run time over repeated use.
Everything arrives in one bundle: two battery packs plus the packaging box, user manual, and Ovonic stickers.

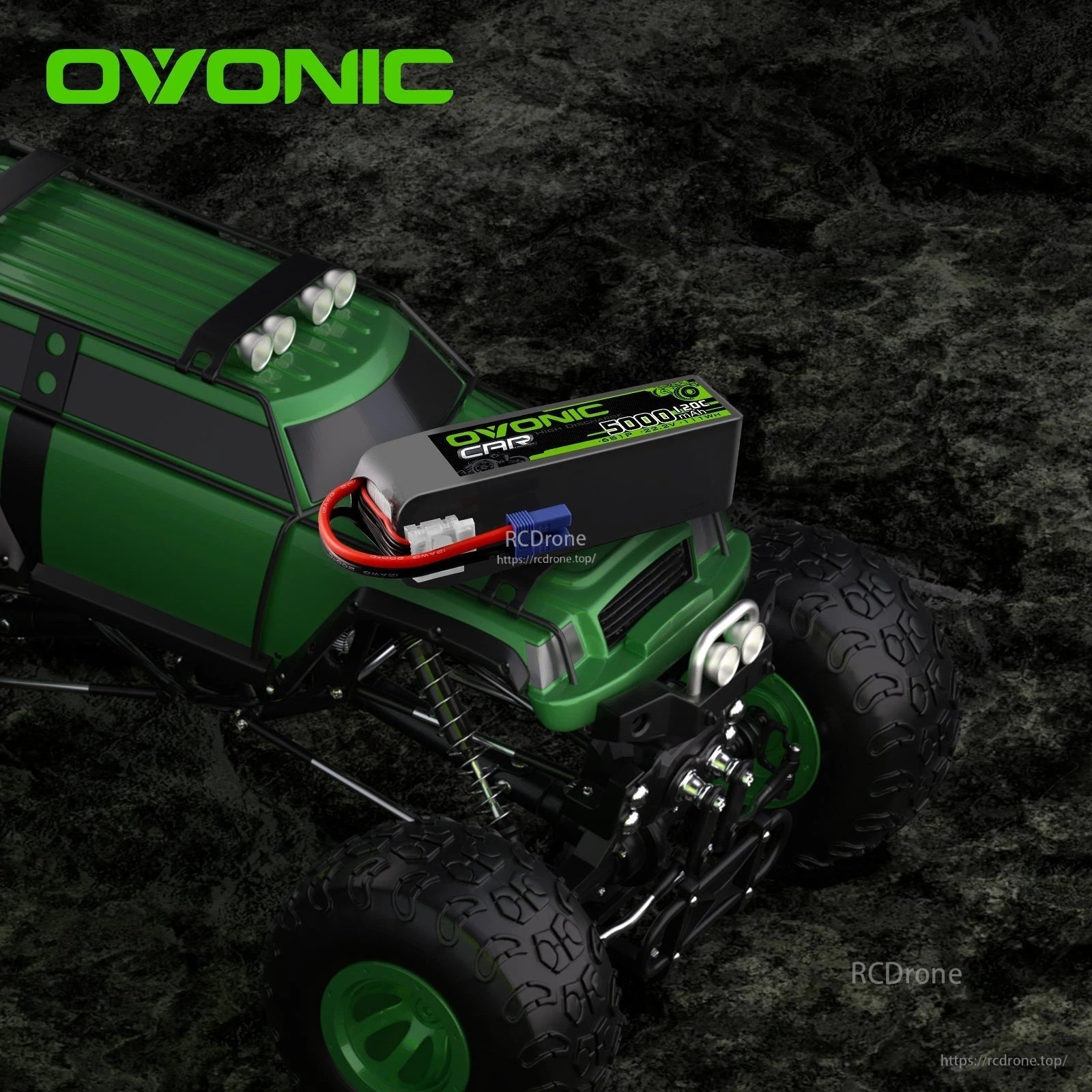

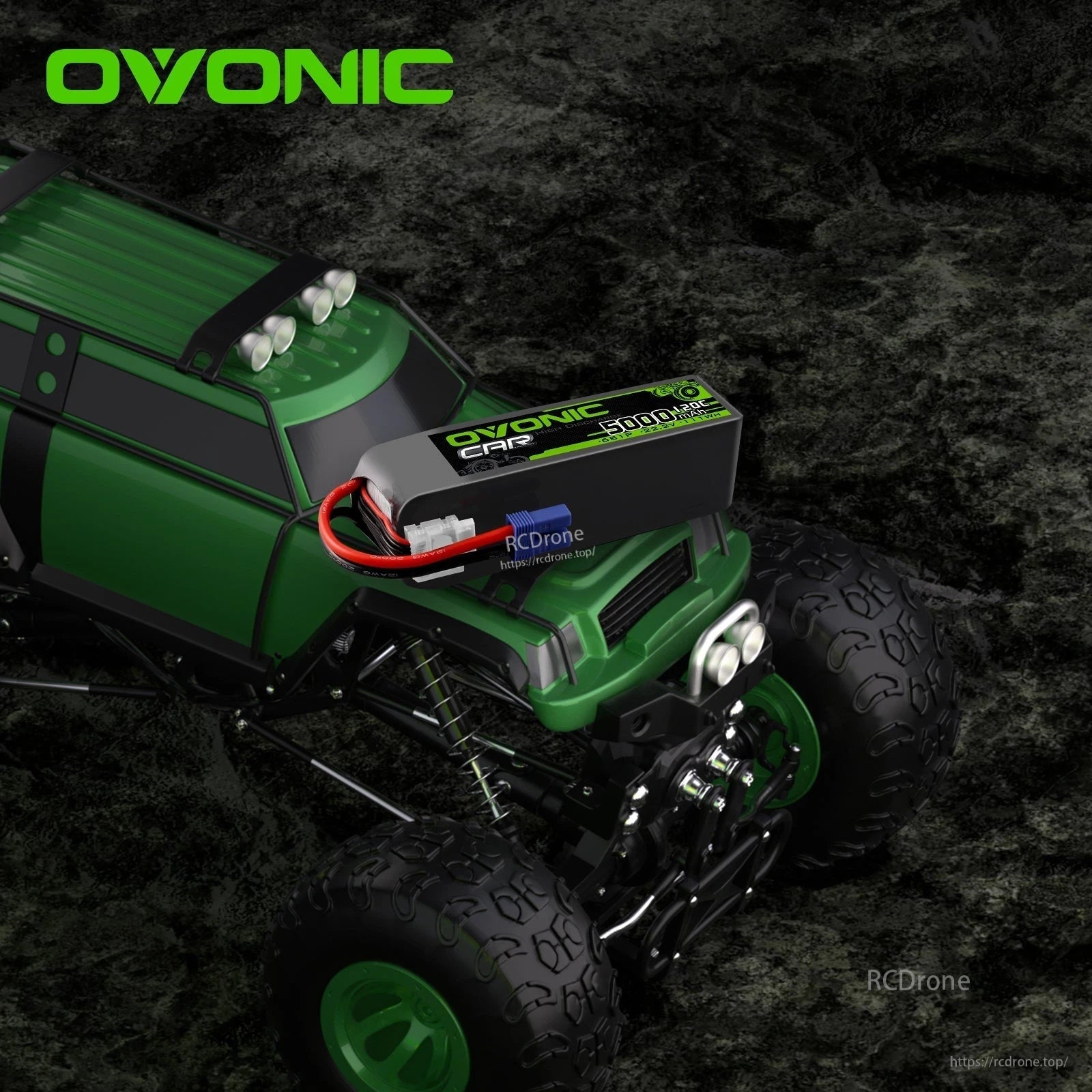

A compact 6S form factor that fits many 1/8 and 1/10 RC cars and trucks when dimensions and EC5 wiring match.

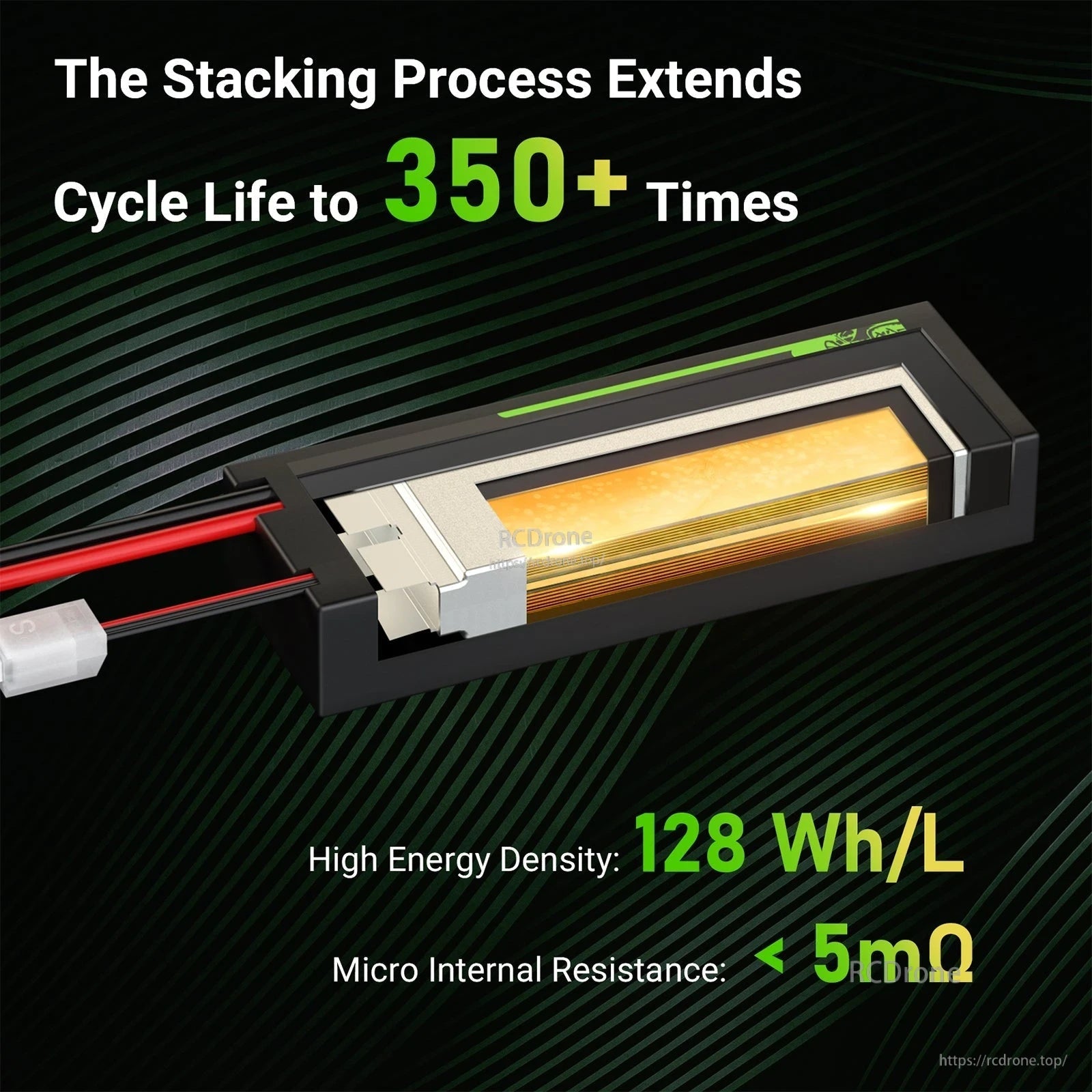

Cell stacking and low internal resistance are emphasized for strong output under load.
