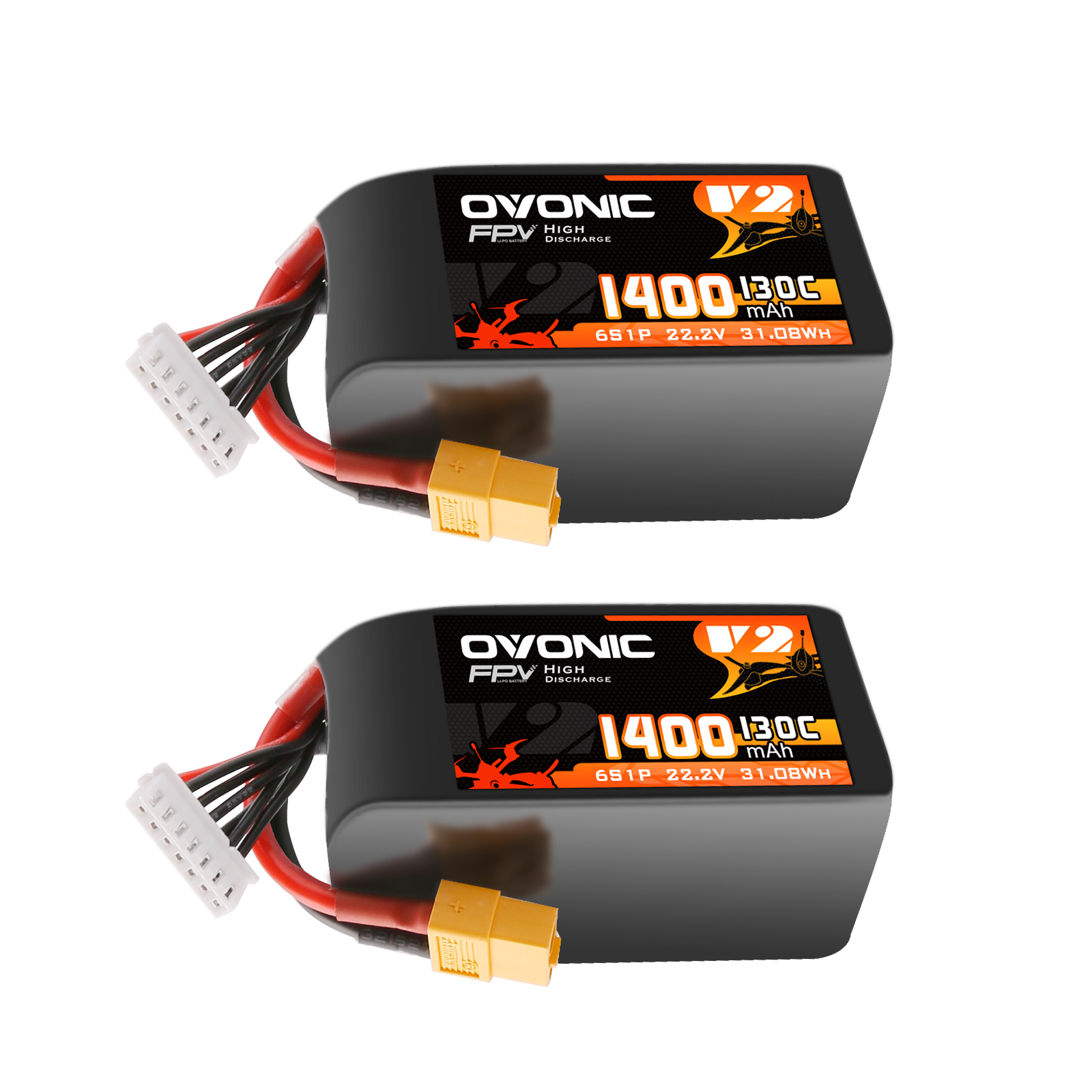

• 2x Ovonic 6S 1400mAh 130C 22.2V LiPo batteries with XT60 plug and balance lead
  • 2x Ovonic 6S Lipo Battery 1400mah 6S1P 130C 22.2V with XT60 Plug for FPV Racing Drones Freestyle Drone Cinewhoop Toothpick Long Range Drone
  • Stacking vs winding technology graphic comparing energy density, runtime, swelling, and internal resistance
  • Ovonic vs others radar chart for energy density, discharge capacity, cycle life, safety, internal resistance
  • Compatibility collage showing battery used with RC truck, car, helicopter, airplane, and boat models
  • Package included: two 22.2V 1400mAh LiPo batteries, packaging box, brand stickers, and user manual
1 6

2x Ovonic 6S 1400mAh 130C 22.2V LiPo Batteries XT60 for 5-6in FPV Racing Freestyle Drones

2x Ovonic 6S 1400mAh 130C 22.2V LiPo Batteries XT60 for 5-6in FPV Racing Freestyle Drones

Ovonic

$59.98 USD
$59.98 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

This set includes 2x Ovonic 6S LiPo battery packs (6S1P) rated at 1400mAh with a 130C discharge rate and XT60 plug, designed for FPV drone power setups including racing, freestyle, cinewhoop, toothpick, and long-range builds. The packs are specified as 22.2V nominal (also stated as 22.0V in the provided specification table) and are listed at 31.08Wh on the battery label.

Key Features

  • High discharge capability: 130C continuous discharge rate; max burst discharge rate listed as 260C.
  • Connectors and wiring: XT60 discharge plug, JST-XHR-7P balance/charge plug, 12 AWG wire.
  • Size and weight (per battery): 78mm (3.07in) length, 39mm (1.54in) width, 41mm (1.61in) height; 227g (0.50lb).
  • Manufacturing/structure claims (as stated): “Stacking Technology” vs “Winding Technology” lists: higher energy density +6%, longer running time +12%, lower battery swelling -8%, lower internal resistance -4%.

Specifications (Per Battery)

Brand Ovonic
Chemistry Li-polymer
Configuration 6S1P
Nominal Voltage 22.2V (also stated as 22.0V)
Capacity 1400mAh
Energy 31.08Wh
Discharge Rate 130C
Max Burst Discharge Rate 260C
Discharge Plug XT60
Charge/Balancer Plug JST-XHR-7P
Wire Gauge 12 AWG
Dimensions (L x W x H) 78mm x 39mm x 41mm (3.07in x 1.54in x 1.61in)
Net Weight 227g (0.50lb)

Applications

  • FPV builds: racing drone, freestyle drone, cinewhoop, toothpick, long-range drone.
  • Stated compatibility range: 180–330mm brushless FPV and 5 to 6-inch drone models.
  • Examples listed: GEPRC MARK5, MARK4, Crocodile5 Baby, DJI FPV, Nazgul5, TITAN XL5, Chimera5, Evoque F5D/F5X, Nazgul Evoque F6X/F6D, Racing Pilot FPV.
  • Also stated for RC models when voltage, dimensions, and plug match: airplane, quads/quadcopter, helicopter, multicopter, boat, car, truck.

What's Included

  • 2 x Ovonic 6S 1400mAh 130C LiPo battery (XT60)
  • 1 x Packaging box
  • 2 x Brand stickers
  • 1 x User manual

Notes & Safety

  • Ensure compatibility with both voltage and plug specifications for proper fit.
  • Cease charging immediately upon reaching 4.2V per cell (normal voltage range stated: 3.7V to 4.2V).
  • Inspect battery condition before each use.
  • If a new battery does not hold a full charge or loses charge rapidly, use a balance charger and cycle it several times.
  • For compatibility questions (XT60/JST-XHR-7P, dimensions, or fitment for a specific frame), contact [email protected] or visit https://rcdrone.top/.

Details

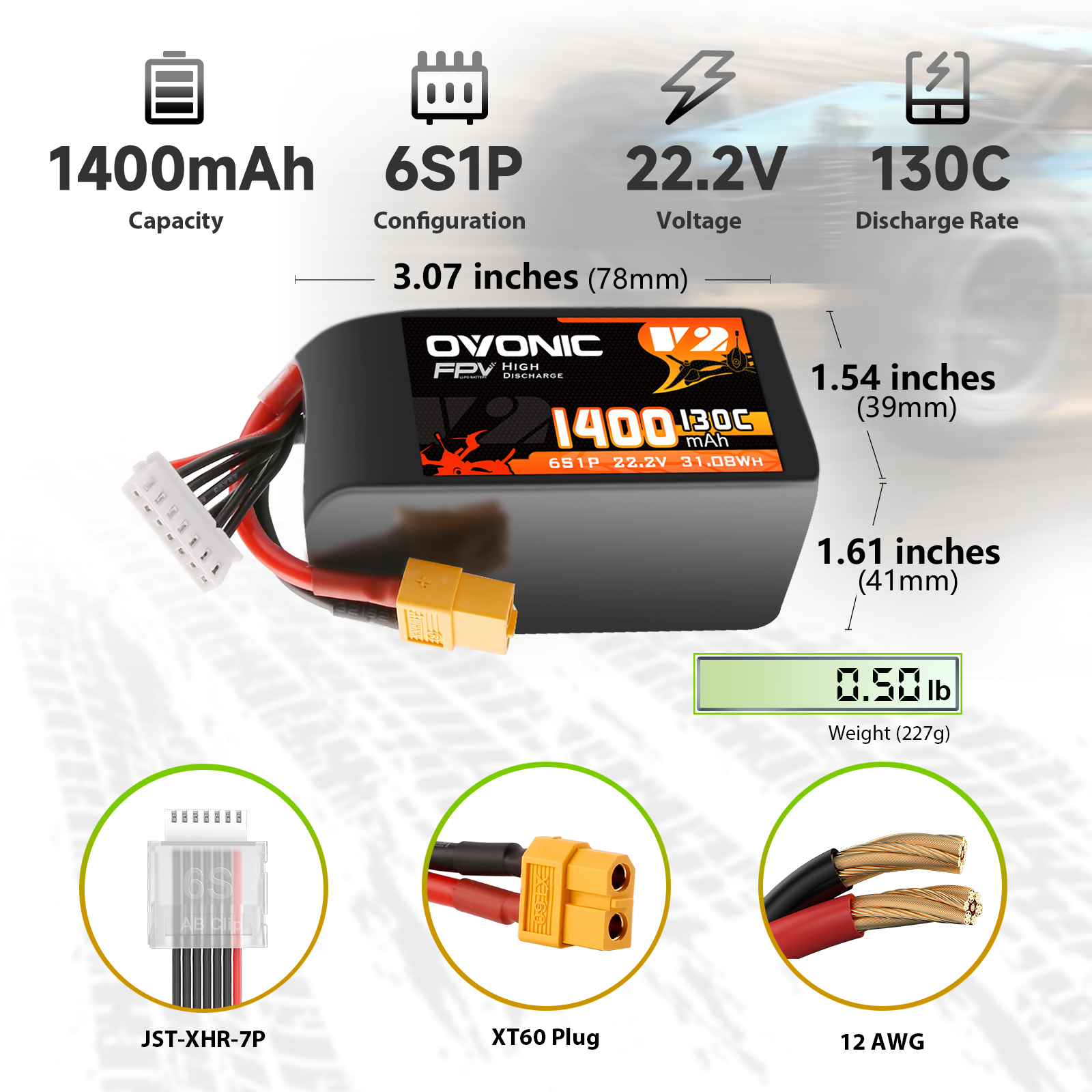

Ovonic 6S 1400mAh 130C 22.2V LiPo battery with XT60 and JST-XHR-7P; size 78×39×41mm, 227g

Each Ovonic 6S 1400mAh pack is built for 5–6 inch FPV power setups with an XT60 lead, 12AWG wire, and a compact 78×39×41mm footprint.

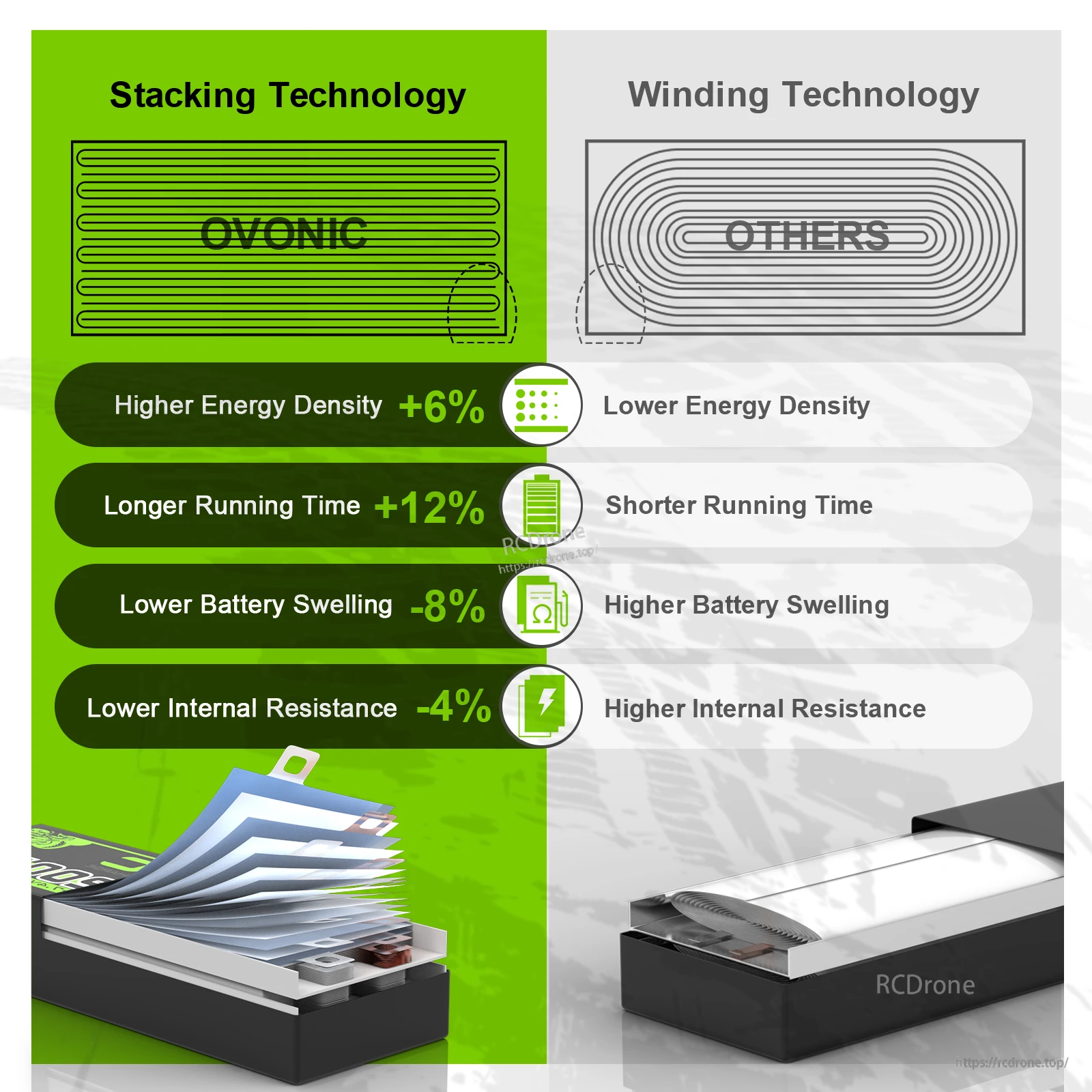

Ovonic stacking technology vs winding technology comparison: energy density, running time, swelling, and internal resistance

Ovonic highlights its stacking-cell construction for higher energy density and longer runtime, while aiming to reduce swelling and internal resistance over time.

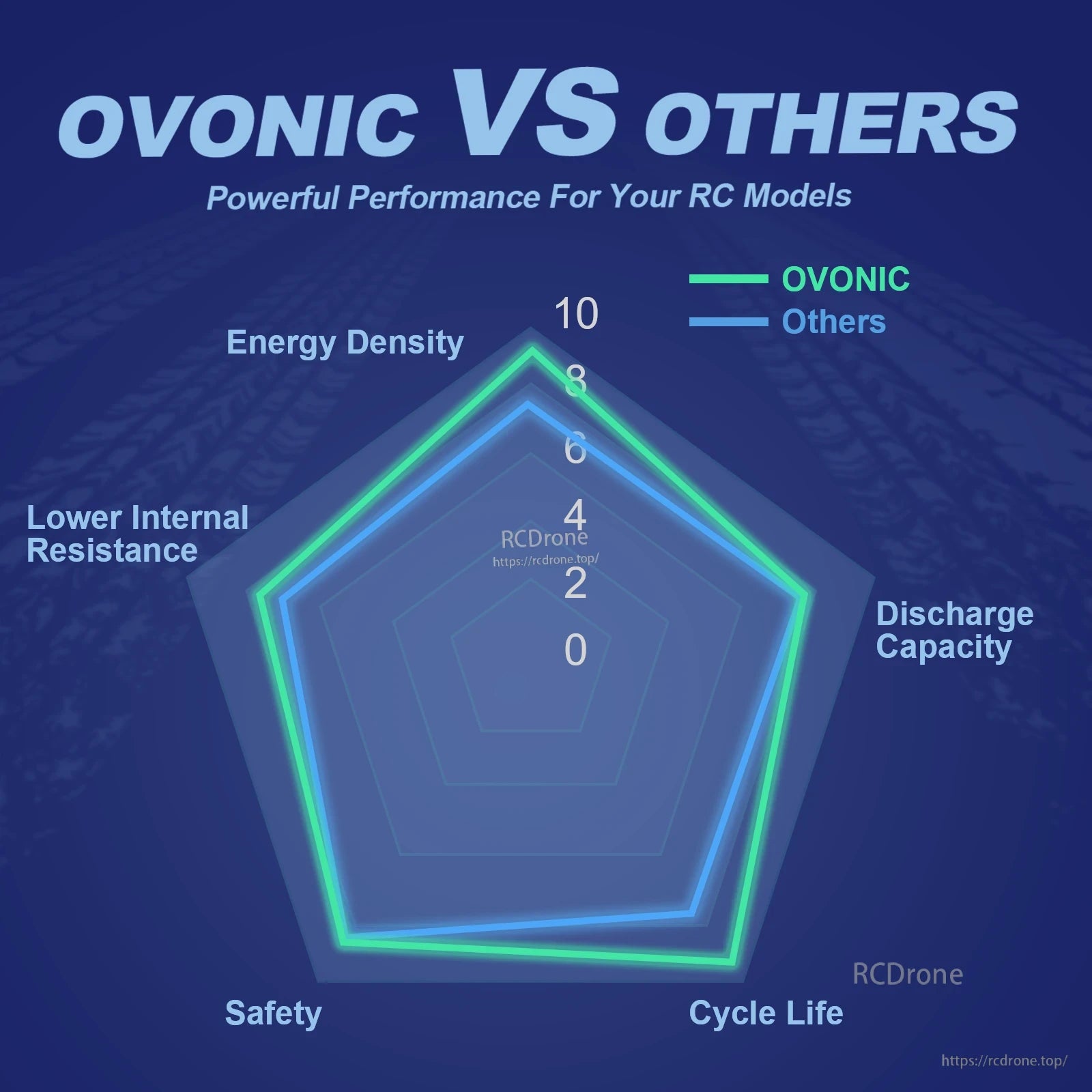

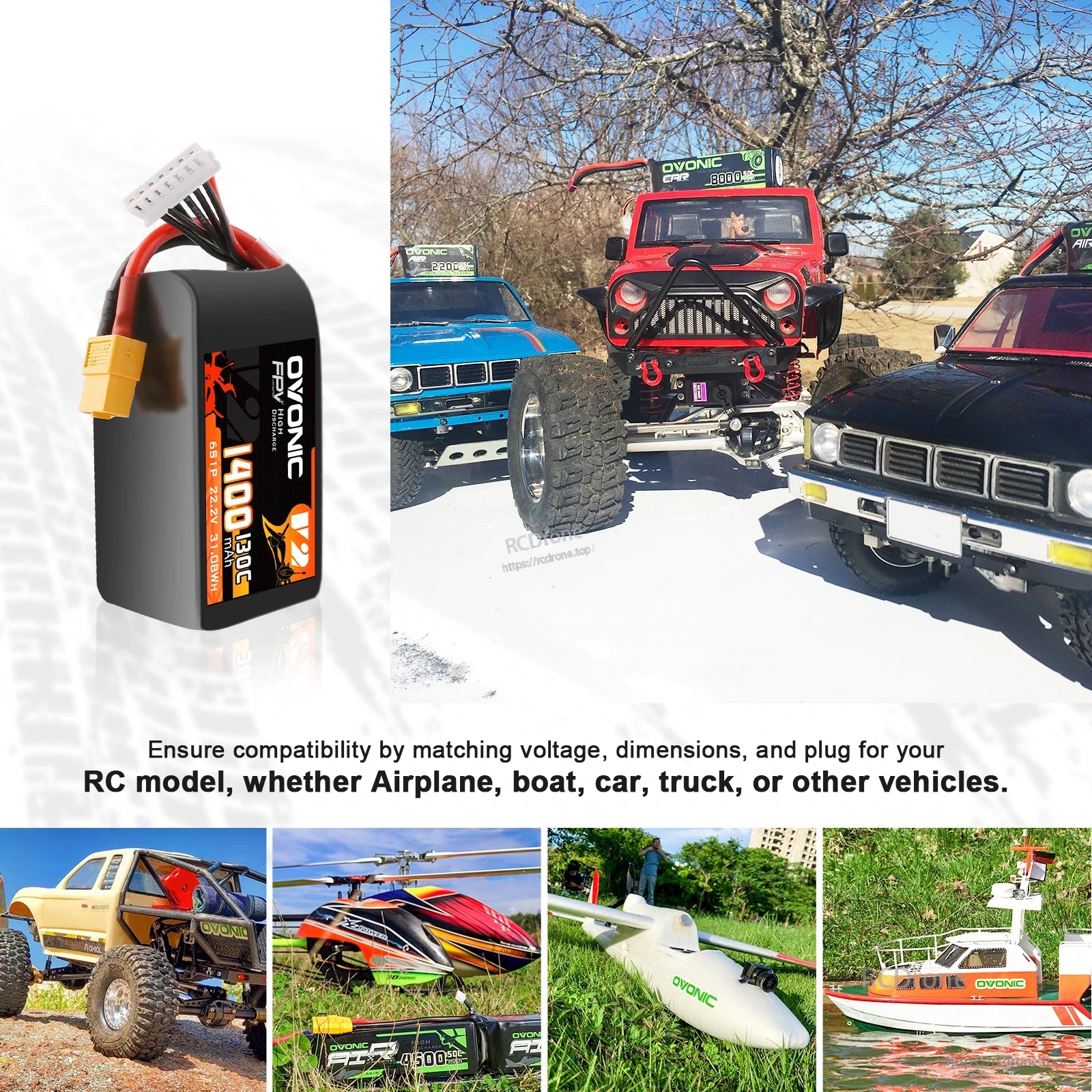

Ovonic vs others radar chart comparing energy density, discharge capacity, cycle life, safety, and internal resistanceSingle Ovonic 6S 1400mAh LiPo with XT60 alongside RC vehicle examples (car, truck, helicopter, airplane, boat)

Beyond FPV drones, the XT60-equipped 6S pack can also suit other RC models when voltage, dimensions, and connectors match your setup.

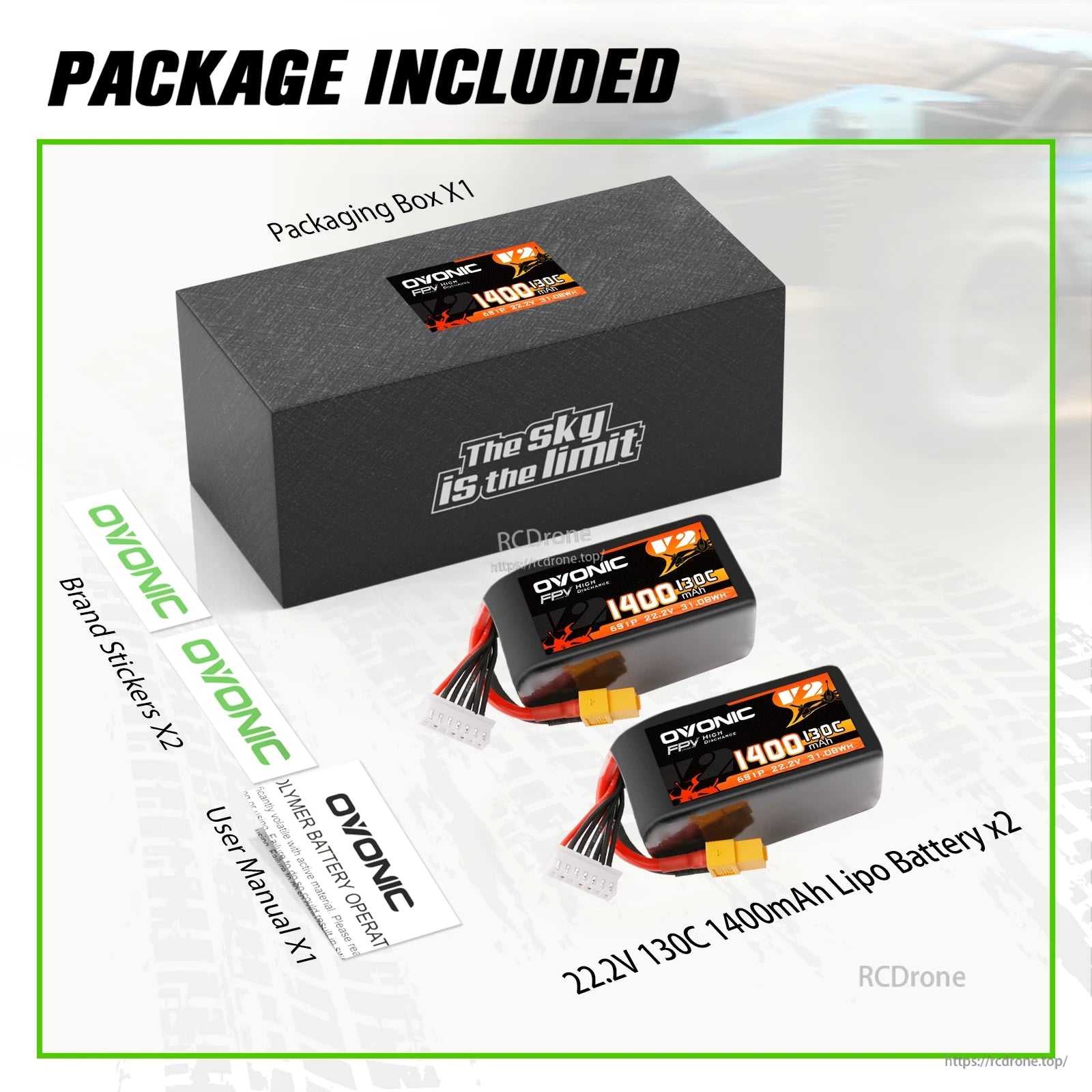

Package contents: two Ovonic 6S 1400mAh 130C LiPo batteries, retail box, stickers, and user manual

The set includes two 6S 1400mAh batteries plus the Ovonic box, stickers, and a user manual for quick setup and care guidance.
