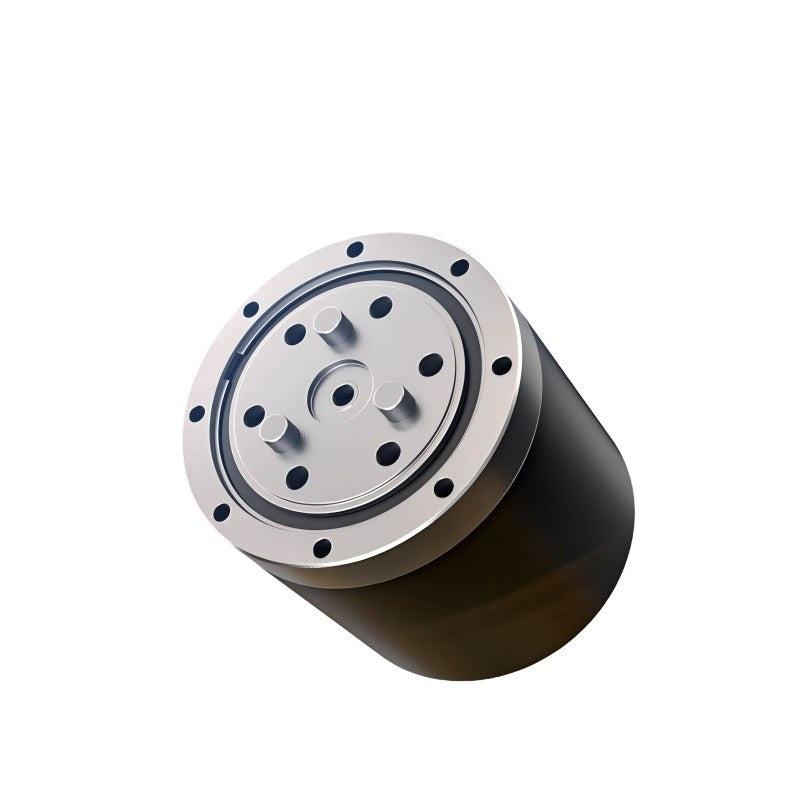

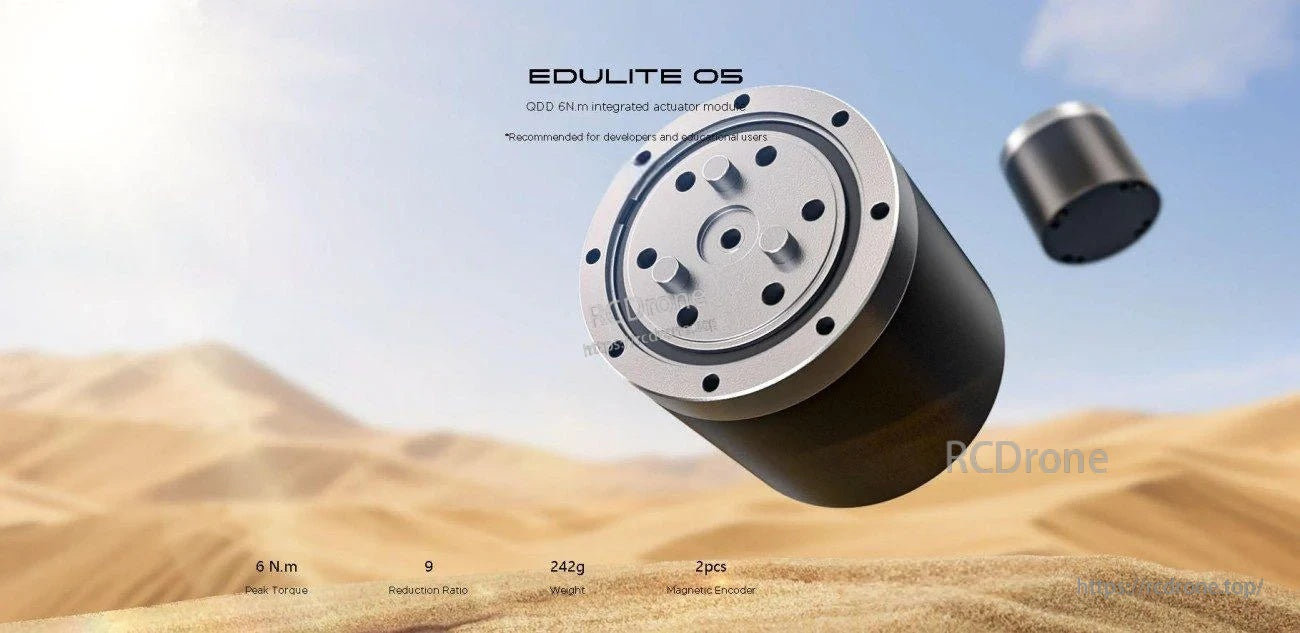

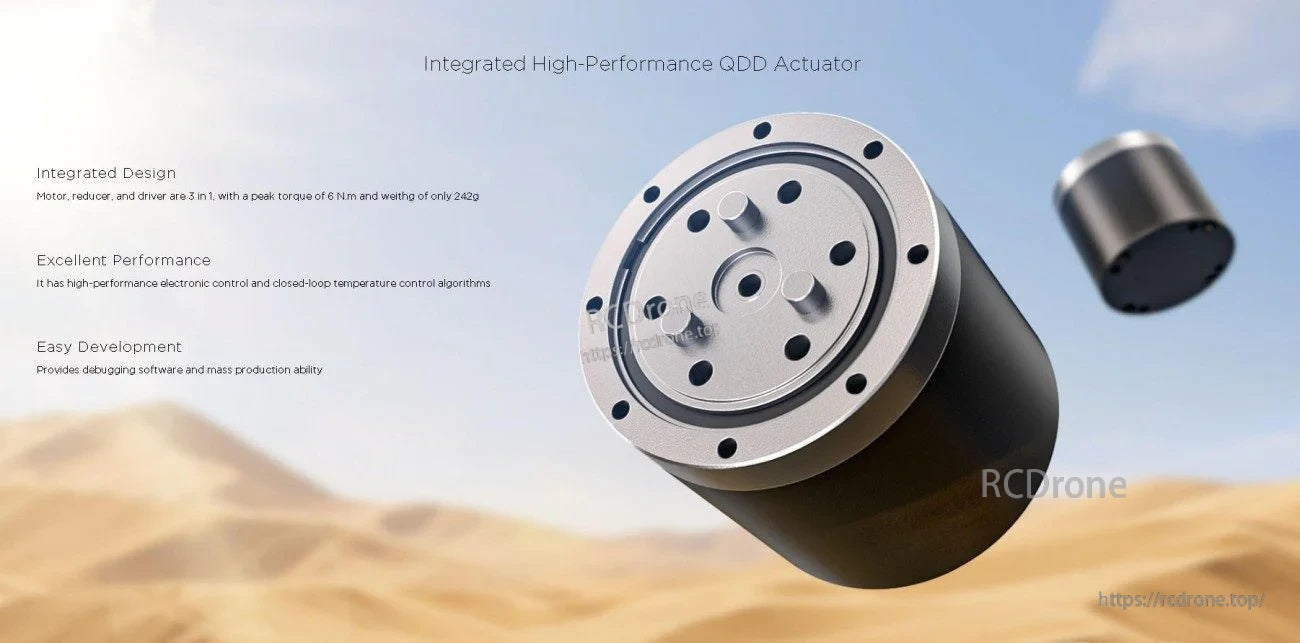

ROBSTRIDE EduLite 05 motor is a QDD 6 N.m integrated actuator module, recommended for developers and educational users. It integrates motor, reducer, and driver as a 3-in-1 design, targeting compact robotic joint and motion applications.
Key Features
- Integrated design: motor, reducer, and driver are 3 in 1, with a peak torque of 6 N.m and weight of only 242g
- Drive method: FOC
- Magnetic encoder: 2pcs
- Reduction ratio: 9
- Performance control: high-performance electronic control and closed-loop temperature control algorithms
- Easy development: provides debugging software and mass production ability
- Running direction: CW/CCW
- Product performance characteristics: T-N under 48V and max overload curves are provided
Applications
- Humanoid Robots
- Robotic Arms
- Exoskeletons
- Quadruped Robots
- AGV Vehicles
- ARU Robots

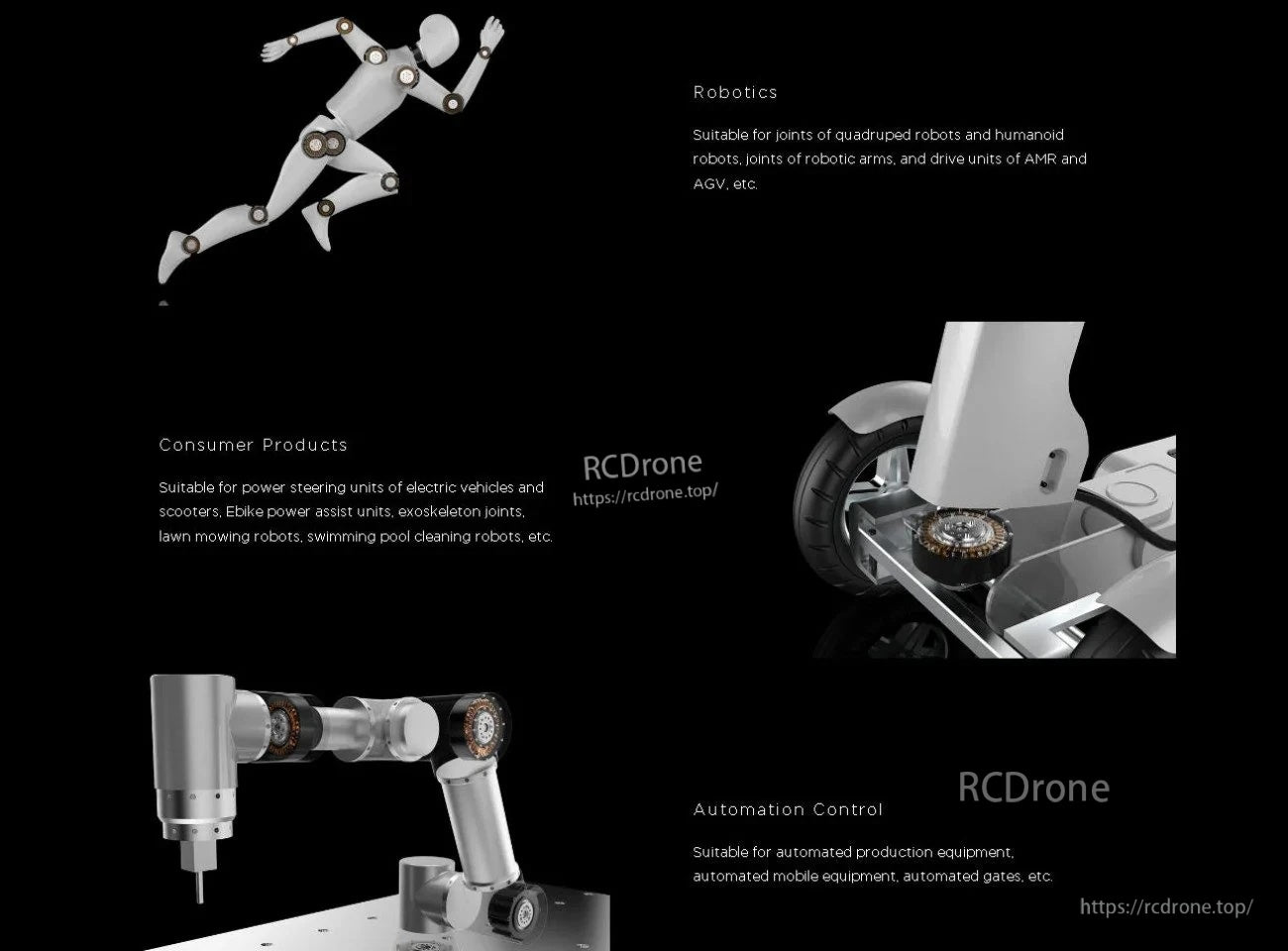

- Robotics: suitable for joints of quadruped robots and humanoid robots, joints of robotic arms, and drive units of AMR and AGV, etc.
- Consumer products: suitable for power steering units of electric vehicles and scooters, Ebike power assist units, exoskeleton joints, lawn mowing robots, swimming pool cleaning robots, etc.
- Automation control: suitable for automated production equipment, automated mobile equipment, automated gates, etc.
Specifications
| Model | EduLite 05 |
| Size | 46 x 46 x 44 mm |
| Weight | 242g |
| Pole | 20 |
| Phase | 3 |
| Drive Method | FOC |
| Reduction Ratio | 9 |
| Gear Material | Powder Metallurgy |
| Magnetic Encoder | 2pcs |
| Rated Voltage | 48 V |
| Voltage Range | 15-60 V |
| Rated Output Power | 19W±10% |
| Rated Torque | 1.8 N.m |
| Peak Torque | 6 N.m |
| Running Direction | CW/CCW |
| Temperature Range | -20~50 ℃ |
| Humidity Range | 5~85% |
| Storage Temperature Range | -30~70 ℃ |
| Insulation Level | Class B |
| No-load Speed | 430 rpm±10% |
| No-load Current | 0.14 Arms±10% |
| Rated Load Speed | 100 rpm±10% |
| Rated Load Phase Current | 2.6 Apk±10% |
| Peak Phase Current | 11 Apk±10% |
| High Voltage Resistance / Stator and Casing | 600 VAC, 1s, 2mA |
| Back-EMF | 7.4 Vrms/kRPM±10% |
| Line Resistance | 2.72Ω ± 10% |
| Torque Constant | 0.94 N.m/Arms |
| Inductance | 0.813mH±10% |
Manuals
- ROBSTRIDE05 instalation drawing (PDF)
- ROBSTRIDE EduLite 05 motor (STEP)

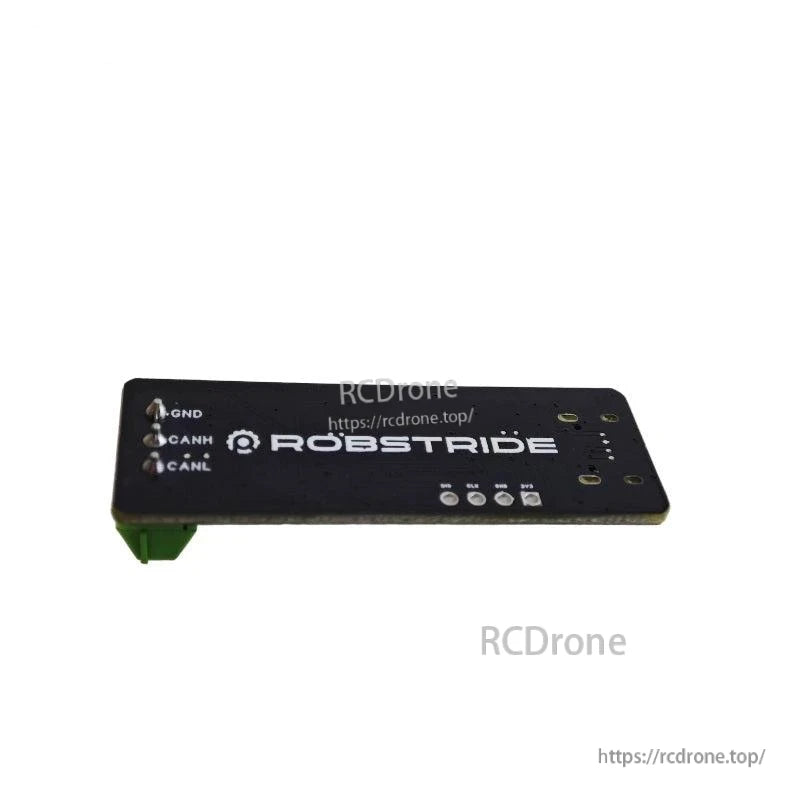

- ROBSTRIDE Instructions for using the Studio (PDF)
- ROBSTRIDE 06 User Manual (PDF)
For pre-sales questions, integration guidance, or documentation help, contact support at https://rcdrone.top/ or email support@rcdrone.top.
Details

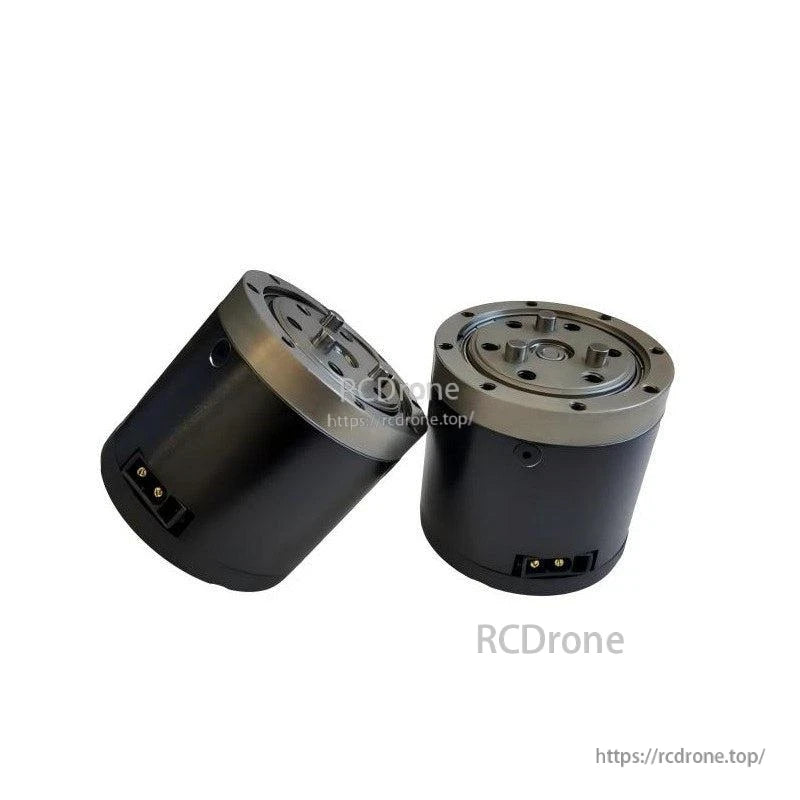

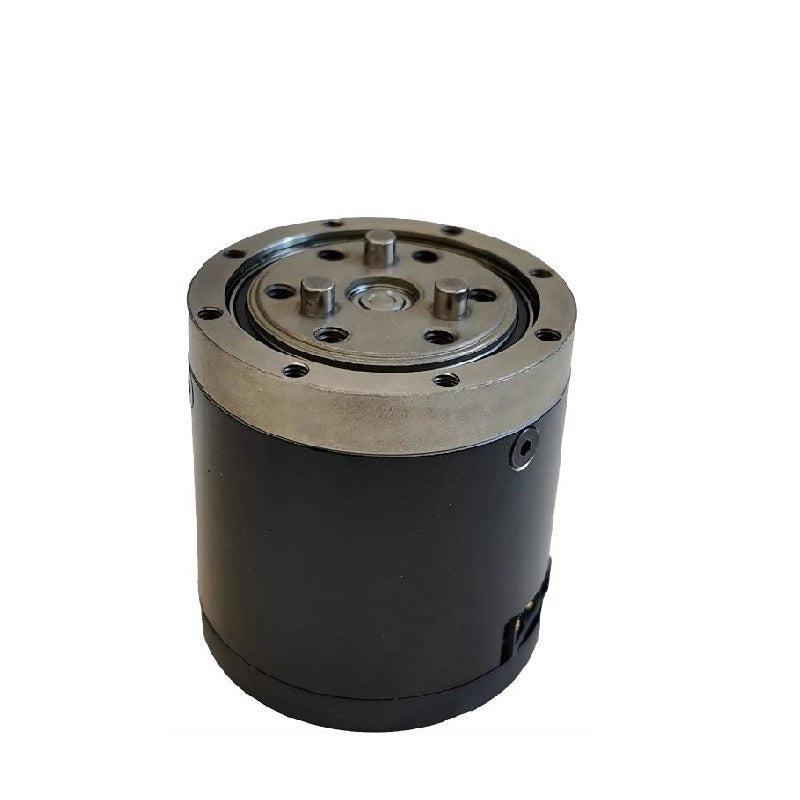

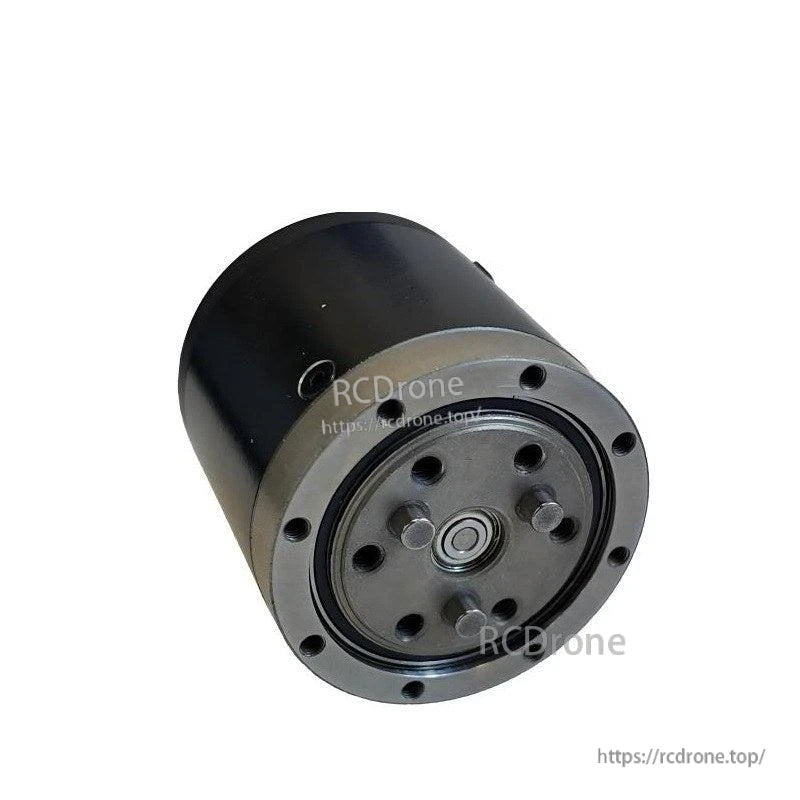

Designed for compact robotic joints, EduLite 05 combines motor, reducer, and driver in one lightweight actuator module.
A 3‑in‑1 integrated design helps simplify wiring and integration while supporting high-performance control and easy development.
Common use cases include humanoid and quadruped joints, robotic arms, and drive units for AMR/AGV and automation equipment.

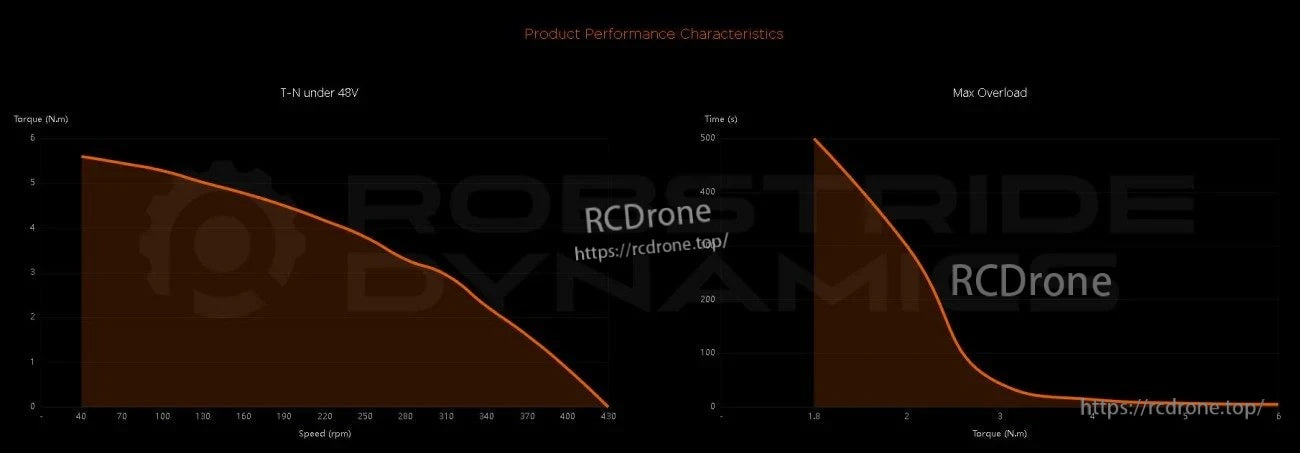

Torque–speed and overload curves under 48 V provide a quick reference for sizing the actuator in motion-control designs.
