Overview

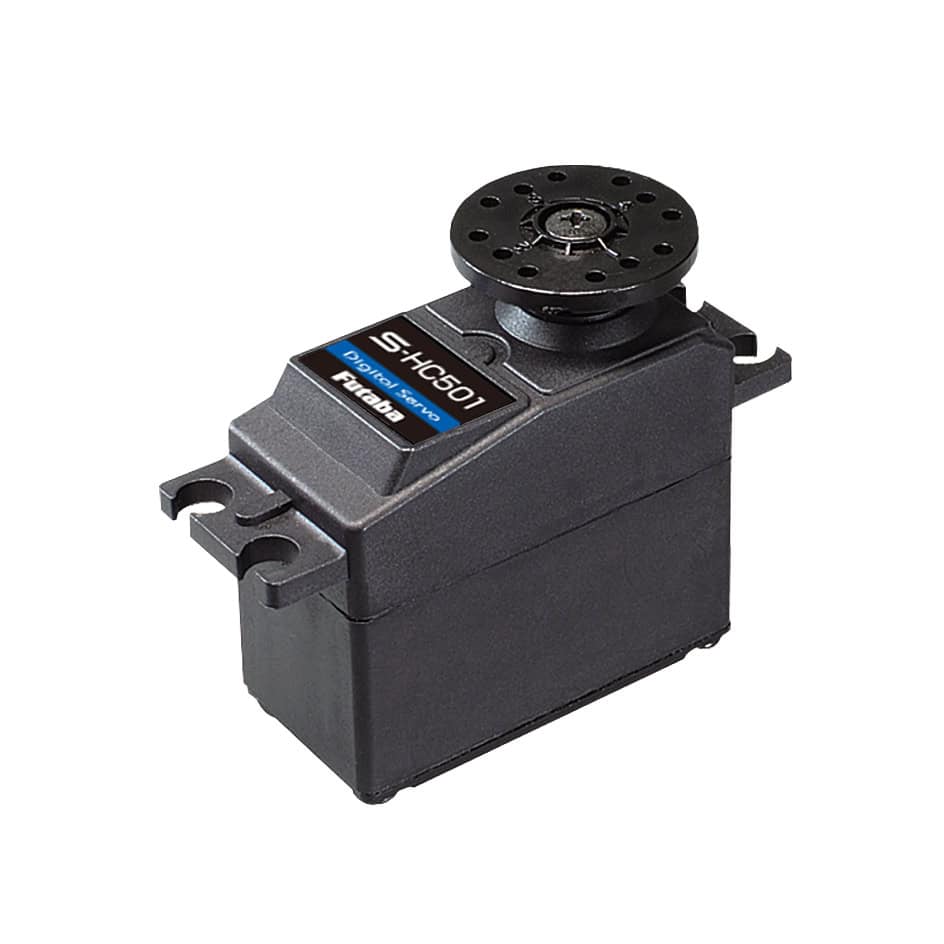

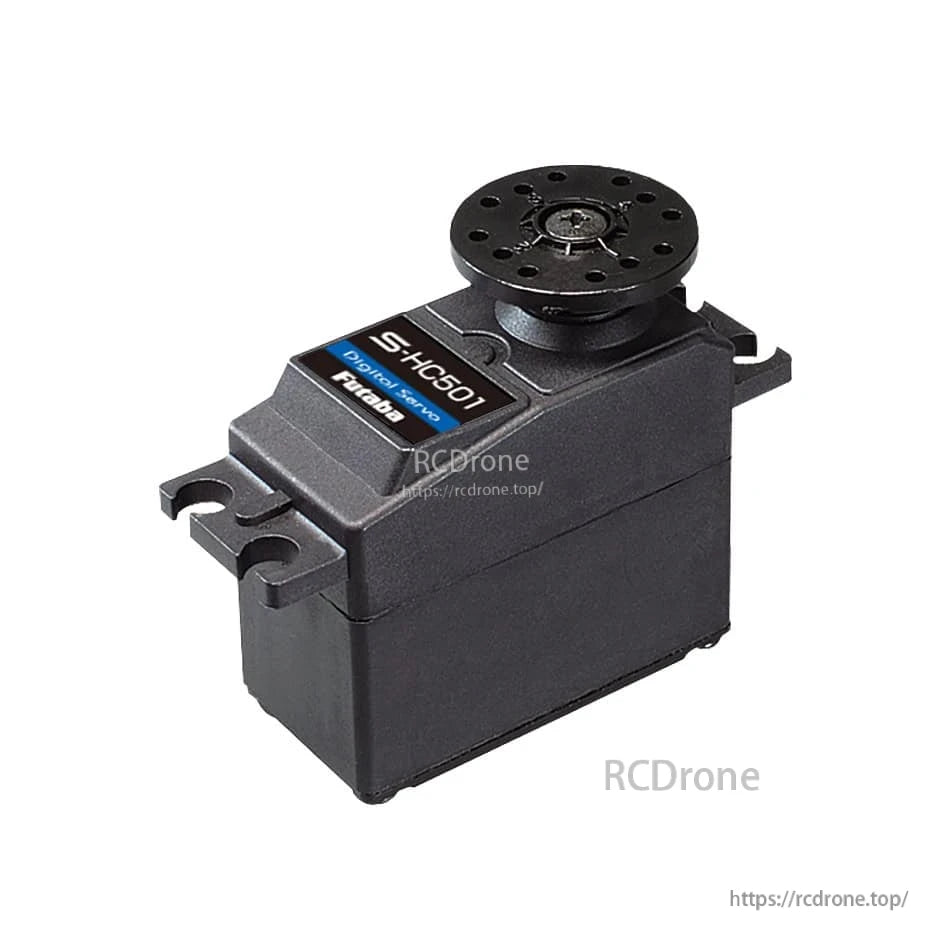

The Futaba S-HC501 is a high-voltage standard swash helicopter servo designed for RC helicopter swashplate control. It is a programmable coreless digital servo that supports Futaba S.Bus and S.Bus2 systems and is suitable for 2S LiPo operation.
Key Features
- Suitable for all-purpose RC helicopters
- Programmable high-voltage (HV) coreless digital servo
- Programmable and compatible with S.Bus and S.Bus2 systems
- PC connectivity supported via Futaba CIU-2 / CIU-3 USB adapter (sold separately)
- Upper/middle/bottom case material: resin
- 2S LiPo suitable
- No dry battery use
Specifications
| Type | Swash coreless digital servo |
| Model | S-HC501 |
| Part / Reference | 01102414-3 |
| Control system | S.Bus, S.Bus2 |
| Speed | 0.10 sec/60° at 6.6V; 0.09 sec/60° at 7.4V |
| Torque | 12.5 kgf/cm (173.6 ozf/in) at 6.6V; 13.8 kgf/cm (191.6 ozf/in) at 7.4V |
| Size | 40 mm x 20 mm x 36.6 mm (1.57 in x 0.78 in x 1.44 in) |
| Weight | 54 g (1.90 oz) |
| Rated voltage | DC 6.0V-7.4V |
| Operating voltage | DC 4.8-8.4V |
| Battery note | No dry battery use |
| Case material | Resin (upper/middle/bottom case) |
Additional listing information
| Weight (listing) | 3.8 oz |
| Dimensions (listing) | 3.19 x 2.44 x 1.5 in |
| Product | Servo |
| Hobby | Helicopter |
| Servo size | Standard |
| Features | S.Bus, S.Bus2 |
Applications
- RC helicopter swashplate (swash) control
- Helicopter builds using Futaba S.Bus / S.Bus2 servo systems
For compatibility questions (S.Bus/S.Bus2 setup, CIU-2/CIU-3 programming), contact support@rcdrone.top or visit https://rcdrone.top/.
