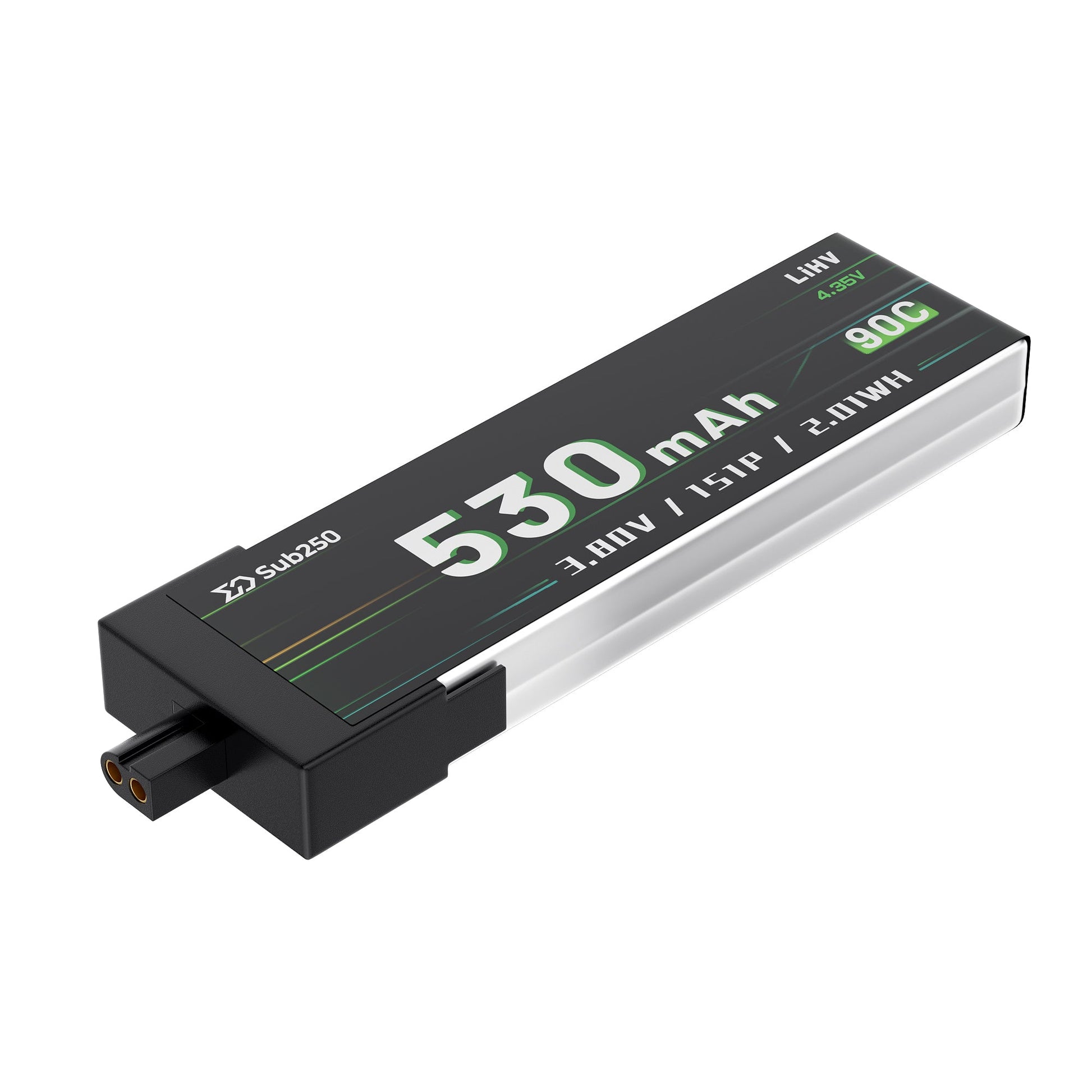

• Sub250 SUB5301S90AHV 1S 530mAh 90C LiHV Battery, angled view with 2-pin connector

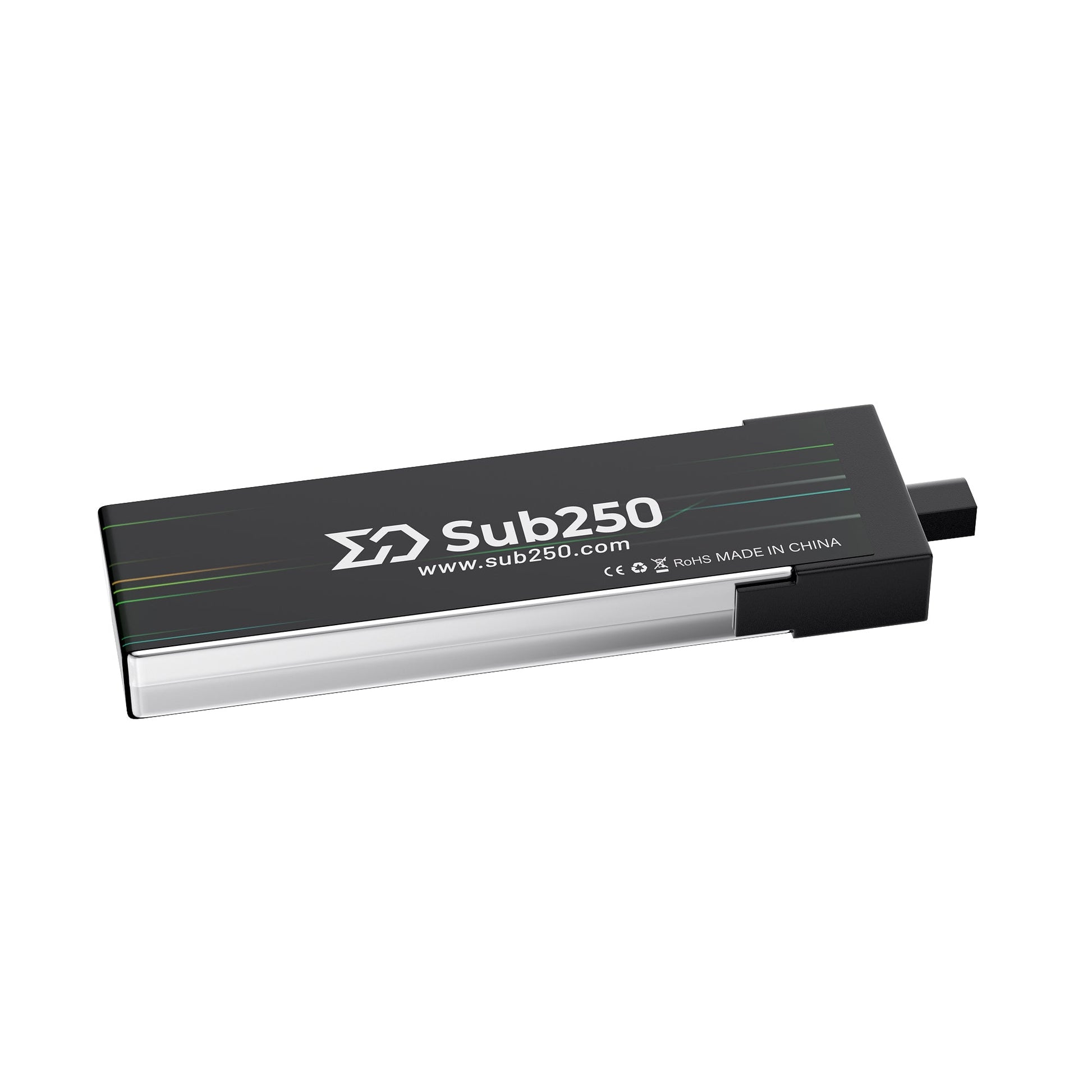

  • Sub250 1S LiHV battery rear label with Sub250 logo, website text, and compliance icons

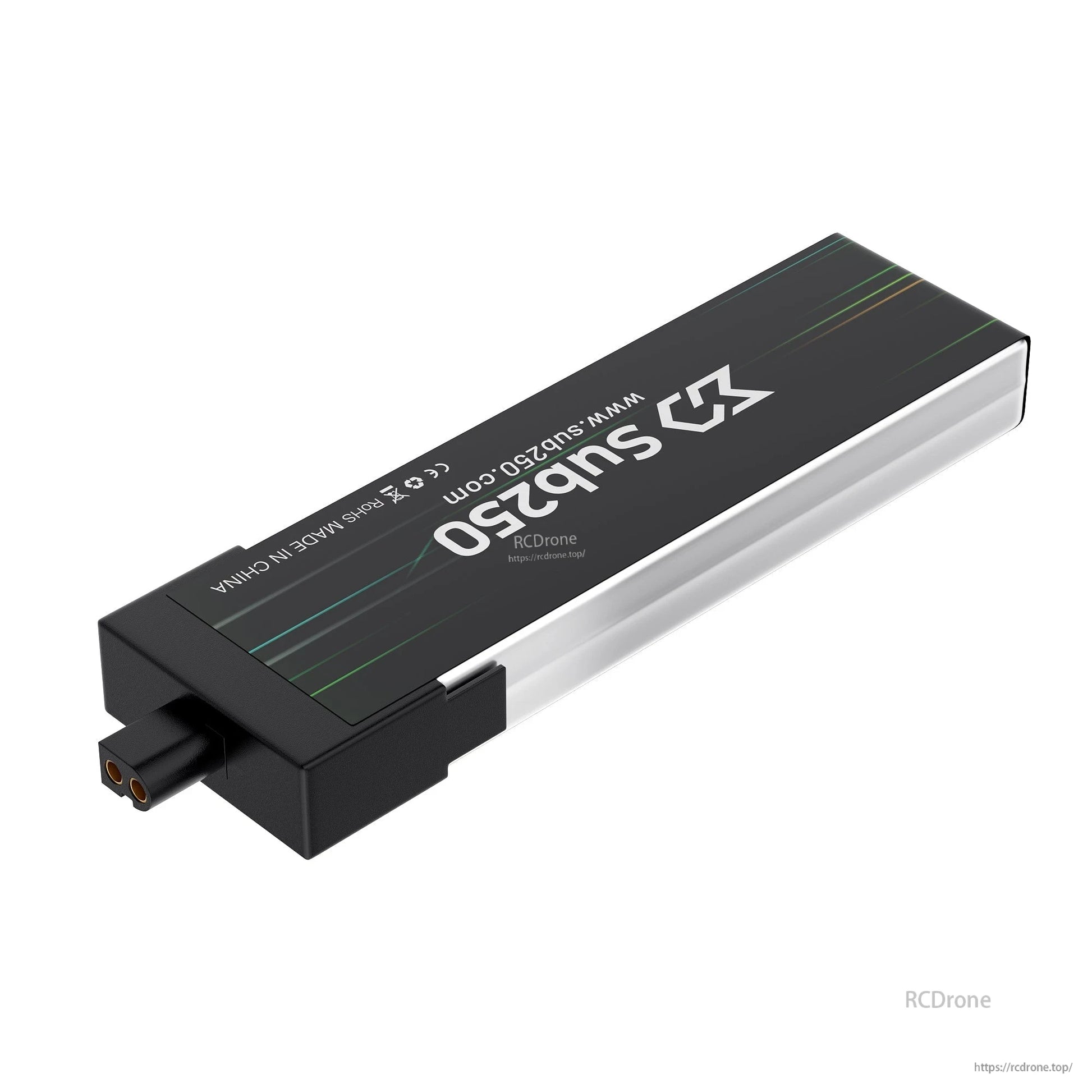

  • Sub250 SUB5301S90AHV LiHV 1S battery angled view showing Sub250 branding and connector

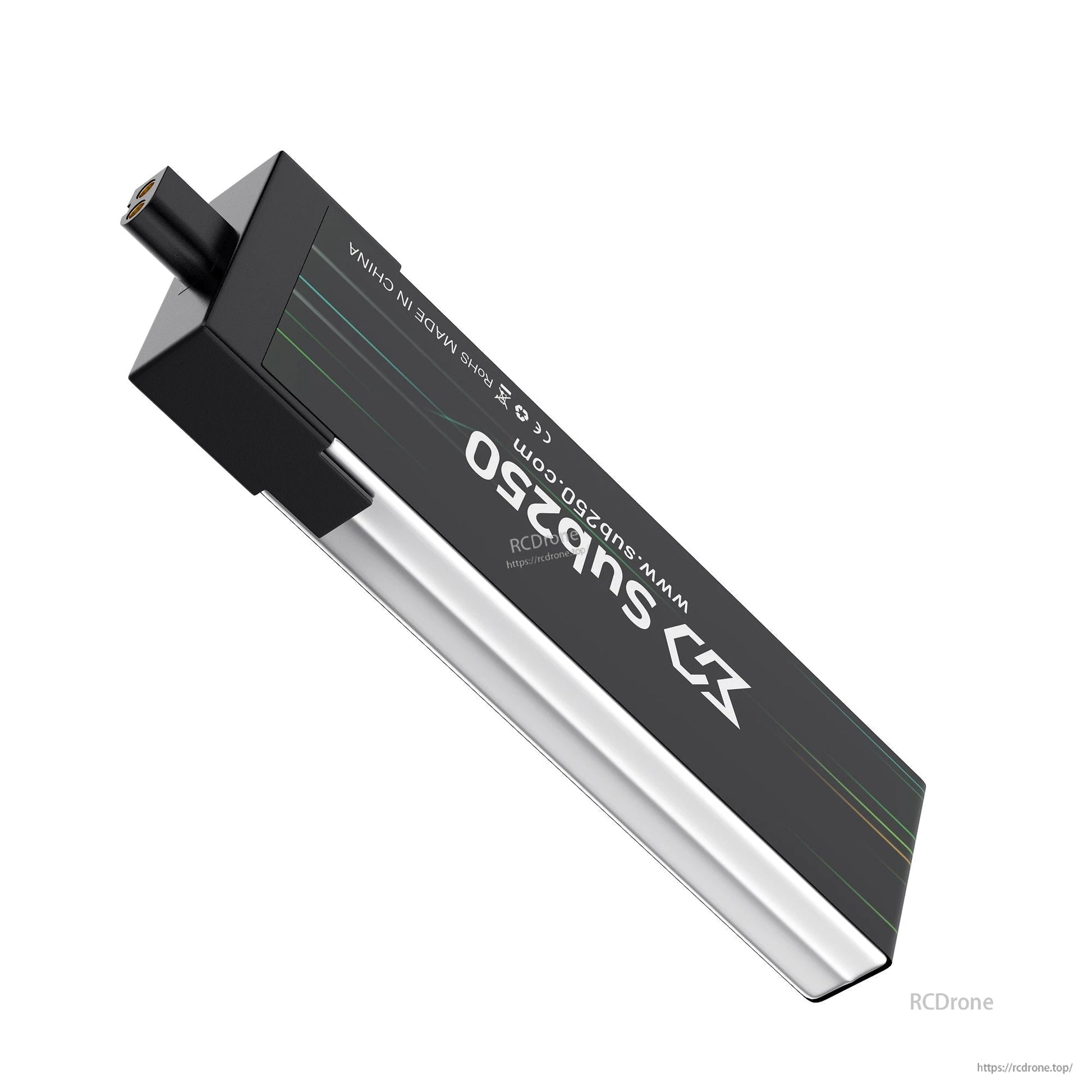

  • Sub250 530mAh LiHV battery side profile showing slim rectangular pack and connector housing

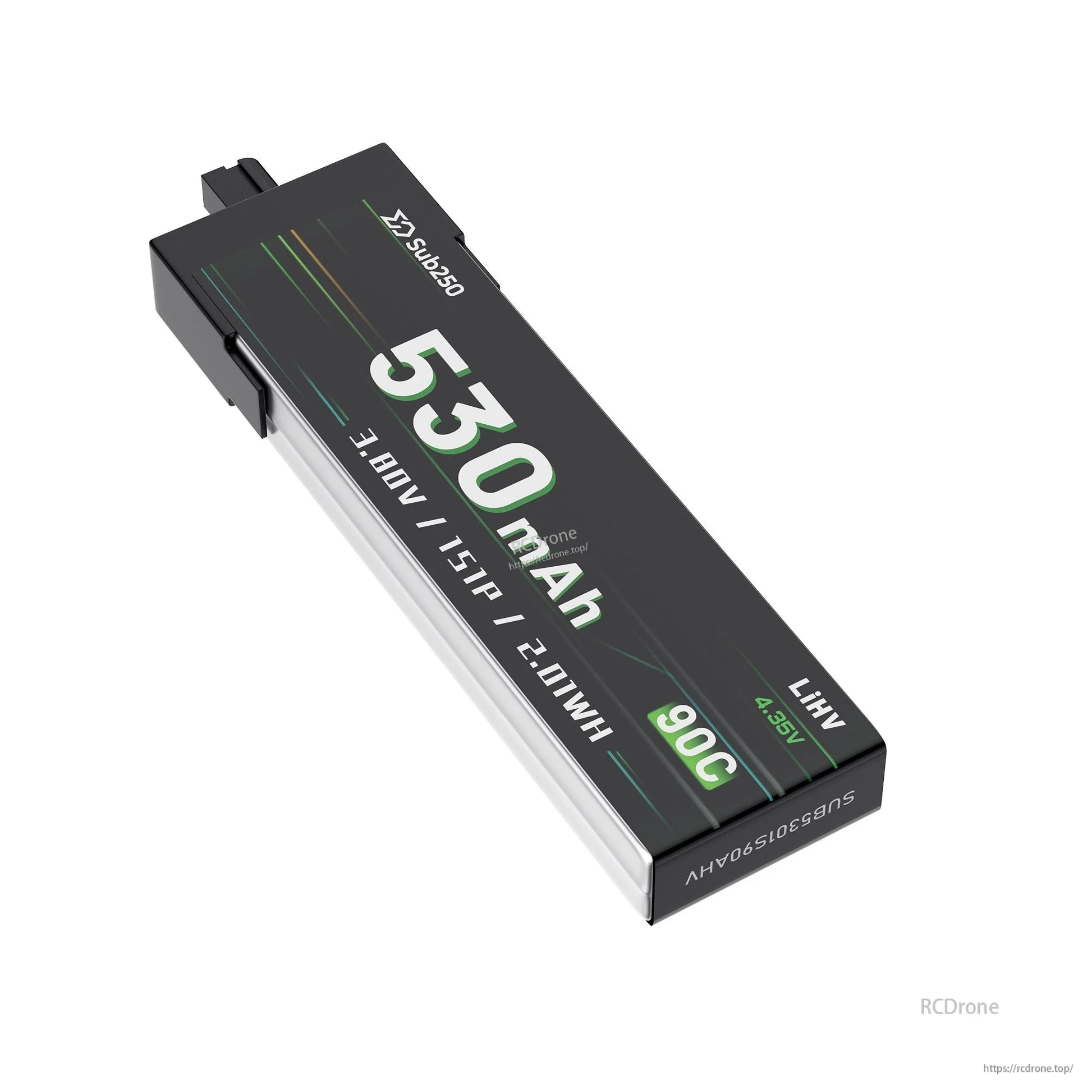

  • Label detail showing 530mAh capacity, 90C rating, and LiHV 4.35V marking on the battery

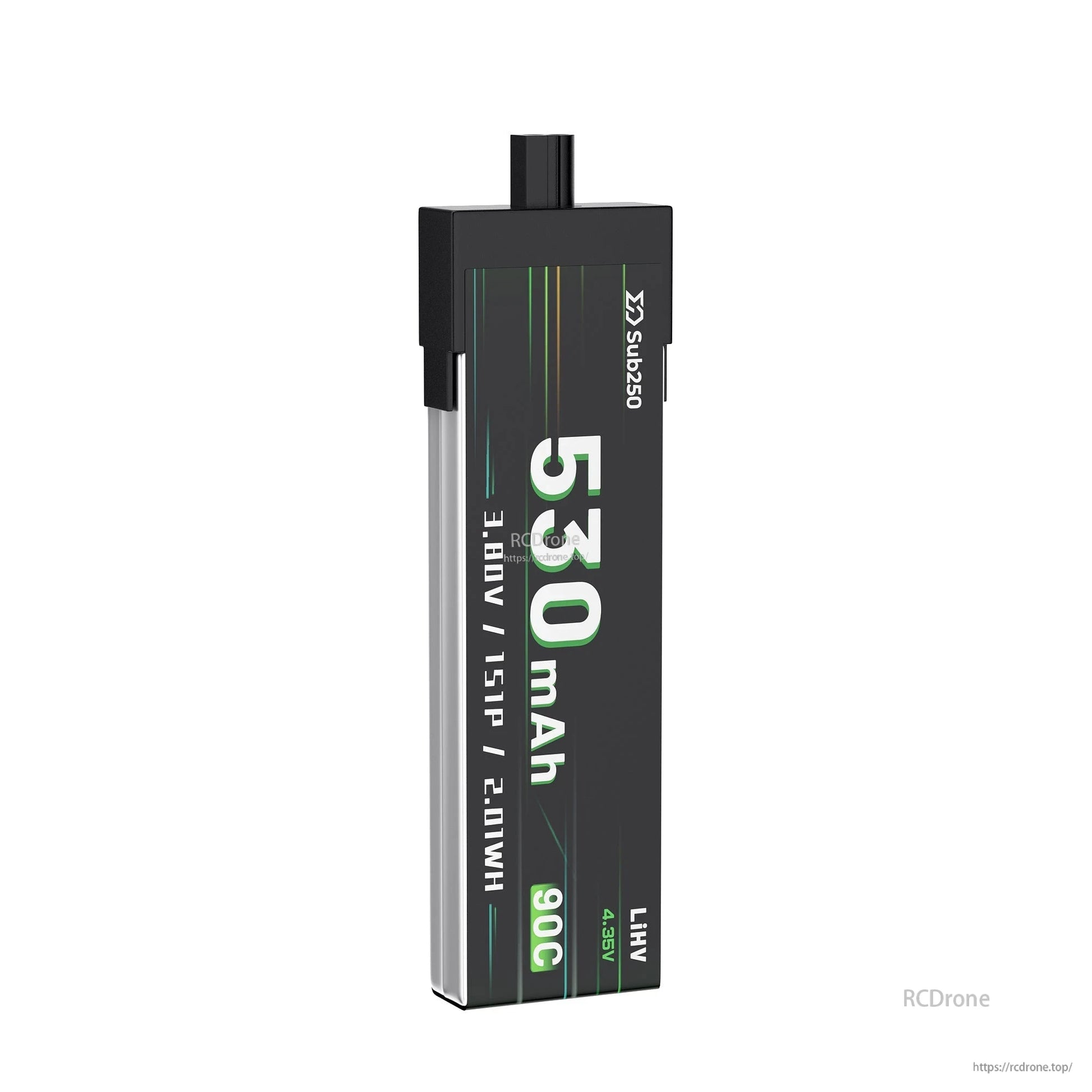

  • Front-on vertical view of the slim 530mAh LiHV 1S battery with printed capacity and 90C

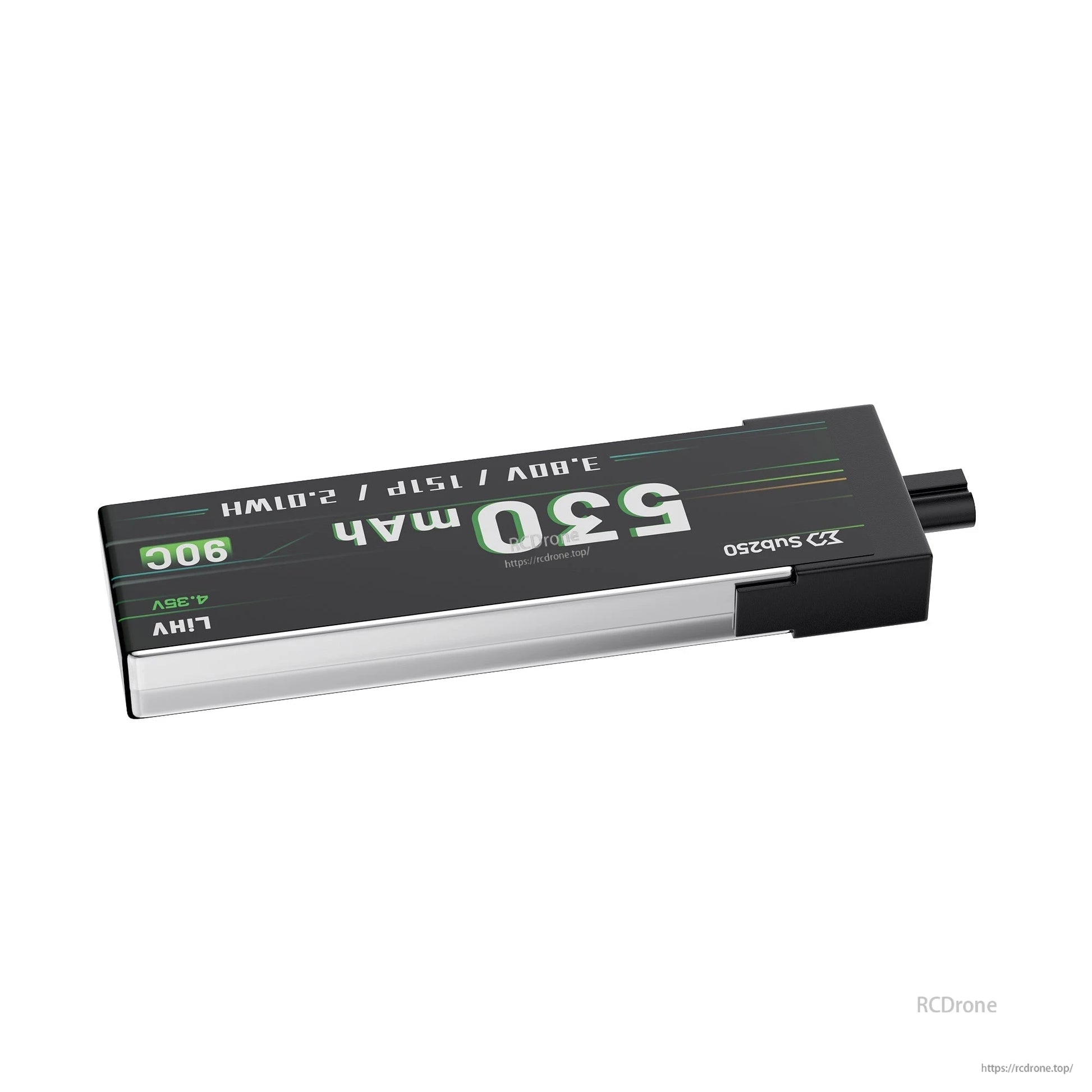

  • Horizontal view of Sub250 battery showing connector end, black housing, and silver pouch body

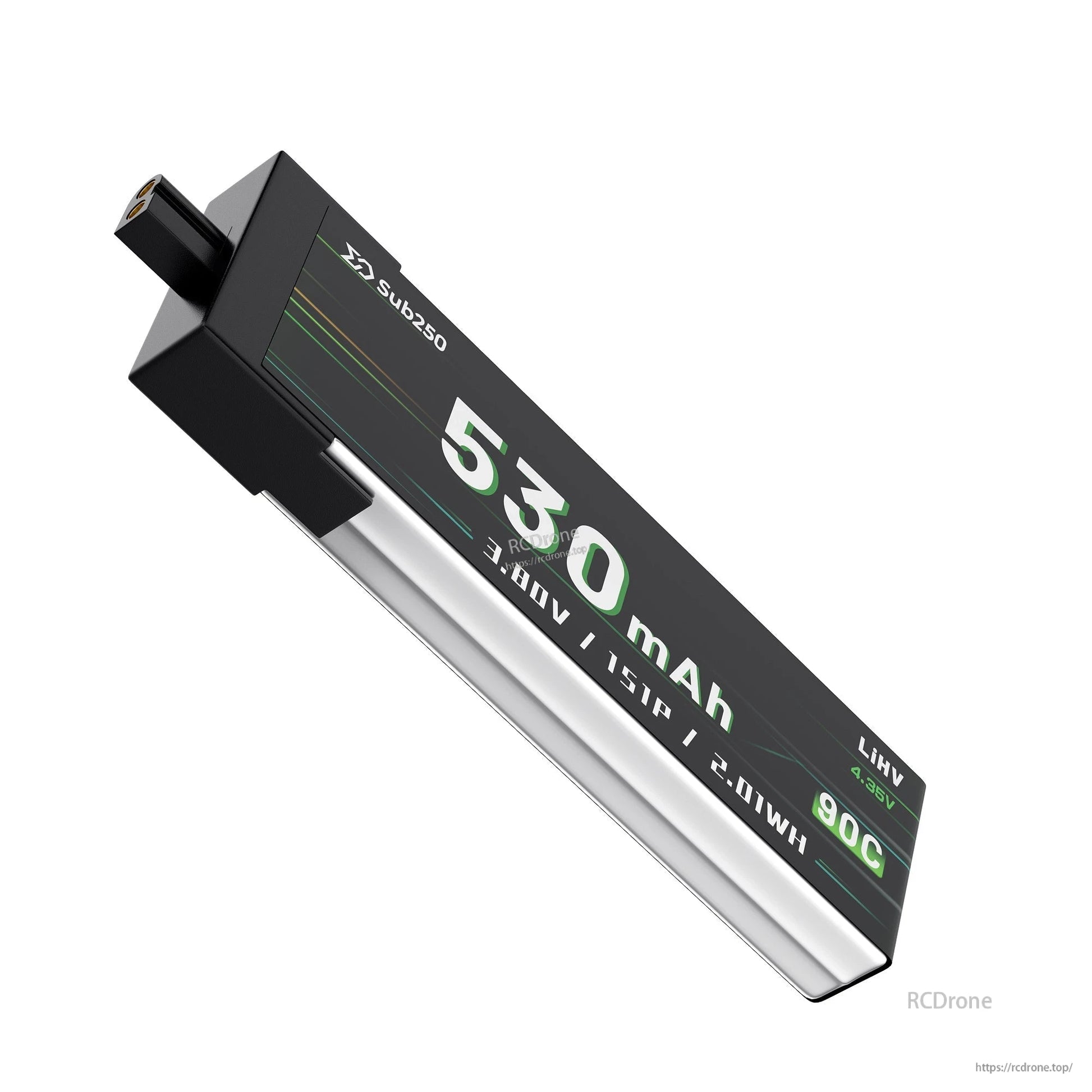

  • Angled view showing the 530mAh label graphics and silver pouch side of the Sub250 battery

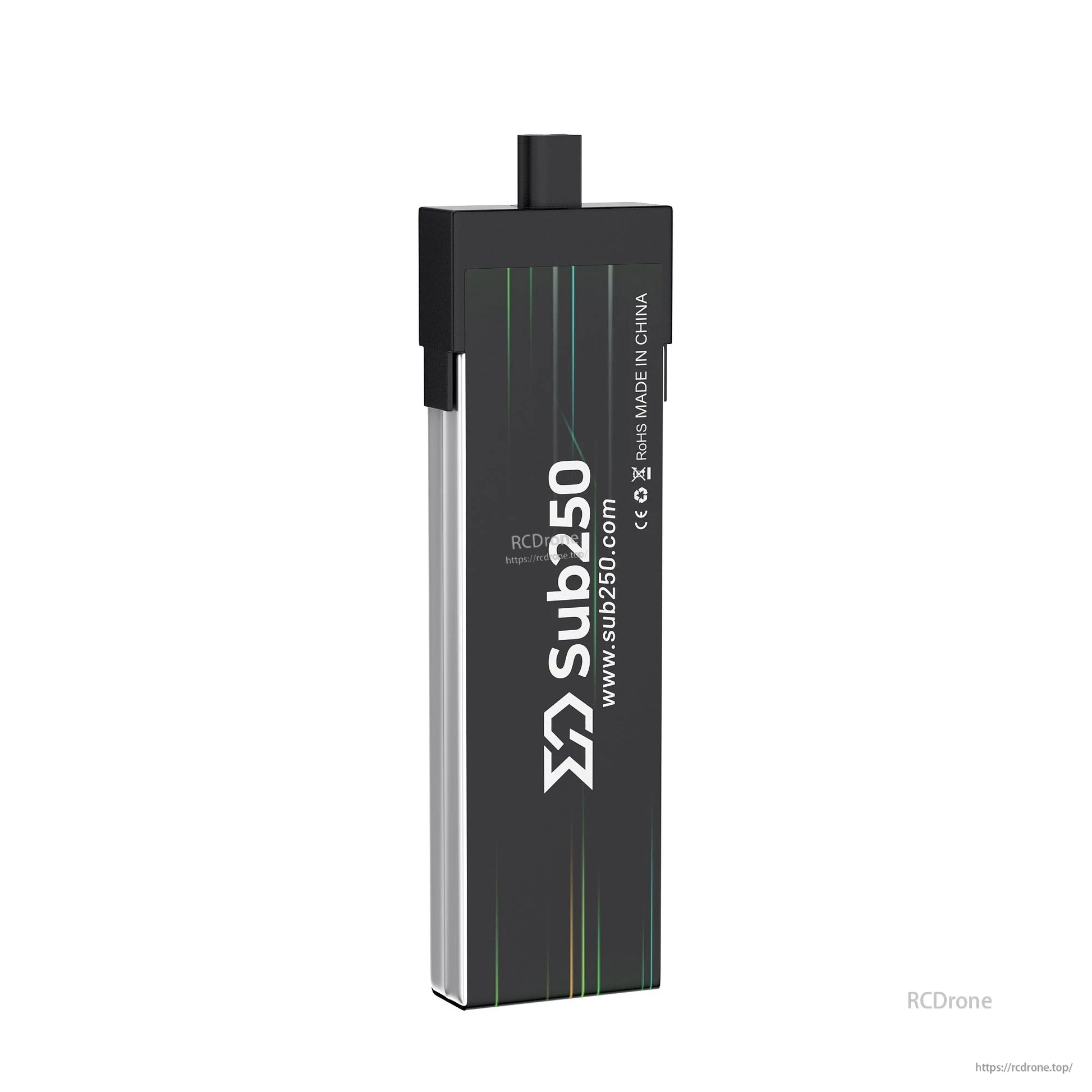

  • Back vertical view of Sub250 battery showing logo side, website line, and Made in China text

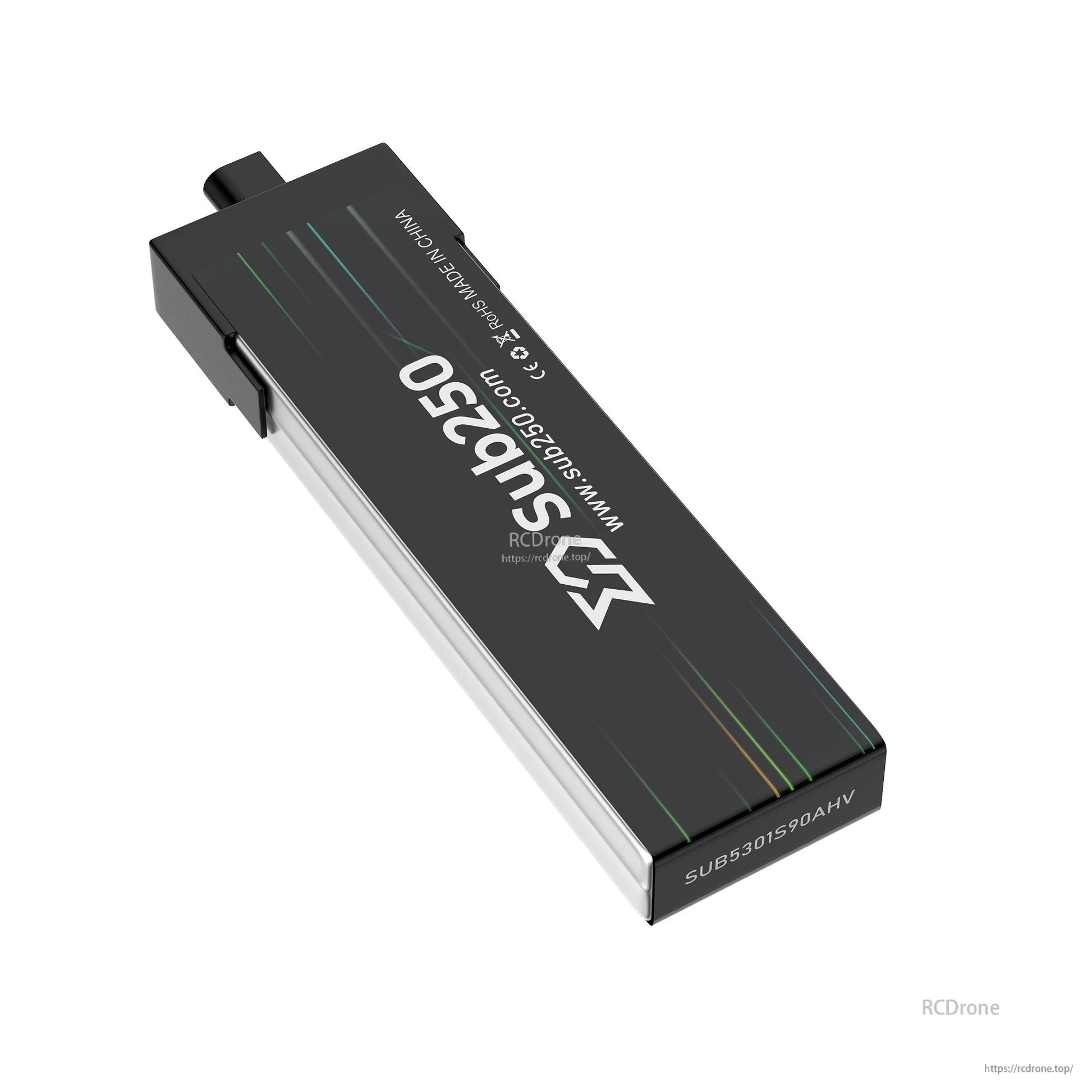

  • Angled rear view showing Sub250 logo and model code printed on the end cap of the battery
1 10

Sub250 SUB5301S90AHV 1S 530mAh 90C LiHV Battery A30 (BT2.0 compatible) for WhoopFly16/NanoFly20

Sub250 SUB5301S90AHV 1S 530mAh 90C LiHV Battery A30 (BT2.0 compatible) for WhoopFly16/NanoFly20

Sub250

$23.19 USD
$23.19 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
PCS
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

The Sub250 1S 530mAh 90C LiHV battery (Model: SUB5301S90AHV) uses A30 connectors for WhoopFly16 and NanoFly20. The charge connector has been upgraded from GNB27 to A30 due to GNB27 discontinuation; A30 is compatible with BT2.0.

Key Features

  • 1S1P LiHV battery with 3.8V nominal voltage
  • High discharge rating: 90C (max continuous)
  • A30 charge connector and A30 discharge connector (BT2.0 compatible)
  • Recommended charging current: 1C; maximum charging current: 3C
  • Important: Do not attempt to forcefully remove the power cord

Specifications

Brand Sub250
Name Sub250 1S 530mAh 90C
Model Number SUB5301S90AHV
Capacity 530mAh
Configuration 1S1P
Nominal Voltage 3.8V
Type LIHV
Energy 2.01WH
Dimensions 60*17*6.5(mm)
Weight 12.9g
Max continuous discharge 90C
Charge Connector A30
Discharge Connector A30
Recommended charging current 1C
Maximum charging current 3C
Application Toys, Boats, Quadcopters

What’s Included

  • Pack option: 2x Sub250 1S 530mAh 90C battery, or 6x Sub250 1S 530mAh 90C battery

For pre-sales compatibility questions (A30/BT2.0) or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.
