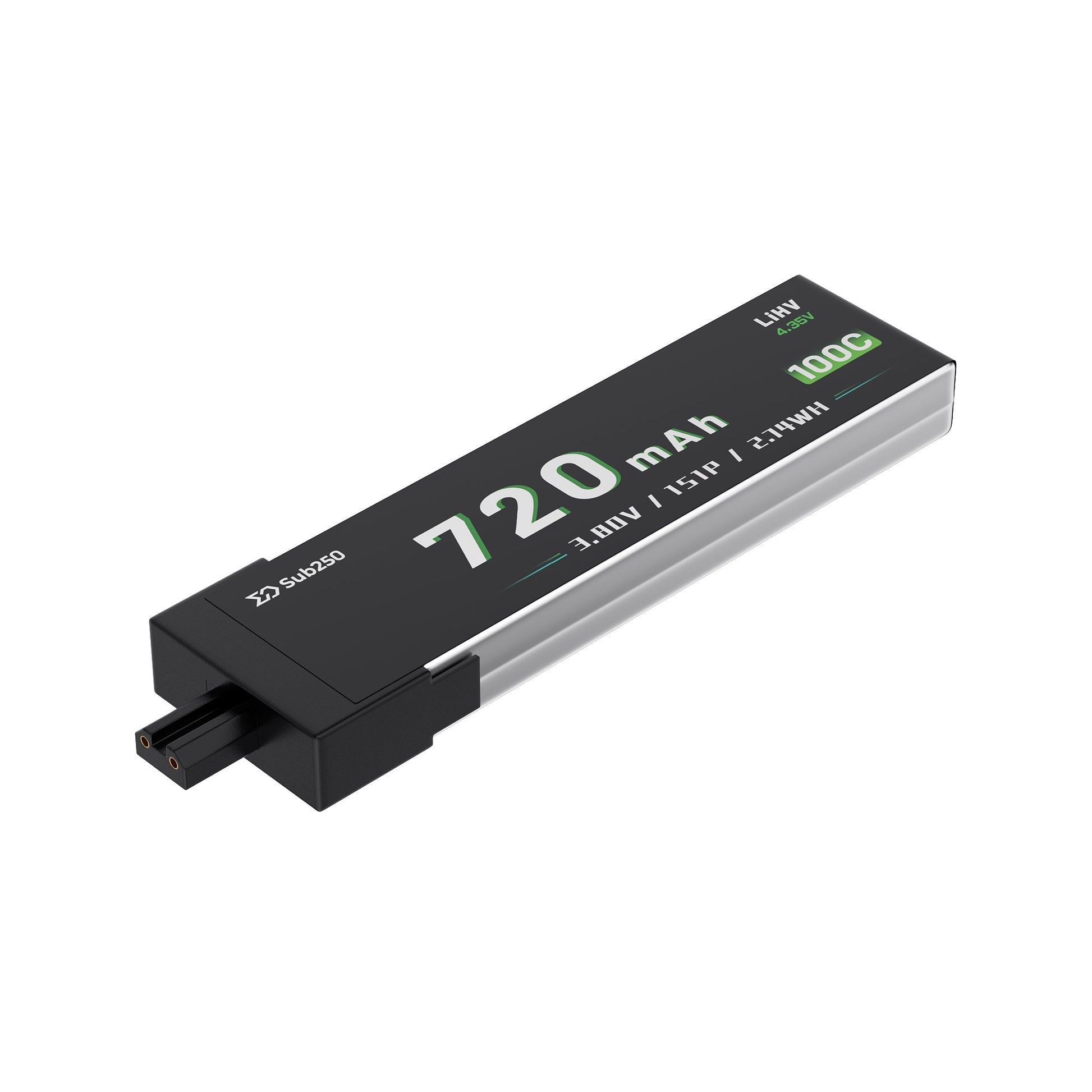

• Sub250 1S 720mAh 90C LiHIV Battery angled view with plug connector and 720mAh label

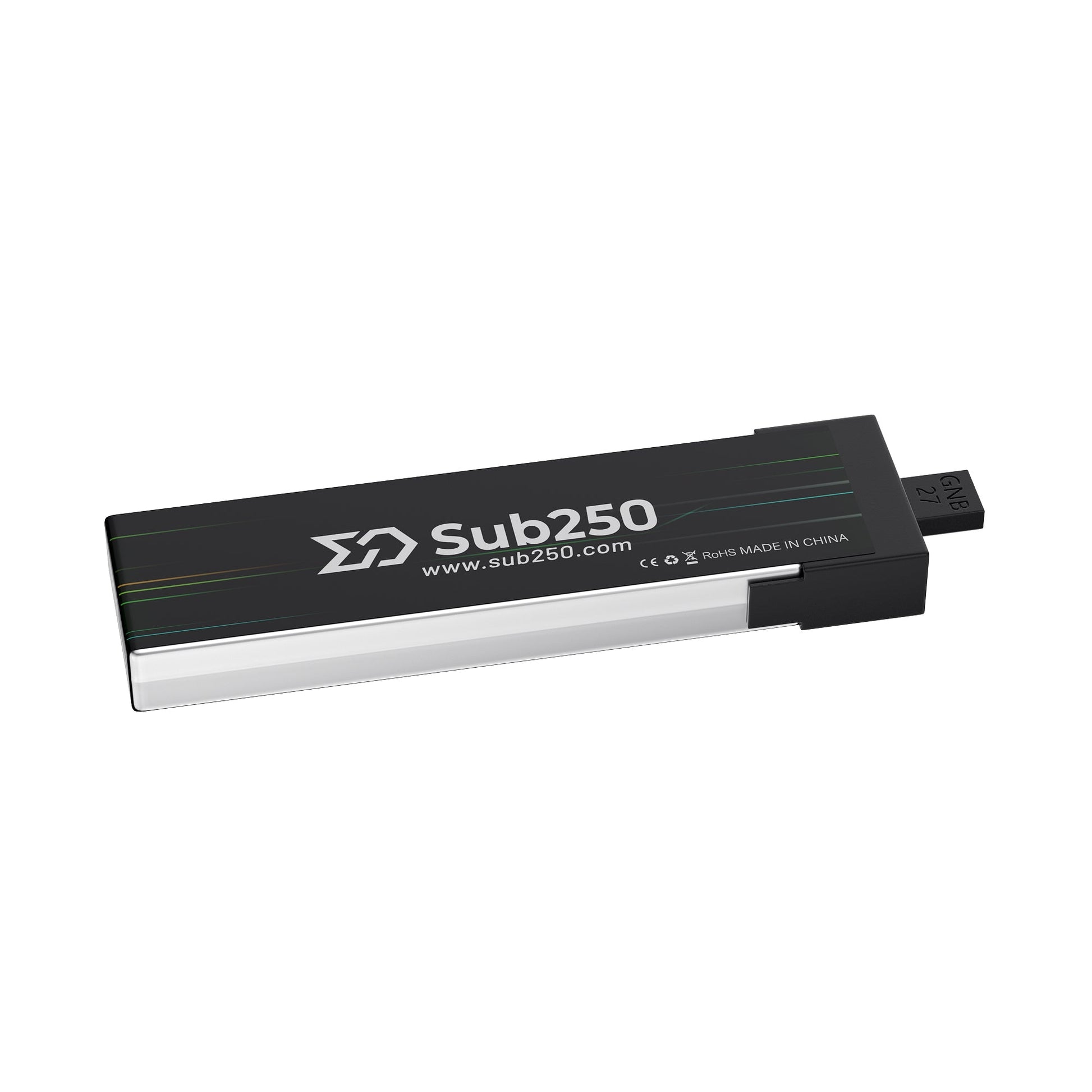

  • Sub250 battery rear view showing Sub250 logo, sub250.com text, and connector end

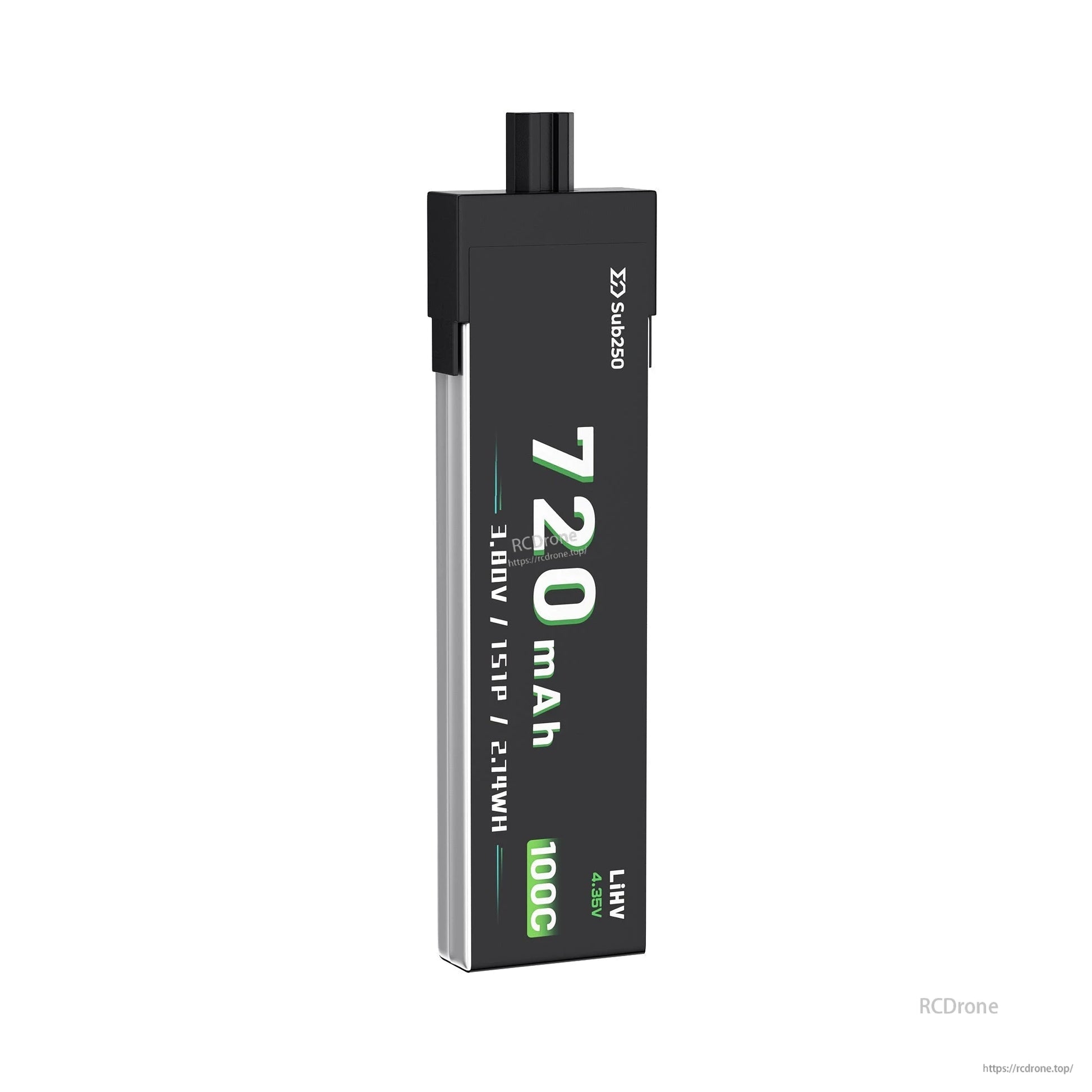

  • Sub250 1S 720mAh LiHV battery front label view showing 720mAh, 1S1P, and 100C print

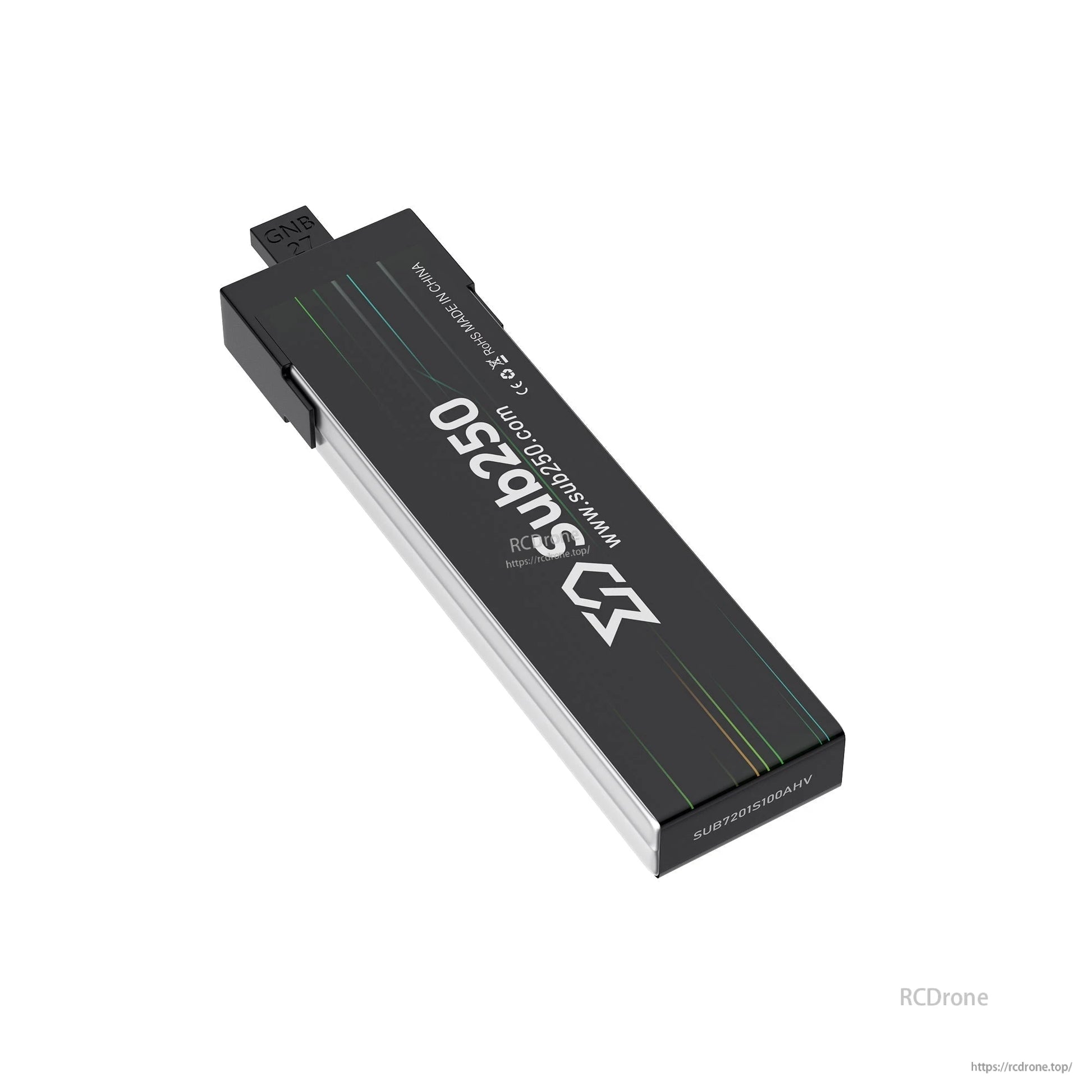

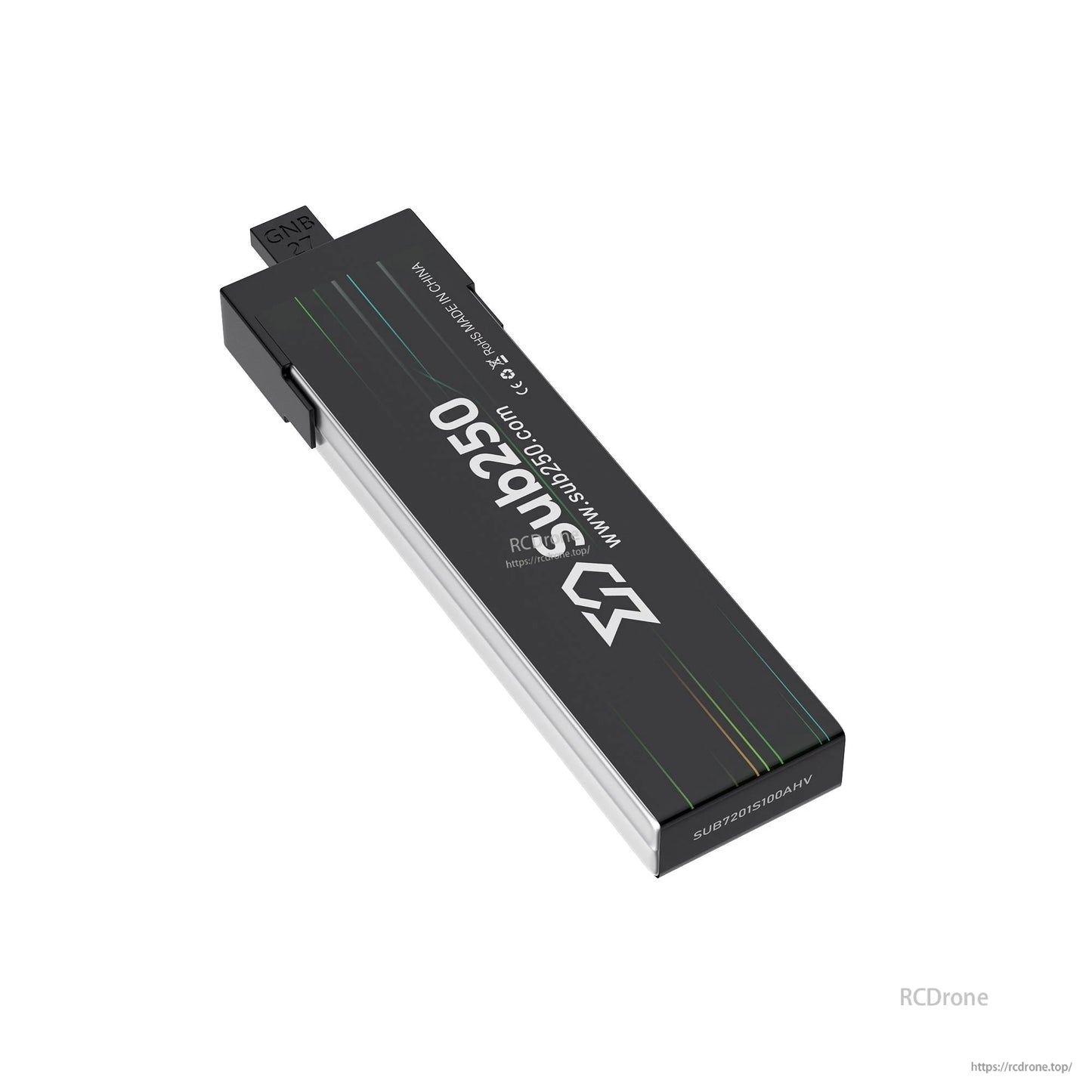

  • Sub250 battery diagonal back view with striped graphic, printed URL, and end cap details

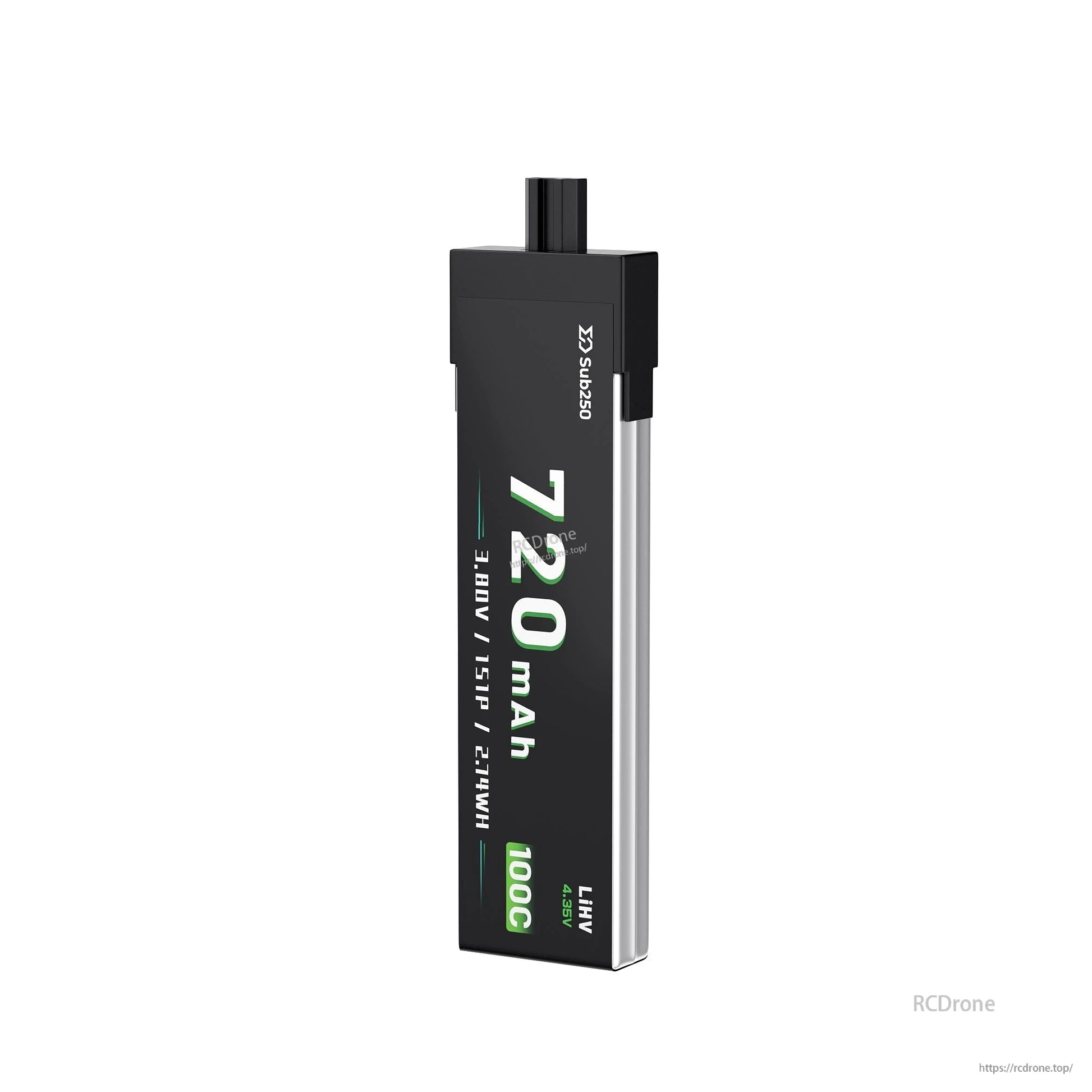

  • Vertical view of Sub250 battery label with 720mAh text, LiHV marking, and top lead

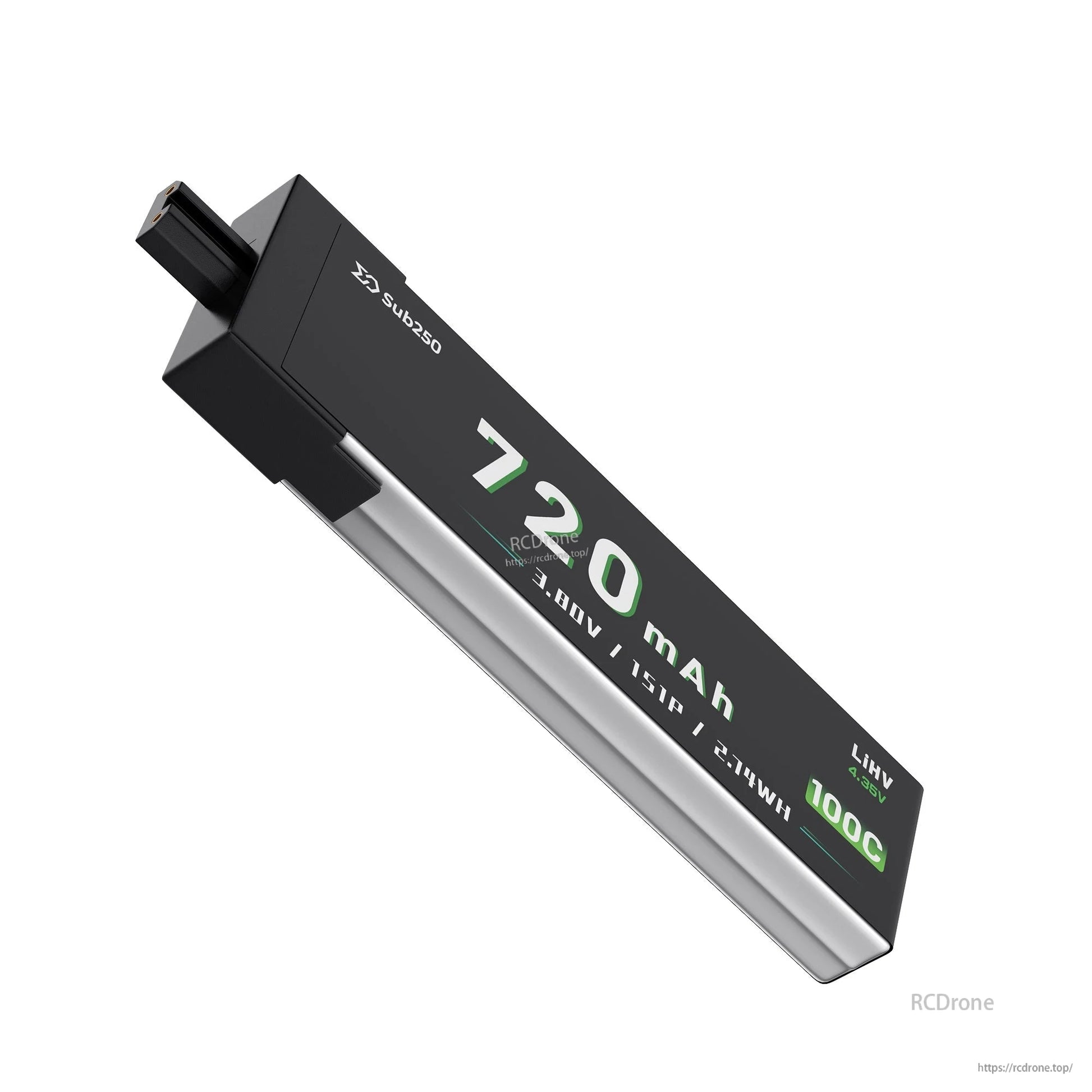

  • Close angled view of Sub250 720mAh LiHV battery highlighting the connector end and slim profile
1 6

Sub250 1S 720mAh 90C LiHIV Battery 3.8V 2.3Wh GNB27 Connector, 6-Pack for Quadcopters

Sub250 1S 720mAh 90C LiHIV Battery 3.8V 2.3Wh GNB27 Connector, 6-Pack for Quadcopters

Sub250

$45.59 USD
$45.59 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

Sub250 1S 720mAh 90C Battery is a 1S1P LiHIV battery pack with 3.8V nominal voltage, designed for compact RC power setups such as quadcopters and other small models.

Key Features

  • 1S 720mAh capacity (1S1P configuration)
  • LiHIV chemistry with 3.8V nominal voltage
  • GNB27 charge connector type
  • Recommended charge rate: 1C; maximum charge rate: 3C

Specifications

Product Sub250 1S 720mAh 90C Battery
Model 1S 720mAh 100C (stated in provided specification text)
Model Number SUB7201S100HV
Capacity 720mAh
Configuration 1S1P
Nominal Voltage 3.8V
Type LiHIV
Energy 2.3Wh
Dimensions 72mm * 17.5mm * 7.5mm
Weight 16.5g
Max continuous discharge (C-rate) 90C (product title); 100C (stated in provided specification text)
Charge Connector Type GNB27
Recommended charging current 1C
Maximum charging current 3C
Application Toys, Boats, Quadcopter

What’s Included

  • 6 x Sub250 1S 720mAh 90C Battery

For connector or charger compatibility questions before purchase, contact support@rcdrone.top or visit https://rcdrone.top/.

Warnings

  • Please read the battery parameters and instructions in detail before use.
  • Please don’t charge the battery unattended.
  • Do not overcharge (select the correct battery type before charging; the full charge voltage of a single cell of LiPo battery is not more than 4.2V, and the full charge voltage of a single cell of LiHV battery is not more than 4.35V).
  • Do not over-discharge (the single-cell discharge voltage of LIPO and LiHV batteries cannot be lower than 3.5V; over-discharging will damage the battery and cause swelling).
  • Don’t place the battery close to open flames or fire sources.
  • Keep the battery away from flammable materials when charging.
  • Please carefully check the battery voltage and capacity before charging and use.
  • It is forbidden to reverse the positive and negative poles of the battery (to avoid short circuit).
  • Do not directly touch the leaking battery. If you accidentally touch the electrolyte, please wash it with clean water immediately. If it is serious, please consult a doctor immediately.
  • Please dispose of the ruptured battery in time and do not reuse it.
  • If you need to store the battery for a long time, please maintain the battery voltage at a single-cell 3.80V-3.85V. Please ensure that a charge-discharge activation is performed within 3 months to maintain the stability of the battery.
  • It is forbidden to disassemble and reassemble the battery or change the wiring (it is easy to cause short circuits and burning).
  • If a collision occurs during use, please remove the battery. Check carefully whether the battery and connector are normal.
