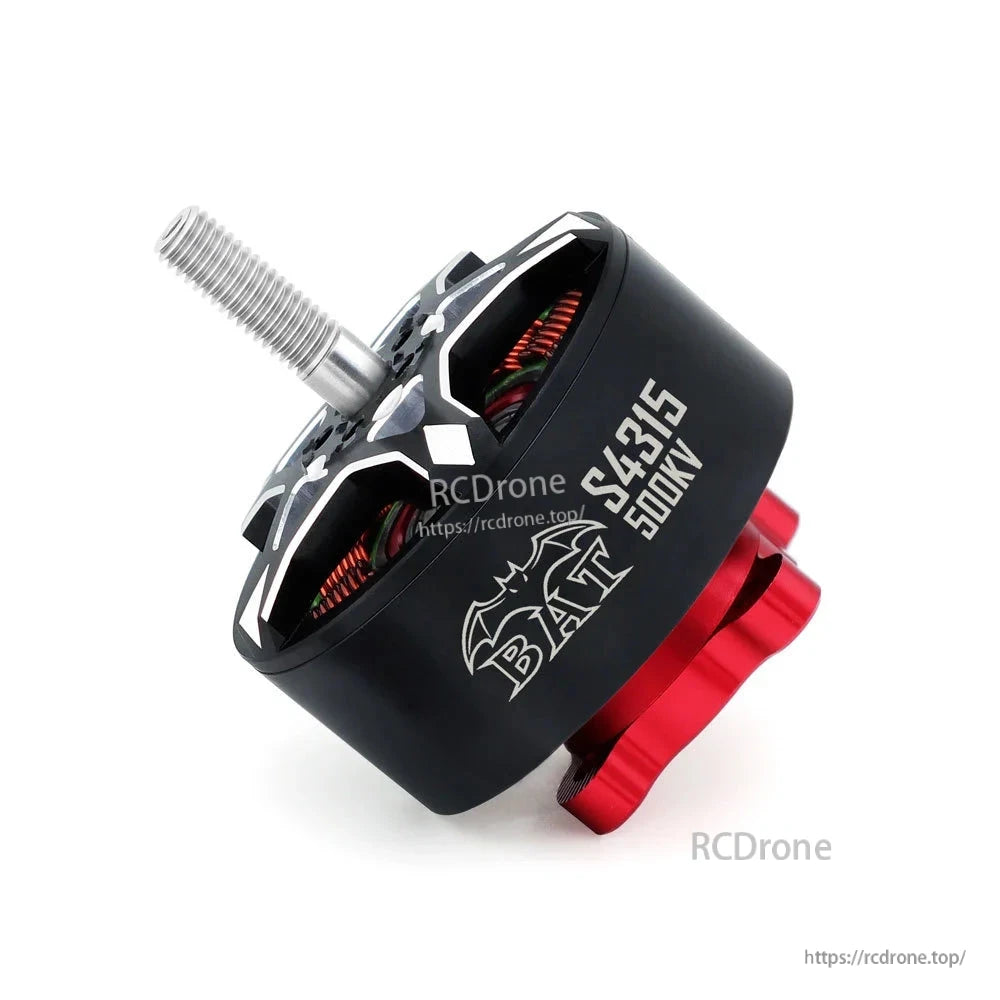

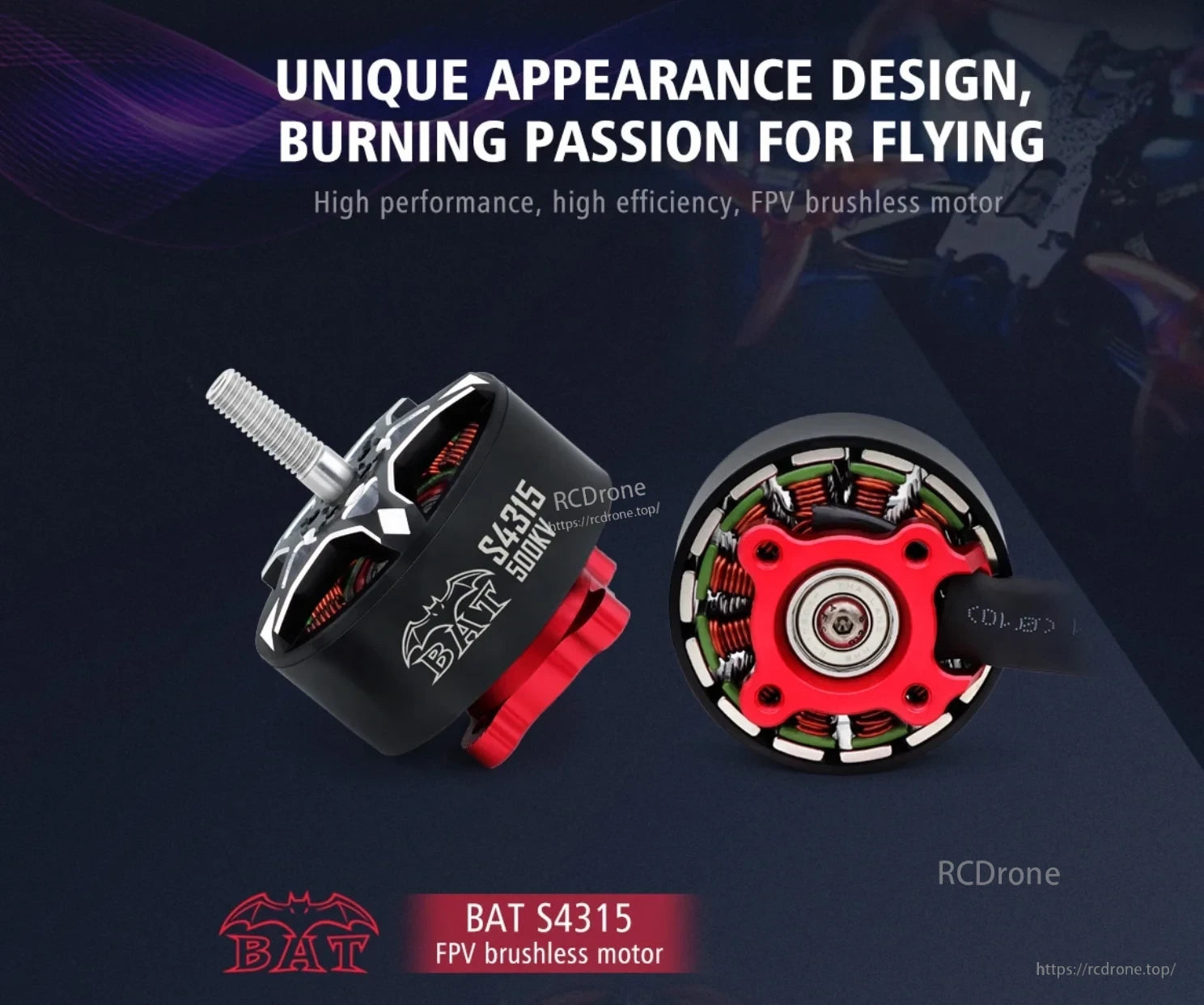

Surpass Hobby BAT S4315 500KV FPV Brushless Motor, M6 Shaft, 12N14P for Multirotor FPV Drones
Surpass Hobby BAT S4315 500KV FPV Brushless Motor, M6 Shaft, 12N14P for Multirotor FPV Drones
Surpass Hobby
قیمت عادی
$69.00 USD
قیمت عادی
قیمت فروش
$69.00 USD
قیمت واحد
مطابق
Taxes included.
حمل و نقل هنگام تسویه حساب محاسبه می شود.
در دسترس بودن پیکاپ بارگیری نشد
Overview
The Surpass Hobby BAT S4315 500KV FPV brushless motor is designed for multirotor/FPV drone propulsion, combining a detachable structure for easier cleaning and improved heat dissipation with a robust M6 threaded shaft for propeller mounting.
Key Features

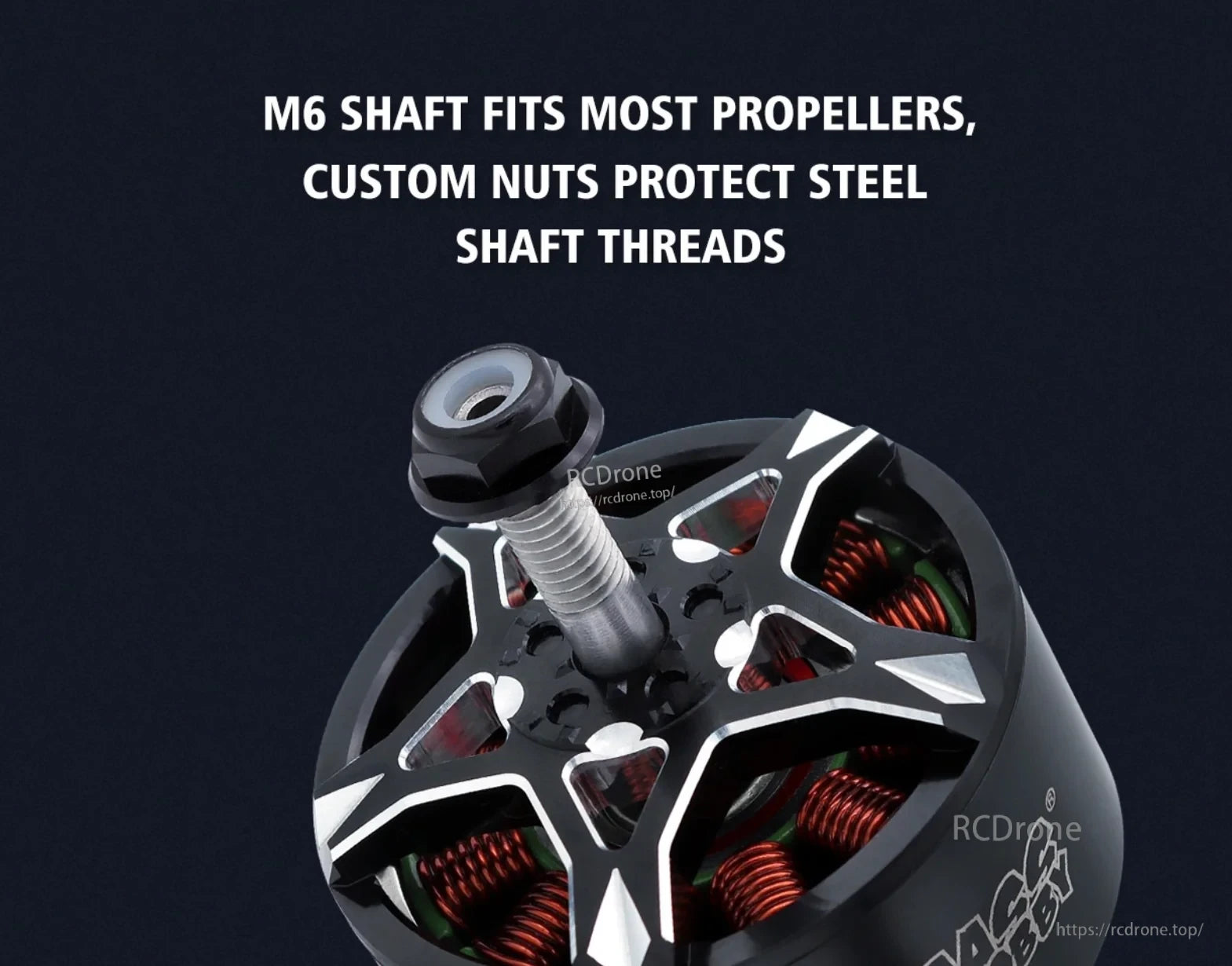

- M6 shaft fits most propellers; custom nuts help protect steel shaft threads

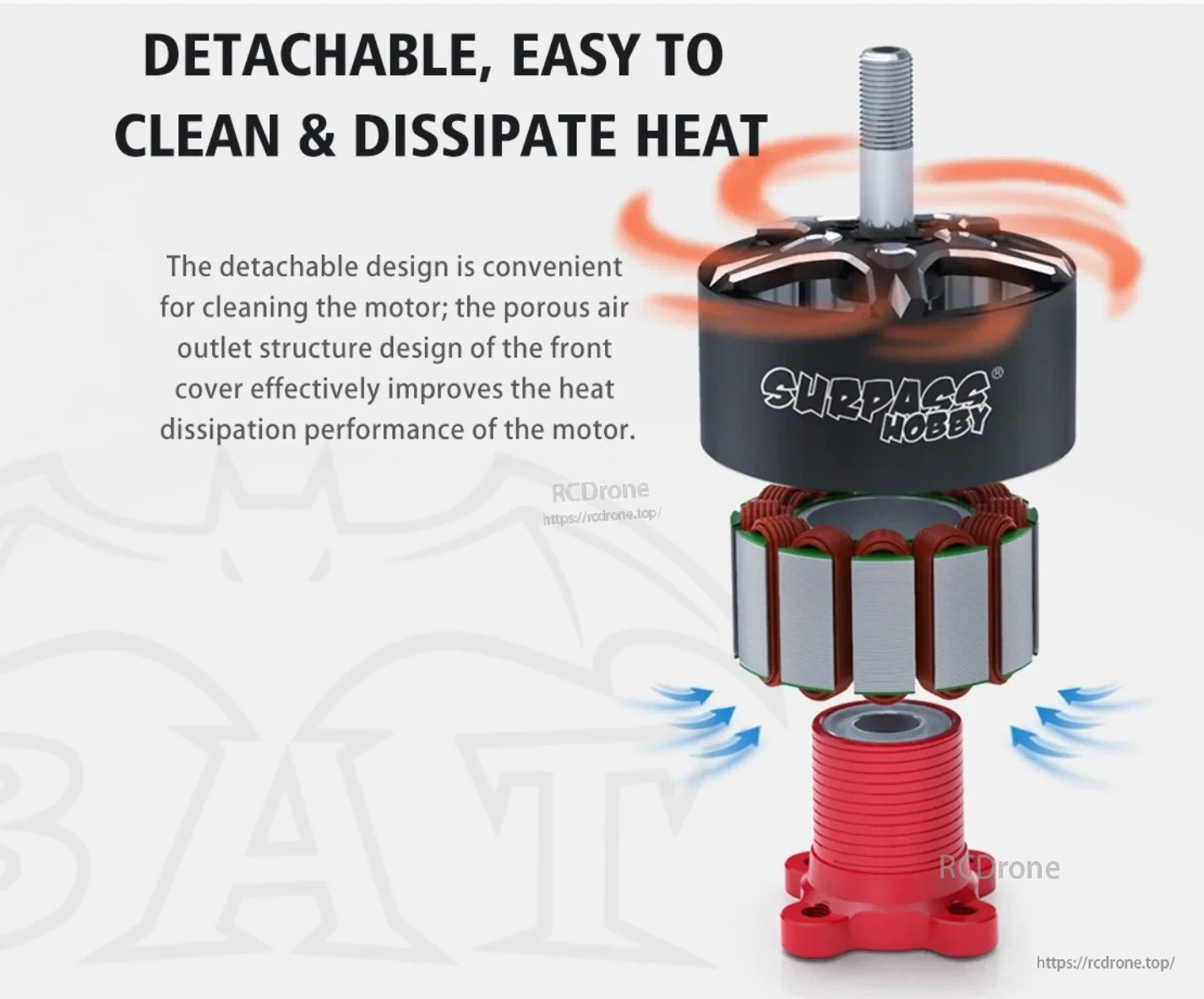

- Detachable design for easier cleaning and improved heat dissipation

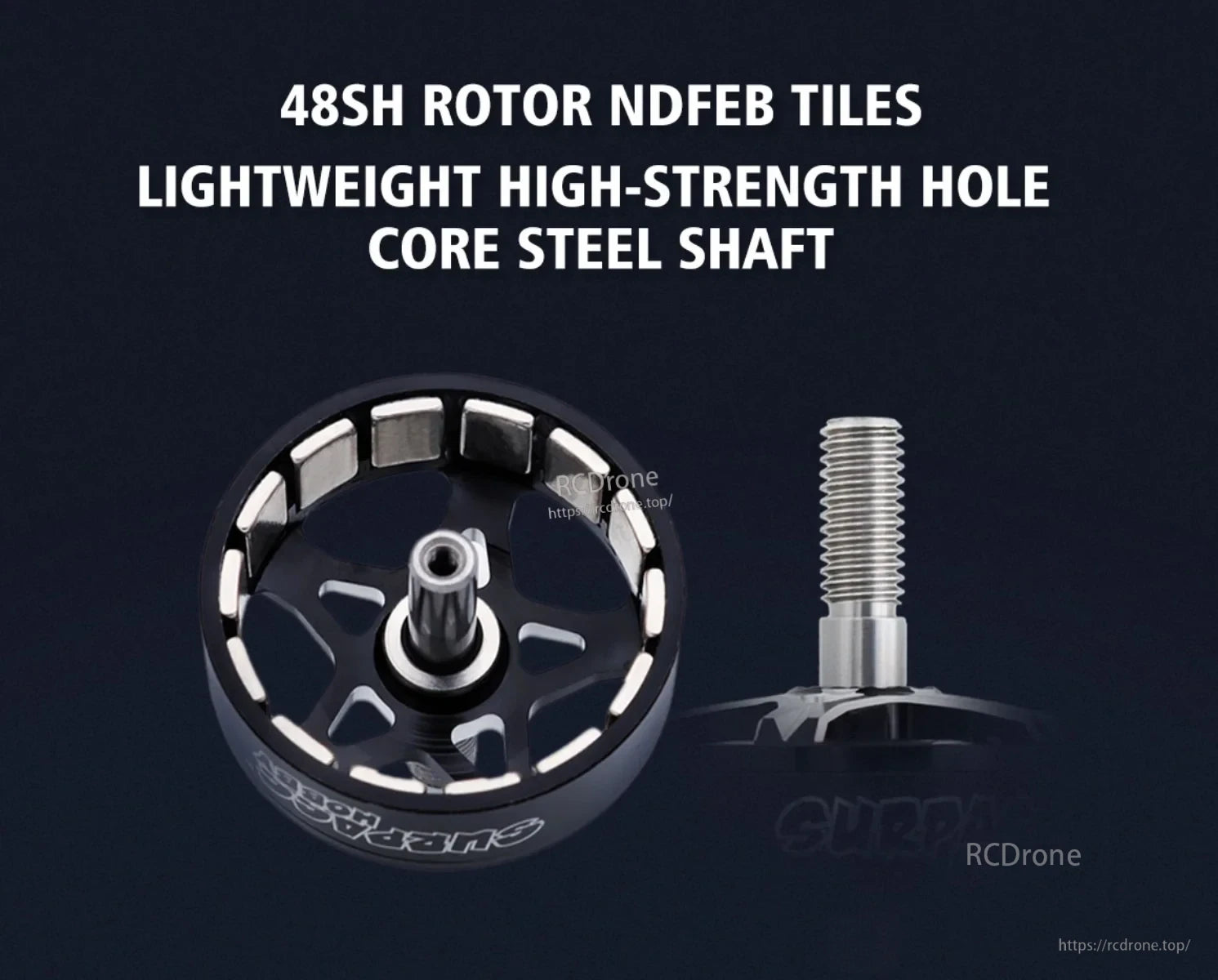

- 48SH rotor with NdFeB tiles

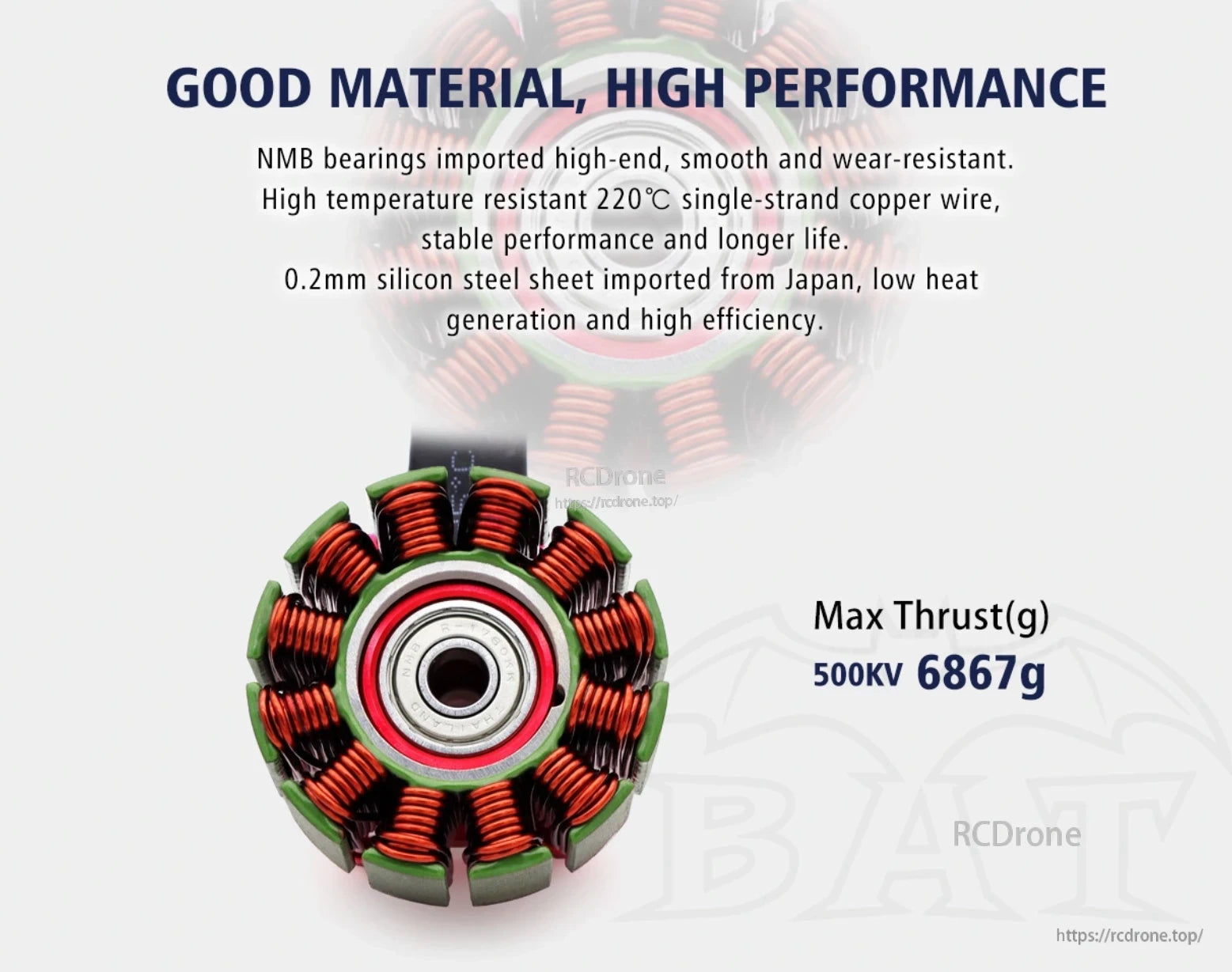

- NMB bearings (smooth and wear-resistant)
- 220°C high-temperature-resistant single-strand copper wire
- 0.2mm silicon steel sheet (low heat generation, high efficiency)
Specifications
| Brand | Surpass Hobby |
| Series | BAT |
| Model | S4315 |
| KV | 500KV |
| Slot/Poles | 12N14P |
| Motor size | Ø51 x 60.2 mm |
| Stator size | Ø43 x 15 mm |
| Shaft diameter | Ø6 (M6) |
| Shaft thread | M6 (CW) |
| Shaft length | 19.9 mm |
| Mounting holes | 4-M4 |
| Mounting pattern | Ø30 mm |
| No-load current | 1.10 A |
| Resistance | 44.8 mΩ |
| Max current | 100.81 A |
| Max power | 3309.6 W |
| Lead wire | 14#, 670 mm |
| Weight (incl. wire) | 258.0 g |
| Max thrust | 6867 g |
| Thrust test prop | GF1310-3 |
Applications
- Multirotor and FPV drone builds requiring a 500KV-class brushless motor
- Custom UAV projects where an M6 prop shaft and 4x M4 mounting pattern are preferred
For build guidance or pre-sales compatibility questions, contact [email protected] or visit https://rcdrone.top/.
