Surpass Hobby F5055 250KV/550KV Brushless Motor for Fixed Wing Aircraft VTOL Drone Tail Propulsion
Surpass Hobby F5055 250KV/550KV Brushless Motor for Fixed Wing Aircraft VTOL Drone Tail Propulsion
Surpass Hobby
در دسترس بودن پیکاپ بارگیری نشد
Overview

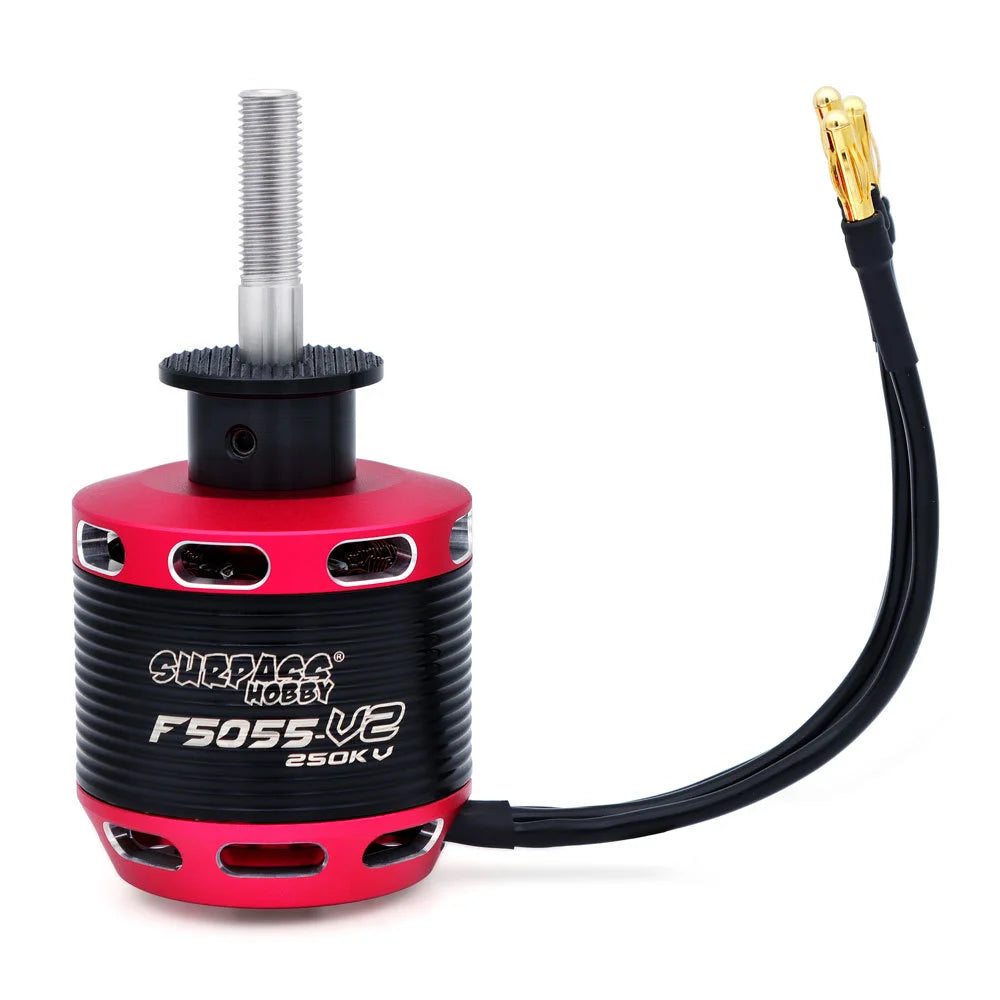

The Surpass Hobby F5055 brushless motor is designed for fixed wing aircraft and VTOL drone tail propulsion setups, offering stable output, efficient cooling, and a detachable structure for easier cleaning and maintenance. Two KV options are available: 250KV and 550KV.
Key Features
- Detachable design for easier cleaning and maintenance

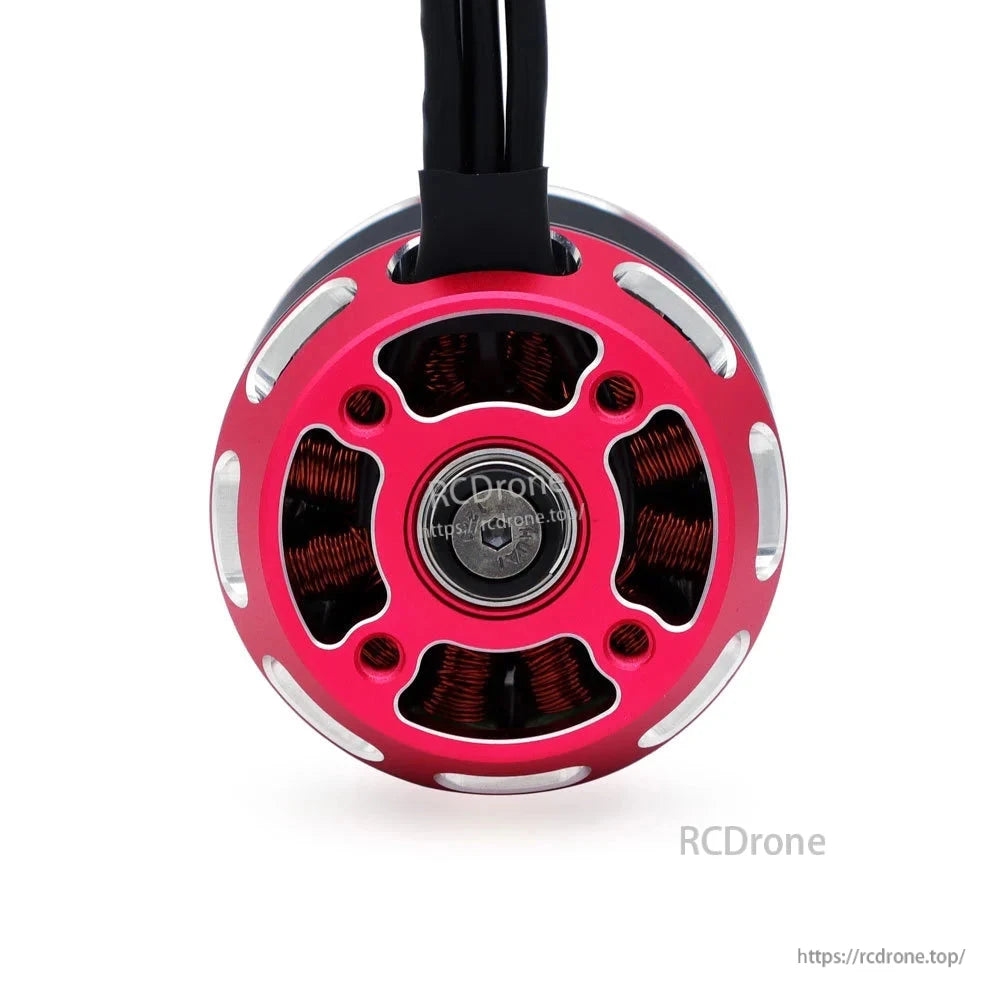

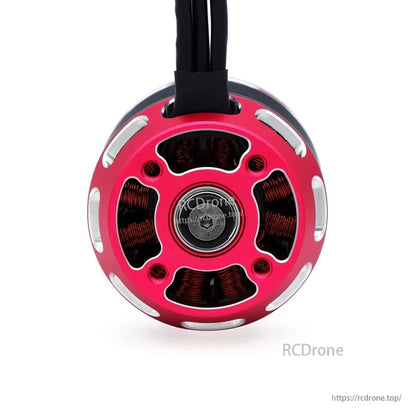

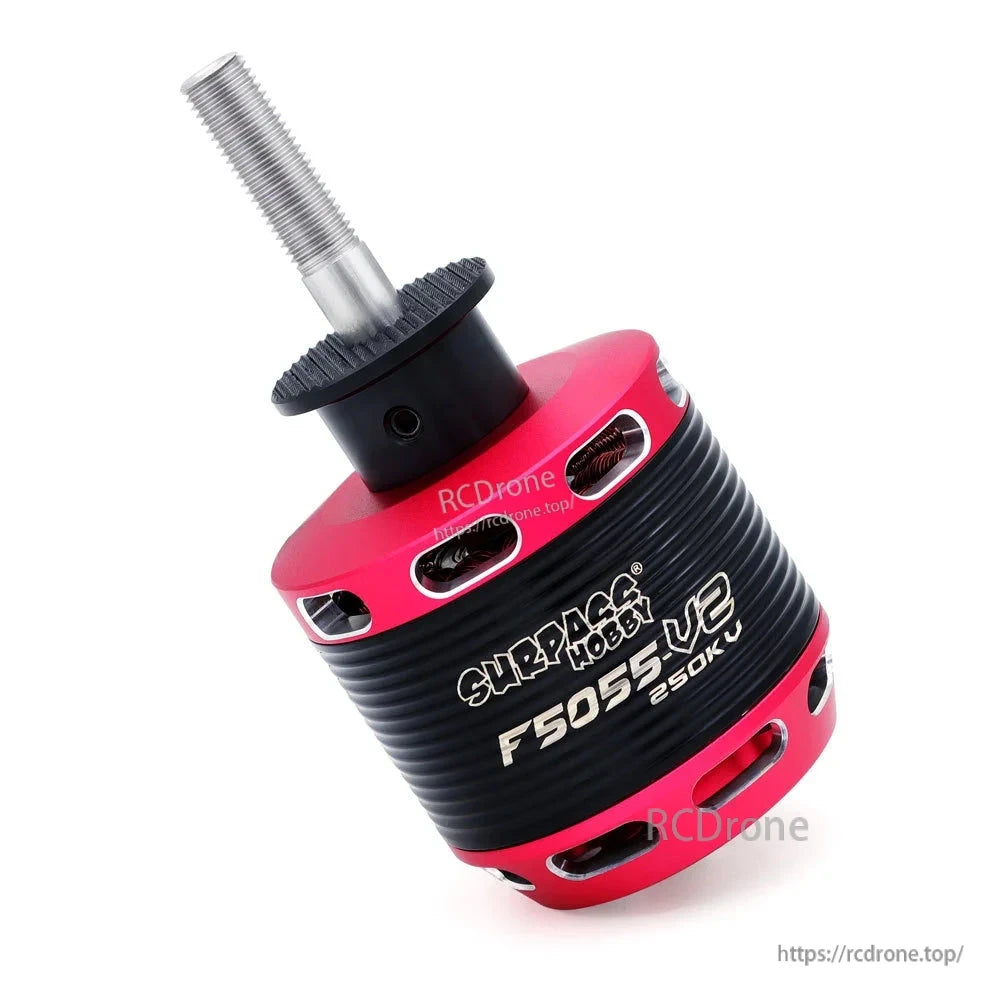

- Air inlet and ventilated housing structure to improve heat dissipation
- High-temperature copper winding wire rated to 220cC

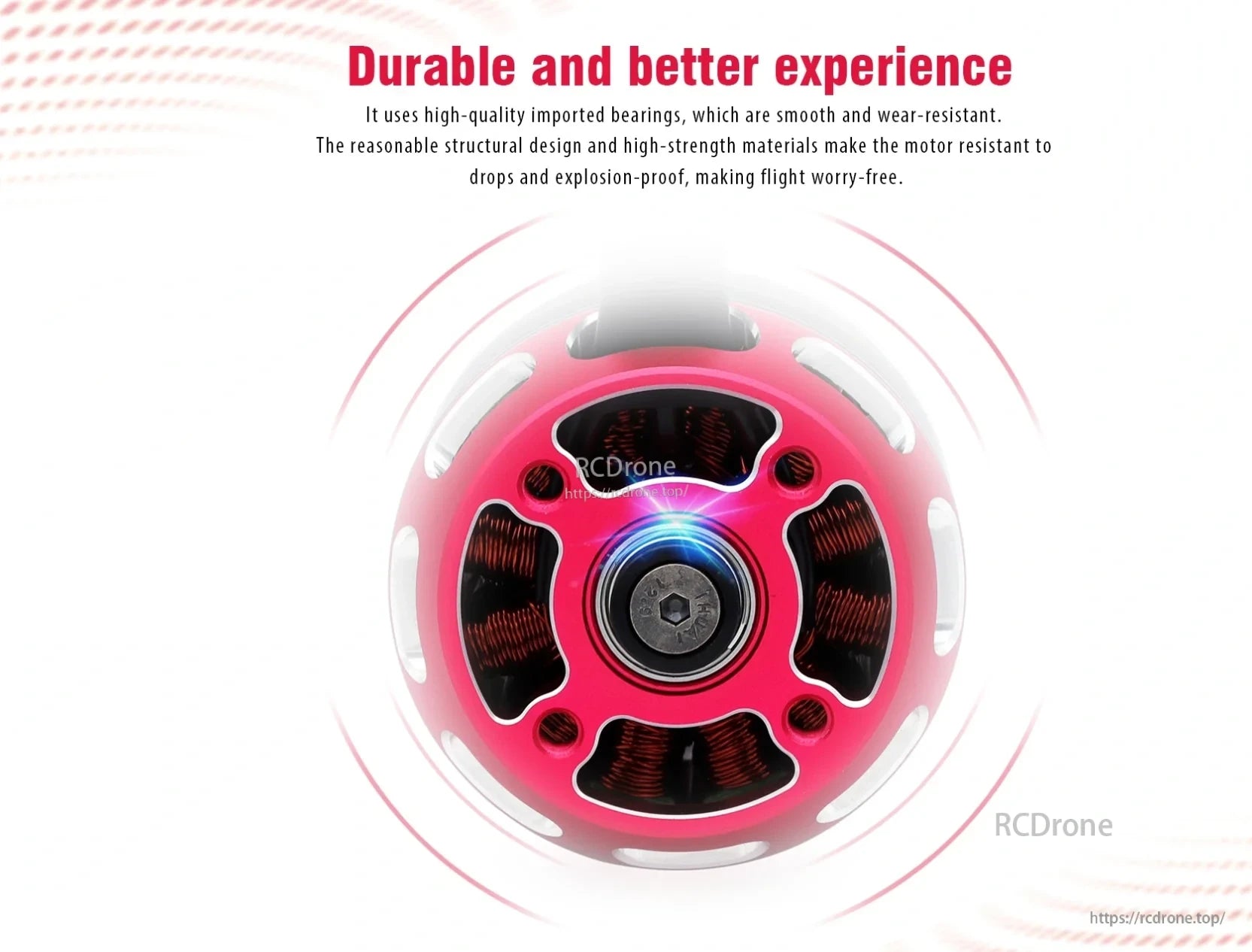

- High-quality bearings for smooth, wear-resistant operation
For help choosing between the 250KV and 550KV versions for a specific propeller/voltage setup, contact [email protected] or visit https://rcdrone.top/.
Specifications
Basic Data
| Brand | Surpass Hobby |
| Model | F5055 |
| KV options | 250KV / 550KV |
| Rotor poles | 14 |
| Motor size (mm) | 050 x 98.6 |
| Stator size (mm) | 040.2 x 25 |
| Weight | 375 g |
| Recommended propeller | APC1508E-2 |

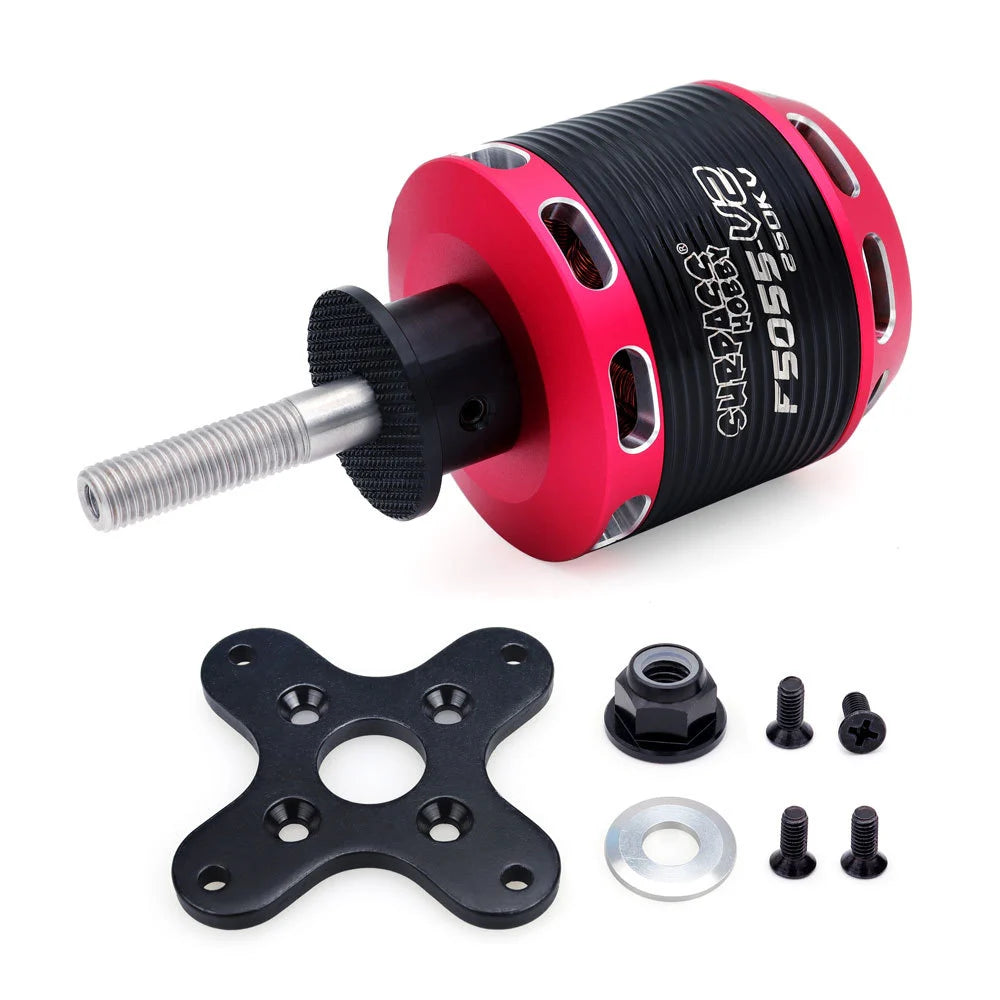

| Mounting holes | 4 x M4 |
| Bolt circle | Ø30 |

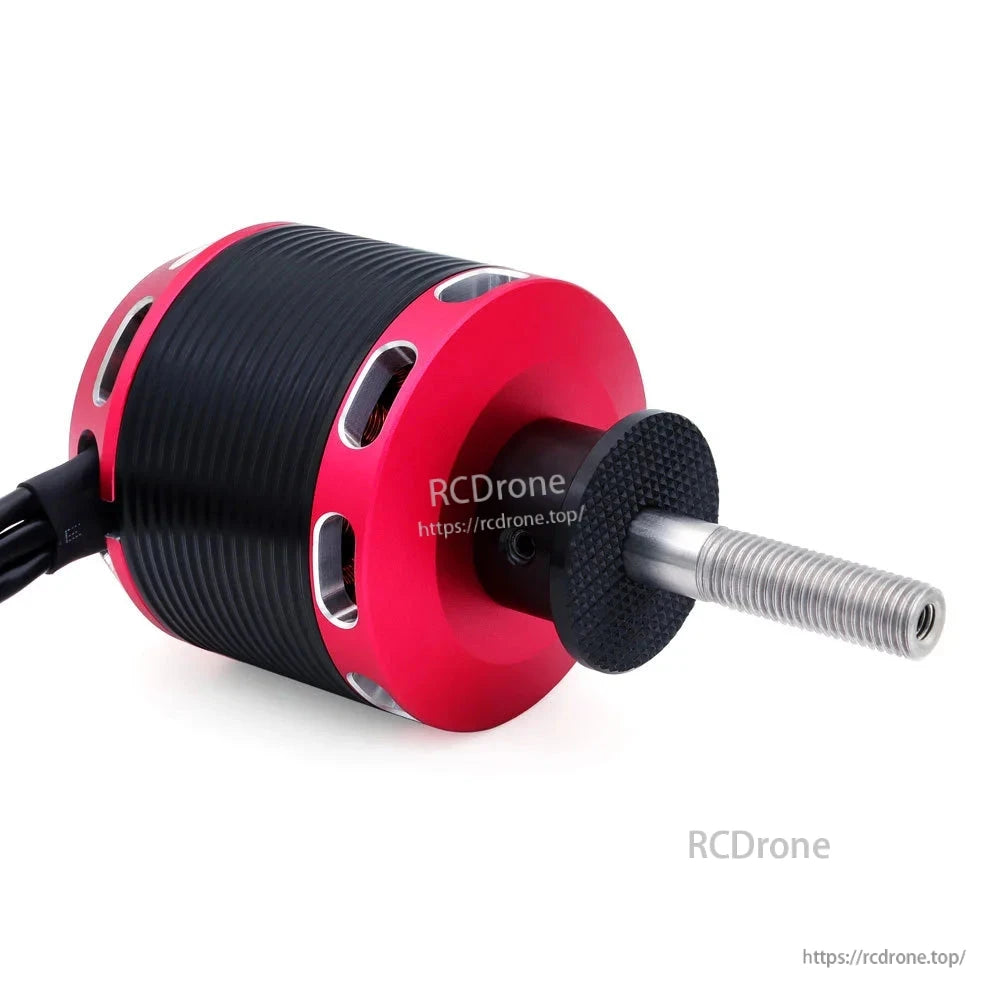

| Shaft thread | M8 x 1 (CW) |
| Motor diameter (drawing) | Ø50 |
Electrical (by KV option)
| Item | F5055 250KV | F5055 550KV |
|---|---|---|
| Max watts (W) | 1550 | 2000 |
| Voltage range (V) | 42 | 22 |
| Max current (A) | 37 | 91 |
| No-load current (A) | 0.5 | 1.7 |
| Resistance (Ω) | 0.062 | 0.017 |
Thrust Test (APC1508E-2, 100% throttle)
| Item | Volts (V) | Amps (A) | Watts (W) | Thrust (g) | Efficiency (g/W) | Operating temperature (°C) |
|---|---|---|---|---|---|---|
| F5055 250KV | 33.52 | 23.31 | 781.4 | 3896 | 5.0 | 29 |
| F5055 550KV | 22.53 | 99.48 | 2241.3 | 6419 | 2.9 | 33.2 |
Note: The temperature value is the internal motor temperature measured for 2 minutes at 100% throttle, for reference only.
Applications
- Fixed wing aircraft brushless motor setups
- VTOL drone tail propulsion / tail thrust configurations
Details

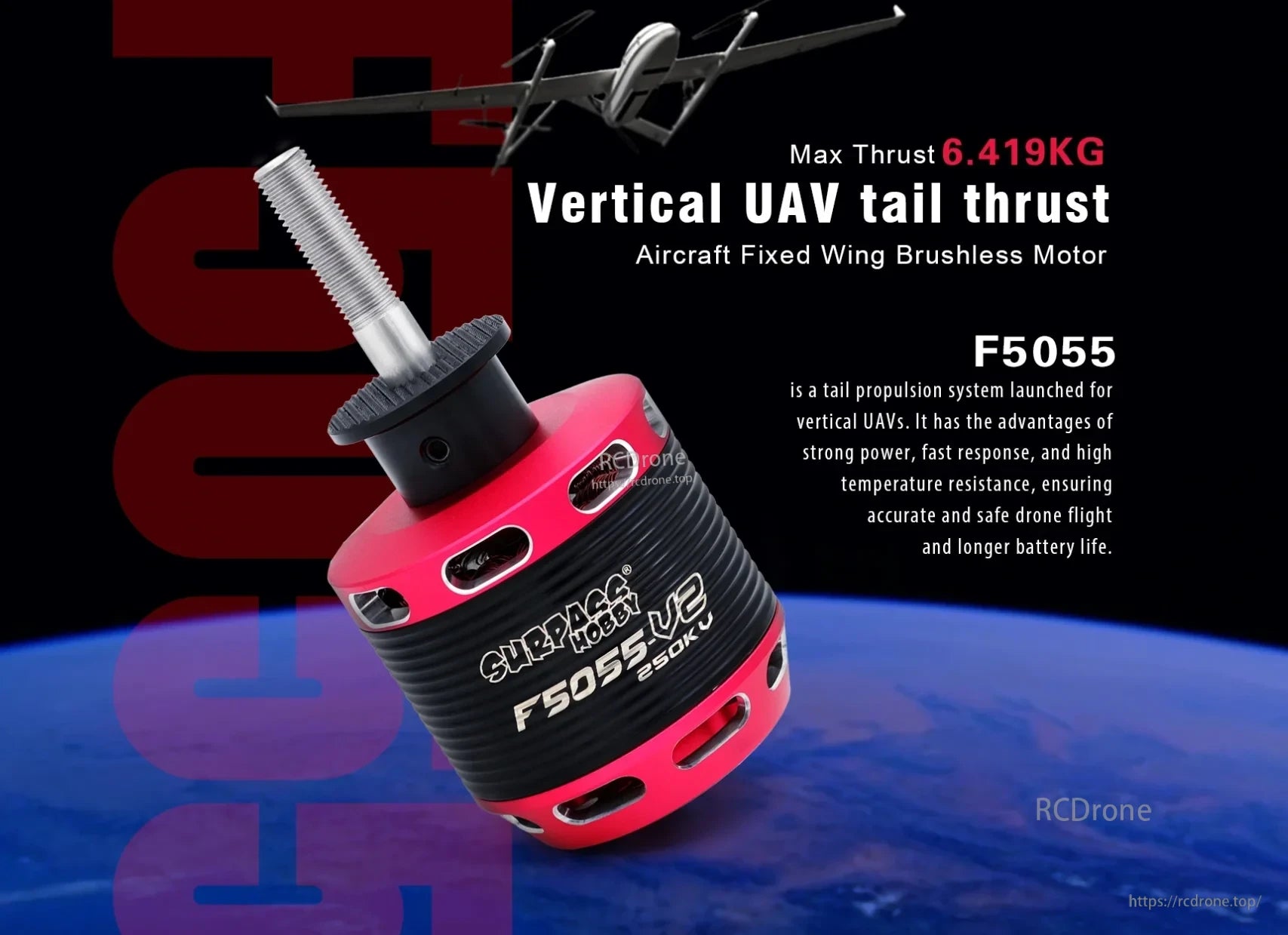

Built for fixed-wing aircraft and VTOL tail propulsion, the F5055 delivers stable output in a compact 50mm class motor.

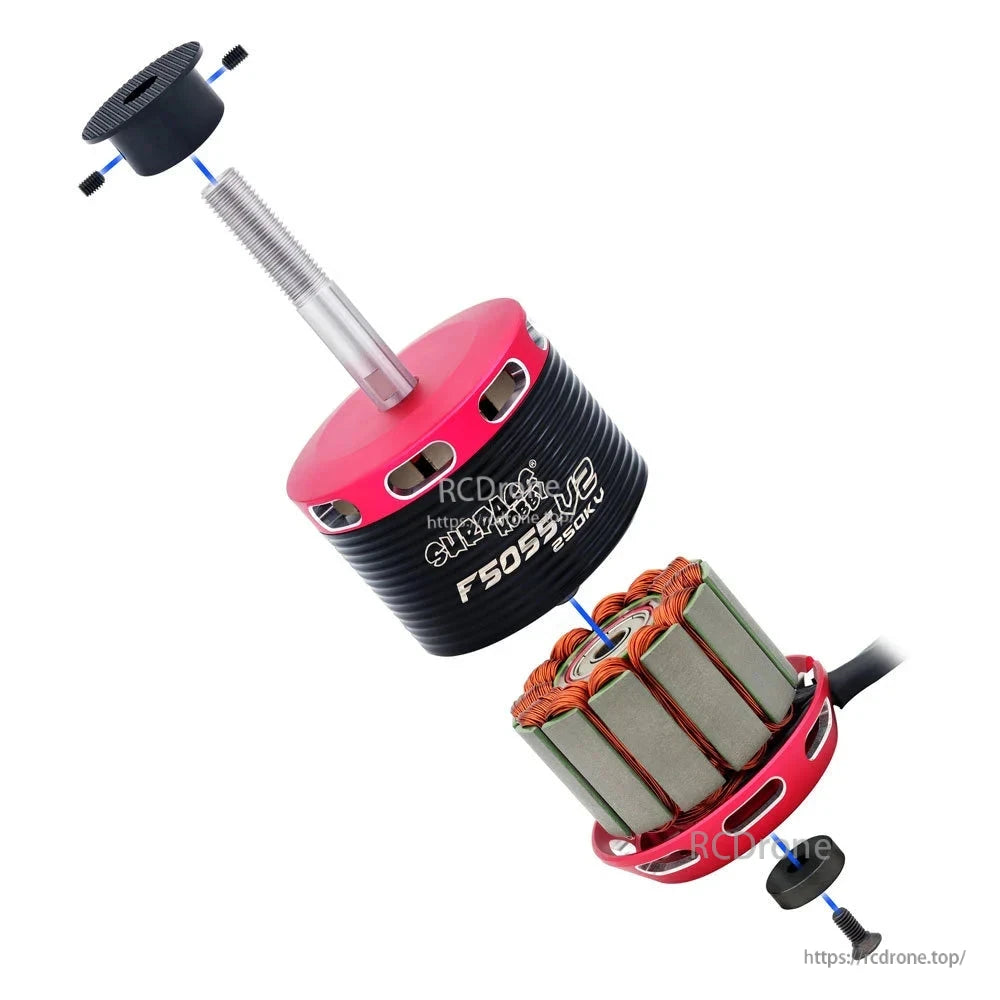

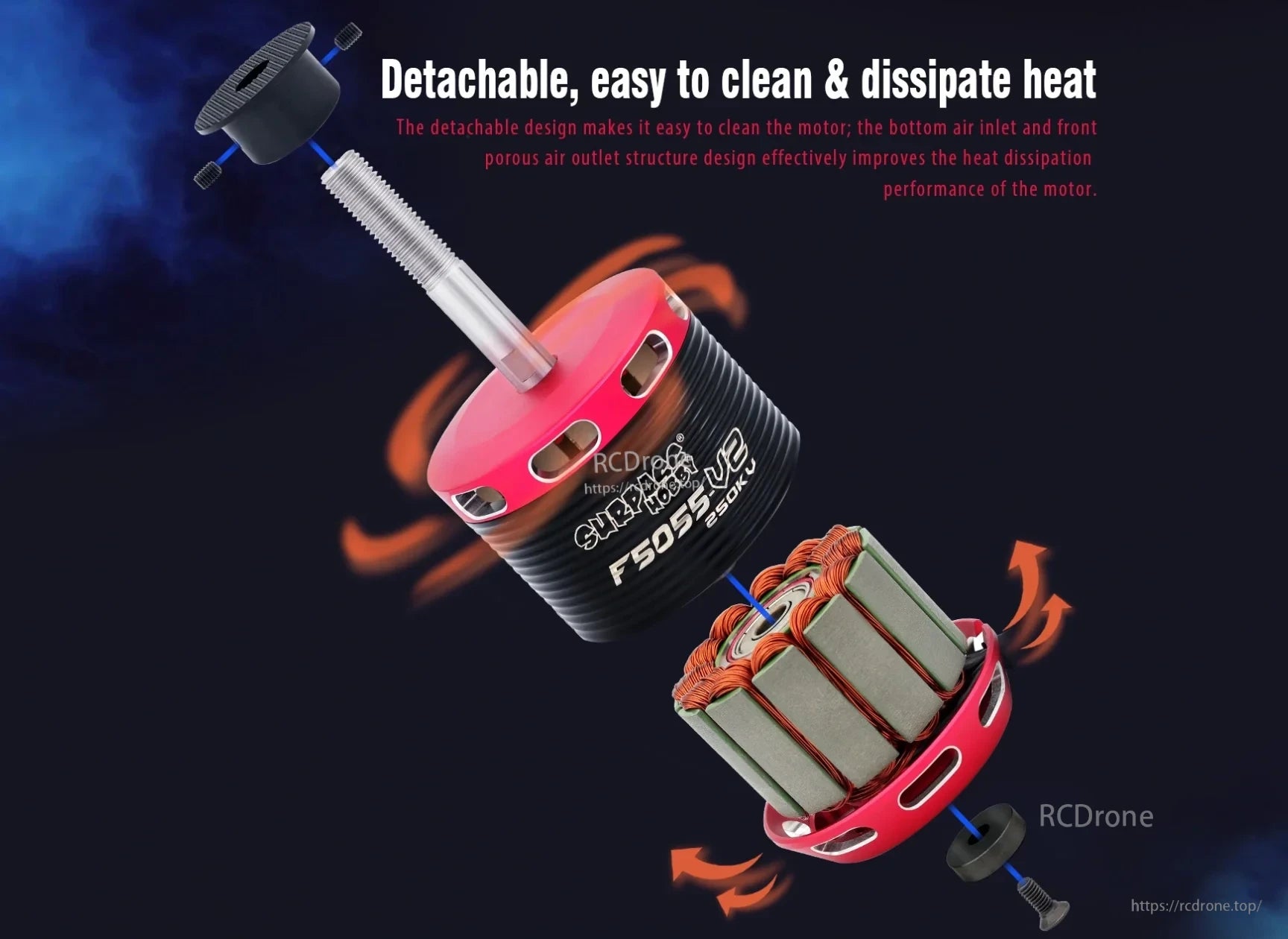

A detachable structure makes maintenance simple while the vented housing helps move heat away during high-load runs.

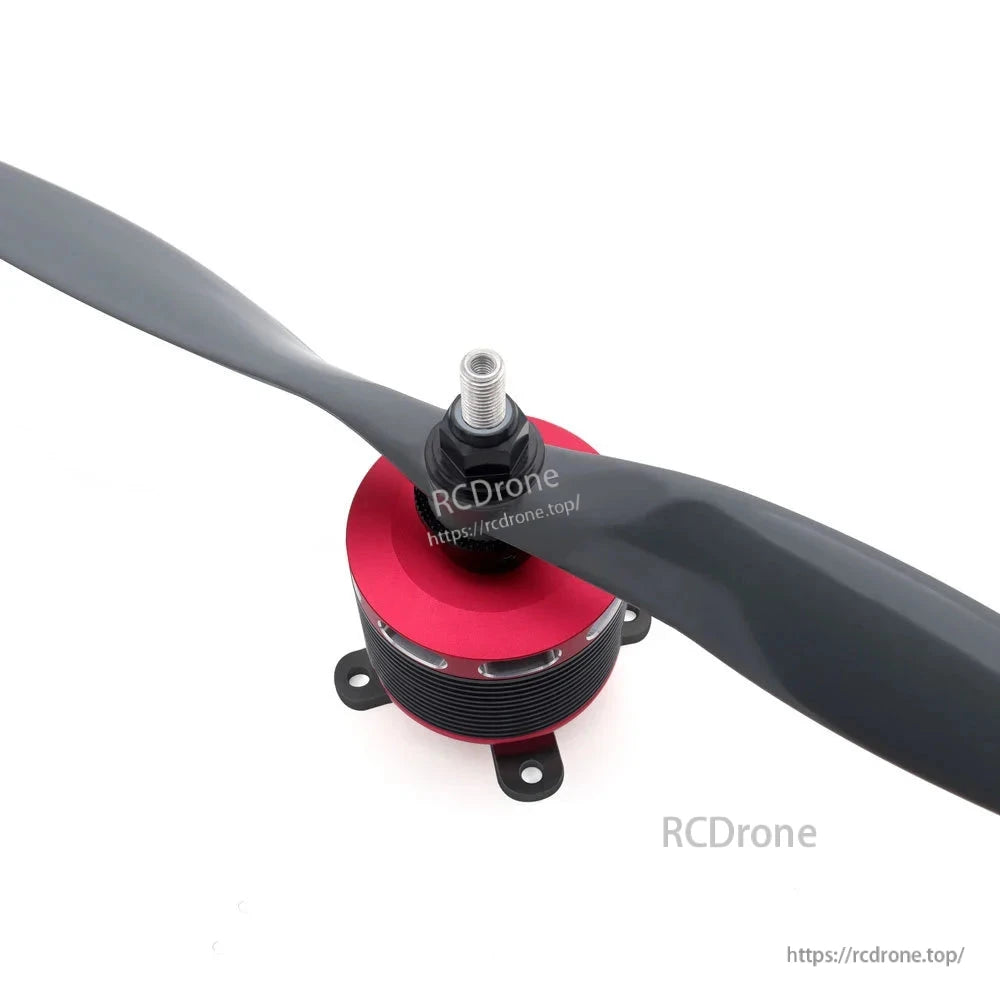

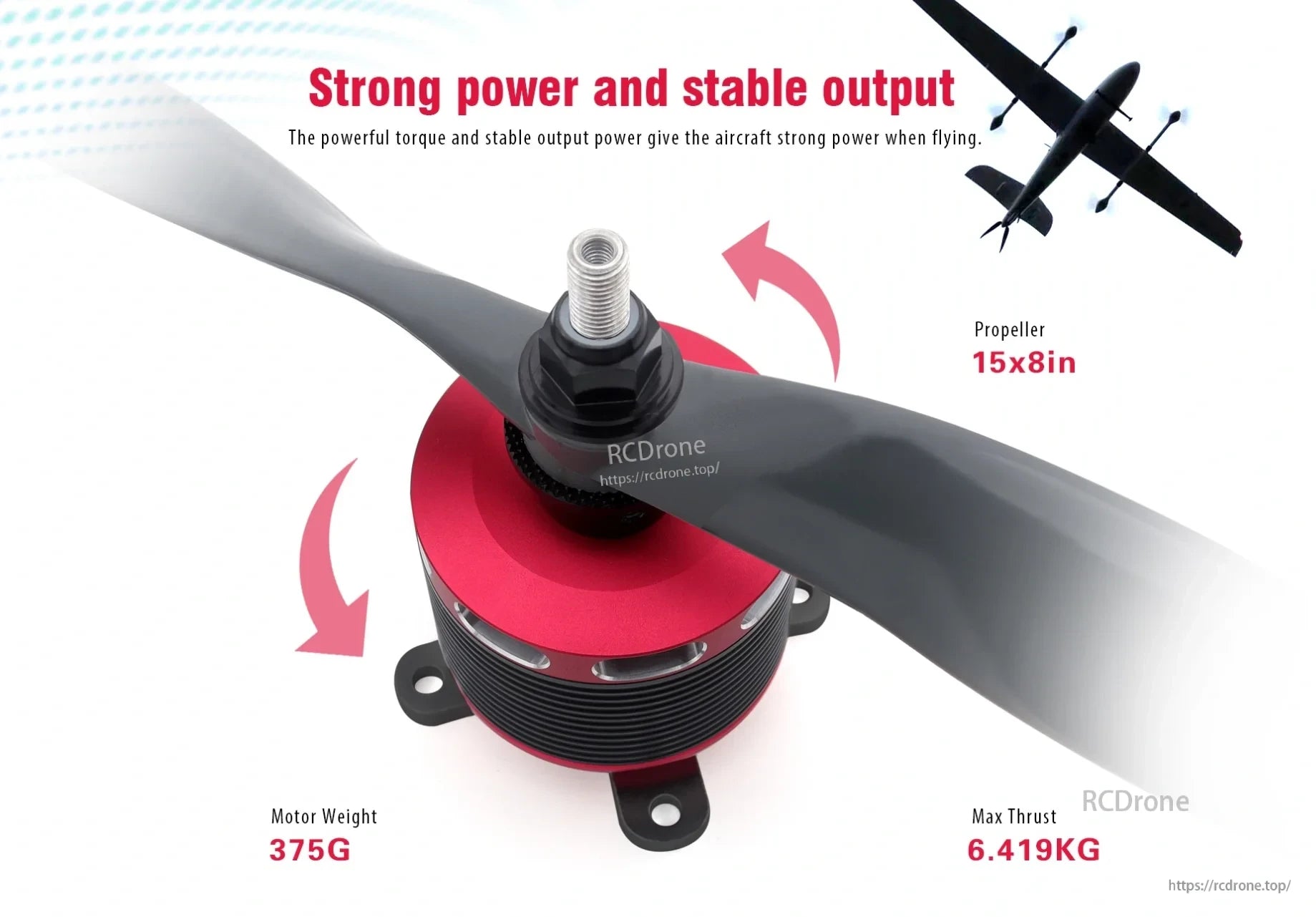

Pairing options like a 15×8 prop highlight the motor’s torque and efficiency for aircraft propulsion setups.

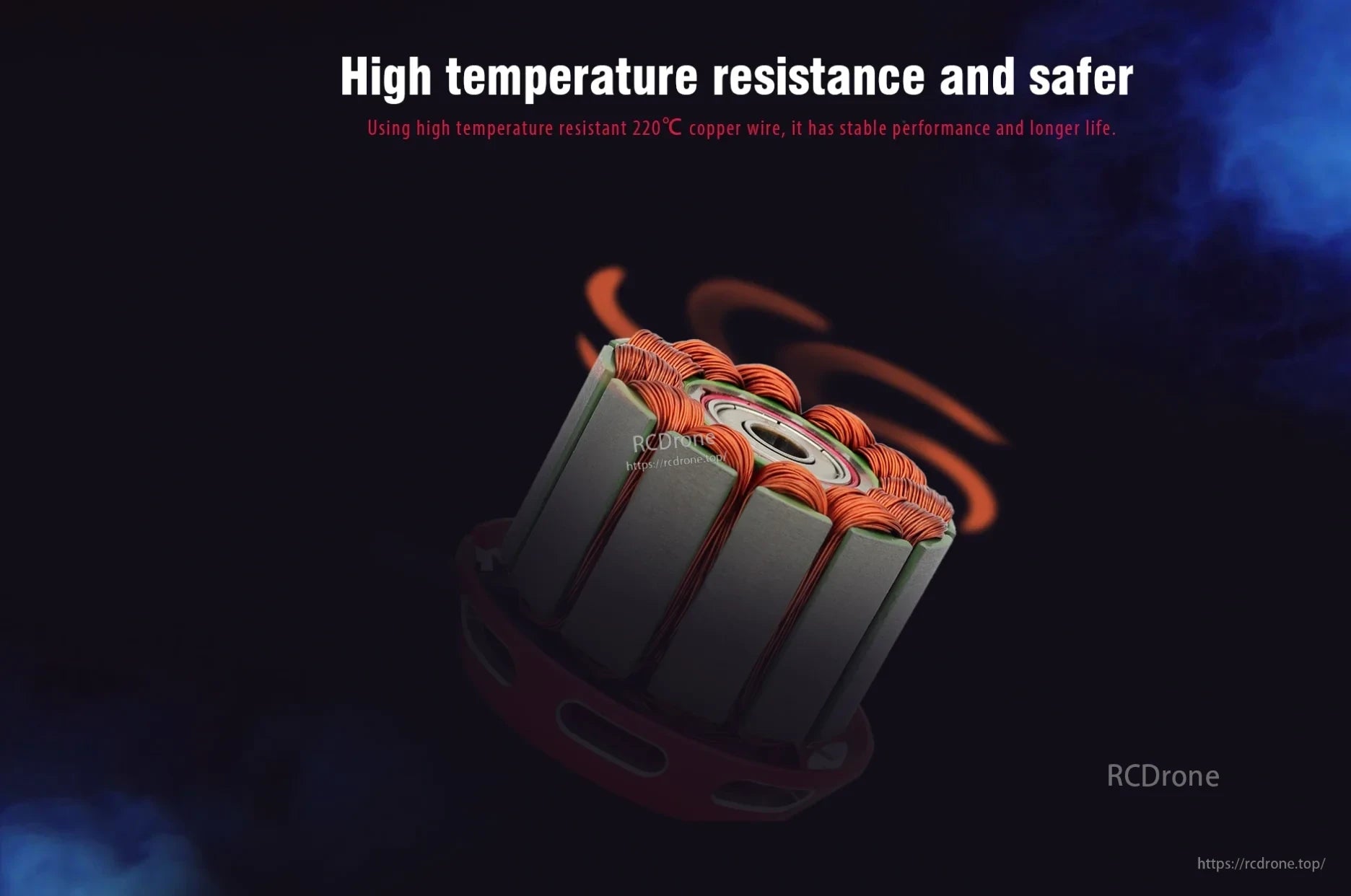

High-temperature copper windings (rated to 220°C) support reliable performance when sustained power is needed.

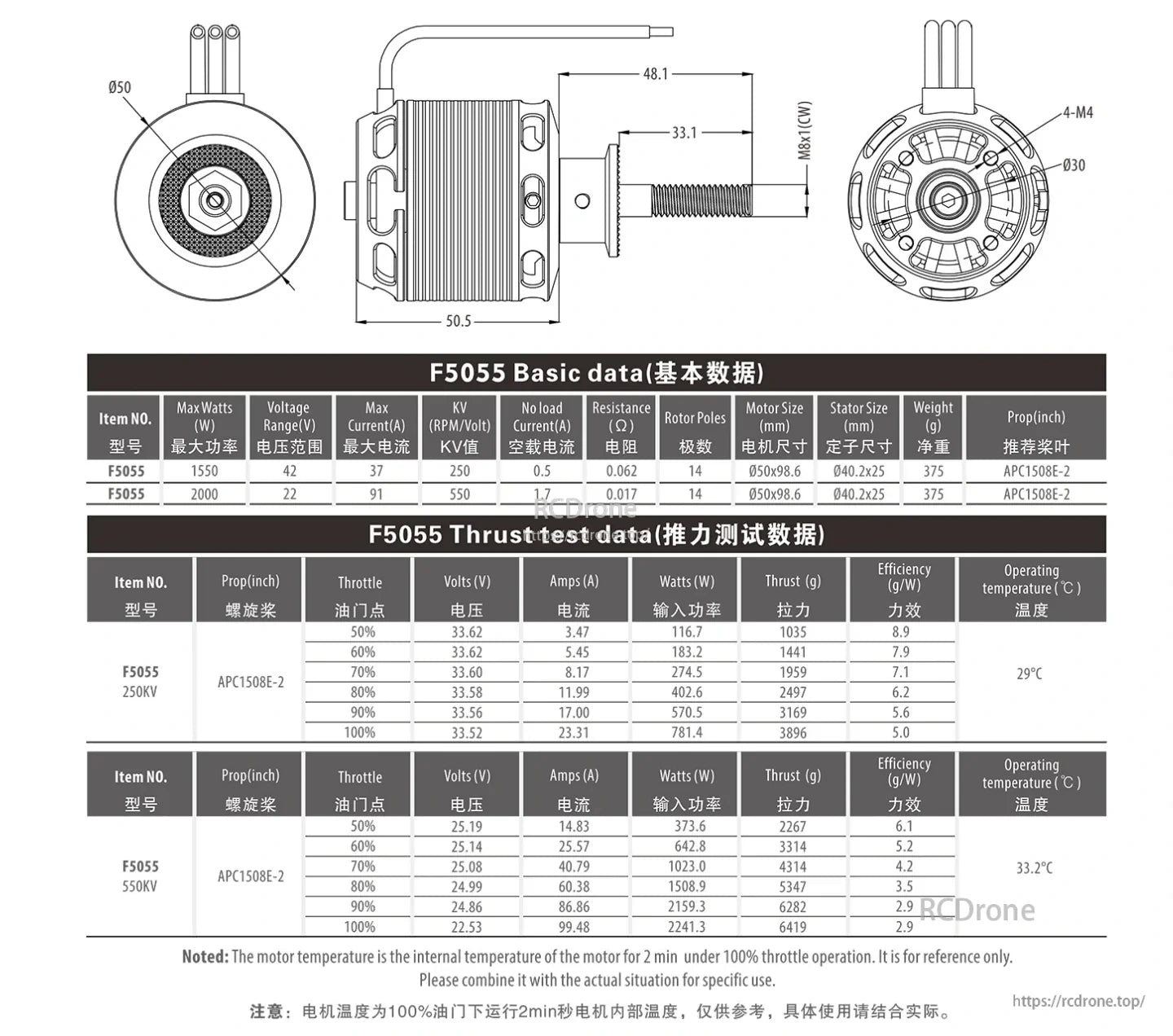

Dimensions, mounting pattern, and test data are provided to help match the 250KV or 550KV version to your voltage and prop.
