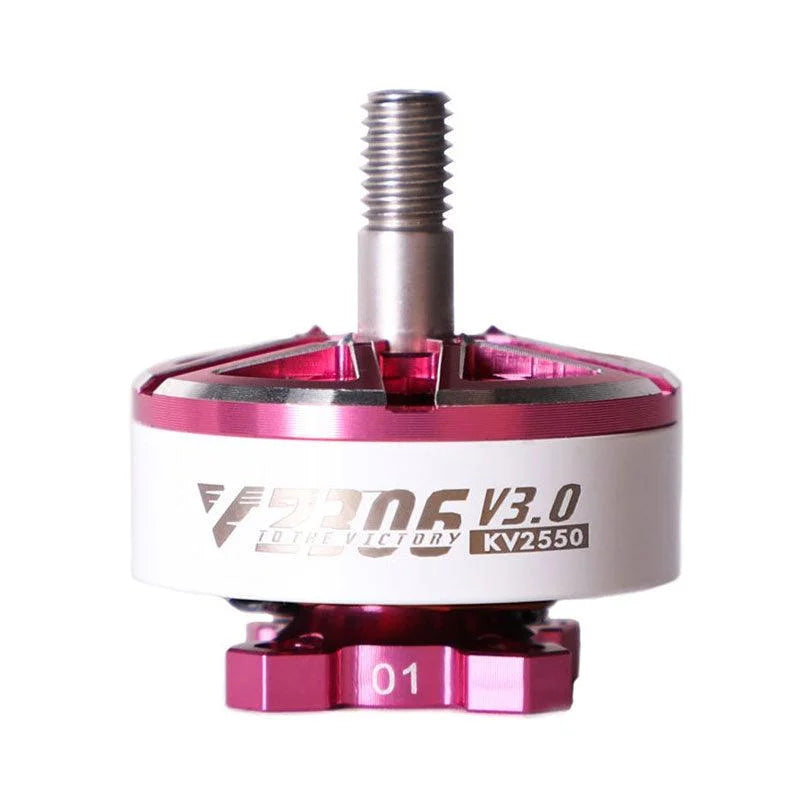

  • T-Motor F40 Pro V3.0 KV2550 brushless drone motor with pink anodized top and threaded shaft
  • T-Motor F40 Pro V3.0 KV1950 green and white brushless drone motor with threaded shaft

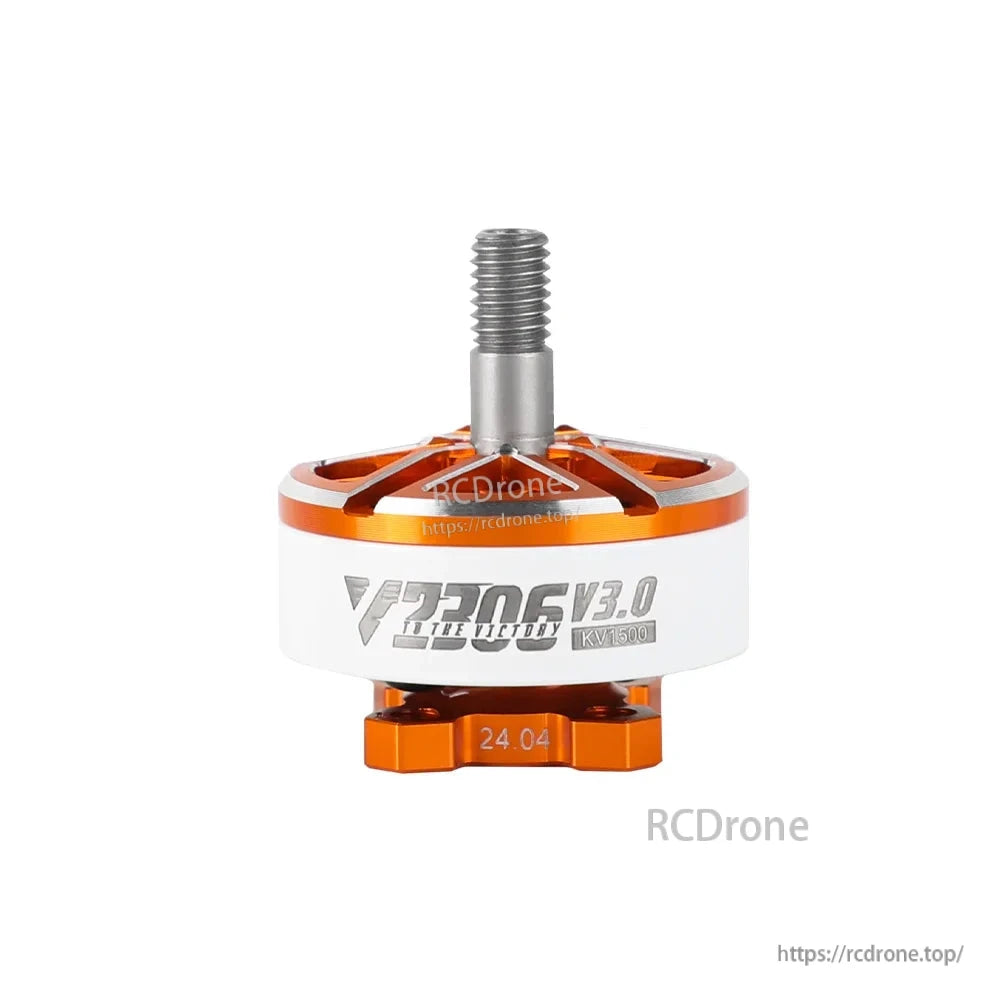

  • T-Motor F60 Pro V3.0 KV1500 brushless drone motor in orange and white with threaded shaft

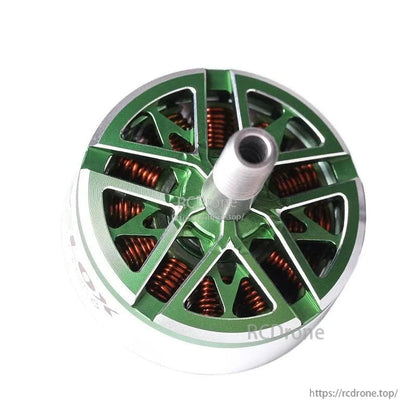

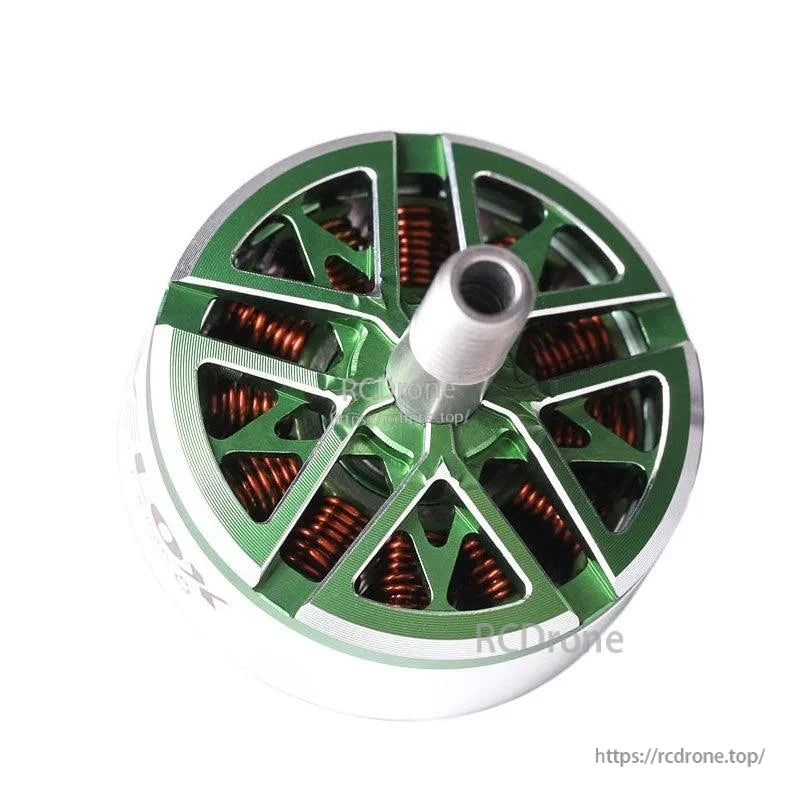

  • Top view of a T-Motor brushless motor with green machined aluminum bell, copper windings, and center shaft

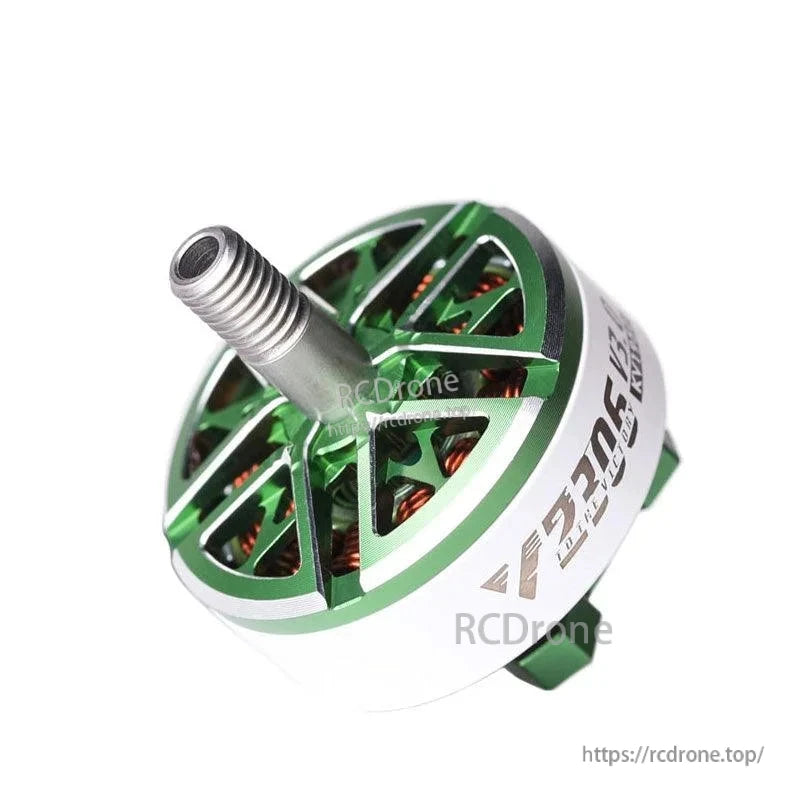

  • T-Motor brushless drone motor with green aluminum bell, visible copper windings, and threaded shaft

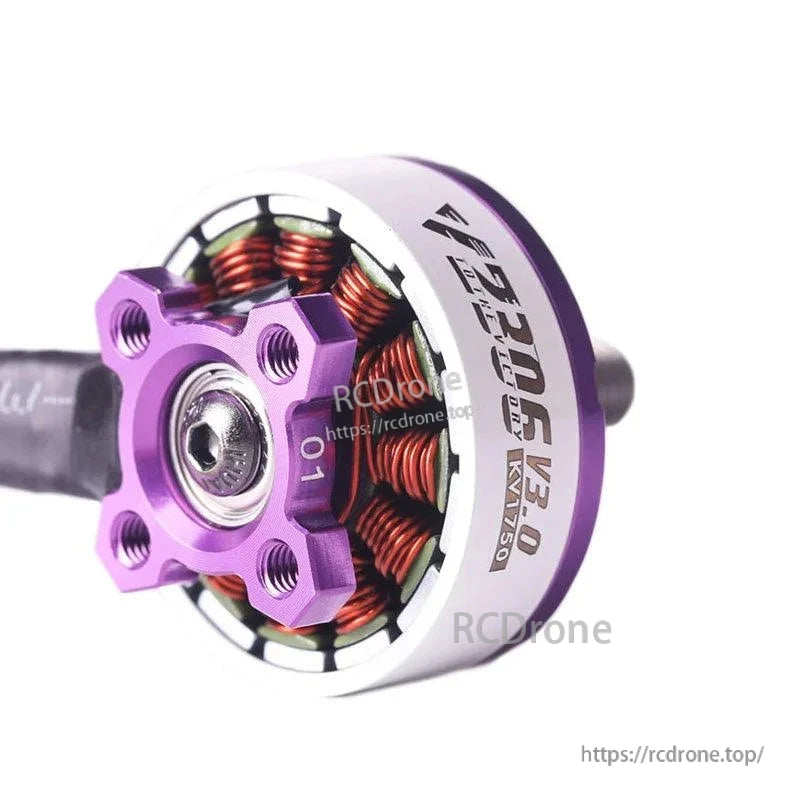

  • Close-up of T-Motor Velox V2205 V3.0 brushless drone motor with purple base and exposed copper windings

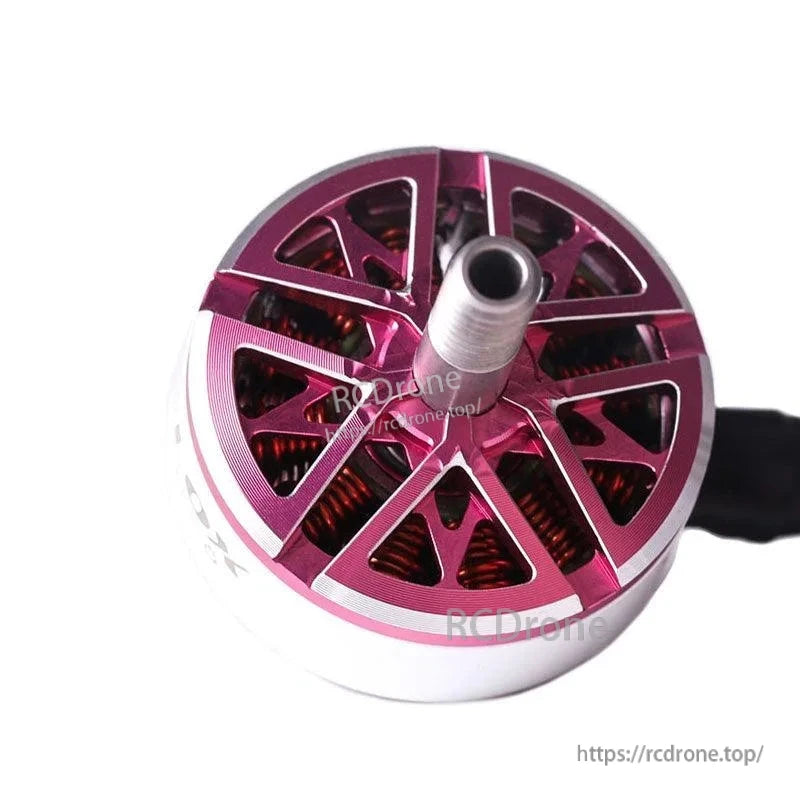

  • T-Motor brushless outrunner motor with purple anodized top cover, exposed copper windings, and central shaft

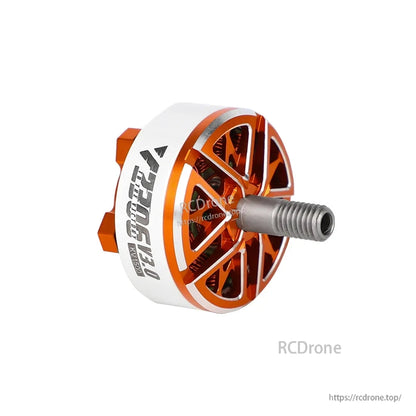

  • T-Motor Antigravity U8 II brushless motor in orange and silver with threaded shaft, KV150 marking

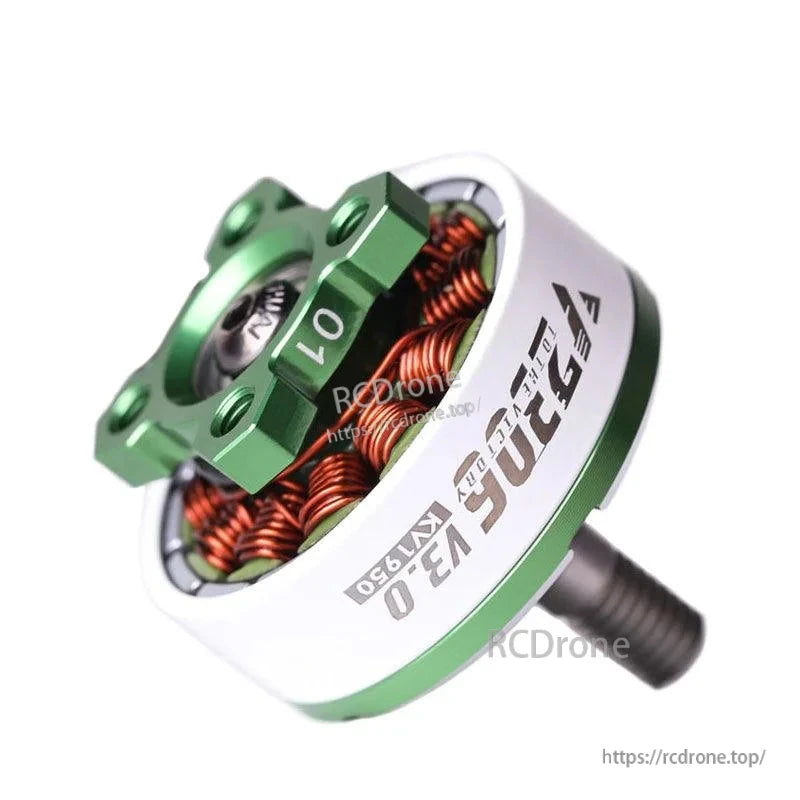

  • T-Motor AT series brushless motor with green mount, copper windings, and KV1950 V3.0 marking
  • T-Motor Velox brushless drone motor with orange aluminum mount and exposed copper windings

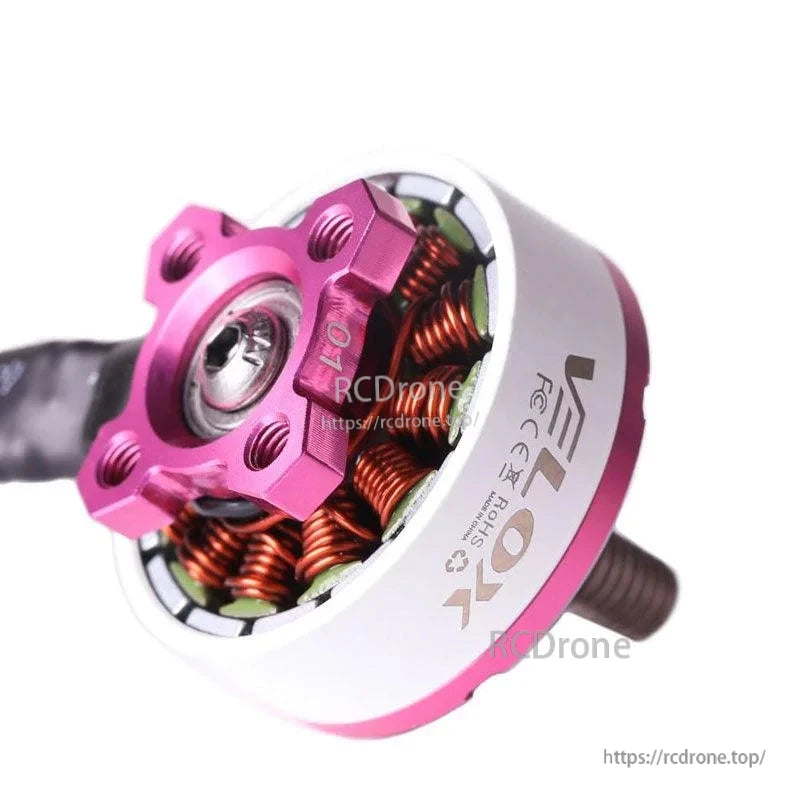

  • Close-up of a T-Motor brushless drone motor with pink top mount, white housing, and exposed copper windings

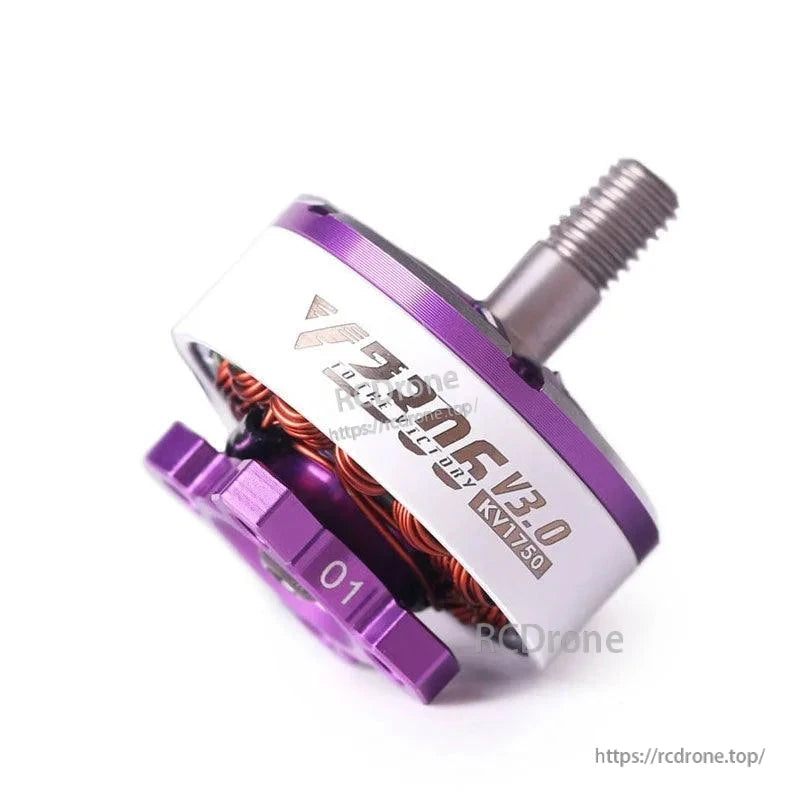

  • T-Motor GB2206 V3.0 brushless motor KV1750 with purple base and threaded shaft
  • Close-up of T-Motor LETOX brushless drone motor with pink aluminum top mount and exposed copper windings
  • T-Motor F40 Pro II brushless FPV drone motor in purple and white with threaded prop shaft
1 15

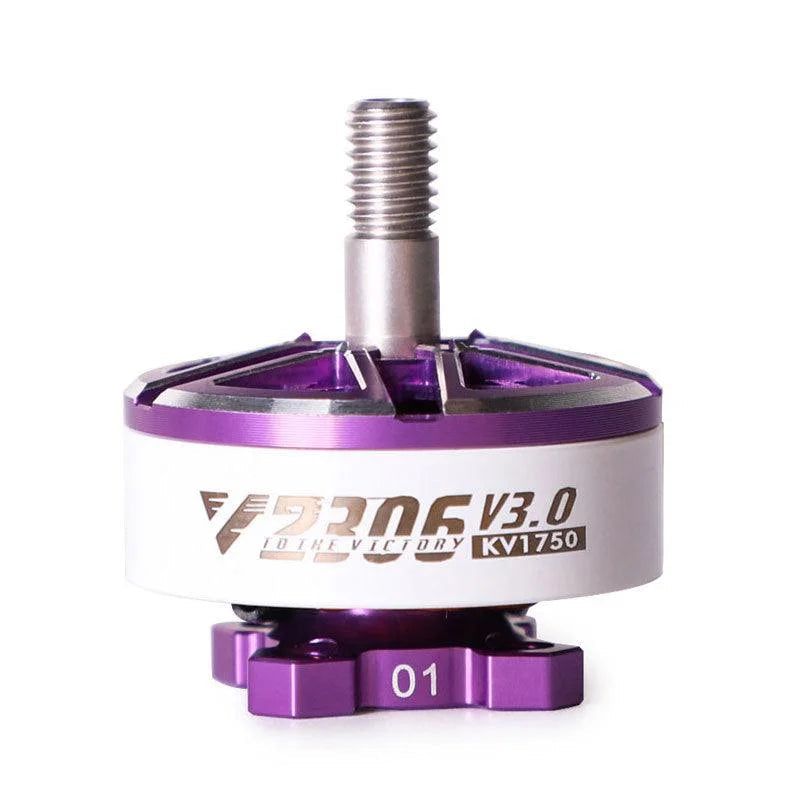

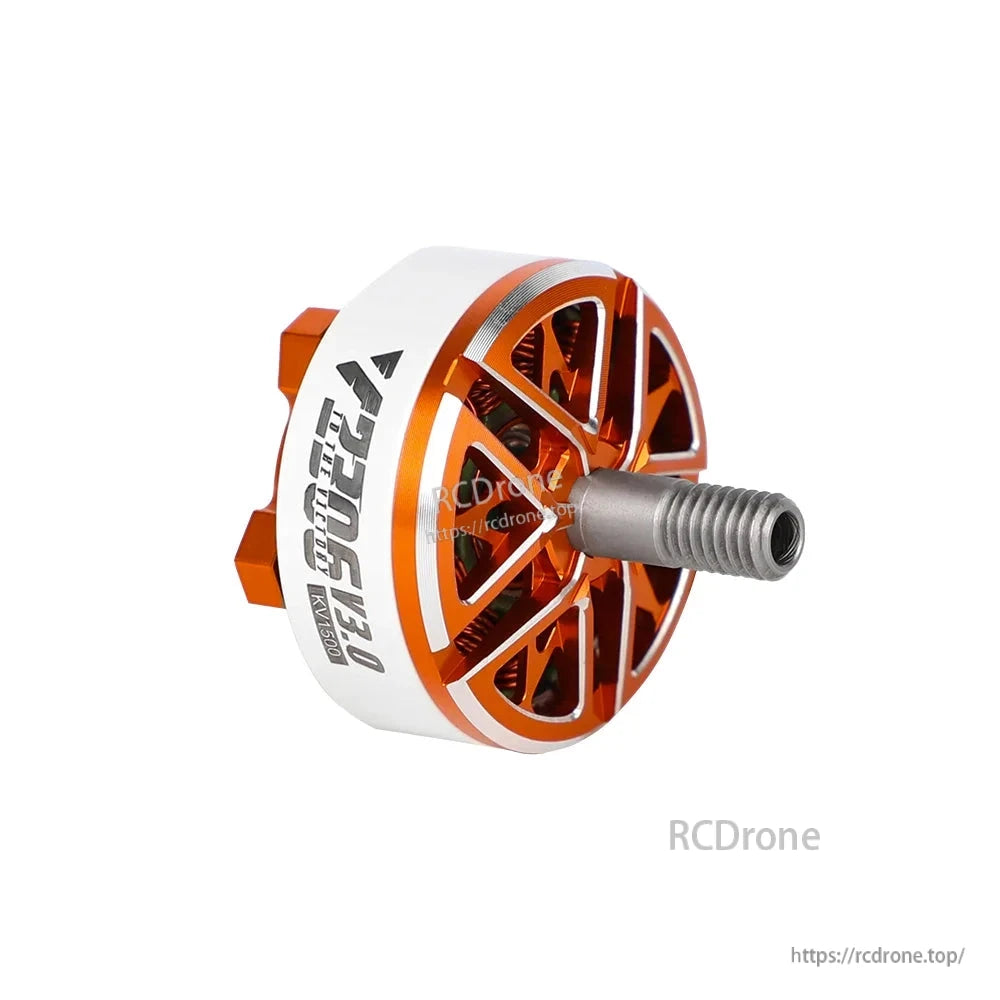

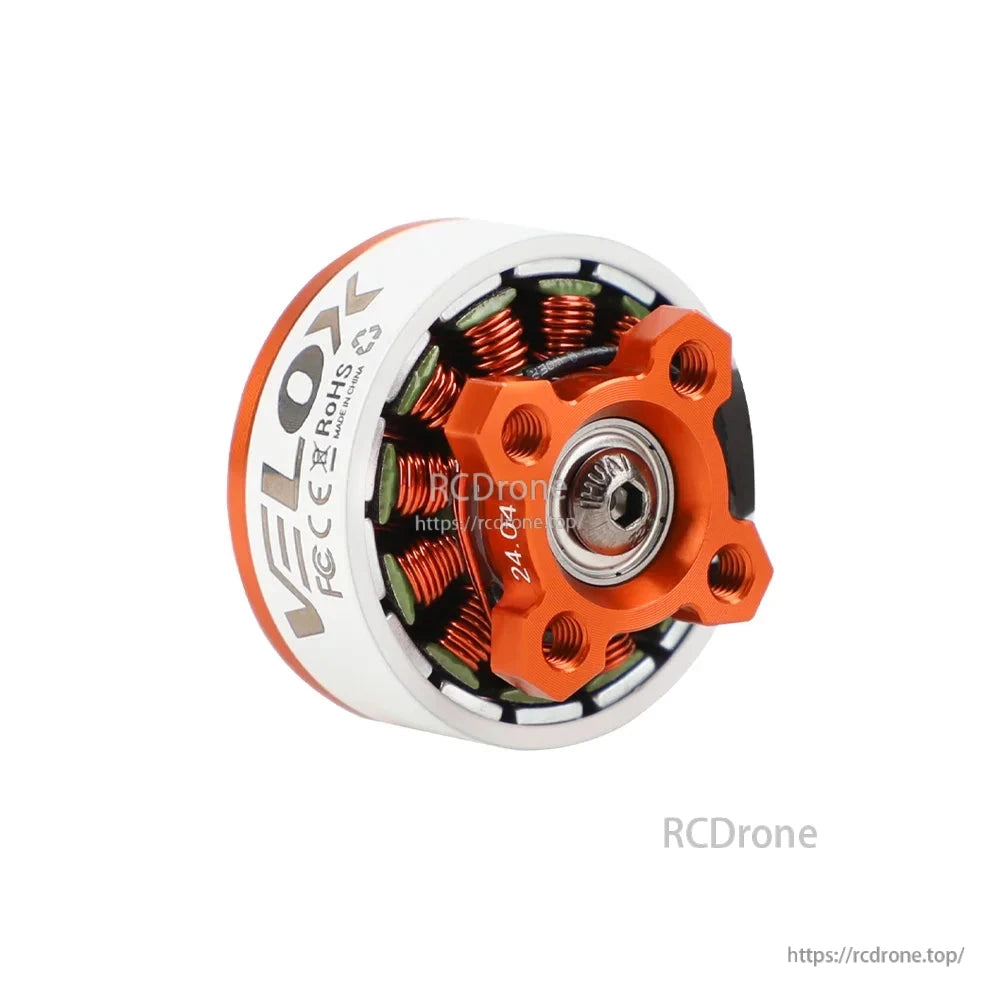

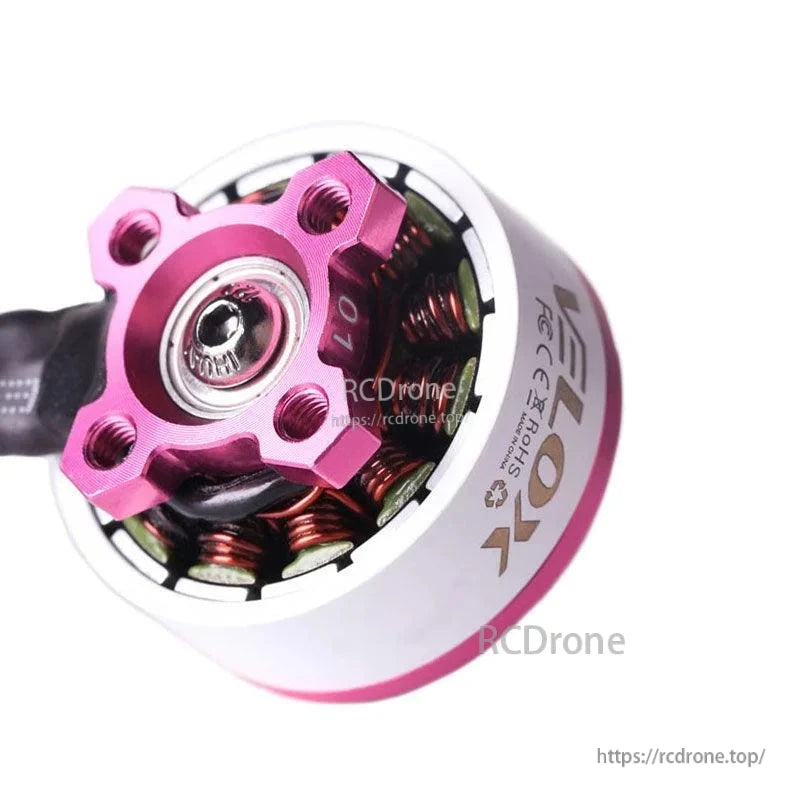

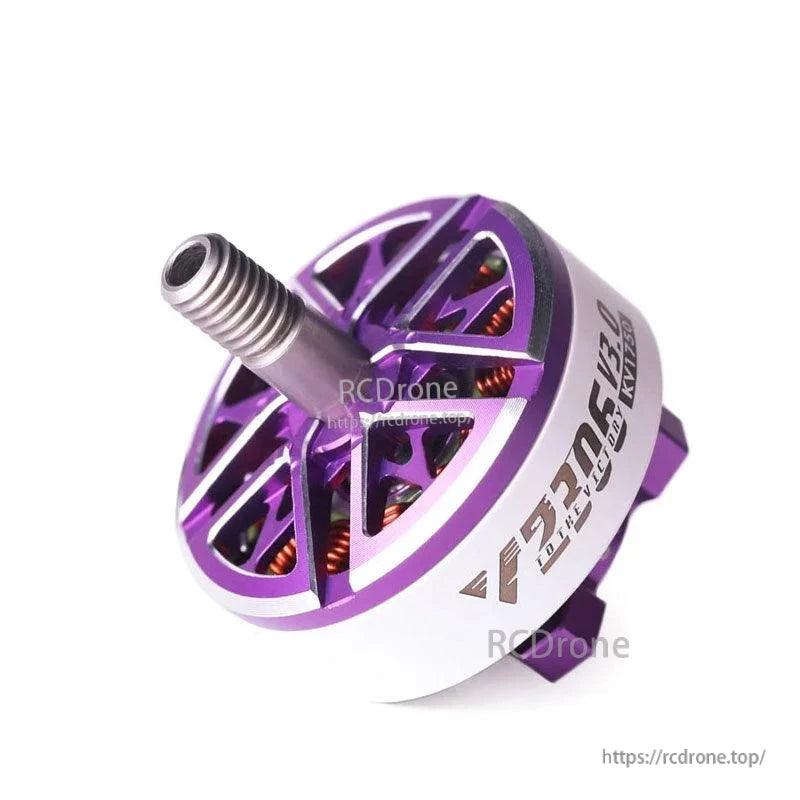

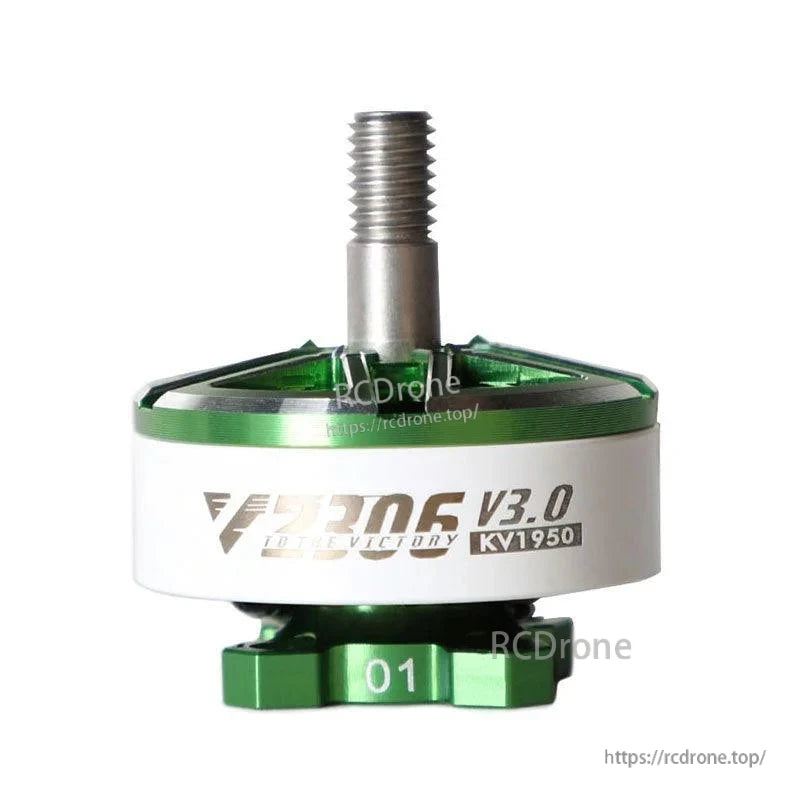

T-Motor Velox V2306 V3.0 Brushless Drone Motor (1500KV/1750KV/1950KV/2550KV) for 5" Quadcopter

T-Motor Velox V2306 V3.0 Brushless Drone Motor (1500KV/1750KV/1950KV/2550KV) for 5" Quadcopter

T-MOTOR

$25.00 USD
$25.00 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

The T-Motor Velox V2306 V3.0 is a brushless drone motor designed for 5" quadcopter builds, with KV options covering 4S, 6S, and 8S setups. The design uses an angular pedestal, and the top part is strengthened to improve stability.

Key Features

  • Angular pedestal design
  • Strengthened top part for improved stability
  • KV options (as listed): 1750KV (stable and easy to operate), 1950KV (stronger power), 2550KV (mainly for 4S)
  • Recommended build (as provided): 5" quadcopter frame, TMOTOR FPV V45A V2 4IN1 ESC, Velox F7 FC / F411 LITE FC
  • Compatible propellers (as provided): TMOTOR FPV T5143S propellers

For customer service and order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

V2306 V3 Product Drawing (dimensions shown)

  • Overall length: 30.65
  • Motor diameter: 27.9
  • Mounting: 4-M3
  • Mounting pattern: 16
  • Shaft/thread marking shown: M5
  • Additional marked dimensions shown: 12, 7

V2306 V3 Specifications (table)

KV Configuration Shaft Diameter Lead Weight (Incl. Cable) Rated Voltage (Lipo) Idle Current (10V) Max Power (60s) Peak Current (60s)
1500KV 12N14P IN: 4mm; OUT: 5mm 20# 150mm 32.7 8S 0.7A 1969.9 34.5
1750KV 12N14P IN: 4mm; OUT: 5mm 20# 150mm 33.8 6S 0.85A 820.7 34.9
1950KV 12N14P IN: 4mm; OUT: 5mm 20# 150mm 33.7 6S 1.3A 976 41.7
2550KV 12N14P IN: 4mm; OUT: 5mm 20# 150mm 32.6 4S 1.95A 533.7 34.5

What’s Included

  • Motor x 1
  • Parts Bag x 1

Applications

  • Recommended frame size: 5" quadcopter

Details

T-Motor V2306 V3.0 brushless FPV drone motor shown in multiple colors with 4S/8S flight callouts

T-Motor V2306 V3.0 motors are positioned for FPV builds, with notes for both 4S and 8S flight setups and an 8S power combo.

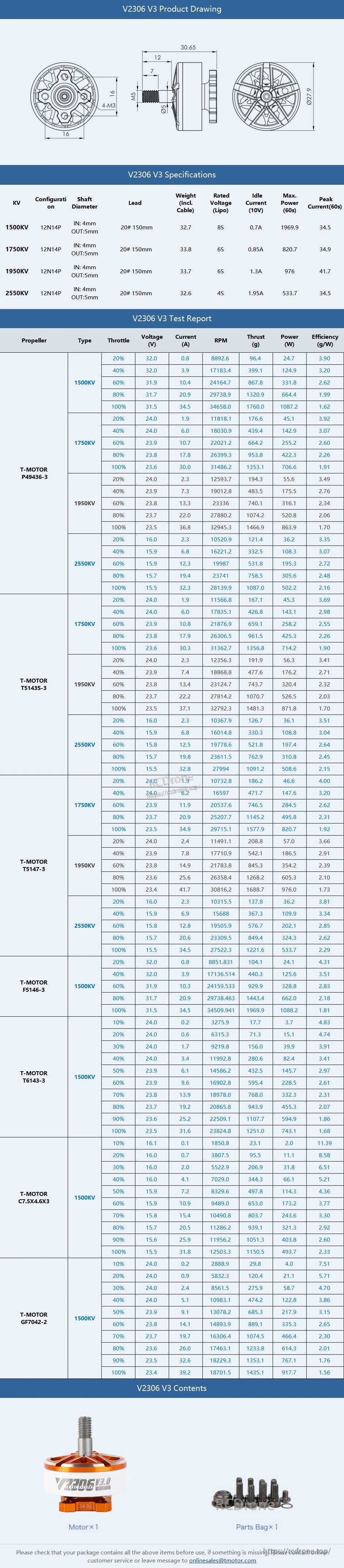

T-Motor V2306 V3 motor drawing and specs sheet with test data, plus motor and included screw parts bag

The T-Motor V2306 V3 package includes one motor and a parts bag of mounting screws, with key dimensions listed for fitment.
