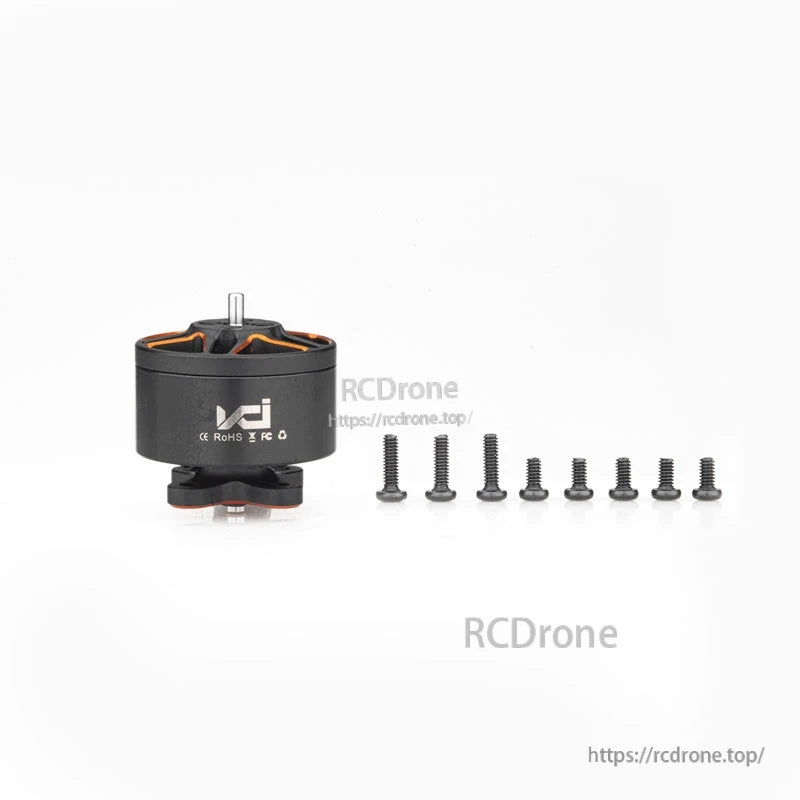

  • Package contents: VCI SPARK 1507.2 motor with included mounting screw set laid out on white background
1 5

VCI SPARK 1507.2 Brushless Motor 2150KV/2600KV/3150KV/3900KV for 3-Inch FPV Drones

VCI SPARK 1507.2 Brushless Motor 2150KV/2600KV/3150KV/3900KV for 3-Inch FPV Drones

VCI

$16.03 USD
$16.03 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

VCI SPARK 1507.2 brushless motor options (2150KV / 2600KV / 3150KV / 3900KV) for FPV multirotor builds that use a compact 1507-class motor size and 3-inch/75mm prop setups.

Key Features

  • Multiple KV options for different voltage and propeller setups: 2150KV, 2600KV, 3150KV, 3900KV
  • 12S14P configuration with N52SH arc magnets
  • 1507.2 stator size (Ø15*L7.2mm) in a Ø19*L19.6mm motor body
  • Ø1.5mm shaft, 3mm shaft length
  • 24AWG silicone wire, 100mm
  • 4x M2 equally spaced mounting pattern; Ø12mm mounting circle

Specifications

Mechanical

Stator size Ø15*L7.2mm
Motor dimensions Ø19*L19.6mm
Shaft diameter Ø1.5mm
Shaft length 3mm
Mounting 4x M2 equally spaced
Mounting circle Ø12mm
Center boss diameter Ø5mm
Wire 24AWG 100mm (silicone)
Magnets N52SH arc
Configuration 12S14P

Electrical (by KV option)

KV Rated voltage Internal resistance Idle current (10V) Peak current Max instantaneous power Weight (incl. cable)
2150KV 6S (24V) 240mΩ 0.4A 13.69A 328.56W 14.6g
2600KV 6S (24V) 150mΩ 0.6A 17.07A 409.68W 14.9g
3150KV 4S (16V) 105mΩ 0.8A 19.44A 311.04W 14.8g
3900KV 4S (16V) 80mΩ 1.1A 21.92A 350.72W 14.8g

Test Data (Reference)

  • 2150KV @ 24V, propeller: GF 3052-3, max thrust: 539g, max RPM: 37311, temperature: 69C
  • 2600KV @ 24V, propeller: GF D75-3, max thrust: 717g, max RPM: 48083, temperature: 75C
  • 3150KV @ 16V, propeller: GF 3052-3, max thrust: 535g, max RPM: 37660, temperature: 67C
  • 3900KV @ 16V, propeller: GF D75-3, max thrust: 653g, max RPM: 45654, temperature: 69C

Applications

  • 3-inch FPV quads using 1507-class motors
  • 75mm ducted micro builds (propeller reference: D75-3)

Need help choosing the right KV for your battery voltage and propeller size? Contact [email protected] or visit https://rcdrone.top/.

Details

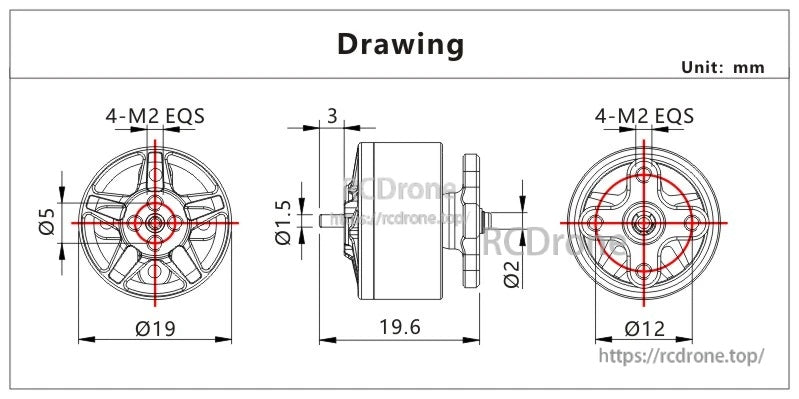

VCI SPARK 1507.2 brushless motor dimension drawing with Ø19×19.6mm body, Ø12mm mount circle and 1.5mm shaft

Compact 1507.2 motor sizing for 3-inch and 75mm builds, with a Ø12mm mounting circle and 4×M2 pattern.

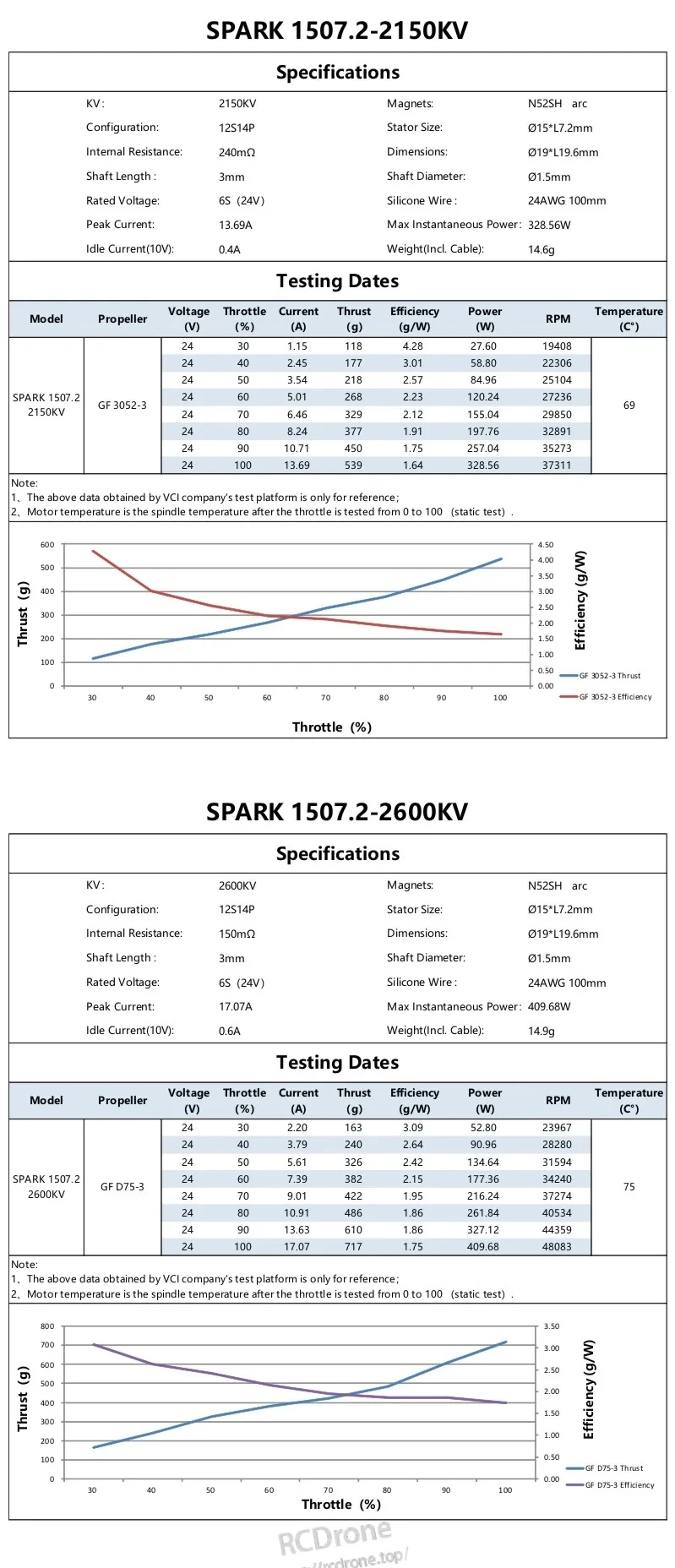

SPARK 1507.2 2150KV and 2600KV specifications and thrust test tables with throttle curves for 3-inch props

Choose between 2150KV and 2600KV options using the included spec sheets and bench test reference data.

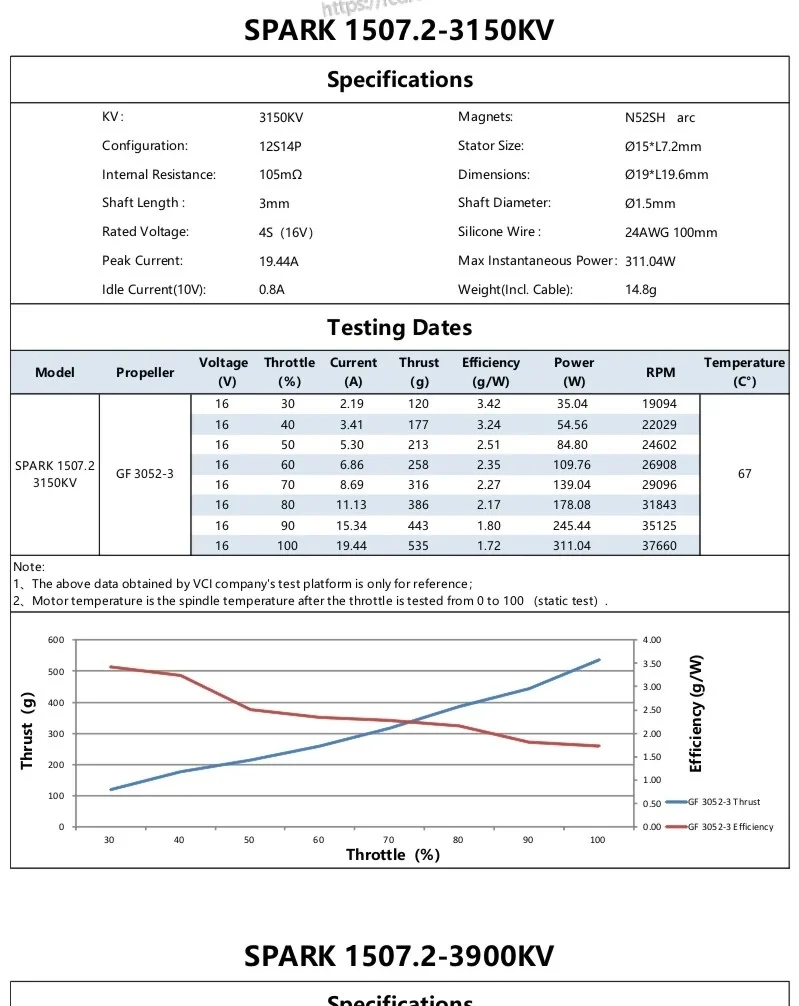

SPARK 1507.2 3150KV specifications with GF 3052-3 thrust test table and efficiency/power curves

3150KV test results are provided for 4S setups with GF 3052-3 prop data for quick tuning comparisons.

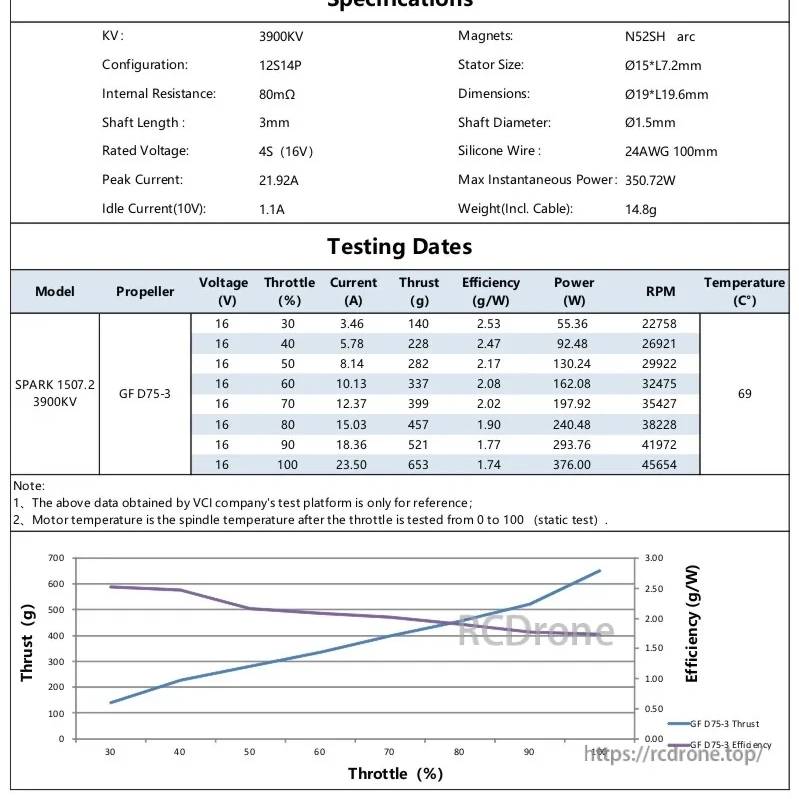

SPARK 1507.2 3900KV specifications and GF D75-3 thrust test data table with throttle vs thrust curve

3900KV reference testing includes GF D75-3 data for 75mm ducted micro builds.
