Overview
The VCI SPARK 1606 MOTOR is offered with KV option selections of 1850KV, 2300KV, and 2850KV. This product content is based on the provided title, option values, and the visible dimension drawing only.
Supported Options
| Option | Available selections |
|---|---|
| KV | 1850KV, 2300KV, 2850KV |

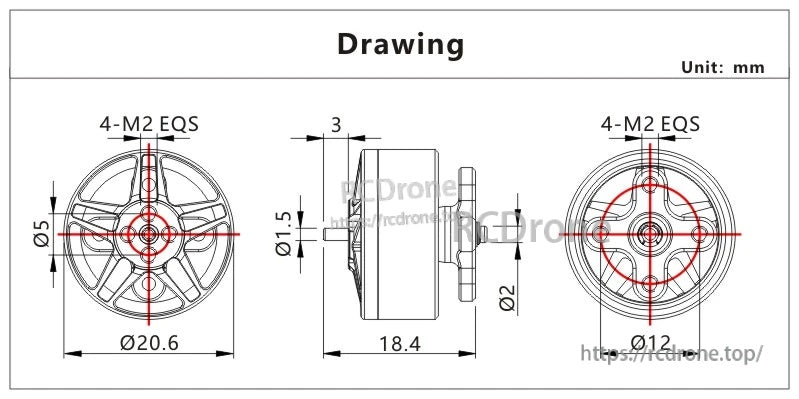

Visible Drawing Information
The supplied drawing is labeled with unit: mm.
| Visible label or dimension | Value shown |
|---|---|
| Mounting label | 4-M2 EQS |
| Outer diameter shown on front view | Ø20.6 mm |
| Center diameter shown on front view | Ø5 mm |
| Side-view diameter label | Ø1.5 mm |
| Side-view length label | 18.4 mm |
| Side-view spacing label | 3 mm |
| Shaft/feature diameter label on side view | Ø2 mm |
| Rear-view diameter label | Ø12 mm |
Notes
No additional performance specifications, materials, compatibility details, or package contents were provided, so they are not included here.
Details
Compact 1606 motor outline with key mounting and shaft dimensions in millimeters for fit checks.
KV option pages include summarized specs and test curves to compare the 1850KV, 2300KV, and 2850KV variants.
