Yahboom 15.6in 1080P IPS Portable Touch Screen Monitor for Raspberry Pi/Jetson/RDK, Type‑C & Mini HDMI

Overview

The Yahboom 15.6-inch display is a portable touch screen monitor designed for Raspberry Pi, Jetson series boards, and RDK series boards. It features a 1920×1080 (1080P) IPS panel with a 178° full-view angle, 10-point capacitive touch, and built-in dual-channel black magnetic speakers. Video input is supported via full-function Type-C and mini HDMI, enabling single-cable Type-C audio/video transmission for compatible devices, plus split-screen and phone projection use cases.

Key Features

• 15.6-inch IPS screen, 1920×1080 HD (1080P), 178° viewing angle
• 10-point capacitive touch; tempered glass screen
• Interfaces: full-function Type-C, mini HDMI, USB (touch interface Type-C/USB), 3.5 mm audio output
• Built-in high-fidelity dual-channel black magnetic speaker
• USB expansion: external USB devices can be connected
• Polycarbonate case; supports wall hanging
• Supports computer split screen and mobile phone projection (Type-C single-cable for compatible devices)
• Driver-free compatibility notes shown: Raspberry Pi / RDK series boards / Windows 10/8/7 (10-point touch); Raspberry Pi OS list shown includes Raspbian, Ubuntu, Kali, WIN10 IoT, and Retropie
• Jetson series boards supported; DP-only Jetson boards may require an adapter
• Additional device examples shown: PS3/PS4/XBOX/NS, Xbox360, PS4, Nintendo SWITCH, and phones such as Huawei/Samsung/OPPO (screen cast)

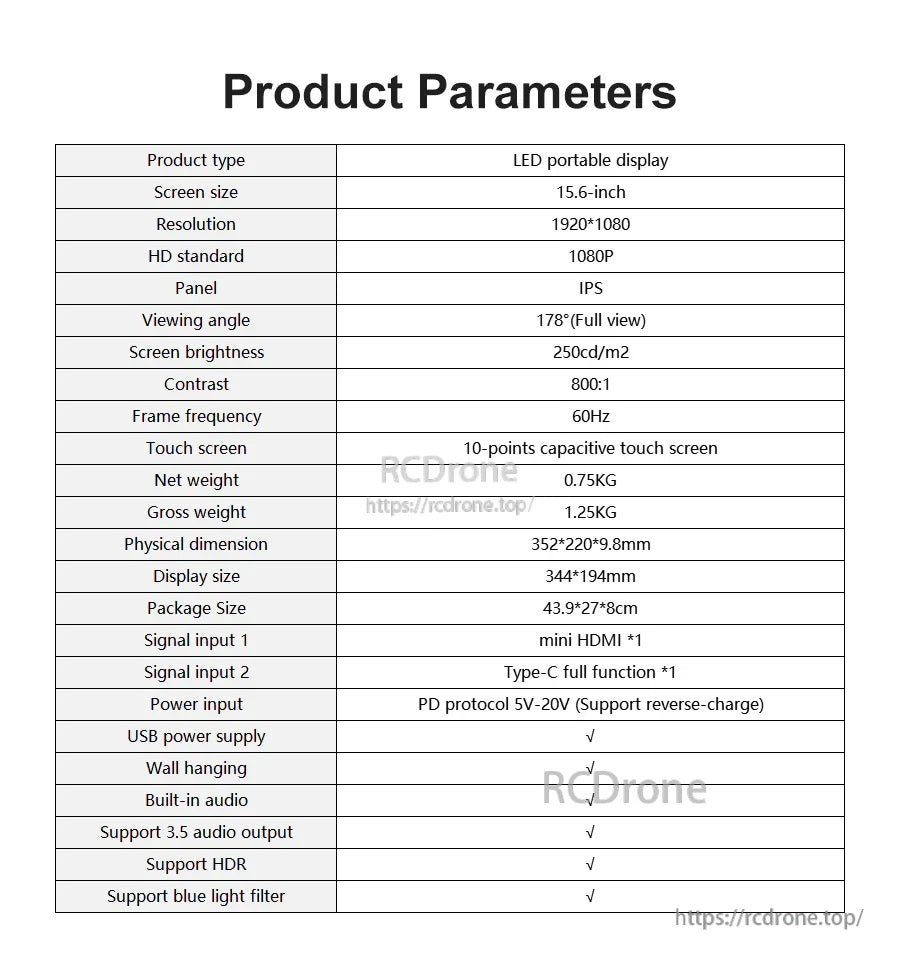

Specifications

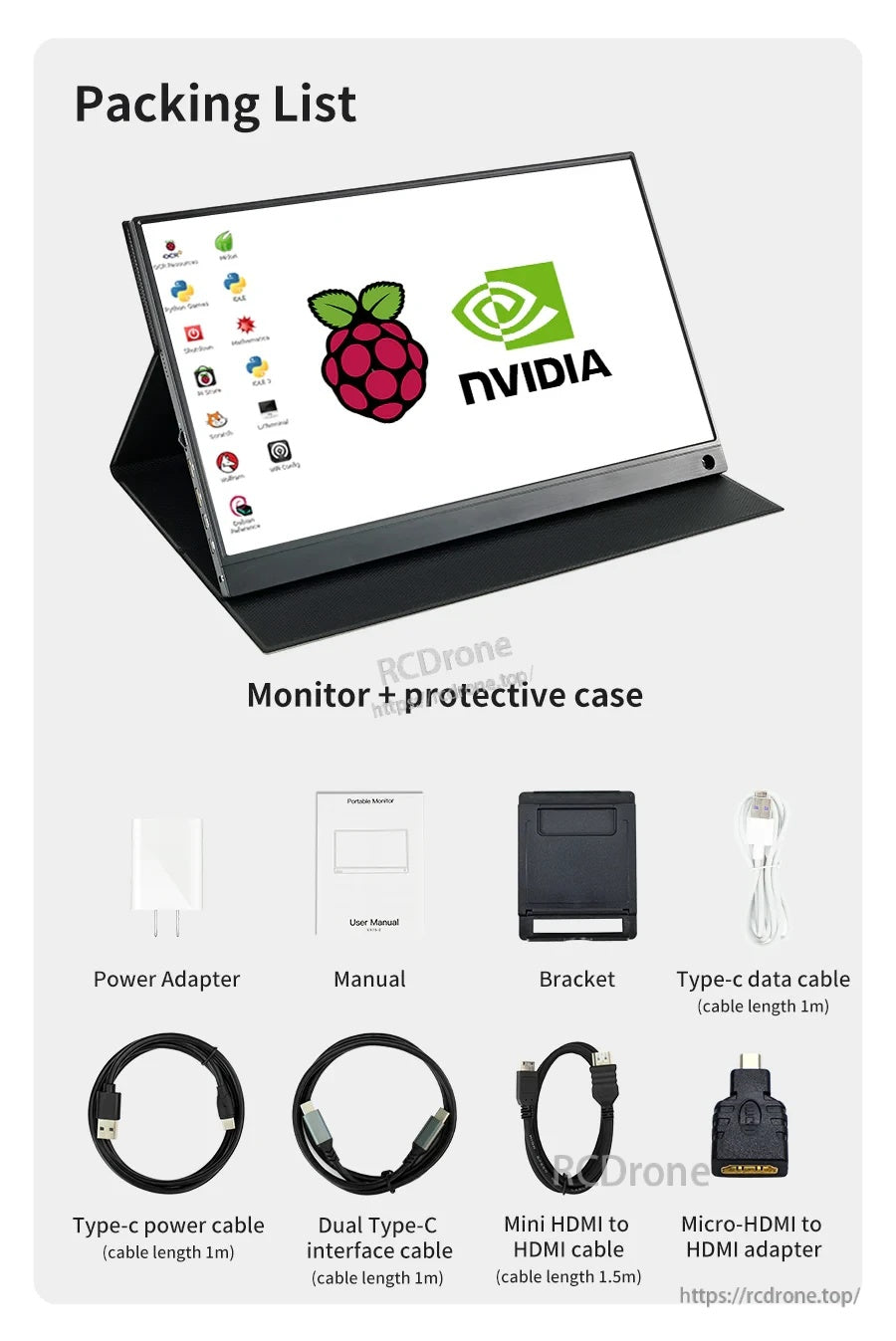

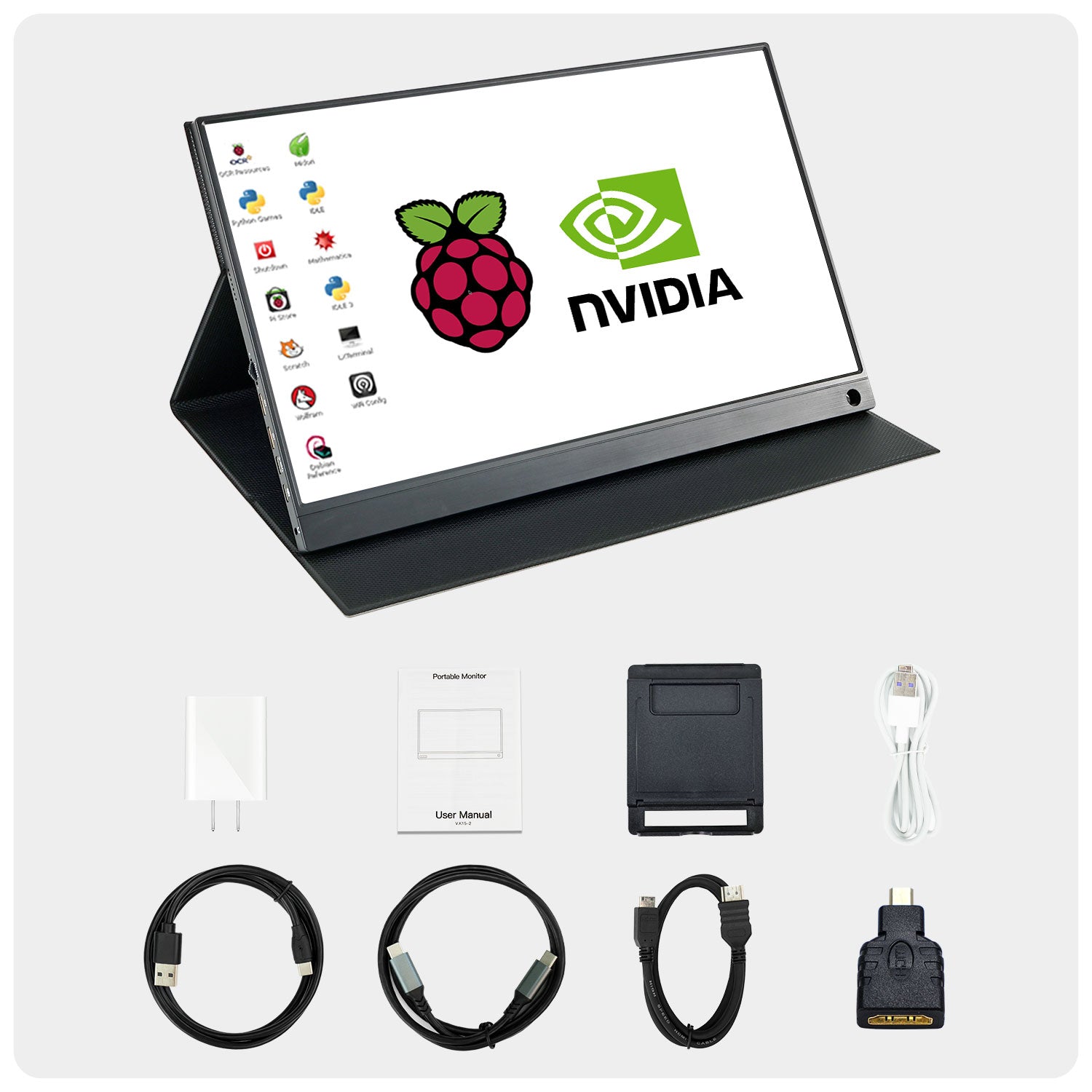

What's Included

• Monitor + protective case
• Power adapter
• Manual
• Bracket
• Type-c data cable (cable length 1m)
• Type-c power cable (cable length 1m)
• Dual Type-C interface cable (cable length 1m)
• Mini HDMI to HDMI cable (cable length 1.5m)
• Micro-HDMI to HDMI adapter

Applications

• Raspberry Pi / Jetson / RDK development monitor with multi-touch interaction
• Portable second screen for PCs and notebooks (Windows 10/8/7 shown)
• Single-cable Type-C display use for compatible phones/tablets and screen casting
• HDMI display for devices with HDMI output (examples shown include game consoles)

For cable/adapter selection help (for example, DP-to-HDMI scenarios on some Jetson boards), contact support at https://rcdrone.top/ or support@rcdrone.top.

Details

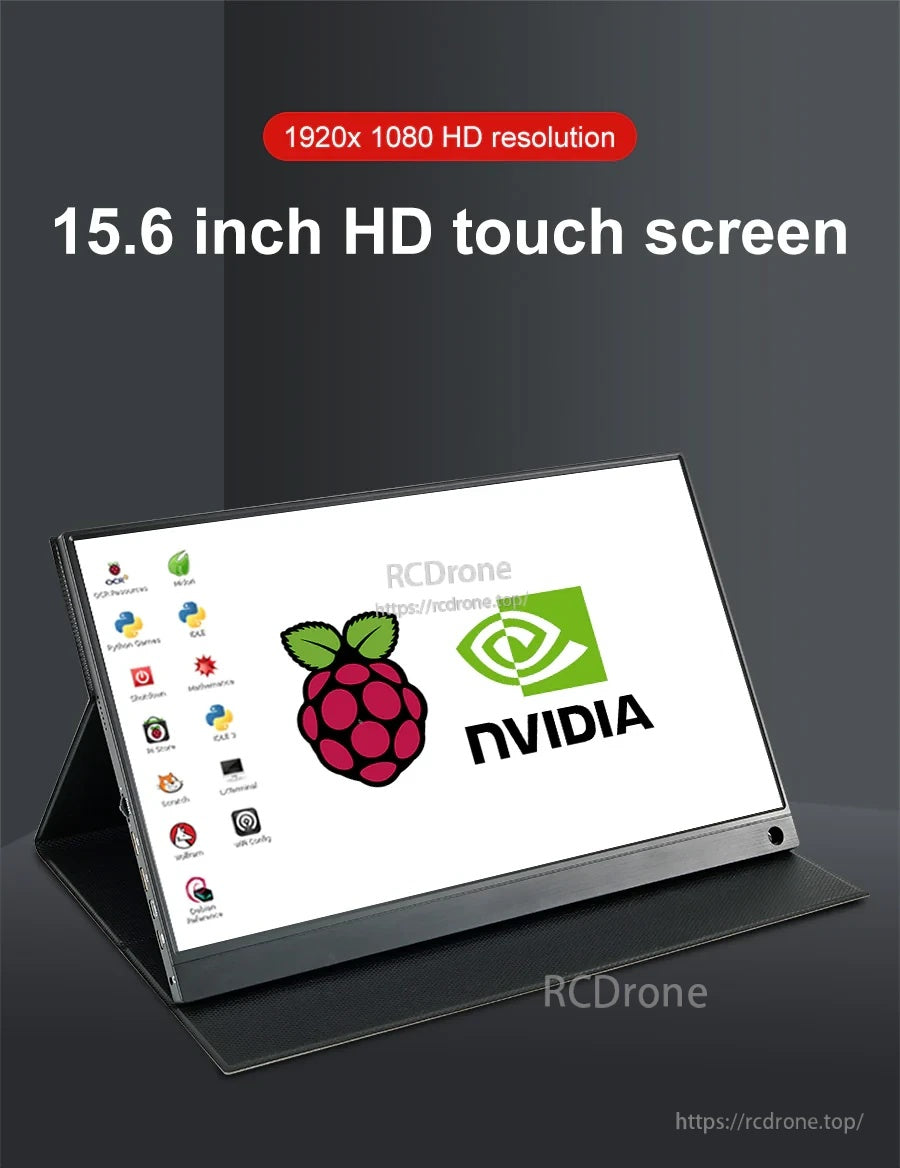

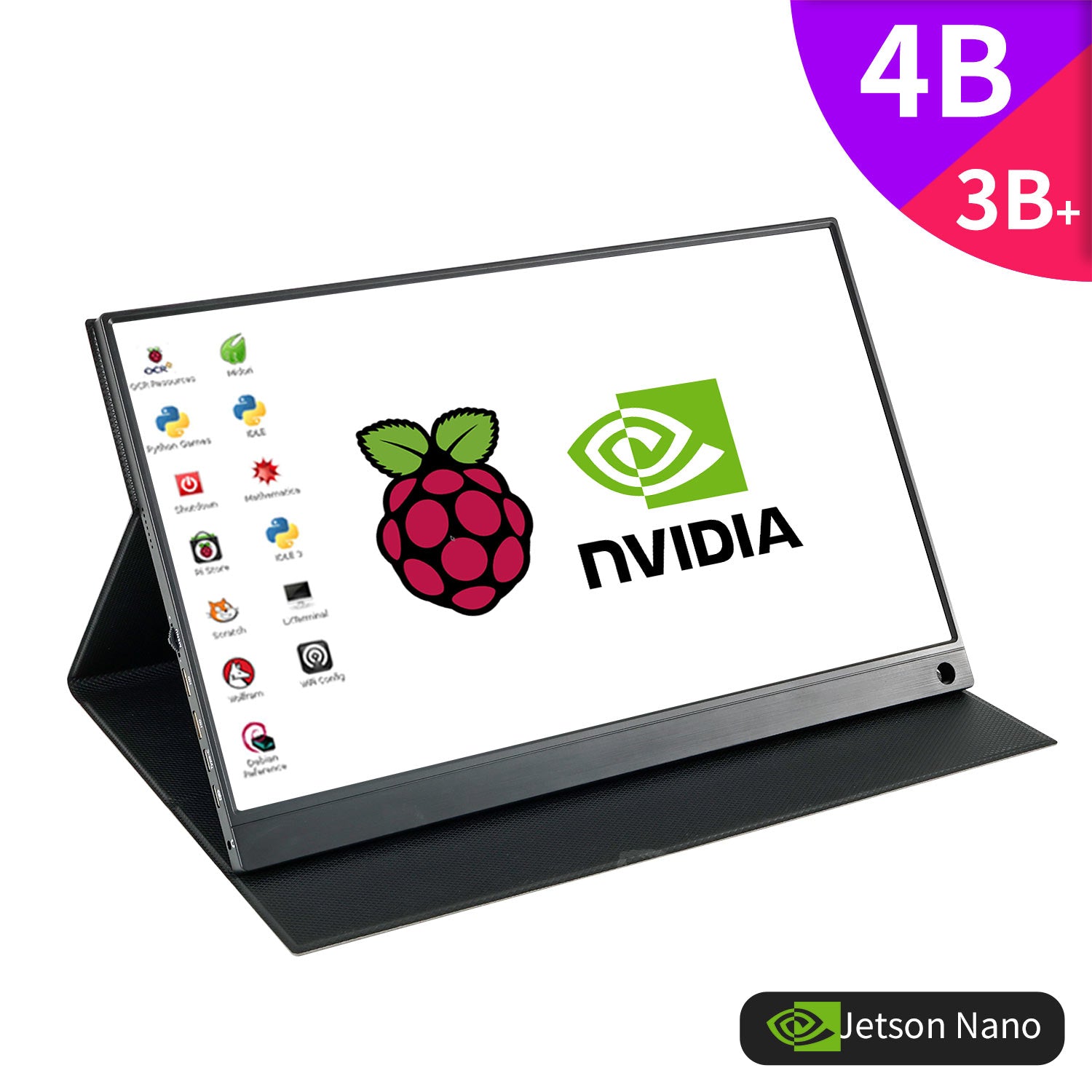

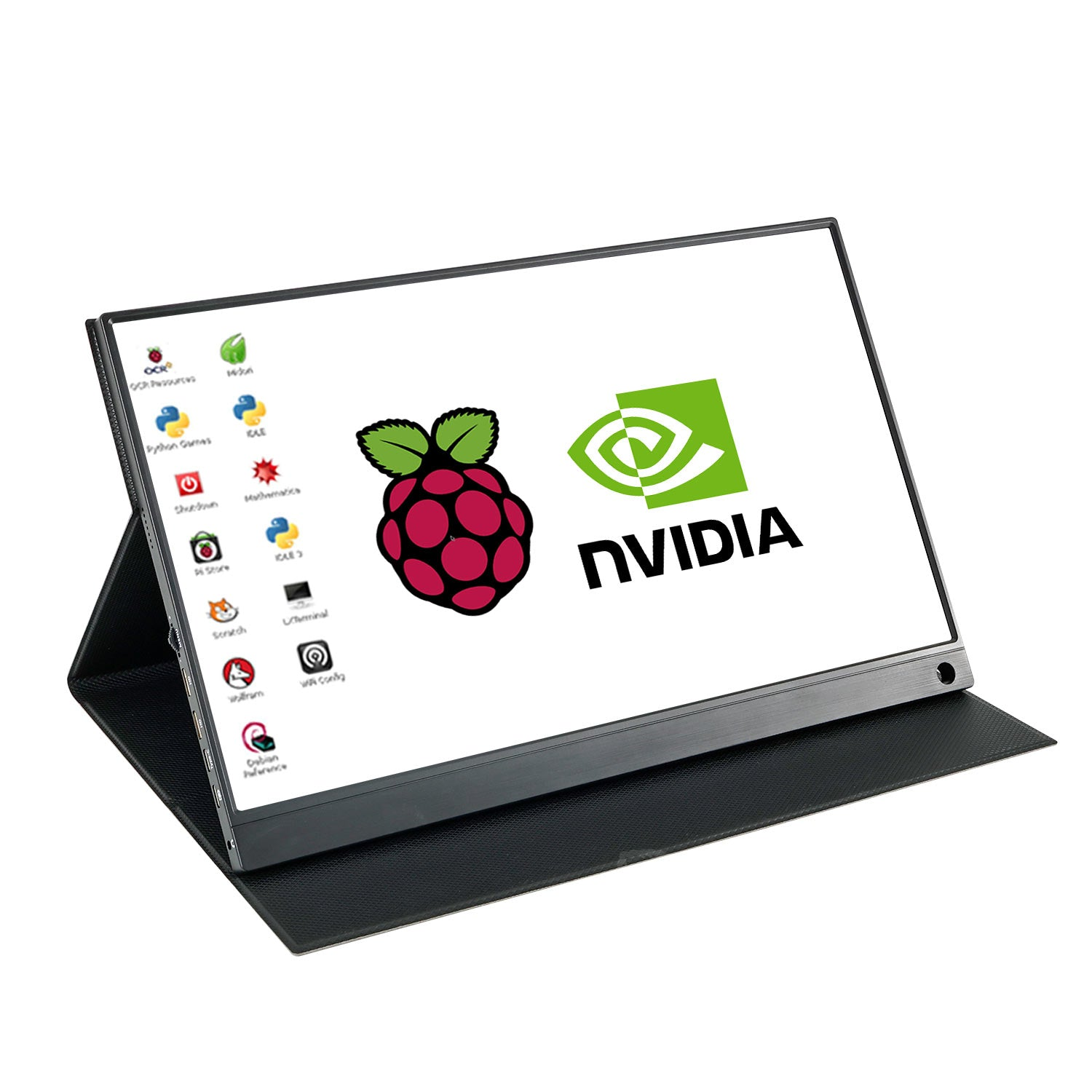

A 15.6-inch 1080P IPS portable touch monitor that pairs well with Raspberry Pi, Jetson, and RDK boards for development or a second screen.

Full-function Type‑C and mini HDMI inputs support flexible connections, with USB touch support and built‑in audio for an all‑in‑one setup.

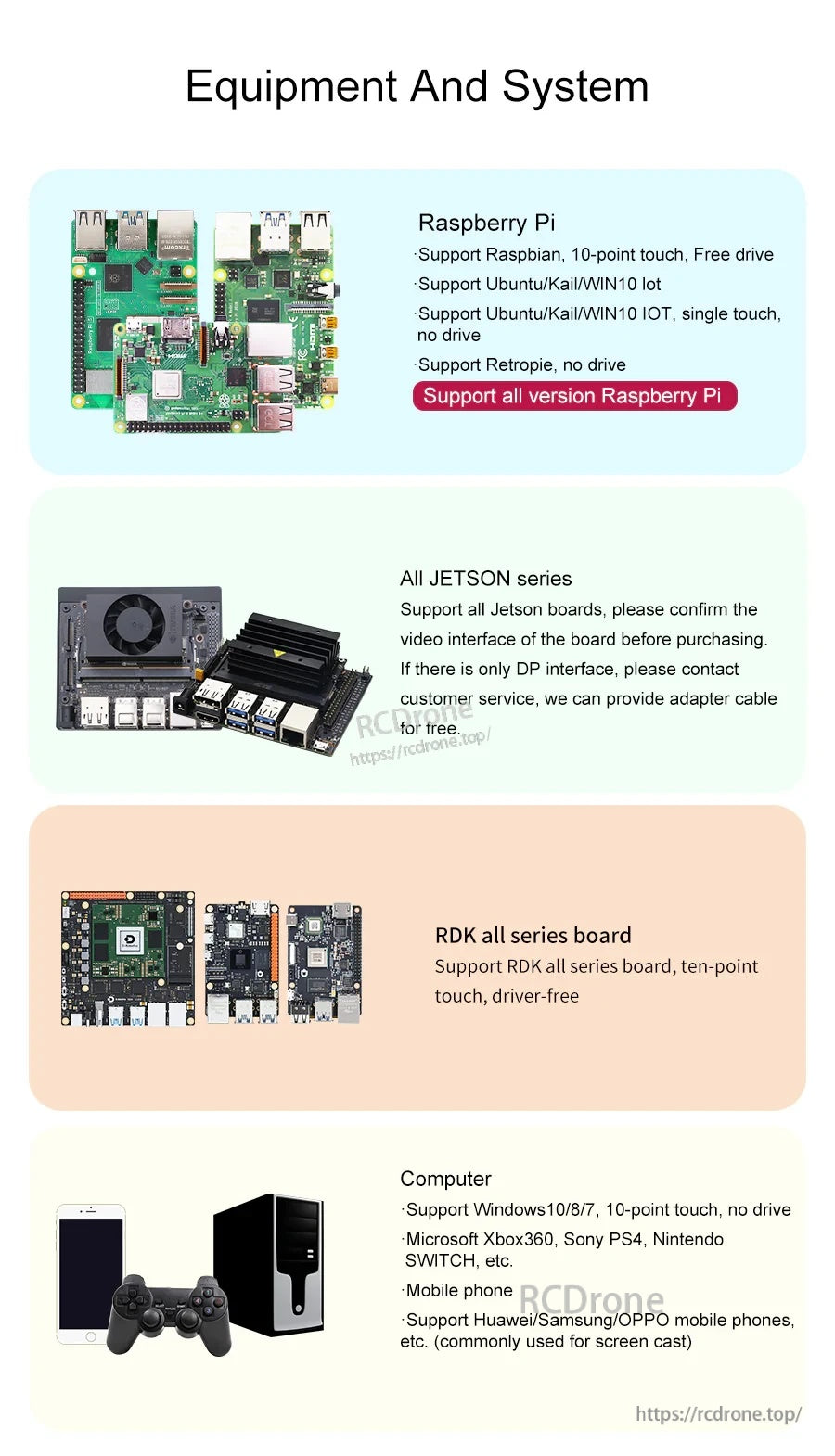

Driver-free touch support is listed for common Raspberry Pi OS options and Windows, with additional compatibility notes for Jetson and RDK boards.

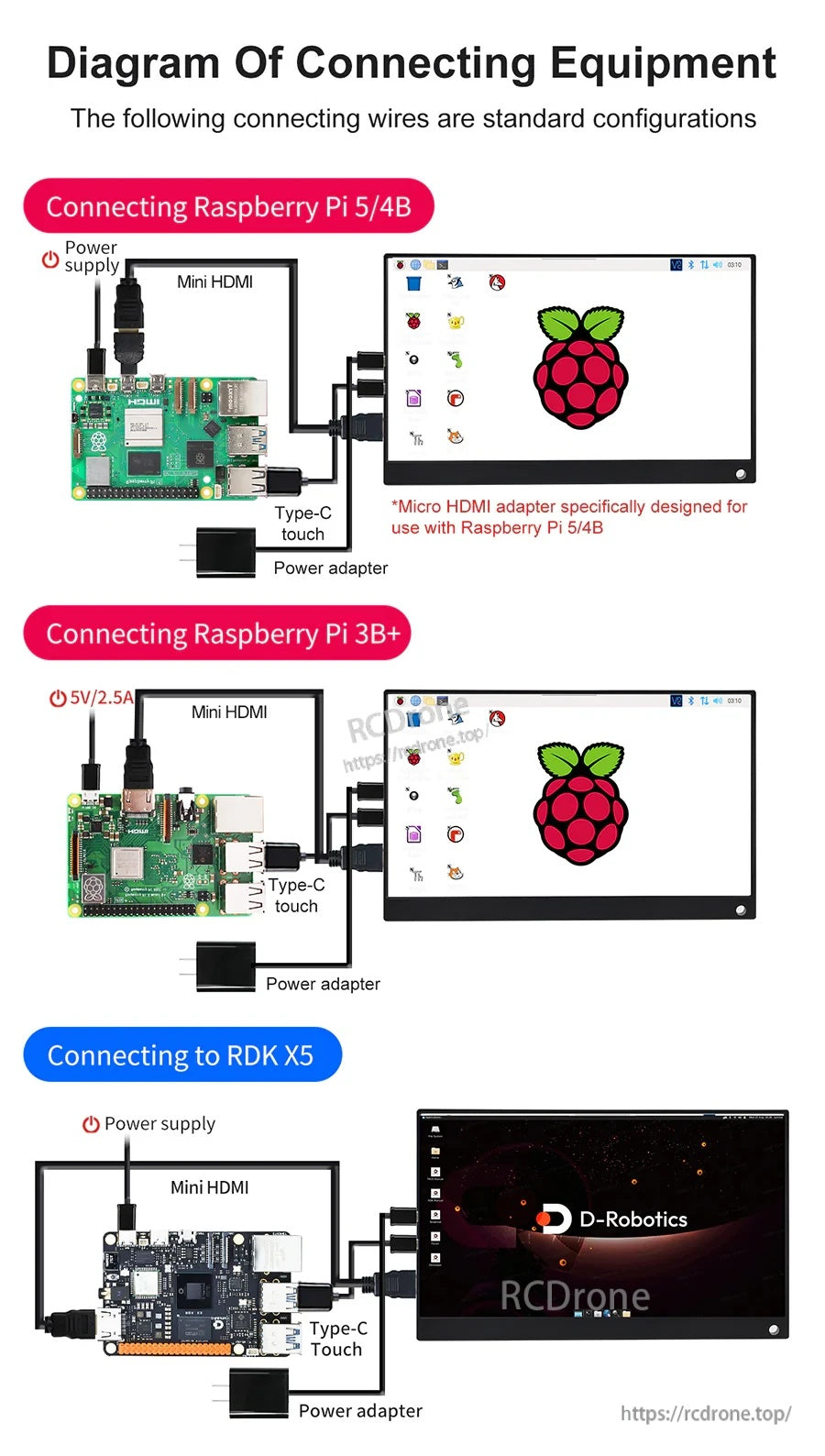

Clear wiring examples make it easier to hook up mini HDMI video and the Type‑C/USB touch connection for popular SBC platforms.

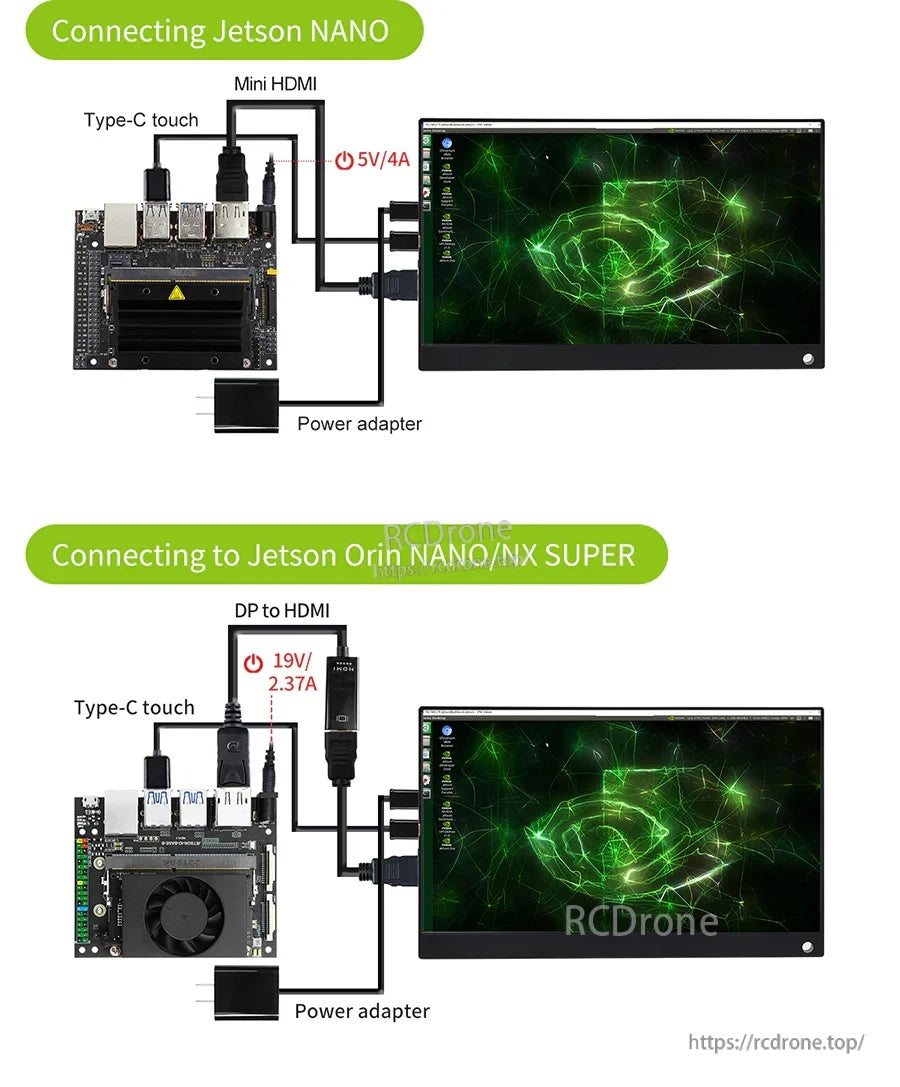

Jetson setups are illustrated for both mini HDMI and DP-to-HDMI workflows, along with the Type‑C touch link and external power.

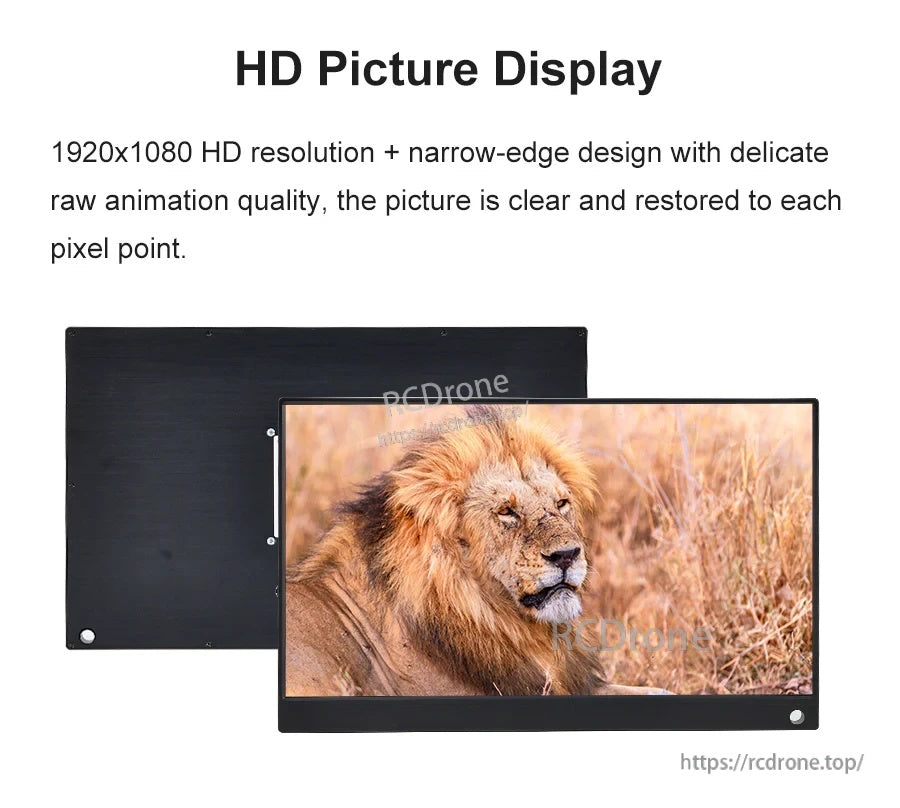

The narrow-bezel design keeps the display compact while maintaining a crisp 1920×1080 image.

The IPS panel supports a wide 178° viewing angle for clearer visibility from the side.

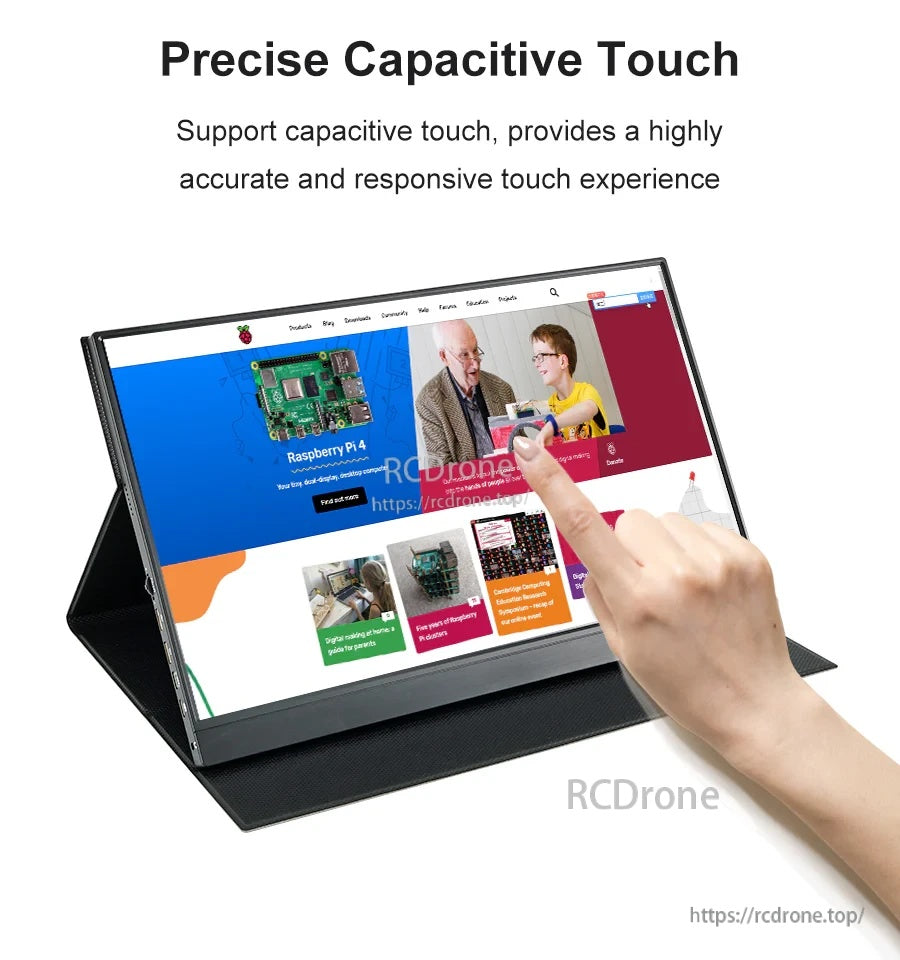

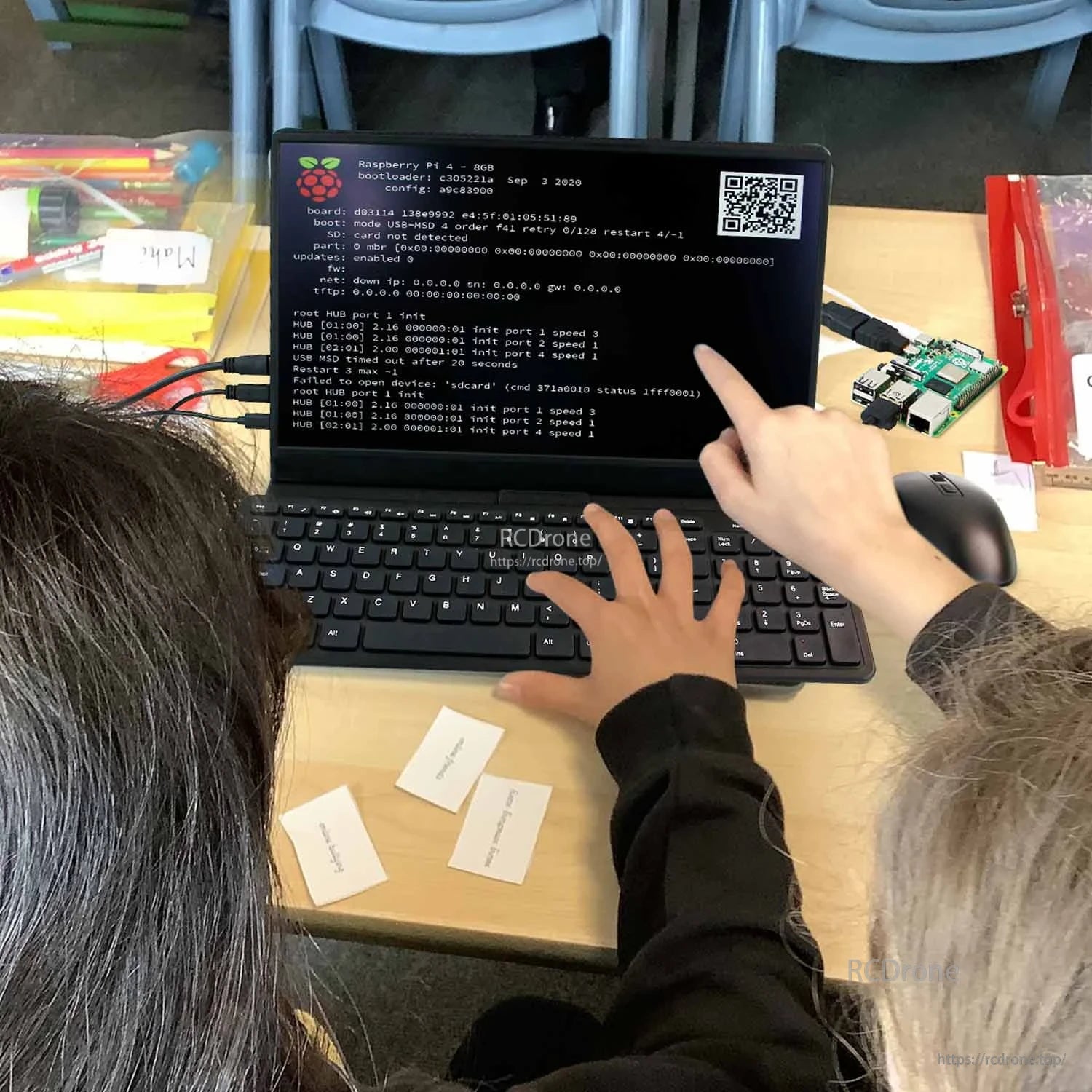

10-point capacitive touch enables responsive multi-touch control for interactive projects and desktop use.

Built-in dual-channel speakers deliver convenient audio without needing external speakers.

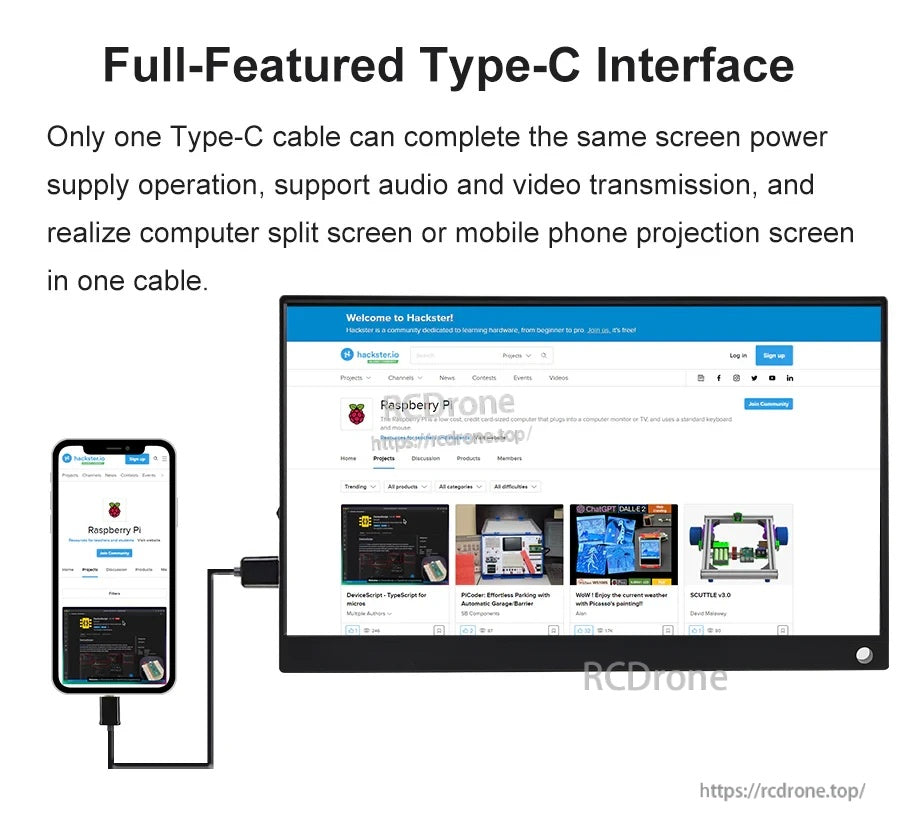

A single full-function Type‑C cable can carry audio and video for compatible devices to reduce cable clutter.

HDMI input makes it a handy portable display for consoles and other HDMI devices when you need a bigger screen on the go.

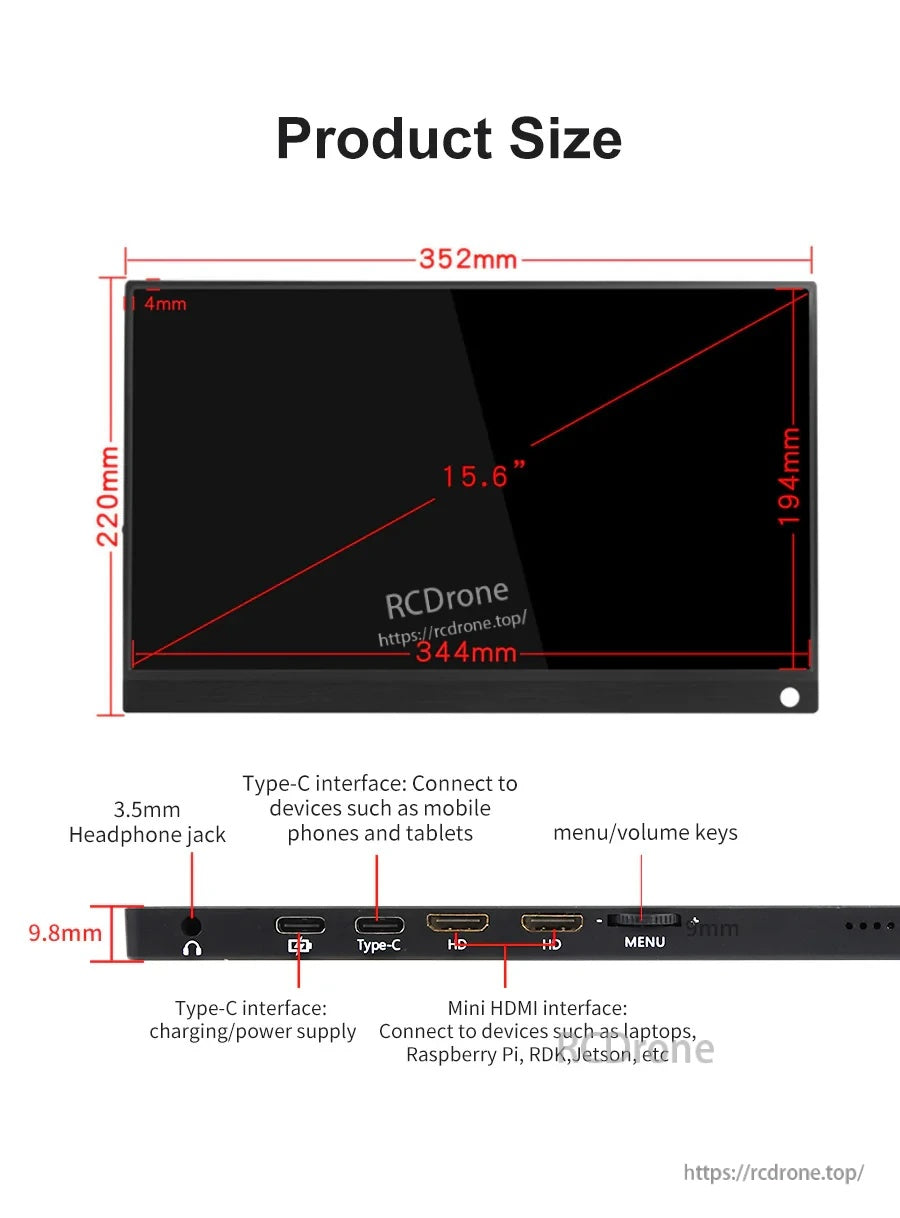

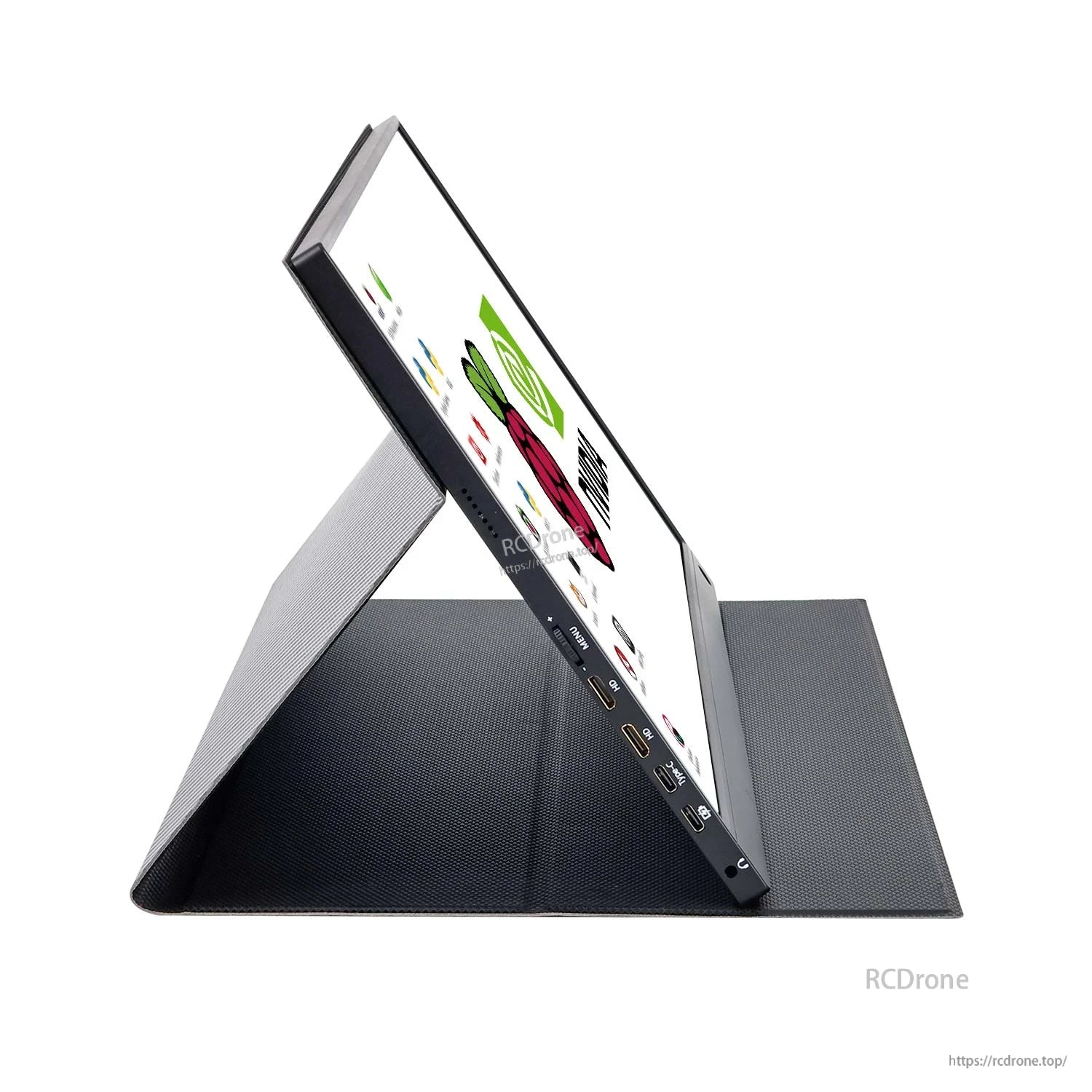

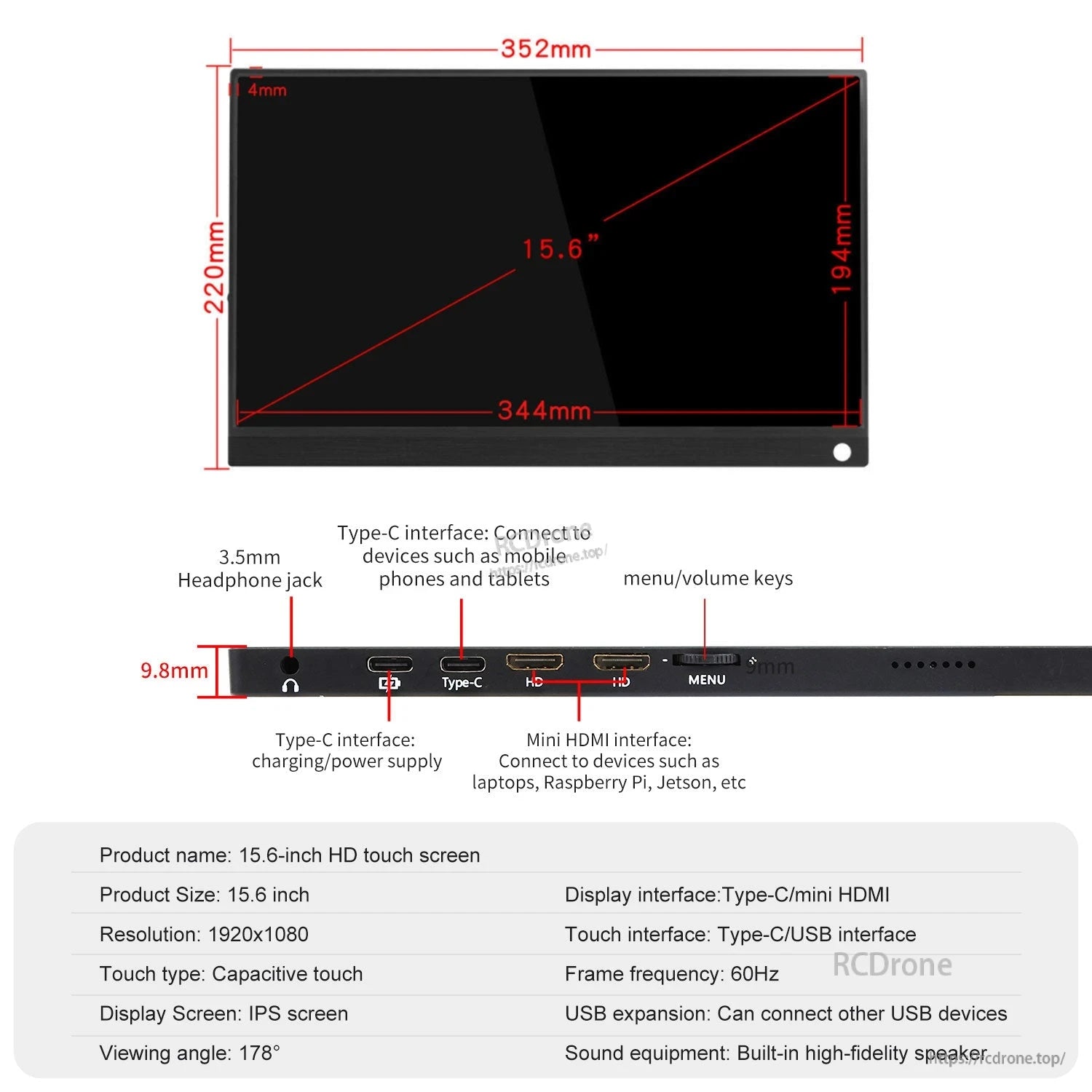

Port layout includes full-function Type‑C, mini HDMI, 3.5 mm audio out, and on-device menu/volume controls.

Included accessories cover common setups, with multiple Type‑C cables, a mini HDMI cable, bracket, and protective case.
