Overview
The Yahboom infrared remote controller is designed for smart cars/robots and development boards. It uses a standard ~38K infrared carrier (38K modulation) to work with many common IR receivers. Two styles are available: a Regular version (thin body with flat buttons for basic control) and an Advanced version (recommended; thicker body with high-elastic rubber buttons for more sensitive control). Both versions include a built-in 3V button battery for long service life and easy replacement.
Key Features
- 38K-class IR carrier to adapt to a variety of infrared receivers on the market.
- Button-rich layout for robot car control and programming experiments.
- Stereoscopic keypad with soft feel and accurate induction.
- Built-in 3V button battery, designed for long time use and easy replacement.
- Code value support: button code values are provided, as well as infrared remote control code for the car.
For product selection help or after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.

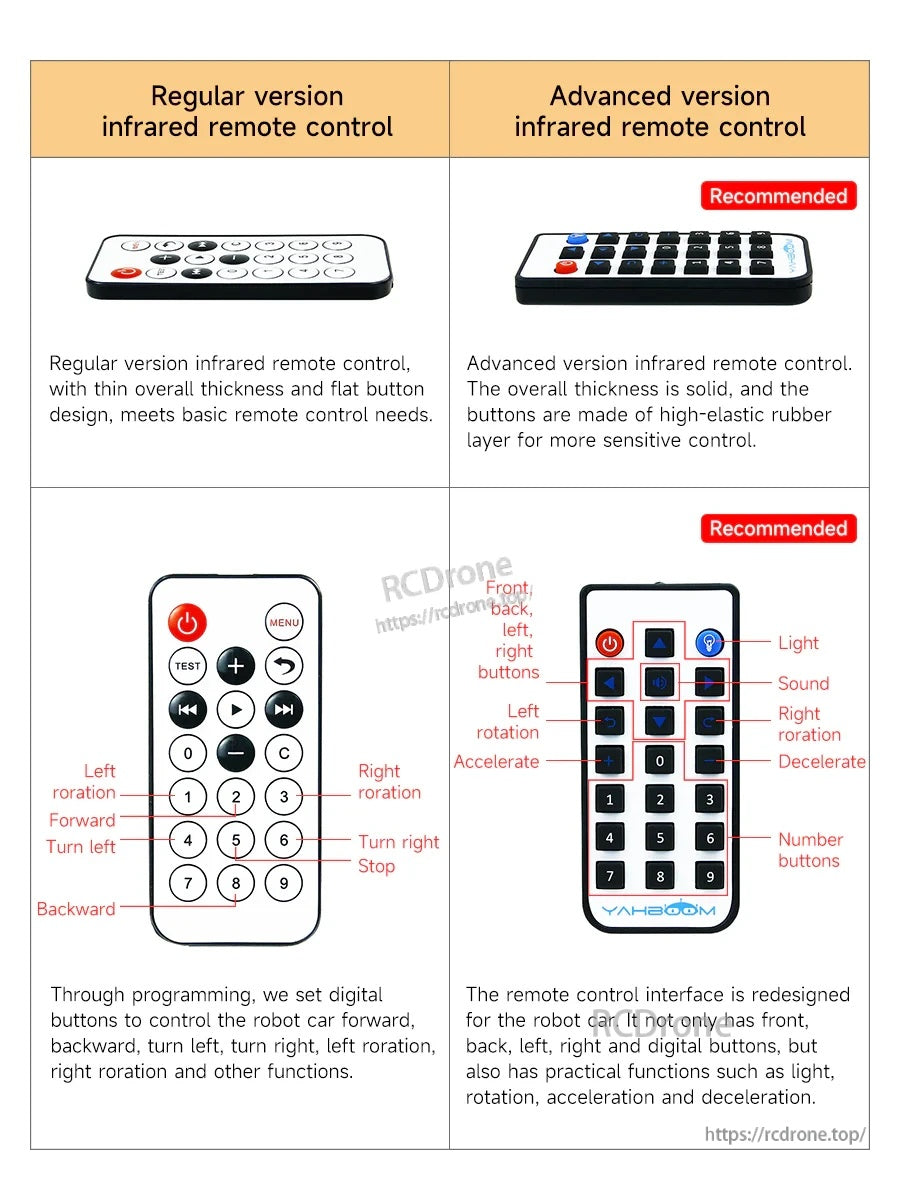

Button Functions (as defined for robot car use)
Regular version
- Forward, backward, turn left, turn right
- Left rotation, right rotation
- Stop

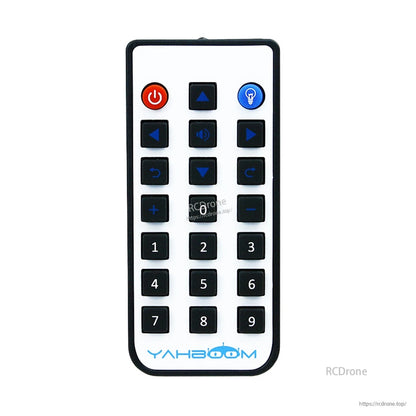

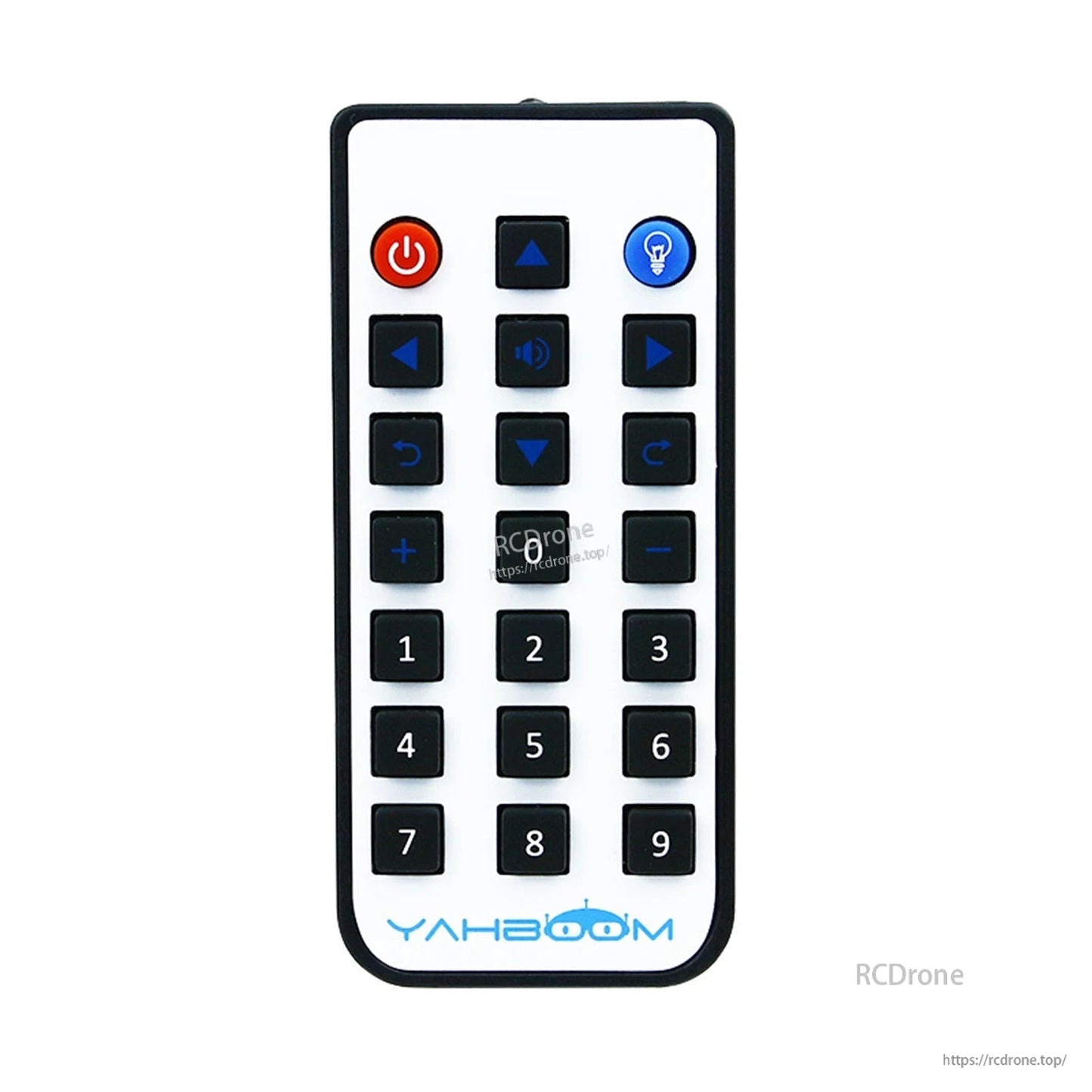

Advanced version
- Front, back, left, right buttons
- Accelerate / decelerate
- Left rotation / right rotation
- Light, sound
- Number buttons (0–9)
Specifications

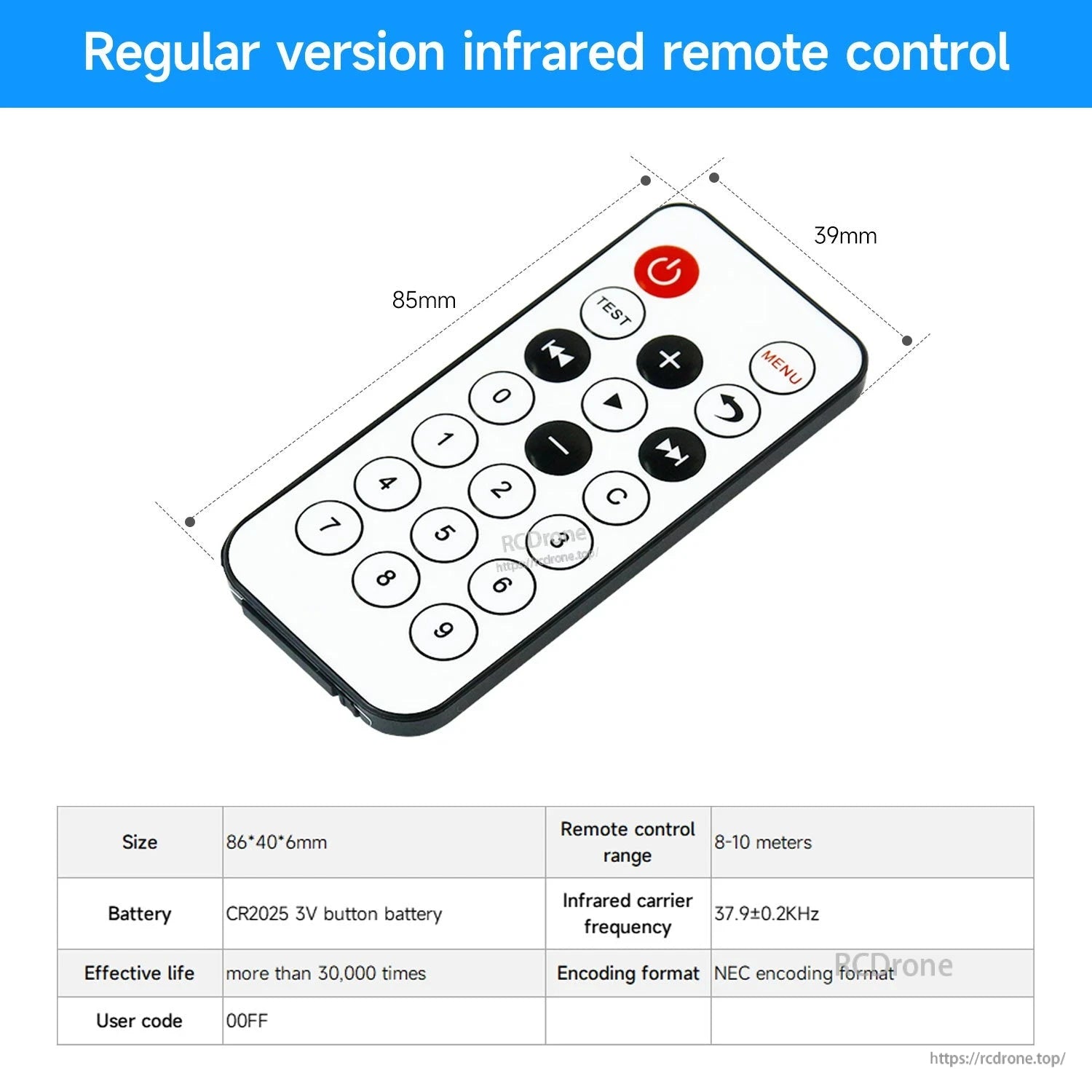

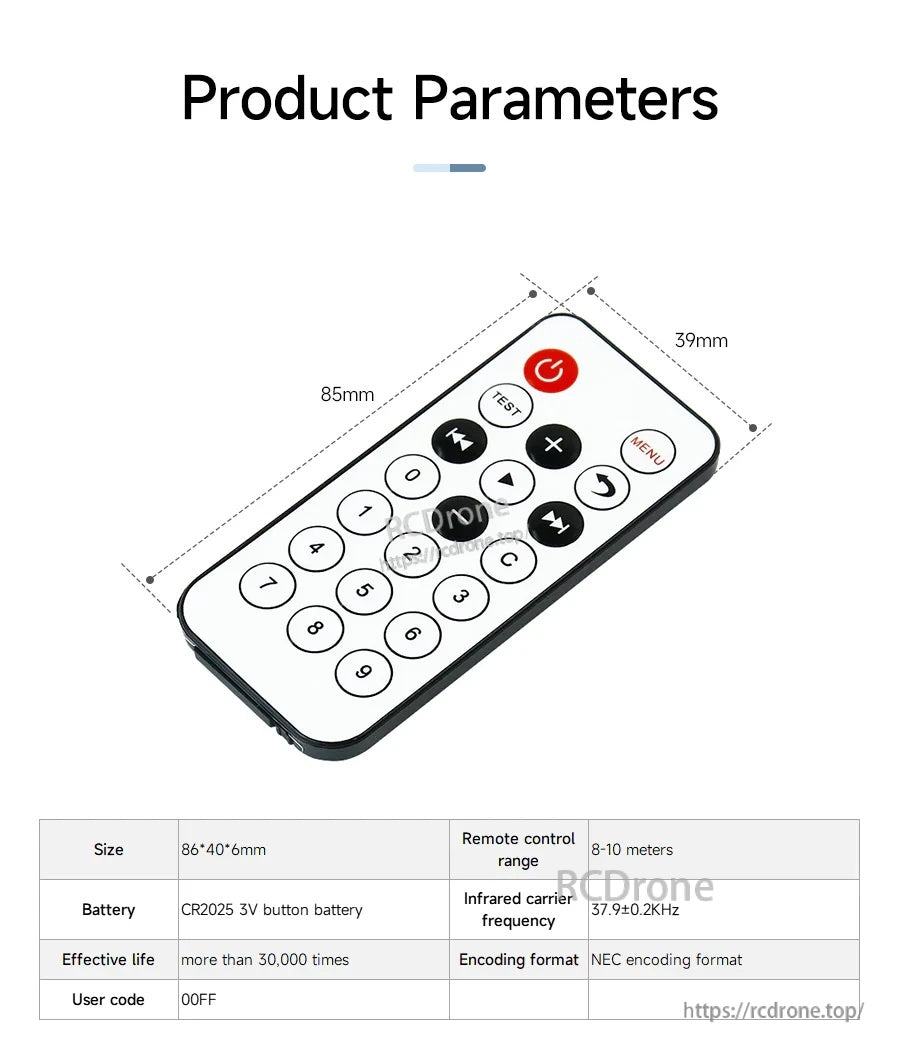

Regular version infrared remote control
| Size | 86*40*6mm |
| Remote control range | 8-10 meters |
| Battery | CR2025 3V button battery |
| Infrared carrier frequency | 37.9±0.2KHz |
| Effective life | more than 30,000 times |
| Encoding format | NEC encoding format |
| User code | 00FF |

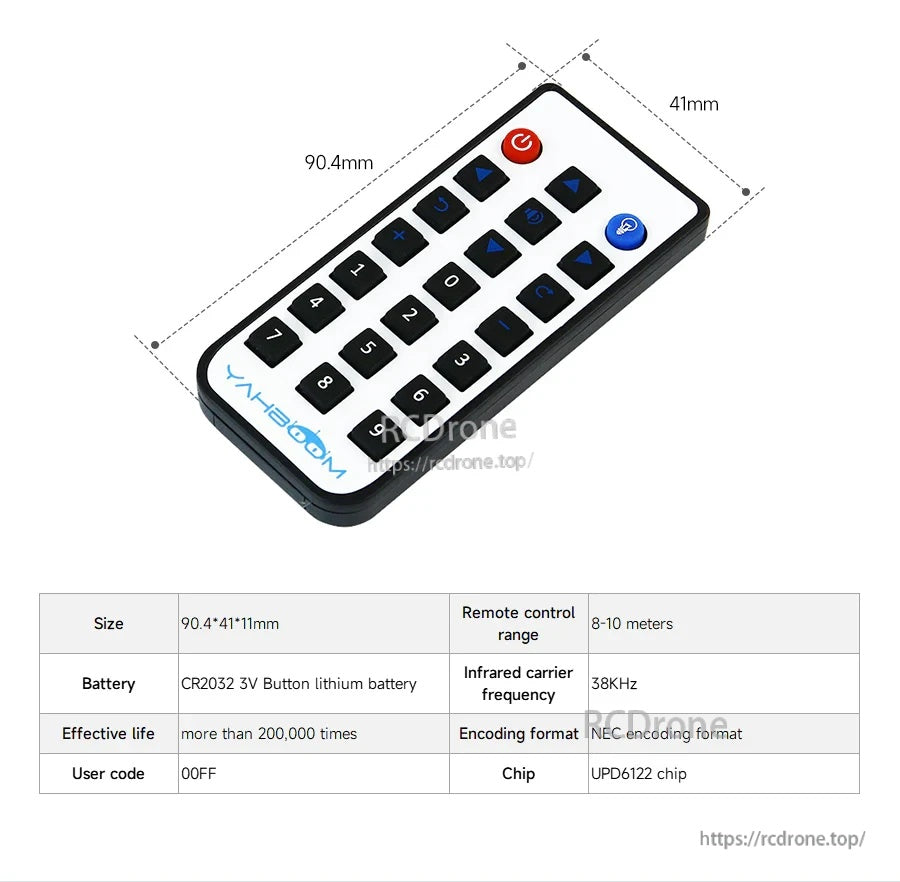

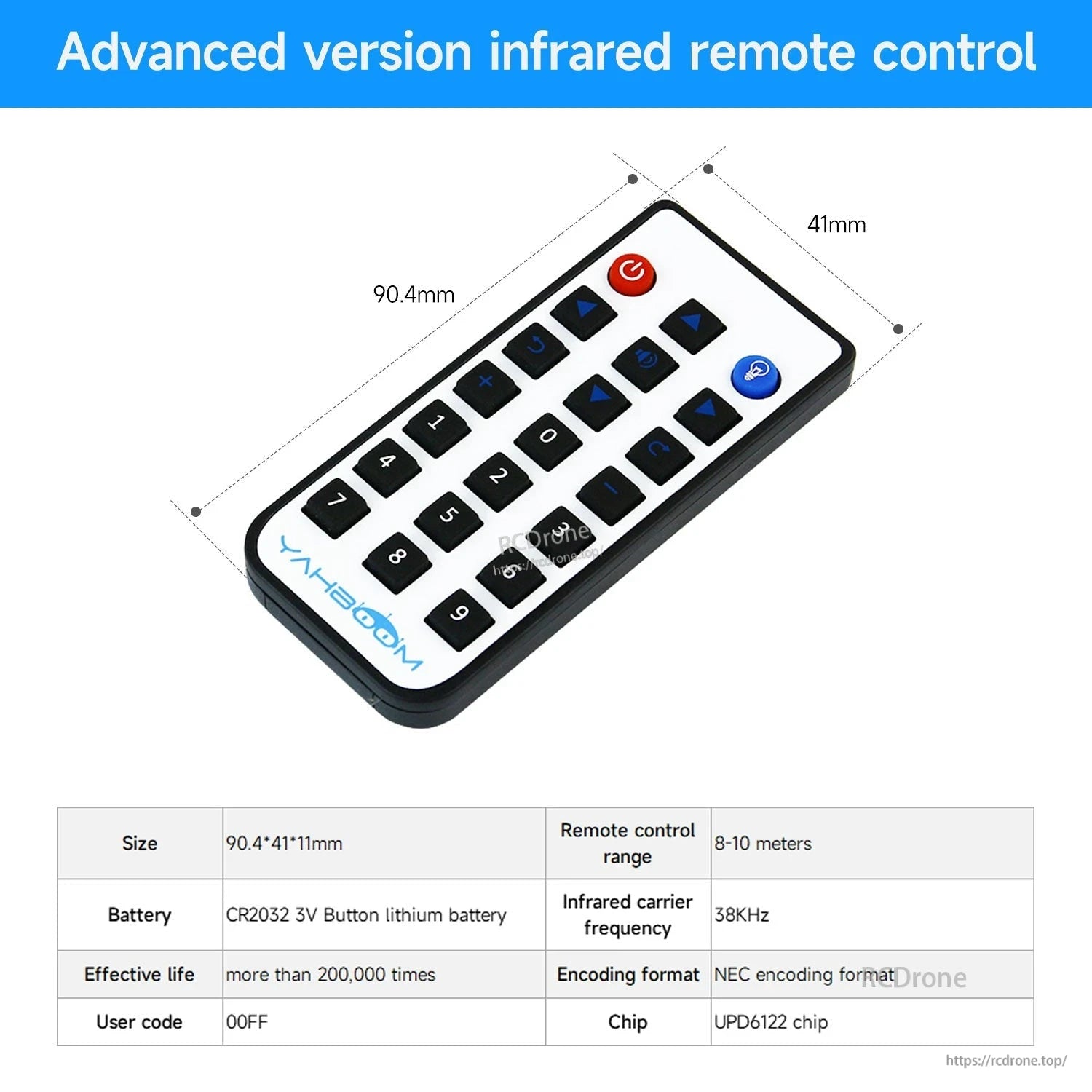

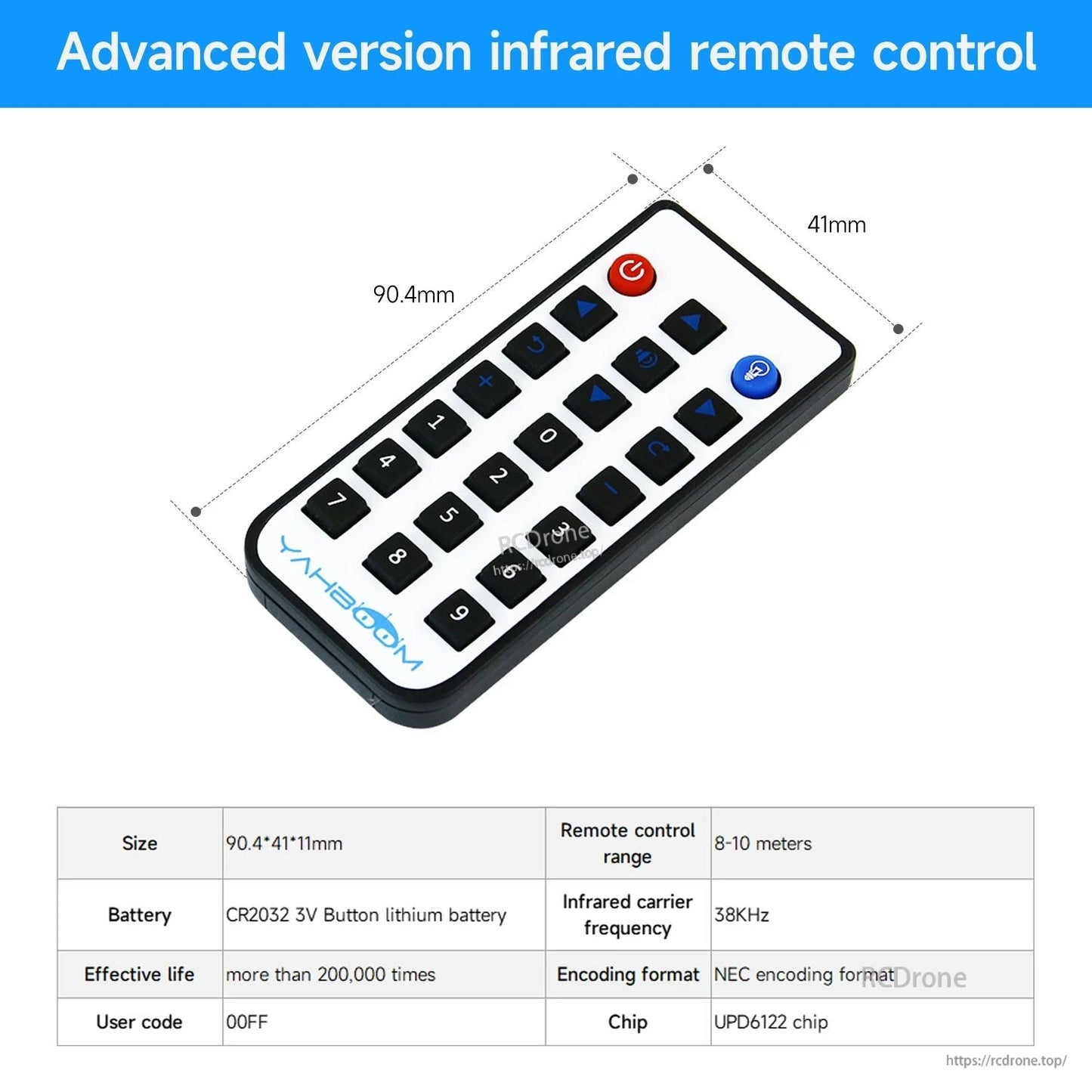

Advanced version infrared remote control
| Size | 90.4*41*11mm |
| Remote control range | 8-10 meters |
| Battery | CR2032 3V Button lithium battery |
| Infrared carrier frequency | 38KHz |
| Effective life | more than 200,000 times |
| Encoding format | NEC encoding format |
| User code | 00FF |
| Chip | UPD6122 chip |

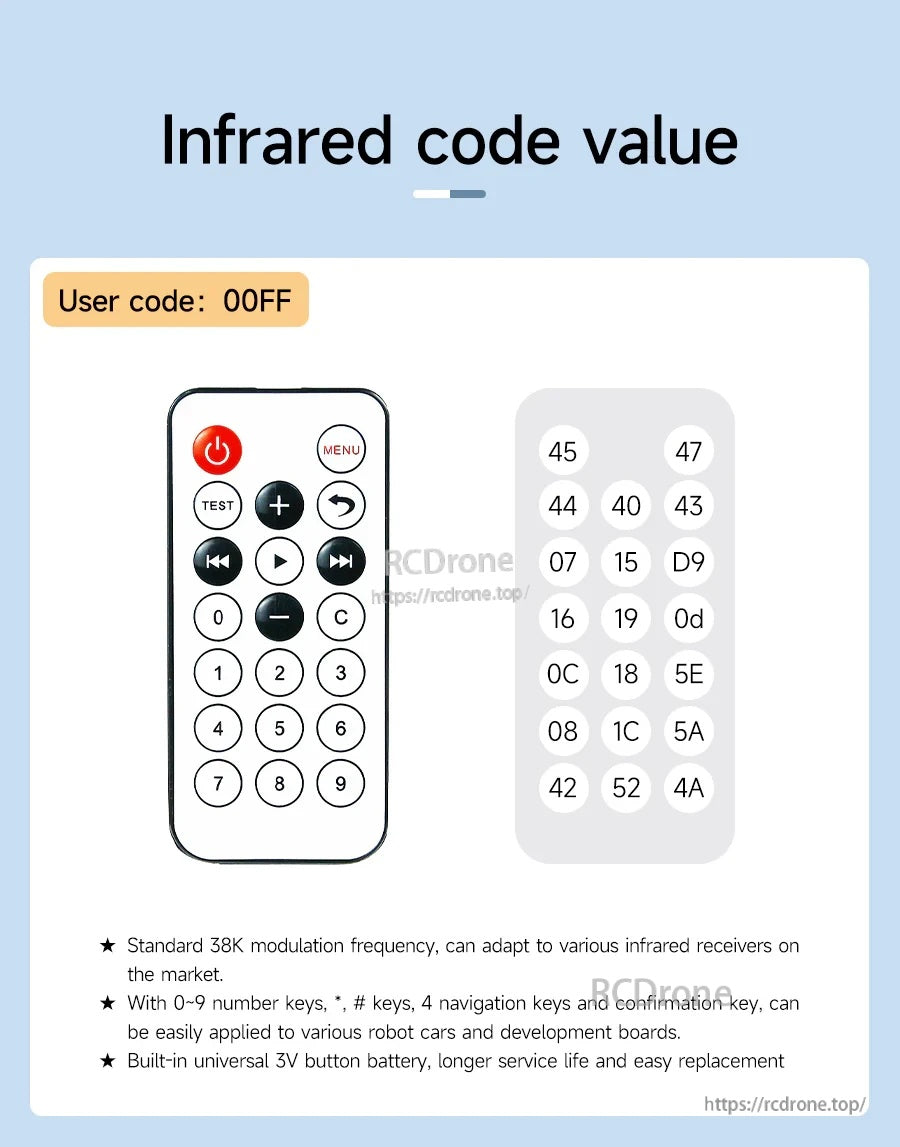

Infrared Code Values
User code
00FF

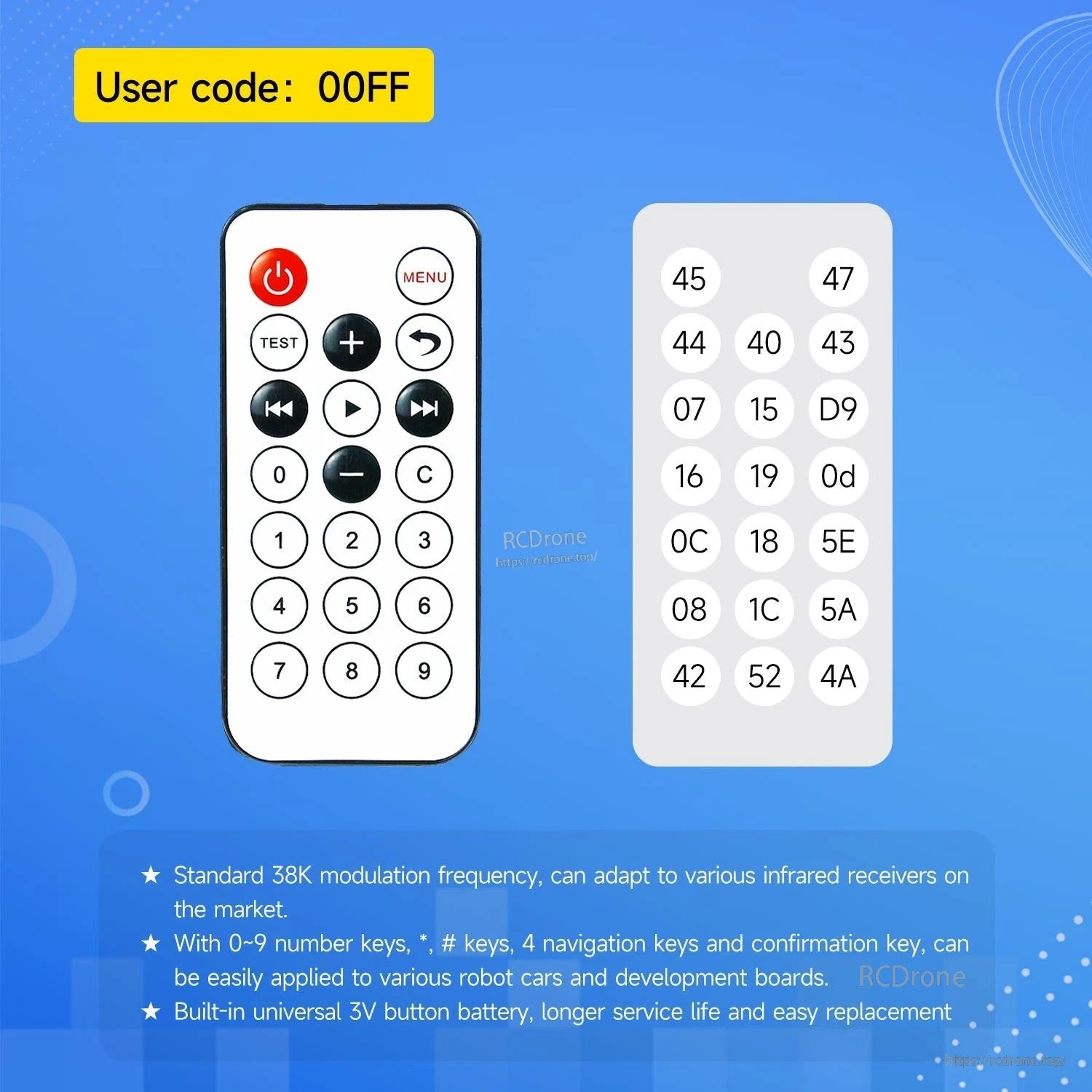

Regular version key values
45, 47, 44, 40, 43, 07, 15, D9, 16, 19, 0d, 0C, 18, 5E, 08, 1C, 5A, 42, 52, 4A

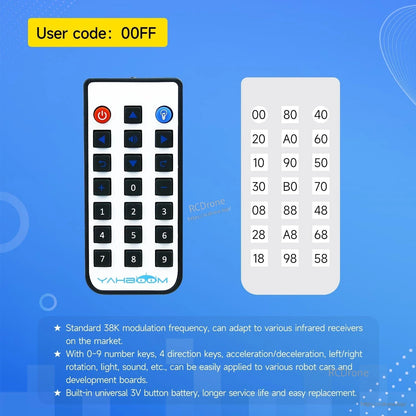

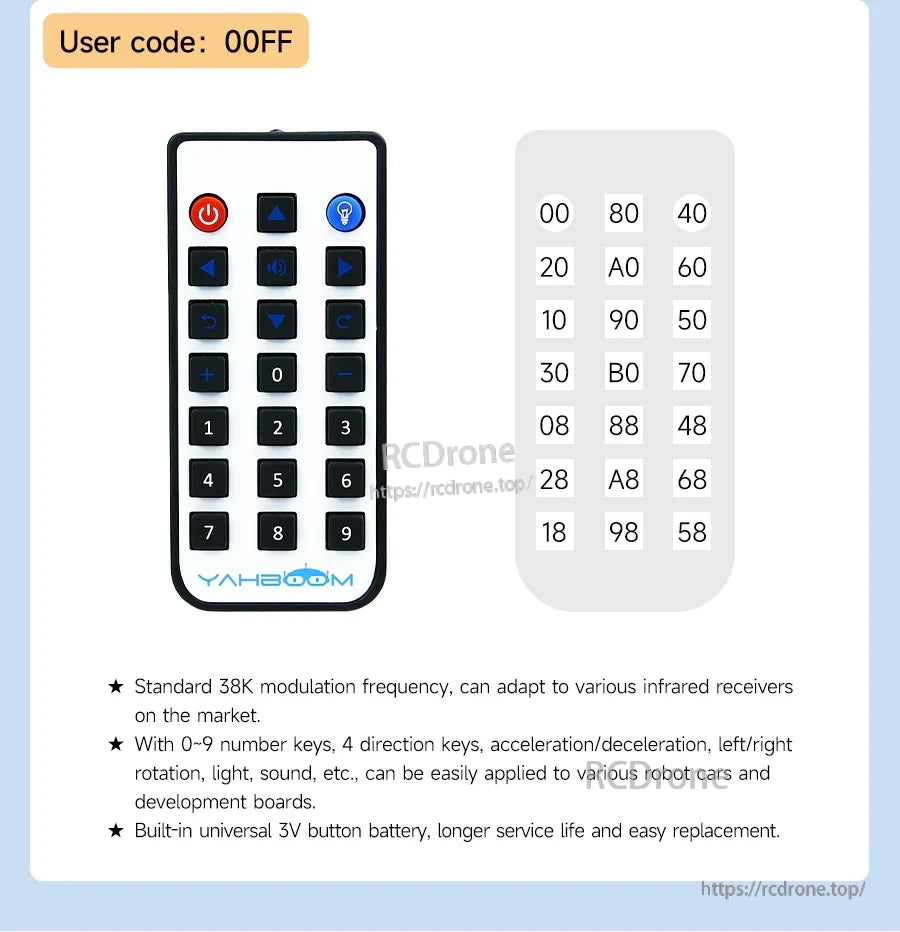

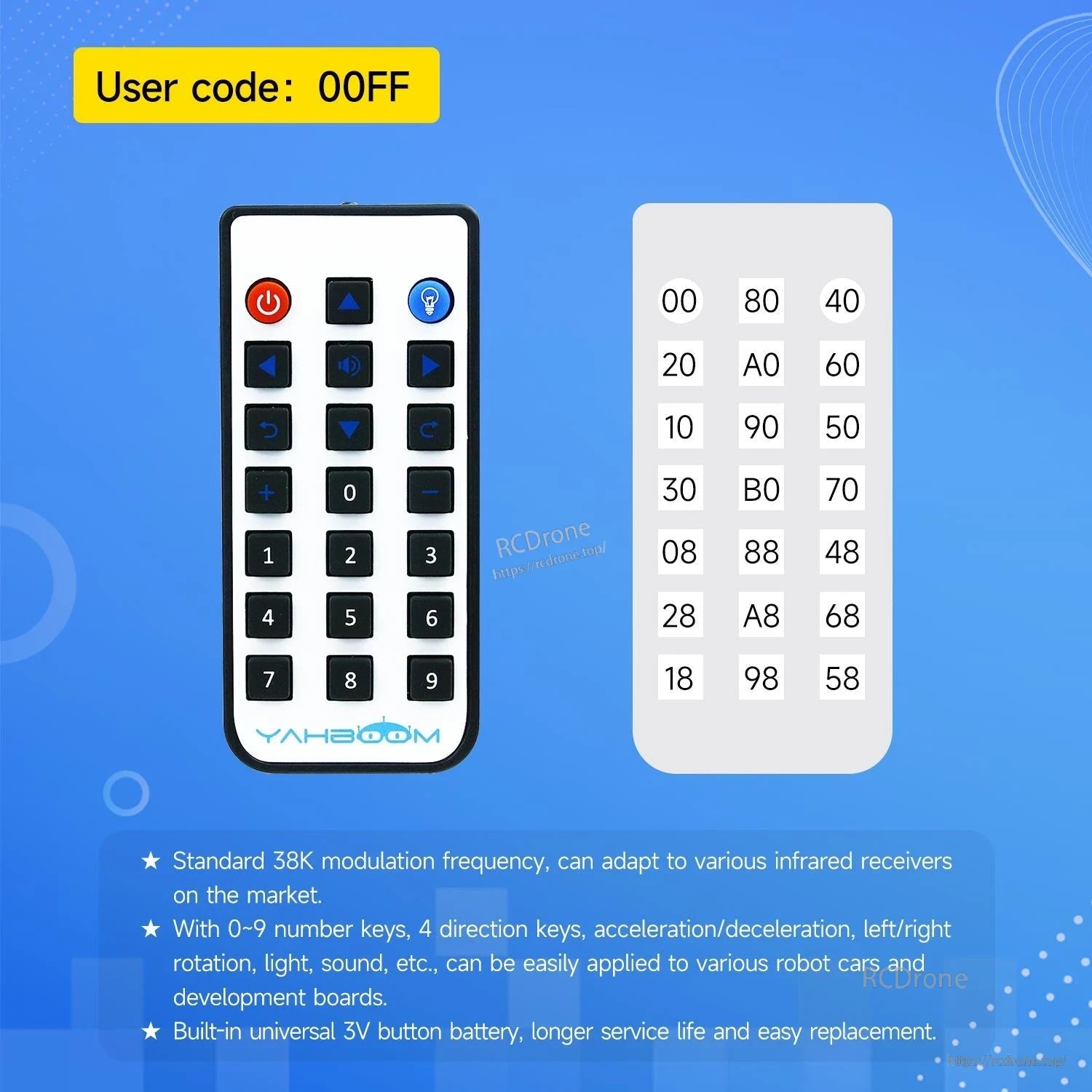

Advanced version key values
00, 80, 40, 20, A0, 60, 10, 90, 50, 30, B0, 70, 08, 88, 48, 28, A8, 68, 18, 98, 58
Manuals / Documents
Documentation and example routines reference MSPM0G3507 microcontroller usage, including serial-port printing of infrared remote control key values and KEIL/CCS routine documentation.
Details

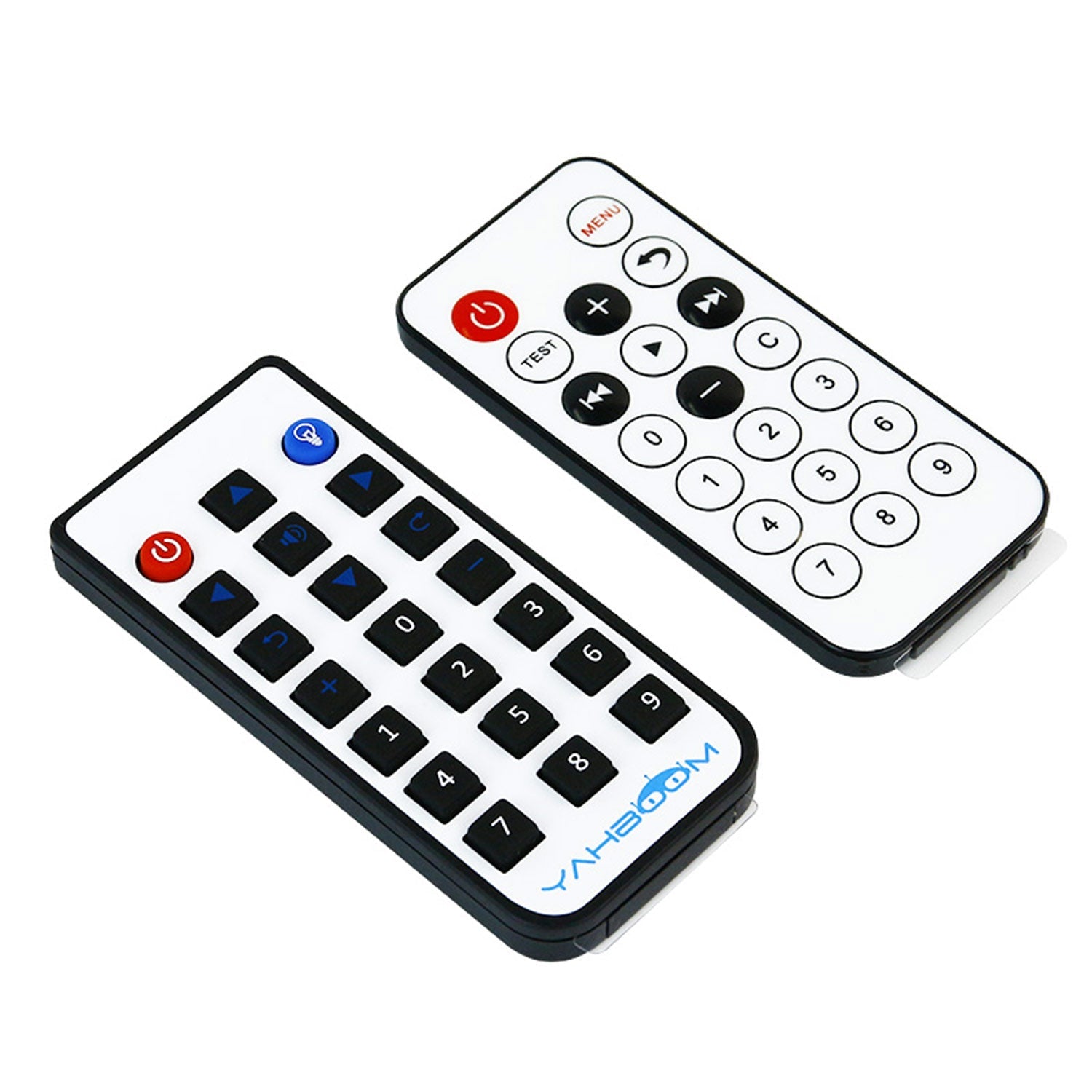

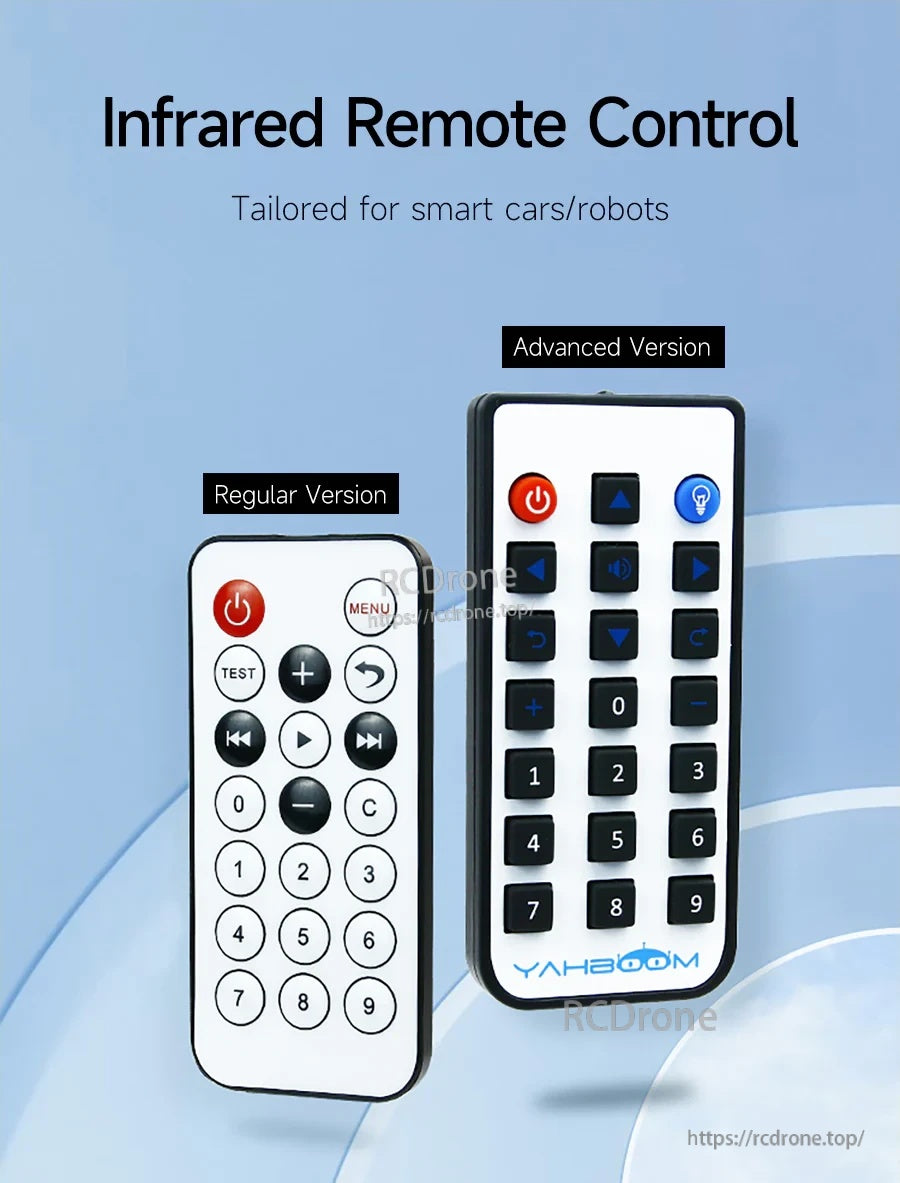

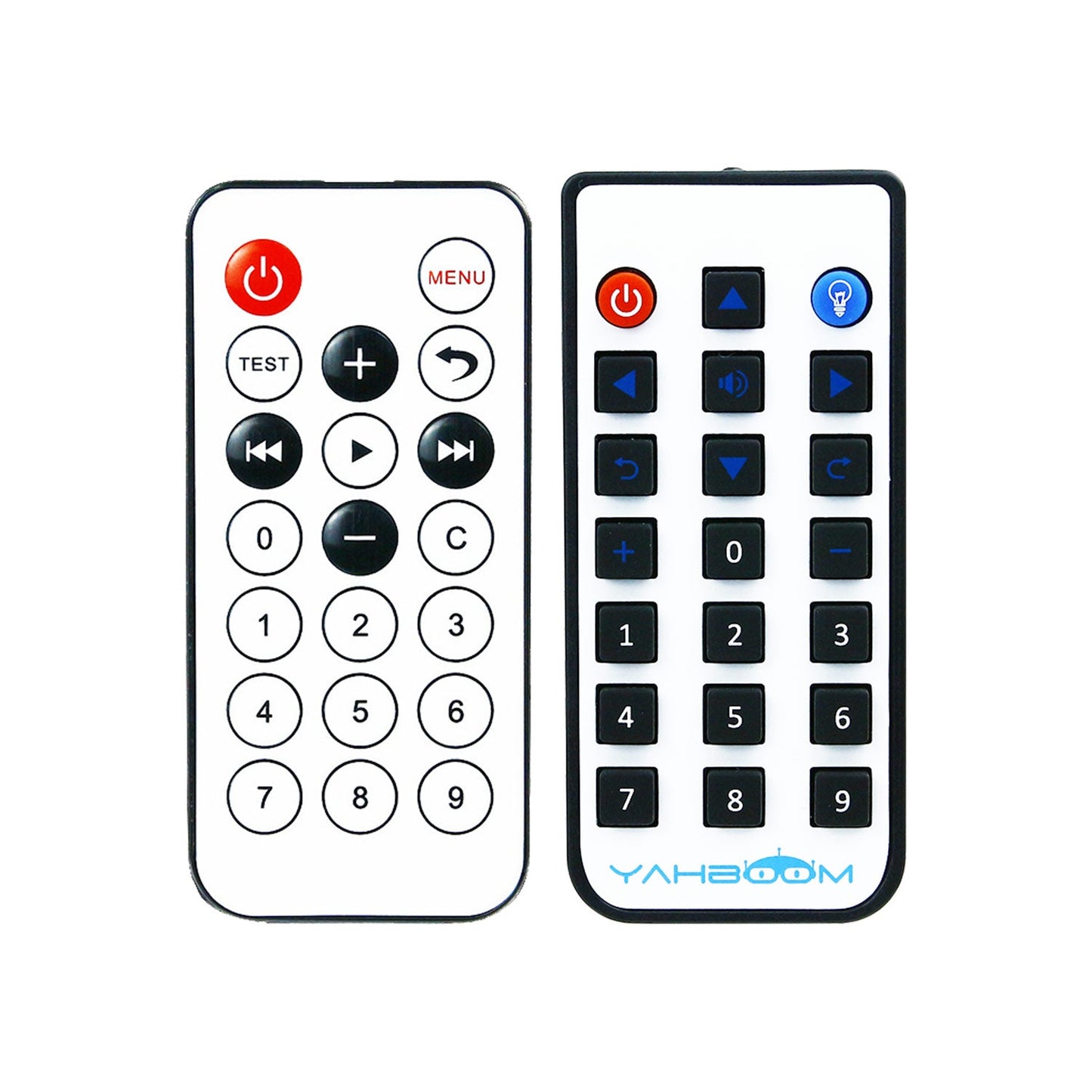

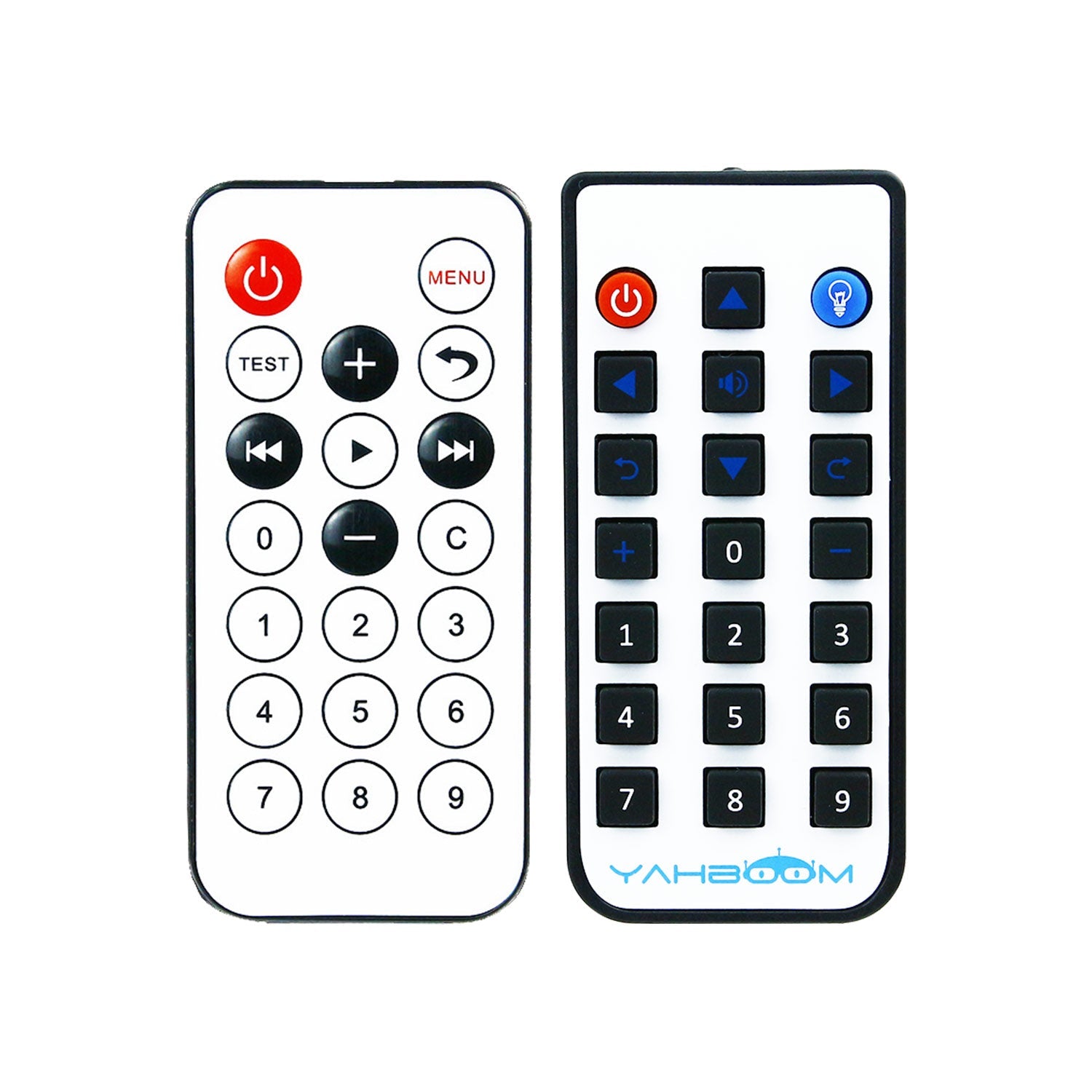

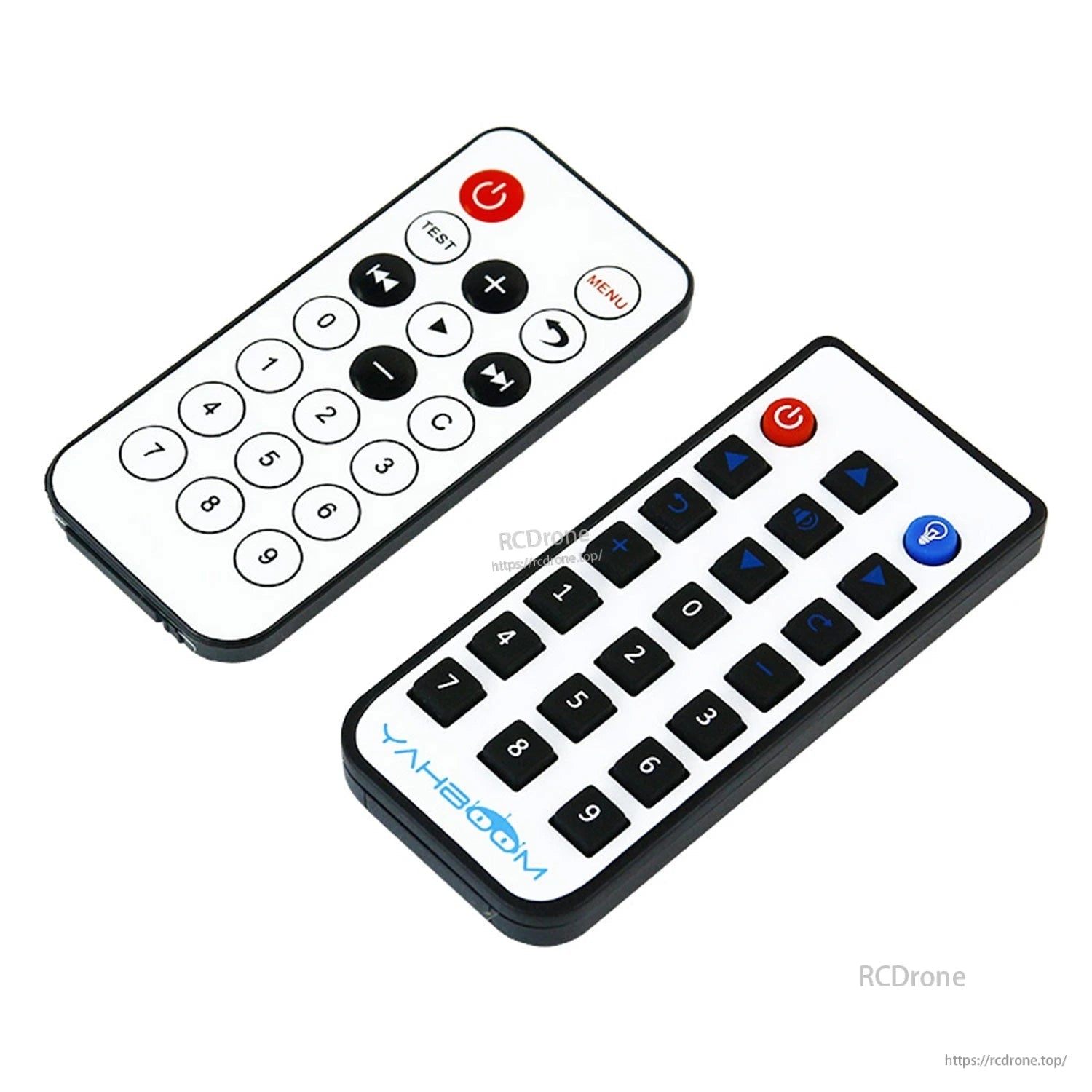

Choose between the slim Regular remote for basic commands or the Advanced remote with responsive rubber buttons for richer control.
The Advanced version adds acceleration, light/sound, and number keys while keeping the essential direction controls.

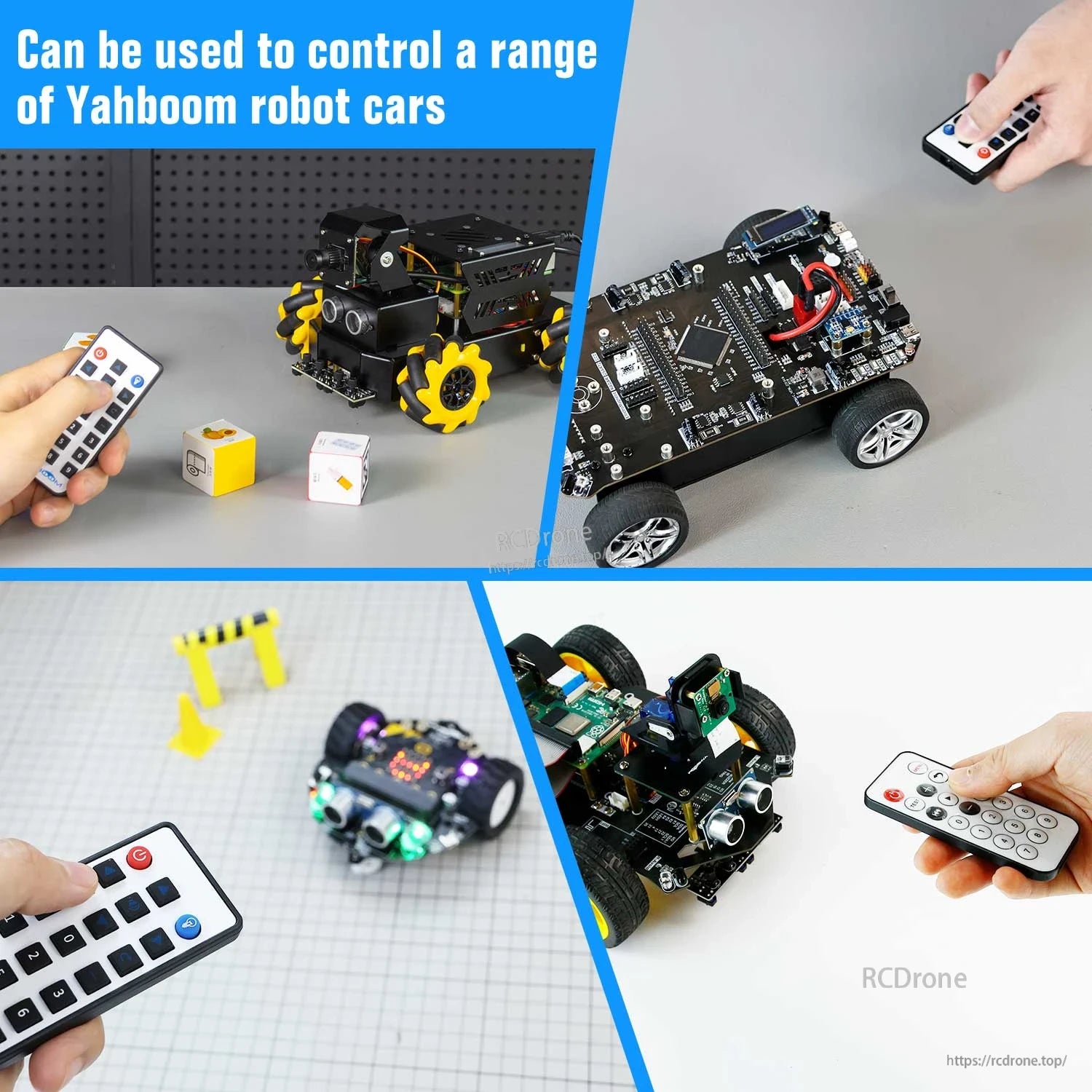

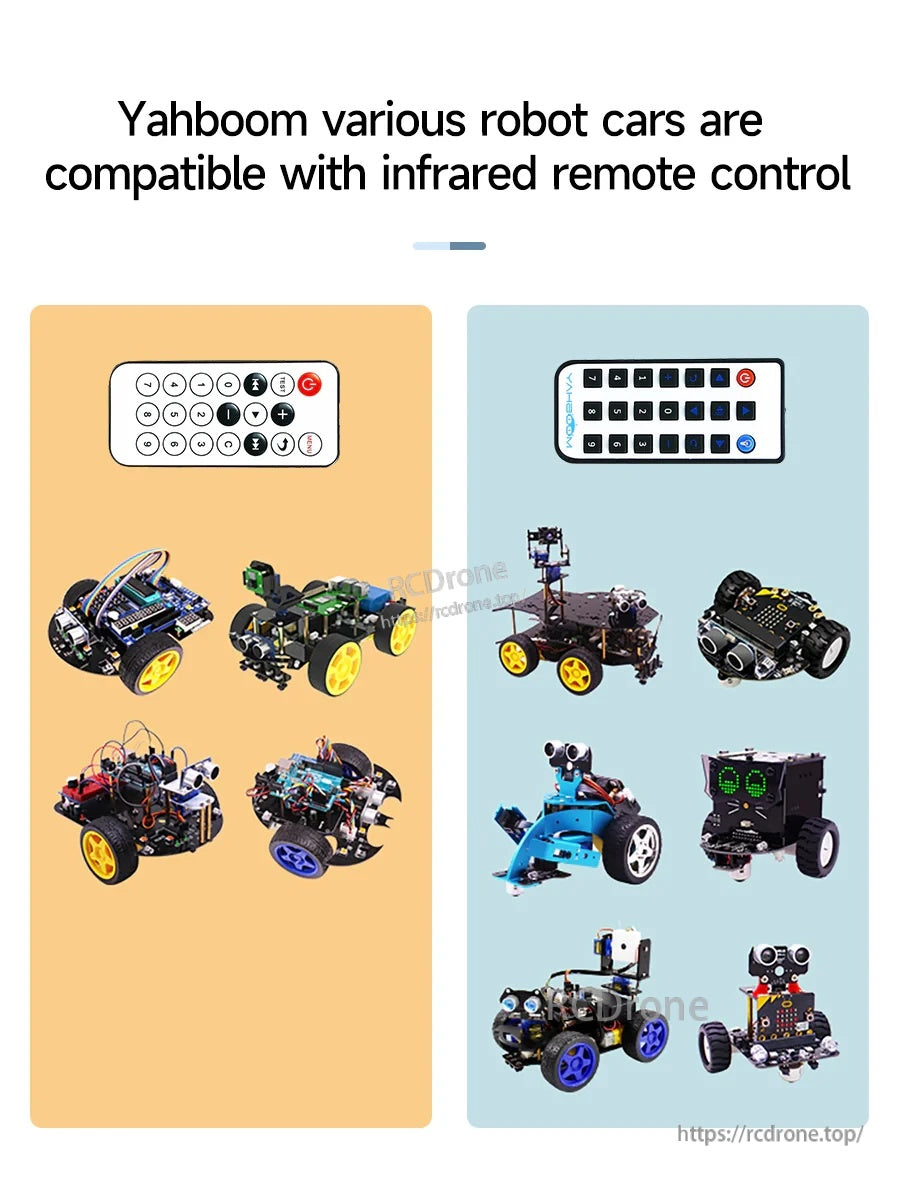

Works as a handy controller option across many Yahboom smart car and robot platforms that use common IR receivers.

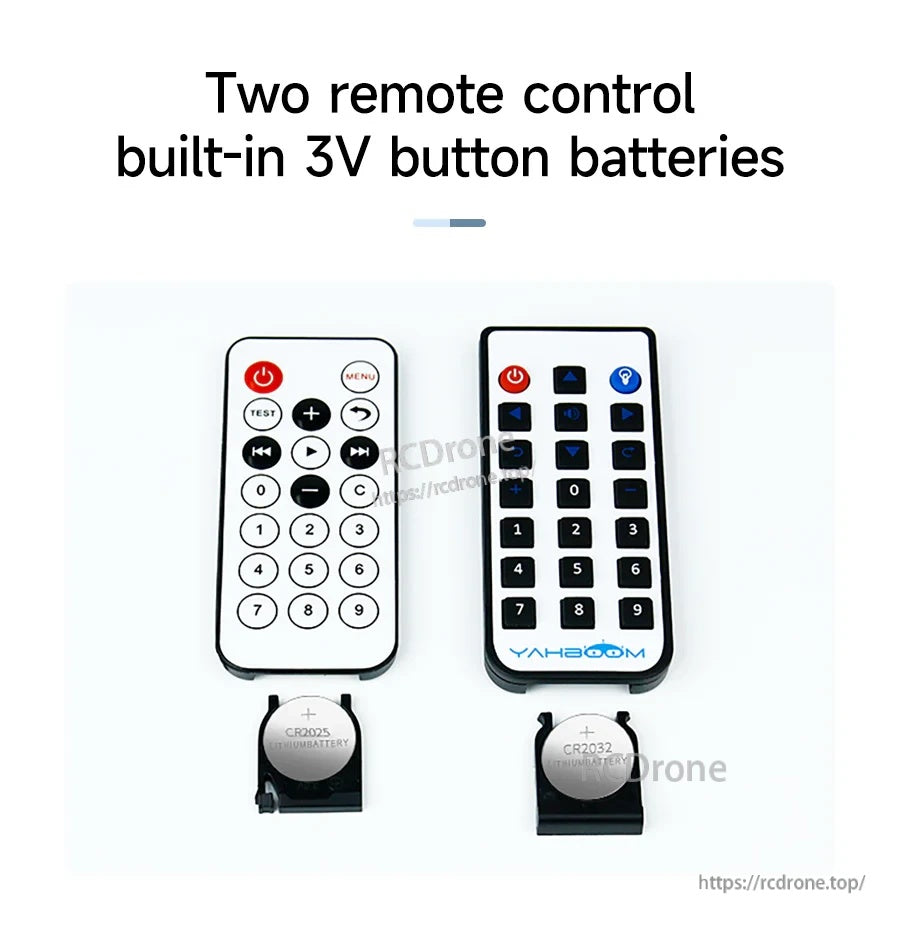

Both versions use a replaceable 3V button battery for long service life and easy maintenance.

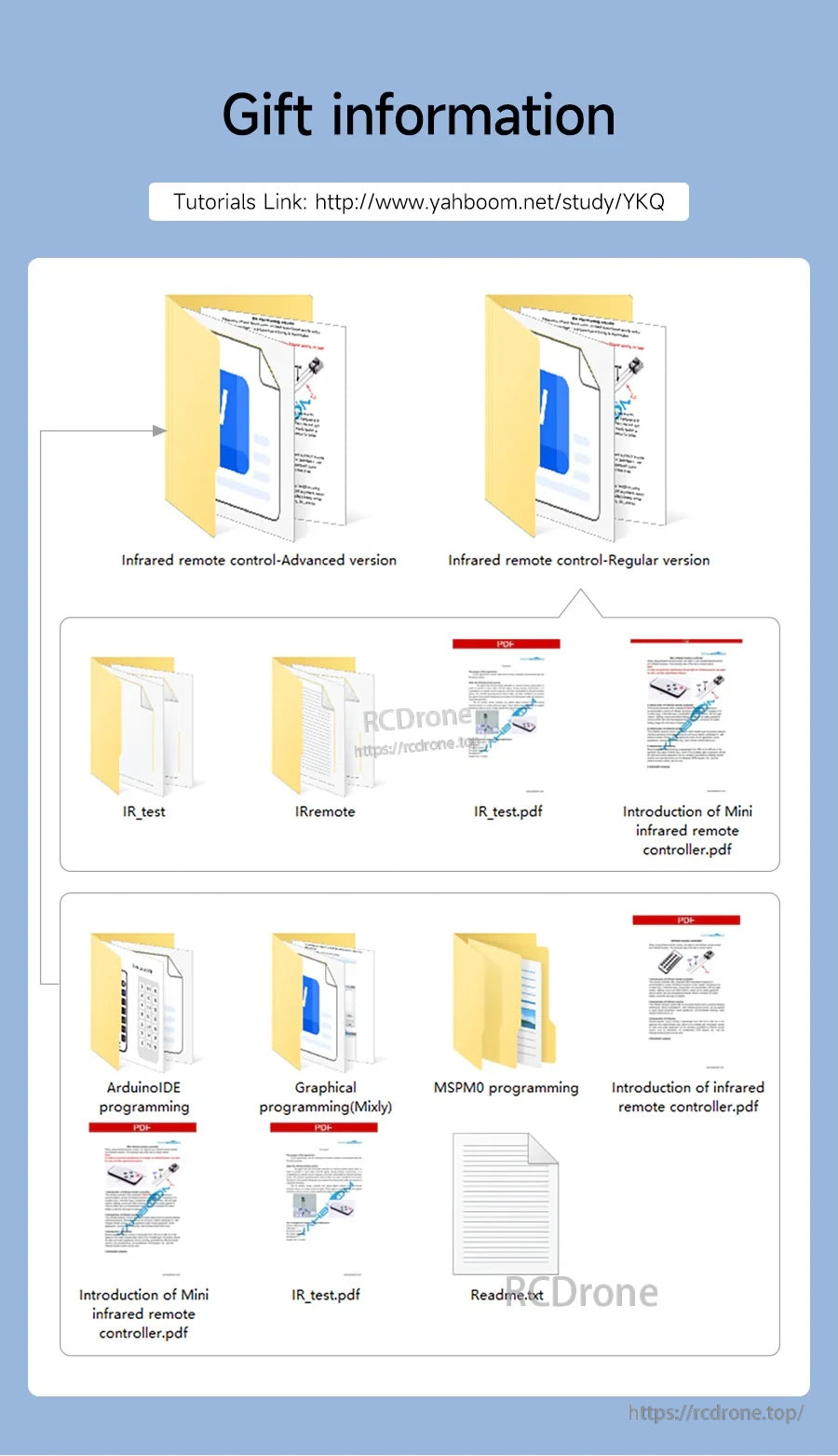

Tutorials and reference files help with wiring, testing, and reading IR key values during development.

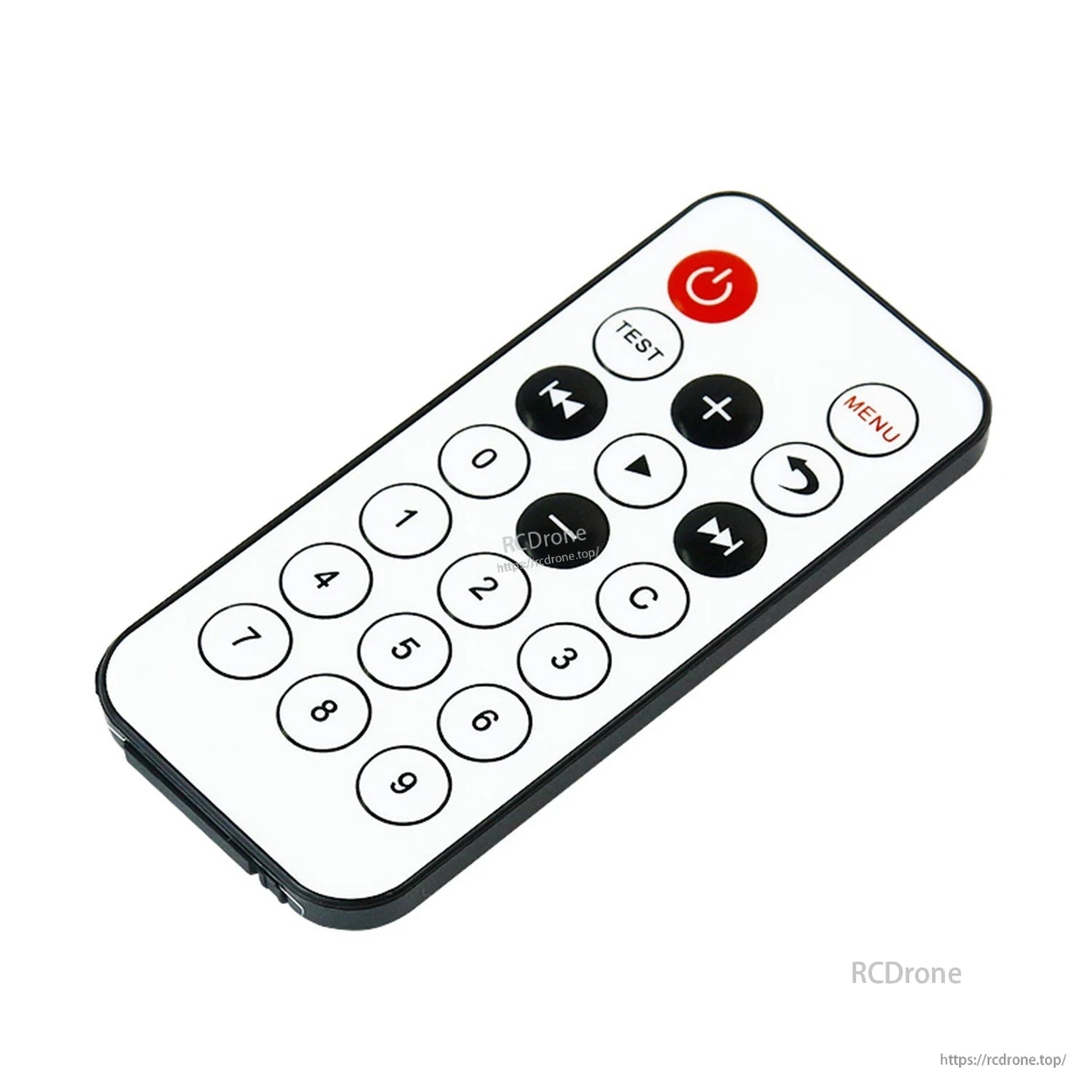

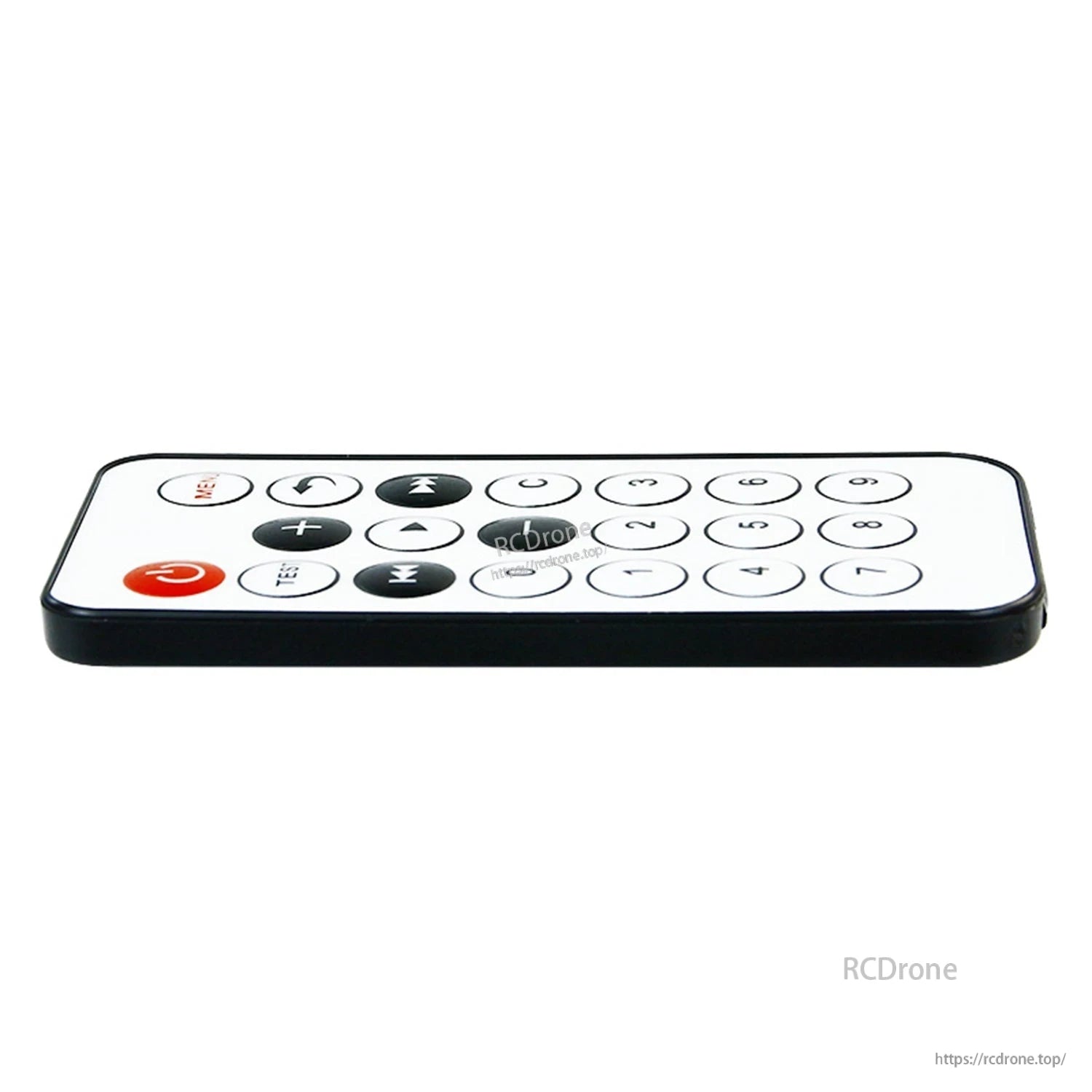

Compact Regular remote fits easily on the bench and supports typical 8–10 m control range for projects.

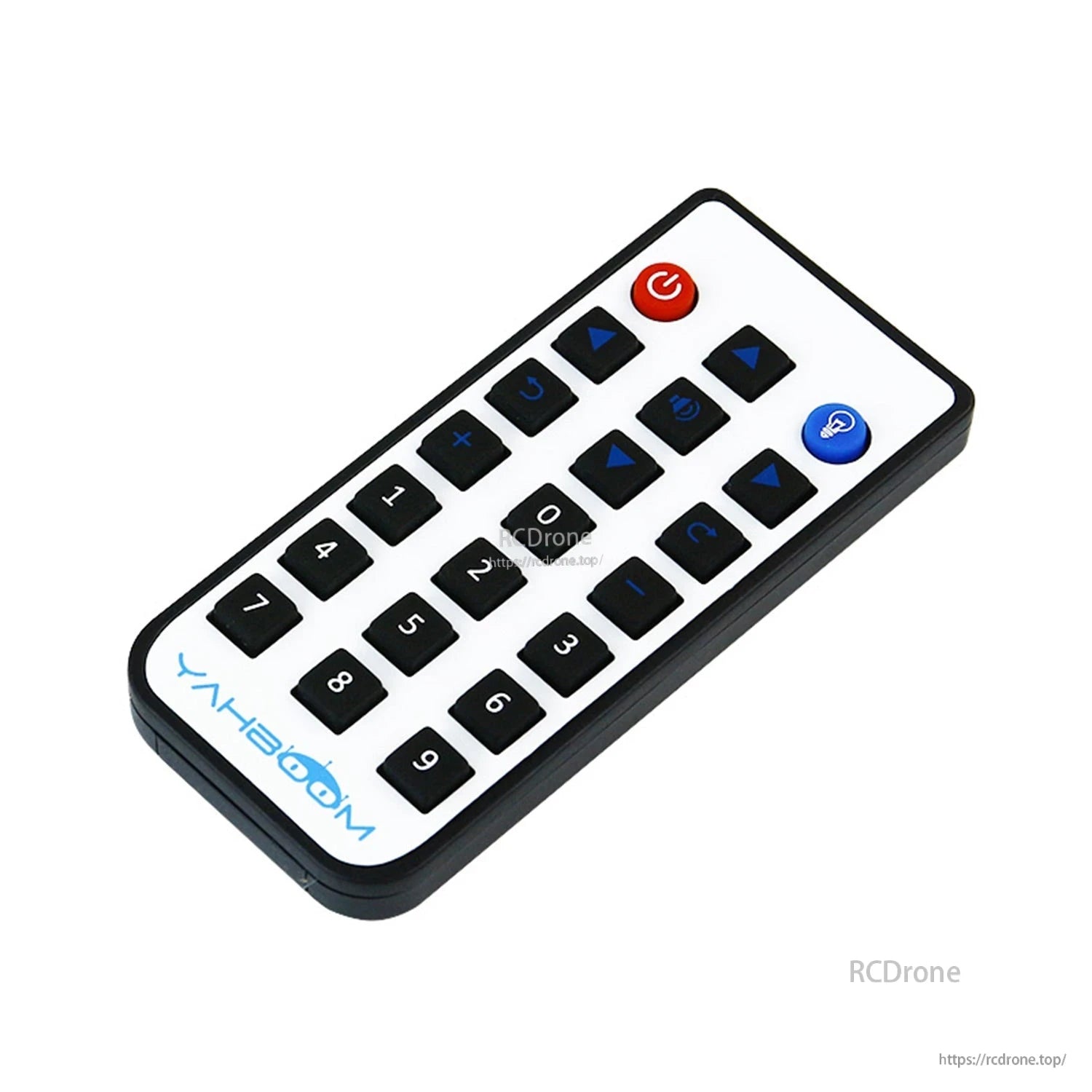

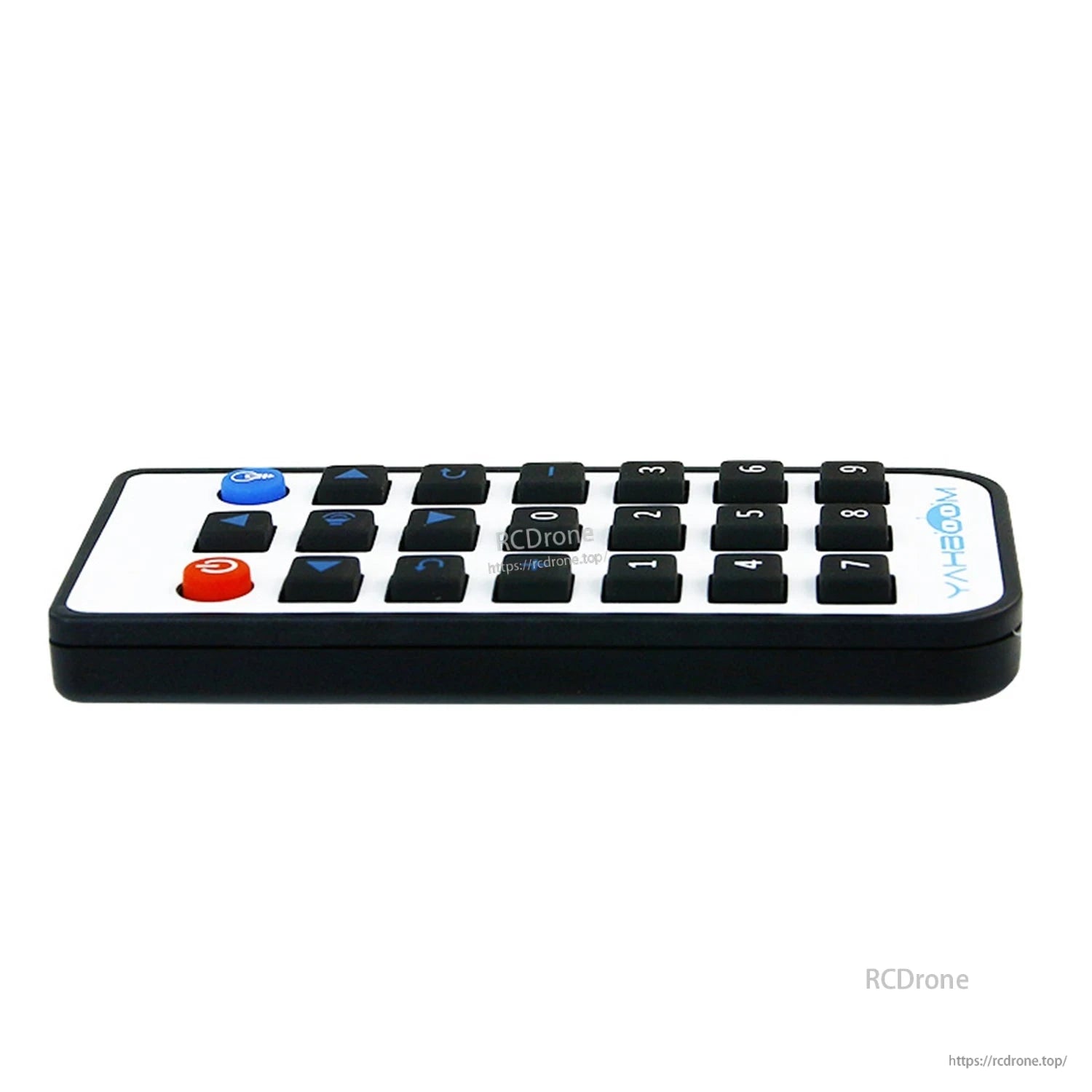

The thicker Advanced remote improves tactile feel while keeping the same 38 kHz-class IR carrier standard.

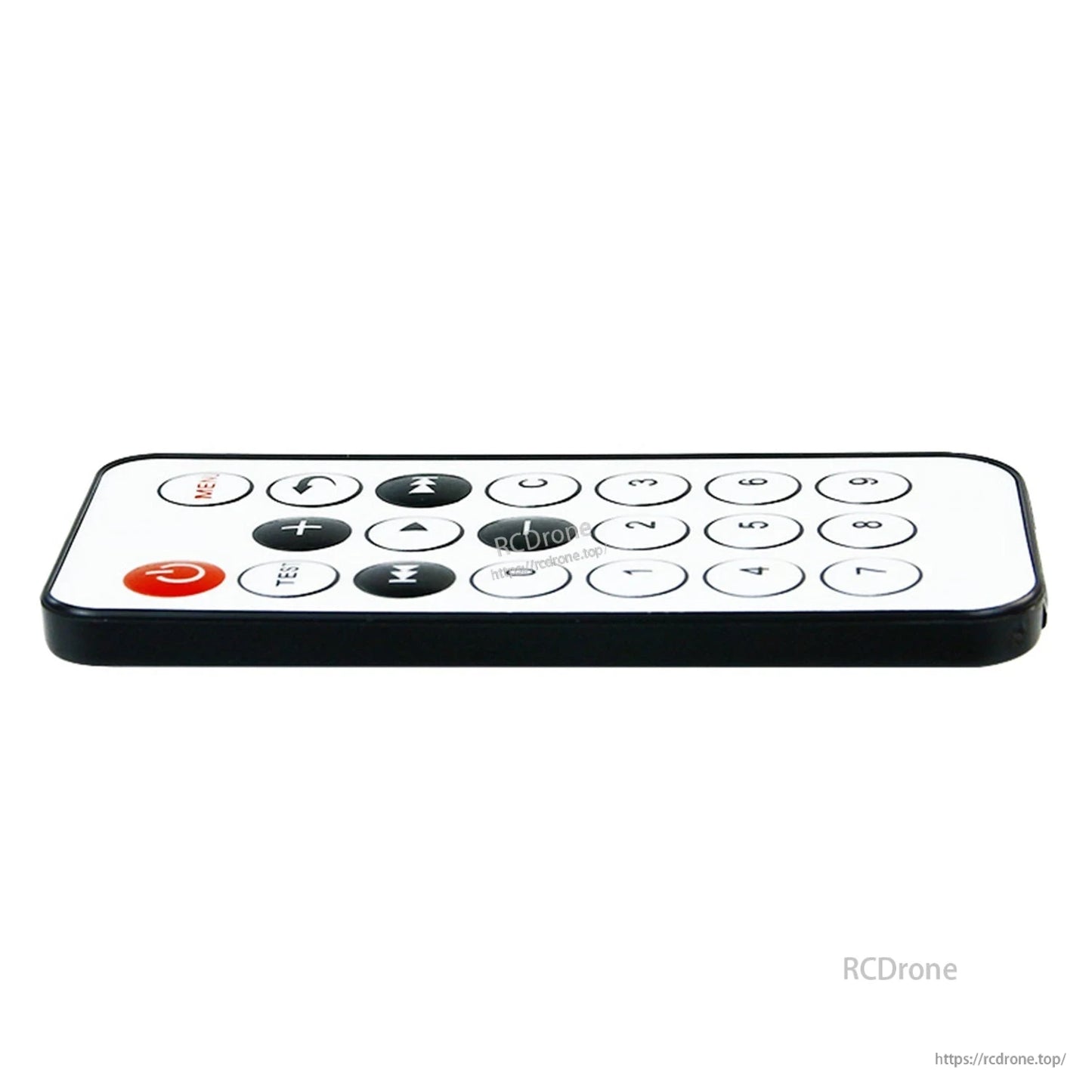

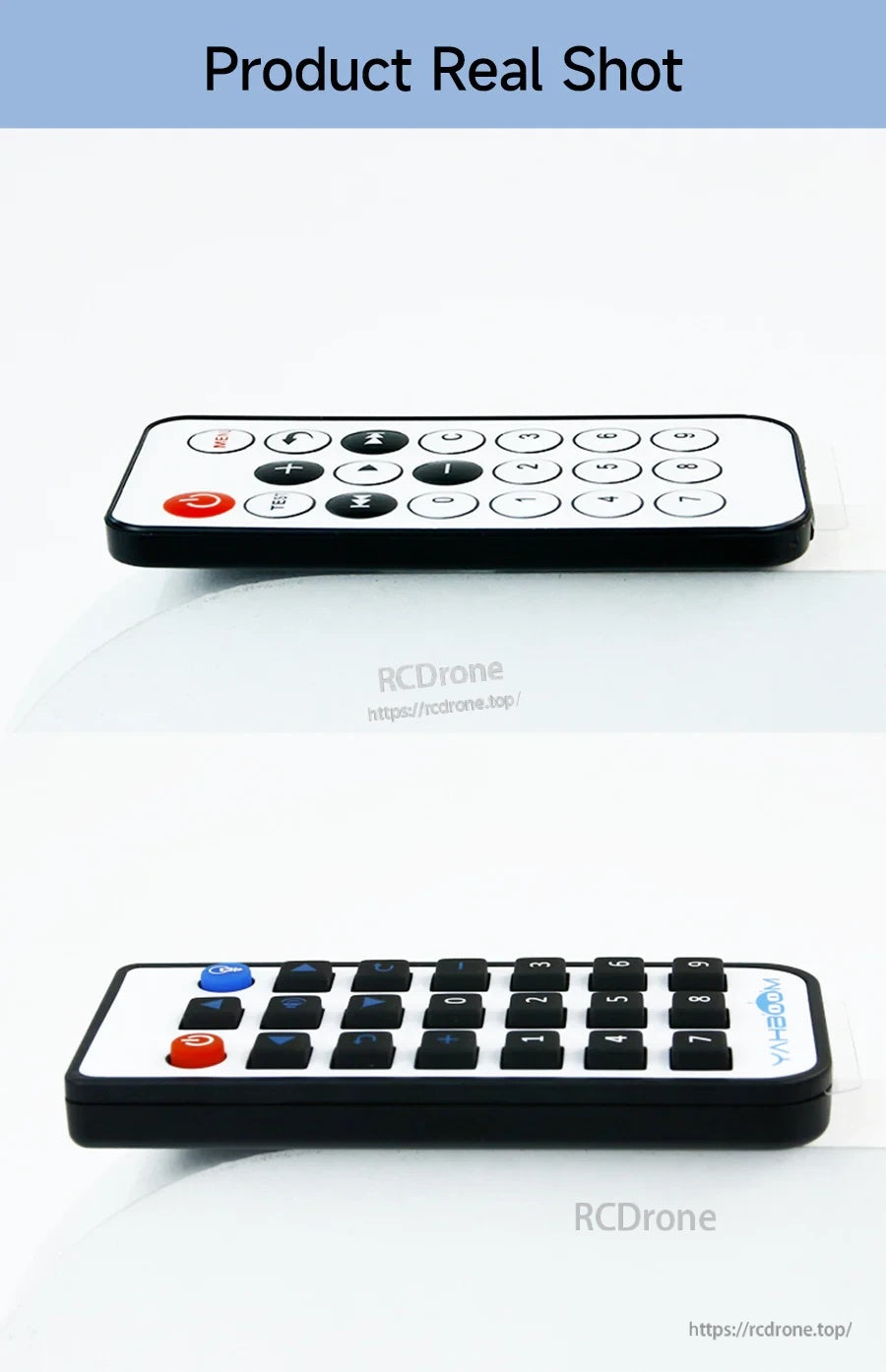

Low-profile bodies sit comfortably in hand, with the Advanced version offering a taller button height.
