Overview
The Yahboom Jetson MINI CUBE NANO protective case is designed for NVIDIA Jetson development boards, providing stable mounting, physical protection, and airflow management in a compact mini-PC-style enclosure. It uses a C-shaped metal cold-rolled plate structure with an acrylic side plate, and integrates a cooling fan, RGB colorful light bar, OLED display, plus power and reset buttons.
Compatible boards: JETSON ORIN NANO SUPER, JETSON ORIN NX SUPER, JETSON NANO B01, JETSON XAVIER NX, JETSON TX2-NX.
For product support from this store, contact https://rcdrone.top/ or email support@rcdrone.top.
Key Features
- Protective enclosure: Helps reduce damage from external collisions, dust, and other substances.

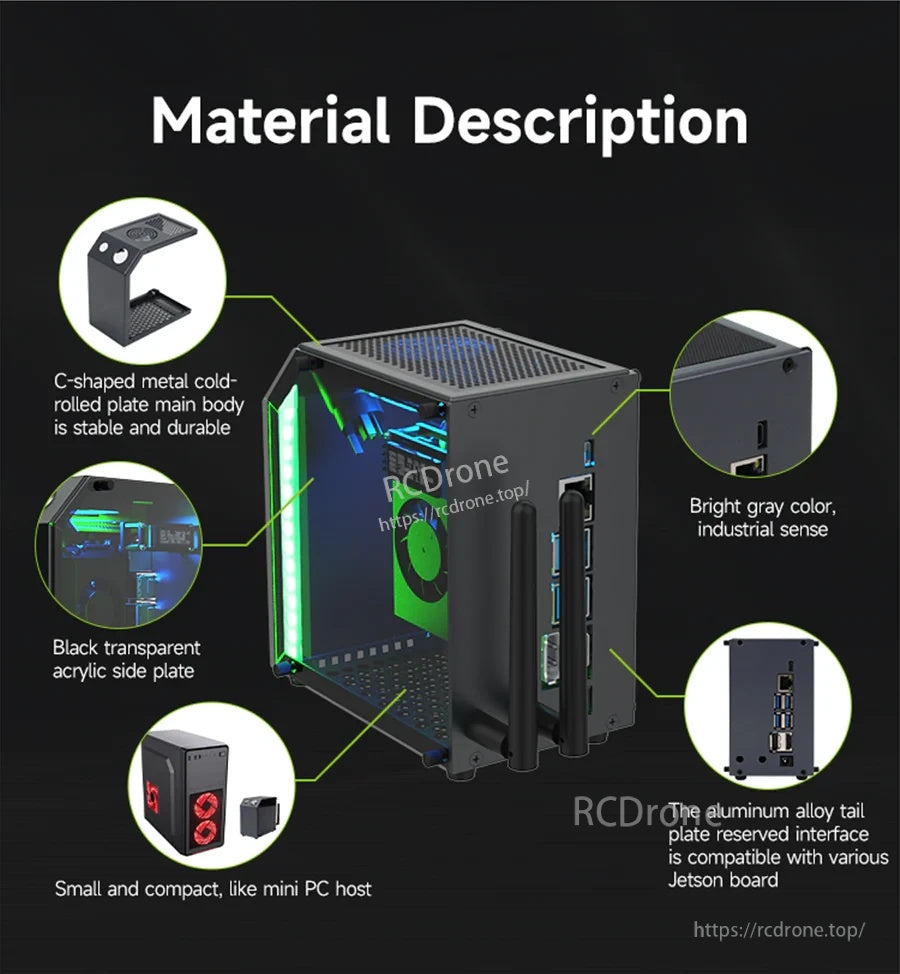

- Material design: C-shaped metal cold-rolled plate main body; black transparent acrylic side plate; aluminum alloy tail plate with reserved interface.

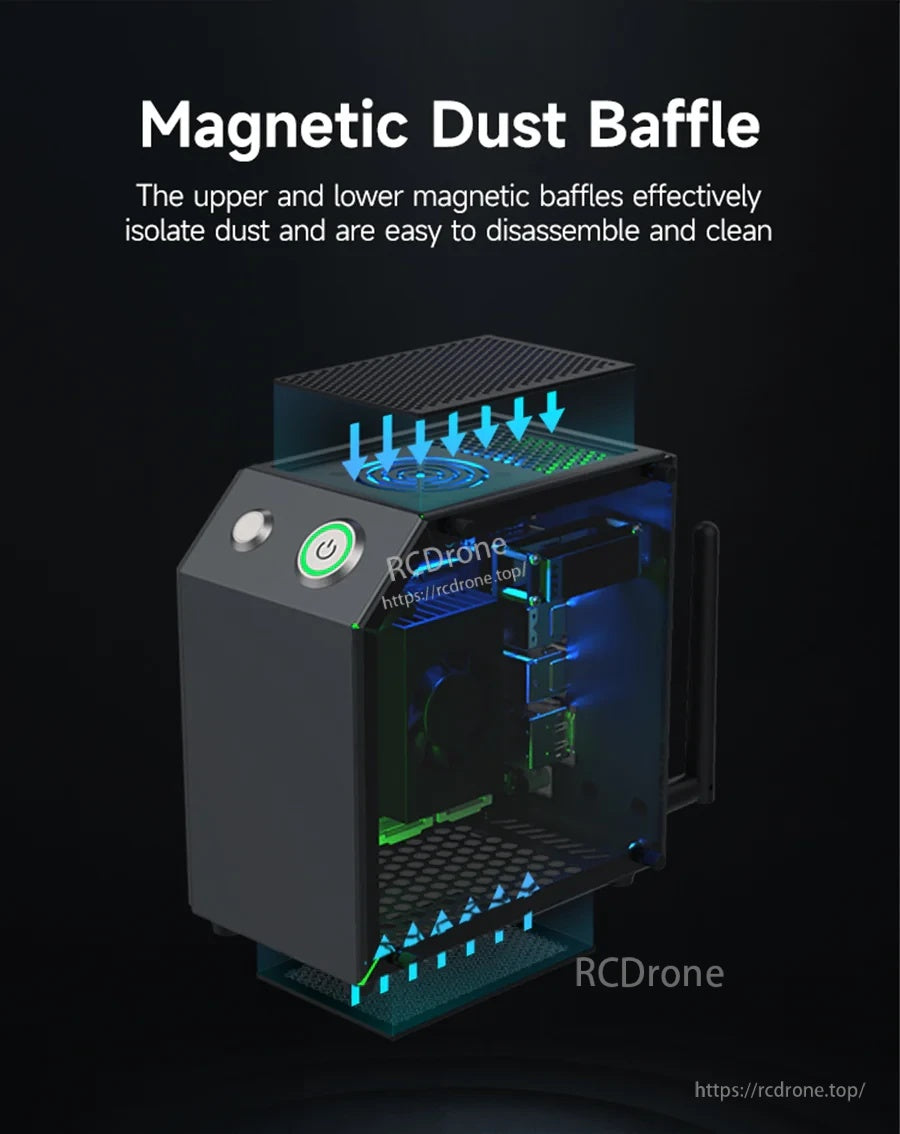

- Magnetic dust baffle: Upper and lower magnetic baffles isolate dust and are easy to disassemble and clean.

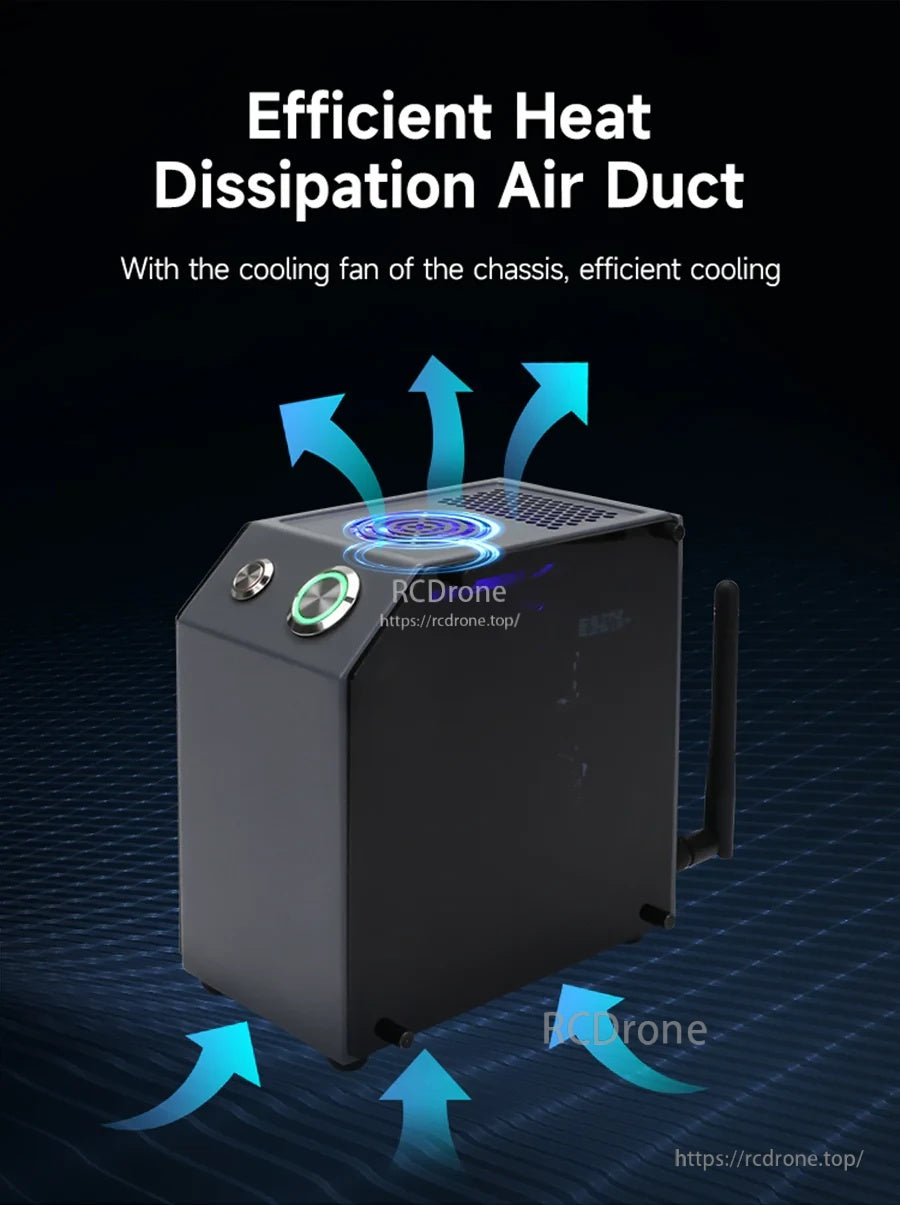

- Cooling air duct design: Upper and lower double-pass cooling air ducts; chassis cooling fan for efficient cooling.

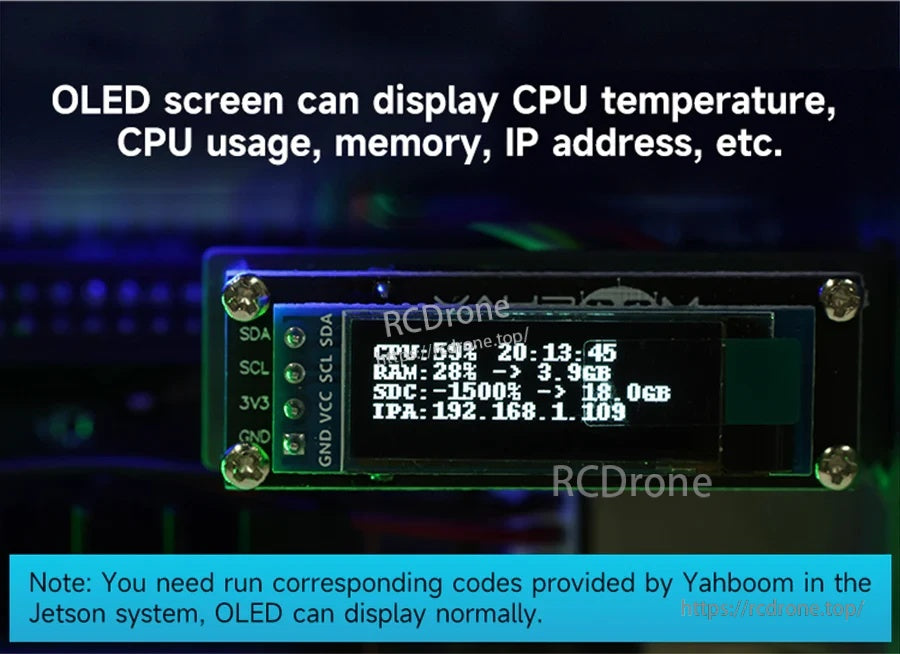

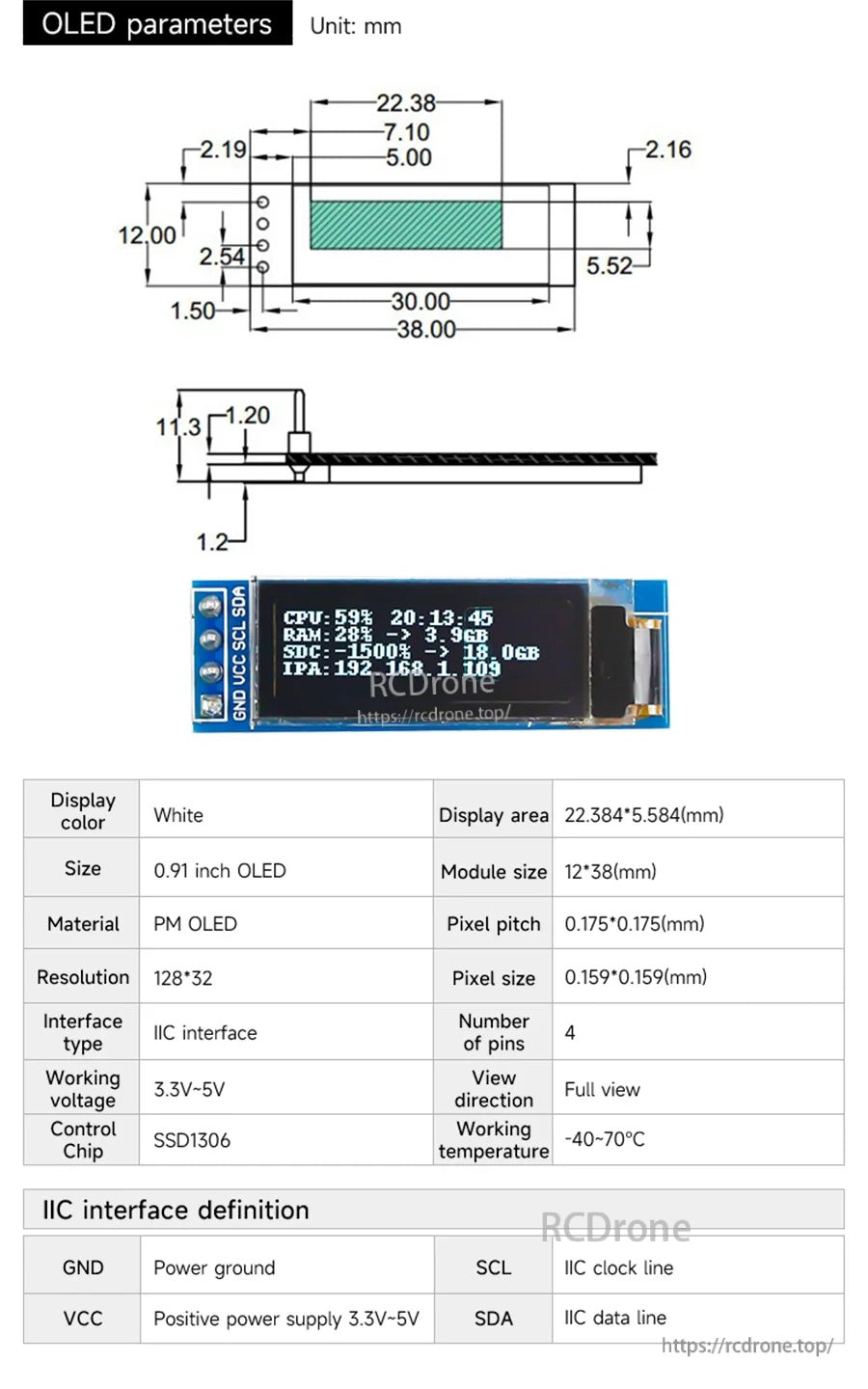

- OLED real-time display: OLED screen can display CPU temperature, CPU usage, memory, IP address, etc.
- Rear I/O access: Cutouts aligned to the Jetson board for plugging/unplugging without removing the case.

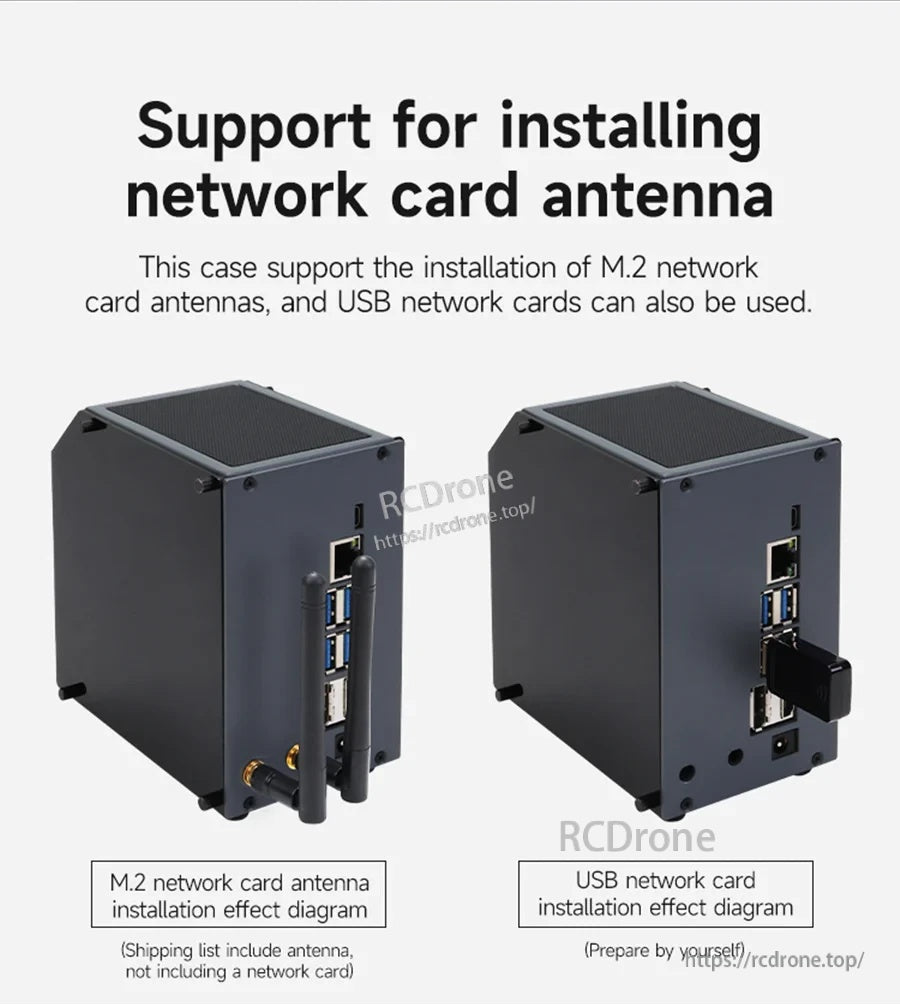

- Network antenna support: Antenna holes reserved for fixing an M.2 network card antenna; USB network cards can also be used.
OLED note: The corresponding code provided by Yahboom must be run in the Jetson system for the OLED to display normally.
Specifications
| Product | Yahboom Jetson MINI CUBE NANO Case (protective case for Jetson boards) |
| Compatible Jetson boards | Jetson Orin Nano Super; Jetson Orin NX Super; Jetson Nano B01; Jetson Xavier NX; Jetson TX2-NX |
| Main materials | C-shaped metal cold-rolled plate; acrylic side plate; aluminum alloy tail plate |
| Buttons / openings | Reset button; Power button (with light) |

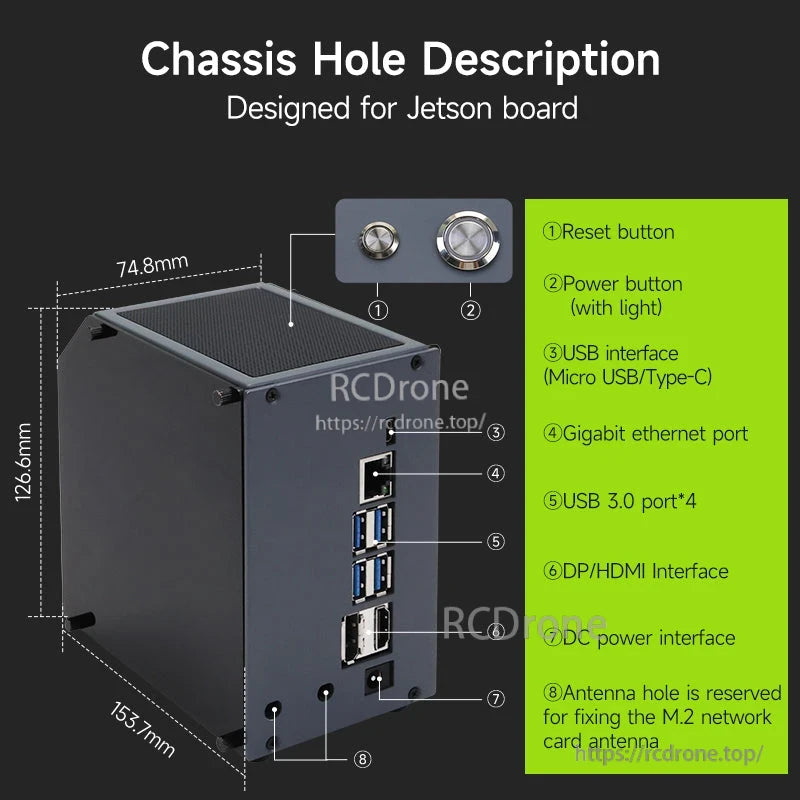

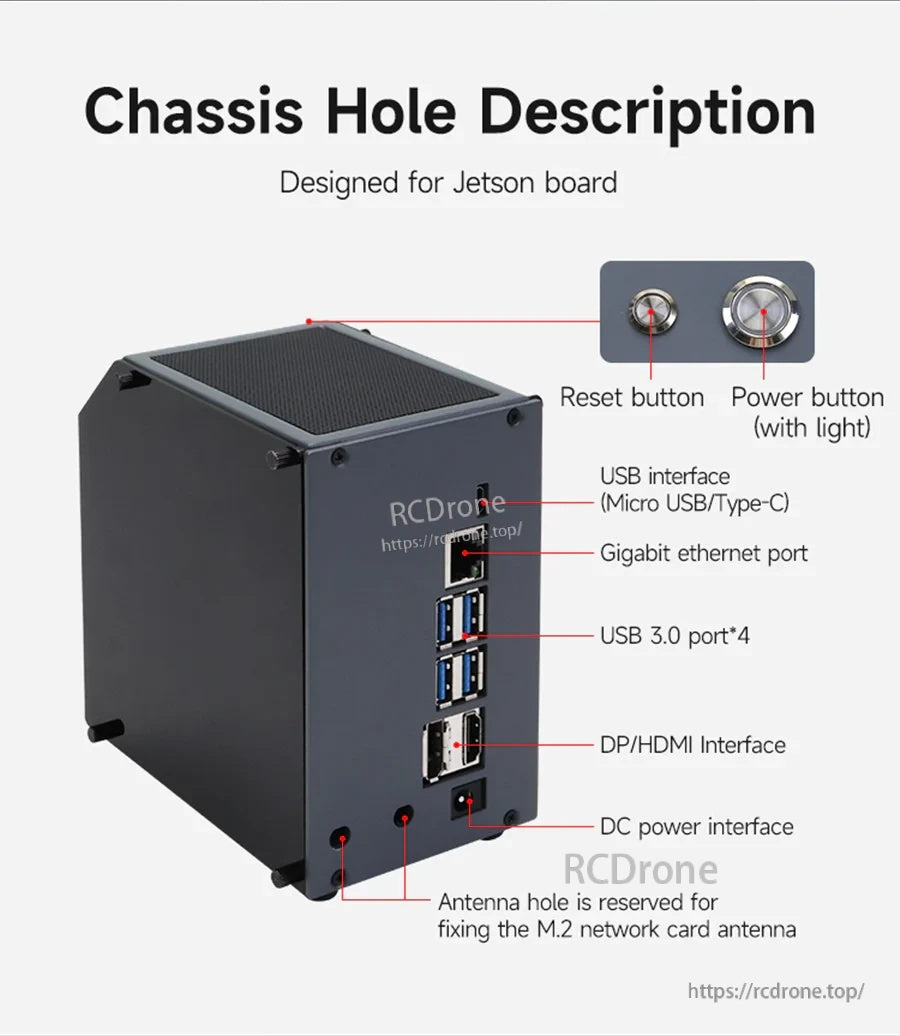

| Rear cutouts (case opening description) | USB interface (Micro USB/Type-C); Gigabit ethernet port; USB 3.0 port x4; DP/HDMI interface; DC power interface; antenna hole reserved for fixing the M.2 network card antenna |
| Dust protection | Upper and lower magnetic dust baffles; dust-proof magnetic suction net (top and bottom) |

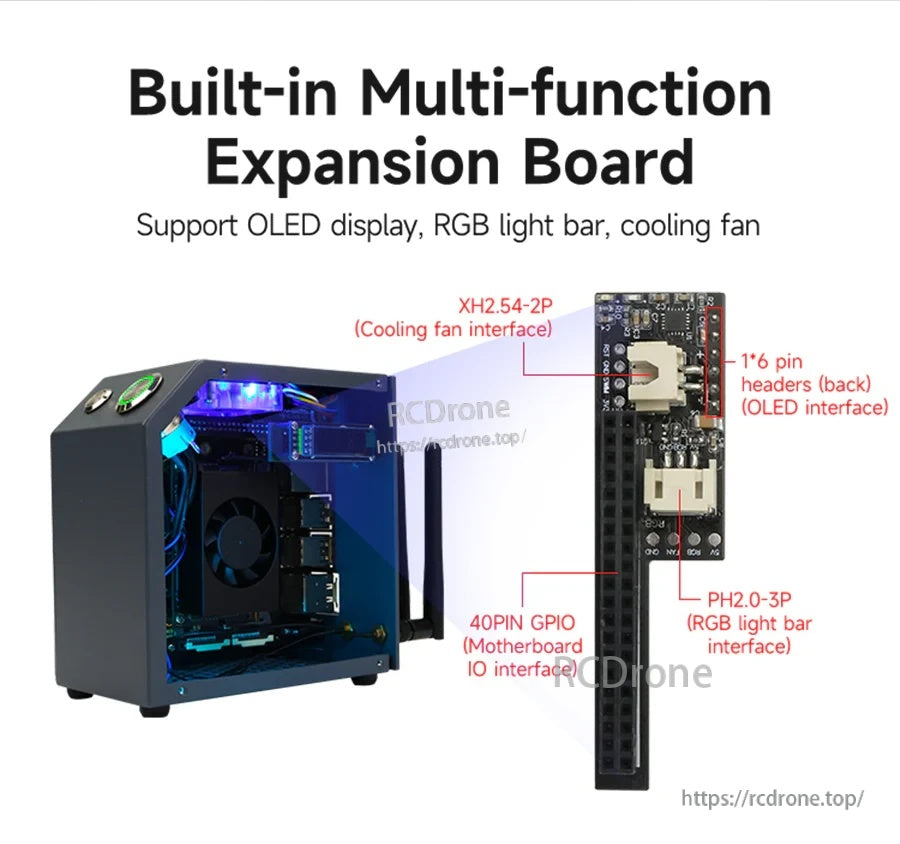

Built-in Multi-function Expansion Board Interfaces
| Motherboard I/O | 40PIN GPIO (Motherboard IO interface) |
| Cooling fan interface | XH2.54-2P |
| OLED interface | 1 x 6 pin headers (back) (OLED interface) |
| RGB light bar interface | PH2.0-3P (RGB light bar interface) |

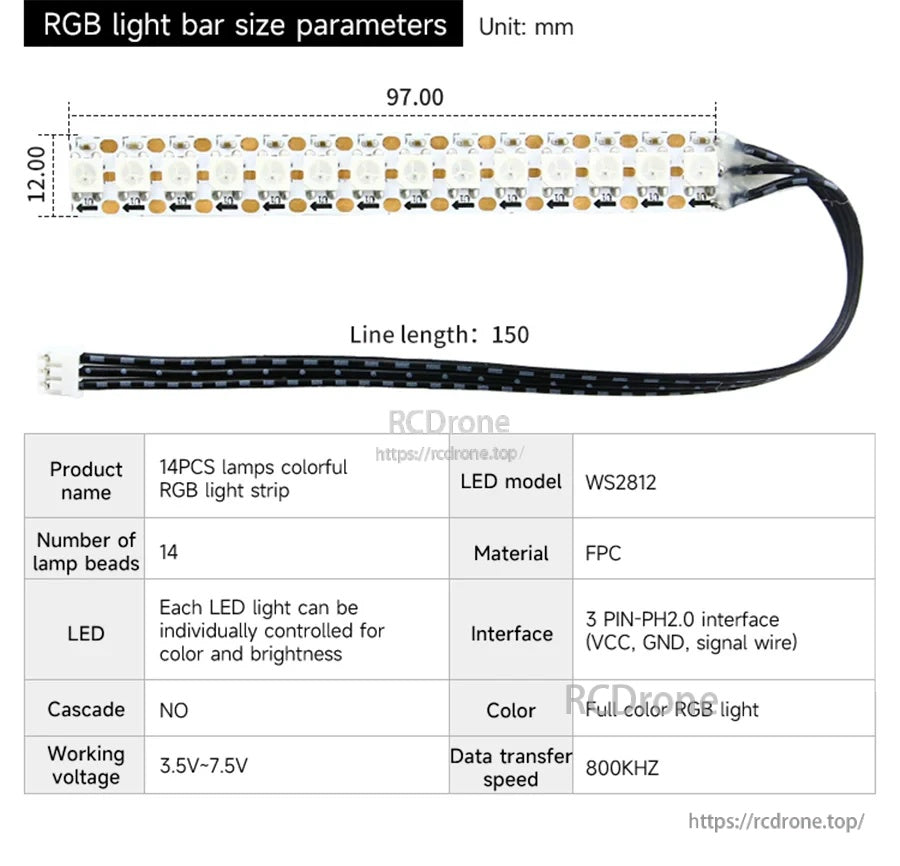

RGB Light Bar (WS2812) Parameters
| Product name | 14PCS lamps colorful RGB light strip |
| LED model | WS2812 |
| Number of lamp beads | 14 |
| Material | FPC |
| LED control | Each LED light can be individually controlled for color and brightness |
| Interface | 3 PIN-PH2.0 interface (VCC, GND, signal wire) |
| Cascade | NO |
| Color | Full color RGB light |
| Working voltage | 3.5V~7.5V |
| Data transfer speed | 800KHZ |
| Size parameters (unit: mm) | 97.00 x 12.00 |
| Line length | 150 (unit: mm) |

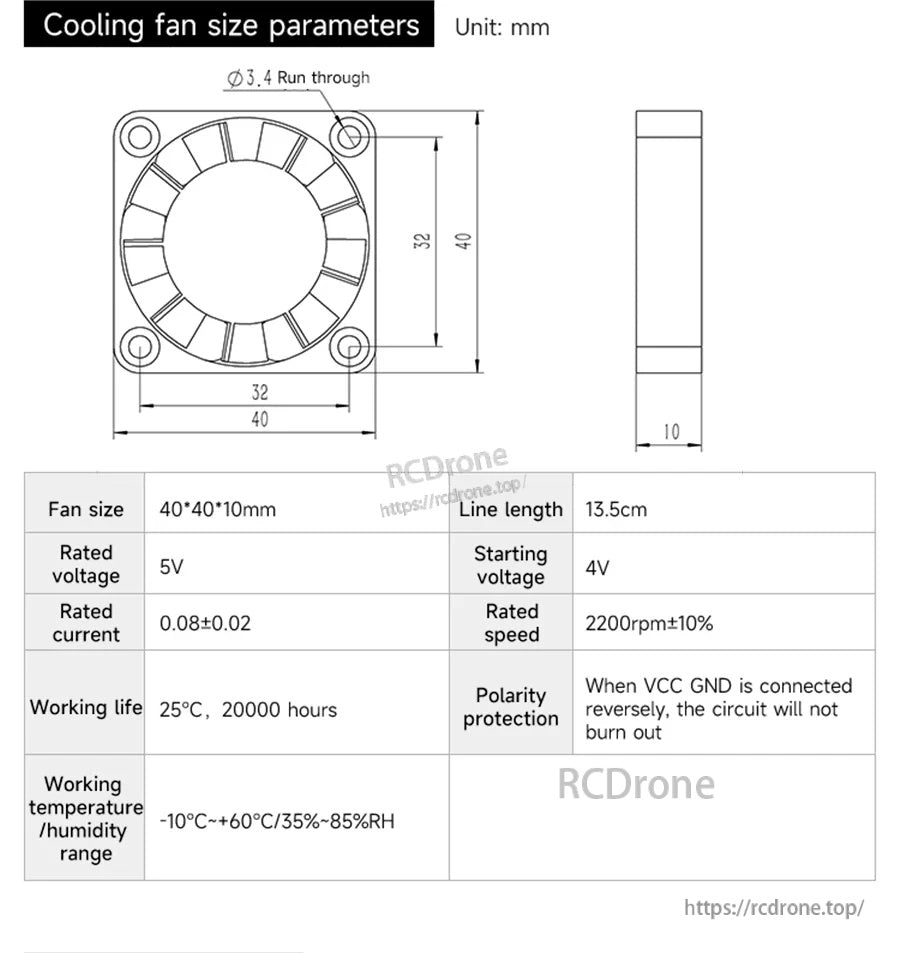

Cooling Fan Parameters
| Fan size | 40*40*10mm |
| Rated voltage | 5V |
| Starting voltage | 4V |
| Rated current | 0.08±0.02 |
| Rated speed | 2200rpm±10% |
| Line length | 13.5cm |
| Working life | 25°C, 20000 hours |
| Working temperature/humidity range | -10°C~+60°C / 35%~85%RH |
| Polarity protection | When VCC GND is connected reversely, the circuit will not burn out |
Applications
- Jetson development board protection for desktop development and testing
- Edge AI and robotics prototyping setups that require stable mounting and cooling airflow
- Lab and classroom environments where dust protection and convenient I/O access are needed

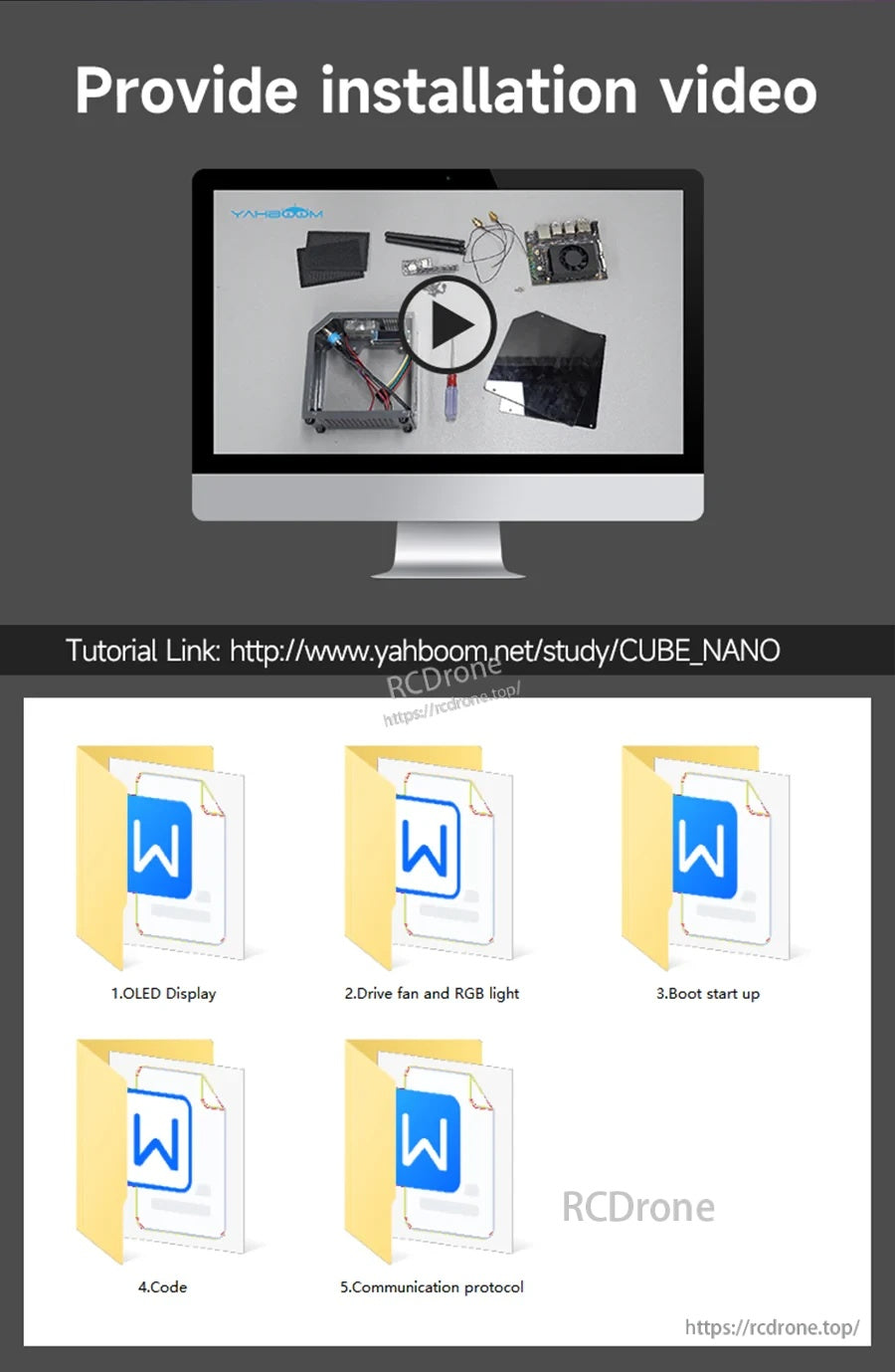

Manuals
- Tutorial link: http://www.yahboom.net/study/CUBE_NANO
- Tutorial topics shown: OLED Display; Drive fan and RGB light; Boot start up; Code; Communication protocol
Note on network accessories: The shipping list includes the antenna; the network card is not included. USB network card is prepared by yourself.
Details

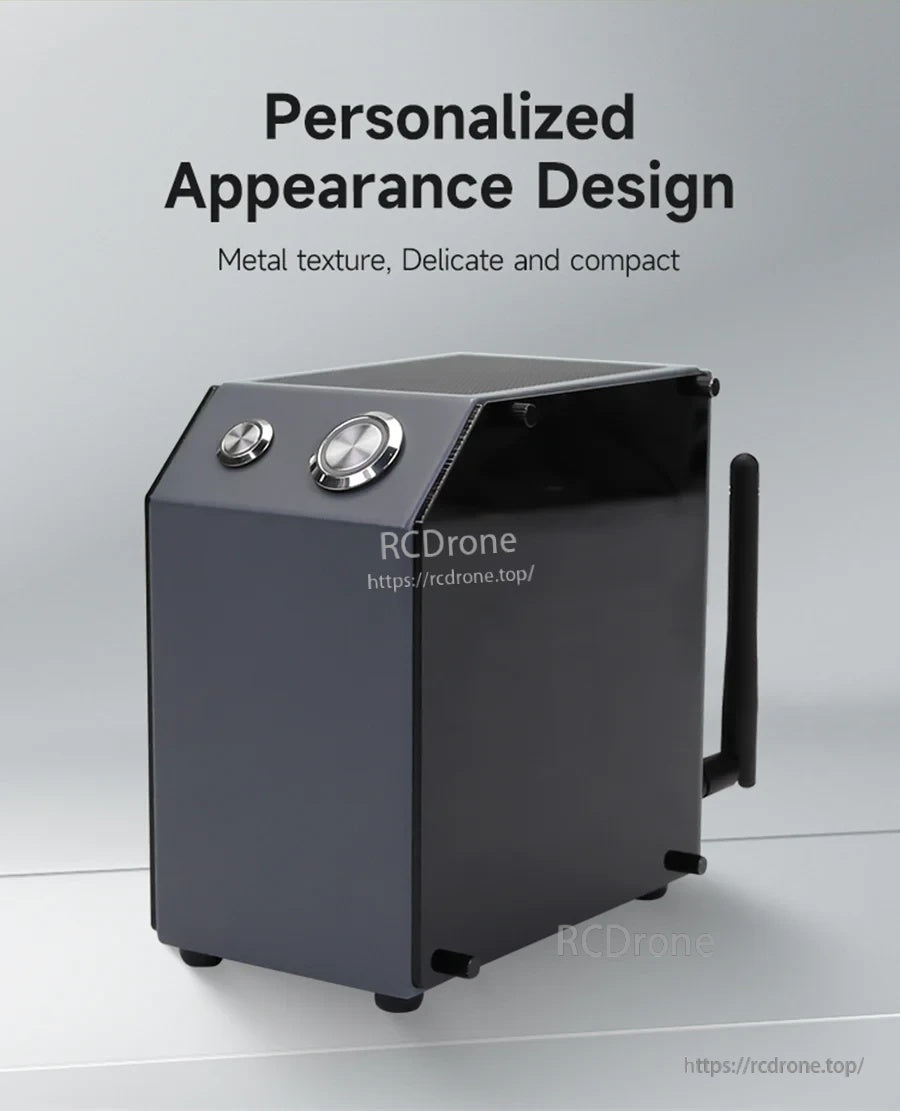

A compact mini‑PC‑style enclosure that adds physical protection while keeping controls accessible on the front panel.
Cold‑rolled metal structure with a transparent acrylic side panel and an aluminum alloy rear plate for durable everyday use.
Magnetic top and bottom dust baffles help reduce dust buildup and make routine cleaning easier.
The built‑in airflow ducting supports smoother intake and exhaust for more consistent cooling during development workloads.
Rear cutouts align with common Jetson I/O for quick cable changes, plus a reserved antenna hole for wireless setups.
The integrated OLED can display real‑time status like temperature, CPU usage, memory, and IP address after running the required code.
A built‑in expansion board brings together the GPIO, OLED, RGB light bar, and fan connections for cleaner internal wiring.

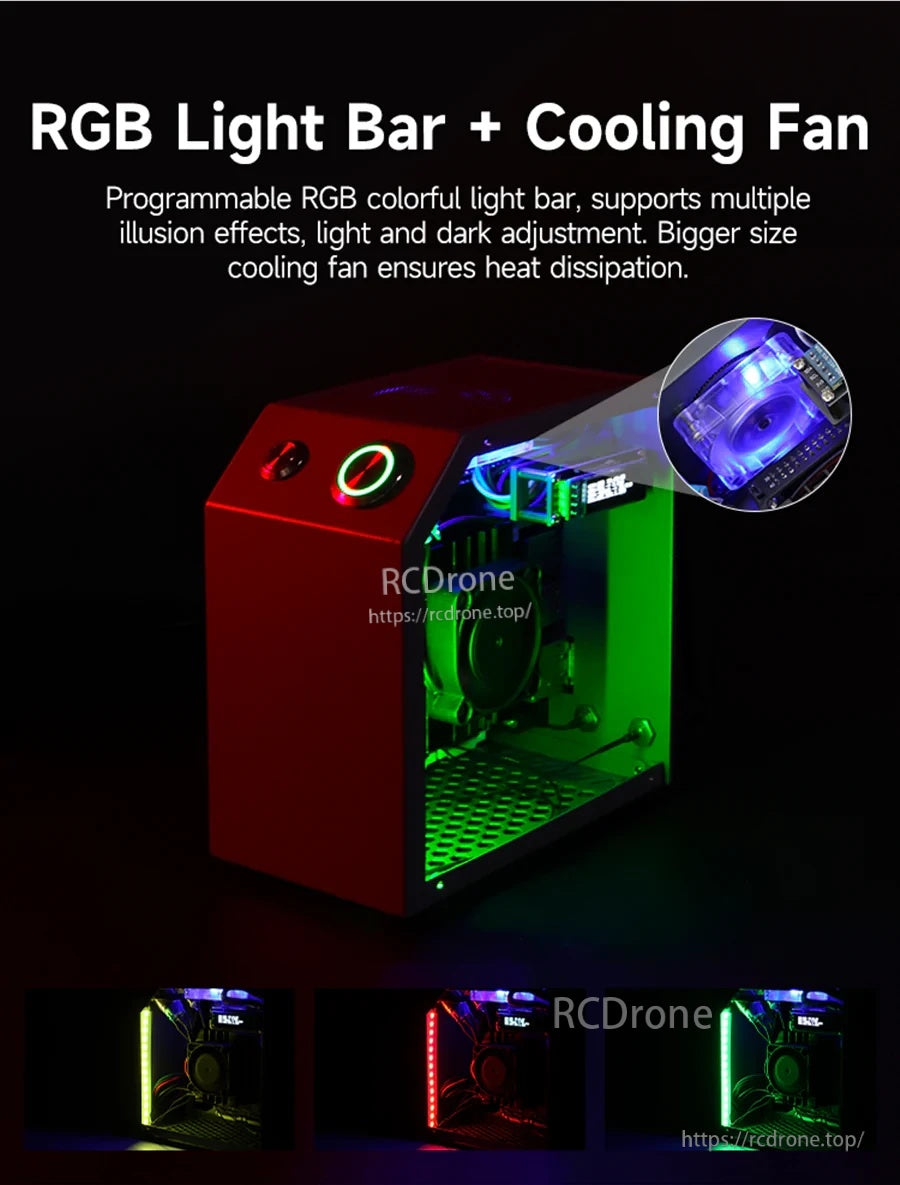

Programmable RGB lighting and an internal fan combine functional cooling with a distinctive build aesthetic.
Supports installing an M.2 network card antenna via the reserved mounting hole, or using a USB network adapter.

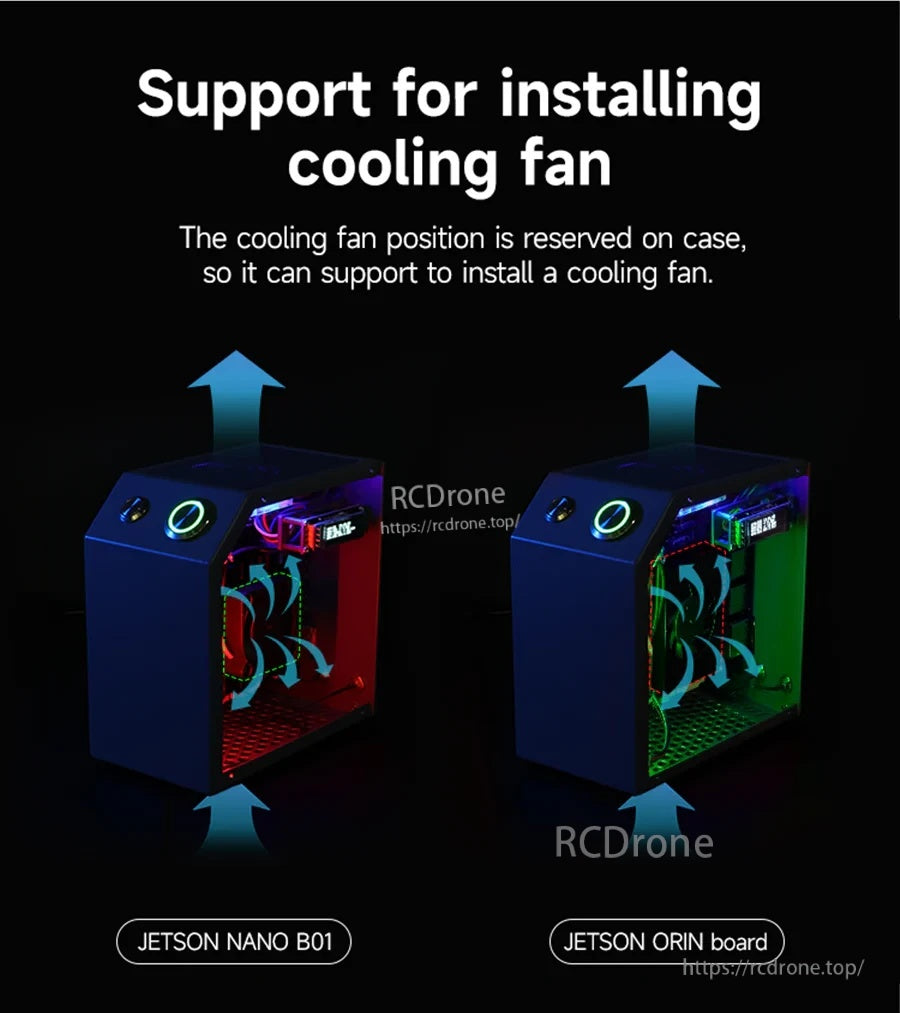

A reserved fan position helps maintain airflow whether you’re building around a Jetson Nano B01 or an Orin series board.

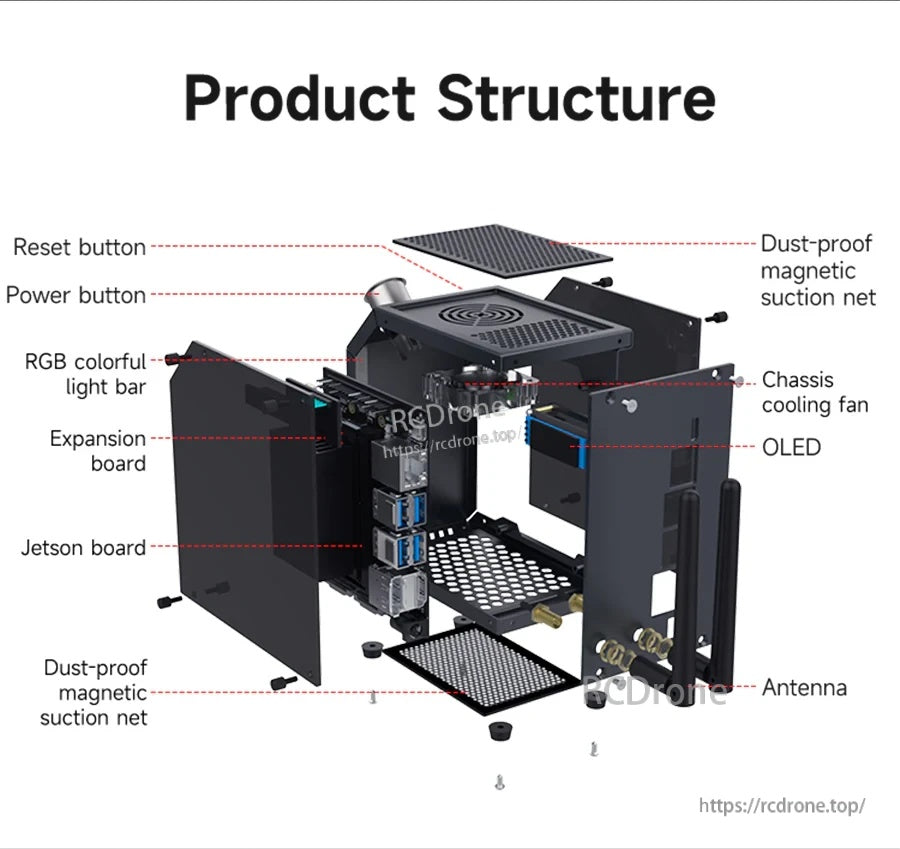

The modular structure makes it easier to access internals, including dust‑proof magnetic filters, OLED, fan, and light bar.
Designed to fit neatly on a desk and connect to everyday peripherals for development, testing, and demos.
An installation video and supporting files help speed up setup for the OLED, fan, and RGB features.

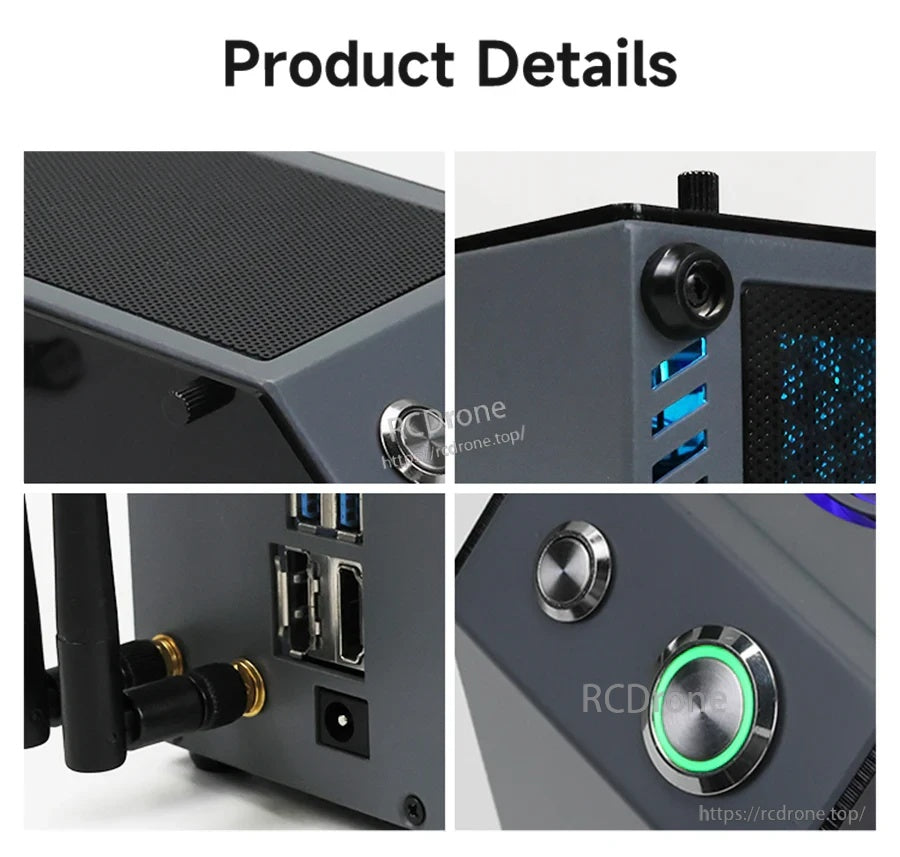

Small details like the top ventilation mesh, accessible rear ports, and an illuminated power button improve day‑to‑day usability.
