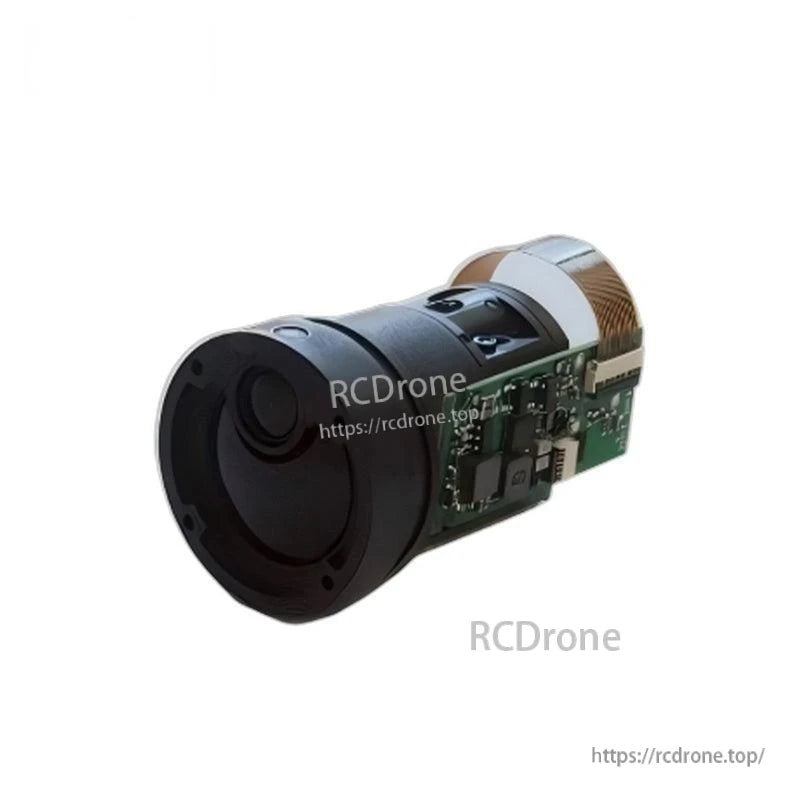

  • Angled side view of laser ranging module with lens housing and onboard electronics board visible
1 4

Yunshis PLS-K1500 3–1500 m 905 nm UART Laser Ranging Module, 3.3 V TTL, ±1 m Accuracy

Yunshis PLS-K1500 3–1500 m 905 nm UART Laser Ranging Module, 3.3 V TTL, ±1 m Accuracy

Yunshis

$142.50 USD
$142.50 USD
فروش فروخته شده
Taxes included. حمل و نقل هنگام تسویه حساب محاسبه می شود.
Version
Board
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
مشاهده جزئیات کامل

Overview

The Yunshis PLS-K1500 is a laser ranging module designed for long-range distance measurement, featuring a 905 nm Class 1 laser and UART communication. The PLS-K1500 supports 3.3 V TTL serial logic (compatible with TTL 5 V) and is intended for compact, low-power integration.

Key Features

  • Long-range laser ranging: 3 to 1500 m @ 70% reflectivity
  • Compact size
  • Low power consumption: 330 mW @ 3.3 V
  • Easy secondary development
  • Multiple measuring ranges available: 1500 m / 1000 m / 600 m
  • Absolute accuracy: ±1 m; resolution: 0.1 m
  • Measurement rate: 1–3 Hz

Specifications

Model PLS-K1500
Measurement Range 3 ~ 1500 m @ 70% reflectivity
Measurement Rate 1–3 Hz
Supply Voltage Typical DC +3.3 V, Operating range (+2.5 V ~ +3.5 V)
Operating Current 100 mA
Power Consumption 330 mW @ 3.3 V
Resolution 0.1 m
Absolute Accuracy ±1 m
Max Single Measurement Time ~1 s
Light Source 905 nm Laser, Class 1
Serial Port Logic Level TTL 3.3 V, compatible with TTL 5 V
Communication Interface UART
Default Baud Rate 115200 bps
Dimension Φ25 mm × 43 mm
Weight ~18 g
Operating Temperature -20 ~ 50 °C
Laser Lifespan > 1000000 hours

Interface / Pin Labels

  • NA
  • NA
  • UART RX
  • UART TX
  • RST
  • VIN
  • PWR.EN
  • GND

Additional labels shown: UART TX, UART RX, VOUT, EN, GND.

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots
  • Drone / UAV integration
  • Gimbal camera systems
  • Thermal imaging devices
  • Night vision devices
  • Surveillance / monitoring camera systems
  • Electro-optical pods
  • Optical sighting devices

For integration questions (power, UART wiring, logic levels), contact [email protected] or visit https://rcdrone.top/.

Details

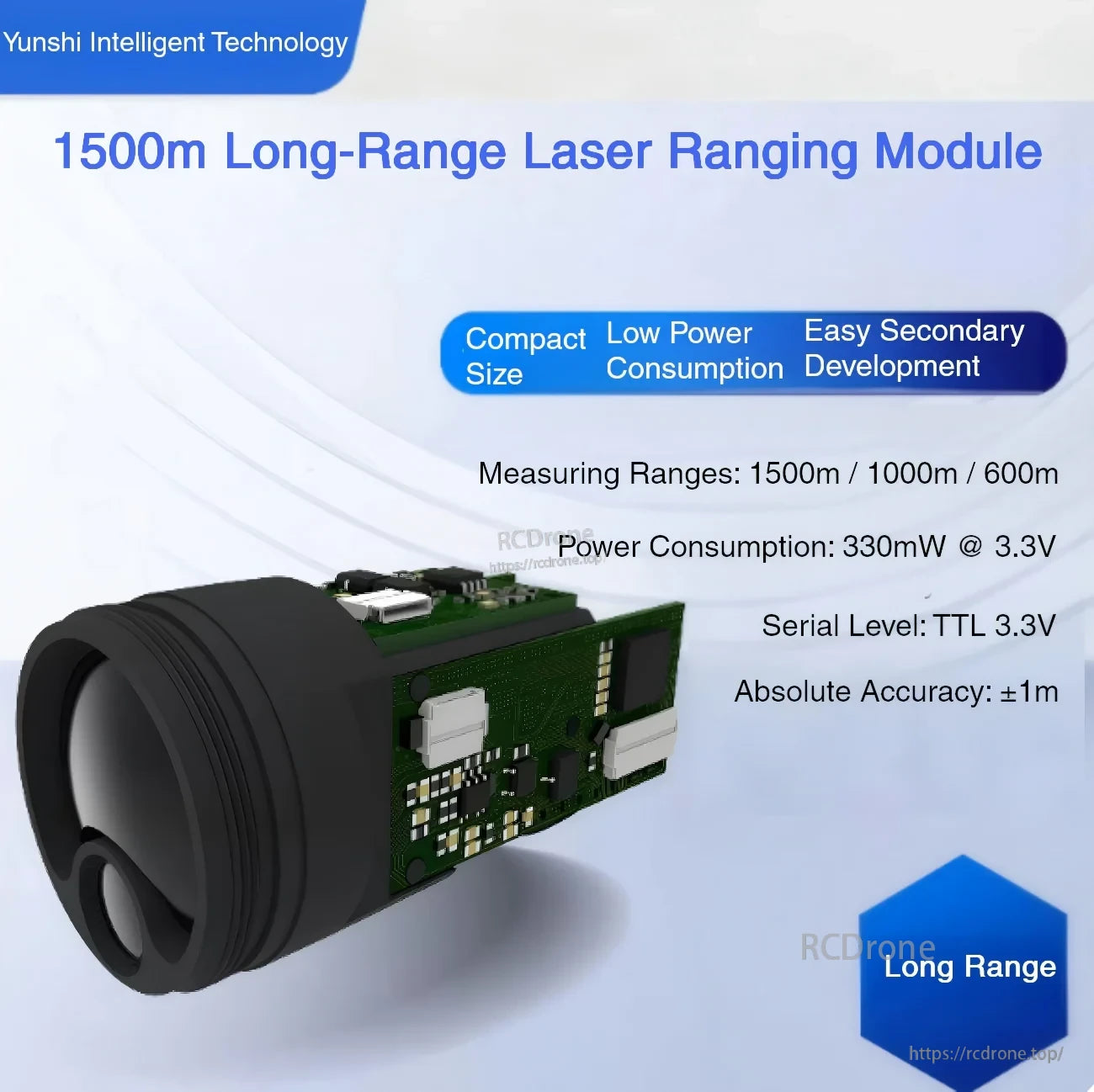

Yunshis PLS-K1500 1500 m 905 nm UART laser ranging module with 3.3 V TTL and compact low-power design

Built for compact integration, the PLS-K1500 delivers long-range measurement with UART output and low power draw at 3.3 V.

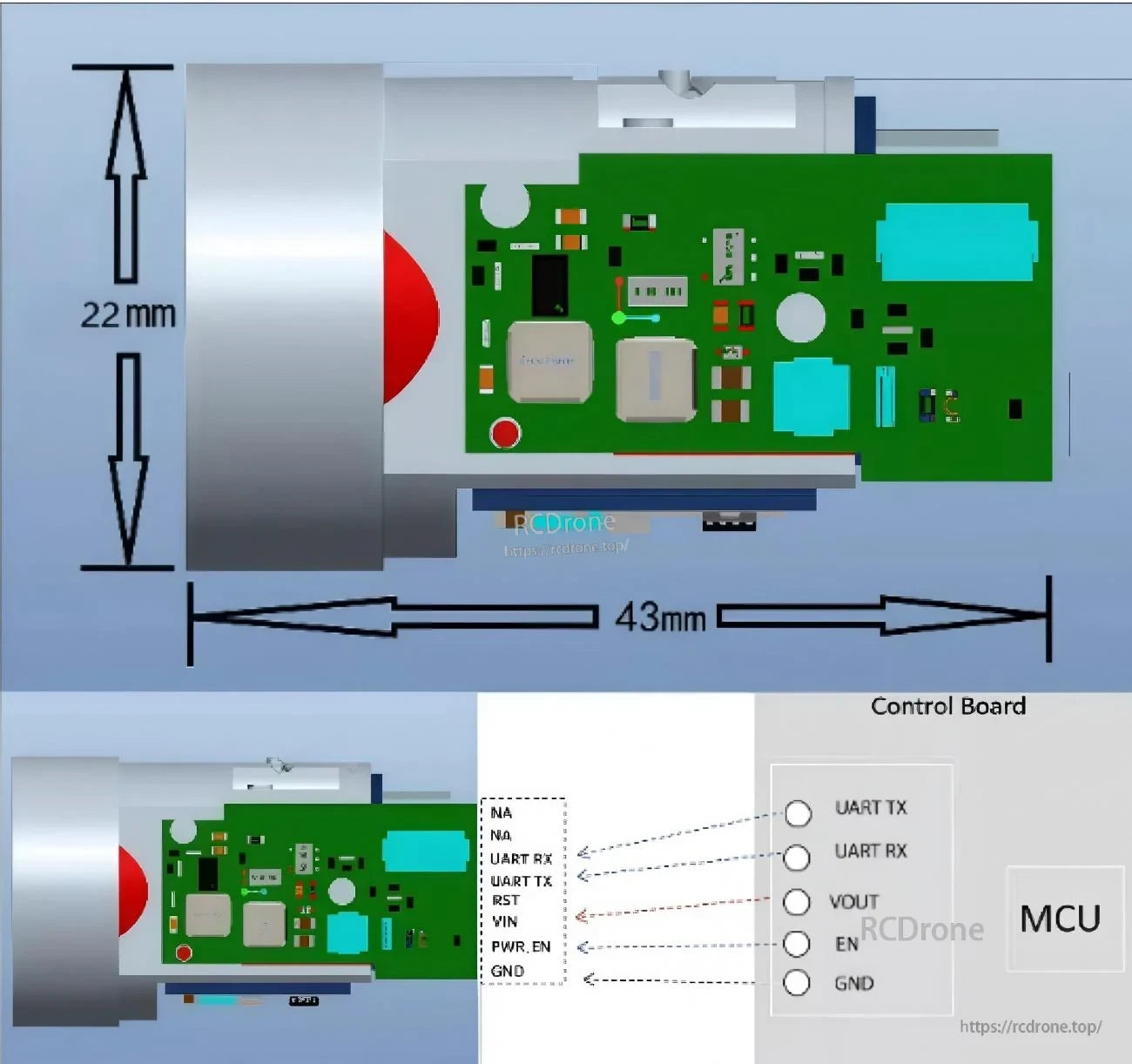

PLS-K1500 laser ranging module size diagram (22 mm diameter, 43 mm length) with UART TX/RX, EN, VIN and GND pinout

Mechanical footprint and control-board pin labels help speed up enclosure design and UART wiring.

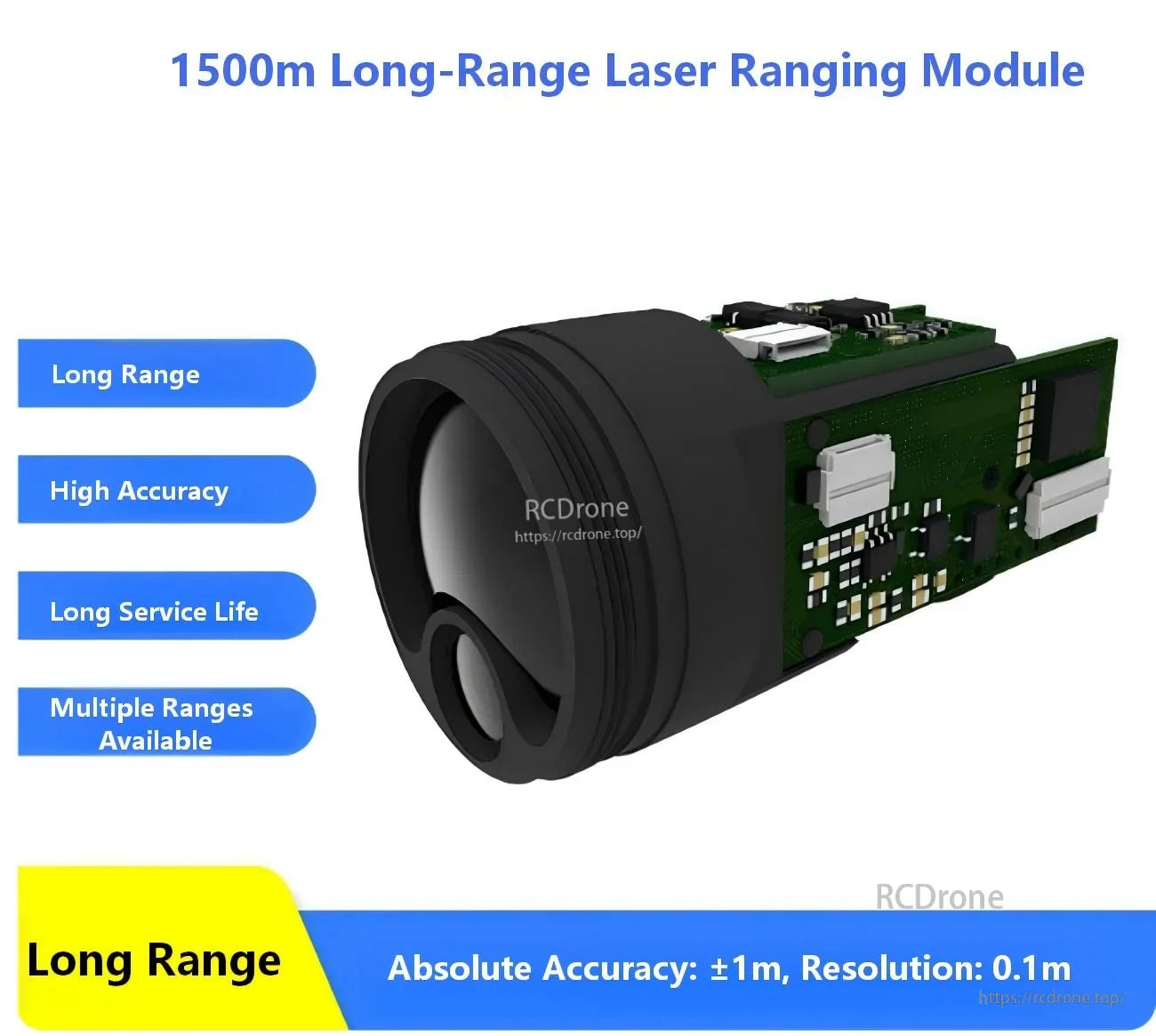

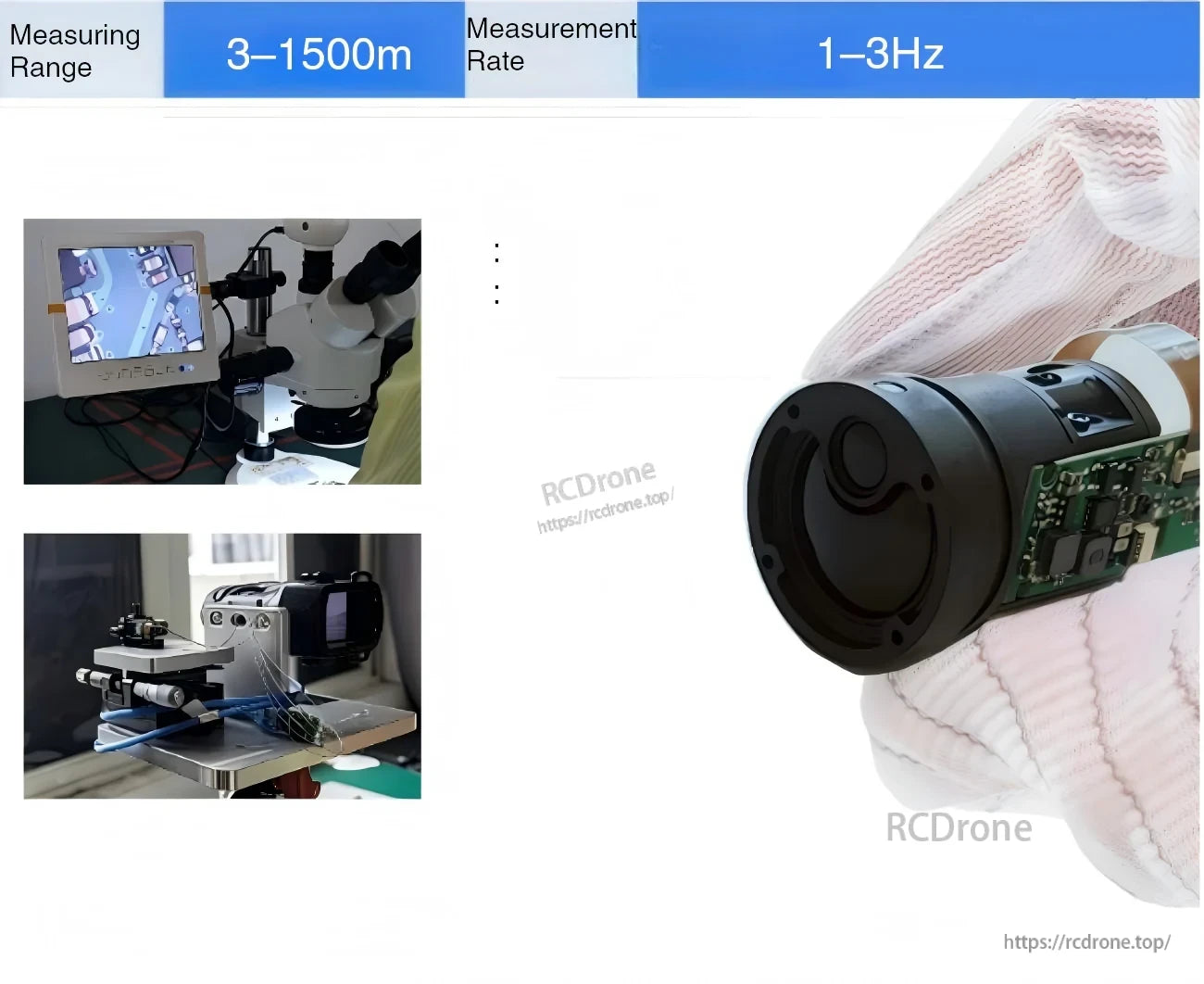

Angled view of the PLS-K1500 905 nm laser distance sensor module highlighting the front optics and PCB layoutHandheld close-up of the PLS-K1500 module with measurement range 3–1500 m and 1–3 Hz rate noted

Range and update rate make it suitable for robotics and sensing projects that need periodic long-distance readings.

Application examples for the laser ranging module: security monitoring, gimbal camera, thermal imaging, night vision, UAV and gunsightMultiple application scenarios graphic: surveillance camera, drone/UAV, electro‑optical pod and gunsight integrations

Common integration targets include surveillance cameras, UAV payloads, and electro‑optical systems.
