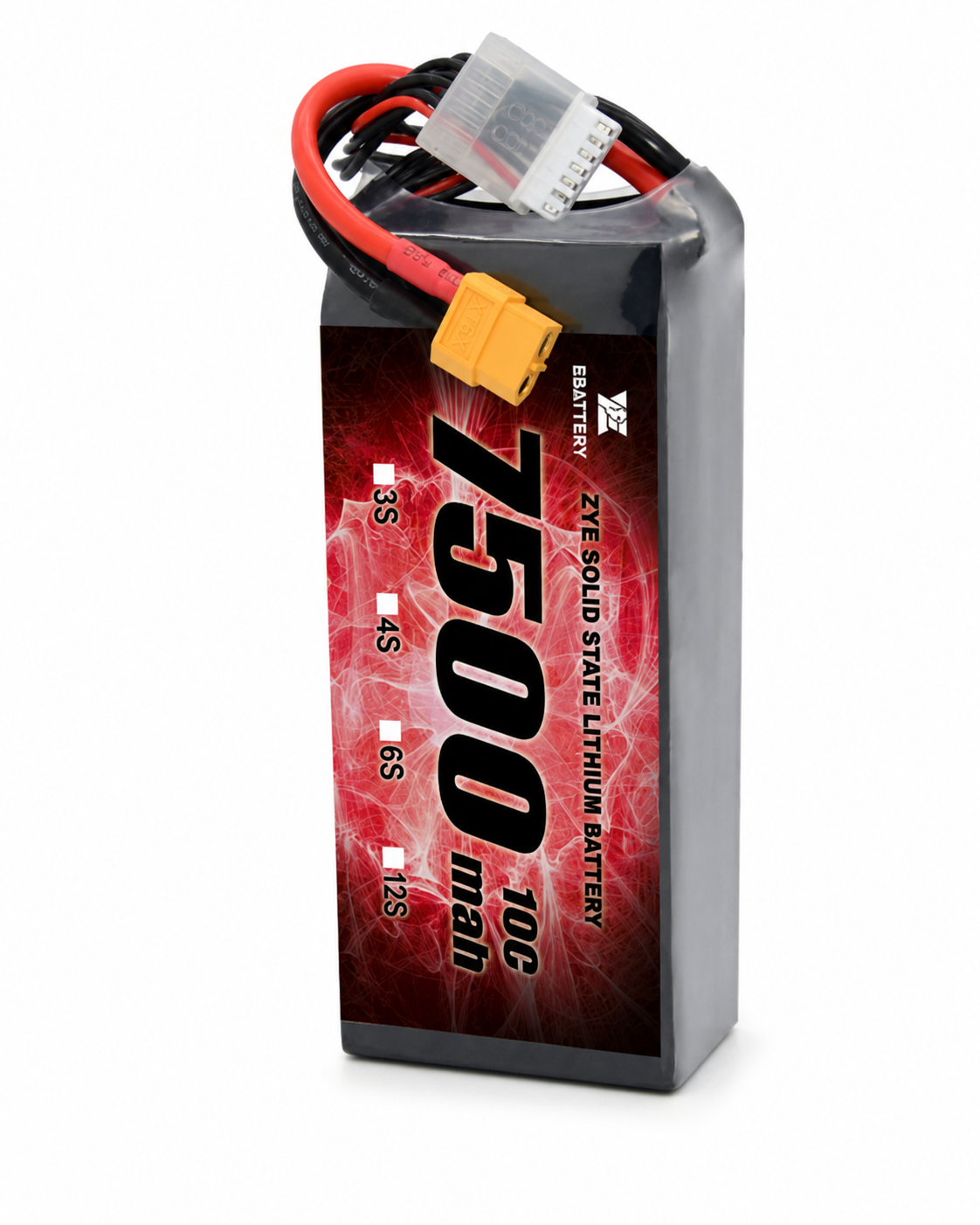

ZYE 12S HV 47.4V 7500mAh 10C 256Wh/kg Solid State LiPo Battery

Overview

The ZYE 12S HV 7500mAh Solid State LiPo Battery is a high-energy-density lithium battery designed for UAVs, industrial drones, robotics, long-range aircraft, and other weight-sensitive electric power systems.

Built with high-voltage solid-state lithium cell technology, this battery provides a 47.4V nominal voltage, a 53.4V maximum charging voltage, and approximately 355.5Wh of nominal energy. Its specific energy reaches 256Wh/kg, allowing it to deliver extended operating time without the excessive weight associated with conventional high-capacity battery packs.

The battery supports a 5C continuous discharge rate of up to 37A and a 10C peak discharge rate of up to 75A for no more than 3 seconds. It is equipped with a high-current XT90 power connector and a balance connector for compatible 12S HV charging systems.

Key Features

High Energy Density

With a specific energy of approximately 256Wh/kg, the battery provides a high energy-to-weight ratio suitable for long-endurance UAV and robotic applications.

12S High-Voltage Configuration

The 12S HV configuration provides:

• Nominal voltage: 47.4V
• Maximum charge voltage: 53.4V
• Maximum cell voltage: 4.45V per cell
• Nominal energy: 355.5Wh

Stable High-Current Output

The battery delivers up to 37A continuous current and supports short peak loads of up to 75A, making it suitable for propulsion systems that require stable output during takeoff, acceleration, and load changes.

Compact and Lightweight Design

Measuring only 138 × 61 × 62mm and weighing approximately 1390g, the pack offers a compact power solution for aircraft and equipment with limited installation space.

Wide Operating Temperature Range

The specified operating temperature range of -20°C to 65°C supports use in a variety of environmental conditions.

Suitable for Custom Power Systems

Its compact form factor and high energy density make it suitable for custom UAVs, electric aircraft, mobile robots, and specialized industrial equipment.

Specifications

What’s Included

• 1 × ZYE 12S HV 7500mAh Solid State Lithium Battery
• 1 × Installed XT90 power cable
• 1 × Installed balance connector

Applications

This battery is suitable for:

• Long-endurance multirotor drones
• Industrial UAVs
• Mapping and surveying drones
• Inspection aircraft
• Agricultural UAV platforms
• VTOL aircraft
• Fixed-wing UAVs
• Mobile robots
• Unmanned ground vehicles
• Custom high-voltage electric power systems

Charging and Usage Notes

• This is a 12S high-voltage lithium battery with a maximum charging voltage of 53.4V.
• Use only a charger that supports 12S HV lithium batteries and a maximum cell voltage of 4.45V.
• A standard 12S LiPo charger limited to 4.20V per cell will not fully charge this battery.
• Do not exceed the specified maximum charge voltage.
• Do not exceed 37A continuous current or 75A peak current for 3 seconds.
• Confirm that the charger, ESC, motor, power distribution system, and other electronics support a fully charged voltage of 53.4V.
• Always monitor the battery during charging.
• Do not charge or use a swollen, damaged, punctured, or overheated battery.
• Store the battery in a cool, dry, fire-resistant location.
• Battery dimensions, weight, cable length, and connector details may have minor manufacturing tolerances.

Important voltage clarification: the 53.4V value is the fully charged voltage, while the battery’s listed nominal voltage is 47.4V.
