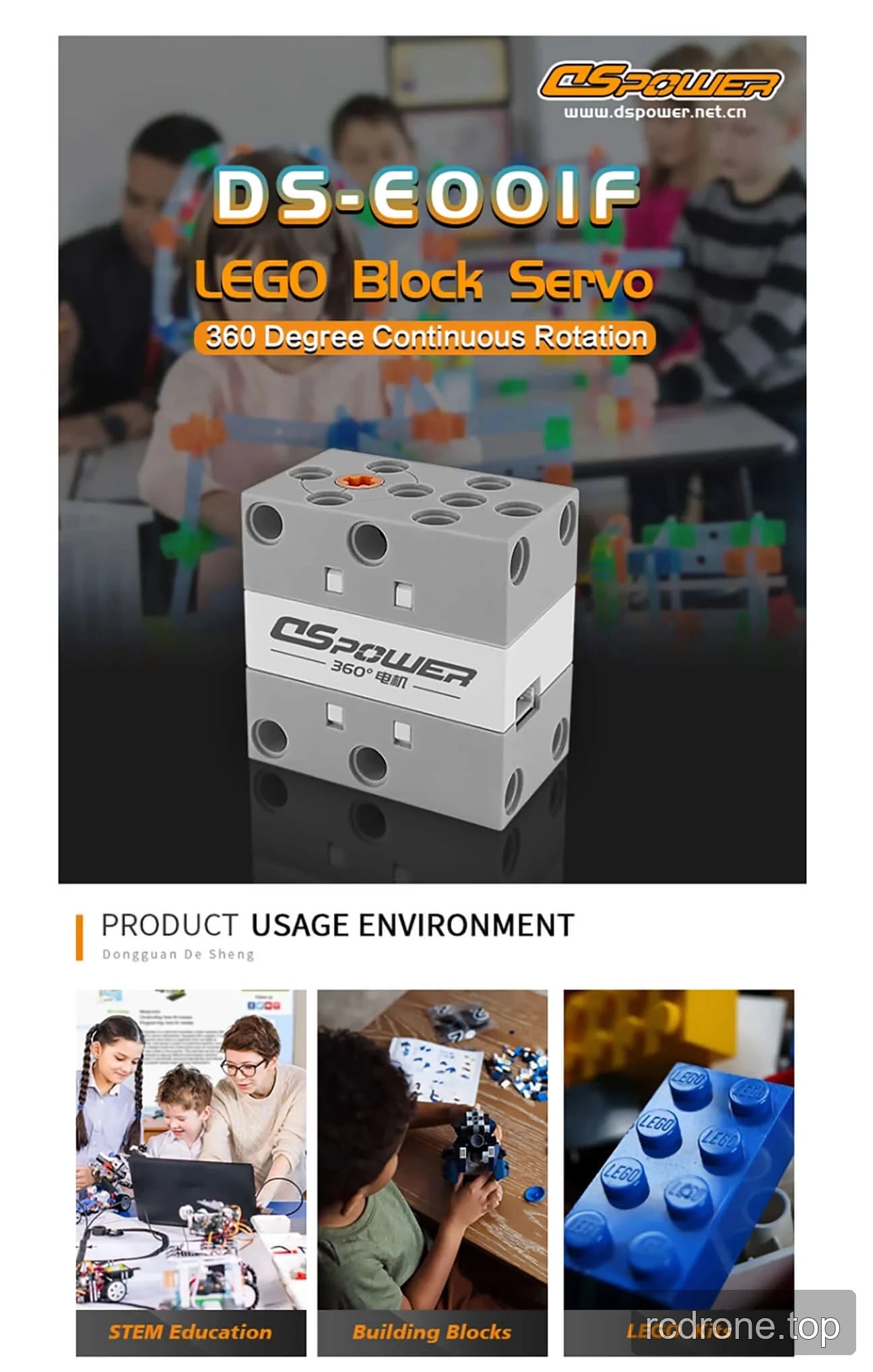

DSpower DS-E001F 360° Continuous-Rotation LEGO-Compatible Block Servo for Robotics

DSpower

$35.00 USD

Promotion Épuisé

Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Version DS-E001F

Quantité

Afficher tous les détails

Overview

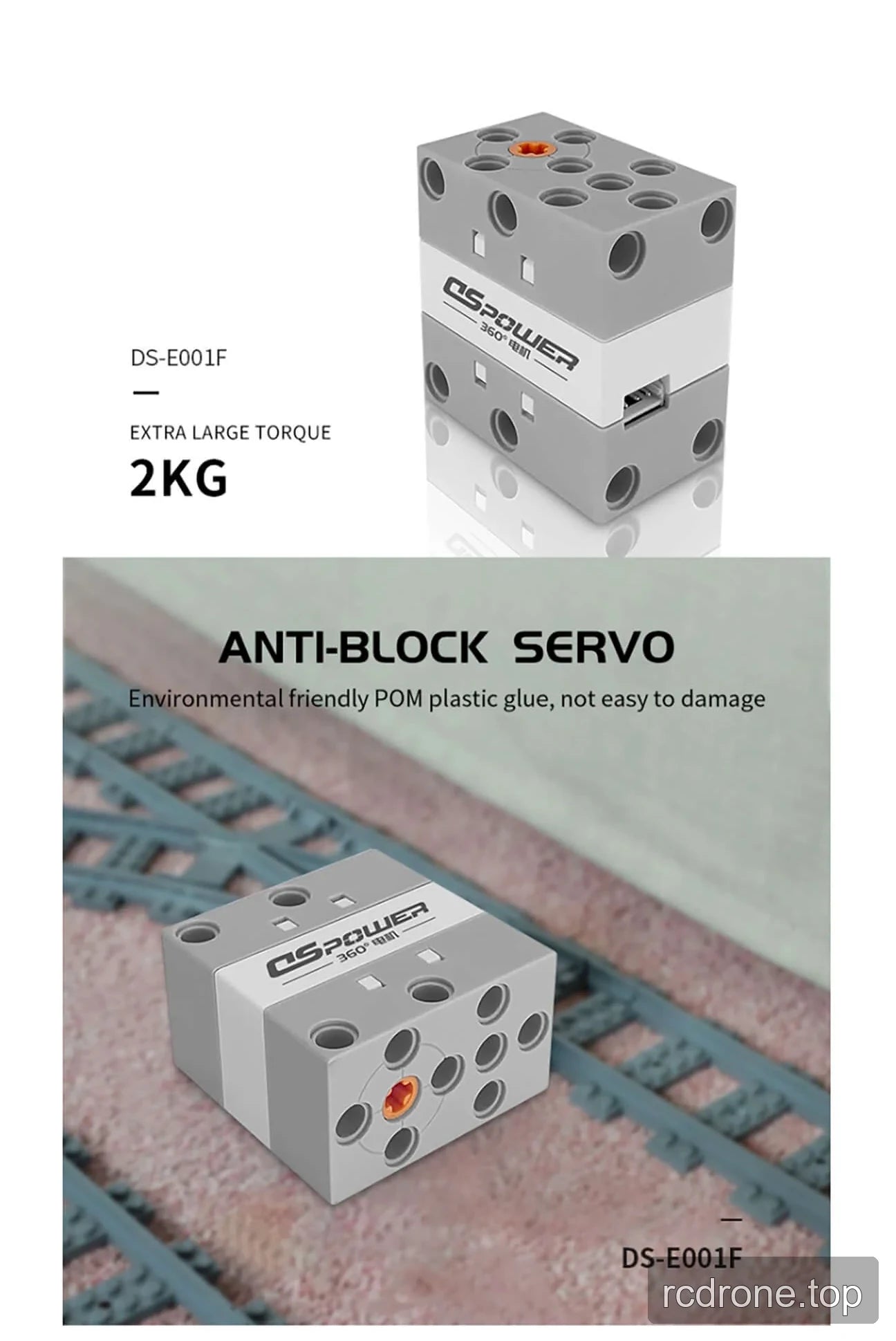

The DSpower DS-E001F is a 360° continuous-rotation block servo for building-block projects, STEM education, LEGO kits, and small robotic projects. It operates from 6.0–9.0 V DC and is specified at 110 ± 10 rpm with no load at 7.4 V. The model is labeled LEGO compatible and uses a self-contained cross output shaft.

Features

360° continuous rotation

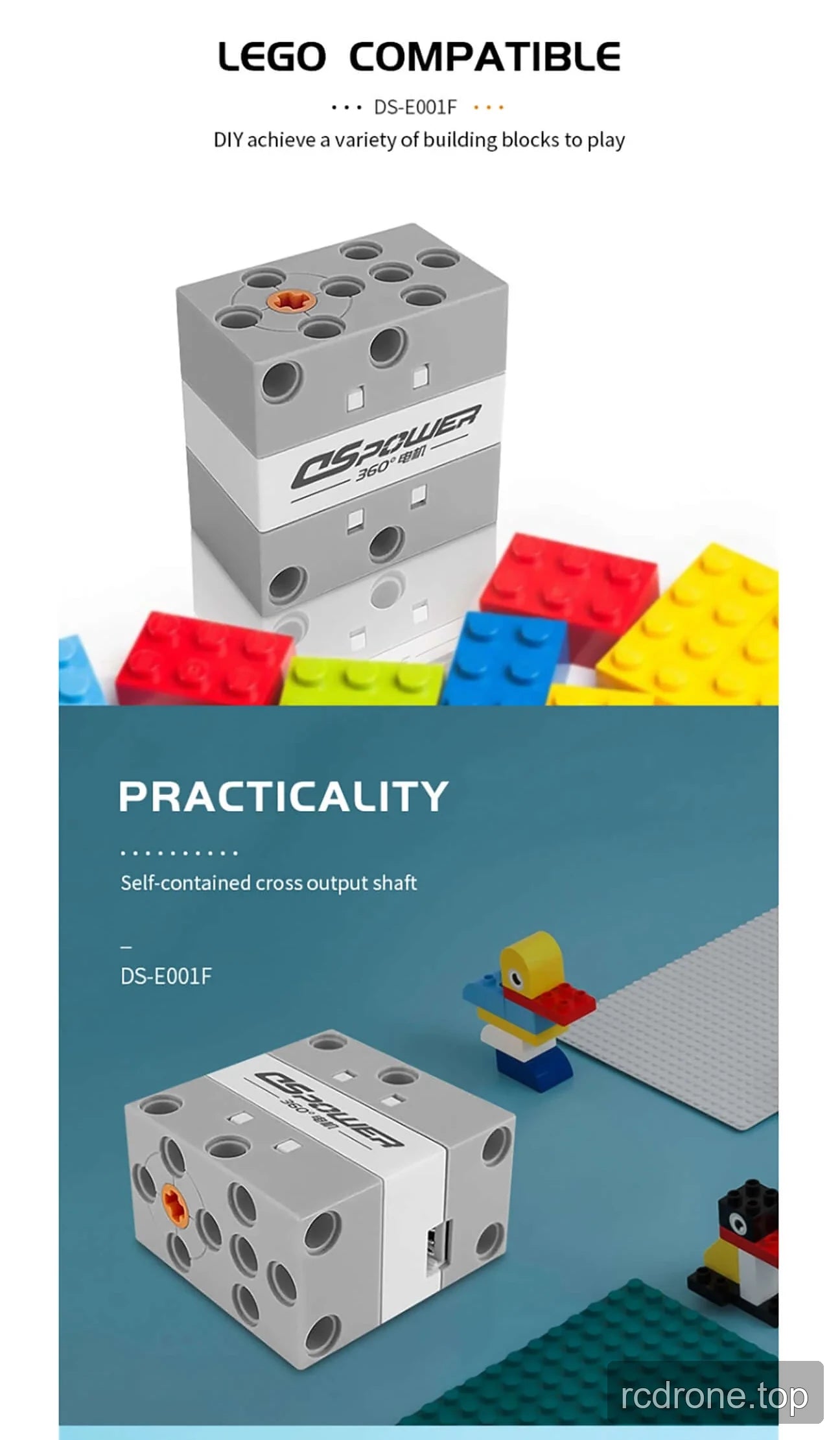

Labeled LEGO compatible for building-block projects and LEGO kits
Self-contained cross output shaft

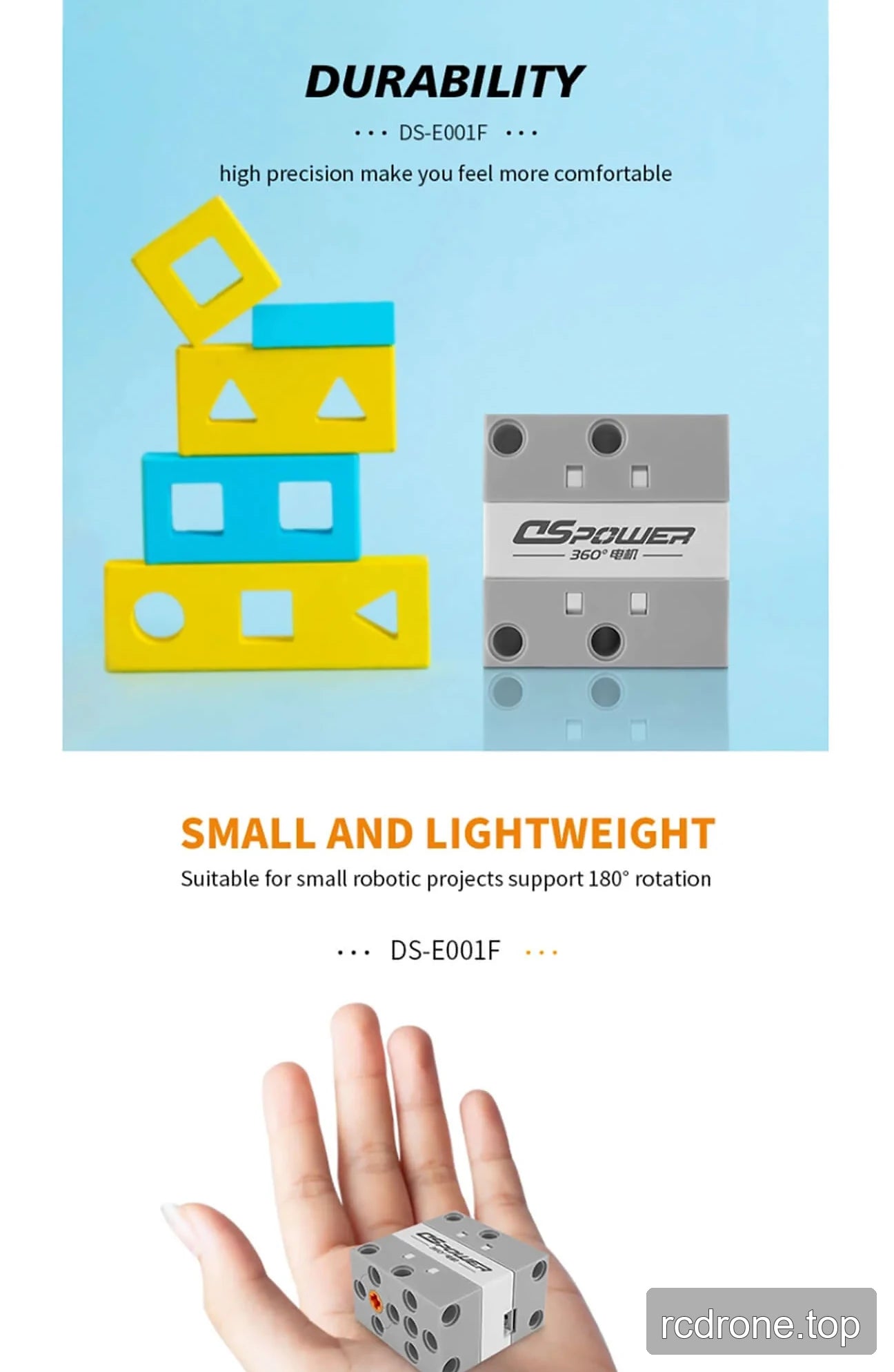

Small and lightweight 29.5 ± 0.5 g design

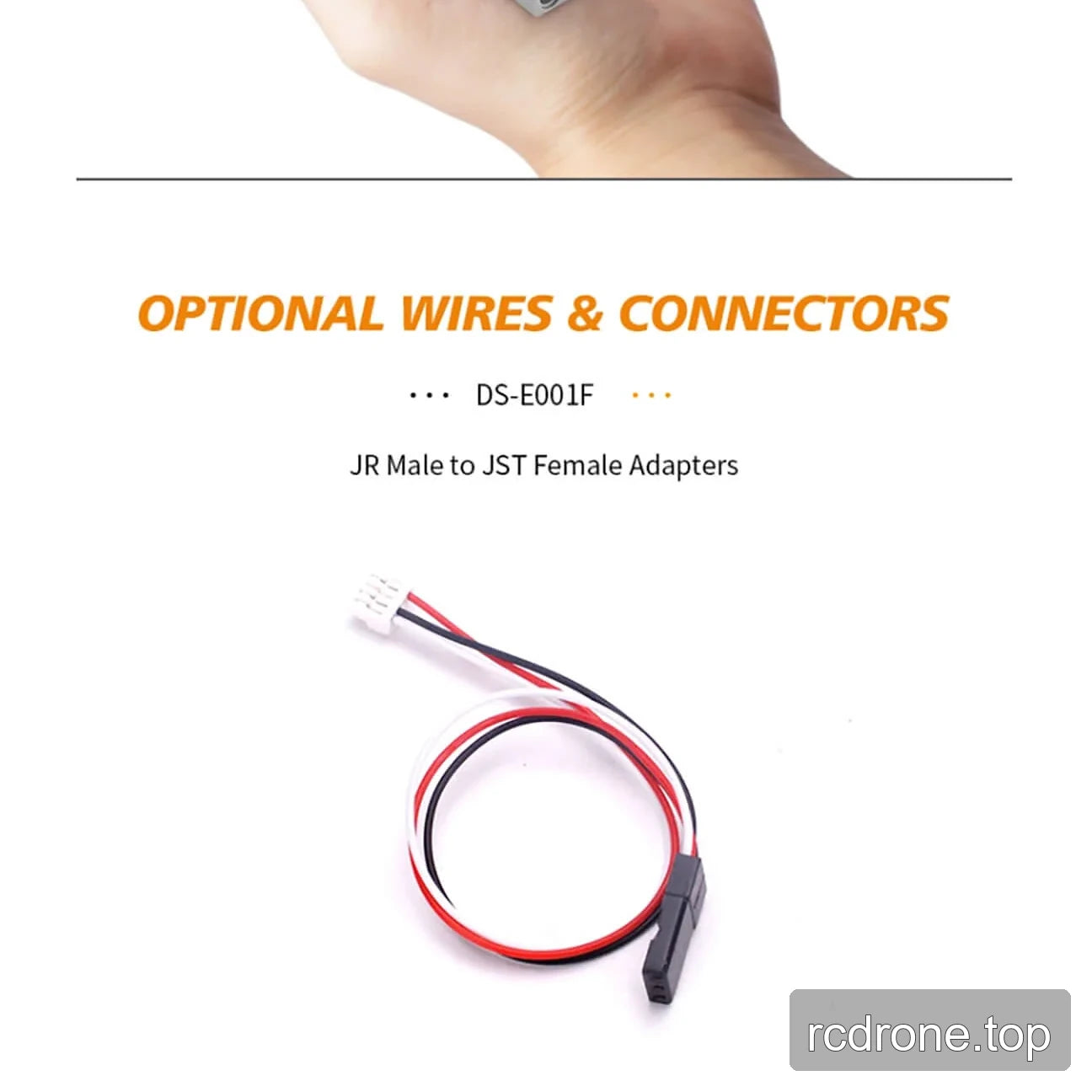

Optional wiring/connector configuration identified: JR male to JST female adapter

Specifications

Parameter	Value
Operating Voltage	6.0–9.0 V DC
No Load Speed	110 ± 10 rpm at 7.4 V
No Load Current	≤150 mA at 7.4 V
Stall Current	≤1.0 A at 7.4 V
Stall Torque	≥1.5 kgf·cm at 7.4 V
Pulse Width Range	500 / 1500 / 2500 μs
Operating Travel Angle	360°
Mechanical Limit Angle	360°
Weight	29.5 ± 0.5 g
Case Material	ABS
Gear Set Material	POM
Motor Type	Core Motor

Applications

Building-block projects, LEGO kits, DIY builds, and STEM education: continuous rotation supports rotating mechanisms and motion assemblies.
Small robotic projects: use as a rotational actuator in designs operating from 6.0–9.0 V DC.
Robot platforms: presented for humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots.

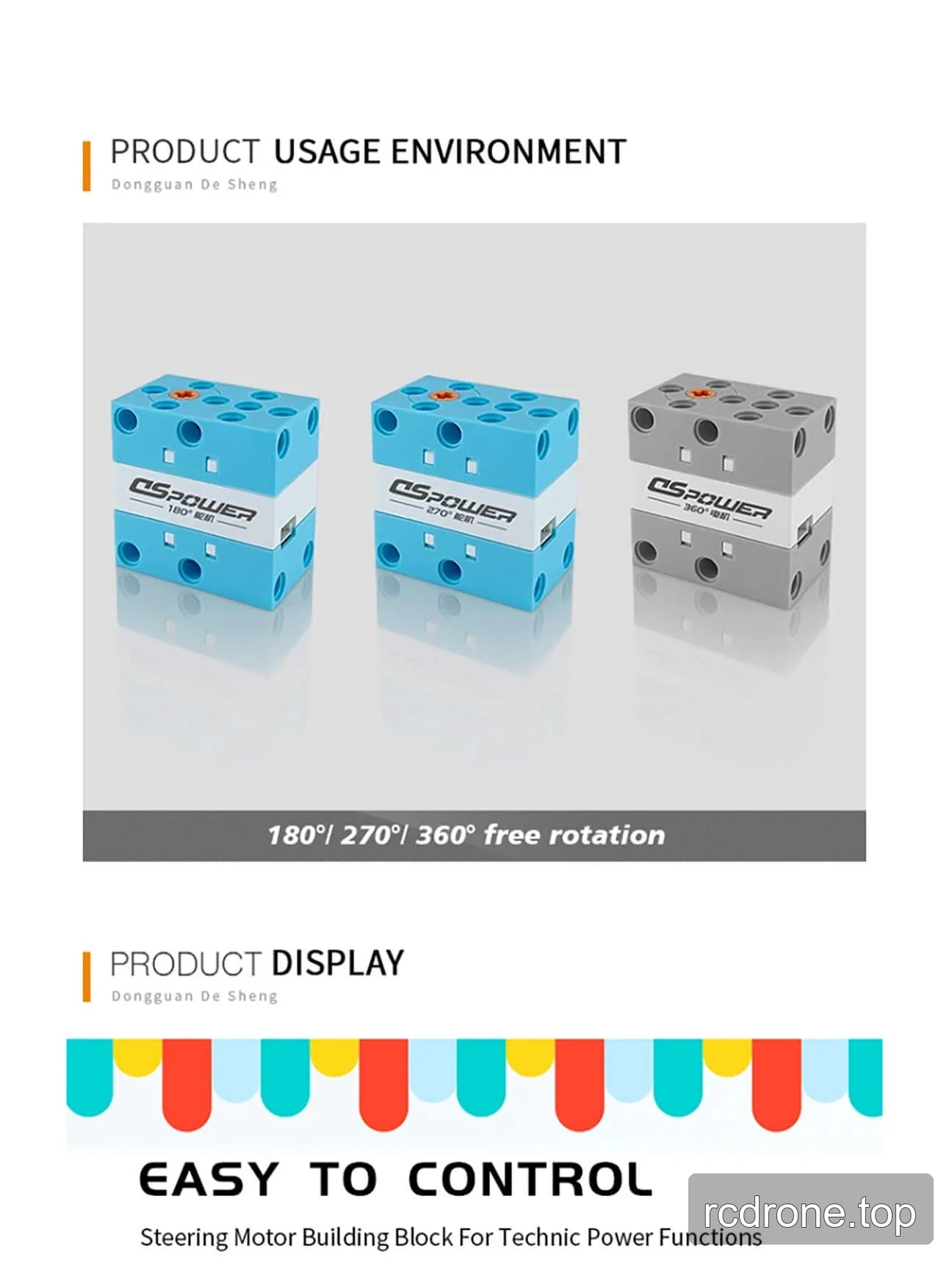

Technic power functions: presented as a steering-motor building block.
