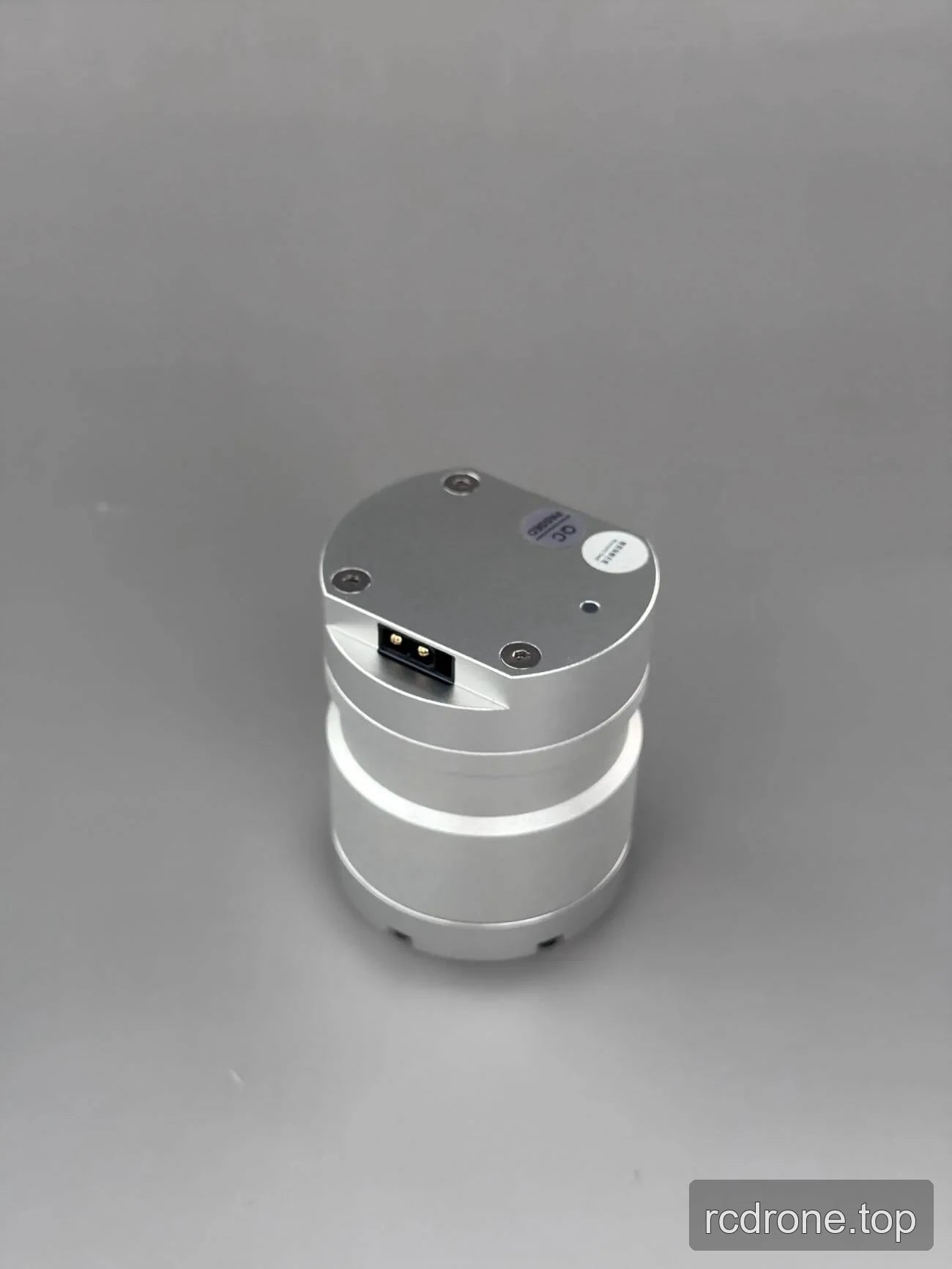

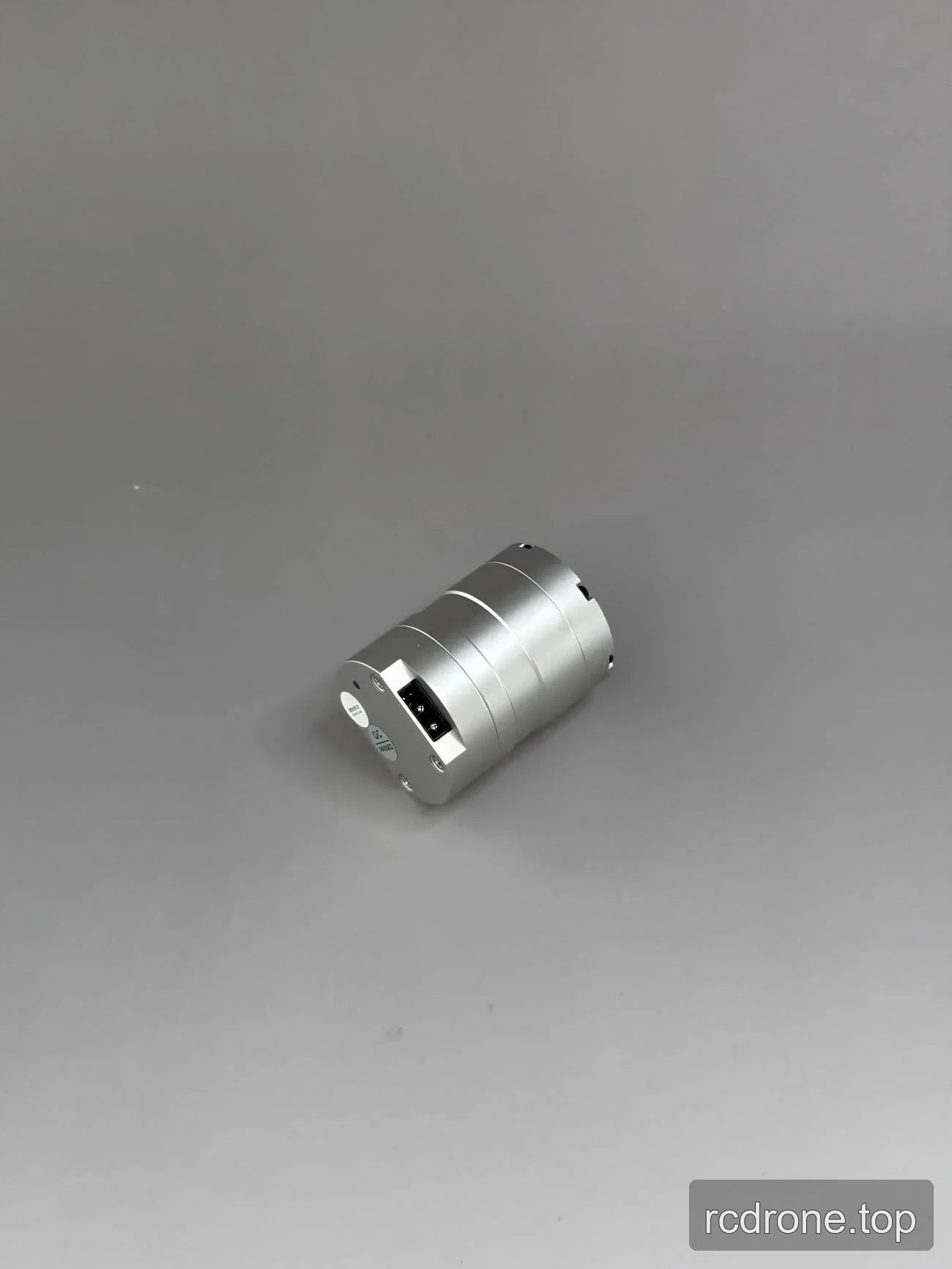

EYOU PP08 24 V Brushless Torque Motor with 36:1 Planetary Gearbox

EYOU

$321.00 USD

Promotion Épuisé

Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Version PP08-36 PP08D-36

Quantité

Afficher tous les détails

Overview

The EYOU PP08 is a 24 V brushless torque motor series with a 36:1 planetary gearbox. Select PP08-36 or PP08D-36 according to the required installation configuration.

Features

Brushless torque motor with planetary gearbox.
24 V operating voltage and 36 W maximum power.
36:1 reduction ratio, 50 rpm rated speed, and 1 N·m rated torque.
Rated torque constant of 1.1 N·m/A.
12 arcmin backlash and noise below 70 dB.
Operating temperature range: -20 to 80 °C.

Specifications

Parameter	PP08-36	PP08D-36
Motor type	Brushless torque motor	Brushless torque motor
Gearbox type	Planetary gearbox	Planetary gearbox
Diameter	40 mm	40 mm
Listed length	52 mm	48 mm
Weight	190 g	199 g
Reduction ratio	36:1	36:1
Backlash	12 arcmin	12 arcmin
Noise	<70 dB	<70 dB
Temperature range	-20 to 80 °C	-20 to 80 °C
Operating voltage	24 V	24 V
Maximum power	36 W	36 W
Rated speed	50 rpm	50 rpm
Rated torque	1 N·m	1 N·m
Peak torque	2.2 N·m	2.2 N·m
Torque constant	1.1 N·m/A	1.1 N·m/A
Axial load capacity	1284 N	1284 N
Radial load capacity	2520 N	2520 N

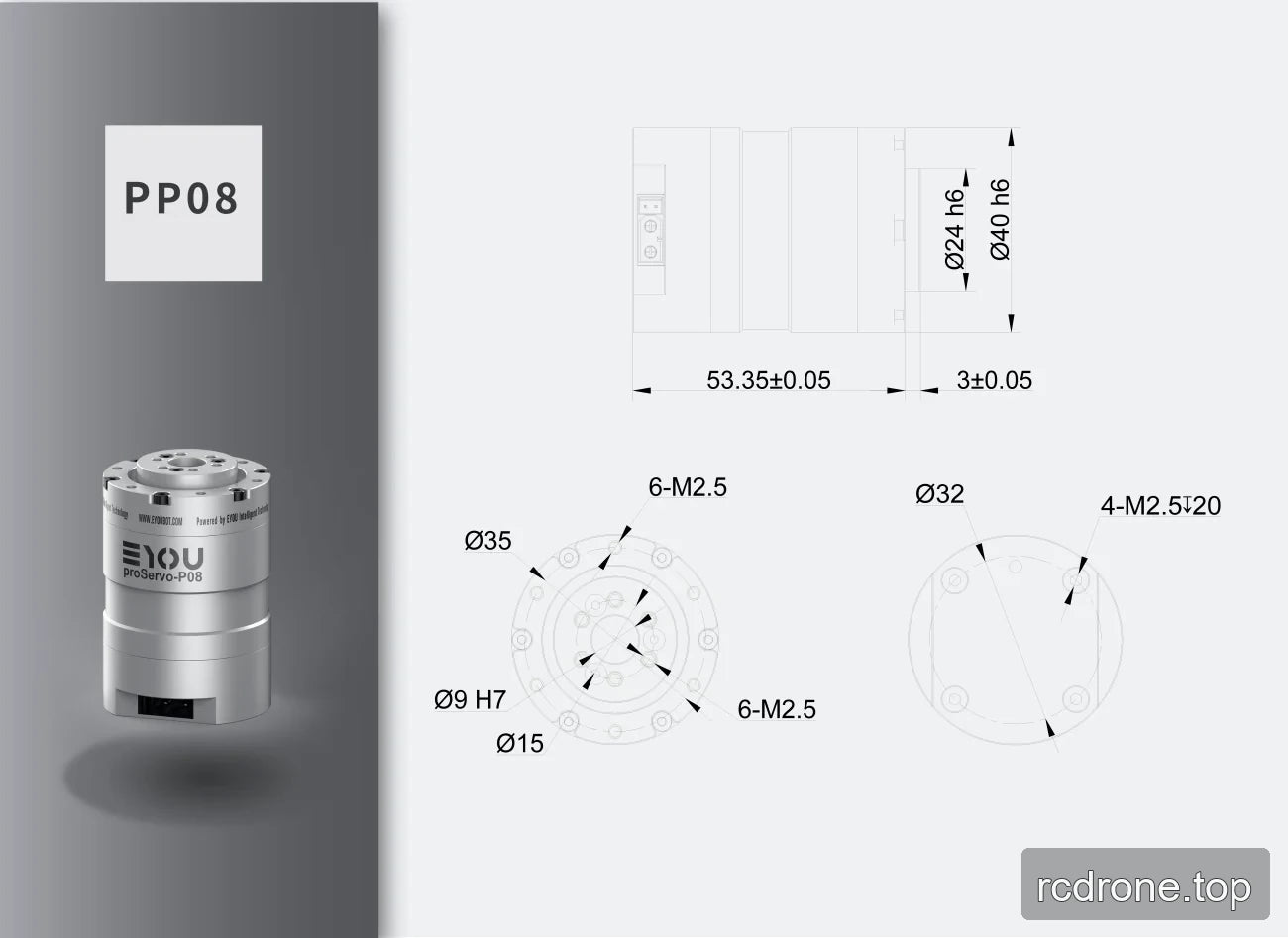

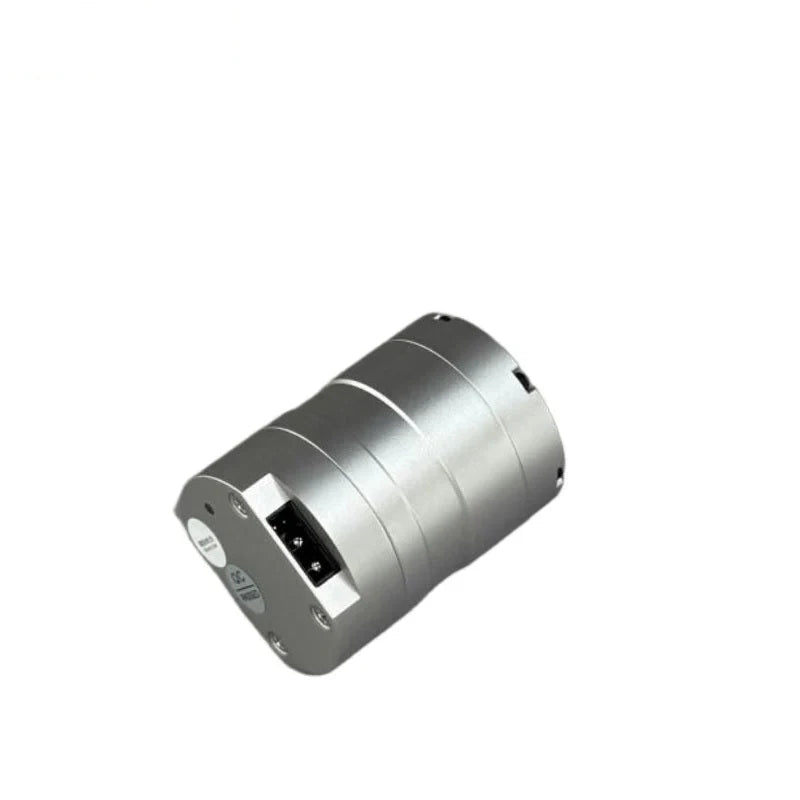

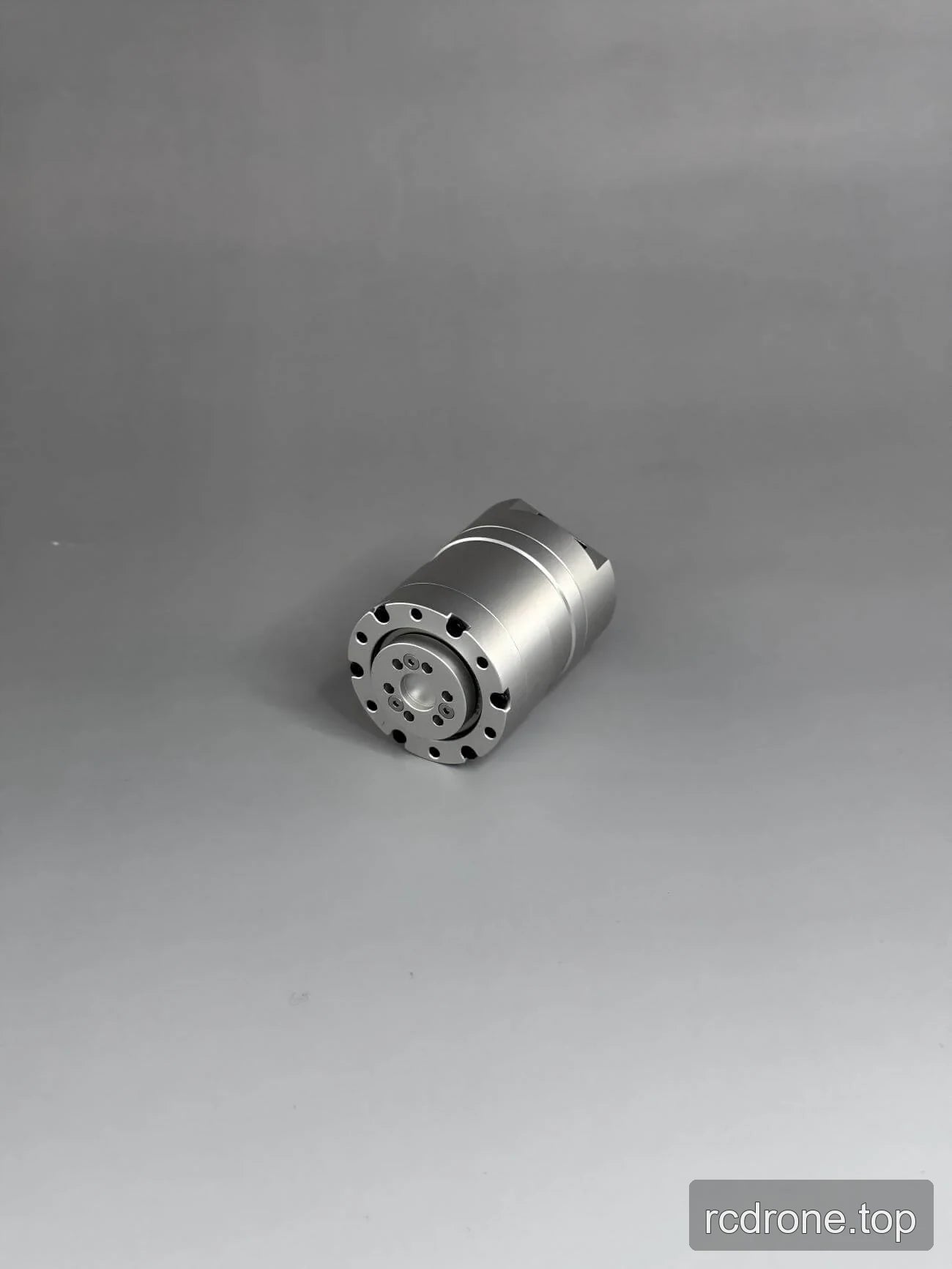

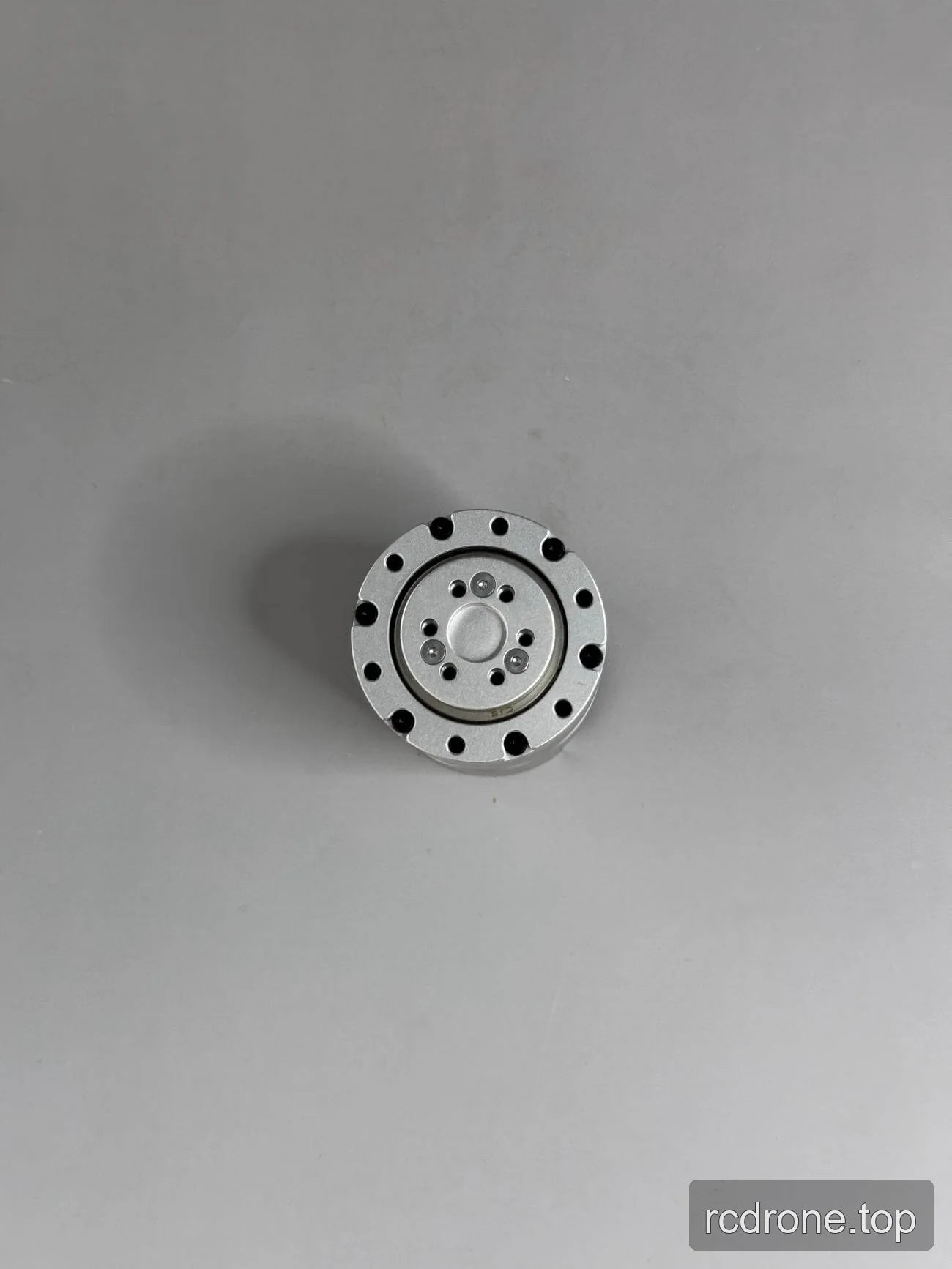

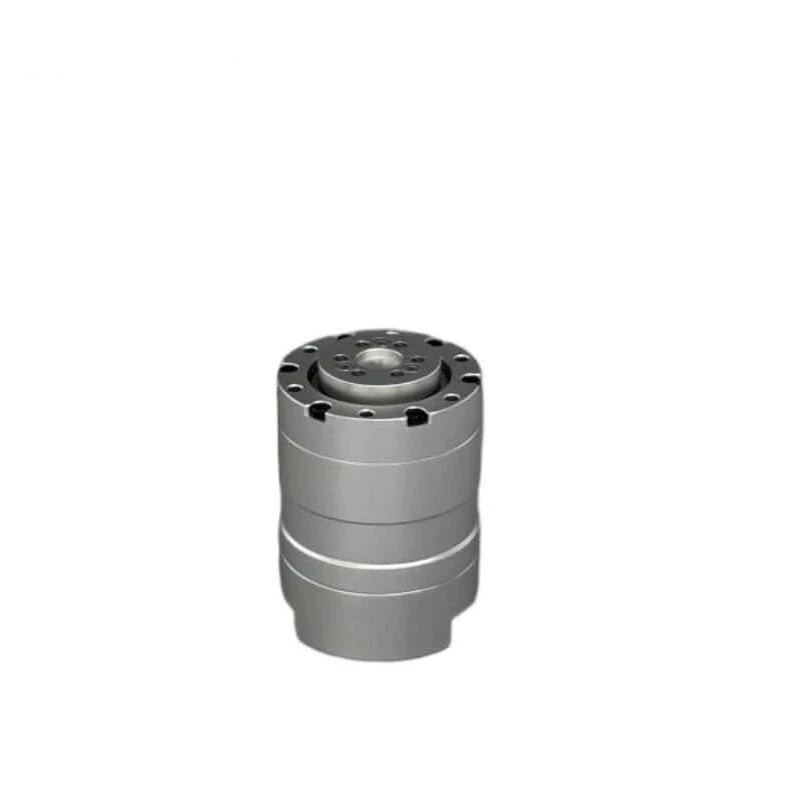

PP08-36 Installation Dimensions

Axial dimensions: 53.35 ± 0.05 mm and 3 ± 0.05 mm.
Diameters and bore: Ø24 h6, Ø40 h6, Ø35, Ø9 H7 bore, and Ø15.
Mounting holes: six M2.5 threaded holes on one face; four M2.5 threaded holes, 20 mm deep, on the opposite face.

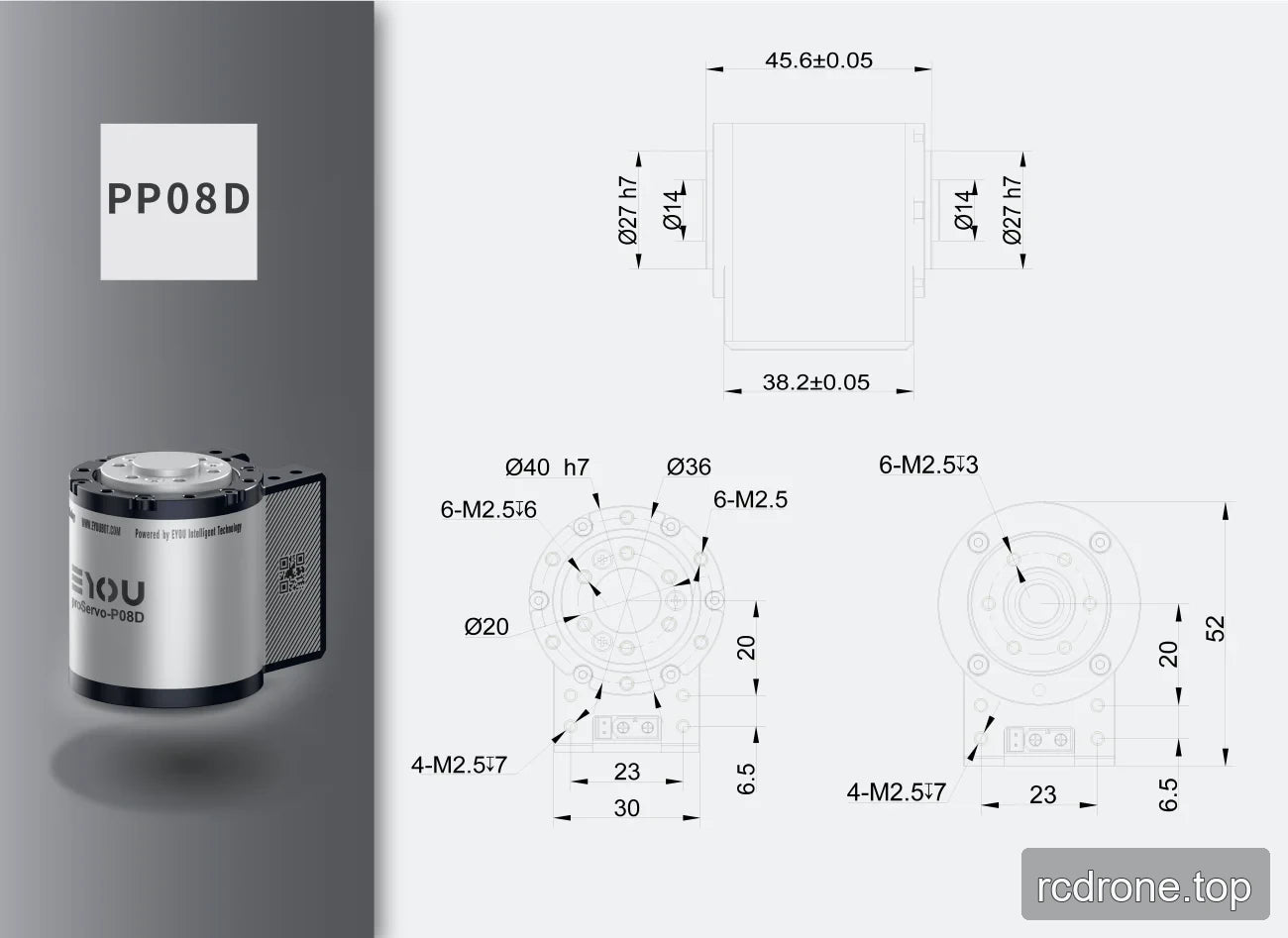

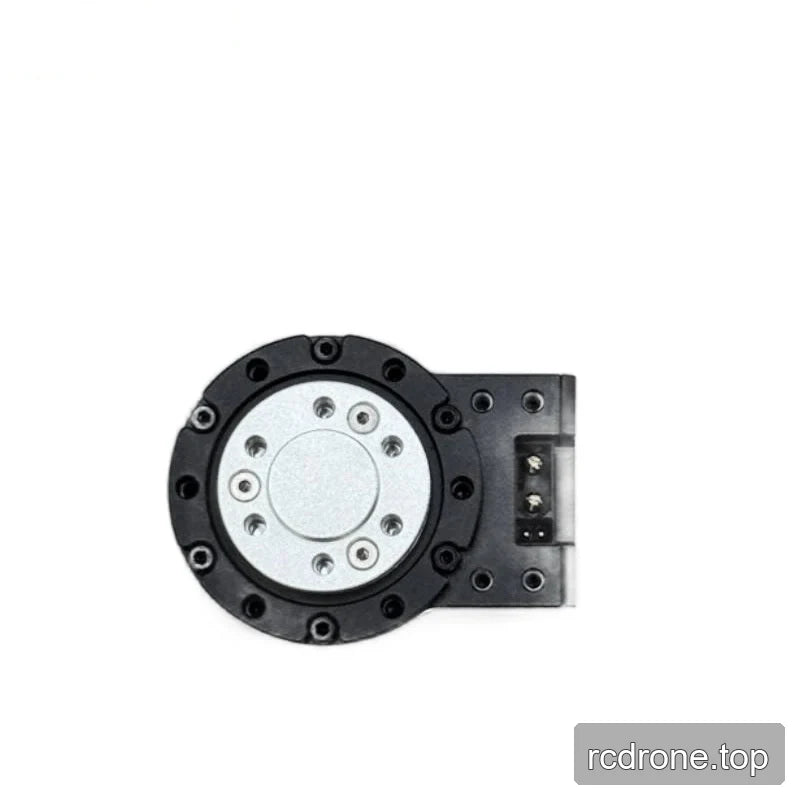

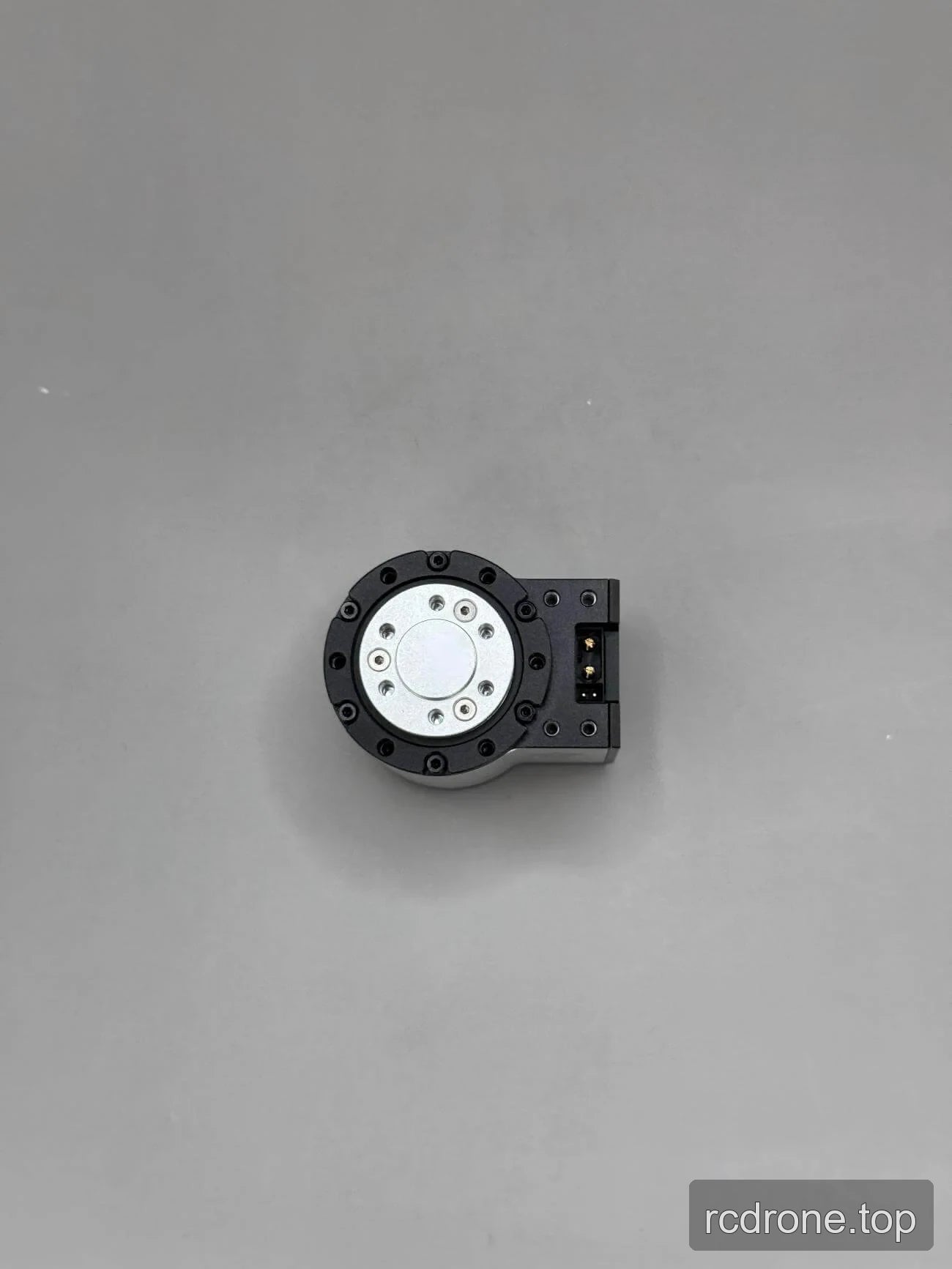

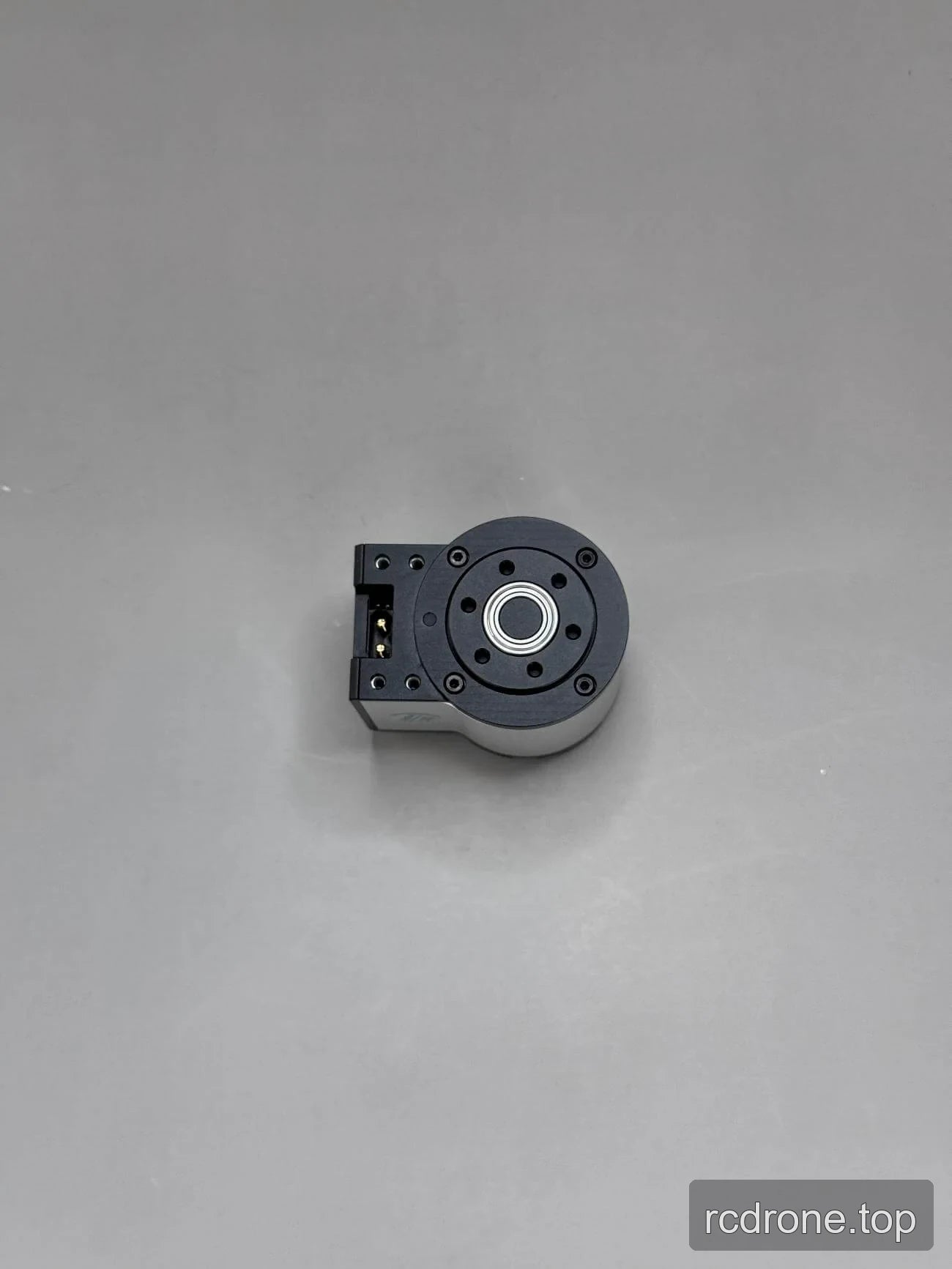

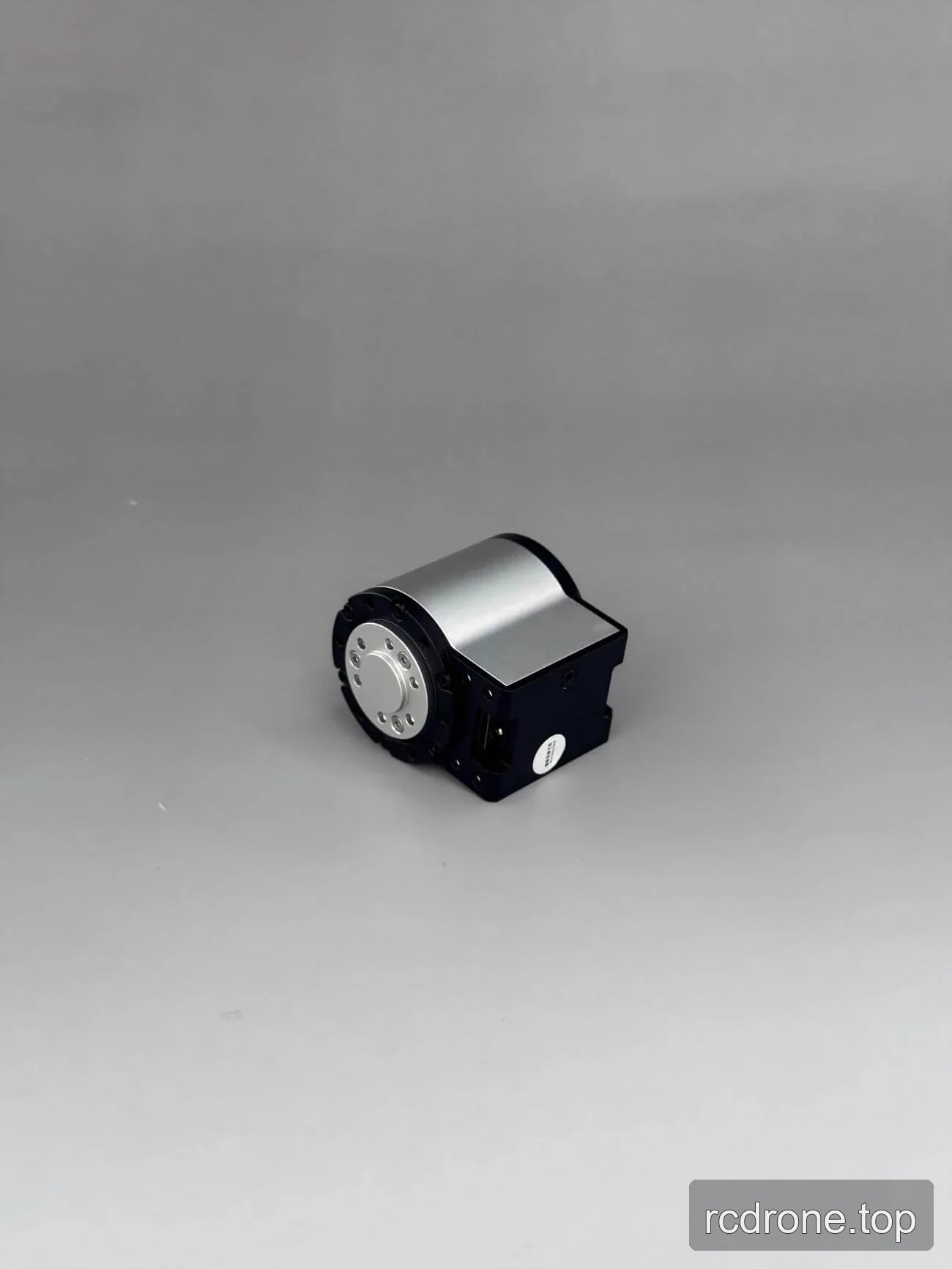

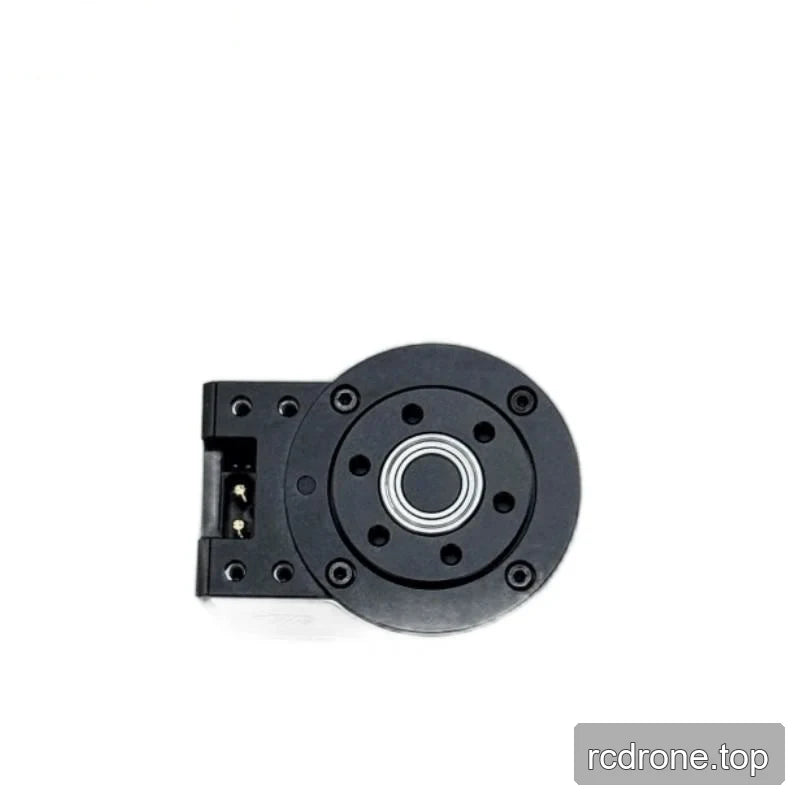

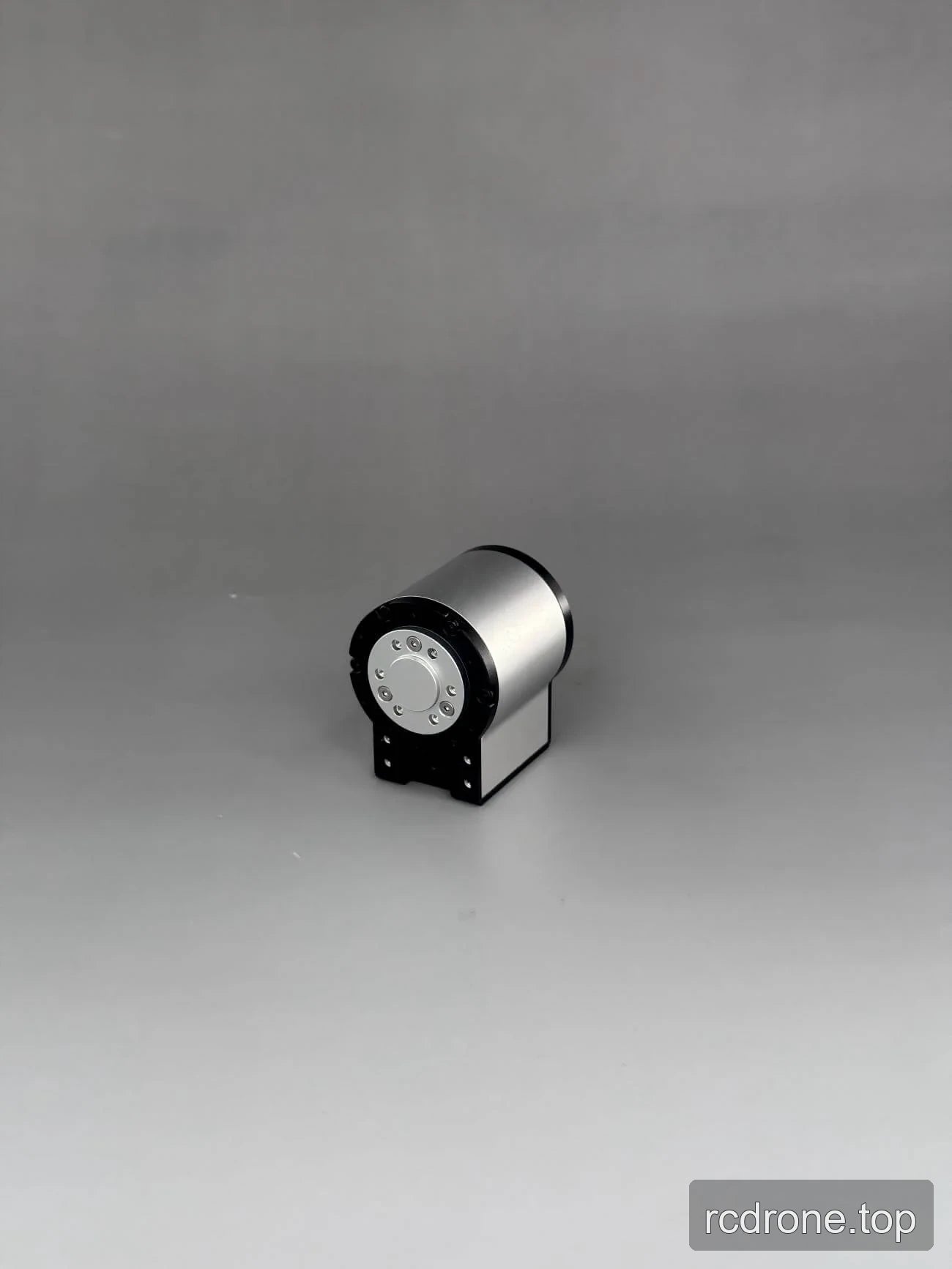

PP08D-36 Installation Dimensions

Axial dimensions: 45.6 ± 0.05 mm and 38.2 ± 0.05 mm.
Diameters: Ø27 h7 and Ø14 at each side of the motor body; Ø40 h7; Ø36; and Ø20.
Overall height: 52 mm, including a 20 mm section and a 6.5 mm lower section.
Base dimensions: 30 mm base width and 23 mm inner width.
Mounting holes: six M2.5 threaded holes, 6 mm deep; six M2.5 threaded holes, 3 mm deep; and four M2.5 threaded holes, 7 mm deep.
